The Frontier© DH Series Disk Harrows have self-aligning, sealed bearings to keep dirt out for dependable, maintenance-free performance and longer life.

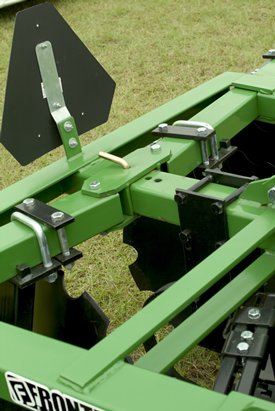

Disk gangs are easily adjustable to match changing soil conditions. Use a more aggressive angle to tear up and penetrate rough and uneven soil. Reduce the angle for smoother final seedbed preparation.
The iMatch system converts the tractor's 3-point hitch to fixed hooks and makes attaching implements super quick.
NOTES:
Choose notched or spherical blades with cast spools for the Frontier DH11, DH12, and DH13 Series Disk Harrows.
Notched blades aggressively cut and mulch, while spherical blades slice and mix residue for a smoother finish.
There are three blade configurations:
The scraper kit removes soil buildup from disk blades in wet, sticky soil types.
Warranty | |
W | w |
Weight | |
Operating | 299.4 kg 660 lb |
Shipping | 342.5 kg 755 lb |
Gang axle | |
Type | Square |
Hitch | |
Category | Cat. 1 |
Blade | |
Spacing | Front 19.1 cm 7.5 in. Rear 19.1 cm 7.5 in. |
Bearing hanger | |
Size | 12.7 mm 0.5 in. |
Blade | |
Thickness | 3 mm 0.1181 in. |
Quantity | 16 |
Gang axle | |
Diameter | 25.4 mm 1 in. |
Bearing hanger | |
Material | Reinforced formed steel plate |
Gang angles | |
Front | 2, 9, 13, 24 degree (angle) |
Rear | 5, 11, 20, 27 degree (angle) |
Tubing | |
Frame | 76.2x76.2x3 mm 3x3x0.1196 in. and 76.2x76.2x4.8 mm 3x3x0.1875 in. |
Gang | 76.2x76.2x4.8 mm 3x3x0.1875 in. |
Bearing hanger | |
U-bolt size | 15.9 mm 0.625 in. |
Bearing type | Self-aligning sealed ball bearing in pre-riveted flange |
Set-up time | |
