Grooming Mowers
FM10 Series
Eight-gauge reinforced steel deckCutting height from 2.5 cm to 12.7 cm (1 in. to 5 in.)Quick-detach chain shield assemblyiMatch™ quick-hitch compatible
FM20 Series
Cutting widths: 3.7 m (12 ft), 4.6 m (15 ft), and 5.2 m (17 ft)Cutting heights: from 2.5 cm (1 in.) to 12.7 cm (5 in.)8-gauge, 4.18-mm (0.164-in.) reinforced mower decksPneumatic tires put less
FM21 Series
Cutting widths: 3.7 m (12 ft), 4.6 m (15 ft), 5.2 m (17 ft), and 6 m (20 ft)Cutting heights range from 2.5 cm (1 in.) to 12.7 cm (5 in.)Extra-heavy-duty transport frame8-gauge, 4.18-mm (0.164-in.)
FM30 Series
Go with the Flex-Wing Grooming Mowers for a quality cut over uneven fields. Features wider working widths to make quick work at sod farms, golf courses, and parks. Gearbox comes with 3-year
GM10 Series
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields, and golf courses. 11-gauge, 3.03-mm (0.12-in.) reinforced deck Single belt
GM10E Series
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields, and golf courses. 11-gauge, 3.03-mm (0.12-in.) reinforced deck Single belt
GM11 Series
7-gauge, 4.55-mm (0.179-in.) steel deckQuick-change, free-swinging bladesiMatch™ quick-hitch compatible with conversion kitReplaceable skid shoes
GM11 Series Grooming Mowers
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields and golf courses. 4 - 9 ft. (1.2 - 2.8 m) cutting widthsSingle- or dual-belt
GM21 Series Grooming Mowers
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields, and golf courses. 5 - 9 ft. (1.5 - 2.8 m) cutting widthsSingle- or dual-belt
GM30 Series
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields, and golf courses. Caster wheels follow ground contours and prevent
Handling
BC11 Series
Adjustable bale arm fits top diameter of 60- to 72- inchesLow-profile design improves visibilityPush bar moves bales to rearWalking beam axles and tires provide smoother ride

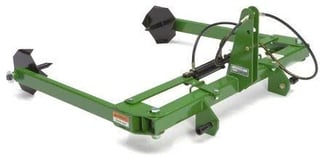

BU10 Series
Structural, tubular frameHitch connects quickly and easilyEasy hydraulic operation

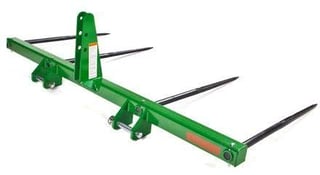

HS20 Series
Forged-steel bale spear tinesHitch provides a super-quick connectionTubular frame is built strong

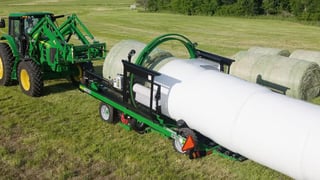

LW11 Series
Bale push is integrated into machineWrapping cycle shuts down when out of film120 bales per hourCentral control box operates all hydraulic functions

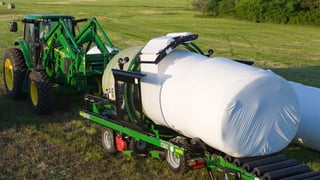

LW12 Series
Bale push is integrated into machineWrapping cycle shuts down when out of film120 bales per hourCentral control box operates all hydraulic functions
Hay and Forage

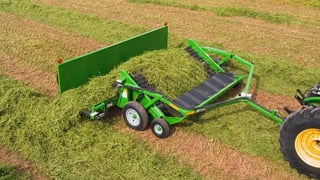

HM11 Series
Adjustable head heightPlastic teeth prevent metal debrisTail wheel works in uneven fieldsHydraulic aftermarket kits

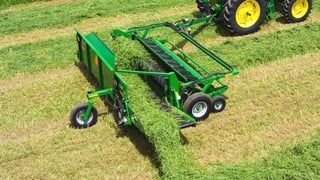

HM12 Series
Adjustable head height optimizes performanceControl box allows a variety of remote functionsPlastic teeth prevent metal from entering cropsTail wheel works perfectly in uneven fields
Hay Tedders

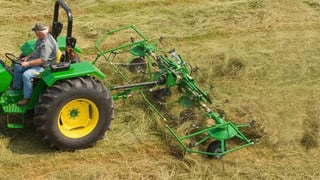

TD13 Series
DigidriveTM drive system ensures maximum lifeHydraulic working angle adjustmentDurable Steel tinesBalloon tires operates smoothly on bumpy ground
TD34 Series
Finger joint drive systemHydraulic tine pitch controlHydraulic fold for easy transportHands-free locking transport wheels
Mowing

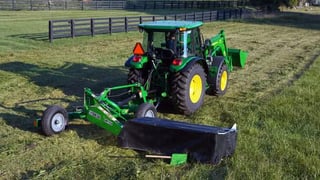

DC10 Series
Adjustable height clevis hitchHydraulic lift 3-point hitchRibbed tires for smooth ride

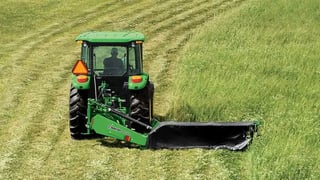

DM50 Series
Rope System transport latchQuick-remove shear hub assemblyDM5050 & 5060 iMatch and Quick Coupler compatibleDM5070 Cat. 2 Quick Coupler compatible

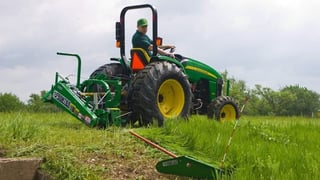

SB31 Series
Belt-driven cutter bladesAdjustable skid shoesCutting arm flexes up to 90 degrees, or as low as -45 degreesiMatchTM compatible
Rakes

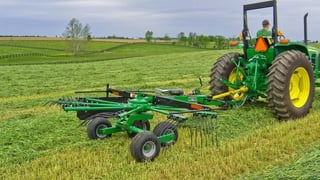

RR21 Series
Cam-action tine armsHeavy-duty curtainHydraulic rake adjustmentsTandem flotation tires

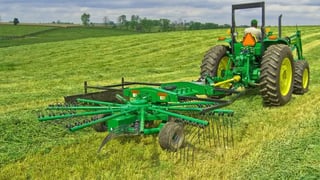

RR22 Series
Cam-action tine armsHeavy-duty curtainHydraulic rake adjustmentsTandem flotation tires

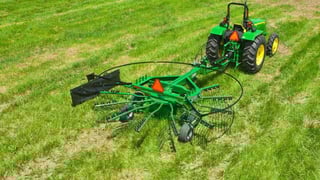

RR23 Series
Cam-action tine armsRugged 13-arm rotor with adjustable camAdjustable swath curtainRake adjustments are easy

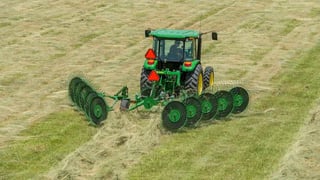

WR00 Series
Easy adjustmentsTwo-arm, left, and right side only raking8, 10, and 12 wheel models Optional center kick wheel

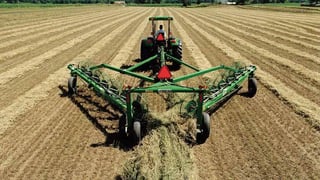

WR12 Series
Offset wheels for smooth, level rakingHydraulic aftermarket kitsEasy windrow width adjustmentOptional center kicker wheel

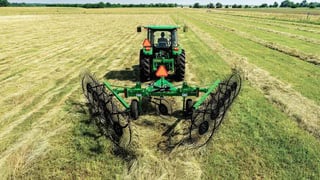

WR31 Series
High capacity design reduces crop pluggingLarge rake wheels minimize leaf lossRake with one or both arms as neededOptional center kicker wheel

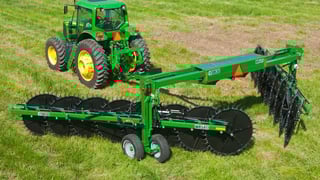

WR54 Series
EasilyAdjustable raking beamsFree-floating rake wheels29-ft. maximum raking widthMaster control system controls various rake wheel functions from inside cab
Rotary Cutters

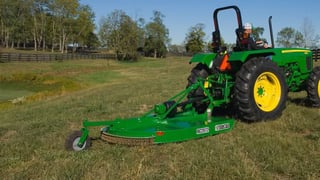

RC20 Series
Easy-to-maneuverAdjustable cutting heightBalanced blade panPuncture-resistant rear tires
Utility Tractors Attachments Accessories
AB11 Series
Quick and easy attachmentReplaceable tinesRugged tubular frame enhances durabilitySee brochure for loader series compatibility

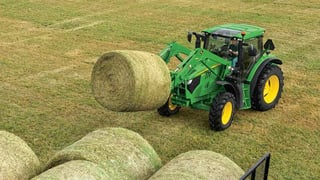

AB12 Series
Rugged, tubular frame enhances durabilityQuick, easy attachmentReplaceable spearsSee brochure for loader series compatibility
AB13 Series
Quick and easy attachmentReplaceable tinesRugged tubular frame enhances durabilitySee brochure for loader series compatibility
AB14A Series
Quick, easy connectionRugged, tubular frameReplaceable spears for extended implement lifeSee brochure for loader series compatibility

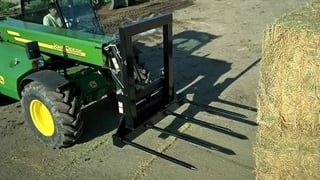

AB15 Series
Quick, easy connection for the operatorReplaceable spears extend overall implement lifeSee brochure for loader series compatibility

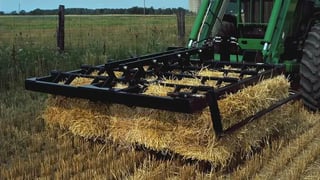

AB16 Series
Adjustable guide barQuick, easy attaching systemsEase of loading and handling of balesSee brochure for loader series compatibility

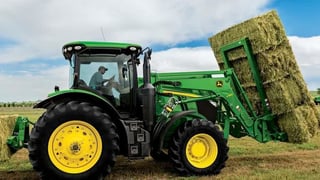

AB18K Series
Compatible with John Deere H480 Series Loader and is Global Category 2 compatible.Cross-bolt design greatly improves quality of the bale spears.Designed for easy tine replacement.
AD11 Series
Heavy-duty grapplesQuick, easy attachment

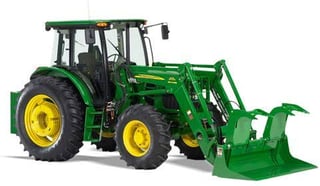

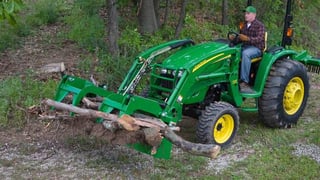

AD12 Series
Heavy-duty grapplesSuper quick connection

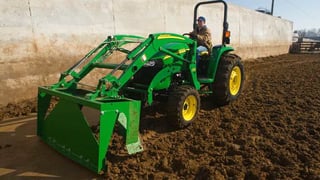

AE11 Series
Rubber edge is reversible and replaceableOptional bolt-on back drag for tight areasAttachment carrier removes quickly and easilySee brochure for loader series compatibility

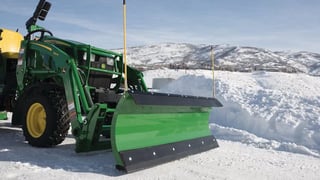

AF10F
Reversible cutting edgesTrip-edge protectionOptional skid shoesOptional hydraulic angle adjustment unit available for AF10 (F)

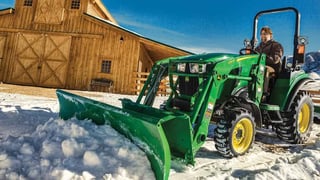

AF11E Series
Reversible cutting edgesQuick and easy attachment Heavy-duty frameOptional hydraulic angle adjustment

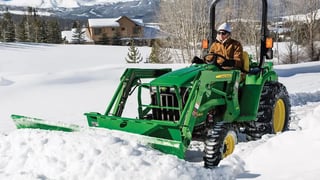

AF11G Series
Reversible cutting edgesHeavy-duty frameQuick and easy attachment

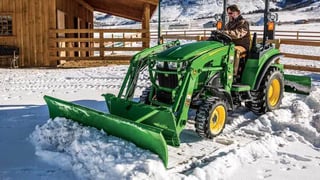

AF12D Series
Reversible cutting edgesFrame is heavy-dutyHydraulic angle adjustmentQuick and easy attachment

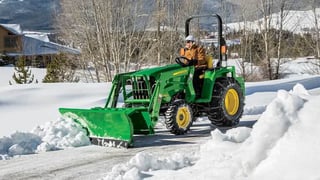

AF12G Series
Reversible cutting edgesFrame is heavy-dutyHydraulic angle adjustmentQuick and easy attachment

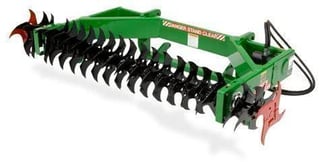

AG10 Series
| Cutting tooth |
|---|
| / |

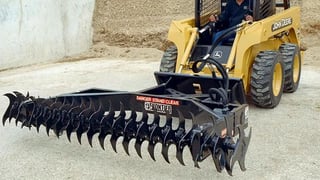

AG11 Series
| Cutting tooth |
|---|
| / |

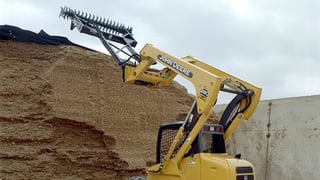

AG12 Series
| Cutting tooth |
|---|
| / |

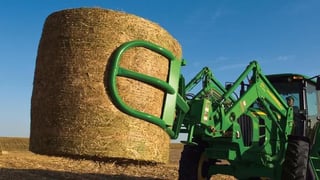

AH11
Single cylinder for even bale hugHitch capabilities for super-quick connectionSee brochure for loader series compatibility

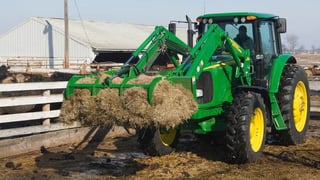

AM11 Series
Dual-acting single cylinderQuick, easy attachmentSee brochure for loader series compatibility

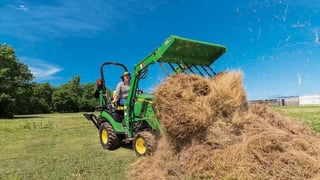

AM20 Series
Operating Width: 50 In.7 tines at 1.25 In. diameter solid round steel Multiple working widths to match tractor requirementsIncreased uptime with quick-change capability

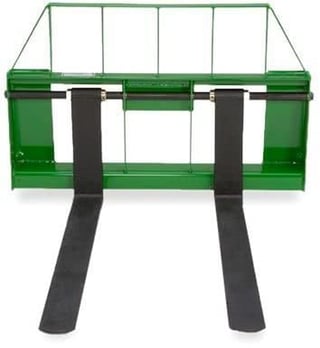

AP10 Series
| Fork tines |
|---|
| / |
AP11 Series
| Fork tines |
|---|
| / |

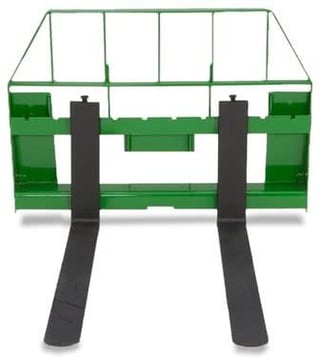

AP12 Series
| Fork tines |
|---|
| / |
AP13 Series
| Fork tines |
|---|
| / |

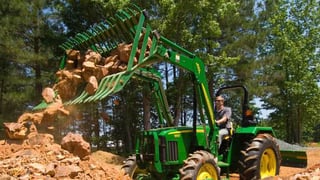

AR10 Series
Quick and easy connectionSee brochure for loader series compatibility
AR12 Series
Easy, quick connectionSee brochure for loader series compatibility

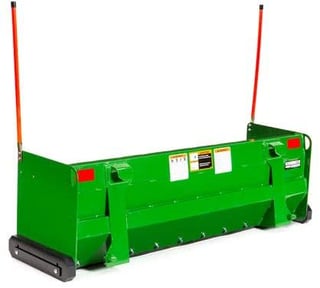

AS10F Series
Reversible cutting edgeHeavy duty welded steel end platesQuick-attach capability

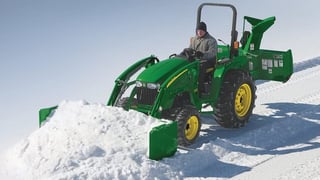

AS10H Series
Reversible cutting edgeWelded skid shoesRubber blade edges

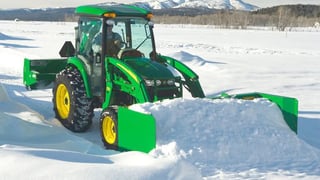

AS11E Series
Spring-loaded steel trip edgeBack drag attachmentField-installed rubber edge kit

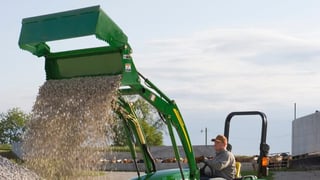

AY12 Series
Strong frame for added durabilityQuick and easy attachmentSerrated edge for secure movementStrong hinges for increased lifeSee brochure for loader series compatibility

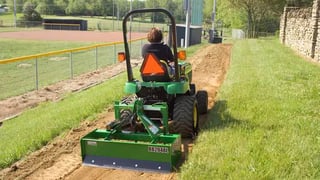

BB20L Series
Fixed back plate Fixed tailgateiMatchTM compatible Scarifier points

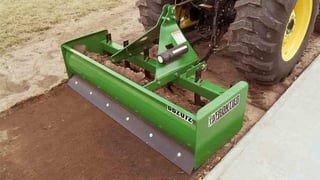

BB20 Series
Fixed back plate for added rigidityCutting edge is strategically positionedFixed tailgate helps in rough situationsScarifier has three depth adjustments

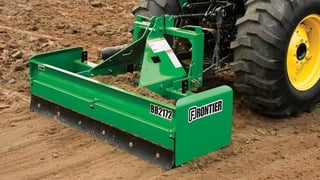

BB21 Series
Cutting edge is strategically positionedFloating tailgate helps in rough ConditionsMatch™ compatible for quick, efficient hookupScarifier has three depth adjustments

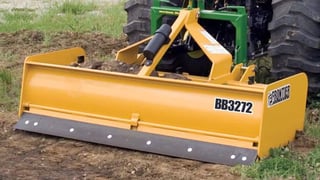

BB32 Series
Adjustable scarifier height to create the desired depthHinged tailgate for superior results Strong frame to conquer the toughest jobs Two distinct cutting edges

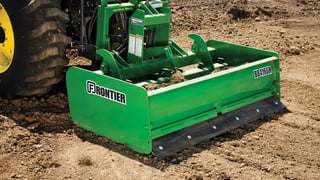

BB41 Series
Adjustable scarifier height Hinged tailgate for superior results Hydraulically adjustable scarifier beam Strong frame for toughest jobs

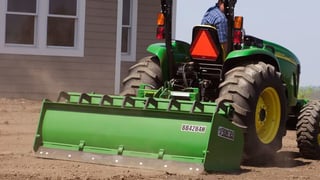

BB42 Series
Strong frame Adjustable scarifier heightHinged tailgate Hydraulically adjusted scarifier beam

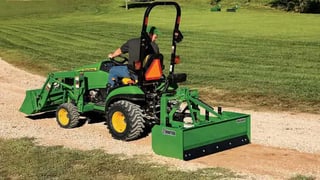

BB50L Series
Replaceable and adjustable ripper shanksiMatchTM compatibleReversible bladeFixed tailgate

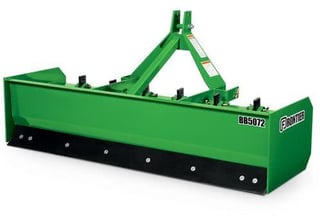

BB50 Series
Replaceable and adjustable ripper shanksiMatchTM compatibleReplaceable and reversible bladeFixed tailgate

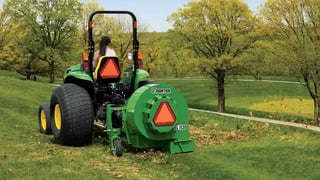

BL11 Series
Adjustable discharge outletCat. 1 iMatchTM and Cat. 2 Quick Hitch compatible

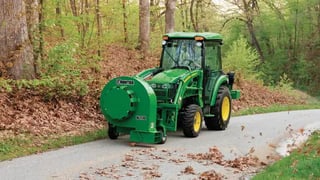

BL21 Series
Adjustable discharge outletSee brochure for loader series compatibility
BL11 Series
Adjustable discharge outletCat. 1 iMatchTM and Cat. 2 Quick Hitch compatible

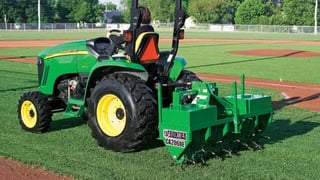

CA20E Series
Aerating spoons penetrate tough soilsBronze bushings iMatch™ hitch system Optional sand weight tanks

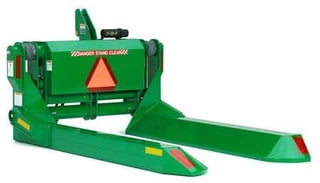

CM11 Series
Bellows protect the shaftsMast conversion kit

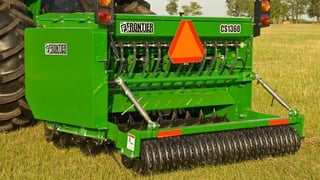

CS13 Series
Rear cultipacker ensures good seed-to-soil contactSeedboxes available in multiple configurationsGround-driven spiked front rollersiMatchTM compatible

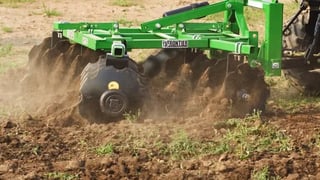

DH10 Series
Sealed bearings increase lifeNotched blades aggressively cut and mulch soilDisk gangs adjust to match soil conditionsiMatch™ compatible for quick connection

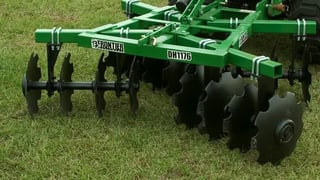

DH11 Series
Sealed bearings extend life and reduce maintenanceNotched or spherical blades for cuttingEasy-to-adjust disk gangsiMatch™ compatibility makes hookup fast and simple

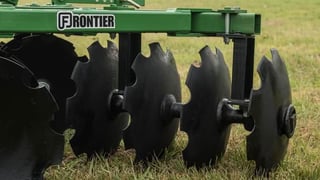

DH12 Series
Sealed bearings increase life and reduce maintenanceNotched or spherical bladesiMatch™ compatibleField-installed middle breaker kit

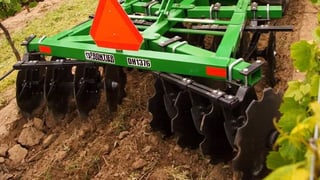

DH13 Series
Sealed bearings increase lifeEasy-to-adjust disk gangsiMatch™ compatible for quick assemblyScraper blade field conversion kits

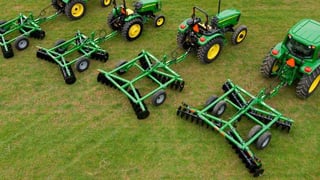

DH15 Series
Disk gangs adjust to match soil conditionsDisk leveling adjustable with a crankHydraulic controls raise and lower the diskField-installed middle breaker kit

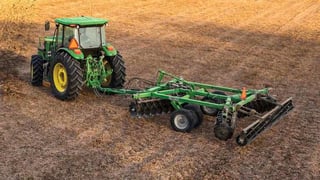

DH16 Series
Two-blade taper furrow fillerDisk leveling adjustable with a crankMiddle breaker cuts out center bulkHydraulic controls raise and lower the disk

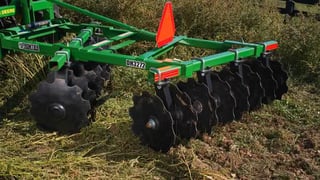

DH32 Series
Adjustable disk gang angles Optional adjustable blade scrapers for working in wet, sticky soilRear pressure self-leveling systemiMatchTM and Category 2 quick hitch compatible

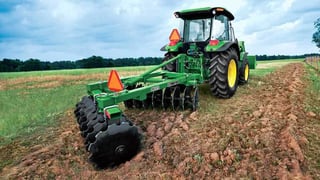

DH34 Series
Rear pressure self-leveling systemAdjustable front and rear gang angles Optional adjustable blade scrapers for working in wet, sticky soil iMatchTM and/or Category 2 quick hitch compatible

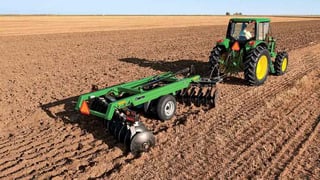

DH51 Series
| Disk blades |
|---|
| / |
| Frame |
| / |

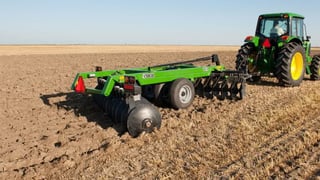

DH52 Series
| Disk blades |
|---|
| / |
| Frame |
| / |
DH52F Series
| Disk blades |
|---|
| / |
| Frame |
| / |

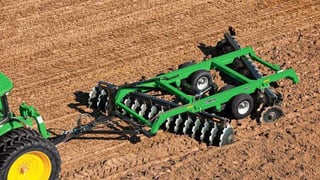

DH53 Series
Adjustable disk blade scrapersRear hitch for attaching additional implementTransport locks secure disk wingsOil bath tapered roller bearings minimize maintenance

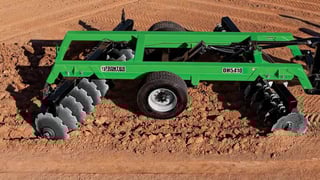

DH54 Series
Working widths range from 10-ft. to 14-ft.Adjustable disk blade scrapersOil bath tapered roller bearings minimize maintenance

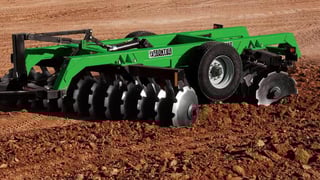

DH55 Series
Adjustable disk blade scrapersOil bath tapered roller bearings minimize maintenanceWorking widths from 10-ft. to 13.75-ft.

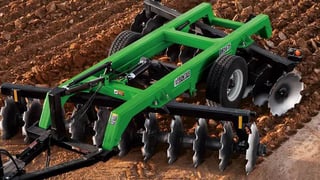

DH56 Series
| Disk blades |
|---|
| / |
| Frame |
| / |

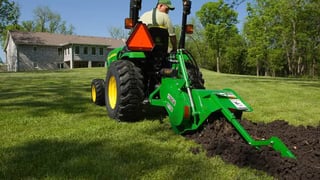

DT11 Series
14-in. discharge auger Durable chain for light-duty jobsiMatchTMcompatible
HP20 Series
| Hitch - Category |
|---|
| Category 1 |

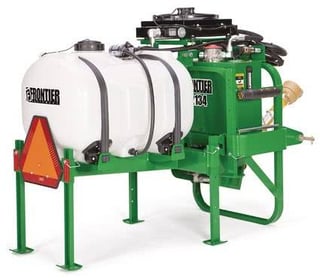

HP21
| Hitch - Category |
|---|
| Category 1 and 2 |

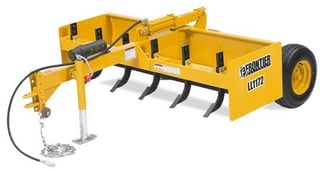

LL11 Series
Grading blade creates a cutting actionHydraulically control scraper heightManually adjusted scarifier

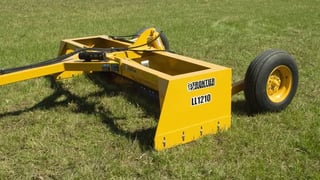

LL12 Series
Adjustable clevis hitchHydraulically control scraper height Internal braces and reinforcementsSide cutters

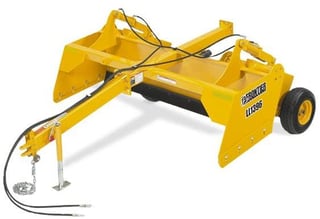

LL13 Series
Grading blade creates cutting actionHydraulically control scraper heightOptional hydraulic scarifier teethOptional rolling basket

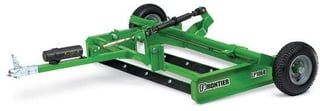

LP10 Series
Reversible cutting edges for extended wear lifeAvailable in two working widths – 1.2 m and 1.5 m (4 ft. and 5 ft.)

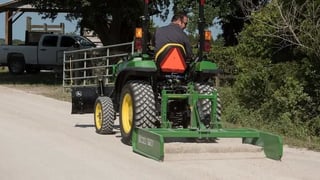

LP11 Series
iMatchTM compatibleReversible cutting edges

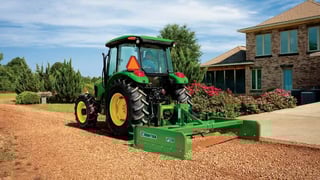

LP12 Series
Adjustable skid shoesScarifier kitScarifier shanks for ripping up hard ground

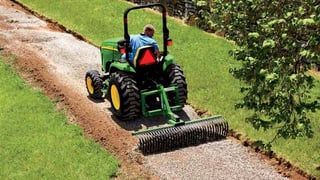

LR20L Series
Adjustable tines Steel tines and waffle plates Angled tine beam iMatchTM compatible
LR20 Series
Adjustable tine beam Strong steel frame Steel tines and waffle plate iMatchTM compatible

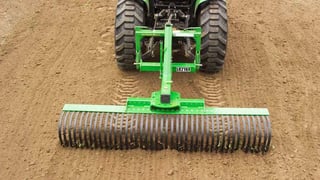

LR21 Series
Strong 4x4 steel frame iMatchTM compatibleSteel tines and waffle platesAdjustable tine beam

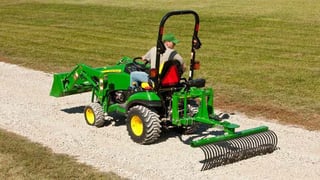

LR50L Series
Widths ranging from 48-60 in iMatchTM compatible Rotate a full 360 degrees with 5 forward and 5 reverse settings

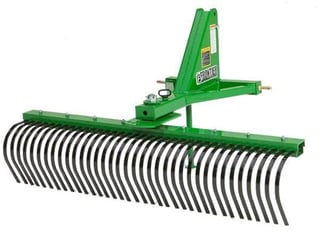

LR50 Series
Widths ranging from 60 to 90-in Rotate a full 360 degrees with 5 forward and 5 reverse settings iMatchTM compatible
LS11 Series
Working width from 25-ft. to 45-ft. (7.62. to 13.72 m)2 tank options – 250- or 300-gallon (946.4 or 1135.6 l)Fully-integrated parking stand with built-in pallet fork pocketsCategory 2 and 3 quick

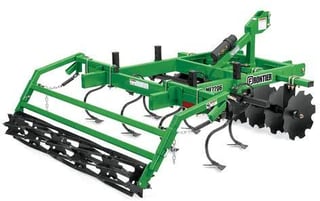

MF22 Series
Notched disks are heavy duty for optimal diffusionS-tines provide superb tilling results and uniform depthOptional rolling basket for superior levelingRolling basket attachment field conversion kits

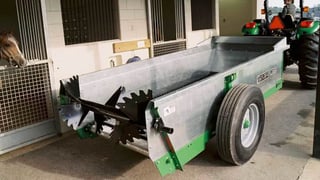

MS11 Series
Heavy-duty paddle beaterPoly-bonded floorField-installed top beater kitsHydraulic conversion kits

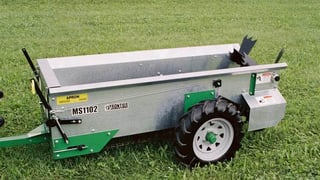

MS11G Series
Heavy-duty paddle beater assembliesPoly-bonded floorFine-spread rear pan available

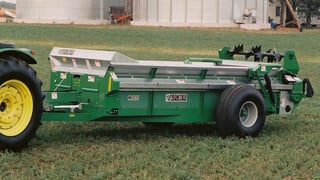

MS12 Series
Hydraulic and 2-speed apron drivesRugged, heavy-duty constructionHydraulic end gate

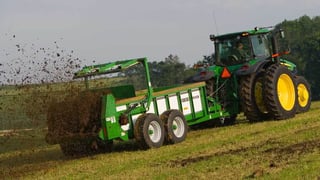

MS14 Series
Easy chain accessHydraulic end-gateHeavy-duty tires and constructionHydraulic push-gate

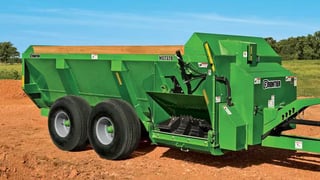

MS23 Series
40-in. expellerAutomatic chain oiler systemRemote grease systemAdjustable hitch heightPoly-lined tank

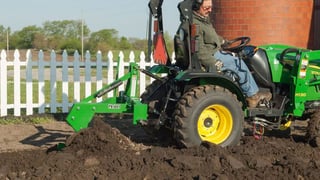

PB10 Series
Corrosion-resistant, powder-coat paint increases durabilityReplaceable shares, shins, and landslides extend life

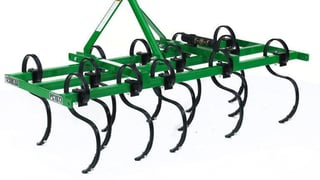

PC10 Series
Hitch compatible with iMatch™Corrosion-resistant, powder-coat paint increases durabilityReplaceable and adjustable tines

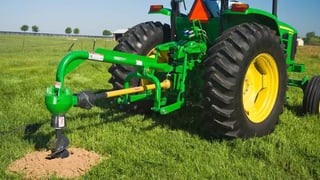

PHA0 Series
Fishtail point standard on all augersIndividually replaceable knives and point

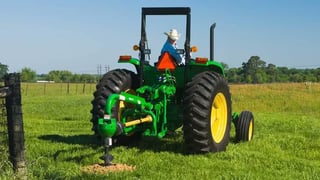

PHD0 Series
Dependable, rugged gearboxSafety shielding covers auger and power take-offOptional downforce kitsOptional hook-up stand

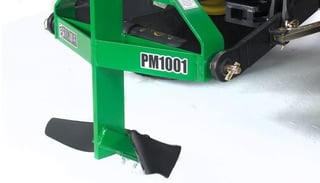

PM10 Series
Double-wing cutting bladeiMatchTM compatible Corrosion-resistant, powder-coat paint increases durability

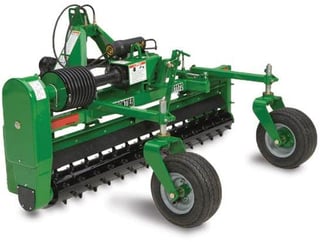

PR11 Series
Angle adjustmentCarbide teeth Adjustable end plate Roll-back barrier provides adjustable pulverizing

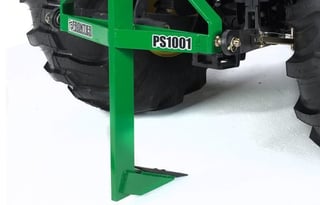

PS10 Series
| Horsepower |
|---|
| 19-34 kW / 25-45 hp |
| Hitch - Category |
| Category 1 |

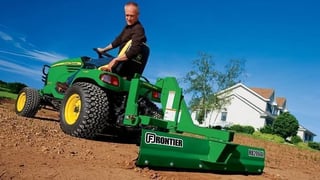

RB20L Series
iMatchTM compatibleManually adjustable angleReversible cutting edgeOptional skid shoes

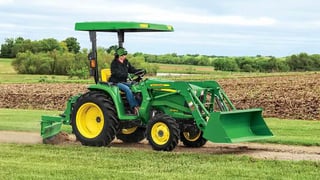

RB20 Series
iMatchTM compatibleManually adjustable angle Reversible cutting edge Optional end plates

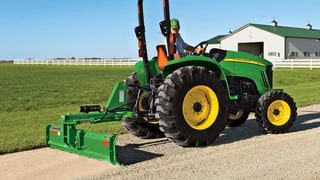

RB21H Series
Reversible cutting edge for longer wear lifeHydraulic cylinder changes blade direction while on the moveMove hitch pin to allow blade radius to turn 180 degrees

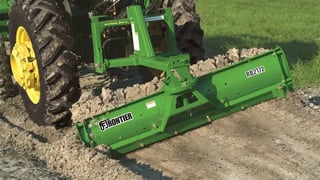

RB21 Series
Angle adjustment Reversible cutting edge Optional end plates Hydraulic cylinder kit

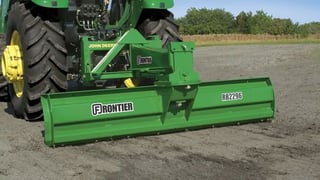

RB22 Series
Manually adjustable angleReversible cutting edge for longer lifeOptional end plates hold extra materialOptional skid shoes increase cutting edge life

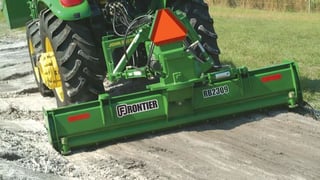

RB23 Series
Tubular steel crafted frameReversible cutting edgeOptional end platesOptional skid shoes

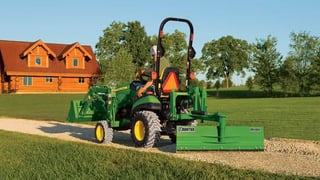

RB50L Series
Manual angle adjustmentReversible cutting edgeiMatchTM compatible

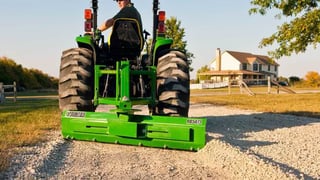

RB50 Series
Manual angle adjustmentReversible cutting edgeiMatchTM compatibleManually adjust tilt and offset

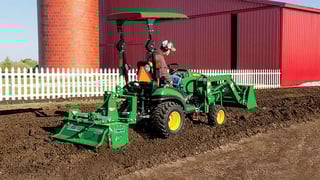

RT11 Series
Rotor is helical shaped for higher efficiencySkid shoes control depthiMatchTM and Category 2 quick hitch compatible

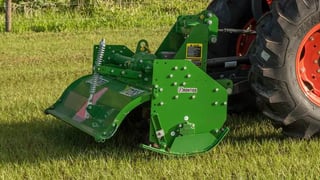

RT12 Series
Rotor is helical shaped for higher efficiencySkid shoes control depth

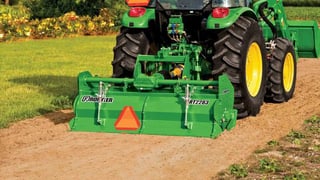

RT22 Series
Heavy-duty wear shields for added gear case protectionRotor is helical shaped for higher efficiencySkid shoes control depthCategory 2 quick hitch compatible

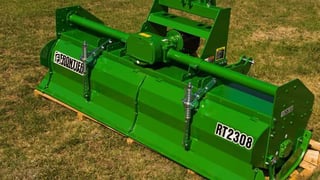

RT23 Series
Heavy-duty wear shields for added gearcase protectionHitch is Quick-Coupler compatible for easy hookupRotor is helical shaped for higher efficiencySkid shoes control depth

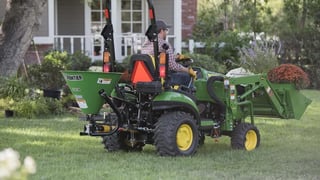

SS10 Series
All steel hopperPTO-driven3 different spread patterns always availableiMatchTM compatible

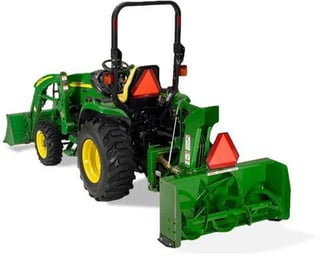

SB11 Series
Chute deflector for easy snow removal Easily adjustable chute rotation Multiple hitch capabilities Optional hydraulic cylinder chute deflector available on select models

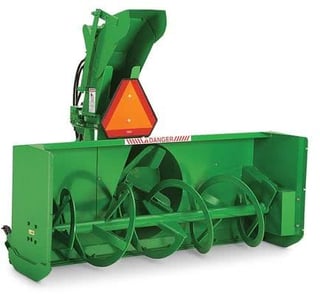

SB12 Series
Durable cutting edge Adjustable skid shoes Hydraulic chute deflector Field-installed cutting edge kits

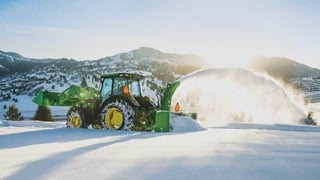

SB13 Series
Adjustable skid shoes Multiple hitch capabilities Hydraulic drum rotation Gearbox reducer kit

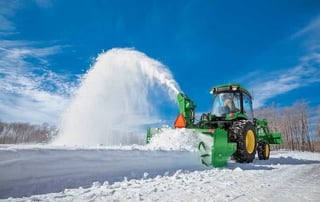

SB21 Series
Discharge chute deflection Field-installed drift cutters kits Discharge chute rotation as base equipment Torque-controlled impeller moves snow easily

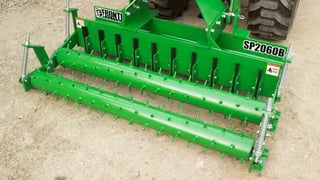

SP20 Series
Compression springs for added forceCutting teeth for superior soil preparationiMatch™ compatibility Steel roller studded with spikes

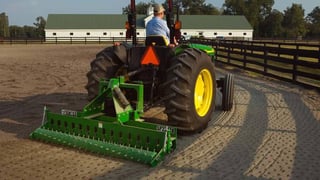

SP22 Series
Compression springs Cutting teeth for superior soil preparationiMatch™ compatible Steel roller studded with spikes

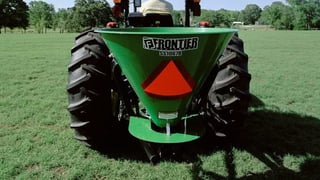

SS10B Series
All steel hopperPTO-driven3 different spread patterns always availableiMatchTM compatible

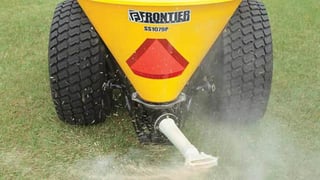

SS10P Series
Field-installed agitator kit availableSpreader spout provides precision spreadingCategory 1 PTO drivelineRubbert insert conversion kit keeps discharge from clogging

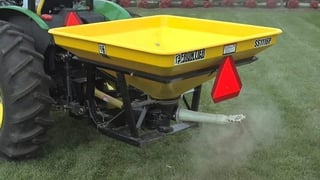

SS11P Series
Field-installed agitator kit availableSpreader spout provides precision spreadingDrive system has anti-wear, cast-steel gearboxRubbert insert conversion kit keeps discharge from clogging
SS12P Series
Field installed agitator kit availableSpreader spout provides precision spreadingDrive system has anti-wear, cast-steel gearboxRubber insert conversion kit keeps discharge from clogging
SS20B Series
Polyethylene hopper resists moisture and chemicalsPTO-driven3 different spread patterns always availableiMatchTM compatible
SS30B Series
Polyethylene hopper resists moisture and chemicalsPTO-driven3 different spread patterns always availableiMatchTM compatible
SW21 Series
Angling degree rangeBrush diameter is 32 inches for big jobsOptional dust suppression systemOptional gauge wheel kit for setting height
TM51 Series
Dual wheels provide consistent disking depthHydraulic wing controlTwo-blade taper creates level soil surfaceTransport locks provide secure transport
TR20 Series
Straight blade aerator rotor aerates soil and incorporates seed in one stepRear cultipacker levels and smooths seedbedFront gauge roller levels ground, controls seed depthiMatchTM compatible
VT17 Series
Adjustable gang angles for desired aggressiveness Simple adjustments for increased uptime Rolling baskets and blade options enable a smooth field finish
WC11 Series
Efficient drive systemDouble-sided knivesiMatchTMcompatible
WC12 Series
Pull-type unit with drawbarAdjustable discharge chuteReversible, hydraulic feed roll
