Frontier GM10E Series

Frontier GM10E Series Product Photo
Feature Overview
Frontier GM10E Series
DEBUG Ind: Agriculture, Cat: Cutters Shredders, SubCat: Grooming Mowers, SubSubCat:
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields, and golf courses.
  • 11-gauge, 3.03-mm (0.12-in.) reinforced deck
  • Single belt drive with an automatic belt idler
  • Spindle shafts greased from the top for easy service
  • Spacers for quick and easy height adjustment from 2.5 cm (1 in.) to 10.2 cm (4 in.)
  • iMatch™ quick-hitch compatible with conversion kit
Features

Gearbox

Gearbox with cooling fins Gearbox with cooling fins
#

The GM10 Series Mowers come with a 22.4-kW (30-hp) rugged gearbox. Cooling fins help extend the life of the gearbox.

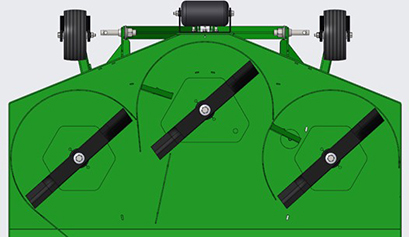

Three blades per deck Three blades per deck
#

To meet specific mowing needs, choose from two blade types:

  • Low lift
  • High lift (standard)

Follow ground contours Follow ground contours
#

These rear-discharge mowers are equipped with four swivel wheels that follow ground contours and prevent scalping. Stamped, steel-reinforced wheel arms maintain a consistent cutting height.


iMatch quick-hitch iMatch quick-hitch

One of the greatest concerns for operators involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch quick-hitch system.



The iMatch quick-hitch provides easy hookup and a guaranteed fit for all Category 1 implements designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.



All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch quick-hitch. One set of bushings comes with the iMatch quick-hitch. Additional bushings are available from a John Deere dealer.


Kit includes baffles, blades, and guard supports Kit includes baffles, blades, and guard supports
#

A mulching kit is available as an attachment for field conversion. The mulching kit includes unique mulching blades, baffles, and guard supports to produce smaller clippings, which decompose faster than clippings that haven't been mulched.



Operators should follow the one-third rule for cutting height when mulching in grass.



This mulching kit also does an excellent job when mulching leaves.


Anti-scalping roller attaches to front of deck Anti-scalping roller attaches to front of deck
#

An anti-scalping roller kit can be ordered as an attachment for field conversion for FM and GM Series Grooming Mowers when it is not standard equipment. The roller is attached to the front of the cutting deck to help reduce scalping.



Each kit contains one roller.


iMatch quick-hitch iMatch quick-hitch

The GM10, GM10E, and GM20 Grooming Mowers are only compatible with iMatch using a kit (code 9630).


Specs
Dimensions
Overall machine width 129.5 cm
51 in.
Cutting width 121.9 cm
48 in.
Cutting height 2.5-10.2 cm
1-4 in.
Weight
Operational 154.2 kg
340 lb
Shipping 180.5 kg
398 lb
Tractor requirements
PTO horsepower 11.9-22.4 kW
16-30 hp
PTO rpm 540 rpm
Hitch
Category Cat. 1
Deck
Thickness 11 gauge
3.03 mm
0.1196 in.
Discharge Rear
Gearbox
Mower deck horsepower 22.4 kW
30 hp
Belts
Quantity One
Blade
Tip speed, average fpm 4019.7 m/min
13188 fpm
Spindles Quantity
Three
Overlap --
Composition Heat treated alloy steel
Caster wheels
Solid Size
21.3x8.1 cm
8.4x3.2 in.
Yes
Belts
Type BX
Adjustment Spring loaded idler
Set-up time
L L
Warranty
Machine 1 year
Gearbox 1 year
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
