| Rotor - Blades (quantity) | All RT30 models : Six |
| Duty - Type | All RT30 models: Standard |
Gear drive transmission
The hardened and tempered gear drive transmission requires less maintenance than a roller chain drive. Enclosed in an oil bath, gear drive components feature higher wear life, decreasing maintenance costs.

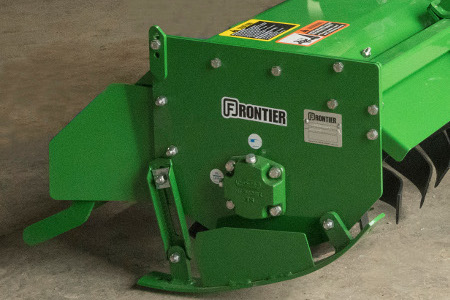

Transmission cover
The sealed cover ensures the protection of the transmission components, preventing transmission damage due to moisture and mud.

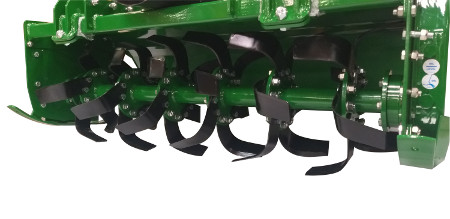

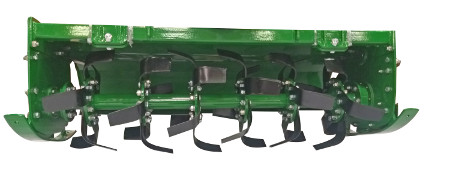

C-shaped tines increase efficiency
The hardened and tempered C-shaped rotor tines require less horsepower to operate. They are designed to engage the soil at different times for more efficiency.

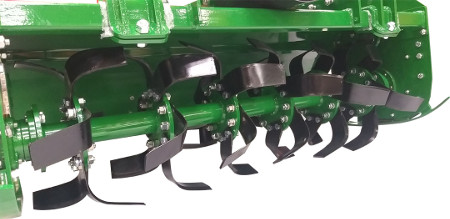

Reverse tilling easily breaks up compacted and rocky soils as well as sod and hard clay. Reverse rotation tines keep the tiller in the ground and prevent the implement from walking on top of the hard soil.

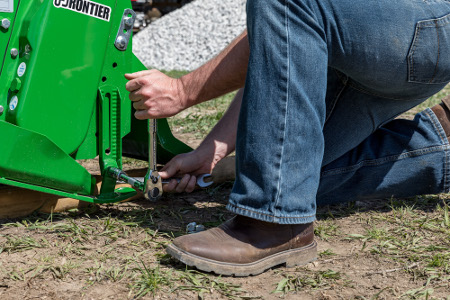

Easily set the working depth by adjusting the height of the skids with the adjustment bracket.

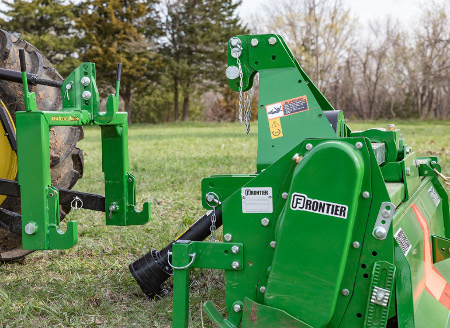

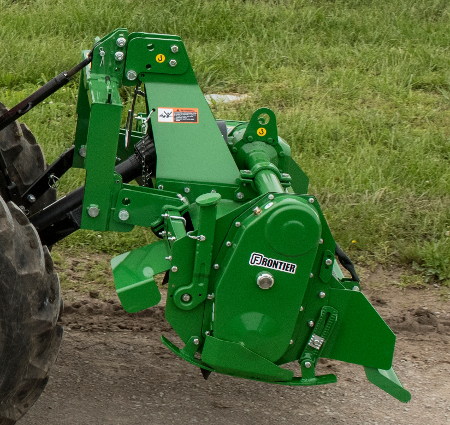

Hitch attachment is easy and fast
Implement-to-tractor hookup is simple with the iMatch Quick-Hitch Category 1 compatible.
Reverse tilling easily breaks up compacted and rocky soils as well as sod and hard clay. Reverse tines rotation keep the tiller in the ground and prevent the implement from walking on top of the hard soil.
| Dimensions | |
| Working width | RT3042 and RT3042R: 120.4 cm 47.4 in. RT3049 and RT3049R: 140.2 cm 55.2 in. RT3062 and RT3062R: 173 cm 68.1 in. RT3073 and RT3073R: 200.4 cm 78.9 in. RT3081 and RT3081R: 205.7 cm 81 in. |
| Key Specs | |
| Rotor - Blades (quantity) | All RT30 models : Six |
| Depth control | |
| Maximum working depth | RT3042, RT3042R, RT3049 and RT3049R: 19 cm 7.5 in. RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: 21.6 cm 8.5 in. |
| Key Specs | |
| Duty - Type | All RT30 models: Standard |
| Tractor compatibility | |
| Minimum horsepower | RT3042 and RT3042R: 11.2 kW 15 hp RT3049 and RT3049R: 13.4 kW 18 hp RT3062 and RT3062R: 17.9 kW 24 hp RT3073 and RT3073R: 22.4 kW 30 hp RT3081 and RT3081R: : 29.8 kW 40 hp |
| Maximum horsepower | RT3042, RT3042R, RT3049 and RT3049R: 26.1 kW 35 hp RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: 44.7 kW 60 hp |
| Hitch | |
| 3-point compatible | RT 3073, RT3073R, RT3081 and RT3081R: Category 1 & 2 RT3062, RT3062R: Category 1 RT3042, RT3042R, RT3049, and RT3049R: Limited Category 1 |
| Weight | |
| Weight without drive shaft | RT3042: 220 kg (485 lb) RT3042R: 225 kg (496 lb) RT3049: 240 kg (529 lb) RT3049R: 247.2 kg (545 lb) RT3062: 299.8 kg (661 lb) RT3062R: 308 kg (679 lb) RT3073: 332 kg (732 lb) RT3073R: 342 kg (754 lb) RT3081: 375 kg 827 lb RT3081R: 386 kg 851 lb |
| Hitch | |
| iMatch™ compatible (Cat. 1) | All RT30 models: Yes |
| Tractor compatibility | |
| PTO speed rpm | All RT30 models: 540 rpm |
| Depth control | |
| Type | All RT30 models: Skid shoes |
| Drive system | |
| Side drive | All RT30 models: Gear |
| PTO shaft | |
| Clutch type | All RT30 models: Friction |
| Rotor | |
| Rotor rotation | RT3042, RT3049, RT3062, RT3073, and RT3081: Forward RT3042R, RT3049R, RT3062R, RT3073R, and RT3081R: Reverse |
| Flanges (quantity) | RT3042 and RT3042R: Five RT3049 and RT3049R: Six RT3062 and RT3062R: Eight RT3073 and RT3073R: Nine RT3081 and RT3081R: Ten |
| Blades (quantity) | All RT30 models: Six |
| Depth control | |
| Skid shoes | RT3042, RT3042R, RT3049, and RT3049R: Four settings - 0 to 7.1 cm 0 to 2.8 in. RT3062, RT3062R, RT3073, RT3073R, RT3081 and RT3081R: Four settings - 2.5 to 9.1 cm 1 to 3.6 in. |
| Safety and markings | |
| Rear door support | All RT30 models: Chain |
| Parking stand | All RT30 models: Standard |
| Markings | All RT30 models: Standard |
