Frontier RB23 Series

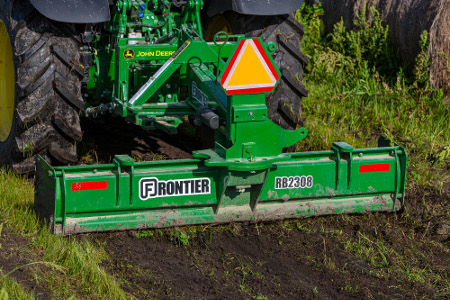

Frontier RB23 Series Product Photo
Feature Overview
Frontier RB23 Series
DEBUG Ind: Agriculture, Cat: Attachments Accessories And Implements, SubCat: Utility Tractors Attachments Accessories, SubSubCat:
  • Tubular steel crafted frame
  • Reversible cutting edge
  • Optional end plates
  • Optional skid shoes
Features

Optional skid shoes increase cutting edge life

Figure 1 Shown on RB24 Series Figure 1 Shown on RB24 Series

Skid shoes increase the life of the cutting edge on all RB Series Rear Blades and avoid damaging the work surface while cleaning corrals or plowing snow.



NOTE: Skid shoe style shown in image above used with RB2060, RB2072, and RB2084 models.



The skid shoe kits include one pair and allow the blade to ride on the shoes at a set height to allow the operator control of the blade depth.



The bundles listed below identify the rear blades they fit.

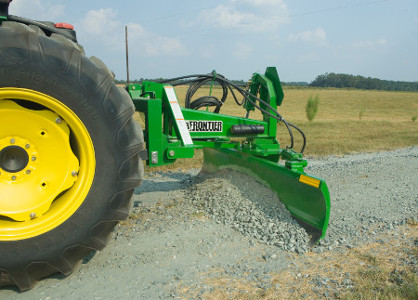

Rear blade connected to tractor Rear blade connected to tractor
Hitch on RB23 Rear Blade Hitch on RB23 Rear Blade

The Frontier© RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.


Adjustable turntable for 360-degree turning radius Adjustable turntable for 360-degree turning radius

The turntable on the Frontier© RB22, RB23, and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection.



Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.


RB21 Series Rear Blade shown aboveRB21 Series Rear Blade shown above

End plates allow Frontier™ RB Series Rear Blades to hold extra material while dragging it from place to place. This is ideal for leveling uneven terrain.


Frontier© rear blade cutting edge Frontier© rear blade cutting edge

All Frontier RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.


End plate option on RB24 Rear Blade End plate option on RB24 Rear Blade
End plate option on RB24 Rear Blade End plate option on RB24 Rear Blade
End plates on RB23 Rear Blade End plates on RB23 Rear Blade

End plates allow Frontier© RB Series Rear Blades to hold more material while dragging it from place to place. This is ideal for leveling uneven terrain.



Each of the field conversion kits are for a pair of end plates and prevent the blades from windrowing material when backfilling or leveling.


Hydraulic cylinder on RB23 Rear Blade Hydraulic cylinder on RB23 Rear Blade

The field-conversion hydraulic cylinder kit includes one cylinder. This kit allows the operator to position the blade without having to get off of the operator's station.



NOTE: A rear selective control valve (SCV) is required.


Adjustable turntable for 360-degree turning radius Adjustable turntable for 360-degree turning radius

The turntable on the Frontier© RB22, RB23, and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection.



Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.


Specs
Dimensions
Width in working position 3.0 m
10 ft
Moldboard length 304.8 cm
120 in.
Moldboard height 48.3 cm
19 in.
Moldboard thickness 0.8 cm
0.3125 in.
Weight
Machine 589.7 kg
1,300 lb
Shipping per unit 615.5 kg
1,357 lb
Tractor requirements
PTO hp (kW) Maximum: 2WD: 89.5 kW
120 hp
Maximum: 4WD: 82 kW
110 hp
Hydraulic offset kit (hoses and fittings included) Up to three hydraulic remotes required
Angle, tilt, offset, pivot
Pivot angle degrees 360 degree (angle)
Angle forward, number of positions Three positions each side, up to 45 degree (angle)
Angle reverse, number of positions Three positions each side, up to 45 degree (angle)
Tilt positions/degrees Three positions, up and down, up to 23 degree (angle)
Offset position left or right 0 to 48.26 cm
0 to 19 in.
Hitch
Type Category 2
Quick hitch compatibility ASAE Category 2 quick coupler
Reversible cutting edge
Thickness 1.3 cm
0.5 in.
Height 15.2 cm
6 in.
Parking stand
p p
Set-up time
L L
Warranty
w w
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
