Frontier MS14 Series

Frontier MS14 Series Product Photo
Feature Overview
Frontier MS14 Series
DEBUG Ind: Agriculture, Cat: Attachments Accessories And Implements, SubCat: Utility Tractors Attachments Accessories, SubSubCat:
  • Easy chain access
  • Hydraulic end-gate
  • Heavy-duty tires and construction
  • Hydraulic push-gate
Features

Heavy-duty construction

Structural floor beams provide maximum support Structural floor beams provide maximum support

Heavy-duty construction includes structural floor beams spaced 24-cm (9.5-in.) apart for maximum support. High-strength rectangular steel tubing is used for the poles and frame to ensure durability.



The hitch drawbar extends to the axles so that weight can be distributed along the implement's length.  This design and construction allows for uniform support as material is being pushed through the box.


Chains are dependable and low-maintenance Chains are dependable and low-maintenance

The rear access door on the Frontier© MS14 Series Spreader provides easy access to the beater chains for lubing. Chains are powered by a reliable center-drive system that requires minimal maintenance.


Agriculture tires Agriculture tires
Used truck tires Used truck tires

Heavy-duty used truck tires or brand-new agricultural tires support the added weight of the implement, even when filled with wet material.

Weight is distributed over the axles with 7.6-cm (3-in.) diameter sleeve-protected spindles for reliability. Tandem wheels provide flotation in soft field conditions.


Heavy-duty steel ensures maximum durability Heavy-duty steel ensures maximum durability
Cylinders create ease when working in cold weather Cylinders create ease when working in cold weather

High-moisture loads are no problem with the MS14 Series Hydraulic-Push Spreaders hydraulic end gate. It is constructed with a heavy-duty steel frame and solid, virgin-grade polyethylene for durability.



Dual-lift cylinders control the raising and lowering of the end gate and provide fast operation in cold weather.


Mounted vertically for a wider spread pattern Mounted vertically for a wider spread pattern
Bolt-on teeth provide extra bite Bolt-on teeth provide extra bite

Cover more ground in less time by using the vertical-beater configuration. Augers are mounted vertically for a wider spread pattern and fewer passes in the field. Reversed flighting on the top portion of the augers reduces kickback of material and results in less vertical loft.



Bolt-on teeth give additional bite when attacking hard, compressed material. The result is consistent sizing and uniform spread.


Push-gate is angled to ensure efficiency Push-gate is angled to ensure efficiency
Steel tubing runs from the hitch to the rear axle Steel tubing runs from the hitch to the rear axle

The variable-speed hydraulic push-gate on the Frontier© MS14 Series Manure Spreader makes unloading super fast. The push-gate is angled at the bottom to efficiently remove manure.



Dual piggyback hydraulic cylinders reduce the overall length of the implement for tight turns. Steel tubing runs from the hitch to the rear axle for support and durability.


Power take-off (PTO) shaft runs underneath the implement Power take-off (PTO) shaft runs underneath the implement

A straight shaft of the PTO runs underneath the center of the Frontier© MS14 Series to an angle gearbox at the rear and then over the beater drive sprocket.



The gearbox is protected with a steel skid plate. Bearings have triple-lip seals and require no additional greasing.

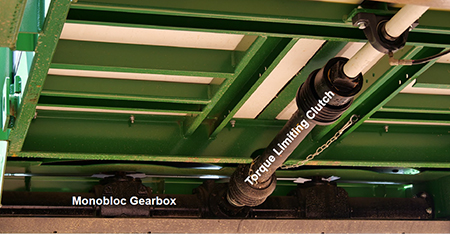

Bottom drive Monobloc gearbox with a torque-limiting clutch Bottom drive Monobloc gearbox with a torque-limiting clutch

Vertical beater models feature a bottom drive beater Monobloc gearbox with a torque limiting clutch in the drive-line.

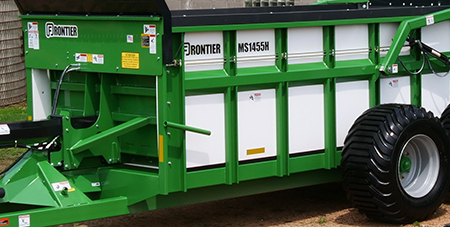

High-strength steel provides maximum durability High-strength steel provides maximum durability

High-strength channel steel is used for the poles and frame for durability.



Bearing hangers support drive shaft Bearing hangers support drive shaft

Bearing hangers run beneath the frame to support drive shafts while allowing for vibration.


Allows for smooth, push-gate operation Allows for smooth, push-gate operation

The dual piggyback cylinder on the Frontier© MS14 Series Manure Spreader is controlled with a sequencing valve for smooth push-gate operation.



Adjust the speed of the cylinders with a simple turn of the hydraulic control lever.



The model year 2022 MS14 offers two options for pusher speed:



  • Manual-adjust hydraulic variable speed pusher control



  • Electric-adjust hydraulic variable speed pusher control
Electric-adjust hydraulic variable speed pusher control Electric-adjust hydraulic variable speed pusher control

Bound in rubber tubing to prevent tangling Bound in rubber tubing to prevent tangling

The Frontier© MS14 Series Spreaders' hoses are well-protected from damage and bound together in flexible rubber tubing to eliminate tangling.


Upper paddles Upper paddles
Lower paddles Lower paddles

Upper paddles tackle high-heaped loads, while lower paddles shred compacted material.


Rear pan field-installation kits help to hold in loose and semi-liquid materials. The rear pan and hydraulic endgate may be used together.

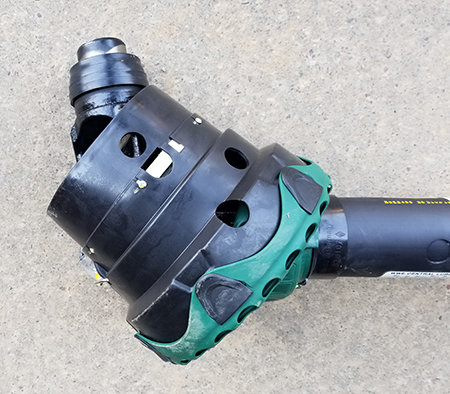

Wide-angle PTO shaft Wide-angle PTO shaft

The new wide angle PTO shaft (constant velocity) allows for a shorter turning radius on the headland, increasing productivity.


Rear pan field-installation kits help to hold in loose and semi-liquid materials. The rear pan and hydraulic endgate may be used together.


Front screen extension Front screen extension

The model year 2022 MS14 offers a new front screen extension on both sides and on the top of the front screen.


Specs
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
