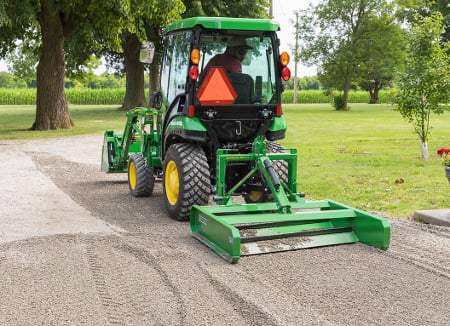

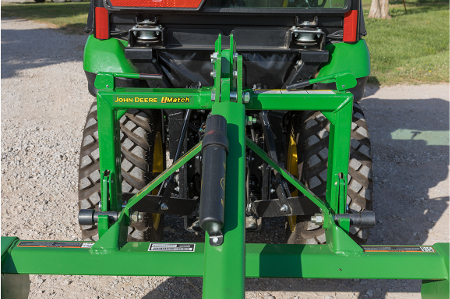

With limited Category 1 iMatch hitch system compatibility, the LP1048L and LP1060L offer time savings and ease of use. For operators interested in a land plane with a 3-point hitch, the LP1048L and LP1060L Land Planes are the best choice.
Frontier© LP Series Land Planes are equipped with two reversible, double-beveled cutting edges. The reversible cutting edges enhance grading performance and extend wear life.
The electric actuator is an option for the LP1048 and LP1060 Land Planes that allow operators to manually engage the land plane from the transport position more quickly and efficiently.
The optional electric actuator is shipped with all the necessary wiring harnesses and hookups to connect to a 12-V power supply.
A manual ratchet is standard on the LP1048 and LP1060 Land Plane models. This means the land plane can be manually engaged from the transport position.
The LP1048 and LP1060 Land Planes are ground driven and compatible with all-terrain vehicles and utility-terrain vehicles with a 47.6-mm (1-7/8-in.) diameter ball hitch.
Warranty | |
W | w |
Weight | |
Operating | 165.6 kg 365 lb |
Shipping | 201.8 kg 445 lb |
Hitch | |
Pull-type | Drawn, 1-7/8 - in. ball |
Cutting edge | |
Type | Quantity: two: 0.635x7.6 cm 0.25x3 in. |
Replaceable | Yes |
Set-up time | |
L | L |
