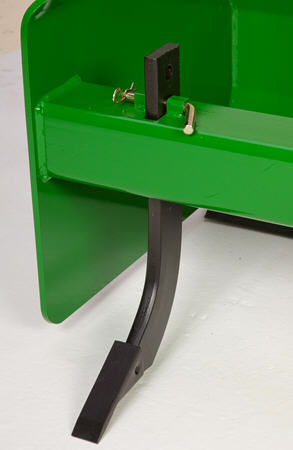

Replaceable heavy-duty ripper shanks have multiple adjustment holes for quick and easy changes to shank penetration level. The ripper shanks work great for the purposes of chipping or deep digging.

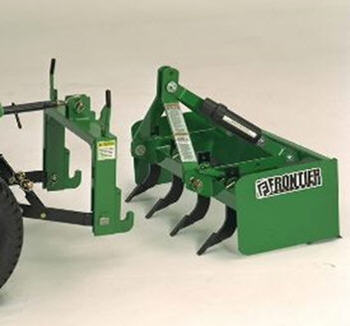

iMatch© quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.
A fixed tailgate helps in rough conditions. The tailgates give the cutting edge extra power to slice through hard, compacted ground.
Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.
iMatch© quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.
Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.
A fixed tailgate helps in rough conditions. The tailgates give the cutting edge extra power to slice through hard, compacted ground.
Dimensions | |
Working width | 243.8 cm 96 in. |
Unit height | 85.1 cm 33.5 in. |
Unit depth | 78.7 cm 31 in. |
Endplate thickness | 1 cm 0.375 in. |
Moldboard thickness | 0.5 cm 0.1875 in. |
Weight | |
Operating weight | 273.1 kg 602 lb |
Shipping | 288.9 kg 637 lb |
Paint | |
P | p |
Hitch | |
Compatibility | Cat. 1 |
iMatch™ compatible (Cat. 1) | Yes |
Box | |
Capacity | 0.6 m3 21.24 cu ft |
Design | Box |
Cutting edge | |
Reversible | Yes |
Scarifier shank and beam | |
Quantity | Seven |
Cutting edge | |
Size | 0.95x15.24 cm 0.375x6 in. |
Scarifier shank and beam | |
Shank type | 4 Position with holes |
Points | Hardened, crimped |
Tubular scarifier beam size | 10.16x10.16x0.64 cm 4x4x0.25 in. |
Beam reinforcement bar size | 1.27x1.27 cm 0.5x0.5 in. |
Warranty | |
W | w |
Paint | |
J | J |
Set-up time | |
L | L |
