Engine power | 25.5 hp / 19 kW |
Engine manufacturer/model | FD750D EFI |
Transaxle type | K90 hydrostatic integrated with transaxle |
Transaxle control | Twin Touch™ pedals |
Engine power | 25.5 hp / 19 kW |
Engine manufacturer/model | FD750D EFI |
Transaxle type | K90 hydrostatic integrated with transaxle |
Transaxle control | Twin Touch™ pedals |
*Inventory shortages may cause extended delivery dates
*This price does not include attachments and accesories

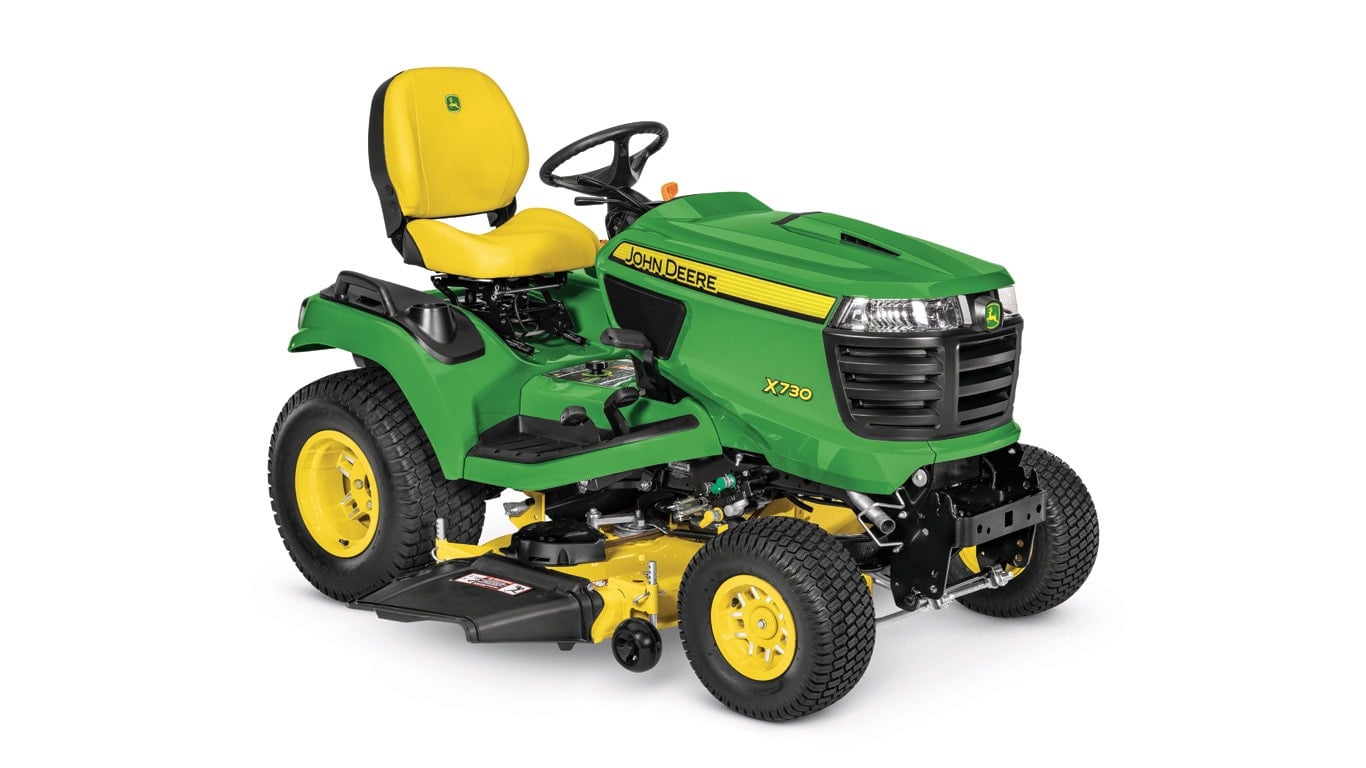

John Deere Signature Series are the very best mowing tractors available and can also handle a wide range of other yard care chores, such as snow removal, lawn cleanup, and landscaping work. These heavy-duty tractors include models with two-wheel drive (2WD) and four-wheel drive (4WD), two- and four-wheel steering, and even a model with full-time 4WD and four-wheel steering.
Standard equipment styled alloy wheels and John Deere brand embroidery:
The open platform is roomy and uncluttered:
The single-piece hood completely encloses the engine:
Available mower decks include a 48-in. (122-cm) Accel Deep© Mower Deck or 54-in. (137-cm) or 60-in. (152-cm) Edge© High-Capacity Mower Deck. All mowers have premium design features to give a clean, level cut and excellent performance, whether side discharging, mulching, or collecting lawn material.
X700 Signature Series Tractors offer these important performance advantages:
The full-length, welded C-channel steel frame provides plenty of strength to handle heavy equipment:
The frame is robotically metal inert gas (MIG) welded:
A front Quik-Tatch weight bracket is designed into the frame:
A front receiver hitch is designed into the frame:
An optional rear receiver hitch is available.
The front axles are made of strong, shock-resistant cast iron:
The 2WD tractors use large, 1-in. (2.5-cm) diameter wheel spindles for durability:
The 4WD tractors use heavy-duty cast and machined front spindle and wheel motor assemblies for durability and long life.
The V-twin, liquid-cooled John Deere iTorque power system with electronic fuel injection (EFI) provides exceptional performance and has the durability to handle commercial-use applications. The John Deere iTorque power system includes a combination of engine features that provide more lugging ability, even cooling, and durability.
iTorque stands for intelligent design (to get a task done efficiently) and torque (good lugging ability). It is used exclusively on gasoline-powered Select Series© and Signature Series Tractors.
The 25.5-hp (19-kW) liquid-cooled V-twin engine has a large 45.5-cu in. (745-cc) displacement to provide plenty of power and torque for excellent performance in any operating condition. The one-piece hood is hinged to open for convenient engine service.
Key engine features include:
Engine intake air is drawn in through screened panels at the base of the pedestal and on the right and left sides of the tractor hood:
An inertia-discharge canister with dry-type paper element surrounded by a foam precleaner cleans intake air for long engine life:
Electronic fuel injection (EFI) offers many important performance advantages:
A large, 5.2-U.S. gal. (19.7-L) capacity fuel tank holds enough fuel for extended operation between refills:
A high-capacity regulated alternator charging system provides plenty of power to quickly recharge the battery and run electrical equipment, such as lights or a sprayer:
A large-capacity, 340 cold-cranking amp battery provides plenty of cranking power for quick, sure starts in cold weather:
Twin Touch foot pedals control the speed and direction of travel:
When the master brake pedal is depressed, the power take-off (PTO) and cruise control disengage.
Cruise control is standard equipment:
A rugged, heavy-duty commercial hydrostatic transaxle handles a wide variety of ground-engaging applications and commercial mowing usage. A hitch for tow-behind equipment is included. The tractor frame extends behind the transaxle to provide mounting points for the category 1 3-point hitch and Click N Go© mounting brackets.
Many quality features are provided:
Two-wheel drive (2WD) and four-wheel drive (4WD) tractors use similar transaxles, however, four-wheel steer tractors have additional features that allow the rear wheels to turn.
Infinite control of ground speed and smooth change of direction provide efficiency and operator convenience. The differential lock provides positive power to both drive wheels for increased traction. It can be engaged by the operator as needed.
Forward | 0 to 8.5 mph (0 to 13.7 km/h) |
Reverse | 0 to 6 mph (0 to 9.7 km/h) |
A transmission oil cooler is standard equipment:
The tilt steering wheel can be adjusted for optimum operator comfort:
Two-piece, 21-in. (53-cm) high-back seat, with John Deere branded embroidery, has a thick seat cushion for lasting comfort, even after a full day of use. The back can be angled to maximize operator comfort by using a convenient lever on the side of the seat.
A four-bar adjustable seat suspension and 7-in. (18-cm) slide-rail fore-aft adjustment are provided to optimize operator comfort.
Optional armrests increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are adjustable to suit the operator. The embroidered logo on the seat back makes this upscale seat look as good as it feels.
The optional air-ride seat minimizes vibration the operator feels while using the tractor and provides a very smooth ride. This seat has a full pneumatic suspension that is easy for operators to adjust to suit their individual needs. Wide, shaped ergonomic cushions are comfortable and reduce back strain.
Features include:
Key benefits of the seat:
NOTE: The air-ride seat is compatible with all X700 Signature Series Tractors, model year 2013 and later (serial number 010,001-). Plug and play wiring harness for use with the air-ride suspension seat has been added to model year 2019 tractors (serial number 70,001-) to reduce seat-installation time. Model year 2013-2018 (serial number 010,001-070,000) requires AM146765 wiring harness. See DTAC solution 115258 for more information.
Foot pads help isolate the operator's feet from vibration:
Rear lights provide visibility for the tractor operator and others:
The fender handles provide a convenient handhold to use when getting on and off the tractor and when operating on slopes:
12-V outlet located for the convenience of connecting a variety of electrical and electronic equipment:
Large, automotive-type headlights and taillights provide unsurpassed nighttime illumination:
The contoured dash has clean, attractive styling and ergonomic controls for easy use:
The instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:
Twin Touch foot pedals control the speed and direction of travel:
When the master brake pedal is depressed, the PTO and cruise control disengage.
Cruise control is standard equipment:
A foot-operated differential lock supplies positive power to both rear drive wheels for increased traction:
Power steering is standard equipment. It provides effortless, automotive-like control:
|
Two-wheel steer (X730, X750) |
Four-wheel steer (X734, X754) |
Full-time four- wheel drive (X738, X758) |
Full-time four-wheel drive with four- wheel steer (X739) |
Turning radius |
25 in. (63.5 cm) |
21 in. (53.3 cm) |
25 in. (63.5 cm) |
21 in. (53.3 cm) |
Uncut circle radius (60- in. (152-cm) mower deck) |
28 in. (71.1 cm) |
6 in. (15.2 cm) |
28 in. (71.1 cm) |
6 in. (15.2 cm) |
Turns lock-to-lock left |
2.4 |
2.5 |
2.3 |
2.2 |
Turns lock-to-lock right |
2.4 |
2.5 |
3.1 |
2.8 |
Consult the operator's manual for the correct adjusting procedure. Basic adjusting steps to properly level the mower deck include:
NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key. The rounded end allows for some misalignment with the bolt as the deck is adjusted.
A two-function hydraulic control system is standard equipment.
The hydraulic system allows effortless equipment control:
Four hydraulic couplers with color-coded covers are available for quick, easy connections.
Exact Adjust tool and mower deck leveling gauge are stored in the toolbox to provide a convenient means of checking and adjusting the deck level:
The parking brake control is conveniently located below the key switch on the steering pedestal:
Depressing the brake pedal disengages the PTO and cruise control:
The depth stop allows setting the mower height from the operator's seat:
Exact Adjust ports on either side of the fender deck allow access to the rear mower deck height adjusting links:
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: For tractors equipped with an optional front PTO kit installed, the front implements will rotate while backing up without engaging RIO.
The hydrostatic transmission foot pedals must be in neutral, with brake depressed, PTO disengaged, and the ignition key used, before the tractor will start.
Once the tractor is running, the engine automatically shuts off if the operator leaves the seat with the PTO engaged, brake pedal unlocked, or hydrostatic foot controls out of the neutral position.
The one-piece hood opens easily to permit checking and servicing the engine:
If necessary to do more extensive service, the hood can easily be completely removed without tools:
A screen keeps material from building up on the radiator and can be easily removed for cleaning.
A convenient deck-leveling gauge and Exact Adjust tool are provided:
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located on the trim side of the frame near the front tire. Since each vehicle model has its own web page, the links are specific to the ownerâs model. The QR code also includes the vehicleâs unique PIN which allows for additional customization of the owner information web page in the future.
Keep a John Deere riding lawn mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractorâs barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.
Look for the MowerPlus app on the mobile deviceâs app store.
The app supports residential lawn equipment such as 100 Series, S240, X300, X500, X700, Z200 through Z600, and many similarly-sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.
NOTE: Some product image variation may exist.
The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:
NOTE: The 9077M 48A Mower Deck requires a standard connect or auto connect attachment (similar to 54 HC and 60 HC Mower Decks). Unlike the 54 HC and 60 HC, the shaft drive 48A Mower Deck is not a drive-over deck. Operators can rotate the mower wheels 90 degrees and roll the 48A Mower Deck under an X700 Signature Series Tractor and utilize the auto connect to connect the power take-off (PTO) shaft.
Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:
Large discharge opening is both high and wide to handle more material:
The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
A variety of material collection systems is available for use with the Power Flow blower:
The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
A wash port is provided to make cleaning the underside of the mower deck easy.
The 48A Mower Deck has strong spindle pockets to keep the blades aligned, even after years of tough service:
Mower wheels are heavy duty:
The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
Side-discharge blades can be used with the Power Flow system when bagging.
Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging.
Mower blade use chart
Mode(s) of operation |
Mower blade |
Side discharging mode only |
Side-discharge blade (shipped with mower) |
Mulching mode only |
Mulching blade (shipped with MulchControl) |
Side discharge and mulching |
Mulching blade (shipped with MulchControl) |
Bagging |
Either side-discharge or mulching blade |
A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently. The deck is stamped from 9-gauge, 0.15-in. (3.8-mm) steel and has welded-on reinforcement at the bottom edge for extra strength and durability.
High-capacity mower decks are formed in a hydraulic press to minimize the number of welds and provide a smooth underside for reduced material buildup:
Ramps are provided to permit driving over the mower deck for installing and removing it from the tractor:
A wash port is provided to make cleaning the underside of the mower deck easy:
Optional high-performance mulching attachment
The high-performance mulching attachment provides excellent mulching performance:
Optional MulchControl© attachment
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:
An optional hydraulic MulchControl actuator attachment is available to replace the standard control lever and allow the operator to control MulchControl from the seat using the tractorâs hydraulic control lever.
NOTE: To have hydraulic control of the MulchControl baffle, both MulchControl and hydraulic MulchControl actuator attachments must be ordered. The hydraulic MulchControl actuator is an extra-cost option for the MulchControl attachment.
Changing from mulching to side discharge or vice versa with the hand lever or hydraulic MulchControl actuator option takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl compatibility
MulchControl is a field-installed attachment. Mulching blades are included:
NOTE: The hydraulic MulchControl actuator is not available for the 48-in. (122-cm) Accel Deep© Mower Deck.
Order:
BM26300 MulchControl attachment (54 HC)
BM25258 MulchControl attachment (60 HC)
BUC10536 Hydraulic MulchControl actuator
High-capacity mower decks have ramps positioned on top of the deck for easy installation:
To remove the mower deck:
The AutoConnect driveshaft is an optional kit that will automatically connect or remove the drive from the mower deck to the tractor's mid power take-off (PTO) shaft.
The AutoConnect drive does not need to be removed from the tractor when using front-powered equipment.
Drive-over mower quick reference (major steps)
John Deere has designed a system that makes it easy to remove and reinstall the mower deck. A few steps need to be followed carefully to ensure success.
The list below includes the major steps. Refer to the operatorâs manual for a more detailed procedure. The tractor most likely has the mower already installed, so these steps begin with the removal procedure.
DRIVEJD - Always Dependable Product
Mower removal steps
Drive tractor to level area.
Ready mower deck.
Increase engine speed, engage traction assist, and drive over.
Mower installation steps
Verify tractor and mower are ready.
Engage traction assist, increase engine speed, and drive or back over.
Join mower to tractor.
Done! Set mower deck height and mow.
The 48-in. (122-cm) Accel Deep© (48A) Mower Deck, 48-in. (122-cm) Edge© Xtra Mower,* and 54-in. (137-cm) and 60-in. (152-cm) Edge High Capacity (HC) Mowers use a high-performance Power Flow blower to collect material into a variety of material collection systems:
Features are as follows:
The Power Flow blower works well with either the standard mower blades or the mulching blades.
Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.
*NOTE: The three-bag, 14-bu (493-L) Power Flow is not compatible with a X729, X739, or X749 Tractor equipped with a 48X Mower Deck because the chute can contact the rear tire in a turn. However, it is compatible with the 48 Accel Deep (48A) Mower because the increased deck height and the height of its Power Flow blower housing lift the chute high enough to clear the wheel and fender with the three-bag hopper installed.
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
For model year 2019 and newer 54-Âin. (137-Âcm) and 60Â-in. (152-Âcm) High Capacity (HC) Mower Decks (serial number 70,001-) used on X700 Signature Series Tractors, an optional hydraulic MulchControl actuator attachment is are available to provide hydraulic actuation of the MulchControl baffle from the tractor seat:
BM24993 48A MulchControl attachment
BM26300 54-in. (137-cm) High Capacity MulchControl attachment
BM25258 60-in. (152-cm) High Capacity MulchControl attachment
BUC10536 Hydraulic MulchControl actuator
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl is a field-installed attachment and compatible with 2013 and newer X700 Signature Series Tractor (SN 10,001-) with one of the following mower decks:
MulchControl is a field-installed attachment. Mulching blades are included:
An advantage of X700 Series Garden Tractors is their ability to use attachments for snow removal and a variety of other yard-care tasks.
The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower. Additional attachments available for use with the equipment listed below include:
The 47-in. (119-cm) and 54-in. (137-cm) Snow Blowers have the capacity to handle big snow-removal jobs.
The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower.
The 54-in. (137-cm) and 60-in. (152-cm) Front Blades are excellent for moving snow, gravel, dirt, sand, or other loose material. They can be hydraulically angled up to 27 degrees right or left or used in the straight-ahead position.
The 52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms increase tractor versatility by allowing use for a variety of sweeping jobs. The broom effectively meets the needs of commercial, farm, home, and estate operators with four-season versatility:
Spring
Rotary brooms can be used to dethatch lawns and clean off tennis courts and other areas quickly and effectively.
Summer
Rotary brooms effectively perform a wide variety of sweeping jobs, including cleaning sidewalks, parking lots, driveways, construction job sites, and barns. They can also be used for backfilling trenches.
Fall
Rotary brooms can be used to sweep leaves and windrow pine needles. They sweep artificial turf and clean up spectator areas after sporting events.
Winter
Rotary brooms effectively move up to 2 in. (5 cm) of snow, which may eliminate the need for a snow thrower, depending on the geographic area.
The 647 Rotary Tiller is 47-in. (122-cm) wide and ideal for preparing seedbeds, controlling weeds, and other tillage jobs for homeowners, golf courses, hospitals, schools, and estates. It requires a tractor equipped with a Category 1, 3-point hitch and 540-rpm rear power take-off (PTO).
The roomy steel-frame weather enclosure shields the operator against snow, rain, sun, and wind.
This hard-side cab is rollover protection structure (ROPS) certified for extra protection:
An exclusive 4-year or 700-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X700 Series Tractors.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently. The deck is forged from 9-gauge, 0.15-in. (3.8-mm) steel and has welded-on reinforcement at the bottom edge for extra strength and durability.
High-capacity mower decks are formed in a hydraulic press to minimize the number of welds and provide a smooth underside for reduced material buildup:
Ramps are provided to permit driving over the mower deck for installing and removing it from the tractor:
A wash port is provided to make cleaning the underside of the mower deck easy:
Optional high-performance mulching attachment
The high-performance mulching attachment provides excellent mulching performance:
Optional MulchControl© attachment
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:
An optional hydraulic MulchControl actuator attachment is available to replace the standard control lever and allow the operator to control MulchControl from the seat using the tractorâs hydraulic control lever.
NOTE: To have hydraulic control of the MulchControl baffle, both MulchControl and hydraulic MulchControl actuator attachments must be ordered. The hydraulic MulchControl actuator is an extra-cost option for the MulchControl attachment.
Changing from mulching to side discharge or vice versa with the hand lever or hydraulic MulchControl actuator option takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl compatibility
MulchControl is a field-installed attachment. Mulching blades are included:
NOTE: The hydraulic MulchControl actuator is not available for the 48-in. (122-cm) Accel Deep© Mower Deck.
Order:
BM26300 MulchControl attachment (54 HC)
BM25258 MulchControl attachment (60 HC)
BUC10536 Hydraulic MulchControl actuator
Drive-over mower quick reference (major steps)
John Deere has designed a system that makes it easy to remove and reinstall the mower deck. A few steps need to be followed carefully to ensure success.
The list below includes the major steps. Refer to the operatorâs manual for a more detailed procedure. The tractor most likely has the mower already installed, so these steps begin with the removal procedure.
DRIVEJD - Always Dependable Product
Mower removal steps
Drive tractor to level area.
Ready mower deck.
Increase engine speed, engage traction assist, and drive over.
Mower installation steps
Verify tractor and mower are ready.
Engage traction assist, increase engine speed, and drive or back over.
Join mower to tractor.
Done! Set mower deck height and mow.
High-capacity mower decks have ramps positioned on top of the deck for easy installation:
To remove the mower deck:
The AutoConnect driveshaft is an optional kit that will automatically connect or remove the drive from the mower deck to the tractor's mid power take-off (PTO) shaft.
The AutoConnect drive does not need to be removed from the tractor when using front-powered equipment.
The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings.
An optional hydraulic MulchControl actuator is available to shift the MulchControl baffle using the tractorâs hydraulic control lever. Operators can convert between modes without interrupting the mowing process, making it possible to change between modes:
While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
The MulchControl baffle can be opened or closed with the Power Flow© blower installed. The Power Flow blower runs without material when the baffle is closed.
Each MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades. If desired the optional hydraulic actuator needs to be ordered separately.
MulchControl is compatible with model year 2013 and newer X700 Signature Series Tractors (serial number 10,001-) with one of the following mower decks:
Optional hydraulic MulchControl actuator (BUC10536) is available for model year 2019 and newer 9078M 54-in. (137-cm) or 9079M 60-in. (152-cm) High Capacity Mower Deck (serial number 070,001-). Mower must be equipped with a basic MulchControl attachment:
BUC10705 48-in. (122-cm) Accel Deep MulchControl
BM26300 54-in. (137-cm) High Capacity MulchControl
BM25258 60-in. (152-cm) High Capacity MulchControl
BUC10536 Hydraulic MulchControl actuator
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mowerâs barcode to get custom information about the mower.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play© store.
MowerPlus connectors (sold separately)
Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10510 MowerPlus Hour Meter Connector is for use with:
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
BUC10537 MowerPlus Smart Connector is for use with:
All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile deviceâs app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android© operating systems.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
Key Specs | |
Engine power | 25.5 hp 19 kW |
Engine manufacturer/model | FD750D EFI |
Transaxle type | K90 hydrostatic integrated with transaxle |
Transaxle control | Twin Touch™ pedals |
Chassis | |
Rear tires | 26x12-12 turf |
Key Specs | |
Steering type | Hydraulic power |
Lift system type | Two-function hydraulic |
Mower deck | |
Cutting width | Accel Deep™ mower deck, 48 in. 122 cm High capacity mower deck, 54, 60 in. 137, 152 cm |
Key Specs | |
U.S. warranty | 4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine | |
Power | 25.5 hp 19 kW |
Displacement | 45.5 cu in. 745 cc |
Manufacturer/model | FD750D EFI |
Mower attachability | |
Type | Roll under tractor (48A) Drive-over deck (54, 60 HC) |
Engine | |
Cylinders | V-twin, cast-iron liners |
Governor | Mechanical |
Choke/speed control | No choke required |
Cooling method | Liquid |
Air cleaner | Dry, replaceable with foam precleaner |
Oil drain | No tools |
Fuel system | |
Fuel delivery | Electronic fuel injection |
Fuel gauge | Gauge on dash |
Fuel tank location | Rear |
Fuel fill opening | On left fender, 3 in. 7.6 cm |
Fuel tank capacity | 5.2 U.S. gal. 19.7 L |
Electrical system | |
Battery | 12 V 340 CCA |
Charging system | Flywheel alternator, regulated, 20 amp |
Engine starter | Solenoid shift |
Hourmeter | Yes |
Headlights | Two standard, halogen, 37 W |
Taillights or reflector | Taillights |
Backup lights | Yes |
Rear work lights | Yes |
12-V outlet | Yes |
Transaxle | |
Control | Twin Touch™ pedals |
Cruise control | Yes |
Oil cooler | Yes |
Oil filter | Replaceable suction side 10 micron |
Differential lock | Standard |
Forward speed | 0-8.5 mph 0-13.7 km/h |
Reverse speed | 0-6 mph 0-9.7 km/h |
Brakes | Internal wet disc |
Chassis | |
Frame | Welded heavy-duty |
Primer/paint | E-coat/powder |
Weight bracket | Standard front - holds up to four Quik-Tatch weights, 42 lb 19 kg |
Receiver hitch | Yes, front |
Front axle | JDM BA8 nodular iron casting |
Spindle bushings | Metal, replaceable |
Front tires | 18x8.5-8 turf |
Hood material | Noryl GTX902, painted |
Fender deck material | Stamped steel |
Floor mats | Sure-grip rubber |
Storage | Covered toolbox |
Service interval decal | Yes |
Fender handles/grips | Handles |
Cup holder | Yes |
Equipment mounting | Optional category 1 3-point hitch |
Steering | |
Four-wheel steer | Not available on this model |
Steering wheel | 14 in. 35.6 cm |
Tilt steering wheel | Standard, six position |
Turning radius | 25 in. 63.5 cm |
Uncut circle radius | 54 HC, 32 in. 81.3 cm 60 HC, 28 in. 71.1 cm |
Seat | |
Seat back height | 21 in. 53.3 cm |
Armrests | Optional |
Fore-aft adjustment | While seated, slide rail, 14-position, 7 in. 17.8 cm |
Seat suspension | Six-position parallel arm |
Lift system | |
Hydraulic outlets | Four, standard |
Mower cut height | 1-5.25 in. 2.5-13.3 cm |
Cut height increments | 0.25 in. 0.64 cm |
Preset cut height | Yes |
Mower deck | |
Construction | Forged steel deck shell |
Mower deck material | 48A, 10 gauge 0.135 in. 3.4 mm 54 HC and 60 HC, 9 gauge 0.150 in. 3.8 mm |
Mower wash port | Yes |
Mower drive system | Hydraulic clutch, shaft |
Mower wheels | 48A, four and center front roller 54 and 60 HC, four with optional center front roller |
Mower wheel adjustment | Spring-loaded pin |
Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
Mower attachability | |
Front draft arms | Overcenter |
Rear draft arms | V-align |
Mower wheels rotate | Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC) |
Drive system | Shaft or AutoConnect |
Safety | |
Meets ANSI standard | Yes |
Meets OPEI standard | Yes |
Backup protection | Reverse Implement Option (RIO) |
Safety video | Yes |
Optional equipment | |
Mowers | 48A, 54 HC, 60 HC |
Rear bagger | 7, 14, 19 bu 250, 500, 670 L |
Powered material collection | Power Flow, 7, 14, 19 bu 250, 500, 670 L |
Mulching system | Yes, MulchControl™ |
Front thatcher | 38, 46, 54 in. 96.5, 116.8, 137.2 cm |
Front blade | 54 in. 137.2 cm |
Snow blower | Two-stage, 47, 54 in. 119.4, 137.2 cm |
Rotary broom | 52, 60 in. 132.1, 152.4 cm |
Rotary tiller | 42, 48 in. 106.7, 121.9 cm |
3-point hitch | Category 1 |
Rear power take-off (PTO) | 540 rpm |
Plow, moldboard | Adjustable, 8-14 in. 20.3-35.6 cm |
Box scraper | 48 in. 121.9 cm |
Cultivator | Adjustable, 30-46 in. 76.2-116.8 cm |
Rear blade | 60 in. 152.4 cm |
Disk harrow | Adjustable, 42-52 in. 106.7-132.1 cm |
Landscape rake | 60 in. 152.4 cm |
Sprayer | Tow-behind, 15, 25, 45 U.S. gal. 56.8, 94.6, 170.3 L Mounted, 25 U.S. gal. 94.6 L |
Spreader | Tow-behind, 125, 175 lb 57.7, 79.4 kg Mounted, 125 lb 57.7 kg |
Front bumper | Standard bumper/weight bracket |
Brush guard | Yes |
Weather protection | Hard-side cab, weather enclosure |
Rear receiver hitch | 1.25 x 1.25 in. 3.18 x 3.18 cm |
Bucket holder | Yes, double bucket |
Grass striping | Grass groomer kit, 48-in. (122-cm) mower only |
Tractor shovel | 54 in. 137.2 cm |
Front loader | Not available |
Tow-behind tools | 21 |
Dimensions | |
Height | 54.5 in. 1384 mm |
Overall length | 75 in. 1905 mm |
Wheelbase | 54.5 in. 1384 mm |
Width with mower | 48A: 62.5 in. 1588 mm 54 HC: 64.5 in. 1638 mm 60 HC: 74 in. 1880 mm |
Width with mower (deflector raised for storage) | 48A: 53.6 in. 1362 mm 54 HC: 57.5 in. 1461 mm 60 HC: 62 in. 1575 mm |
Width without mower | 47 in. 1195 mm |
Weight | No fuel or mower, 857 lb 389 kg |
Engine | |
Oil change | No tools |
Additional information | |
Manufacturing location | Horicon, Wisconsin, USA |
Date collected | 1-Aug-23 |
Electrical system | |
Hour meter | Yes |
Chassis | |
Maximum towing capacity | 1,000 lb 454 kg |
The ballast box is available as a field installed attachment to allow adding weight to the rear of a tractor for improved traction and stability when using the 45 Loader or a front-mounted implement.
Proper ballast ensures:
The ballast box is available as a field installed attachment to allow adding weight to the rear of a tractor for improved traction and stability when using the 45 Loader or a front-mounted implement.
Proper ballast ensures:
Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.
Wheels are mounted on a solid, one-piece axle for durability.
Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.
The pneumatic tires offer the following:
A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
A large-diameter hitch pin provides plenty of strength:
An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Please contact a local John Deere dealer for availability and pricing information.
7P Poly Utility Cart
Order number: LP21935
Oilite is a trademark of Beemer Precision, Incorporated.
The 8-cu-ft (0.23-m3), 300-lb (136-kg) capacity 8Y Convertible Poly Utility Cart can be used to haul a variety of materials including lawn debris, sand, dirt, mulch, and plants. The unique convertible hitch allows changing the cart from tow-behind mode to push mode without tools.
Key features include:
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes. Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. See the appropriate vehicle pages for the weight of the vehicle and the mower deck.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Please contact a local John Deere dealer for availability and pricing information.
8Y Convertible Poly Utility Cart
Order number: LP22755
Oilite is a trademark of Beemer Precision, Incorporated.
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.
Utility carts can be used to haul a variety of materials:
The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:
A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
10P Poly Utility Cart
Order number: LPPCT10JD
Oilite is a trademark of Beemer Precision, Incorporated.
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials, including firewood, lawn debris, dirt, sand, mulch, garden tools, plants, and bushes.
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. See the appropriate vehicle pages for the weight of the vehicle and the mower deck.
Welded box construction provides maximum reliability:
Wheels are mounted on a solid, one-piece axle for durability.
Iron/Oilite® wheel bearings with grease fittings provide lubrication for long life.
Pneumatic tires offer:
Turf-tread tires are used on the 13 Utility Cart.
Deluxe tailgate is hinged for easy emptying and can also be quickly removed without the use of tools.
A large-diameter hitch pin provides plenty of strength:
The easy-to-use latch allows tilting the bed for easier unloading:
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Please contact a local John Deere dealer for availability and pricing information.
13 Utility Cart
Order number: LPHDC13JD
Oilite is a trademark of Beemer Precision, Incorporated.
The 17-cu-ft (0.48-m³), 800-lb (363-kg) capacity or 350 lb (158 kg) when using swivel feature to dump 16YS Swivel Cart is unique in the lineup of John Deere carts in that it can be swiveled 120 degrees to either side for easier unloading. The operator can simply pull up next to where they want to dump the material and swivel the cart, eliminating the need to back up the cart.
Key features include:
NOTE: Do not exceed 350 lb (158 kg) weight capacity when using swivel feature to dump.
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes. Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. See the appropriate vehicle pages for the weight of the vehicle and the mower deck.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Please contact a local John Deere dealer for availability and pricing information.
16YS Swivel Cart
Order number: LP68186
Oilite is a trademark of Beemer Precision Incorporated.
Every owner of a John Deere riding lawn and garden product is a potential user of a high-quality, affordable utility cart.
Utility carts can be used to haul a variety of materials:
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
Key features of the 17P Utility Cart:
A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Please contact a local John Deere dealer for availability and pricing information.
17P Utility Cart
Order number: LPPCT17JD
Oilite is a trademark of Beemer Precision Incorporated.
Everyone who owns a John Deere riding lawn and garden product is a potential user of a high-quality affordable utility cart.
Utility carts can be used to haul a variety of materials:
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
Durable 18-gauge, 0.05-in. (1.2-mm) (10S) or 16-gauge, 0.06-in. (1.5-mm) (16S) steel components are bolted together.
Recessed bolts are used in the bottom of the box, so they will not interfere with emptying the cart.
The deluxe tailgate is hinged for easy emptying and can also be quickly removed without the use of tools.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
18 Steel Utility Cart
Order number: LPHDC18JD
Oilite is a trademark of Beemer Precision, Incorporated.
For use on X500 Multi-Terrain Tractors (SN -20,000):
The drawbar kit may be used on the front of X500 Multi-Terrain Tractors (SN -20,000) in the receiver hitch provided in the center of the standard front bumper/weight bracket.
For use on X400/X500 Heavy-Duty Garden Tractors, X700 Series Tractors:
The drawbar kit may be used on the front or rear of a X400/X500 Heavy-Duty Garden Tractor or X700 Series Tractor. It should be ordered for use on the rear of tractor when it is desirable to have the hitch hole further back than the standard hitch plate provides.
Rear receiver hitch kit bolts on the tractor rear hitch plate to provide a standard 1-1/4-in. x 1-1/4-in. (32-mm x 32-mm) receiver hitch:
Fits John Deere lawn and garden tow behind attachments.
Customers, please contact your local John Deere dealer for availability and pricing information.
Magnetic hitch pin
Order number: LP63768
2-in. (51-mm) hitch ball attaches to drawbar or rear hitch to allow towing. 0.75-in. (19-mm) diameter post thread is provided.
The hitch ball is available through Parts.
1-7/8-in. (48-mm) hitch ball attaches to drawbar or rear hitch to allow towing. 0.75-in. (19-mm) diameter post thread is provided.
The hitch ball is available through Parts.
Order as field conversion if required.
Same hitch works with all front-end attachments.
NOTE: Front implement and power take-off (PTO) extensions are required for 430 Tractor because of its longer frame.
BM20896 hydraulic retrofit kit consists of hose extensions used to install an older BM18167 (code 1471M) 47-in. (119-cm) Snow Blower or BM18168 (code 1481M) 46-in. (117-cm) Snow Thrower on a X400/X500 Heavy-Duty Garden Tractor or X700 Series Tractor with a BM17347 or BM19782 front hitch. If a BM19782 front hitch is used, BM20708 implement drive and upstop is also required.
Kit consists of:
Features and benefits:
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s web site for additional information.
Specifications
Capacity | 42 bu (1500 L), 53 cu ft (1.5 m3) |
Engine | 205 cc, 9.00 lb-ft* gross torque |
Impeller | Welded steel |
Tractor compatibility** | X500 Multi-Terrain and X700 Series Tractors |
Mower compatibility | 48-, 54-, 54- HC, 60- 7-Iron, 60- HC, and 62-in. (122-, 137-, 137-, 152-, 152-, and 157-cm) John Deere Mower Decks |
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s Web site for additional information.
**For proper braking and operation, the loaded weight of the collection system should never
exceed the weight of the tractor, or other towing unit, plus the operator. Additional ballast on
the tractor, or other towing unit, may be needed to meet this requirement.
Please contact your local John Deere dealer for availability and pricing information.
MC542 Material Collection System, boot and hose kits
Order number:
LP22834 – Discontinued - MC542 Material Collection System
LP23080 - Boot kit for 48-in. (122-cm) Mower Deck (48X)
LP65063 - Boot kit for 48-in. (122-cm) Mower Deck (48A)
LP65064 - Boot kit for 54-in. (137-cm) Mower Deck (54A)
LP23081 - Boot kit for 54-in. (137-cm) Mower Deck (54X)
LP44079 - Boot kit for 54-in. (137-cm) Mower Deck (54 HC)
LP23082 - Boot kit for 60-in. (152-cm) Mower Deck (60 HC and 7-Iron™ 60D)
LP23083 - Boot kit for 62-in. (157-cm) Mower Deck
LP39450 – Discontinued - MC542 Hose kit
Features and benefits:
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s web site for additional information.
Specifications
Capacity | 42 bu (1500 L), 53 cu ft (1.5 m3) |
Engine | 205 cc, 9.00 lb-ft* gross torque |
Impeller | Welded steel |
Tractor compatibility** | X500 Multi-Terrain and X700 Series Tractors |
Mower compatibility | 48-, 54-, 54- HC, 60- 7-Iron, 60- HC, and 62-in. (122-, 137-, 137-, 152-, 152-, and 157-cm) John Deere Mower Decks |
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s Web site for additional information.
**For proper braking and operation, the loaded weight of the collection system should never
exceed the weight of the tractor, or other towing unit, plus the operator. Additional ballast on
the tractor, or other towing unit, may be needed to meet this requirement.
Please contact your local John Deere dealer for availability and pricing information.
MC542 Material Collection System, boot and hose kits
Order number:
LP22834 – Discontinued - MC542 Material Collection System
LP23080 - Boot kit for 48-in. (122-cm) Mower Deck (48X)
LP65063 - Boot kit for 48-in. (122-cm) Mower Deck (48A)
LP65064 - Boot kit for 54-in. (137-cm) Mower Deck (54A)
LP23081 - Boot kit for 54-in. (137-cm) Mower Deck (54X)
LP44079 - Boot kit for 54-in. (137-cm) Mower Deck (54 HC)
LP23082 - Boot kit for 60-in. (152-cm) Mower Deck (60 HC and 7-Iron™ 60D)
LP23083 - Boot kit for 62-in. (157-cm) Mower Deck
LP39450 – Discontinued - MC542 Hose kit
Features and benefits:
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s web site for additional information.
Specifications
Capacity | 42 bu (1500 L), 53 cu ft (1.5 m3) |
Engine | 205 cc, 9.00 lb-ft* gross torque |
Impeller | Welded steel |
Tractor compatibility** | X500 Multi-Terrain and X700 Series Tractors |
Mower compatibility | 48-, 54-, 54- HC, 60- 7-Iron, 60- HC, and 62-in. (122-, 137-, 137-, 152-, 152-, and 157-cm) John Deere Mower Decks |
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s Web site for additional information.
**For proper braking and operation, the loaded weight of the collection system should never
exceed the weight of the tractor, or other towing unit, plus the operator. Additional ballast on
the tractor, or other towing unit, may be needed to meet this requirement.
Please contact your local John Deere dealer for availability and pricing information.
MC542 Material Collection System, boot and hose kits
Order number:
LP22834 – Discontinued - MC542 Material Collection System
LP23080 - Boot kit for 48-in. (122-cm) Mower Deck (48X)
LP65063 - Boot kit for 48-in. (122-cm) Mower Deck (48A)
LP65064 - Boot kit for 54-in. (137-cm) Mower Deck (54A)
LP23081 - Boot kit for 54-in. (137-cm) Mower Deck (54X)
LP44079 - Boot kit for 54-in. (137-cm) Mower Deck (54 HC)
LP23082 - Boot kit for 60-in. (152-cm) Mower Deck (60 HC and 7-Iron™ 60D)
LP23083 - Boot kit for 62-in. (157-cm) Mower Deck
LP39450 – Discontinued - MC542 Hose kit
The Power Flow chute is required, along with the high-performance Power Flow blower, to use the 3-bag Power Flow MCS. The chute includes a convenient handle and a fill indicator that tells the operator when the bags are getting full.
One chute works with several tractor applications. Trim lines on the chute are referenced in the instructions so the chute can be cut to the proper length for the tractor/mower application.
The 3-bag hopper installs to the tractor with the Click-N-Go™ mounting system:
NOTE: The chute can be used with 48C/48X, 54C/54X, 60-in. (152-cm) 7-Iron™, 62C/62X, 62D, 54 HC, and 60 HC Mowers.
The Power Flow chute is required, along with the high-performance Power Flow blower, to use the 2-bag Power Flow material collection system. The chute includes a convenient handle and a fill indicator that tells the operator when the bags are getting full.
One chute works with several vehicle applications. Trim lines on the chute are referenced in the instructions so the chute can be cut to the proper length for the vehicle/mower application.
The Power Flow chute is required, along with the high-performance Power Flow blower, to use the MC519 Cart MCS.
The 14-bu (493-L), three-bag Power Flow MCS icreases the versatility of X700 Series Tractors equipped with a 48-in. (122-cm) Accel Deep™ (48A) Mower Deck; 48-in. (122-cm)*, 54-in. (137-cm), or 62-in. (157-cm) Convertible or Edge™ Xtra Mower; the 54-in. (137-cm) or the 60-in. (152-cm) High Capacity (HC) Mower or the 60-in. (152-cm) 7-Iron™ Mower. The large, 14-bu (493-L) capacity means the operator can collect a large area of grass or leaves before needing to stop to empty the bags.
The three-bag hopper installs to the tractor with the Click-N-Go™ mounting system:
Front ballast is recommended to counterbalance the rear bagger:
*NOTE: The three-bag, 14-bu (493-L) Power Flow is not compatible with a X729, X739, or X749 Tractor equipped with a 48X Mower Deck because the chute can contact the rear tire in a turn. However, it is compatible with the 48 Accel Deep (48A) Mower because the increased deck height and the height of its Power Flow blower housing lift the chute high enough to clear the wheel and fender with the three-bag hopper installed.
The 7-bu (247-L) Power Flow provides an efficient means for picking up grass clippings and leaves.
The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags.
The 7-bu (247-L) Power Flow material collection system (MCS) features:
NOTE: The 7-bu (247-L) Power Flow rear bagger is not compatible with a tractor cab or weather enclosure installed. The chute contacts the cab or weather enclosure.
NOTE: The two-bag, 7-bu (247-L) Power Flow is not compatible with a X729, X739, or X749 Tractor equipped with a 48X Mower Deck because the chute can contact the rear tire in a turn. However, it is compatible with the 48 Accel Deep™ (48A) Mower because the increased deck height and the height of its Power Flow blower housing lift the chute high enough to clear the wheel and fender with the two-bag hopper installed.
This 20-bu (705-L) MCS provides high-capacity, dump-from-seat capability for John Deere X700 Signature Series Tractors with Click-N-Go brackets. This MCS has a sleek, lightweight design that is engineered to withstand the rigorous demands of both residential and commercial mowing applications. The hopper’s large capacity provides longer durations of mowing, resulting in fewer stops to unload.
When the hopper is full, unloading is clean, quick, and easy. With the click of a button, material can be dumped right from the seat of the tractor. Click-N-Go compatibility and two fully-integrated metal storage stands with caster wheels help minimize the time spent attaching and detaching the system to just a few minutes.
NOTE: The licensed attachments included in this section are not manufactured or sold by John Deere. The manufacturer is responsible for performance, service parts, and warranty of these products.
The 1/16-in. (1.58-mm) aluminum is lightweight, yet designed to meet the demands of both residential and commercial mowing applications. Internal bracing is located on the sides of the hopper to minimize the chance of material buildup. The hopper lid is held down with a rubber bungee cord and opens forward for accessibility at the time of cleanout.
Collected material is easily dumped from the seat of the tractor. The wiring harness includes a rocker switch that mounts to the front of the hopper and triggers an electric actuator. This actuator opens and closes the black steel tailgate that is attached to the hopper, resulting in clean, quick, and easy unloading.
Two fully-integrated metal stands help simplify storage and hook up. After removing the MCS from the tractor, simply place the chute inside the hopper and wheel the entire system away for storage. When it is time to use the MCS again, wheel it to the tractor, push it onto the Click-N-Go mounting brackets, reattach the chute and the wire harness, then fold the stands up for operation. To secure the stands up or down, locking pins are used in a hole on both sides.
This MCS is specifically designed to work with Click-N-Go brackets. The design takes ground clearance into account and utilizes the integrated stands to make hook up and removal fast and simple.
A high-density polyethylene chute is included. The chute’s smooth inside allows material to easily transfer from the mower deck to the hopper. The molded handle assists with installation and removal. The top portion of the chute slides into the flexible hose on the front of the hopper while the bottom attaches over the Power Flow™ assembly and is fastened with a bungee-corded hook. To indicate when the hopper is full, a Fill-Minder indicator is located underneath the handle.
To ensure that dust moves away from the operator, the hopper lid is made from perforated aluminum and covered on top with durable fabric. When in use, this cover directs airflow to the back of the hopper. The lid is secured with a rubber latch on the back of the hopper and is hinged for easy access during cleanout.
Hopper | |
Width | 48 in. (122 cm) |
Length | 27 in. (69 cm) |
Depth | 39 in. (99 cm) |
Ground clearance (tailgate edge) | 11 in. (28 cm) |
Weight (hopper empty) | 225 lb (102 kg) |
Capacity | 20 bu (705 L), 25 cu ft (0.7 m3) |
Materials | |
Hopper | 1/16-in. (1.58-mm) aluminum |
Hopper gate | 16-gauge, 0.06-in. (1.5-mm) steel |
Lid | 1/16-in. (1.58-mm) perforated aluminum with fabric cover |
Chute | Polyethylene |
Estimated attachment/removal time (after initial installation) | |
X700 Signature Series Tractors | 3-5 minutes |
The following items are included with this MCS:
This MCS is compatible with all X700 Signature Series Tractors.
NOTE: Not compatible with tractor hard-side cab because the switch is on the unit and the actuator may interfere with cab glass.
The following John Deere items are required to complete the installation of this MCS on an X700 Signature Series Tractor:
Key features include:
Please contact a local John Deere dealer for availability and pricing information.
20-bu (705-L) Click-N-Go MCS
Order number: LP68577The MCS 8 attachment is designed to provide dump from the seat grass collection/expulsion for all John Deere X500 and X700 Series tractors equipped with the 2-bag material collection system (MCS). The MCS attachment eliminates the need to get off of the tractor and empty the bags. As a result, it will increase both efficiency and cleanliness in the mowing process.
The aluminum body is lightweight and easy to handle. Conveniently located hand lever and smooth release and latching system are easily accessed from the tractor seat. Because it is engineered specifically for the John Deere MCS, installation is a breeze with simple hand tools.
Features:
Benefits:
NOTE: Fits All John Deere X500 and X700 Series 2-bag material collection systems. Not compatible with EZtrak™ Zero-Turn Mowers.
Please contact your local John Deere dealer for availability and pricing information.
MCS 8 attachment
Order number: LP47169
The MCS 14 attachment is designed to provide dump-from-seat grass collection and expulsion for all John Deere 3-bag material collection systems (MCS) on the X500 and X700 Series Tractors. The MCS attachment eliminates the need to get off of the tractor and empty the bags. As a result, it will increase both efficiency and cleanliness in the mowing process.
The aluminum body is light weight and easy to handle. A conveniently located lever and smooth release and latching system are easily accessed from the tractor seat. Because it is engineered specifically for the John Deere material collection system, installation is a breeze with simple hand tools.
Features:
Benefits:
NOTE: Fits John Deere 3-bag material collection systems on X500 and X700 Series Tractors.
Please contact your local John Deere dealer for availability and pricing information.
MCS 14 attachment
Order number: LP47170
A loose-knit bag is available as an option for use with 7-bu (247-L) cut-n-throw rear baggers and Power Flow™ baggers:
Features and benefits:
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s web site for additional information.
Specifications
Capacity | 42 bu (1500 L), 53 cu ft (1.5 m3) |
Engine | 205 cc, 9.00 lb-ft* gross torque |
Impeller | Welded steel |
Tractor compatibility** | X500 Multi-Terrain and X700 Series Tractors |
Mower compatibility | 48-, 54-, 54- HC, 60- 7-Iron, 60- HC, and 62-in. (122-, 137-, 137-, 152-, 152-, and 157-cm) John Deere Mower Decks |
*Per SAE J1940 as rated by engine manufacturer. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s Web site for additional information.
**For proper braking and operation, the loaded weight of the collection system should never
exceed the weight of the tractor, or other towing unit, plus the operator. Additional ballast on
the tractor, or other towing unit, may be needed to meet this requirement.
Please contact your local John Deere dealer for availability and pricing information.
MC542 Material Collection System, boot and hose kits
Order number:
LP22834 – Discontinued - MC542 Material Collection System
LP23080 - Boot kit for 48-in. (122-cm) Mower Deck (48X)
LP65063 - Boot kit for 48-in. (122-cm) Mower Deck (48A)
LP65064 - Boot kit for 54-in. (137-cm) Mower Deck (54A)
LP23081 - Boot kit for 54-in. (137-cm) Mower Deck (54X)
LP44079 - Boot kit for 54-in. (137-cm) Mower Deck (54 HC)
LP23082 - Boot kit for 60-in. (152-cm) Mower Deck (60 HC and 7-Iron™ 60D)
LP23083 - Boot kit for 62-in. (157-cm) Mower Deck
LP39450 – Discontinued - MC542 Hose kit
The high-performance (HP) Power Flow blower assembly for the 48-in. (122-cm) Accel Deep™ Mower is used with the hopper and chute to provide a very effective material collection system. A hopper and chute must be ordered separately to complete this material collection system.
A high-performance Power Flow blower assembly is used with the 48-in. (122-cm) Mower:
The high-performance blower will work well with either the standard mower blades or the mulching blades.
Material collection system (MCS) Power Flow/rear bagger chutes:
Mower deck attachments:
Weights:
The 54-in. (137-cm) high-capacity mower uses a high-performance Power Flow blower to collect material into a variety of material collection systems:
Key features:
The Power Flow blower works well with either the standard mower blades or the mulching blades.
Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.
The 54-in. (137-cm) high-capacity mower uses a high-performance Power Flow blower to collect material into a variety of material collection systems:
Key features:
The Power Flow blower works well with either the standard mower blades or the mulching blades.
Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.
The 60-in. (152-cm) high-capacity mower uses a high-performance Power Flow blower to collect material into a variety of material collection systems:
Key features:
The Power Flow blower works well with either the standard mower blades or the mulching blades.
Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.
The 60-in. (152-cm) high-capacity mower uses a high-performance Power Flow blower to collect material into a variety of material collection systems:
Key features:
The Power Flow blower works well with either the standard mower blades or the mulching blades.
Each of the John Deere material collection systems has durable construction for long life in homeowner or commercial applications.
This kit provides a bracket to give more gauge wheel offset to owners of BM24514 Power Flow Blower and CE version BM24515 Power Flow Blower to correct belt rubbing on early BM24514 and BM24515.
BM24514 and BM24515 Power Flow Blowers have been or are used on 60-in. (152-cc) 7-Iron™ and high capacity (HC) mower decks on Signature Series Tractors and 7-Iron and 60D Mowers on compact utility tractors.
The 20-amp auxiliary alternator kit operates in parallel with the standard 20-amp engine-equipped alternator to bring the total of 12-V electric power to 40 amps.
Features include:
NOTE: This kit comes less grease.
John Deere Fuel-Protect gasoline stabilizer is a unique formula developed to ensure optimum performance and protection year-round:
Always use fuel stabilizer in gasoline.
Fuel sitting in gas tanks or gas containers for more than 30 days begins to degrade. Also, blended fuels and water in gasoline can form acids that corrode fuel-system components. Protect the investment - use John Deere fuel stabilizer with corrosion preventers and prevent hard starting, surging, lack of power, poor idle, flooding, and will not run or stay running conditions caused by poor-quality fuel. Ask a local John Deere dealer or visit JDParts.
Helpful tips:
Please refer to the operator’s manual for additional recommendations and warranty information.
Fuel related issues are not considered a warrantable condition as there is no defect in the materials or workmanship of the machine.
For more information on fuel, visit John Deere Groundscare.
The front light kit includes (2) 37.5 W lights, mounting frame, and wiring harness:
Click-N-Go brackets mount on the rear of the tractor to provide a quick and easy way to install and remove rear-mounted equipment:
This black 5-gal. (19-L) bucket perfectly complements the CargO Mount™ single and double bucket holders. It is made of sturdy black plastic.
Please contact your local John Deere dealer for availability and pricing information.
Bucket - 5 gal. (19-L)
Order number: LPJD400
Transporting mulch, plants, or debris is easier with the double bucket holder. Just attach the holder bracket to the rear of any Select Series™ X300, X500 Series Multi-Terrain, or X700 Series Tractor. It is designed to carry up to 70 lb (32 kg) of material for transporting mulch, plants, yard waste, or for adding ballast.
For use with the included John Deere 5-gal. (19-L) buckets.
NOTE: May not fit all tractor models with a weather enclosure or cab installed.
Please contact your local John Deere dealer for availability and pricing information.
Bucket holder (double) with buckets
Order number: LPJD301W
Transporting mulch, plants or debris is easier with the double bucket holder. Just attach the holder bracket to the rear of any Select Series™ X300, X500 Series Multi-Terrain, or X700 Ultimate™ Series Tractor. It is designed to carry up to 70 lb (32 kg) of material.
For use with standard 5-gal. (19-L) buckets - ordered separately.
Please contact your local John Deere dealer for availability and pricing information.
Bucket holder (double)
Order number: LPJD301
Bucket (5-gal.)
Order number: LPJD400 (2 required)
Leveling gauge allows quick and accurate mower deck leveling and cutting height adjustment.
Can be used for:
Optional front roller kits are available for 54-in. (137-cm) and 60-in. (152-cm) high-capacity (HC) mower decks used on X700 Signature Series Tractors:
Compatible with the following:
Customers, please contact your local John Deere dealer for availability and pricing information.
48A or 54A - 48-in. (122-cm) and 54-in. (137-cm) grass groomer
Order number: LP63761
Optional front roller kits are available for 54-in. (137-cm) and 60-in. (152-cm) high-capacity (HC) mower decks used on X700 Signature Series Tractors:
Optional front roller kits are available for 54-in. (137-cm) and 60-in. (152-cm) high-capacity (HC) mower decks used on X700 Signature Series Tractors:
The BM26238 dry-condition kit, 48A is available for 48A Accel Deep Mower Decks used on S240 Tractors, model year 2016 and later X300 and X500 Select Series™ Tractors and Residential ZTrak™ Mowers. The 48A dry-condition kit will also work with any X700 Signature Series Tractor (model year 2013 and later) that is equipped with a 48A Mower Deck.
The dry-condition kit will reduce the amount of blowout around the mower deck when side discharging, mulching, or bagging in dry grass and leaf conditions. For optimum mowing performance in lush-grass conditions, the dry-condition kit baffles may be removed.
The MulchControl attachment for the 48A Mower Deck makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
These mulching attachments are designed for the high-capacity mower decks. This design requires no drilling for initial mounting, less installation time, and reduced hardware count for easy removal of the mulching components.
Steel baffles control material and close off the discharge area. Special mulching blades are included to optimize mulching performance. These blades can also be used for side-discharging or material collection (if a material collection system is available), though performance may be reduced in some conditions.
NOTE: A material collection system is not available for the EZtrak™ Z665 Mower.
The MulchControl attachment for the 54-in. (137-cm) HC Mower Deck makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.
For model year 2019 and newer 54 HC and 60 HC Mower Decks (serial number 070,001-), an extra-cost, optional X700 hydraulic MulchControl actuator attachment (BUC10536) is available to replace the standard hand-control lever to allow control of the MulchControl baffle from the seat using the tractor’s hydraulic control lever:
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl for 54-in. (137-cm) HC Mower Decks is a field-installed attachment and compatible with the following:
These mulching attachments are designed for the high-capacity mower decks. This design requires no drilling for initial mounting, less installation time, and reduced hardware count for easy removal of the mulching components.
Steel baffles control material and close off the discharge area. Special mulching blades are included to optimize mulching performance. These blades can also be used for side-discharging or material collection (if a material collection system is available), though performance may be reduced in some conditions.
NOTE: A material collection system is not available for the EZtrak™ Z665 Mower.
The MulchControl attachment for the 60-in. (152-cm) HC Mower Deck makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
For model year 2019 and newer 54 HC and 60 HC Mower Decks (serial number 070,001-), an extra-cost, optional X700 hydraulic MulchControl actuator attachment (BUC10536) is available to replace the standard hand-control lever to allow control of the MulchControl baffle from the seat using the tractor’s hydraulic control lever:
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl for 60-in. (152-cm) HC Mower Decks is a field-installed attachment and compatible with the following:
The hydraulic MulchControl attachment is compatible 54 HC and 60 HC Mower Decks (serial number 070,001-).
It gives the operator from-the-seat control of the MulchControl baffle with the tractor’s hydraulic lever. A mower deck equipped with the hydraulic MulchControl actuator option not only does an excellent job of mowing and mulching, but it can also be quickly converted to side discharge or mulch mode with the touch of the hydraulic control lever.
A tractor equipped with the X700 hydraulic attachment, in addition to a MulchControl attachment, delivers unprecedented levels of productivity and versatility. The tractor hydraulic control lever provides the operator with the ability to conveniently change between side discharging and mulching without leaving the tractor seat. A heavy-duty baffle opens and closes easily with a move of the tractor’s hydraulic control lever.
A dependable hydraulic cylinder is used to close and open the mulching baffle. The mower deck can easily be converted from side discharge mode to mulch mode or vice versa in a few seconds by activating the tractor’s hydraulic control lever.
The hydraulic MulchControl actuator attachment (BUC10536) is field installed and compatible with a 54 HC or 60 HC MulchControl attachment installed on model year 2019 and newer 54 HC and 60 HC Mower Decks (serial number 070,001-). X700 Signature Series Tractors, model year 2013 and newer, can be used with model year 2019 (serial number 070,001-) 54 HC and 60 HC mower decks.
NOTE: BCU10536 hydraulic MulchControl actuator attachment provides only the hydraulic control function; a 54 HC or 60 HC MulchControl attachment must be purchased separately, BM26300 MulchControl attachment (54 HC) or BM25258 MulchControl attachment (60 HC).
Features include:
Cover provides heavy-duty protection for Select Series™ X300, X500, and X700 Tractors.
Features include:
Customers, please contact your local John Deere dealer for availability and pricing information.
Protective cover (large deluxe)
Order number: LP93647
Contact your local John Deere dealer for availability and pricing information.
X700 Signature Series Seat Cover
Order number: LP47913
Adapter kit (BM23883) includes the parts necessary to convert an older BM21263 (Cat. 1) or BM17327 (Cat. 0) X400/X500 Heavy-Duty Garden Tractor 3-point hitch for use on an X700 Series Tractor:
26x12.00-12 turf tires provide good traction and reduced tire pressure on lawns.
26x12.00-12 bar and HDAP tires provide extra traction when used with a front blade or similar equipment.
26x12.00-12 turf tires provide good traction and reduced tire pressure on lawns.
26x12.00-12 bar and HDAP tires provide extra traction when used with a front blade or similar equipment.
26x12.00-12 turf tires provide good traction and reduced tire pressure on lawns.
26x12.00-12 bar and HDAP tires provide extra traction when used with a front blade or similar equipment.
Armrests increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are a solid vinyl cushion molded in a curved ergonomic shape and adjustable to suit the operator.
This armrest kit is designed for the 21-in. (53.3-cm) professional two-piece seat shipped on model year 2019 and newer (serial number 070,001-) X700 Signature Series Tractors.
The air-ride seat minimizes vibration the operator feels while using the tractor and provides a very smooth ride. This seat has a full pneumatic suspension that is easy for operators to adjust to suit their individual needs. Wide, shaped ergonomic cushions are comfortable and reduce back strain.
Features include:
Key benefits of the seat:
NOTE: The air-ride seat is compatible with all X700 Signature Series Tractors, model year 2013 and newer (serial number 010,001-). Plug-and-play wiring harness for use with the air-ride suspension seat is included with model year 2019 and newer tractors (serial number 070,001-) to reduce seat installation time. Model year 2013-2018 tractors (serial number 010,001-070,000) require AM146765 wiring harness.
The HP Category 1, 3-point hitch sprayer is designed for the discerning customer that wants more from an electric sprayer. With a 45-U.S.-gal. (170-L) capacity, high-volume electric pump, and premium pistol grip spray gun, it provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray, and de-icer. It is the perfect match for the operator who wants extreme performance, but does not have the need for power take-off (PTO) models. Cover ground quickly with flexible boom options - a 150-in. (381-cm) precision folding boom, 24-ft (7.3-m) boomless spray nozzles, or no boom at all (booms sold separately).
Features:
NOTE: Four 42-lb (19-kg) Quik-Tatch weights are required on the front of the X400/X500 Heavy-Duty Garden Tractors and X700 Series Tractors.
NOTE: The 45-gal. (170-L), 3-point hitch, high-performance sprayer requires LP22884 or LP22885 boom.
HP 150‐in. (381‐cm) precision boom, LP22885
The HP 150-in. (381-cm) precision boom (LP22885) is compatible with the HP Category 1 3-point hitch sprayer. The folding boom is made to cover ground quickly and thoroughly with five precision spray tips, TeeJet™ nozzle bodies, and commercial-grade diaphragm check valves. The outer tips offer versatility with built-in shut offs to allow an adjustable 90-, 120-, or 150-in. (229-, 305-, or 381-cm) spray swath.
Features include:
24-ft (732-cm) HP boomless spray nozzles, LP22884
The 24-ft (732-cm) HP boomless spray nozzles (LP22884) are compatible with the HP Category 1 3-point hitch sprayer. The boom is perfect for covering ground quickly and thoroughly with a 24-ft (732-cm) spray swath. It is ideal for uneven terrain or where precision spray application is not necessary.
Features include:
15-gal.(57-L) tow-behind | 25-gal. (95-L) tow-behind | 25-gal. (95-L) mounted | 25-gal. (95-L) portable | 45-gal. (170-L) tow-behind | 45-gal. (170-L) 3-point hitch | HP 45-gal. (170-L) 3-point hitch | |
Capacity | 15 U.S. gal. (57 L) | 25 U.S. gal. (95 L) | 25 U.S. gal. (95 L) | 25 U.S. gal. (95 L) | 45 U.S. gal. (170 L) | 45 U.S. gal. (170 L) | 45 U.S. gal. (170 L) |
Pump | |||||||
Type | Electric motor and diaphragm | Electric motor and diaphragm | Electric motor and diaphragm | Electric motor and diaphragm | Electric motor and diaphragm | Electric motor and diaphragm | Electric motor and diaphragm |
Manufacturer | SHURflo® | SHURflo | SHURflo | SHURflo | SHURflo | SHURflo | SHURflo |
Operating pressure | 100 psi (689 kPa) | 100 psi (689 kPa) | 100 psi (689 kPa) | 100 psi (689 kPa) | 100 psi (689 kPa) | 100 psi (689 kPa) | 45 psi (310 kPa) |
Current draw | 7 amp | 7 amp | 7 amp | 7 amp | 7 amp | 7 amp | 7 amp |
Valve material | Viton | Viton | Viton | Viton | Viton | Viton | Viton |
Diaphragm material | Santoprene | Santoprene | Santoprene | Santoprene | Santoprene | Santoprene | Santoprene |
Strainer | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Boom spray width | 60 in. (152 cm) | 90 in. (229 cm) | 90 in. (229 cm) | Not applicable | 120 in. (305 cm) | 120 in. (305 cm) | Varies with boom options |
Spray tip(s) | Two | Three | Three | Three | Three | Four | Varies with boom options |
Spray flow rate | 2.1 U.S. gpm (7.9 L/min.) | 2.1 U.S. gpm (7.9 L/min.) | 2.1 U.S. gpm (7.9 L/min.) | 2.1 U.S. gpm (7.9 L/min.) | 2.1 U.S. gpm (7.9 L/min.) | 2.1 U.S. gpm (7.9 L/min.) | 3.6 U.S. gpm (13.6 L/min.) |
Remote spray method | 19-ft (5.8-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand | 19-ft (5.8-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand | 19-ft (5.8-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand | 19-ft (5.8-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand | 20-ft (6-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand | 20-ft (6-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand | 20-ft (6-m) hose with an adjustable polypropylene handgun with 14-in. (36-cm) wand |
Handgun material | Polypropylene with Viton components | Polypropylene with Viton components | Polypropylene with Viton components | Polypropylene with Viton components | Polypropylene with Viton components | Polypropylene with Viton components | Metal alloy and brass with Viton components |
Adjustment | Fan-to-stream | Fan-to-stream | Fan-to-stream | Fan-to-stream | Fan-to-stream | Fan-to-stream | Fan-to-stream |
Tires | 4.10/3.50x4 2 PR pneumatic | 4.10/3.50x4 2 PR pneumatic | --- | --- | 15x6-6 pneumatic | --- | --- |
Wheel bearings | Roller bearings with grease fitting | Roller bearings with grease fitting | --- | --- | Roller bearings with grease fitting | --- | --- |
Axle diameter | 0.625 in. (1.6 cm) | 0.625 in. (1.6 cm) | --- | --- | 1 in. (2.5 cm) | --- | --- |
Hitch | Pin and spring clip | Pin and spring clip | --- | --- | Pin and spring clip, four height positions | Cat.1 3-Point Hitch (iMatch™ compatible) | Cat.1 3-Point Hitch (iMatch™ compatible) |
Net weight | 44 lb (20 kg) | 53 lb (24 kg) | 32 lb (15 kg) | 27 lb (12 kg) | 80 lb (36 kg) | 80 lb (36 kg) | 80 lb (36 kg) |
Please contact your local John Deere dealer for availability and pricing information.
HP Category 1 3-point hitch sprayer
Order number: LP22886
NOTE: Requires 3-point hitch and four front-mounted UC13263 42-lb (19-kg) Quik-Tatch weights.
Features and benefits:
Specifications
Item number | LP22862 |
Tank capacity | 25 gal. (95 L) |
Boom | 60-in. (152.4-cm) boom, 90-in. (228.6-cm) spray |
Spray wand reach | 30 ft (9.1 m) |
Hose length | 19 ft (8 m) |
Shipping weight | 35 lb (16 kg) |
Warranty | 2-year consumer warranty |
Please contact your local John Deere dealer for availability and pricing information.
25-gal. (95-L) Mounted Sprayer for X700 Tractors
Order number: LP22862
NOTE: Requires mid-mount mower, front implement, two front wheel weights, or four front-mounted UC13263 42-lb (19-kg) Quik-Tatch weights.
SHURflo is a trademark of SHURflo, LLC.
Viton is a trademark of DuPont Performance Elastomers.
The 45-gal. (170-L) HP Tow-Behind Sprayer offers the ultimate in performance and versatility. With its large-capacity, high-volume electric pump, and premium pistol-grip spray gun, it provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray, and de-icer. It is the perfect match for the operator who wants extreme performance.
The heavy-duty frame rolls smoothly on 15x6 tires that minimize ground compaction and have a low profile, which maintains a low center of gravity for excellent stability. Cover ground quickly with flexible boom options: a 12.5-ft (3.8-m) precision folding boom, 24-ft (7.3-m) boomless, or no boom at all (boom sold separately).
The HP 12.5-ft (3.8-m) precision boom (LP22885) is compatible with the 45-gal. (170-L) HP Tow-Behind Sprayer. The folding boom is made to cover ground quickly and thoroughly with five precision spray tips, TeeJet nozzle bodies, and commercial-grade diaphragm check valves. The outer tips offer versatility with built-in shut-offs to allow an adjustable 7.5-, 10-, or 12.5-ft (2.3-, 3.05-, or 3.8-m) spray swath.
The 24-ft (7.3-m) HP boomless spray nozzles (LP22884) are compatible with the 45-gal. (170-L) HP Tow-Behind Sprayer. The boom is perfect for covering ground quickly and thoroughly with a 24-ft (7.3-m) spray swath. It is ideal for uneven terrain or where precision spray application is not necessary.
Please contact a local John Deere dealer for availability and pricing information.
45-gal. (170-L) HP Tow-Behind Sprayer
Order number: LP39963
Optional HP 12.5‐ft (3.8‐m) precision boom
Order number: LP22885
Optional HP boomless spray nozzles
Order number: LP22884
TeeJet is a trademark of Spraying Systems Company.
Sprayer comes complete with a boom that sprays 60 in. (152.4 cm) wide. It also has a 12-ft (3.7-m) hose with an adjustable handgun for spot spraying lawns, shrubs, etc.
Features include:
NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).
This sprayer is especially suited for maintaining residential and small commercial properties:
Advantages of using liquid fertilizer over dry fertilizer:
NOTE: Use these sprayers with liquid-base lawn care chemicals only. They are not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.
Customers, please contact your local John Deere dealer for availability and pricing information.
15-gal. (57-L) Tow-Behind Sprayer
Order number: LP19478
Sprayer comes with a wider boom that sprays a 90 in. (228.6 cm) width. A 15-ft (4.6-m) hose and handgun are provided.
Features include:
NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).
This sprayer is especially suited for maintaining residential and small commercial properties.
Advantages of using liquid fertilizer over dry fertilizer:
NOTE: Use this sprayer with liquid-based lawn care chemicals only. It is not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.
Customers, please contact your local John Deere dealer for availability and pricing information.
25-gal. (95-L) Tow-Behind Sprayer
Order number: LP19479
SHURflo is a trademark of SHURflo, LLC.
Features include:
Tow-behind sprayer is equipped with a boom that sprays a wide 120-in. (308.4-cm) width. The 45-gal.(170-L) sprayer is capable of covering more area with less refills:
NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).
This liquid sprayer is especially suited for maintaining residential and small commercial properties:
Advantages of using liquid fertilizer over dry fertilizer:
NOTE: Use this sprayer with liquid-based lawn care chemicals only. It is not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.
SHURflo is a trademark of SHURflo, LLC.
Customers, please contact your local John Deere dealer for availability and pricing information,
45-gal. (170-L) Tow-Behind Sprayer
Order number: LP20485
30-in. long wiring harness extension is available if required for reaching the vehicle battery when using John Deere sprayers.
The 45-gal. (170-L) HP Tow-Behind Sprayer offers the ultimate in performance and versatility. With its large-capacity, high-volume electric pump, and premium pistol-grip spray gun, it provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray, and de-icer. It is the perfect match for the operator who wants extreme performance.
The heavy-duty frame rolls smoothly on 15x6 tires that minimize ground compaction and have a low profile, which maintains a low center of gravity for excellent stability. Cover ground quickly with flexible boom options: a 12.5-ft (3.8-m) precision folding boom, 24-ft (7.3-m) boomless, or no boom at all (boom sold separately).
The HP 12.5-ft (3.8-m) precision boom (LP22885) is compatible with the 45-gal. (170-L) HP Tow-Behind Sprayer. The folding boom is made to cover ground quickly and thoroughly with five precision spray tips, TeeJet nozzle bodies, and commercial-grade diaphragm check valves. The outer tips offer versatility with built-in shut-offs to allow an adjustable 7.5-, 10-, or 12.5-ft (2.3-, 3.05-, or 3.8-m) spray swath.
The 24-ft (7.3-m) HP boomless spray nozzles (LP22884) are compatible with the 45-gal. (170-L) HP Tow-Behind Sprayer. The boom is perfect for covering ground quickly and thoroughly with a 24-ft (7.3-m) spray swath. It is ideal for uneven terrain or where precision spray application is not necessary.
Please contact a local John Deere dealer for availability and pricing information.
45-gal. (170-L) HP Tow-Behind Sprayer
Order number: LP39963
Optional HP 12.5‐ft (3.8‐m) precision boom
Order number: LP22885
Optional HP boomless spray nozzles
Order number: LP22884
TeeJet is a trademark of Spraying Systems Company.
The 45-gal. (170-L) HP Tow-Behind Sprayer offers the ultimate in performance and versatility. With its large-capacity, high-volume electric pump, and premium pistol-grip spray gun, it provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray, and de-icer. It is the perfect match for the operator who wants extreme performance.
The heavy-duty frame rolls smoothly on 15x6 tires that minimize ground compaction and have a low profile, which maintains a low center of gravity for excellent stability. Cover ground quickly with flexible boom options: a 12.5-ft (3.8-m) precision folding boom, 24-ft (7.3-m) boomless, or no boom at all (boom sold separately).
The HP 12.5-ft (3.8-m) precision boom (LP22885) is compatible with the 45-gal. (170-L) HP Tow-Behind Sprayer. The folding boom is made to cover ground quickly and thoroughly with five precision spray tips, TeeJet nozzle bodies, and commercial-grade diaphragm check valves. The outer tips offer versatility with built-in shut-offs to allow an adjustable 7.5-, 10-, or 12.5-ft (2.3-, 3.05-, or 3.8-m) spray swath.
The 24-ft (7.3-m) HP boomless spray nozzles (LP22884) are compatible with the 45-gal. (170-L) HP Tow-Behind Sprayer. The boom is perfect for covering ground quickly and thoroughly with a 24-ft (7.3-m) spray swath. It is ideal for uneven terrain or where precision spray application is not necessary.
Please contact a local John Deere dealer for availability and pricing information.
45-gal. (170-L) HP Tow-Behind Sprayer
Order number: LP39963
Optional HP 12.5‐ft (3.8‐m) precision boom
Order number: LP22885
Optional HP boomless spray nozzles
Order number: LP22884
TeeJet is a trademark of Spraying Systems Company.
Broadcasts fertilizer, weed control, grass seed or ice melter products while towing behind a riding lawn tractor. 130-lb (59-kg) polyethylene hopper resists rust and is easier to clean. Spread pattern will go up to 12 ft (31 cm) depending on speed and material. New direct rod control with easy to reach handle opens and closes the material gate. Heat treated steel gears with plastic enclosure are protected from corrosive material. Large knobby tread tires roll easily over turf.
Two-year warranty.
Please contact your local John Deere dealer for availability and pricing information.
130-lb Pull-Type Spin Spreader
Order number: LP39087
This 175-lb (79-kg) pull-type broadcast spreader is designed for homeowner use:
Please contact your local John Deere dealer for availability and pricing information.
175-lb (79-kg) Broadcast Spreader
Order number: LPBS36JD
The 40-in. (102-cm) Aerator Spreader can do two jobs at once. It perforates the soil while the calibrated drop-spreader follows with seed, lime, or fertilizer. It can also be used to just aerate the lawn:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Width | 40 in. (101.6 cm) |
Aerator depth | Up to 2 in. (5.1 cm), two positions |
Spreader capacity | 100 lb (45 kg) |
Tines | |
Number of tips | 132 |
Diameter | 8 in. (20.3 cm) |
Material | Steel |
Lift adjuster | Manual |
Wheels | 4.10/3.5-4, pneumatic |
Drive | Direct |
Weight-tray capacity | 100 lb (45 kg) |
Requirements and/or recommendations: tow-behind equipment
Customers, please contact your local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Aerator Spreader
Order number: LPAS40JD
The 3-cu ft (85-L) Broadcast Salt Spreader is a high-capacity spreader for medium- to large-size jobs. The heavy-duty motor and vertical high-flow auger can handle rock salt or other ice-melt products with ease. A capacity of 3 cu ft (85 L) or 240 lb (109 kg), means less stopping to refill the hopper and more time spreading. Compatibility with the X700 Weather Enclosure helps the operator to stay warm and dry. The easy-to-use control box provides fingertip control of spread width and on/off function.
Features:
Specifications:
Tractor compatibility:
Please contact a local John Deere dealer for availability and pricing information.
3-cu ft (85-L) Broadcast Salt Spreader
Order number: LP67403
NOTE: Requires BM20714 Click-N-Go bracket. Requires front implement or four front-mounted UC13263 42-lb (19-kg) Quik-Tatch weights.
John Deere spin spreaders have features and a choice of sizes to satisfy many operators. They are a popular attachment for both homeowner and commercial operators who use them for even distribution of a variety of materials:
All spreaders have rust-resistant stainless-steel or polyethylene hoppers as well as many stainless-steel components to ensure lasting appearance and long, trouble-free operation.
Features include:
Accu-way is a trademark of Spyker Spreaders, Inc.
Hopper screens keep out debris and serve as chunk graters.
A stainless-steel hopper bottom plate/throat opening resists rust and corrosion, which extends the life of the spreader.
Spinners are made of high-impact plastic that will not crack or break.
The Dial-A-Matic rate control lets the operator fine-tune the rate application:
125-lb (57-kg) Pull-Type Spreader | 175-lb (79-kg) Pull-Type Spreader | |
Recommended market | Homeowner | Homeowner |
Type | Tow-behind | Tow-behind |
Bundle number | LP25353 | |
Box capacity | 125 lb (57 kg), 2.5 cu ft (0.07 m3) | 175 lb (79 kg), 3.5 cu ft (0.1 m3) |
Hopper size, in. (cm) | 14.5x25.25x19.75 (36.8x64.1x50.2) | 18.5x27.5x21.5 (47x69.9x54.6) |
No-rust versatility | ||
Hopper | Polyethylene | Polyethylene |
Hopper screen | Aluminum | Aluminum |
Hopper bottom plate | Stainless steel | Stainless steel |
Throat opening, in. (cm) | 0.81x2.75 (2.1x7) | 0.81x2.75 (2.1x7) |
Connecting hardware | Stainless steel | Stainless steel |
Accurate application | ||
Rate control | 80-setting Dial-A-Matic knob | 80-setting Dial-A-Matic knob |
Rate gate | No-stick nylon | No-stick nylon |
Rate gate linkage | Stainless steel | Stainless steel |
Even dispersal | ||
Spinner, in. (cm) | 12 (366) | 12 (366) |
Spread pattern, ft (m) | 10 to 12 (3.1 to 3.7) wide | 10 to 12 (3.1 to 3.7) wide |
Spread pattern equalizer | Accu-way™ | Accu-way |
Spinner shaft | Zinc-plated steel | Zinc-plated steel |
Rotary agitator | Stainless steel | Stainless steel |
Miscellaneous | ||
Frame | Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm) 1.13-in. (2.86-cm) tubular steel | Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm), 1.25-in. (3.2-cm) tubular steel |
Frame width, in. (cm) | 18 (45.7) | 18 (45.7) |
Drive gears | Heavy-duty die-cast metal | Heavy-duty die-cast metal |
Axle | 0.63-in. (15.9-cm) solid steel, zinc plated | 0.63-in. (15.9-cm) solid steel, zinc plated |
Wheels/tires | 13-in. x 5-in. (33-cm x 13-cm) pneumatic | 13-in. x 5-in. (33-cm x 13-cm) pneumatic |
Recommended travel speed | 3.5 mph (5.6 km/h) | 3.5 mph (5.6 km/h) |
Warranty | One-year limited | One-year limited |
Net weight, lb (kg) | 29 (13.2) | 34 (15.4) |
Accu-way is a trademark of Spyker Spreaders, Inc.
Please contact your local John Deere dealer for availability and pricing information.
125-lb Pull-Type Spin Spreader
Order number: LP25353
The barrier shield is used to direct product downward (36-in. [914-mm] width), converting the rotary spreader into a drop spreader. Perfect for ice melt and salt spreading, or for targeting specific areas.
Please contact your local John Deere dealer for availability and pricing information.
125-lb electric broadcast spreader barrier shield
Order number: LP23117
The mounted electric broadcast spreader for Select Series and Signature Series Tractors is ideal for medium- to large-size jobs and can be used to apply fertilizer, weed killer, sand, lime, and de-icer:
Key features are as follows:
Please contact your local John Deere dealer for availability and pricing information.
Select Series Electric Spreader
Item number: LP35439
John Deere spin spreaders have features and a choice of sizes to satisfy many operators. They are a popular attachment for both homeowner and commercial operators who use them for even distribution of a variety of materials:
All spreaders have rust-resistant stainless-steel or polyethylene hoppers as well as many stainless-steel components to ensure lasting appearance and long, trouble-free operation.
Features include:
Hopper screens keep out debris and serve as chunk graters.
A stainless-steel hopper bottom plate/throat opening resists rust and corrosion, which extends the life of the spreader.
Spinners are made of high-impact plastic that will not crack or break.
The Dial-A-Matic rate control lets the operator fine-tune the rate application:
125-lb (57-kg) Pull-Type Spreader | 175-lb (79-kg) Pull-Type Spreader | |
Recommended market | Homeowner | Homeowner |
Type | Tow-behind | Tow-behind |
Bundle number | LP25353 | |
Box capacity | 125 lb (57 kg), 2.5 cu ft (0.07 m3) | 175 lb (79 kg), 3.5 cu ft (0.1 m3) |
Hopper size, in. (cm) | 14.5x25.25x19.75 (36.8x64.1x50.2) | 18.5x27.5x21.5 (47x69.9x54.6) |
No-rust versatility | ||
Hopper | Polyethylene | Polyethylene |
Hopper screen | Aluminum | Aluminum |
Hopper bottom plate | Stainless steel | Stainless steel |
Throat opening, in. (cm) | 0.81x2.75 (2.1x7) | 0.81x2.75 (2.1x7) |
Connecting hardware | Stainless steel | Stainless steel |
Accurate application | ||
Rate control | 80-setting Dial-A-Matic knob | 80-setting Dial-A-Matic knob |
Rate gate | No-stick nylon | No-stick nylon |
Rate gate linkage | Stainless steel | Stainless steel |
Even dispersal | ||
Spinner, in. (cm) | 12 (366) | 12 (366) |
Spread pattern, ft (m) | 10 to 12 (3.1 to 3.7) wide | 10 to 12 (3.1 to 3.7) wide |
Spread pattern equalizer | Accu-way™ | Accu-way |
Spinner shaft | Zinc-plated steel | Zinc-plated steel |
Rotary agitator | Stainless steel | Stainless steel |
Miscellaneous | ||
Frame | Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm) 1.13-in. (2.86-cm) tubular steel | Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm), 1.25-in. (3.2-cm) tubular steel |
Frame width, in. (cm) | 18 (45.7) | 18 (45.7) |
Drive gears | Heavy-duty die-cast metal | Heavy-duty die-cast metal |
Axle | 0.63-in. (15.9-cm) solid steel, zinc plated | 0.63-in. (15.9-cm) solid steel, zinc plated |
Wheels/tires | 13-in. x 5-in. (33-cm x 13-cm) pneumatic | 13-in. x 5-in. (33-cm x 13-cm) pneumatic |
Recommended travel speed | 3.5 mph (5.6 km/h) | 3.5 mph (5.6 km/h) |
Warranty | One-year limited | One-year limited |
Net weight, lb (kg) | 29 (13.2) | 34 (15.4) |
Accu-way is a trademark of Spyker Spreaders, Inc.
Please contact your local John Deere dealer for availability and pricing information.
175-lb Pull-Type Spin Spreader
Order number: LP25354
The 43-in. (109-cm) drop width is ideal for salting sidewalks and is well suited for snow and ice contractors, colleges and universities, hospital and health campuses, municipalities, schools, retirement campuses, and more. With the large 5 cu ft (142 L) of material capacity, operators spend more time spreading and less time filling.
Features:
Specifications:
Tractor compatibility:
Click-N-Go brackets are required for mounting the drop spreader on the tractor:
Please contact a local John Deere dealer for availability and pricing information.
5-cu ft (142-L) Click-N-Go Drop Spreader
Order number: LP53522
NOTE: BM20714 Click-N-Go brackets are required for mounting the drop spreader on the tractor. Requires front implement or four front-mounted UC13263 42-lb (19-kg) Quik-Tatch weights.
An 8-in. (20-cm) extension is available to provide widths of 46 in. (117 cm) and 54 in. (137 cm) (Add an extension to one end of front thatcher to make it 46-in. [117-cm] wide; add an extension to both ends for a 56-in. [142-cm] width.)
A thatcher mounting frame is required to install the 38-in. (97-cm) front-mounted thatcher on a vehicle.
The 40-in. (102-cm) Thatcherator can be used as a dethatcher or an aerator. It can also be used to prepare an area for seed:
An 8-in. (20-cm) extension is available to provide widths of 48 in. (122 cm) and 56 in. (142 cm). Add an extension to one end of the thatcherator to make it 48-in. (122-cm) wide and an extension to both ends for a 56-in. (142-cm) width.
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Width | 40 in. (101.6 cm) |
Tines | |
Number | 20, spring-loaded tips |
Diameter | 0.19 in. (0.5 cm) |
Material | Steel |
Weight tray capacity | 100 lb (45 kg) |
Lift adjuster | Three positions |
Wheel | |
Size | 8 in. (20.3 cm) |
Tread | Rib |
Material | Steel |
Optional extension | 8 in. (20.3 cm) |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Thatcherator
Order number: LPTA40JD
One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch:
NOTE: All implements (box blades, tillers, rear blades, landscape rakes, etc.) require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier.
Tire chains increase traction dramatically under ice and snow conditions.
Protect your driving surface. TerraGrip Traction Belts offer enhanced traction on snow, mud, dirt, wet asphalt, and wet concrete surfaces. They will not scratch or chip concrete, asphalt, or aggregate drives or walkways. The proven reliability of the traditional steel chain attachment system is used and combined with the performance and durability of reinforced rubber slats. The rubber slats wrap around the tire so only rubber touches the driving surface. The result is aggressive traction without the risk of surface damage, that can happen with traditional chains.
Additional information for 4-wheel-steer tractor models:
The 42-in. (107-cm) Lawn Sweeper offers great performance and hauls an incredible 17 bu (599 L) of material. Its design gives superior brush-to-ground contact to prevent skipping and provide maximum performance for a clean path the first time through.
Features include:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Brush height | Sweeping conditions |
Ground level to 1 in. (25 mm) above | Smooth surfaces - driveways, parking lots, and sidewalks |
1 in. (25 mm) to 2 in. (50 mm) | Mowed lawns under normal conditions, or light leaves |
2 in. (50 mm) to 3 in. (75 mm) | High grass, heavy leaves, or heavy grass clippings |
Customers, please contact your local John Deere dealer for availability and pricing information.
42-in. (107-cm) Tow-Behind Lawn Sweeper
Order number: LPSTS42JD
The 44-in. (112-cm) Lawn Sweeper offers great performance and hauls an incredible 17 bu (599 L) of material. Its design gives superior brush-to-ground contact to prevent skipping and provide maximum performance for a clean path the first time through.
Features include:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Brush height | Sweeping conditions |
Ground level to 1 in. (25 mm) above | Smooth surfaces - driveways, parking lots, and sidewalks |
1 in. (25 mm) to 2 in. (50 mm) | Mowed lawns under normal conditions, or light leaves |
2 in. (50 mm) to 3 in. (75 mm) | High grass, heavy leaves, or heavy grass clippings |
Please contact your local John Deere dealer for availability and pricing information.
44-in. (112-cm) Tow-Behind Lawn Sweeper
Order number: LP49038
The Multi Tool includes one platform and two separate attachments, saving space and money.
John Deere has combined the best lawn tools into one package.
Two-year warranty.
Please contact your local John Deere dealer for availability and pricing information.
Multi Tool
Order number: LP39089
The 40-in. (102-cm) Plug Aerator removes plugs of soil up to 3-in. (7.6-cm) deep to allow penetration of air, water, and nutrients. It also helps relieve soil compaction:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Width | 40 in. (101.6 cm) |
Aerator depth | Up to 3 in. (7.6 cm) |
Tines | |
Number of tips | 28 |
Spacing | 6 in. (15.2 cm) apart |
Material | Carbonized, 16-gauge, 0.6-in. (1.5-mm) steel |
Lift adjuster | Manual, three position |
Wheels | 4.10/3.5-4, pneumatic |
Weight-tray capacity | 175 lb (79.4 kg) |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Plug Aerator
Order number: LPPA40JD
The 48-in. (122-cm) Plug Aerator removes plugs of soil up to 3 in. (7.6 cm) deep to allow penetration of air, water, and nutrients and relieve soil compaction:
NOTE: The 48-in. (122-cm) Plug Aerator is not recommended for lawn tractors.
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Width | 48 in. (121.9 cm) |
Aerator depth | Up to 3 in. (7.6 cm) |
Tines | |
Number of tips | 48 |
Spacing | 4 in. (10.2 cm) apart |
Material | Carbonized, 16-gauge, 0.06-in. (1.7-mm) steel |
Lift Adjuster | Manual, three positions |
Wheels | 4.10/3.5-4, pneumatic |
Weight-tray capacity | 250 lb (113.4 kg) * |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
48-in. (122-cm) Tow-Behind Plug Aerator
Order number: LPPA48JD
Nyliner is a trademark of Thomson Industries, Inc.
The 40-in. (102-cm) Spiker Aerator penetrates soil, allowing air, water, and nutrients to enter the lawn. It also relieves soil compaction:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
Width | 40 in. (101.6 cm) |
Aerator depth | Up to 2 in. (5.1 cm) |
Tines | |
Number of tips | 132 |
Diameter | 10 in. (25.4 cm) |
Spacing | 3.5 in. (8.9 cm) apart |
Material | Steel |
Lift adjuster | Manual |
Wheels | 4.10/3.5-4, pneumatic |
Weight tray capacity | 100 lb (45 kg) |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Spiker Aerator
Order number: LPSAT40JD
Front weight bracket holds up to nine 42-lb (19-kg) suitcase weights, UC13263 or the discontinued R66949, for a total of 378 lb (172 kg).
Weights are not included.
The front nine-weight bracket is not compatible with front implements or the front brush guard.
The 42-lb (19-kg) Quik-Tatch can be used to counterbalance a heavy front or rear attachment and/or provide greater stability, especially when operating on hills.
This weight is constructed of cast iron and weighs approximately 42 lb (19 kg).
Some vehicles have built-in front and/or rear weight brackets to hang the weights on; others require a weight bracket that must be ordered separately.
X400/X500 Heavy-Duty Garden Tractors and X700 Series Tractors require the following parts when weights are installed on the front of the tractor:
Rear weight bracket holds up to six 42-lb (19-kg) Quik-Tatch weights, ordered separately.
