John Deere X350R

DEBUG Ind: Lawn Care Equipment, Cat: Mowers, SubCat: Lawn Tractors, SubSubCat: X300 Series
Feature Overview

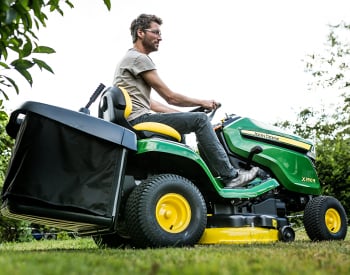

John Deere X350R
  • 21.5-hp (16.0-kW)* iTorque™ Power System
  • 42-in. (107 cm) Edge™ Rear-discharge Deck
  • Large capacity rear hopper easily emptied from operator seat
  • 4 year/300 hour bumper-to-bumper warranty
Engine power 21.5 hp / 16.0 kW
Engine manufacturer/model FR651V
Transaxle type K46 hydrostatic integrated with transaxle
Transaxle control Twin Touch™ pedals
Lawn Tractor with 42-inch Rear-Discharge Deck
$5,999.00MSRP*

Get Financed Request a Demo/Quote Value Your Trade

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Feature Overview
John Deere X350R
  • 21.5-hp (16.0-kW)* iTorque™ Power System
  • 42-in. (107 cm) Edge™ Rear-discharge Deck
  • Large capacity rear hopper easily emptied from operator seat
  • 4 year/300 hour bumper-to-bumper warranty
Engine power 21.5 hp / 16.0 kW
Engine manufacturer/model FR651V
Transaxle type K46 hydrostatic integrated with transaxle
Transaxle control Twin Touch™ pedals
Lawn Tractor with 42-inch Rear-Discharge Deck
$5,999.00 MSRP**

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Features

Engine is smooth-running and reliable V-twin air-cooled design

21.5-hp (16.0-kW) V-twin engine 21.5-hp (16.0-kW) V-twin engine

The tractor is powered by a John Deere iTorque Power System, a combination of engine features and an exclusive hood design that provides superior lugging ability, even cooling, and durability.

A large 44.3 cu in. (726-cc), 21.5-hp (16-kW) engine has plenty of power and torque for superior performance. The larger, more powerful engine also allows the engine in the rear-discharge tractor to be operated at a lower 3100-rpm speed for quieter operation.

Key engine features include:

  • 21.5 hp (16.0 kW)
  • Large 44.3 cu in. (726-cc) displacement
  • Quality features include:
    • Cast-iron cylinder liners
    • Overhead valves
    • Full-pressure lubrication
    • Replaceable oil filter
    • Dual-stage air cleaner
  • V-twin design:
    • Excellent power and performance
    • Easy starts
    • Smooth operation
Flywheel alternator

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer:

  • 12-amp charging capacity
  • Regulated to keep the battery at full charge without risk of overcharging
Fuel tank has large, conveniently located fill opening
Large fuel-fill opening Large fuel-fill opening

Large, 3-in. (7.6-cm) diameter fuel tank filler opening makes adding fuel easy:

  • Located on the left fender
  • Helps eliminate spillage
  • 2-U.S. gal. (7.6-L) capacity
  • A low-fuel light is provided on the tractor dash to tell the operator when it is time to refuel.

Heavy-duty frame Heavy-duty frame
Steel front-side of hopper bolted to frame Steel front-side of hopper bolted to frame

The frame is made of heavy formed and welded steel, reinforced in critical areas for even greater strength.

The steel front side of the hopper is bolted to the rear of the tractor frame:

  • Reinforces the frame and provides a solid support for the hopper
  • Frame formed from 12-gauge, 0.105-in. (2.66-mm) thick material
  • Standard front bumper formed from 9-gauge, 0.15-in. (3.8-mm) steel to complete the frame assembly
    • An optional front weight bracket/bumper is available for adding Quik-Tatch weights.
Standard rear hitch for tow-behind equipment Standard rear hitch for tow-behind equipment

A standard rear hitch is included for pulling tow-behind equipment. Simply lift off the hopper, and the hitch is ready to use.

Front axle and wheel spindles are heavy-duty
Cast-iron front axle and steering spindles shown on X380 Tractor Cast-iron front axle and steering spindles shown on X380 Tractor

Front axle is made of nodular cast iron:

  • Cast-iron front axle is strong and shock resistant.
  • Cast iron will not yield under heavy loads or impact.

A replaceable bushing is used at axle mounting:

  • The bushing provides excellent wear resistance.
  • Grease fittings at each spindle are easy to service.

Front steering spindle diameter is 0.75 in. (19 mm) for strength and long life:

  • Have strength to handle heavy implements
  • Provide long life at bearing surfaces
  • Use sealed precision bearings in front wheels

X350R 42-in. (107-cm) Rear-Discharge Mower Deck X350R 42-in. (107-cm) Rear-Discharge Mower Deck

The innovative design of the 42-in. (107-cm) Edge© Rear-Discharge Deck combines the best features for reliability and superior performance when mowing, collecting, and mulching grass and leaves:

  • The mower deck is stamped from 11-gauge, 0.12-in. (3-mm) steel to provide smooth contours for a quality appearance and excellent performance.
  • Easy to install or remove mulch plug is included as standard equipment.
    • The included AM147289 blades provide optimal collection/rear discharge and good mulching results in many conditions. For optimal mulching, AM140332 mulching blades are available.
  • With no side-discharge chute, the mower can trim on either side for mowing efficiency and convenience.
    • A smaller storage area requirement is an additional benefit.
  • A standard V-belt and non-timed blade design gives superior reliability and trouble-free operation.
  • Offset mower blades permit blade overlap with the use of a standard V-belt drive.
    • The blades cut cleanly without contacting each other.
  • Cut-height increments of 0.25 in. (0.64 cm) allow for operating the mower at the optimum cutting height.
  • An Exact Adjust deck-leveling system is provided to make keeping the deck properly adjusted easy.

The mower deck is contoured and free of obstructions to ensure optimum cutting and bagging performance:

  • Grass clippings flow smoothly around the deck and up the chute into the hopper.
  • Clipping buildup is minimized to ensure continued high-performance and easy cleanup.
  • Special discharge blades (standard equipment) have a large wing to propel grass clippings up the chute and into the hopper.
  • Mower fills and packs the 8.5-bu (300-L) hopper with a large volume of grass clippings and/or leaves.
Standard mulch plug
Standard mulch plug Standard mulch plug

Mulch plug easily installs in place of hopper:

  • A mulch plug is included with the model year 2017 and later X350R as standard equipment (serial number 20,001-).
  • Mulch plug is ideal for times when collecting grass clippings and leaves is not desired. The rear hopper can be easily removed, and the mulch plug can be installed.
  • Plug closes off opening on bottom of deck so material cannot enter the chute.
  • The included AM147289 blades provide optimal bagging and rear discharge performance and good mulching results in many conditions.
    • For optimal mulching, AM140332 mulching blades are available.
Wash port Wash port
Hose-end adapter for use with wash port Hose-end adapter for use with wash port

A wash port is provided on the mower deck. It can be used to supply water to the underside of the deck so it can be easily cleaned after use:

  • The wash port is designed for a hose quick-connect fitting.
  • Connect the hose to the wash port and operate the mower to clean.
  • Using the wash port cleans bottom of deck and chute.
  • The wash port works best if used immediately after the mowing job is completed.
  • Use of the wash port prevents buildup of material from affecting performance the next time the mower is used.
Optional rear deflector Optional rear deflector
Optional rear deflector in operation Optional rear deflector in operation

Optional rear deflector (BM25065) easily installs in place of hopper:

  • No tools required for installation
  • Deflects clippings in an even pattern behind the tractor

Hopper easily emptied from operator seat Hopper easily emptied from operator seat

The innovative design of the rear hopper sets a high standard for collecting systems:

  • Hopper is constructed of durable fabric for flexibility, where needed.
Hopper shipping
Hopper is nested in tractor for efficient shipping Hopper is nested in tractor for efficient shipping
Large-capacity hopper Large-capacity hopper

The rear hopper is shipped in the returnable shipping crate with the tractor:

  • Minimizes shipping cost
  • No extra carton material of which to dispose

The hopper is made of durable materials and sealed to keep dust away from the operator.


Operator station Operator station
Operator station Operator station

The operator station is designed for operator comfort and ease of using controls:

  • A large, 14-in. (36-cm) diameter steering wheel is comfortable to use and minimizes steering effort.
  • Full-length foot mats provide comfort for the operator and protect the footrest area.
Comfortable seat
Comfortable open-back seat Comfortable open-back seat

An open-back 15-in. (38-cm) high-back seat provides a comfortable, smooth ride and good support for the operator:

  • Seat travel of 6.6 in. (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls.
  • Seat can be easily adjusted fore and aft by the operator while sitting on the seat.
  • Open-back design allows air circulation to keep the operator's back cool and dry for a more comfortable ride.
  • Grasp at the top of the seat is conveniently located for use when tilting the seat up to protect it from the weather.
Adjustable seat suspension
Seat suspension with springs in rear position Seat suspension with springs in rear position
Seat suspension with springs in forward position Seat suspension with springs in forward position

The seat suspension is adjustable, without tools, for the weight of the operator:

  • Springs are adjustable fore and aft to any of three positions.
    • No tools required
    • Allows fine-tuning of the suspension for the operator's weight
    • Back position for more support for heavier operators
  • Tool tray is designed into the seat base.
    • Can be used to store gloves, small tools, etc.
    • Provides storage location for Exact Adjust tool and deck-leveling gauge
Cup holder and toolbox
Cup holder and covered toolbox on fender Cup holder and covered toolbox on fender
Covered toolbox with open cover Covered toolbox with open cover

A cup holder and covered toolbox are located on the fender for operator convenience:

  • The cup holder holds a variety of container sizes.
  • Toolbox provides convenient storage.
    • Toolbox cover snaps closed to provide protection for loose tools, cell phones, etc.
  • Cup holder and toolbox are constructed of durable acrylonitrile butadiene styrene (ABS) plastic.
Removable plug for optional 12-V outlet
Location for optional 12-V outlet Location for optional 12-V outlet

A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.

  • Convenient for plugging in cell phone charger and other electric devices
    • Can be used to operate electric rear equipment, such as a sprayer or spreader
12-V fast connector
Fast connector location Fast connector location

A mid-vehicle, 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor:

  • The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.

Operator station Operator station
Close-up of display Close-up of display

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

  • Controls are color coded and labeled with English words for easy identification by the operator.
  • Controls are logically placed and easy to reach.
  • The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
  • The reverse implement option (RIO) switch is a yellow button.
  • The latch control on foot-lift models and hydraulic-lift control on power-lift models and the park brake latch are pivot levers for low effort.
  • Cruise control activation is handled by an automotive-style button.
  • Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
    • The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.
Display panel

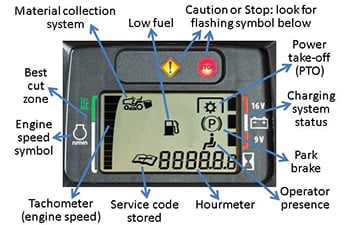

X350R display panel with indicators identified X350R display panel with indicators identified

Display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

  • Display features dark-cockpit design to minimize operator distractions.
  • Display is back lit for night visibility.
  • Night visibility is especially useful with snow blower use.
  • When the hopper is full, the hopper-full light comes on and a buzzer will sound. The operator will need to manually shut off the PTO.
  • Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
  • Low-fuel light provides the operator with a noticeable warning when low on fuel.
  • A tachometer graphically displays engine speed.
    • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
  • An indicator tells the operator when the PTO is operating.
  • Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
    • Damage can be prevented and repair costs reduced by addressing problems early.
  • Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
  • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
  • Operators are advised if battery voltage is low, normal, or excessive.
  • The service indicator light illuminates to indicate a diagnostic error code is stored.
  • On-board diagnostics provides trouble codes for use by trained technicians.
    • For example, a technician will be able to test switch functionality and circuit continuity without tools.
Twin Touch© foot control
Twin Touch foot control Twin Touch foot control
Cruise control Cruise control

Twin Touch foot pedals control the speed and direction of travel:

  • Automotive-type accelerator control ensures easy operation.
  • Operator can change direction without lifting foot off the platform.
  • Large pedal surface gives superior operator comfort.
Cruise control

Cruise control is standard equipment:

  • To engage, push the cruise-control button and hold until the foot is removed from the forward pedal.
  • For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.
Mower deck height adjustment
Onboard mower adjusting gauge and wrench Onboard mower adjusting gauge and wrench

Rotary dial knob makes adjusting mower cut height quick and easy:

  • Provides mower cut heights in 0.25-in. (6.4-cm) increments from 1 in. (2.5 cm) to 3.5 in. (8.9 cm)
  • Mower deck returns to same preset height each time it is lowered
Parking brake control
Parking brake Parking brake

Depressing brake pedal applies internal wet disk brakes (increased durability and longer life) for safe stopping.

Parking brake control is conveniently located for easy access; holds brake pedal securely in locked position.

Storage tray under tractor seat Storage tray under tractor seat
Exact Adjust tool used to level mower deck Exact Adjust tool used to level mower deck

Storage for the onboard deck-leveling gauge and the Exact Adjust tool is provided in the storage tray under the tractor’s seat.

  • Exact Adjust ports allow for easy and accurate leveling of the mower deck for optimum mowing performance
Deck-leveling gauge placed under deck Deck-leveling gauge placed under deck
Foot-pedal lift system
Foot-pedal lift system Foot-pedal lift system

Pushing with the foot to raise the mower or implement is less strenuous for many operators:

  • The easy-to-use raised position lock operates similarly to the park brake lock.
  • The foot pedal is out of the way and not likely to catch on bushes and tree limbs when mowing.
  • The mower deck returns to same preset height each time it is lowered.
  • A spring is provided to minimize lift effort.
    • An optional BM24810 supplemental lift-assist spring kit (X350R) is required for snow blower use on the X350R.
  • The mower will not be inadvertently locked in the raised position when mowing through ditches.
  • When installing or removing a mower or front equipment raised by the foot lift system, spring tension may be removed from the connection points by pulling rearward on the lift pedal and raising the lift latch to hold the pedal in the rearward position.
Electric PTO clutch is easy and convenient to use
Electric PTO switch Electric PTO switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Heavy-duty PTO clutch
PTO clutch PTO clutch

The PTO clutch is designed to operate through many on/off cycles.

RIO and interlock switches
Reverse implement switch Reverse implement switch
Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

  • Carefully check the area around the machine.
  • Disengage the mower before backing up.

NOTE: Operating the mower while backing up is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

  1. Stop forward travel. Allow attachment to run.
  2. Look down and behind the machine to be sure that there are no bystanders.
  3. Push and hold in the reverse implement switch while depressing the reverse pedal slightly.
    NOTE: If the attachment stops while positioning the machine, return the mower engagement (PTO) switch to off position. Repeat this procedure from the beginning.
  4. Release the reverse implement switch and reposition the machine as the machine begins to move rearward.
  5. Resume forward travel. The attachment should continue operating.
  6. Repeat procedure to position the machine again.
Interlock switches
Switch senses if hopper is installed Switch senses if hopper is installed

A switch senses if the hopper is installed. If the hopper is not installed and the PTO switch is actuated, the PTO will not operate.

A brake interlock switch is provided so the tractor will not start unless the brake is depressed or the parking brake set.

A tractor seat switch will turn off the PTO if the operator leaves the tractor seat; it will also shut-down the engine if the park brake is not set and the operator leaves the seat.

Either the operator needs to be in the seat or the hopper or deflector needs to be installed for the engine to run.


High-quality steering system for easy operation High-quality steering system for easy operation

A heavy-duty sector and pinion steering system with quality bearings provides easy and precise control for the life of the tractor:

  • Tight turning radius of 16.5 in. (42 cm) provides good maneuverability.
  • Easy steering promotes mowing efficiency and operator comfort.
Easy steering

Easy steering is important to give the operator an enjoyable mowing experience:

  • Large, 14-in. (36-cm) diameter steering wheel gives good leverage for easy turns.
  • Larger sector gear gives improved (increased) steering ratio.
    • Higher steering ratio results in less effort to turn the wheel.
  • Ball-joints on both ends of the steering tie rod and drag link maintain accurate steering longer.
  • Long steering drag link improves mechanical advantage of the steering system though the full range of motion.
  • Sector gear pivots on a shaft rather than a bushing.
    • This ensures proper gear mesh and eliminates binding to result in easier steering.
  • Greaseable front steering spindles improves wear over time.

Deck-leveling gauge and hex adjusting tool stored under tractor seatDeck-leveling gauge and hex adjusting tool stored under tractor seat
Exact Adjust access holesExact Adjust access holes

A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable onboard deck-leveling gauge and a hex-key tool are provided to make adjustment easy. They are securely stored under the tractor seat.

Exact Adjust leveling ports are provided on each side of the operator platform above the mower-level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best-cut quality of cut.

The Exact Adjust feature is standard on all Select Series™ X300 and X500 Tractors:

  • There is no need to reach under the fender deck while making the mower-level adjustment.
  • Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
    • Level the mower deck side to side
    • Set the correct amount of rake (front-to-back deck orientation)
    • Calibrate the cutting height to the cut-height adjusting knob setting
  • Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
    • To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.
Deck-leveling tool placed under deckDeck-leveling tool placed under deck
Using included ball-hex tool to level mower deckUsing included ball-hex tool to level mower deck

Consult the operator's manual for the correct adjusting procedures for each tractor model. Basic adjusting steps to properly level the mower deck include:

  • Park the tractor on a level surface.
  • Inflate tires to the correct pressure.
  • Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.



Cut height adjusting knobCut height adjusting knob
  • Set mower cutting-height knob to the correct deck-leveling position.
    • For X300 models, use position 2.75
    • For all other models, use position 2.5
  • Adjust mower wheels as necessary so they do not contact the ground surface.
  • Remove the onboard deck-leveling gauge that is located under the seat.
  • Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points will vary slightly between decks.
    • Left- and right-rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
  • Adjust mower deck front-to-back level, if necessary.
    • Loosen rear nuts equally on each side of front lift rod.
    • Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
    • Tighten rear nuts after adjustment is complete.
  • Return the gauge to its storage position.



NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key, part number M162737. The rounded end allows for some misalignment with the bolt as the deck is adjusted.


Attractive styling Attractive styling
Hood air-intake louvers Hood air-intake louvers

Smooth, rounded contours present a modern, stylish appearance:

  • Hood styling incorporates efficient full-length air-intake louvers on each side, rather than on the top, for cooler engine operation and lower operator station sound levels.
  • Hot air is vented out the front grille, away from the operator.
  • The fully enclosed hood is made of molded-in-color material.
    • Reduces sound
    • Will not rust or dent
  • Distinctive grille and large, one-piece fender deck complete the styling package.
Two high-quality headlights give excellent visibility
Optimum lighting pattern Optimum lighting pattern

Headlights are standard equipment on all models:

  • Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
  • A headlight position on the ignition switch makes it easy to operate the headlights.
  • The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.

One-piece hood is easy to open One-piece hood is easy to open
Service interval decal located under hood Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

  • Important service points are located within easy reach.
  • A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.
    • The high-quality engine used in the X350R does not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.
Easy-to-service engine fuel and oil filters Easy-to-service engine fuel and oil filters

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

Hopper adjustment and removal
Adjustable hopper latch Adjustable hopper latch
Hopper is easily removed and reinstalled Hopper is easily removed and reinstalled

Hopper latch is easily adjustable for operator preference and conditions:

  • Spring can be located in any of three holes.
  • More latching effort is required for hilly or rough operating conditions.



The hopper is easily removed by using the rear handle to raise the back end of the hopper 25 degrees, or about 5 in. (13 cm), and then using both handles to lift the hopper vertically out of the notches:

  • No tools are required.
  • There is nothing to disconnect.
Hopper removed Hopper removed
Chute shown pulled out part way Chute shown pulled out part way
Chute is easily removed and cleaned if necessary Chute is easily removed and cleaned if necessary

The chute can be easily pulled out and removed:

  • Chute must be at least partially pulled out before removing the mower deck.
  • Removing the chute makes cleaning it easy.
Exact Adjust ports and onboard deck-leveling tools make precise deck adjustments easy
Deck-leveling gauge and hex adjusting tool stored under tractor seat Deck-leveling gauge and hex adjusting tool stored under tractor seat
Exact Adjust access holes Exact Adjust access holes

A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable onboard deck-leveling gauge and a hex-key tool are provided to make adjustment easy. They are securely stored under the tractor seat.

Exact Adjust leveling ports are provided on each side of the operator platform above the mower-level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best-cut quality of cut.

The Exact Adjust feature is standard on all Select Series© X300 and X500 Tractors:

  • There is no need to reach under the fender deck while making the mower-level adjustment.
  • Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
    • Level the mower deck side to side
    • Set the correct amount of rake (front-to-back deck orientation)
    • Calibrate the cutting height to the cut-height adjusting knob setting
  • Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow© blower.
    • To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.
Deck-leveling tool placed under deck Deck-leveling tool placed under deck
Using included ball-hex tool to level mower deck Using included ball-hex tool to level mower deck

Consult the operator's manual for the correct adjusting procedures for each tractor model. Basic adjusting steps to properly level the mower deck include:

  • Park the tractor on a level surface.
  • Inflate tires to the correct pressure.
  • Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.
Cut height adjusting knob Cut height adjusting knob
  • Set mower cutting-height knob to the correct deck-leveling position.
  • Adjust mower wheels as necessary so they do not contact the ground surface.
  • Remove the onboard deck-leveling gauge that is located under the seat.
  • Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points varies slightly between decks.
    • Left- and right-rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
  • Adjust mower deck front-to-back level, if necessary.
    • Loosen rear nuts equally on each side of front lift rod.
    • Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
    • Tighten rear nuts after adjustment is complete.
  • Return the gauge to its storage position.



NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key, part number M162737. The rounded end allows for some misalignment with the bolt as the deck is adjusted.


MowerPlus app screen MowerPlus app screen
MowerPlus app maintenance screen MowerPlus app maintenance screen

Keep a John Deere riding lawn mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractor’s barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.

Look for the MowerPlus app on the mobile device’s app store.

The app supports residential lawn equipment such as 100 Series, S240, X300, X500, X700, Z200 through Z600, and many similarly-sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.

NOTE: Some product image variation may exist.

Also available is the John Deere MowerPlus smart connector (sold separately).

Smart connector Smart connector

The John Deere MowerPlus smart connector wirelessly links a Select Series© X300 or X500 Tractor to the MowerPlus app on a mobile device. The smart connector transmits engine usage to the app, making it easy to track maintenance intervals. It also transmits the fuel level to the app—when thinking ahead about Saturday morning mowing, the operator can make sure the tractor is fueled and ready to go.


44-in. (112-cm) Front Blade 44-in. (112-cm) Front Blade
Snow blower, weather enclosure, and chains on an X300 Series Tractor Snow blower, weather enclosure, and chains on an X300 Series Tractor

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

  • 44-in. (112-cm) Snow Blower
  • 44-in. (112-cm) Front Blade
  • 48-in. (122-cm) Front Blade (X394 Tractor only)
  • Tire chains or TerraGrip traction belts
  • Weather enclosure (available for all X300 Series, except the X350R)
  • Weights




Kanzaki® K46 transaxle Kanzaki® K46 transaxle

The Tuff Torq® hydrostatic transaxle encloses the hydrostatic pump and motor rotator groups in the same housing with the differential and axle housings:

  • This very efficient design reduces the number of sealing surfaces and minimizes potential for leakage.
  • The transaxle is essentially the same as the one used in the X350 Tractor; however, it is reversed and the drive linkage is unique, to work with the rear-discharge system.

When combined with the foot controls, the hydrostatic transmission functions similarly to an automatic transmission in an automobile, so the term automatic is often used to describe it:

  • Use of the latest valve designs has significantly reduced the sound level.
  • Large pump and motor rotating groups ensure efficient operation and long life.
Freewheeling valve
Convenient freewheeling valve Convenient freewheeling valve

The freewheeling valve control is located near the tractor rear hitch plate for good visibility and easy operation.

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.


An exclusive 4-year or 300-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X300 Series Tractors.

  • The warranty is hassle free, with one company handling all the paperwork.
  • Premium features of X300 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.


MowerPlus app screen MowerPlus app screen
MowerPlus app maintenance screen MowerPlus app maintenance screen

Keep a John Deere riding lawn mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractor’s barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.

Look for the MowerPlus app on the mobile device’s app store.

The app supports residential lawn equipment such as 100 Series, S240, X300, X500, X700, Z200 through Z600, and many similarly sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.

NOTE: Some product image variation may exist.

Also available is the John Deere MowerPlus smart connector (sold separately).

Smart connector Smart connector

The John Deere MowerPlus smart connector wirelessly links a Select Series© X300 or X500 Tractor to the MowerPlus app on a mobile device. The smart connector transmits engine usage to the app, making it easy to track maintenance intervals. It also transmits the fuel level to the app—when thinking ahead about Saturday morning mowing, the operator can make sure the tractor is fueled and ready to go.


Operator station Operator station
Close-up of display Close-up of display

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

  • Controls are color coded and labeled with English words for easy identification by the operator.
  • Controls are logically placed and easy to reach.
  • The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
  • The reverse implement option (RIO) switch is a yellow button.
  • The latch control on foot-lift models and hydraulic-lift control on power-lift models and the park brake latch are pivot levers for low effort.
  • Cruise control activation is handled by an automotive-style button.
  • Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
    • The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.
Display panel
X350R display panel with indicators identified X350R display panel with indicators identified

Display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

  • Display features dark-cockpit design to minimize operator distractions.
  • Display is back lit for night visibility.
  • Night visibility is especially useful with snow blower use.
  • When the hopper is full, the hopper-full light comes on and a buzzer sounds. The operator needs to manually shut off the PTO.
  • Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
  • Low-fuel light provides the operator with a noticeable warning when low on fuel.
  • A tachometer graphically displays engine speed.
    • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
  • An indicator tells the operator when the PTO is operating.
  • Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
    • Damage can be prevented and repair costs can be reduced by addressing problems early.
  • Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
  • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
  • Operators are advised if battery voltage is low, normal, or excessive.
  • The service indicator light illuminates to indicate a diagnostic error code is stored.
  • On-board diagnostics provides trouble codes for use by trained technicians.
    • For example, a technician can test switch functionality and circuit continuity without tools.
Twin Touch© foot control
Twin Touch foot control Twin Touch foot control
Cruise control Cruise control

Twin Touch foot pedals control the speed and direction of travel:

  • Automotive-type accelerator control ensures easy operation.
  • Operator can change direction without lifting foot off the platform.
  • Large pedal surface gives superior operator comfort.
Cruise control

Cruise control is standard equipment:

  • To engage, push the cruise-control button and hold until the foot is removed from the forward pedal.
  • For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.
Mower deck height adjustment
Onboard mower adjusting gauge and wrench Onboard mower adjusting gauge and wrench

Rotary dial knob makes adjusting mower cut height quick and easy:

  • Provides mower cut heights in 0.25-in. (6.4-cm) increments from 1 in. (2.5 cm) to 3.5 in. (8.9 cm)
  • Mower deck returns to same preset height each time it is lowered
Storage tray under tractor seat Storage tray under tractor seat
Exact Adjust tool used to level mower deck Exact Adjust tool used to level mower deck

Storage for the onboard deck-leveling gauge and the Exact Adjust tool is provided in the storage tray under the tractor’s seat.

  • Exact Adjust ports allow for easy and accurate leveling of the mower deck for optimum mowing performance.
Deck-leveling gauge placed under deck Deck-leveling gauge placed under deck
Foot-pedal lift system
Foot-pedal lift system Foot-pedal lift system

Pushing with the foot to raise the mower or implement is less strenuous for many operators:

  • The easy-to-use raised position lock operates similarly to the park brake lock.
  • The foot pedal is out of the way and not likely to catch on bushes and tree limbs when mowing.
  • The mower deck returns to same preset height each time it is lowered.
  • A spring is provided to minimize lift effort.
    • An optional BM24810 supplemental lift-assist spring kit (X350R) is required for snow blower use on the X350R.
  • The mower will not be inadvertently locked in the raised position when mowing through ditches.
  • When installing or removing a mower or front equipment raised by the foot lift system, spring tension may be removed from the connection points by pulling rearward on the lift pedal and raising the lift latch to hold the pedal in the rearward position.
Parking brake control
Parking brake Parking brake

Depressing brake pedal applies internal wet disk brakes (increased durability and longer life) for safe stopping.

Parking brake control is conveniently located for easy access; holds brake pedal securely in locked position.

Electric PTO clutch is easy and convenient to use
Electric PTO switch Electric PTO switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Heavy-duty PTO clutch
PTO clutch PTO clutch

The PTO clutch is designed to operate through many on/off cycles.

RIO and interlock switches
Reverse implement switch Reverse implement switch
Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

  • Carefully check the area around the machine.
  • Disengage the mower before backing up.

NOTE: Operating the mower while backing up is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

  1. Stop forward travel. Allow attachment to run.
  2. Look down and behind the machine to be sure that there are no bystanders.
  3. Push and hold in the reverse implement switch while depressing the reverse pedal slightly.
    NOTE: If the attachment stops while positioning the machine, return the mower engagement (PTO) switch to off position. Repeat this procedure from the beginning.
  4. Release the reverse implement switch and reposition the machine as the machine begins to move rearward.
  5. Resume forward travel. The attachment should continue operating.
  6. Repeat procedure to position the machine again.
Interlock switches
Switch senses if hopper is installed Switch senses if hopper is installed

A switch senses if the hopper is installed. If the hopper is not installed and the PTO switch is actuated, the PTO will not operate.

A brake interlock switch is provided so the tractor does not start unless the brake is depressed or the parking brake set.

A tractor seat switch turns off the PTO if the operator leaves the tractor seat; it also shuts down the engine if the park brake is not set and the operator leaves the seat.

Either the operator needs to be in the seat or the hopper or deflector needs to be installed for the engine to run.


Comfortable operator station Comfortable operator station

The operator station is designed for operator comfort and ease of using controls:

  • A large, 14-in. (36-cm) diameter steering wheel is comfortable to use and minimizes steering effort.
  • Full-length foot mats provide comfort for the operator and protect the footrest area.
Comfortable seat
Comfortable open-back seat Comfortable open-back seat

An open-back 15-in. (38-cm) high-back seat provides a comfortable, smooth ride and good support for the operator:

  • Seat travel of 6.6 in. (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls.
  • Seat can be easily adjusted fore and aft by the operator while sitting on the seat.
  • Open-back design allows air circulation to keep the operator's back cool and dry for a more comfortable ride.
  • Grasp at the top of the seat is conveniently located for use when tilting the seat up to protect it from the weather.
Adjustable seat suspension
Seat suspension with springs in rear position Seat suspension with springs in rear position
Seat suspension with springs in forward position Seat suspension with springs in forward position

The seat suspension is adjustable, without tools, for the weight of the operator:

  • Springs are adjustable fore and aft to any of three positions.
    • No tools required
    • Allows fine-tuning of the suspension for the operator's weight
    • Back position for more support for heavier operators
  • Tool tray is designed into the seat base.
    • Can be used to store gloves, small tools, etc.
    • Provides storage location for Exact Adjust tool and deck-leveling gauge
Cup holder and toolbox
Cup holder and covered toolbox on fender Cup holder and covered toolbox on fender
Covered toolbox with open cover Covered toolbox with open cover

A cup holder and covered toolbox are located on the fender for operator convenience:

  • The cup holder holds a variety of container sizes.
  • Toolbox provides convenient storage.
    • Toolbox cover snaps closed to provide protection for loose tools, cell phones, etc.
  • Cup holder and toolbox are constructed of durable acrylonitrile butadiene styrene (ABS) plastic.
Removable plug for optional 12-V outlet
Location for optional 12-V outlet Location for optional 12-V outlet

A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.

  • Convenient for plugging in cell phone charger and other electric devices
    • Can be used to operate electric rear equipment, such as a sprayer or spreader
12-V fast connector
Fast connector location Fast connector location

A mid-vehicle, 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor:

  • The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.

Attractive styling Attractive styling
Hood air-intake louvers Hood air-intake louvers

Smooth, rounded contours present a modern, styled appearance:

  • Hood styling incorporates efficient full-length air-intake louvers on each side, rather than on the top.
    • Cooler engine operation
    • Lower operator station sound levels
  • Hot air is vented out the front grille, away from the operator.
  • The fully enclosed hood is made of molded-in-color material.
    • Reduces sound
    • Will not rust or dent
  • Distinctive grille and large, one-piece fender deck complete the styling package.
Two high-quality headlights give excellent visibility
Headlights Headlights

Headlights are standard equipment on all models:

  • Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
  • A headlight position on the ignition switch makes it easy to operate the headlights.
  • The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.

MowerPlus home screen MowerPlus home screen
MowerPlus maintenance screen MowerPlus maintenance screen
Overview

Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.

Benefits
  • Engine hours, fuel level, and battery health (as compatible)
  • Mowing history with time, distance, area, and speed
  • Current day and five-day weather forecast based on location
  • Walk-through setup guides
  • Expert mowing tips
  • Useful attachments for future purchase
  • Periodic maintenance reminders
  • Safety instructions



To download the free MowerPlus app, visit the Apple® App Store® or Google Play© store.

Additional details

MowerPlus connectors (sold separately)

MowerPlus Hour Meter Connector MowerPlus Hour Meter Connector
MowerPlus Deluxe Smart Connector, with a phone MowerPlus Deluxe Smart Connector, with a phone

Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.



BUC10510 MowerPlus Hour Meter Connector is for use with:

  • Model year 2003 to 2020 100 Series Tractors, including all models with an E, D, LA, or L prefix
  • Model year 2015 to 2020 S240 Tractors (serial number -880,000)
  • S100, S110, S140, and S220 Tractors



BUC10929 MowerPlus Deluxe Smart Connector is for use with:

  • All S120, S130, S160, S170, and S180 Tractors
  • Model year 2021 and newer S240 Tractors (serial number 880,001-)
  • Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)



BUC10537 MowerPlus Smart Connector is for use with:

  • Model year 2016 and newer Select Series X300 and X500 Tractors



All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.



MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android© operating systems.



Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.


Specs
Key Specs
Engine power 21.5 hp
16.0 kW
Engine manufacturer/model FR651V
Transaxle type K46 hydrostatic integrated with transaxle
Transaxle control Twin Touch™ pedals
Chassis
Rear tires 20x10-8
Key Specs
Steering type Manual, sector and pinion
Lift system type Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)
Mower deck
Cutting width 42 in.
107 cm
Key Specs
U.S. warranty 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
Power 21.5 hp
16.0 kW
Displacement 44.3 cu in.
726 cc
Manufacturer/model FR651V
Mower attachability
Type Slide under tractor
Engine
Cylinders V-twin, cast-iron liners
Governor Mechanical
Choke/speed control Separate levers, automatic choke return
Cooling method Air
Air cleaner Dry, replaceable
Oil drain No tools
Fuel system
Fuel delivery Pulse pump, carburetor
Fuel gauge Low fuel indicator
Fuel tank location Rear
Fuel fill opening On left fender, 3 in.
7.6 cm
Fuel tank capacity 2 U.S. gal.
7.6 L
Electrical system
Battery 12 V
340 CCA
Charging system Flywheel alternator, regulated, 12 amp
Engine starter Bendix
Hourmeter Yes
Headlights Two standard, incandescent, 27 W
Taillights or reflector No
Backup lights No
Rear work lights No
12-V outlet Optional
Transaxle
Control Twin Touch™ pedals
Cruise control Yes, button on dash
Oil cooler Fins and fan on transaxle
Oil filter Internal, not replaceable
Differential lock No
Forward speed 0-5.3 mph
0-8.5 km/h
Reverse speed 0-4 mph
0-6.4 km/h
Brakes Internal wet disc
Chassis
Frame Welded heavy-duty
Primer/paint E-coat/powder
Weight bracket Optional front
Receiver hitch No
Front axle Cast iron front axle, front wheel ball bearings
Spindle bushings No
Front tires 15x6-6
Hood material Fully enclosed, molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Sure-grip rubber
Storage Yes, under seat and covered toolbox
Service interval decal Yes
Fender handles/grips No
Cup holder Yes
Equipment mounting Yes, front
Steering
Four-wheel steer Not available on this model
Steering wheel Large, 14 in.
35.6 cm
Tilt steering wheel No
Turning radius 16.5 in.
42 cm
Uncut circle radius Right, 23 in.
58.4 cm
Left 28 in.
71.1 cm
Seat
Seat back height 15 in.
38 cm
Armrests No
Fore-aft adjustment While seated, ball bearing slide rail, 15-position, 6.6 in.
17 cm
Seat suspension Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
Hydraulic outlets No
Mower cut height 13 positions, 1-4 in.
2.5-9.5 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes
Mower deck
Construction Stamped steel deck shell
Mower deck material 11 gauge
0.120 in.
3 mm
Mower wash port Yes
Mower drive system Electric power take-off (PTO) clutch, in-line belt
Mower wheels Three
Mower wheel adjustment Four-position, tool required
Mower level adjustment Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
Front draft arms Attached with spring pins at two points
Rear draft arms Two pins and spring clips
Mower wheels rotate No
Drive system Dual belt
Safety
Meets ANSI standard Yes
Meets OPEI standard Yes
Backup protection Reverse Implement Option (RIO)
Safety video Yes
Optional equipment
Mowers Rear discharge, rear collect (standard), 42 in.
107 cm
Rear bagger Rear hopper, 8.5 bu
300 L
Mulching system Standard mulch plug
Front thatcher 38, 46, 54 in.
96.5, 116.8, 137.2 cm
Front blade 44 in.
111.8 cm
Snow blower Two-stage, 44 in.
111.8 cm
Sprayer Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Spreader Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Front bumper Styled bumper option
Brush guard Yes
Grass striping Lawn striping kit
Tractor shovel 40 in.
101.6 cm
Tow-behind tools 16
Dimensions
Height 46.1 in.
1171 mm
Overall length 97.2 in.
2468 mm
Wheelbase 50.2 in.
1275 mm
Width with mower 43.8 in.
1112 mm
Width without mower 37.9 in.
962 mm
Weight Mower, no fuel: 646 lb
293 kg
Engine
Oil change No-tools oil drain with replaceable filter
Additional information
Manufacturing location Horicon, Wisconsin, USA
Date collected 3-Oct-22
Electrical system
Hour meter Yes
Chassis
Maximum towing capacity 600 lb
272 kg
Accessories and Attachments
Carts
8Y Convertible Poly Utility Cart, push mode 8Y Convertible Poly Utility Cart, push mode
8Y Convertible Poly Utility Cart, tow-behind mode 8Y Convertible Poly Utility Cart, tow-behind mode

The 8-cu-ft (0.23-m3), 300-lb (136-kg) capacity 8Y Convertible Poly Utility Cart can be used to haul a variety of materials including lawn debris, sand, dirt, mulch, and plants. The unique convertible hitch allows changing the cart from tow-behind mode to push mode without tools.

Key features include:

  • Compatible with riding lawn tractors and garden tractors
  • Durable poly construction
  • All-terrain pneumatic tires
  • Converts from tow cart to push cart without tools
  • Large handle is provided for ease of use

Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes. Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21

Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
X  X X X X X X
S240 X X X  X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590
X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394
Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590
Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear
Ordering information

Please contact a local John Deere dealer for availability and pricing information.

8Y Convertible Poly Utility Cart
Order number: LP22755

Oilite is a trademark of Beemer Precision, Incorporated.


10P Poly Utility Cart 10P Poly Utility Cart

Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.


Utility carts can be used to haul a variety of materials:

  • Firewood
  • Lawn debris
  • Sand
  • Dirt
  • Mulch
  • Garden tools
  • Plants and bushes

The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:

  • Large 650-lb (295-kg) capacity
  • 10-cu ft (283-L), heavy-duty, 0.25-in. (6.4-mm) thick poly bed
  • Will not dent or rust
  • 15x6 tubeless pneumatic tires with turf tread for maximum traction
  • Easy, hands-free foot pedal dump release
  • Steep dump angle for complete emptying



A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.



Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21

Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
X  X X X X X X
S240 X X X  X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590
X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394
Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590
Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear

Ordering information
Please contact a local John Deere dealer for availability and pricing information.

10P Poly Utility Cart
Order number: LPPCT10JD

Oilite is a trademark of Beemer Precision, Incorporated.


13 Steel Utility Cart 13 Steel Utility Cart

Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials, including firewood, lawn debris, dirt, sand, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

Welded box Welded box

Welded box construction provides maximum reliability:

  • Requires less setup time than the bolted construction.
  • Box sides and bottom are one piece and have rounded corners and no hardware for easy cleaning.
Wheels and tires

Wheels are mounted on a solid, one-piece axle for durability.

Iron/Oilite® wheel bearings with grease fittings provide lubrication for long life.

Pneumatic tires offer:

  • Good flotation
  • Minimal rolling resistance
  • Shock absorption

Turf-tread tires are used on the 13 Utility Cart.

Deluxe tailgate Deluxe tailgate

Deluxe tailgate is hinged for easy emptying and can also be quickly removed without the use of tools.

Easy hookup and tilt-dump latch
Spring-pin tractor hitch Spring-pin tractor hitch
Tilt-dump latch Tilt-dump latch

A large-diameter hitch pin provides plenty of strength:

  • Fast, easy attachment to the tractor hitch
  • Spring pin to ensure the pin stays in place

The easy-to-use latch allows tilting the bed for easier unloading:

  • Steep dump angle makes emptying easier.
Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21

Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
X  X X X X X X
S240 X X X  X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590
X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394
Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590
Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear



Ordering information

Please contact a local John Deere dealer for availability and pricing information.

13 Utility Cart
Order number: LPHDC13JD

Oilite is a trademark of Beemer Precision, Incorporated.


16YS Swivel Cart 16YS Swivel Cart

The 17-cu-ft (0.48-m³), 800-lb (363-kg) capacity or 350 lb (158 kg) when using swivel feature to dump 16YS Swivel Cart is unique in the lineup of John Deere carts in that it can be swiveled 120 degrees to either side for easier unloading. The operator can simply pull up next to where they want to dump the material and swivel the cart, eliminating the need to back up the cart.



Key features include:

  • Haul a variety of materials including lawn debris, sand, dirt, mulch, and plants
  • 800-lb (363-kg) capacity makes it durable enough for the heavy jobs
    • 350 lb (158 kg) when using swivel feature to dump
  • Convenient foot pedal release for easy dumping
  • Molded stake pockets for enlarging the bed size

NOTE: Do not exceed 350 lb (158 kg) weight capacity when using swivel feature to dump.



Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes. Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.



NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21

Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
X  X X X X X X
S240 X X X  X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590
X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394
Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590
Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear
Ordering information

Please contact a local John Deere dealer for availability and pricing information.



16YS Swivel Cart

Order number: LP68186



Oilite is a trademark of Beemer Precision Incorporated.


17P Utility Cart 17P Utility Cart

Every owner of a John Deere riding lawn and garden product is a potential user of a high-quality, affordable utility cart.


Utility carts can be used to haul a variety of materials:

  • Firewood
  • Lawn debris
  • Sand
  • Dirt
  • Mulch
  • Garden tools
  • Plants and bushes

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.



Key features of the 17P Utility Cart:

  • 1,000-lb (454-kg), 17-cu ft (0.48-m3) load capacity.
  • Cart has premium molded polypropylene box construction.
  • Polypropylene body will not rust or dent, staying new-looking longer.
  • 0.75- x 2-in. (19- x 51-mm) stake pockets are molded in to make addition of side extensions easy.
  • Two vertical 0.75-in. (19-mm) molded channels on each side allow for easy use of dividers to separate the box into two or three compartments.
  • Ribs in box bottom add strength and prevent a shovel from hitting bolts when emptying the cart.
  • Sloped tailgate design makes emptying the box easier; no tailgate to loosen or remove.
  • Styling is compatible with other John Deere equipment.
  • 16x6.5 pneumatic tires with turf tread give good flotation, shock absorption, and minimal rolling resistance.
  • Wheels are mounted on a solid one-piece axle.
  • Wheels turn on iron/Oilite® bushings with grease fitting for long life.
  • Spring-loaded dump latch is easy to use.

A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.

Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21

Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
X  X X X X X X
S240 X X X  X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590
X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394
Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590
Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear
Ordering information

Please contact a local John Deere dealer for availability and pricing information.



17P Utility Cart
Order number: LPPCT17JD

Oilite is a trademark of Beemer Precision Incorporated.


7P Poly Utility Cart 7P Poly Utility Cart
#

Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

7P Poly Utility Cart 7P Poly Utility Cart
  • The cart has a premium molded, high-density polyethylene box construction.
  • Compression molding process allows polyethyl­ene to be the optimum thickness in all areas for superior strength and durability.
  • Polyethylene body will not rust or dent; it stays looking new longer.
  • 0.75-in. (2-cm) x 2-in. (5-cm) stake pockets are molded in to make the addition of side extensions easy.
  • Two vertical 0.75-in. (2-cm) molded channels on each side allow easy use of dividers to separate the box into two or three compartments.
  • Ribs in the box bottom add strength and prevent the shovel from hitting bolts when emptying the cart.
  • Sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
  • Styling is compatible with other John Deere equipment.
  • Pneumatic tires provide turf tread for good flotation, shock absorption, and minimal rolling resistance.
Wheels
7P Utility Cart wheel 7P Utility Cart wheel
#

Wheels are mounted on a solid, one-piece axle for durability.

Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.

The pneumatic tires offer the following:

  • Good flotation
  • Minimal rolling resistance
  • Shock absorption
Sloped tailgate
Sloped tailgate for easy emptying Sloped tailgate for easy emptying

A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.

Tractor hitch
Spring-pin tractor hitch Spring-pin tractor hitch

A large-diameter hitch pin provides plenty of strength:

  • Fast, easy attachment to the tractor hitch
  • Spring pin to ensure the pin stays in place
Tilt latch
Tilt latch Tilt latch

An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.

Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21

Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
X  X X X X X X
S240 X X X  X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590
X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180
Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394
Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590
Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear
Ordering information

Please contact a local John Deere dealer for availability and pricing information.

7P Poly Utility Cart
Order number: LP21935

Oilite is a trademark of Beemer Precision, Incorporated.


Drawbar
1-7/8-in. (48-mm) hitch ball 1-7/8-in. (48-mm) hitch ball

1-7/8-in. (48-mm) hitch ball attaches to drawbar or rear hitch to allow towing. 0.75-in. (19-mm) diameter post thread is provided.



The hitch ball is available through Parts.


Magnetic hitch pin Magnetic hitch pin

Fits John Deere lawn and garden tow behind attachments.

  • Strong magnetic grip
  • Rust resistant
  • Easy to install, secure fit
Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

Magnetic hitch pin

Order number: LP63768


Miscellaneous
8-oz (237-mL) Fuel-Protect gasoline stabilizer 8-oz (237-mL) Fuel-Protect gasoline stabilizer

John Deere Fuel-Protect gasoline stabilizer is a unique formula developed to ensure optimum performance and protection year-round:

  • Has corrosion preventers
  • For lawn and garden equipment and other gasoline-powered vehicles
  • Ensures quick starts in all two- and four-cycle engines
  • Use in gasoline, gasoline-oil mixture, and ethanol blends
  • Use to treat gas cans at each fill-up or use at every fill-up of vehicle
  • Keeps fuel fresh for 12 months
  • Contains a fuel injector and carburetor cleaner
  • 1 oz (29.6 mL) treats 2 gal. (7.6 L)

Always use fuel stabilizer in gasoline.

Fuel sitting in gas tanks or gas containers for more than 30 days begins to degrade. Also, blended fuels and water in gasoline can form acids that corrode fuel-system components. Protect the investment - use John Deere fuel stabilizer with corrosion preventers and prevent hard starting, surging, lack of power, poor idle, flooding, and will not run or stay running conditions caused by poor-quality fuel. Ask a local John Deere dealer or visit JDParts.

Helpful tips:

  • Add fuel stabilizer every time fuel is purchased.
  • Deere gasoline-powered equipment is recommended to run on a minimum of 87 octane gasoline.
  • John Deere Fuel-Protect for gasoline is safe to use in all types of gasoline, including gasoline/oil mixtures and blended fuels containing up to 10 percent ethanol.
  • Use plastic fuel containers to store fuel; ask a local John Deere dealer.
  • For best results, use a spill-proof gas can that automatically seals the gas can vent.
  • Store fuel in a cool, dry, dark place in a sealed fuel can.
  • Fill tank to the top every time the machine is put away.
    • Make sure tank is drained if stored for the winter or treated if left for prolonged periods of time.

Please refer to the operator’s manual for additional recommendations and warranty information.

Fuel related issues are not considered a warrantable condition as there is no defect in the materials or workmanship of the machine.

For more information on fuel, visit John Deere Groundscare.


Supplemental lift-assist spring kit parts Supplemental lift-assist spring kit parts

The supplemental lift-assist spring kit is required for snow blower use on the X350R Rear-Discharge Tractor.

NOTE: The supplemental lift-assist kit is for use only when the snow blower is installed. It must be removed for installatiion of the rear-discharge mower deck.


Compatibility kit parts Compatibility kit parts
Updates a model year 2006-2015 44-in. (112-cm) Snow Blower, 47-in. (119-cm) Snow Blower, or 48-in. (122-cm) Front Blade for use on a model year 2016 Select Series™ X300 or X500 Mult-Terrain Tractor.

Seat net kit Seat net kit

Seat net kit provides a convenient storage area for gloves, and other small items. It is available for open-back seats.


Rear deflector Rear deflector
Rear deflector installed Rear deflector installed

Optional rear deflector for X350R Rear-Discharge Tractor easily installs in place of hopper. No tools required for installation.

Rear deflector spreads clippings in an even pattern behind the tractor.


12-V outlet 12-V outlet

The 12-V outlet kit can be installed on the tractor to provide power for various 12-V equipment.


Mower Blades
StarLock™ blade design
42-in. (106.7-cm) Edge mulch mower StarLock blade mounting 42-in. (106.7-cm) Edge mulch mower StarLock blade mounting

Kit includes two mower blades.


Mower blade Mower blade

Kit includes two mower blades.


Protection
Front bumper Front bumper

The front bumper adds a distinctive appearance to the tractor and protects the front of the tractor from damage.

Features include:

  • Bumper can be easily mounted to the front of the tractor.
  • Bumper can remain on the tractor when the front blade or snow blower are used.

Seat cover, standard medium Seat cover, standard medium
#

Seat cover protects new seats and renews old seats:

  • Cushioned seat for extra comfort
  • Four convenient pockets for keeping tools and gear within reach
  • Elastic cord in bottom hem for a custom fit
  • Medium size fits seats with backrests up to 15 in. (381 mm)
Ordering information

Contact your local John Deere dealer for availability and pricing information.

Seat cover, standard medium
Order number: LP92324


Seat cover, deluxe medium Seat cover, deluxe medium
#

Deluxe thick-cushioned seat cover provides superior protection, all-day riding comfort, and lots of storage:

  • Access to lumbar adjustment controls
  • Large-capacity rear-zippered cargo pocket
  • Two side mesh beverage pockets
  • Elastic cord in bottom hem for a custom fit
  • Medium size fits seats with backrests up to 15 in. (38.1 cm)
Ordering information

Contact your local John Deere dealer for availability and pricing information.

Seat cover, deluxe medium
Order number: LP92624


Protective cover (large deluxe)Protective cover (large deluxe)

Cover provides heavy-duty protection for Select Series™ X300, X500, and X700 Tractors.

Features include:

  • Wipe-clean reinforced bottom around mower deck
  • Easy-on side handles makes snugging down cover a snap
  • Dual reinforced air vents let air circulate and help prevent ballooning in wind
  • Interior lining and integrated muffler heat shield
  • Heavy-duty fabric will not shrink or stretch and is coated for maximum water resistance
  • Easy-on split back for fast fitting and easy access after installation
  • Handy storage pocket reverses into an attractive storage case
  • Two-year warranty
Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

Protective cover (large deluxe)

Order number: LP93647


Brush guard Brush guard

The brush guard adds a distinctive appearance to the tractor and protects the front of the tractor from damage.

Brush guard lowered to permit opening hood Brush guard lowered to permit opening hood

By removing one spring clip and pin, the brush guard may be lowered to permit opening the hood.


Sprayers
15-gal. (57-L) Tow-Behind Sprayer 15-gal. (57-L) Tow-Behind Sprayer

Sprayer comes complete with a boom that sprays 60 in. (152.4 cm) wide. It also has a 12-ft (3.7-m) hose with an adjustable handgun for spot spraying lawns, shrubs, etc.

Features include:

  • This sprayer is an excellent choice for spraying small- to moderate-size lawns and shrubs.
  • Handgun with adjustable spray pattern is helpful when spraying fruit trees and can be used to spray trees up to 30-ft (9.1-m) high.
  • A 14-in. (35.6-cm) wand on the handgun is standard equipment to give added convenience when spraying trees.

NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).

This sprayer is especially suited for maintaining residential and small commercial properties:

  • Sprayers provide an excellent way to apply liquid fertilizer.
  • Herbicides and pesticides can be applied along with liquid fertilizer or separately.

Advantages of using liquid fertilizer over dry fertilizer:

  • Fertilizer is more readily available to plants.
  • The fertilizer need not be worked into the soil by watering or rain before it will work.
  • Herbicides are more effective when applied with liquid fertilizer.

NOTE: Use these sprayers with liquid-base lawn care chemicals only. They are not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.

Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

15-gal. (57-L) Tow-Behind Sprayer

Order number: LP19478


25-gal. (95-L) Tow-Behind Sprayer 25-gal. (95-L) Tow-Behind Sprayer

Sprayer comes with a wider boom that sprays a 90 in. (228.6 cm) width. A 15-ft (4.6-m) hose and handgun are provided.

Features include:

  • 100 psi Shurflo® diaphragm-type pump is designed for high hour commercial applications. It can be run dry without damage.
  • Sprayer is designed to be a good choice for customers with larger lawns with trees to care for or for light commercial spraying.
  • Handgun with adjustable spray pattern is helpful when spraying fruit trees and can be used to spray trees up to 30 ft (9.1 m) in height.
  • The 14-in. (35.6-cm) wand on the handgun is included as standard equipment.

NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).

This sprayer is especially suited for maintaining residential and small commercial properties.

  • Sprayers provide an excellent way to apply liquid fertilizer.
  • Herbicides and pesticides can be applied along with liquid fertilizer or separately.

Advantages of using liquid fertilizer over dry fertilizer:

  • Fertilizer is more readily available to plants.
  • The fertilizer need not be worked into the soil by watering or rain before it will work.
  • Herbicides are more effective when applied with liquid fertilizer.

NOTE: Use this sprayer with liquid-based lawn care chemicals only. It is not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.

Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

25-gal. (95-L) Tow-Behind Sprayer

Order number: LP19479

SHURflo is a trademark of SHURflo, LLC.


Spreaders
125-lb (57-kg) Pull-Type Spin Spreader 125-lb (57-kg) Pull-Type Spin Spreader

John Deere spin spreaders have features and a choice of sizes to satisfy many operators. They are a popular attachment for both homeowner and commercial operators who use them for even distribution of a variety of materials:

  • Seed
  • Fertilizer
  • Insecticide
  • Salt

All spreaders have rust-resistant stainless-steel or polyethylene hoppers as well as many stainless-steel components to ensure lasting appearance and long, trouble-free operation.

Features include:

  • Positive on/off system (no cables)
  • 125-lb (57-kg) capacity corrosion-resistant polyurethane hopper
  • 13-in. (33-cm) pneumatic tires for easy rolling
  • Enclosed gearbox (metal gears)
  • Ergonomic dual handle featuring Accu-way™
  • Accu-way even spread pattern adjustment
  • Includes screen and cover

Accu-way is a trademark of Spyker Spreaders, Inc.

Hopper screen and throat opening
Hopper screen and throat opening Hopper screen and throat opening

Hopper screens keep out debris and serve as chunk graters.

A stainless-steel hopper bottom plate/throat opening resists rust and corrosion, which extends the life of the spreader.

Spinner
Spinner Spinner

Spinners are made of high-impact plastic that will not crack or break.

Dial-A-Matic rate control
Dial-A-Matic rate control Dial-A-Matic rate control

The Dial-A-Matic rate control lets the operator fine-tune the rate application:

  • Dial position locks and unlocks automatically.
  • More than 80 settings provide an accurate application of materials.
Specifications



  125-lb (57-kg) Pull-Type Spreader 175-lb (79-kg) Pull-Type Spreader
Recommended market Homeowner Homeowner
Type Tow-behind Tow-behind
Bundle number LP25353
Box capacity 125 lb (57 kg), 2.5 cu ft (0.07 m3) 175 lb (79 kg), 3.5 cu ft (0.1 m3)
Hopper size, in. (cm) 14.5x25.25x19.75 (36.8x64.1x50.2) 18.5x27.5x21.5 (47x69.9x54.6)
No-rust versatility
Hopper Polyethylene Polyethylene
Hopper screen Aluminum Aluminum
Hopper bottom plate Stainless steel Stainless steel
Throat opening, in. (cm) 0.81x2.75 (2.1x7) 0.81x2.75 (2.1x7)
Connecting hardware Stainless steel Stainless steel
Accurate application
Rate control 80-setting Dial-A-Matic knob 80-setting Dial-A-Matic knob
Rate gate No-stick nylon No-stick nylon
Rate gate linkage Stainless steel Stainless steel
Even dispersal
Spinner, in. (cm) 12 (366) 12 (366)
Spread pattern, ft (m) 10 to 12 (3.1 to 3.7) wide 10 to 12 (3.1 to 3.7) wide
Spread pattern equalizer Accu-way™ Accu-way
Spinner shaft Zinc-plated steel Zinc-plated steel
Rotary agitator Stainless steel Stainless steel
Miscellaneous
Frame Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm) 1.13-in. (2.86-cm) tubular steel Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm), 1.25-in. (3.2-cm) tubular steel
Frame width, in. (cm) 18 (45.7) 18 (45.7)
Drive gears Heavy-duty die-cast metal Heavy-duty die-cast metal
Axle 0.63-in. (15.9-cm) solid steel, zinc plated 0.63-in. (15.9-cm) solid steel, zinc plated
Wheels/tires 13-in. x 5-in. (33-cm x 13-cm) pneumatic 13-in. x 5-in. (33-cm x 13-cm) pneumatic
Recommended travel speed 3.5 mph (5.6 km/h) 3.5 mph (5.6 km/h)
Warranty One-year limited One-year limited
Net weight, lb (kg) 29 (13.2) 34 (15.4)



Accu-way is a trademark of Spyker Spreaders, Inc.

Ordering information

Please contact your local John Deere dealer for availability and pricing information.

125-lb Pull-Type Spin Spreader

Order number: LP25353


175-lb (79-kg) Pull Spreader 175-lb (79-kg) Pull Spreader

John Deere spin spreaders have features and a choice of sizes to satisfy many operators. They are a popular attachment for both homeowner and commercial operators who use them for even distribution of a variety of materials:

  • Seed
  • Fertilizer
  • Insecticide
  • Salt

All spreaders have rust-resistant stainless-steel or polyethylene hoppers as well as many stainless-steel components to ensure lasting appearance and long, trouble-free operation.

Features include:

  • Positive on/off system (no cables)
  • 175-lb (79.4-kg) capacity corrosion-resistant polyurethane hopper
  • 13-in. (33-cm) pneumatic tires for easy rolling
  • Fully enclosed gear box with metal gears for long life
  • Accu-way even spread pattern adjustment
  • Includes screen and cover



Hopper screen and throat opening
Hopper screen and throat opening Hopper screen and throat opening

Hopper screens keep out debris and serve as chunk graters.

A stainless-steel hopper bottom plate/throat opening resists rust and corrosion, which extends the life of the spreader.

Spinner
Spinner Spinner

Spinners are made of high-impact plastic that will not crack or break.

Dial-A-Matic rate control
Dial-A-Matic rate control Dial-A-Matic rate control

The Dial-A-Matic rate control lets the operator fine-tune the rate application:

  • Dial position locks and unlocks automatically.
  • More than 80 settings provide an accurate application of materials.
Specifications



  125-lb (57-kg) Pull-Type Spreader 175-lb (79-kg) Pull-Type Spreader
Recommended market Homeowner Homeowner
Type Tow-behind Tow-behind
Bundle number LP25353
Box capacity 125 lb (57 kg), 2.5 cu ft (0.07 m3) 175 lb (79 kg), 3.5 cu ft (0.1 m3)
Hopper size, in. (cm) 14.5x25.25x19.75 (36.8x64.1x50.2) 18.5x27.5x21.5 (47x69.9x54.6)
No-rust versatility
Hopper Polyethylene Polyethylene
Hopper screen Aluminum Aluminum
Hopper bottom plate Stainless steel Stainless steel
Throat opening, in. (cm) 0.81x2.75 (2.1x7) 0.81x2.75 (2.1x7)
Connecting hardware Stainless steel Stainless steel
Accurate application
Rate control 80-setting Dial-A-Matic knob 80-setting Dial-A-Matic knob
Rate gate No-stick nylon No-stick nylon
Rate gate linkage Stainless steel Stainless steel
Even dispersal
Spinner, in. (cm) 12 (366) 12 (366)
Spread pattern, ft (m) 10 to 12 (3.1 to 3.7) wide 10 to 12 (3.1 to 3.7) wide
Spread pattern equalizer Accu-way™ Accu-way
Spinner shaft Zinc-plated steel Zinc-plated steel
Rotary agitator Stainless steel Stainless steel
Miscellaneous
Frame Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm) 1.13-in. (2.86-cm) tubular steel Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm), 1.25-in. (3.2-cm) tubular steel
Frame width, in. (cm) 18 (45.7) 18 (45.7)
Drive gears Heavy-duty die-cast metal Heavy-duty die-cast metal
Axle 0.63-in. (15.9-cm) solid steel, zinc plated 0.63-in. (15.9-cm) solid steel, zinc plated
Wheels/tires 13-in. x 5-in. (33-cm x 13-cm) pneumatic 13-in. x 5-in. (33-cm x 13-cm) pneumatic
Recommended travel speed 3.5 mph (5.6 km/h) 3.5 mph (5.6 km/h)
Warranty One-year limited One-year limited
Net weight, lb (kg) 29 (13.2) 34 (15.4)


Accu-way is a trademark of Spyker Spreaders, Inc.

Ordering information

Please contact your local John Deere dealer for availability and pricing information.

175-lb Pull-Type Spin Spreader
Order number: LP25354


40-in. (102-cm) Tow-Behind Aerator Spreader 40-in. (102-cm) Tow-Behind Aerator Spreader
#

The 40-in. (102-cm) Aerator Spreader can do two jobs at once. It perforates the soil while the calibrated drop-spreader follows with seed, lime, or fertilizer. It can also be used to just aerate the lawn:

  • 40-in. (102-cm) width, with up to 2 in. (5.1 cm) of penetration
  • 132 steel-tine tips on 8-in. (20-cm) diameter tine stars
  • Three-position, full-sized lift lever
  • Direct spreader drive for consistent performance
  • Adjustable flow control
  • 100-lb (45-kg) spreader capacity
  • 4.10/3.5-4 pneumatic tires for easy pulling
  • 75-lb (34-kg) capacity weight tray
Quality design

John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.

This implement features legendary John Deere performance and quality.

Specifications

Width  40 in. (101.6 cm)
Aerator depth  Up to 2 in. (5.1 cm), two positions
Spreader capacity  100 lb (45 kg)
Tines
Number of tips 132
Diameter 8 in. (20.3 cm)
Material Steel
Lift adjuster  Manual
Wheels  4.10/3.5-4, pneumatic
Drive  Direct
Weight-tray capacity  100 lb (45 kg)
Vehicle compatibility and requirements

Requirements and/or recommendations: tow-behind equipment

  1. Rear wheel weights are recommended for additional traction.
  2. The 48-in. (122-cm) Tow-Behind Plug Aerator is not recommended for Select Series™ X300s, D100, LA100, 100, or L100 Series, 100 Series, LT, LTR, LX Lawn Tractors, EZtrak™ Mower or Residential ZTrak™ Mower.
  3. The loaded weight of the utility cart not to exceed the weight of the vehicle and operator.
    The loaded weight of any attachment towed by an EZtrak or Residential ZTrak not to exceed 250 lb (113 kg).
  4. For EZtraks and Residential ZTraks, only the 7P Utility Cart, 10P Utility Cart, or 42-in. (107-cm) Lawn Sweeper are recommended for towing.
Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

40-in. (102-cm) Tow-Behind Aerator Spreader

Order number: LPAS40JD


130-lb (59-kg) Pull-Type Spin Spreader 130-lb (59-kg) Pull-Type Spin Spreader

Broadcasts fertilizer, weed control, grass seed or ice melter products while towing behind a riding lawn tractor. 130-lb (59-kg) polyethylene hopper resists rust and is easier to clean. Spread pattern will go up to 12 ft (31 cm) depending on speed and material. New direct rod control with easy to reach handle opens and closes the material gate. Heat treated steel gears with plastic enclosure are protected from corrosive material. Large knobby tread tires roll easily over turf.



Two-year warranty.

Ordering information

Please contact your local John Deere dealer for availability and pricing information.

130-lb Pull-Type Spin Spreader
Order number: LP39087


Broadcast Spreader Broadcast Spreader

This 175-lb (79-kg) pull-type broadcast spreader is designed for homeowner use:

  • The polyethylene hopper will not dent or rust.
  • All stainless-steel interior hardware, shaft, and agitator help to prevent corrosion.
  • Large pneumatic turf tires ensure a positive drive and smooth operation.
  • High-speed, 6:1 reduction glass-filled nylon gears provide the widest spread pattern at the slowest speeds.
  • Fully enclosed gearbox eliminates downtime and maintenance.
  • Autoflow feature stops the flow of materials - automatically - to prevent burns.
  • Directional spread-pattern control feature provides positive shutoff along sidewalks and driveways.
Ordering information

Please contact your local John Deere dealer for availability and pricing information.

175-lb (79-kg) Broadcast Spreader

Order number: LPBS36JD


Thatchers
8-in. (20-cm) thatcher extension for wider widths 8-in. (20-cm) thatcher extension for wider widths

An 8-in. (20-cm) extension is available to provide widths of 46 in. (117 cm) and 54 in. (137 cm) (Add an extension to one end of front thatcher to make it 46-in. [117-cm] wide; add an extension to both ends for a 56-in. [142-cm] width.)


Front thatcher installed on X534 Tractor Front thatcher installed on X534 Tractor

A thatcher mounting frame is required to install the 38-in. (97-cm) front-mounted thatcher on a vehicle.


40 in. (102-cm) Tow-Behind Thatcherator 40 in. (102-cm) Tow-Behind Thatcherator

The 40-in. (102-cm) Thatcherator can be used as a dethatcher or an aerator. It can also be used to prepare an area for seed:

  • 40-in. (102-cm) width to cover ground fast
  • 20 spring-loaded tines for maximum performance
  • Three-position adjustment
  • Weight tray to allow increased scratching power

An 8-in. (20-cm) extension is available to provide widths of 48 in. (122 cm) and 56 in. (142 cm). Add an extension to one end of the thatcherator to make it 48-in. (122-cm) wide and an extension to both ends for a 56-in. (142-cm) width.

Quality design

John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.

This implement features legendary John Deere performance and quality.

Specifications



Width  40 in. (101.6 cm)
Tines
Number 20, spring-loaded tips
Diameter 0.19 in. (0.5 cm)
Material Steel
Weight tray capacity 100 lb (45 kg)
Lift adjuster  Three positions
Wheel
Size 8 in. (20.3 cm)
Tread Rib
Material Steel
Optional extension  8 in. (20.3 cm)


Requirements and/or recommendations:

  1. Rear wheel weights are recommended for additional traction.
  2. For use with the following John Deere vehicles and other lawn and garden tractors of similar size:
    • 100 Series Tractors
    • 200 Series Tractors
    • X300 Series Tractors
    • X500 Series Tractors
    • X700 Series Tractors
Ordering information

Contact a local John Deere dealer for availability and pricing information.

40-in. (102-cm) Tow-Behind Thatcherator

Order number: LPTA40JD


Tire Chains
TerraGrip Traction Belt TerraGrip Traction Belt
#

Protect your driving surface. TerraGrip Traction Belts offer enhanced traction on snow, mud, dirt, wet asphalt, and wet concrete surfaces. They will not scratch or chip concrete, asphalt, or aggregate drives or walkways. The proven reliability of the traditional steel chain attachment system is used and combined with the performance and durability of reinforced rubber slats. The rubber slats wrap around the tire so only rubber touches the driving surface. The result is aggressive traction without the risk of surface damage, that can happen with traditional chains.

Features:
  • Rubber slats surround the tire and will not damage driveways or sidewalks.
  • No steel touches the driving surface.
  • No-tools installation utilizes a traditional steel chain attachment system.
  • Traction is improved on all surfaces, especially loose material (snow, dirt, mud, sand, etc.).
  • TerraGrip Traction Belts are approved for John Deere X300, X500 M-T, and X700 Series Tractors.

Additional information for 4-wheel-steer tractor models:

  • X700 Series – requires wheel spacer sold separately
  • X500 Series – requires wheel stop adjustment
  • X300 Series – no additional requirements

Tire chain with optional wheel weights on X728 TractorTire chain with optional wheel weights on X728 Tractor

Chains are recommended for extra traction when using attachments such as a snow blower or front blade.

One pair of chains is included in each bundle.

TY15959 tire chains - 20x8-8
NOTE: For LA105, LA115, LA125, D100, D105, D110, D120, and D125 Tractors.

TY16200 tire chains - 20x10-8, 20x10-10
NOTE: For LA135 SE, LA145, LA155, D130, D140, D150, D155, S240, X300/less deck, X300/38X, X300/42M, X300/42X, X300/48X, X300R, X304, and X324 Tractors.
NOTE: 20x10-8 tires and 20x10-10 tires use the same chains as the height and width are the same. The rim diameter is larger for four-wheel steer tires, but does not affect chain requirements.

TY25229 tire chains - 22x9.5-12
NOTE: For LA165, LA175, D160, and D170 Tractors.

TY24327 tire chains - 22x11-10
NOTE: For X320, X340, and X360 Tractors.

TY15956 tire chains - 23x10.5-12
NOTE: For 190C Tractor.

TY26227 tire chains - 23x9.5-12, 24x9.5-12
NOTE: For X534 Tractor.

TY24328 tire chains - 24x12-12
NOTE: For X500, X520, X530, X540, and X590 Tractors. Also use with 26x10.5-12 tires on model year 2016- (SN 040,000-) X734 and X754.

TY25326 tire chains - 26x10.5-12
NOTE: For model year -2015 (SN -040,000). For X724, X734, X744, and X754 Tractors. Fits turf, bar, and heavy-duty all-purpose (HDAP) tire treads.

TY15958 tire chains - 26x12-12
NOTE: For X700, X710, X720, X730, X728, X738, X729, X739, X740, X750, X748, X758, and X749 Tractors. Will fit turf, bar, and HDAP tire treads. X729, X739, and X749 require BM22725 wheel spacer kit to provide clearance when installing tire chains.


Tow Behind
42-in. (107-cm) Lawn Sweeper 42-in. (107-cm) Lawn Sweeper

The 42-in. (107-cm) Lawn Sweeper offers great performance and hauls an incredible 17 bu (599 L) of material. Its design gives superior brush-to-ground contact to prevent skipping and provide maximum performance for a clean path the first time through.

Features include:

  • 42-in. (107-cm) clearing width
  • 17-bu (599-L) capacity to make fast work of picking up material
  • Convenient brush-height adjuster has eight positions for easy selection of the optimum sweeping height
  • Hitch has seven positions to match up correctly with a variety of vehicles
  • Large 12-in. (305-mm) x 3-in. (76-mm) wheels with bar tread have good gripping action to ensure positive brush rotation
  • A unique storage feature allows the sweeper to collapse and be stored vertically to minimize storage space
Quality design

John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.

This implement features legendary John Deere performance and quality.

Specifications



Brush height Sweeping conditions
Ground level to 1 in. (25 mm) above Smooth surfaces - driveways, parking lots, and
sidewalks
1 in. (25 mm) to 2 in. (50 mm) Mowed lawns under normal conditions, or light
leaves
2 in. (50 mm) to 3 in. (75 mm) High grass, heavy leaves, or heavy grass clippings





Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

42-in. (107-cm) Tow-Behind Lawn Sweeper
Order number: LPSTS42JD


Multi Tool Multi Tool
#

The Multi Tool includes one platform and two separate attachments, saving space and money.



  • Includes 40-in. (101.6-cm) weight tray - capable of holding up to 100 lb (45.4 kg) of weight
  • Includes pre-assembled core aerator - reduces soil compaction allowing air, water, and fertilizer to the grass roots
  • Includes dethatcher - removes unwanted debris from the top of the soil to allow nutrients to reach the grass roots
  • Elongated handle - makes it easier to raise into transport or lower for use
  • Spring assisted lever - makes changing the attachments quick and easy


John Deere has combined the best lawn tools into one package.

Two-year warranty.



Ordering information

Please contact your local John Deere dealer for availability and pricing information.



Multi Tool

Order number: LP39089


40-in. (102-cm) Tow-Behind Plug Aerator 40-in. (102-cm) Tow-Behind Plug Aerator
#

The 40-in. (102-cm) Plug Aerator removes plugs of soil up to 3-in. (7.6-cm) deep to allow penetration of air, water, and nutrients. It also helps relieve soil compaction:

  • 40-in. (102-cm) width with up to 3 in. (7.6 cm) of penetration
  • Three-position lift handle for 2-in. (5-cm) or 3-in. (7.6-cm) plug lengths
  • 28 carbonized, 16-gauge, 0.06-in. (1.5-mm) steel, individually serviceable plugging tines
  • 1-in. (2.5-cm) diameter high-carbon steel-tine shaft
  • 4.10/3.50-4 pneumatic tires for easy pulling
  • 175-lb (79-kg) capacity weight tray
Quality design

John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.

This implement features legendary John Deere performance and quality.

Specifications



Width  40 in. (101.6 cm)
Aerator depth  Up to 3 in. (7.6 cm)
Tines
Number of tips 28
Spacing 6 in. (15.2 cm) apart
Material  Carbonized, 16-gauge, 0.6-in. (1.5-mm) steel
Lift adjuster  Manual, three position
Wheels  4.10/3.5-4, pneumatic
Weight-tray capacity  175 lb (79.4 kg)
Vehicle compatibility and requirements

Requirements and/or recommendations:

  1. Rear wheel weights are recommended for additional traction.
  2. For use with the following John Deere vehicles and other lawn and garden tractors of similar size:
    • 100 Series Tractors
    • 200 Series Tractors
    • X300 Series Tractors
    • X500 Series Tractors
    • X700 Series Tractors
Ordering information

Contact a local John Deere dealer for availability and pricing information.

40-in. (102-cm) Tow-Behind Plug Aerator

Order number: LPPA40JD


40-in. (102-cm) Tow-Behind Spiker Aerator 40-in. (102-cm) Tow-Behind Spiker Aerator
#

The 40-in. (102-cm) Spiker Aerator penetrates soil, allowing air, water, and nutrients to enter the lawn. It also relieves soil compaction:

  • 40-in. (102-cm) width with up to 2 in. (5 cm) of penetration
  • 10-in. (25-cm) diameter steel-tine stars
  • 132 steel-tine tips on 11 spike wheels
  • 3.5-in. (9-cm) spike-wheel spacing
  • Full-sized lift lever
  • 4.10/3.5-4 pneumatic tires for easy pulling
  • 100-lb (45-kg) capacity weight tray 40-in. (102-cm) width with up to 3 in. (7.6 cm) of penetration
Quality design

John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.

This implement features legendary John Deere performance and quality.

Specifications



Width  40 in. (101.6 cm)
Aerator depth  Up to 2 in. (5.1 cm)
Tines
Number of tips 132
Diameter 10 in. (25.4 cm)
Spacing 3.5 in. (8.9 cm) apart
Material Steel
Lift adjuster  Manual
Wheels  4.10/3.5-4, pneumatic
Weight tray capacity  100 lb (45 kg)


Requirements and/or recommendations:

  1. Rear wheel weights are recommended for additional traction.
  2. For use with the following John Deere vehicles and other lawn and garden tractors of similar size:
    • 100 Series Tractors
    • 200 Series Tractors
    • X300 Series Tractors
    • X500 Series Tractors
    • X700 Series Tractors
Ordering information

Contact a local John Deere dealer for availability and pricing information.

40-in. (102-cm) Tow-Behind Spiker Aerator

Order number: LPSAT40JD


Weights
31-lb (14.1-kg) wheel weight 31-lb (14.1-kg) wheel weight

One 31-lb (14.1-kg) plastic-shell rear wheel weight may be installed on each rear wheel to provide extra traction and stability.


34-lb (15.4-kg) front wheel weight 34-lb (15.4-kg) front wheel weight

A durable cast-iron weight can be mounted to each front wheel.

These weights are recommended for use when operating on slopes, especially when the tractor is equipped with a rear grass bagger or other rear-mounted equipment.

Each weight requires BM17978 mounting hardware.


Standard front bumper Standard front bumper
Optional front weight bracket/bumper installed Optional front weight bracket/bumper installed

The optional front weight bracket/bumper is available to replace the standard front bumper on the following tractors:

  • Select Series™ X300, X300R, X304, X305R, X310, X320, X324, X340, X350, X350R, X354, X360, X370, X380, X384, X390, and X394 Tractors
  • Model year 2007 and later (SN 020001-) Select Series model X500 Tractor
  • All X530 Select Series Tractors
  • Model year 2011 and later (SN 060001-) Select Series model X534 Tractor
  • X570 Select Series Tractor
Front weight bracket/bumper with four weights Front weight bracket/bumper with four weights

NOTE: Weights are ordered separately.

Holds up to four 42-lb (19.1-kg) Quik-Tatch weights:

  • Provides an alternative to front-wheel weights for ballasting rear-mounted equipment
  • Makes the 42-in. (106.7-cm) Hydraulic Tiller compatible with the X530 Tractor
  • Functions as a bumper when weights are not installed



Can be used in combination with all John Deere equipment, except the following:

  • Styled front bumper (BM23056)
  • 40-in. (101.6-cm) Tractor Shovel

30-lb (13.6-kg) front wheel-weight shown 30-lb (13.6-kg) front wheel-weight shown

Hardware is required for installing each front-wheel weight.

Requirements:

  • Mounting may require drilling two holes in the wheel rim.
  • BM17978 mounting hardware kit is required for each weight.

NOTE: Front-wheel weights are not available for special edition tractors because the styled front-wheel design does not have appropriate holes for mounting the wheel weights and no adapter is available.


*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
