Feature Overview

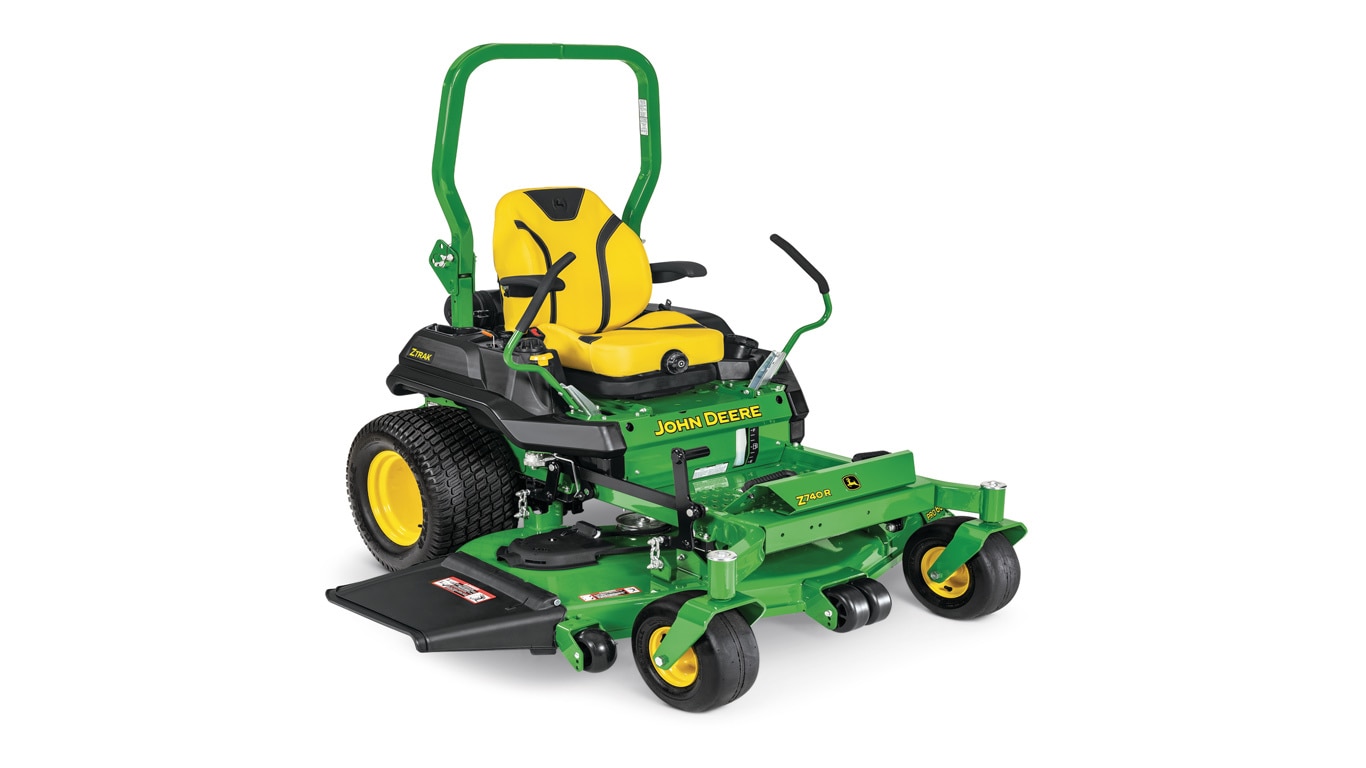

John Deere Z740R
  • 23.5-hp (17.5 kW)* FX series engine
  • 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
  • 24-in. seat with fully adjustable mechanical suspension
  • Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Engine power 23.5 hp / 17.5 kW
Engine model number FX730V
U.S. warranty 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Warranty 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
$10,719.00MSRP*

Get Financed Request a Demo/Quote Value Your Trade

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Feature Overview
John Deere Z740R
  • 23.5-hp (17.5 kW)* FX series engine
  • 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
  • 24-in. seat with fully adjustable mechanical suspension
  • Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Engine power 23.5 hp / 17.5 kW
Engine model number FX730V
U.S. warranty 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Warranty 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
$10,719.00 MSRP**

Get Financed Request a Demo/Quote Value Your Trade

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Have Questions?
Features

Heavy-duty design delivers strength and durability

ZTrak© Z720E Mower shown ZTrak© Z720E Mower shown
ZTrak Z720E Mower shown ZTrak Z720E Mower shown
Formed and welded steel frame
Solid steel tube front framet Solid steel tube front framet
Strong rear frame for support and protection (shown on Z740R) Strong rear frame for support and protection (shown on Z740R)

A strong, welded steel frame provides solid, reliable support for the machine components and operator:

  • Heavy-duty 3- x 2-in. (76.2- x 51-mm) frame tubing for durability
  • Rear frame provides solid support and protection for the engine
Large, smooth-riding front caster wheels
Large caster wheel Large caster wheel
Caster wheel spindle housing Caster wheel spindle housing

Large front caster wheels provide a smooth ride and level cut:

  • A large surface area helps to provide a smooth ride for the operator.
    • Pneumatic tires for the smoothest ride (Z720E, Z735E, Z730M, Z735M, Z740R, Z760R)
    • Semi-pneumatic tires for extra reliability and durability (Z740R and Z760R with Tweel® tire technology)
    • Better performance on slopes
  • Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles.
    • Long, trouble-free life
    • Designed to give smooth turns without damage to the turf
Large rear drive wheels for a smooth ride and level cut
23-in. (58.4-cm) diameter rear tire (E and M Series) 23-in. (58.4-cm) diameter rear tire (E and M Series)
24-in. (61-cm) diameter rear tire (R Series) 24-in. (61-cm) diameter rear tire (R Series)

Rear tires have high-quality tread and optimum size for superior traction and smooth ride:

  • Tire width is optimized for mower deck size.
    • 9.5 in. (24 cm) for 48-in. (122-cm) mowers (E, M, R Series)
    • 10.5 in. (26.7 cm) for 54-in. (137-cm) and 60-in. (152-cm) mowers (E, M Series)
    • 12 in. (30.5 cm) for 54-in. (137-cm) and 60-in. (152-cm) mowers (Z740R)
  • Tread pattern is optimized for excellent traction and minimum turf damage.
  • Special wheel design gives an enhanced appearance to the machine.
  • Optional Michelin® X® Tweel Turf airless radial tire technology on the Z740R and Z760R provides extra reliability and ride quality.
Heavy-duty step weldment
Step weldment on the mower deck Step weldment on the mower deck

A heavy-duty, permanent step weldment is located at the left front corner of the mower deck:

  • Encourages proper entry to the operator station
  • Provides a good gripping surface for the operator’s foot

Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.

ZTrak© Z720E Mower shown ZTrak© Z720E Mower shown
ZTrak Z720E Mower shown ZTrak Z720E Mower shown

An ergonomic design and professional grade components are suitable for a wide variety of operators and conditions:

  • Comfortable operator station and convenient controls help optimize operator experience.
  • Large operator platform allows a wide range of foot positions.

Adjustable features customize the mowing experience for each operator. One of these features is an adjustable foot platform.

Operator platform designed for adjustability and comfort
Z40R operator station Z40R operator station
Three-position foot platform for operator comfort, rearward position Three-position foot platform for operator comfort, rearward position

The patent-pending, adjustable, three-position toe board allows the operator to quickly adjust the footrest position for greatest comfort:

  • Easily and without tools, each operator can adjust the location of the footrest area to the optimum position.
  • Adjustment range of 2 in. (5.1 cm) in 1-in. (2.5-cm) increments is possible.
Adjustable foot platform, forward position Adjustable foot platform, forward position
Adjustable foot platform, middle position Adjustable foot platform, middle position

Short operators may be most comfortable with the platform in the rear position (as shown above), while tall operators may be more comfortable with the platform in the forward position. Or perhaps, the middle position provides just the right amount of leg room.

Foot pegs (standard on R Series, optional on E and M Series)
Foot platform with foot pegs Foot platform with foot pegs
Foot peg mounting holes Foot peg mounting holes

Patent-pending foot pegs (standard on R Series, optional on E and M Series) provide the operator with different foot placement options.

  • Foot pegs can be adjusted into two different positions, horizontal or at an angle, to provide more variability for foot placement. The pegs also act as handles to remove and replace the foot platform.

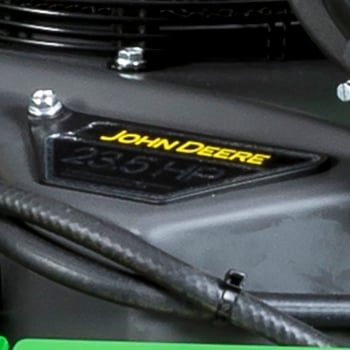

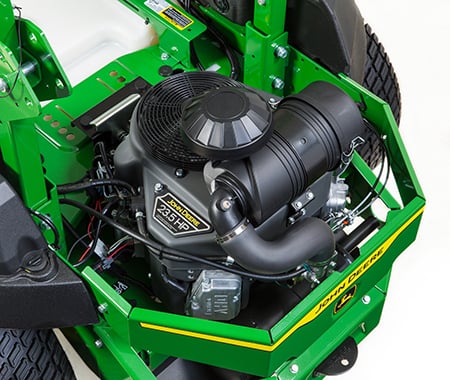

23.5-hp (17.5-kW) engine with multi-stage canister air filtert 23.5-hp (17.5-kW) engine with multi-stage canister air filtert

Key engine features include:

  • 23.5 hp (17.5 kW) provides plenty of power.
  • Large 44.3-cu in. (726-cc) displacement provides excellent torque.
  • V-twin, 90-degree cylinder design allows for easy starts, excellent power and performance, and smooth operation.
  • Engine model is FX730V.
  • Many quality features are included.
    • Cast-iron cylinder liners provide a long-wearing surface for longer engine life.
    • Overhead V-valves allow the engine to breathe easily for excellent power and fuel economy.
    • Hemispherical combustion chambers and overhead V-valve technology help ensure low emissions, high power, and smooth operation.
    • Automatic compression release provides easy starting.

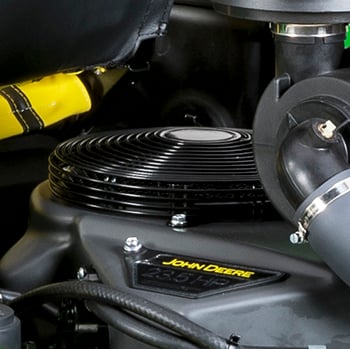

Engine debris chopper fan guard Engine debris chopper fan guard
Engine integrated cleanout port Engine integrated cleanout port
    • A rotating metal grass chopper screen helps keep the engine fins clean by filtering out debris and reducing the size of material that gets through so it will pass harmlessly past the engine fins.
    • The steel guard provides protection from the rotating fan.
    • Integrated cleanout ports allow for checking and cleaning the engine cooling fins
Engine oil check/fill and drain tube Engine oil check/fill and drain tube
    • Full-pressure lubrication system provides plenty of oil to the engines moving parts to ensure reliable operation and long life:
      • No-tools oil drain is convenient to use.
      • A flexible drain tube can be placed above a drain pan to eliminate oil spills.
      • Replaceable oil filter keeps the oil cleaner for a longer engine life and extends the time between oil changes.

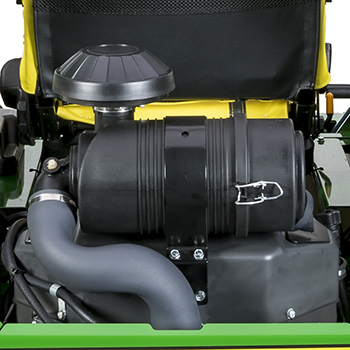

Heavy-duty canister air filter Heavy-duty canister air filter
Air filter element Air filter element
    • Heavy-duty, multi-stage canister air filter system thoroughly cleans the engine intake air.
    • Electronic ignition contributes to fast starts.
    • Heavy-duty shift-type starter allows for fast starts, even in colder weather.
Rear engine guard Rear engine guard
  • A rear engine guard protects the engine and provides additional vehicle strength and integrity.
  • A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer.
    • 20-amp capacity
    • Regulated to keep the battery at a full charge without risk of overcharging
8-gal. (30.3-L) fuel capacity for extended mowing times

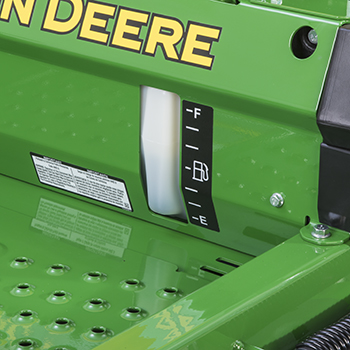

Easy-to-see fuel sight gauge Easy-to-see fuel sight gauge
Large fuel-fill opening Large fuel-fill opening

The large-capacity fuel tank is easy to fill, and a convenient fuel level gauge is provided:

  • Holds 8-gal. (30.3-L) of fuel to reduce time needed for refills
  • Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine
  • Large, 3.5-in. (8.9-cm) fuel fill diameter for easy filling and minimum chance of spills
  • Fuel fill is low for easy filling, within easy reach of any operator

John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

Dual Hydro-Gear® transmissions Dual Hydro-Gear® transmissions

Dual transmissions efficiently power the ZTrak© mower forward and reverse and give steering capability:

  • The unitized hydrostatic drive features a hydraulic pump combined with a commercial-grade, heavy-duty wheel motor into a single unit.
  • One pump and one motor transmission to drive each wheel provides several benefits:
    • Exceptional cooling in high-load conditions
    • Easy-to-check fluid level and refill with hydraulic oil
    • Opens up access under the seat
  • Transmissions are set low in the vehicle for excellent hillside stability.
  • Heavy-duty components stand up to the higher loads from the larger tires and greater weight of Z700 Series ZTrak Mowers.
  • Low maintenance, unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.
  • Four-bolt hubs provide a reliable and convenient wheel-mounting system.

The hydrostatic drive features two Hydro-Gear ZT-3400® transmissions for superior performance and durability:

  • Unitized hydraulic pumps and commercial-grade, heavy-duty wheel motors combined into a single unit
  • Speeds up to 10 mph (16.1 km/h)
  • Pump displacement: 0.73 cu in. (12 cc) per revolution
  • Motor displacement: 0.97 cu in. (16 cc) per revolution
  • Durable 1-in. (2.54-cm) axles for heavy loads
  • Standard shock valves for added system protection
  • Standard charge pump for increased performance
  • External oil filter for easier maintenance
Expansion tanks and tow valve controls
Transmission expansion tank and filler cap Transmission expansion tank and filler cap

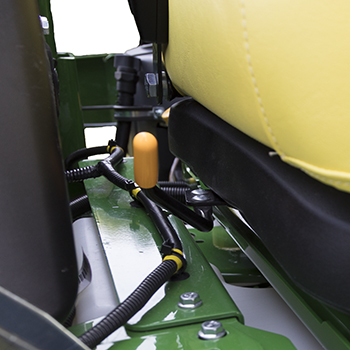

Tow-valve control, right Tow-valve control, right

Transmission fluid expansion tanks are provided for each transmission. The yellow filler cap is easy to find and identify.

Tow-valve controls are provided for each transmission:

  • Controls are located on the transmissions near the expansion tanks where they are easy to reach and use.
  • Tow valves allow moving the machine in its neutral position when the engine is not running.
  • Simply pull up on the rods and secure them into the slot. When finished moving the machine, return the rods to the operating position.

Hydro-Gear and ZT-3400 are trademarks of Hydro-Gear Limited Partnership AF Holding Company, a Delaware Corporation and Danfoss Power Solutions (US) Company, a Delaware Corporation

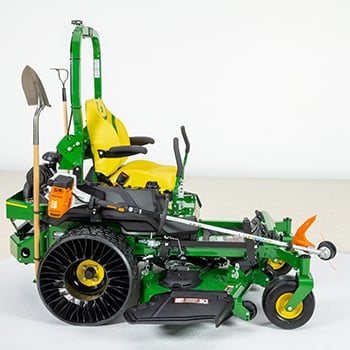

Z740R with flat-free rear tires and several attachments Z740R with flat-free rear tires and several attachments

Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution gives additional advantages.

Advantages of using the Michelin X Tweel Turf tires include:

  • More comfortable ride because of less bounce.
  • Mowing performance is improved.
  • Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
  • Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires.
  • Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
  • More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
  • Uptime is improved.
    • The exclusive technology eliminates downtime and associated cost due to flat or damaged tires.
    • Punctures and sidewall damage no longer result in downtime.
  • Cost of operation is reduced.
    • Cost of repairs and maintenance is reduced.
    • One single unit replaces the current tire, wheel, and valve assembly.
    • There is no need for complex tire-mounting equipment.
    • No need to spend time checking and optimizing tire pressure.
    • The need to purchase and stock plug kits and spare tires is eliminated.
    • The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.

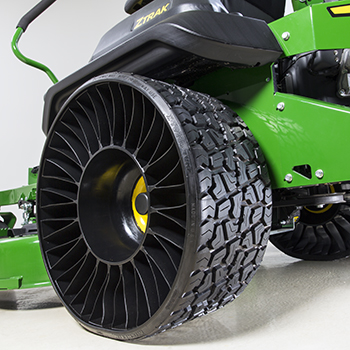

Michelin X Tweel Turf tire, side Michelin X Tweel Turf tire, side

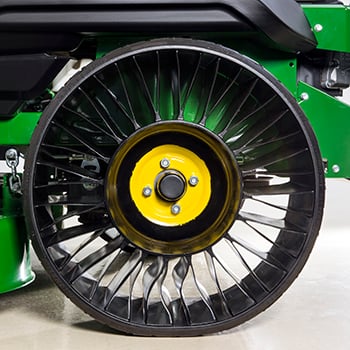

Michelin X Tweel Turf tire, left rear Michelin X Tweel Turf tire, left rear

Heavy-duty construction provides the ultimate in performance and reliable operation:

  • High-strength poly-resin spokes carry the load.
  • Four-hole, heavy-duty steel hub easily bolts onto a Z740R equipped with a 54-in. (137-cm) or 60-in. (152-cm) Mower Deck and 24x12-12 tires.
  • Deep, open-tread design provides excellent cleaning and traction.
  • Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.

Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.

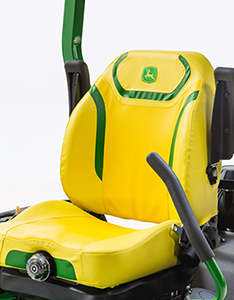

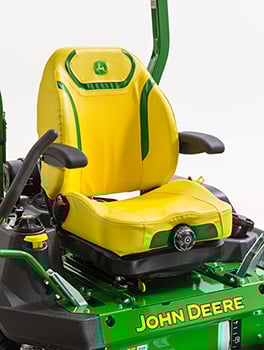

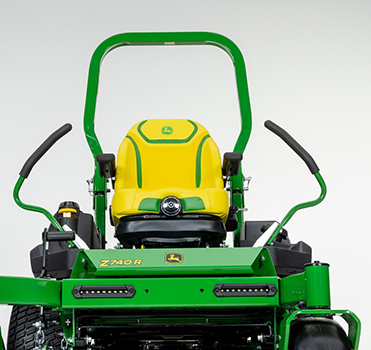

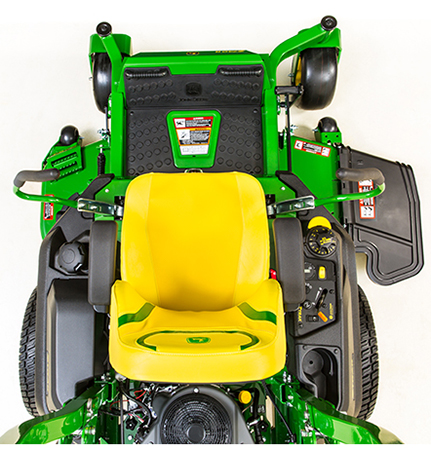

Operator station Operator station

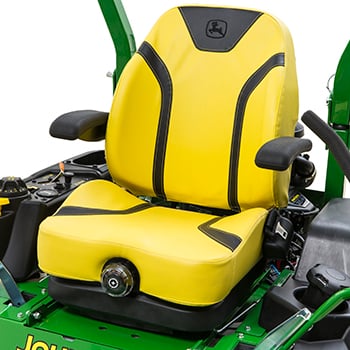

Fully adjustable operator area Fully adjustable operator area

The operator station is designed to provide superior operator comfort:

  • Adjustable foot platform
    • Three positions allow for ample legroom

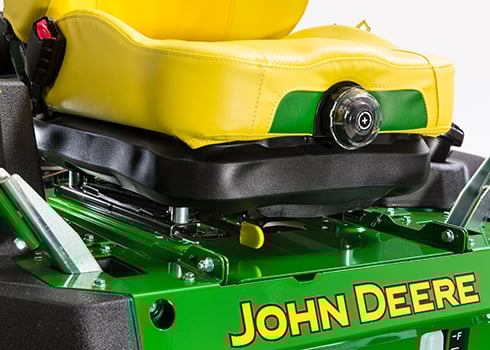

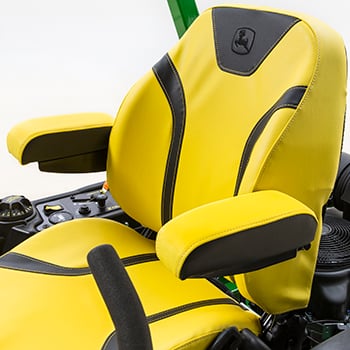

  • Adjustable seat position, armrests, and suspension to suit any operator

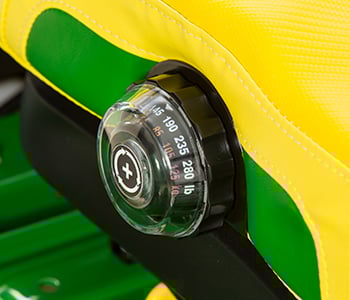

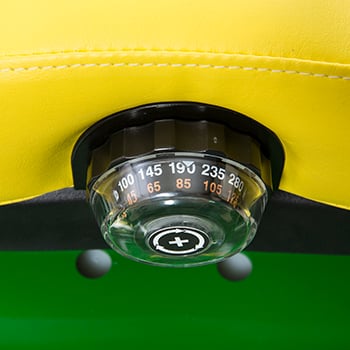

    • A dial can be adjusted to the operator’s weight
  • Adjustable motion-control levers
    • Upper and lower positioning combined with forward and rearward tilt offers 18 positions
      • Large, padded areas on the control levers provide multiple hand positions

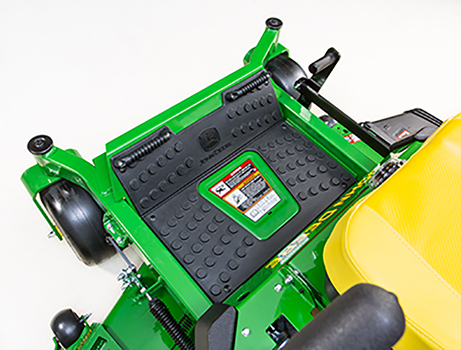

Adjustable operator foot platform
Adjustable foot platform (shown with floor mat removed) Adjustable foot platform (shown with floor mat removed)
Z740R foot platform with foot pegs and floor mat Z740R foot platform with foot pegs and floor mat

The patent-pending, adjustable three-position toe board allows any operator to quickly adjust the footrest position for greatest comfort.

  • Easily and without tools, each operator can adjust the location of the footrest area to the most suitable position.
    • Adjustment range of 2 in. (5.1 cm)
  • Large foot platform allows a wide range of foot positions.
  • Patent-pending foot pegs are standard on the Z740R and Z760R (optional on E and M Series) to provide the operator more foot placement options.
    • They can be adjusted into two different positions, horizontal and at an angle, providing more variability for foot placement during operation.
    • The foot pegs also act as handles to remove and replace the foot platform.
  • An attractive floor mat is standard on Z740R and Z760R (optional on E and M Series).
Adjustable, mechanical suspension seat with ComfortGlide© suspension system
Mechanical suspension seat with armrests Mechanical suspension seat with armrests
ComfortGlide suspension control lever and suspension adjustment knob ComfortGlide suspension control lever and suspension adjustment knob

A high-back, 24-in. (61-cm) seat with armrests and 3-in. (7.6-cm) fore-aft adjustment as well as ComfortGlide suspension system is standard equipment on the Z740R and Z760R. Optional padded armrests are available as a field-installed kit.

The mechanical suspension seat is easier to adjust when off the mower, but it can also be adjusted while the operator is seated. Fore/aft seat adjustment lever is alongside the seat within easy reach and can be used by the operator while seated.

Seat suspension adjustment knob Seat suspension adjustment knob

There is an adjustment knob at the front of the seat which can be dialed-in to suit operator preference and for the most comfortable ride. It is recommended to align the arrow on the dial with the operator’s weight for the optimal ride.

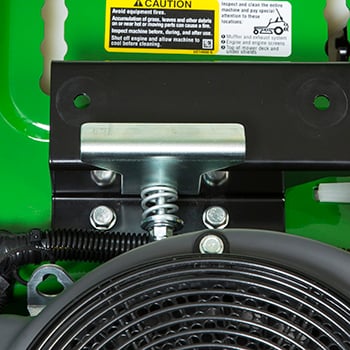

Spring-loaded seat latch Spring-loaded seat latch

The seat is securely held down for operator comfort and safety but is easy to raise when necessary:

  • A spring-loaded latch locks seat down when it is lowered.
  • The seat is easy to release and raise to access several service points.
Adjustable steering levers
Steering levers in operating position Steering levers in operating position
Steering levers in park position Steering levers in park position

Adjustable steering levers are shaped for operator comfort and ease of controlling vehicle speed and direction:

  • The premium steering levers on M and R Series machines are painted green and have different bends for more hand positions.
Steering lever adjustments, low position Steering lever adjustments, low position
Steering lever adjustments, high position Steering lever adjustments, high position
  • The levers offer 18 different positions for height and position to accommodate operator preference for hand placement and leg clearance.
Standard light-emitting diode (LED) work lights
Light-emitting diode (LED) work lights Light-emitting diode (LED) work lights

Model year 2023 and newer R-Series Z700 ZTrak Mowers include standard LED work lights. The lights are integrated into the front of the foot platform and side fenders to protect them from damage and the elements. BUC11547 LED work lights are available as a field installed attachment to upgrade for E- and M- Series models. BUC10301 LED work light kit is for earlier model years that do not have provisions for integrated LED lights.

Optional LED beacon light

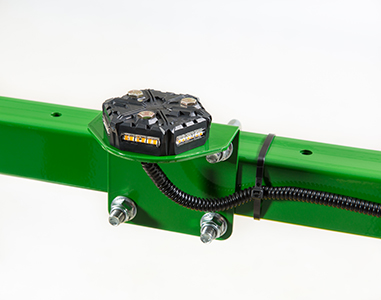

LED beacon light LED beacon light

BUC11406 LED beacon light is available as a field installed attachment. The beacon light is short to avoid damage. BUC11406 is compatible with all Z700 ZTrak Mowers and requires AUC18778 battery jumper.

Cup holder and storage compartment
Deluxe cup holder with provision for cup handle Deluxe cup holder with provision for cup handle

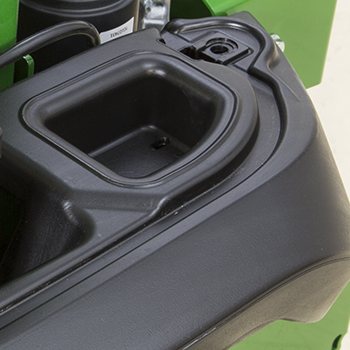

Protected-storage compartment shown with battery cover removed Protected-storage compartment shown with battery cover removed

Operator convenience is provided with easy-to-reach and easy-to-use deluxe cup holder and storage areas:

  • Cup holder includes room for a cup with a large handle.
  • Covered storage compartment under the battery access panel provides protection for smaller items.
Mechanical suspension seat with armrests Mechanical suspension seat with armrests
Z740R seat shown with padded armrest attachment Z740R seat shown with padded armrest attachment

High-back, 24-in. (61-cm) seat with armrests and 3-in. (7.6-cm) fore-aft adjustment is standard equipment on the Z740R.

An optional padded armrest kit is available as a field-installed attachment.

Seat suspension adjustment dial Seat suspension adjustment dial
Seat slide fore/aft adjustment lever Seat slide fore/aft adjustment lever

The mechanical suspension seat can be adjusted for operator weight and ride preference while the operator is seated.

A fore/aft seat adjustment lever is alongside the seat within easy reach and can be used by the operator while seated. The seat adjusts 3 in. (7.6 cm) fore and aft.

Spring-loaded seat latch Spring-loaded seat latch

The seat is securely held down, but is easy to raise when necessary:

  • A spring-loaded latch locks seat down when it is lowered.
Control panel

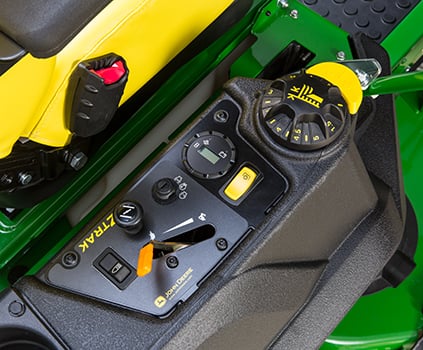

Control panel, Z740R includes warning lights Control panel, Z740R includes warning lights

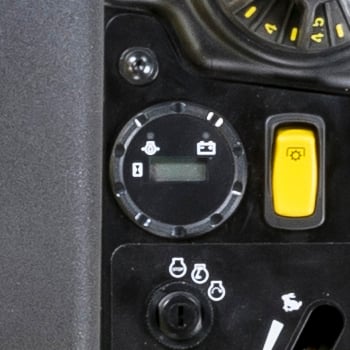

Digital display Digital display

The operator control panel is conveniently located and easy to use.

The following controls are found on the right-hand console:

  • Digital display
    • Hour meter
    • Warning light for low oil pressure
    • Warning light for alternator/battery charge malfunction
  • Ignition switch
  • Power take-off (PTO) control
  • Engine speed control
  • Engine choke control
  • Mower cut-height dial
  • Mower transport position lock
  • Light kit switch
Adjustable steering levers
Steering levers in operating position Steering levers in operating position
Steering levers in park position Steering levers in park position

Motion control levers are shaped and located for operator comfort and ease of control.

Premium control levers on the Z730M, Z735M, Z740R and Z760R have a unique shape and size for more comfortable operation.

18-position control lever adjustment, low 18-position control lever adjustment, low
18-position control lever adjustment, high 18-position control lever adjustment, high

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:

  • Combined height and fore/aft adjustments provide 18 positions
  • Increased operator comfort with more leg room and more hand positions
  • Adjustable for most precise control of the machine
Tracking adjustment
Convenient tracking adjustment locations Convenient tracking adjustment locations
Tracking adjustment bolt Tracking adjustment bolt

On-board tracking adjustment can be made by the operator from the operator seat.

  • A 13-mm socket wrench is required.
Parking brake integrated with motion-control levers for extra convenience
Parking brake in disengaged operating position Parking brake in disengaged operating position
Parking brake in engaged outward position Parking brake in engaged outward position

A patent-pending automatic parking brake system is designed into the steering control levers:

  • The mechanical parking brake is operated by the steering control levers.
  • The parking brake is engaged when the steering control levers are moved outward, and it is disengaged when the steering control levers are moved inward to the operating position.
  • An audible click lets the operator know the brake has fully engaged or disengaged.

The internal parking brake rotor and puck are continually lubricated and cooled for dependable operation and long life.

Mower deck lift/cut-height adjustment
Mower deck lift pedal Mower deck lift pedal
Mower lift-assist spring Mower lift-assist spring

Mower deck cutting height adjusts from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:

  • The foot-lift pedal is used to raise the mower deck for setting cut height or locking in the raised or transport position.
  • A lift-assist spring is provided to optimize the effort required to raise the mower deck.
Mower deck cut-height adjustment dial Mower deck cut-height adjustment dial
Mower deck transport lock Mower deck transport lock
  • To adjust cut height, simply push down on the foot-lift pedal, adjust the dial, and release the foot-lift pedal to lower the deck to the chosen height.
  • Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
  • To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever and release the foot-lift pedal to lower the deck to the chosen height.
Safety interlock system

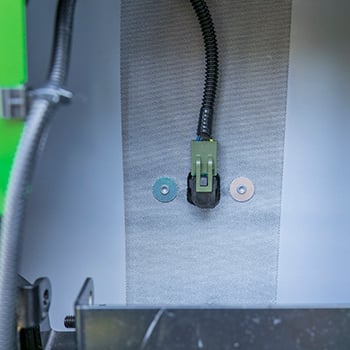

Interlock switch is located under the seat Interlock switch is located under the seat
Seat raised to show operator presence switch Seat raised to show operator presence switch

Safety interlocks help prevent operating in an unsafe way:

  • The parking brake must be engaged for the engine to crank.
    • Parking brake is set when motion-control levers are in the outward position.
  • The operator presence system requires the operator to be in the seat to operate the PTO.
  • The key switch interlock prevents bypass starting.
  • If the operator leaves the seat when the PTO is engaged, controls are in the operating position, or the parking brake is not set, the engine will shut down.
  • The seat interlock switch disengages the mower when the operator leaves the seat.
  • The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.
4-year bumper-to-bumper warranty*

Exclusive, 4-year, single-source, bumper-to-bumper warranty is included for all John Deere Z700 Series ZTrak mowers. The warranty places John Deere at the forefront of the mowing industry. It is hassle free, with one company handling all the paperwork.



Z720E, Z735E

4-year, 500-hour warranty

Z730M, Z735M

4-year, 750-hour warranty

Z740R, Z760R

4-year, 1000-hour warranty
Service interval decal
Daily service decal Daily service decal

A convenient service decal gives basic maintenance information. It provides a quick reference for keeping recommended service up to date. It is located underneath the battery cover.

Quick response (QR) codes link to owner information web pages
QR code label QR code label

To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located under the right steering lever. The owner information web pages that include links to:



  • Safety and how-to videos
  • Operator’s manuals
  • Parts catalogs
  • Maintenance reminder sheets
  • Attachments
  • Warranty statements
Flip-up foot platform for mower deck access
Operator foot platform Operator foot platform
Easy-to-remove foot platform (Z720E shown) Easy-to-remove foot platform (Z720E shown)

The professional-style steel foot platform is easy to remove without tools:

  • Makes cleaning grass off the top of the mower deck easier
  • Provides convenient access to the mower deck for service
Engine service
Engine oil check/fill and drain tube (Z720E, Z730M, Z740R, Z760R) Engine oil check/fill and drain tube (Z720E, Z730M, Z740R, Z760R)
Engine oil check/fill and drain tube (Z735E, Z735M) Engine oil check/fill and drain tube (Z735E, Z735M)

The engines are easy to service, including changing the oil and the oil filter and servicing the air filter:

  • The engine oil check/fill tube is located at the top of the engine and easy to see and reach.
  • No-tools oil drain is convenient to use.
  • A flexible oil drain tube is included to conveniently drain oil into a pan, thus eliminating oil spills.
Engine air filter panel (Z735E engine shown) Engine air filter panel (Z735E engine shown)
Air filter cover removed (Z735E shown) Air filter cover removed (Z735E shown)
Multi-stage canister air filter system (Z740R shown) Multi-stage canister air filter system (Z740R shown)
Air filter element (Z740R shown) Air filter element (Z740R shown)

Engine air filters are at the top of the engine for easy service:

  • Z720E, Z735E, Z730M, and Z735M engines have knobs to remove the filer cover.
  • The Z740R and Z760R have a heavy-duty, multi-stage canister air filter system, which uses a round primary and secondary filter that are easily accessed with latches on the end cap.
Grease fittings
Top of the mower deck Top of the mower deck

Only three grease fittings require service:

  • Three to lubricate the mower-blade spindles, two easily accessed from the spindle covers, and the third by removing the foot platform.

Battery accessibility
Battery cover Battery cover
340 CCA battery 340 CCA battery

The battery is protected from debris, dust, and moisture:

  • It is easy to access under the panel on the left-hand side of the machine.
    • Held in place by an easy-to-remove thumbscrew
  • Powerful 340 cold cranking amp (CCA) battery provides dependable starts.
Mower deck serviceability
Floating deck mounting system Floating deck mounting system
Deck-level adjustment Deck-level adjustment

A patent-pending deck-leveling system provides easy adjustment at all four mower mounting points:

  • Loosen the nut (B) slightly with a 15-mm wrench.
  • Using the open end of a 16-mm wrench on the hex fastener (A), raise or lower the deck as needed so the height of the rear blade tip is 3 to 6 mm (1/8 to 1/4 in.) higher than the front blade tip.
    • Tick marks on bracket (C) are provided to aid in observing movement.
  • When the deck is at the height needed, tighten the nut (B).
Easy-to-clean flat-top mower deck Easy-to-clean flat-top mower deck
Flip-up spindle cover for easy cleanout and maintenance Flip-up spindle cover for easy cleanout and maintenance

Serviceability is designed into the mower deck:

  • Easy access is provided by the removable operator foot platform.
  • Flat-top design minimizes places for debris to collect.
  • Spring-loaded, flip-up belt guards make removing debris easy.
  • A provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.
Transmission bypass (tow valves)
Tow-valve control, right (knob pictured in neutral position) Tow-valve control, right (knob pictured in neutral position)

Tow-valve controls are provided for each transmission:

  • Controls are located at the rear of the machine and are easy to access.
  • Tow valves allow moving the machine in its neutral position when the engine is not running.
  • Simply, loosen the knob, push towards the front of the machine, and tighten the knob back. When finished moving the machine, return the rods to the operating position.
Built-in tie-down locations
Built-in front tie-down location, right side Built-in front tie-down location, right side
Built-in front tie-down location, left side Built-in front tie-down location, left side
Built-in rear tie-down location, right side Built-in rear tie-down location, right side
Built-in rear tie-down location, left side Built-in rear tie-down location, left side

Four tie-down locations are provided for convenience and safety when trailering the machine.

Operator digital video disc (DVD)

An operation and safety DVD is provided with each machine. Please consult the operator’s manual for other safety and operating procedures.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Z735E with 48-in. (122-cm) HC PRO Mower Deck Z735E with 48-in. (122-cm) HC PRO Mower Deck
Z740R with 54-in. (137-cm) HC PRO Mower Deck Z740R with 54-in. (137-cm) HC PRO Mower Deck

Each Z700 Series ZTrak© Mower is equipped with either a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) HC PRO Mower Deck.

Mower/vehicle compatibility



High-capacity (HC) mower deck ZTrak model
  Z720E Z735E Z730M Z735M Z740R Z760R
48-in. (122-cm) High-capacity PRO X     X X*
54-in. (137-cm) High-capacity PRO X   X X X* X*
60-in. (152-cm) High-capacity PRO X X X X X* X*

*Optional Tweel® tires are not compatible with material collection system (MCS) or with a 48-in. (122-cm) mower deck.

Deep deck design
Deep, flat-top deck Deep, flat-top deck
Deep-deck mower design Deep-deck mower design

The mower deck has a deep-deck design:

  • Forged from heavy, 9-gauge, 0.15-in. (3.8-mm) steel.
    • Minimizes the number of welds required
    • Has a smooth underside for reduced material buildup
  • Deep-deck design delivers excellent airflow, so large volumes of material can be processed quickly and efficiently.
  • A wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
  • A durable, plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
  • 1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.
  • Standard front rollers and two double-captured wheels provide a more even mowing job and reduce the chance of scalping.
    • Adjustable for different mowing heights
  • The front edge is raised above the blade plane to allow for even cutting of tall grass.
  • Blade overlap is greater than many conventional decks for a clean cut.
  • The mower can side-discharge, mulch, or collect material, except a Z740R or Z760R equipped with Tweel tires are not compatible with a material collection system.
Mower level adjustment Mower level adjustment
  • Deck leveling and rake angle adjustment is provided at all four mower mounting points.
Reinforced leading edge
Reinforced leading edge of mower deck Reinforced leading edge of mower deck
Trim side of mower reinforcement/wear bar Trim side of mower reinforcement/wear bar

Steel reinforcing bars are welded to the front edge and trim side of the mower deck:

  • Strengthens the deck to reduce chance of damage from obstructions
  • Increased material thickness for longer life of the deck
Superior durability is designed in
Deep mower deck spindle pocket Deep mower deck spindle pocket
Flip-up spindle cover Flip-up spindle cover

The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:

  • Ribs formed in the deck shell add strength where it is needed.
  • The aluminum spindle housing has 8-in. (20-cm) base for extra strength.

Flip-up spindle covers make cleaning the spindle area convenient.

Wheels and rollers
Right mower anti-scalp wheel and center rollers Right mower anti-scalp wheel and center rollers
Left mower anti-scalp wheel Left mower anti-scalp wheel

Dual-captured front and side anti-scalp wheels:

  • Give a more even mowing job and reduce the chance of scalping
  • Adjustable for different mowing heights
Step weldment
Operator step welded on mower deck Operator step welded on mower deck

A permanent step weldment is located at the left front corner of the mower deck:

  • Encourages proper entry to the operator station
  • Provides a good gripping surface for the operator’s foot
How MulchControl works
MulchControl baffle open (shown on 54-in. [137-cm] High-Capacity Mower Deck) MulchControl baffle open (shown on 54-in. [137-cm] High-Capacity Mower Deck)
MulchControl baffle closed (shown on 54-in. [137-cm] High-Capacity Mower Deck) MulchControl baffle closed (shown on 54-in. [137-cm] High-Capacity Mower Deck)

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
    • The left mower blade area is completely enclosed and optimized for mulching and will mulch even when the mower is in the side-discharge mode.
    • Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
  • The attachment also includes mulching blades.
Optional MulchControl© attachment

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material.

Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer use
  • Elimination of the effort needed to dispose of clippings
MulchControl handle is used to control baffle
MulchControl baffle closed MulchControl baffle closed
MulchControl handle in closed position MulchControl handle in closed position

The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle:

  • The operator is required to get off the machine in order to engage or disengage mulch mode.
  • MulchControl is well suited to the following mowing situations:
    • Operators who usually mulch, but side-discharge when grass gets too long
    • Operators who usually side discharge, but would like to be able to close the chute to control clippings
    • Operators who always mulch a main lawn, but often side discharge secondary lawns
    • Operators who bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn clean-up is desired
Compatibility

MulchControl is a field-installed attachment and compatible with the 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) HC PRO Mower Decks available for the Z700 Series ZTrak Mowers.

Specifications

Capacity

 6.5 bu (230 L)

Material:



   Hopper top

 High impact polypropylene

   Chute

 Polyethylene

   Blower housing

 Nylon

   Fan

 Ultra-high molecular weight (UHMW) polyethylene

   Bags

 Polyester

Filling

 Directly into bags for emptying on ground or in trailer or into plastic liners

Fan diameter

 13 in. (33 cm)

Fan width

 2.75 in. (7 cm)

Number of fan blades

 Four

NOTE: MulchControl attachments and MCS components are not included in base equipment for a Z700 Series ZTrak machine and must be ordered separately.

Tweel is a trademark of Compagnie Générale des Etablissements Michelin SCA.

Removing bag from 6.5-bu (230-L) hopper Removing bag from 6.5-bu (230-L) hopper
Removing bag from 6.5-bu (230-L) hopper Removing bag from 6.5-bu (230-L) hopper

The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:

  • Two durable bags give a generous, 6.5-bu (230-L) capacity.
  • The bags lift out for easy emptying.
  • An efficient chute provides a smooth flow of material to reduce the chance of plugging.
    • The chute and Power Flow blower must be ordered separately.
  • Standard mower blades are used for bagging.
  • The air exhaust duct directs air from the hopper back and toward the ground for clean operation.
  • Convenient latch makes opening and closing the hopper easy.

NOTE: Appropriate hopper, Power Flow blower, chute, and attachment bar are required and ordered separately.

Optional 6.5-bu (229-L) ZTrak Z700 Series MCS
6.5-bu (230-L) rear hopper, chute, attachment bar, and blower 6.5-bu (230-L) rear hopper, chute, attachment bar, and blower

The 6.5-bu (230-L) rear bagger efficiently collects material from a 48-, 54-, or 60-in. (122-, 137-, or 152-cm) Mower Deck:

  • Hopper, Power Flow© blower, and chute components are ordered separately to make a complete MCS.
  • A weight bracket and two 42-lb (19-kg) suitcase weights are included for installation on the front of the vehicle to help counterbalance the weight of the hopper. For proper ballast with complete MCS:
    • Two suitcase weights are required on a ZTrak Z700 Series equipped with a 48-in. (122-cm) Mower Deck.
    • Two suitcase weights are required on a ZTrak Z700 Series equipped with a 54-in. (137-cm) Mower Deck.
    • One suitcase weight is required on a ZTrak Z700 Series equipped with a 60-in. (152-cm) Mower Deck.
Mechanical suspension seat with armrests Mechanical suspension seat with armrests
ComfortGlide suspension control lever and suspension adjustment knob ComfortGlide suspension control lever and suspension adjustment knob

A high-back, 24-in. (61-cm) seat with armrests and 3-in. (7.6-cm) fore-aft adjustment as well as ComfortGlide suspension system is standard equipment on the Z740R and Z760R. Armrests can be raised for easier entry and exit from the machine. An optional padded armrest kit is available as a field-installed attachment.

Armrests in raised position Armrests in raised position
Spring-loaded seat latch Spring-loaded seat latch
Seat suspension adjustment dial Seat suspension adjustment dial

The mechanical suspension seat can be adjusted for operator weight and ride preference while the operator is seated.

A fore/aft seat adjustment lever is alongside the seat within easy reach and can be used by the operator while seated. The seat adjusts 3 in. (7.6 cm) fore and aft.

The seat is securely held down but is easy to raise when necessary:

  • A spring-loaded latch locks seat down when it is lowered.
Clean, open operator station Clean, open operator station
Standard folding ROPS Standard folding ROPS

The spacious operator station has been designed for comfort, visibility, and ease of use:

  • Getting on and off is easy with the flat operator platform.
  • Convenient-to-use controls are located close to the operator.
  • Operator controls are color coded and designed for easy identification and operation.

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

  • It reduces the operator’s risk of being crushed under the vehicle should it overturn.
  • In most situations, the ROPS limits the overturn to little more than 90 degrees.
  • When used with a seatbelt, the ROPS is very effective in preventing deaths and serious injuries.
    • Use of the seat belt is recommended when operating with ROPS in the upright position.
ROPS folded to mid position ROPS folded to mid position
ROPS folded to down position (hitch is base equipment on M and R Series and optional field installed kit on E Series) ROPS folded to down position (hitch is base equipment on M and R Series and optional field installed kit on E Series)

Foldable ROPS and retractable seat belt are standard equipment:

  • Position adjustment pins provide a good grip and make changing the angle of the ROPS easier.
  • Easy-fold ROPS includes a built-in isolator.
  • The ROPS can be pinned halfway down to accommodate machines equipped with a material collection system.
  • Door height of most garages will accommodate the machine with ROPS in the fully raised position.
    • Easy-fold ROPS improves the ability to store the ZTrak in structures with a lower door opening.

ROPS position Z720E and Z735E
machine height		 Z730M and Z735M
machine height		 Z740R and Z760R
machine height
Full height 71.7 in. (182.2 cm) 71.7 in. (182.2 cm) 72.1 in. (183.2 cm)
Down position 47.4 in. (120.3 cm) 49.7 in. (126.2 cm) 51 in. (129.5 cm)
Z740R with flat-free rear tires and several attachments Z740R with flat-free rear tires and several attachments

NOTE: Michelin X Tweel tires are available only in the 24x12N12 size for Z740R or Z760R Mowers equipped with a 54-in. (137-cm) or 60-in. (152-cm) Mower Deck.



Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution gives additional advantages.

Advantages of using the Michelin X Tweel Turf tires include:

  • More comfortable ride because of less bounce.
  • Mowing performance is improved.
  • Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
  • Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires.
  • Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
  • More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
  • Uptime is improved.
    • The exclusive technology eliminates downtime and associated cost due to flat or damaged tires.
    • Punctures and sidewall damage no longer result in downtime.
  • Cost of operation is reduced.
    • Cost of repairs and maintenance is reduced.
    • One single unit replaces the current tire, wheel, and valve assembly.
    • There is no need for complex tire-mounting equipment.
    • No need to spend time checking and optimizing tire pressure.
    • The need to purchase and stock plug kits and spare tires is eliminated.
    • The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.
Michelin X Tweel Turf tire, side Michelin X Tweel Turf tire, side
Michelin X Tweel Turf tire, left rear Michelin X Tweel Turf tire, left rear

Heavy-duty construction provides the ultimate in performance and reliable operation:

  • High-strength poly-resin spokes carry the load.
  • Four-hole, heavy-duty steel hub easily bolts onto a Z740R and Z760R equipped with a 54-in. (137-cm) or 60-in. (152-cm) Mower Deck and 24x12-12 tires.
    • Michelin X Tweel tires are not available for machines with a 48-in. (122-cm) Mower Deck.
  • Deep, open-tread design provides excellent cleaning and traction.
  • Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.

Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.

Specs
Key Specs
Engine power 23.5 hp
17.5 kW
Engine model number FX730V
Travel speed
Forward speed 0-10 mph
0-16.1 km/h
Chassis
Front caster tires 13x6.5-6
Drive tires 24x9.5-12 (48-in. decks)
24X12-12 (54- and 60-in. decks)
Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial
Seat
Seat back height High back with armrests, 24 in.
60.9 cm
Mower deck
Width of cut 48 in.
122 cm
54 in.
137 cm
60 in.
152 cm
Optional attachments
Mulching system Optional MulchControl attachment
Key Specs
U.S. warranty 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
Power 23.5 hp
17.5 kW
Model number FX730V
Displacement 44.2 cu in.
726 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2.2 U.S. qt
2.1 L
PTO
Type Electric, 125 lb-ft
169 Nm
Engine
Battery 12 V
340 CCA
Choke/speed control Separate control levers
Cooling method Air
Fuel tank capacity 8 U.S. gal.
30.2 L
Fuel gauge Fuel level sight line
Drive train
Dual hydros Hydro-gear ZT3400 with 1-in. (2.54-cm) axles
Travel speed
Reverse speed 0-4.5 mph
0-7.2 km/h
Speed and direction control Twin premium levers
Control adjustment 2-height/18 positions
Chassis
Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster bearings Sealed ball bearings
Hourmeter Yes with low oil pressure and low battery voltage indicators
Service interval decal Yes
Storage compartment Yes
Cup holder Yes
Seat
Fore-aft adjustment While seated, 4 in.
10.2 cm
Seat suspension Mechanical; adjustable for weight with ComfortGlide™
Lift system
Mower cut height 1.5-5 in.
3.8-12.7 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes
Mower deck
Mower deck material 9 gauge
0.150 in.
3.8 mm
Mower drive system V-belt
PTO
Drive V-belt
Dimensions
Wheelbase 49.9 in.
126.7 cm
Overall length 82 in.
208.4 cm
Width without mower 48.6 in.
123.5 cm
With Tweel option - 52.8 in.
134.2 cm
Width with mower 48 HC, 62.3 in.
158.2 cm
54 HC, 68.2 in.
173.2 cm
60 HC, 73.3 in.
186.1 cm
Width with mower (deflector raised for storage) 48 HC, 53.2 in.
135.1 cm
54 HC, 59.4 in.
151 cm
60 HC, 64.8 in.
164.5 cm
Height ROPS up - 71.1 in.
182.2 cm
ROPS down - 49.7 in.
126.2 cm
Weight With mower and fuel, 48 HC, 995 lb
451 kg
With mower and fuel, 54 HC, 1,010 lb
458 kg
With mower and fuel, 60 HC, 1,040 lb
472 kg
With Tweel option, mower, and fuel, 54 HC, 1046 lb
474 kg
With Tweel option, mower, and fuel, 60 HC, 1076 lb
488 kg
Operation
Operator presence system Yes
Park brake interlock Yes
Safety
Safety video Yes
Optional attachments
Rubber floor mat Standard
Light kit Standard LED work and optional beacon lights
Material collection system 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu
229.1 L
Not compatible with Tweel option
Key Specs
Warranty 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Operation
Rollover protective structure (ROPS) Yes
Slope operating limit 15 degrees; 10 degrees with MCS
Operator video Yes
Chassis
Hour meter Yes with low oil pressure and low battery voltage indicators
Additional information
Date collected 1-Sept-2022
Accessories and Attachments
Carts
10P Poly Utility Cart 10P Poly Utility Cart

Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.


Utility carts can be used to haul a variety of materials:

  • Firewood
  • Lawn debris
  • Sand
  • Dirt
  • Mulch
  • Garden tools
  • Plants and bushes

The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:

  • Large 650-lb (295-kg) capacity
  • 10-cu ft (283-L), heavy-duty, 0.25-in. (6.4-mm) thick poly bed
  • Will not dent or rust
  • 15x6 tubeless pneumatic tires with turf tread for maximum traction
  • Easy, hands-free foot pedal dump release
  • Steep dump angle for complete emptying



A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.



Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21
Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

 17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

 14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

 39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

 58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

 15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

 0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

 14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

 39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R		 X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180		 X  X X X X X X
S240 X X X  X X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394		 X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590		 X X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758		 X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180		 Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394		 Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590		 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

 Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear

Ordering information
Please contact a local John Deere dealer for availability and pricing information.

10P Poly Utility Cart
Order number: LPPCT10JD

Oilite is a trademark of Beemer Precision, Incorporated.

7P Poly Utility Cart 7P Poly Utility Cart
#

Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

7P Poly Utility Cart 7P Poly Utility Cart
  • The cart has a premium molded, high-density polyethylene box construction.
  • Compression molding process allows polyethyl­ene to be the optimum thickness in all areas for superior strength and durability.
  • Polyethylene body will not rust or dent; it stays looking new longer.
  • 0.75-in. (2-cm) x 2-in. (5-cm) stake pockets are molded in to make the addition of side extensions easy.
  • Two vertical 0.75-in. (2-cm) molded channels on each side allow easy use of dividers to separate the box into two or three compartments.
  • Ribs in the box bottom add strength and prevent the shovel from hitting bolts when emptying the cart.
  • Sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
  • Styling is compatible with other John Deere equipment.
  • Pneumatic tires provide turf tread for good flotation, shock absorption, and minimal rolling resistance.
Wheels
7P Utility Cart wheel 7P Utility Cart wheel
#

Wheels are mounted on a solid, one-piece axle for durability.

Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.

The pneumatic tires offer the following:

  • Good flotation
  • Minimal rolling resistance
  • Shock absorption
Sloped tailgate
Sloped tailgate for easy emptying Sloped tailgate for easy emptying

A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.

Tractor hitch
Spring-pin tractor hitch Spring-pin tractor hitch

A large-diameter hitch pin provides plenty of strength:

  • Fast, easy attachment to the tractor hitch
  • Spring pin to ensure the pin stays in place
Tilt latch
Tilt latch Tilt latch

An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.

Model comparison chart

Comparison with similar models

Model Order through Box capacity (heaped) Material thickness Maximum weight  Vehicle compatibility
7P Order Zone 7 cu ft (0.20 m3) High-density polyethylene (HDPE)** 450 lb* (204 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
8Y Order Zone 8 cu ft (0.22 m3) HDPE** 300 lb* (136 kg) (tow) 100 Series, S240, X300 Series, X500 Series, X700 Series
10P Order Zone 10 cu ft (0.28 m3) Polypropylene 650 lb* (295 kg) EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series
13 Order Zone 13 cu ft (0.37 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
16YS Order Zone 17 cu ft (0.48 m3) Polypropylene 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump 100 Series, S240, X300 Series, X500 Series, X700 Series
17P Order Zone 17 cu ft (0.48 m3) Polypropylene 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
18 Order Zone 18 cu ft (0.51 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) 100 Series, S240, X300 Series, X500 Series, X700 Series
21 Order Zone 21 cu ft (0.59 m3) 16-gauge, 0.06-in. (1.5-mm) steel 1,000 lb* (454 kg) X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications





7P

8Y

10P

13

16YS

17P

18

21
Box capacity
Heaped 7 cu ft (0.20 m3) 8 cu ft (0.22 m3) 10 cu ft (0.28 m3) 13 cu ft (0.37 m3)

17 cu ft (0.48 m3)

 17 cu ft (0.48 m3) 18 cu ft (0.51 m3) 21 cu ft (0.59 m3)
Struck 5.6 cu ft (0.16 m3) 6.6 cu ft (0.19 m3) 8.3 cu ft (0.24 m3) 10 cu ft (0.28 m3)

15 cu ft (0.42 m3)

 14 cu ft (0.40 m3) 15 cu ft (0.42 m3) 15 cu ft (0.42 m3)
Maximum weight 450 lb* (204 kg) 300 lb* (136 kg) 650 lb* (295 kg) 1,000 lb* (454 kg) 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump 1,000 lb* (454 kg) 1,000 lb* (454 kg) 1,000 lb* (454 kg)
Box dimensions
Width 33 in. (84 cm) 33.68 in. (85.5 cm) 30.3 in. (77 cm) 30.25 in. (76.8 cm)

39.5 in. (100.3 cm)

 39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Length 45 in. (114 cm) 45 in. (114 cm) 44.5 in. (113 cm) 48 in. (122 cm)

58.5 in. (148.6 cm)

 58.5 in. (148.6 cm) 48 in. (122 cm) 48 in. (122 cm)
Depth 10.5 in. (27 cm) 10.75 in. (27.3cm) 12 in. (30.5 cm) 12 in. (30.5 cm)

15.5 in. (39.4 cm)

 15.5 in. (39.4 cm) 18 in. (45.7 cm) 11 in. (27.9 cm)
Box construction  Molded Molded Molded Welded Molded Molded Welded Bolted
Material High-density polyethylene (HDPE)** HDPE** w/UV inhibitor Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel Polypropylene Polypropylene 16-gauge, 0.06-in. (1.5-mm) steel 16-gauge, 0.06-in. (1.5-mm) steel
Tailgate None, sloped None, sloped None, sloped Hinged None, sloped None, sloped Hinged Lift-out/swing-out
Pneumatic tires  2 ply --- 2 ply 2 ply 4 ply 4 ply 4 ply 2 ply
Size 13x4-6 13x4-6 15x6.00-6 15x6.00-6 16x6.50-8 16x6.50-8 16x6.50-8 20x10.00-8
Tread design Turf Knobby Turf Turf Turf Turf Turf Turf
Recommended inflation pressure 30 psi (207 kPa) 30 psi (207 kPa) 14 psi (97 kPa) 14 psi (97 kPa) 35 psi (241 kPa) 28 psi (193 kPa) 28 psi (193 kPa) 10 psi (70 kPa)
Wheel bearings Iron/Oilite None Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite Iron/Oilite  Ball bearings, double sealed
Grease fittings on wheels Yes None Yes Yes Yes Yes Yes None
Axle diameter 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm) 0.75 in. (1.905 cm)

0.75 in. (1.905 cm)

 0.75 in. (1.905 cm) 1 in. (2.54 cm) 1 in. (2.54 cm)
Ground clearance 5.62 in. (14.3 cm) 5.25 in. (13.3 cm) 6.5 in. (16.5 cm) 6.5 in. (16.5 cm)

14.25 in. (36.2 cm)

 14.25 in. (36.2 cm) 7 in. (17.8 cm) 8.25 in. (21 cm)
Width, overall 34 in. (86.4 cm) 33.68 in. (85.5 cm) 38 in. (96.5 cm) 38 in. (96.5 cm)

39.5 in. (100.3 cm)

 39.5 in. (100.3 cm) 38 in. (96.5 cm) 48 in. (122 cm)
Hitch pin  Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip Pin/spring clip
Dump angles 55 degrees 55 degrees 56 degrees 31 degrees 46 degrees 46 degrees 35/40 degrees 35/40 degrees
Maximum tongue weight  100 lb (45.4 kg)  100 lb (45.4 kg)  70 lb (31.75 kg)  100 lb (45.4 kg) 50 lb (22 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)  100 lb (45.4 kg)
Shipping weight with carton 68 lb (31 kg) 65 lb (29.5 kg) 79 lb (35.8 kg) 110 lb (49.9 kg) --- 105 lb (47.6 kg) 170 lb (77.1 kg) 240 lb (109 kg)
Net weight 65 lb (29 kg) 55 lb (25 kg) 72 lb (32.7 kg) 105 lb (47.6 kg) 103 lb (47 kg) 105 lb (47.6 kg) 150 lb (68 kg) 220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.



  7P 8Y 10P 13 16YS  17P 18 21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R		 X   X
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180		 X  X X X X X X
S240 X X X  X X X X
LT150, LT160, LT180, LT190, LTR180 X X X   X X
LX280, LX280AWS, LX289 X X X   X X
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394		 X X X  X X X  X
SST15, SST16, SST18 X X X
G110 X X X X X X
GT235, GT245 X X X X X X
GX255, GX335, GX345, GX355 X X X X X X
X500, X520, X530, X534, X540
X570, X580, X584, X590		 X X X X X X X
X465, X475, X485, X495, X575, X585, X595 X X X X X X X X
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758		 X X X X X X X X

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:



Tractor  Additional weight
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180		 Two 30-lb (14-kg) wheel weights, front
Two 42-lb (19-kg) suitcase weights, rear
S240 Two 34-lb (15-kg) wheel weights, front
(4) 42-lb (19-kg) suitcase weights, rear
LT150, LT160, LT180, LT190, LTR180 Two 34-lb (15-kg) wheel weights, front
Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190)
LX280, LX280AWS, LX289
X300, X300R, X304, X310, X320, X324, X340, X360
X330, X350, X350R, X354, X370, X380, X384, X390, X394		 Two 34-lb (15-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, rear
SST15, SST16, SST18 One 88-lb (40-kg) weight kit, front
Three 40-lb (18-kg) weights, rear
G100 Two 50-lb (23-kg) wheel weights, rear
Two 42-lb (19-kg) suitcase weights, rear
G110 Two 50-lb (23-kg) plastic shell rear wheel weights
GT235, GT245 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
GX255, GX335, GX345, GX355
X500, X520, X530, X534, X540
X570, X580, X584, X590		 Two 30-lb (14-kg) wheel weights, front
Four 42-lb (19-kg) suitcase weights, front
Four 42-lb (19-kg) suitcase weights, rear
Four 50-lb (23-kg) wheel weights, rear
Two 50-lb (23-kg) wheel plastic shell weights, rear

X465, X475, X485, X495, X575, X585, X595
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758

 Four 42-lb (19-kg) suitcase weights, front
Two 70-lb (32-kg) wheel cast-iron starter weights, rear
Four 50-lb (23-kg) cast-iron wheel weights, rear
Two 50-lb (23-kg) plastic shell wheel weights, rear
Six 42-lb (19-kg) suitcase weights, rear
Ordering information

Please contact a local John Deere dealer for availability and pricing information.

7P Poly Utility Cart
Order number: LP21935

Oilite is a trademark of Beemer Precision, Incorporated.

Mcs Chutes
Power Flow chute Power Flow chute
Chute handle Chute handle

The Power Flow chute is required, along with the high-performance Power Flow blower, to use the two-bag Power Flow material collection system. The chute includes a convenient handle and a fill indicator that tells the operator when the bags are getting full. A bungee cord holds the chute securely to the Power Flow blower. It permits quick installation and removal of the chute.

Power Flow chute Power Flow chute
Chute handle Chute handle

The Power Flow chute is required, along with the high-performance Power Flow blower, to use the two-bag Power Flow material collection system. The chute includes a convenient handle and a fill indicator that tells the operator when the bags are getting full. A bungee cord holds the chute securely to the Power Flow blower. It permits quick installation and removal of the chute.

Mcs Hoppers
Attachment bar Attachment bar
Attachment bar Attachment bar

The attachment bar, required for MCS installation, bolts to the ZTrak mower frame to support the hopper.

NOTE: When installing on M and R Series machines, remove the rear hitch from the engine shroud and re-install the hitch onto the attachment bar/bumper.

Hopper and included weight bracket and weights Hopper and included weight bracket and weights
6.5-bu (229-L) hopper installed 6.5-bu (229-L) hopper installed

Ballast bracket and weights are included with the hopper attachment.

Weight bracket and weights included Weight bracket and weights included
Front weights installed on a Z735M with a 54-in. (137-cm) Mower Deck Front weights installed on a Z735M with a 54-in. (137-cm) Mower Deck

Four weights are included. For proper ballast with a complete material collection system, the number of weights required to be installed on the machine depends on the mower deck size as follows:

  • 48-in. (122-cm) mower deck requires four weights
  • 54-in. (137-cm) mower deck requires three weights
  • 60-in. (152-cm) mower deck requires two weights

The appropriate Power Flow™ blower, chute, and attachment bar/bumper are sold separately and are required for installation of a complete material collection system.

6.5-bu (229-L) rear bagger (attachment bar/bumper, chute, and blower must be ordered separately) 6.5-bu (229-L) rear bagger (attachment bar/bumper, chute, and blower must be ordered separately)

The 6.5-bu (229-L) rear bagger efficiently collects material from the mower deck:

  • A Power Flow blower (ordered separately) on the end of the mower deck moves material up the chute (ordered separately) and into the hopper.
  • A weight bracket and four 18-lb (8.2-kg) weights are included for installation on the front of the vehicle to help counterbalance the weight of the hopper.
Removing bag from 6.5-bu (229-L) hopper Removing bag from 6.5-bu (229-L) hopper
Removing bag from 6.5-bu (229-L) hopper Removing bag from 6.5-bu (229-L) hopper

The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:

  • Two durable bags give a generous 6.5-bu (229-L) capacity.
  • The bags lift out for easy emptying.
  • Efficient chute provides a smooth flow of material to reduce the chance of plugging.
    • The chute and Power Flow blower must be ordered separately.
  • Standard mower blades are used for bagging.
  • Air exhaust duct directs air from the hopper back and toward the ground for clean operation.
  • Convenient latch makes opening and closing the hopper easy.

NOTE: Appropriate Power Flow blower, chute, and attachment bar are required (ordered separately).

Mcs Power Flow Blowers
Power Flow blower Power Flow blower
Blower mounting arm Blower mounting arm

The Power Flow blower can be used with the ZTrak Z700 Series. It, along with the hopper and chute, will provide 6.5-bu (229-L) material collection system capability, giving added versatility and value.

Cleanout position shown with similar blower Cleanout position shown with similar blower

The Power Flow blower is mounted on a sturdy swing arm that allows easy installation and cleanout.

Power Flow blower Power Flow blower
Blower mounting arm Blower mounting arm

The Power Flow blower can be used with the ZTrak Z700 Series. It, along with the hopper and chute, will provide 6.5-bu (229-L) material collection system capability, giving added versatility and value.

Cleanout position shown with similar blower Cleanout position shown with similar blower

The Power Flow blower is mounted on a sturdy swing arm that allows easy installation and cleanout.

Power Flow blower Power Flow blower
Blower mounting arm Blower mounting arm

The Power Flow blower can be used with the ZTrak Z700 Series. It, along with the hopper and chute, will provide 6.5-bu (229-L) material collection system capability, giving added versatility and value.

Cleanout position shown with similar blower Cleanout position shown with similar blower

The Power Flow blower is mounted on a sturdy swing arm that allows easy installation and cleanout.

Miscellaneous
Yard tool kit Yard tool kit

The yard tool kit provides the ability to carry yard tools such as a rake and a shovel on the machine. The kit consists of an upper bracket and lower bracket and can be mounted on either the right or the left side of the rear engine shroud. A maximum of two yard tool kits are compatible with the machine.

  • Mounts to side of rear engine shroud
  • Not compatible with a material collection system (MCS).
Traction mat on Z740R shown with optional foot pegs Traction mat on Z740R shown with optional foot pegs

The traction mat/floor mat is compatible with all Z700 Series ZTrak™ Mowers. It provides extra comfort and traction on the foot platform.

  • Compatible with optional foot pegs.
Toolbox kit Toolbox kit

The toolbox kit provides easy access and convenient storage for small, hand-held tools:

  • Mounts to rollover protective structure (ROPS) above the engine
  • Not compatible with a complete material collection system (MCS)
  • Not compatible with the cargo basket
String trimmer mount on Z730M String trimmer mount on Z730M
Main bracket Main bracket
Secondary bracket Secondary bracket

The main bracket fits snugly over the right side fender and the secondary bracket mounts to the caster arm on the discharge side of the machine.  Rubber straps are provided to secure the trimmer in place. Not compatible with a complete material collection system.

LED light kit, lights off LED light kit, lights off
LED light kit, lights on LED light kit, lights on

The front light kit provides the ability to mow at twilight, increasing productivity hours. LED bulbs provide superior lighting. Mounting brackets are adjustable for aiming the light beam.

Includes instructions, two lights, and mounting hardware.

Compatible with all Z700 ZTrak™ Mowers.

Cargo basket Cargo basket

Designed to carry smaller hand tools and similar items (20 lb weight limit):

  • Not compatible with a complete material collection system
  • Not compatible with the toolbox kit
Beacon light installed on rollover protective structure (ROPS) Beacon light installed on rollover protective structure (ROPS)
Beacon light installed, close-up Beacon light installed, close-up

This light kit signals that the unit is approaching. The light is positioned near the top of the ROPS with a breakaway bracket; this ensures that, if struck, the light will not break but will move out of the way.

Trash receptacle kit Trash receptacle kit

The trash receptacle kit enables trash pickup and storage without the need to leave the mower seat. It includes everything needed:

  • A bracket for mounting for a 5-gal. (19-L) bucket and trash-grabbing apparatus
  • A 5-gal. (19-L) bucket
  • Trash-grabbing apparatus (may appear different than image pictured)

A mounting bracket keeps the bucket out of the way and is designed to be mounted opposite the trim side of the mower:

  • Strong, long lasting, and will meet a variety of operator needs
  • Saves time – tool and receptacle for collecting trash are located close to the operator
  • No need for plastic trash bags hanging from the mower
  • Accommodates debris that can cause damage to a mower
Sun canopy Sun canopy
Sun canopy Sun canopy

This kit is compatible with all Z700 Series ZTrak™ Mowers.

Not compatible with beacon light kit.

Ordering information

Please contact a local John Deere dealer for availability and pricing information.

Sun canopy
Order number: LPA11548

Jack kit and jack installed Jack kit and jack installed
Using jack mounting pin Using jack mounting pin

The jack allows easy access to the underside of the mower for maintenance or blade changing while in the field. The kit contains everything necessary to install the jack onto the front of a mower.

Using jack mounting pin Using jack mounting pin
Jack shown in storage position Jack shown in storage position

Holes in the vehicle frame cross member are pre-drilled for ease of installation:

  • The jack makes servicing the underside of the mower deck safer and easier.
  • Placed in the storage position, the jack can be carried on the machine, available for use.
    • The jack will need to be removed when using front ballast that is required for a rear material collection system, so it is not compatible with a material collection system.
Mulch Kits
MulchControl advantages and benefits
ZTrak™ Z730M mowing ZTrak™ Z730M mowing

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer use
  • Elimination of the effort needed to dispose of clippings
How MulchControl works

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
    • The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
    • Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
MulchControl handle in mulch-off position MulchControl handle in mulch-off position
MulchControl baffle open MulchControl baffle open
  • The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
    • The operator is required to get off of the machine in order to engage or disengage mulch mode.
  • Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl handle in mulch-on position MulchControl handle in mulch-on position
MulchControl baffle closed MulchControl baffle closed

MulchControl is well-suited to the following mowing situations:

  • Usually mulch, but side discharge when grass gets too long
  • Usually side discharge, but would like to be able to close the chute to control clippings
  • Always mulch a main lawn, but often side discharge secondary lawns
  • Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn clean-up is desired
Compatibility
  • ZTrak Z700 Series Zero-Turn-Mowers
MulchControl advantages and benefits
ZTrak™ Z730M mowing ZTrak™ Z730M mowing

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer use
  • Elimination of the effort needed to dispose of clippings
How MulchControl works

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
    • The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
    • Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
MulchControl handle in mulch-off position MulchControl handle in mulch-off position
MulchControl baffle open MulchControl baffle open
  • The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
    • The operator is required to get off of the machine in order to engage or disengage mulch mode.
  • Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl handle in mulch-on position MulchControl handle in mulch-on position
MulchControl baffle closed MulchControl baffle closed

MulchControl is well-suited to the following mowing situations:

  • Usually mulch, but side discharge when grass gets too long
  • Usually side discharge, but would like to be able to close the chute to control clippings
  • Always mulch a main lawn, but often side discharge secondary lawns
  • Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn clean-up is desired
Compatibility
  • ZTrak Z700 Series Zero-Turn-Mowers
MulchControl advantages and benefits
ZTrak™ Z730M mowing ZTrak™ Z730M mowing

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer use
  • Elimination of the effort needed to dispose of clippings
How MulchControl works

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
    • The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
    • Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
MulchControl handle in mulch-off position MulchControl handle in mulch-off position
MulchControl baffle open MulchControl baffle open
  • The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
    • The operator is required to get off of the machine in order to engage or disengage mulch mode.
  • Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl handle in mulch-on position MulchControl handle in mulch-on position
MulchControl baffle closed MulchControl baffle closed

MulchControl is well-suited to the following mowing situations:

  • Usually mulch, but side discharge when grass gets too long
  • Usually side discharge, but would like to be able to close the chute to control clippings
  • Always mulch a main lawn, but often side discharge secondary lawns
  • Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn clean-up is desired
Compatibility
  • ZTrak Z700 Series Zero-Turn-Mowers
Spark Arrester
Spark arrester screen Spark arrester screen

Allows tractor to meet restrictions imposed by certain areas.

AM115838 spark arrester shown AM115838 spark arrester shown

Available to meet the law in the state of California requiring its use under certain conditions.



The law basically requires that purchasers of certain products be given written notice that it is illegal to use such machines on forest-covered, brush-covered or grass-covered land (except on watered lawns) without a spark arrester.



For further information on this law, consult No. 442.5 of the California Public Resources Code.

Also available in other states if needed to comply with local ordinances or customer requests.

Specials

Order Online for Free Delivery†

on Residential ZTrak™ Zero-Turn Mowers

Offer Duration
November 01, 2023 - October 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...

Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
Terms & Conditions
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
