Engine power | 24 hp / 17.9 kW |
Engine model number | FS730V |
U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine power | 24 hp / 17.9 kW |
Engine model number | FS730V |
U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
*Inventory shortages may cause extended delivery dates
*This price does not include attachments and accesories

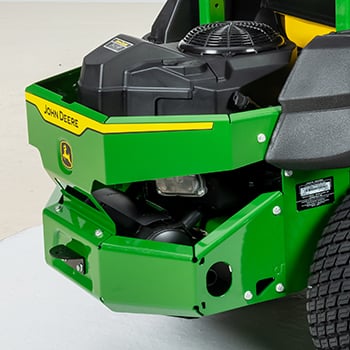

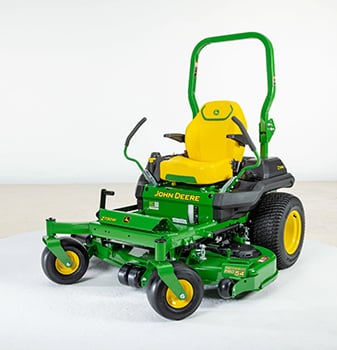

A strong, welded steel frame provides solid, reliable support for the machine components and operator:
Large front caster wheels provide a smooth ride and level cut:
Rear tires have high-quality tread and optimum size for superior traction and smooth ride:
A heavy-duty, permanent step weldment is located at the left front corner of the mower deck:
Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.
An ergonomic design and professional grade components are suitable for a wide variety of operators and conditions:
Adjustable features customize the mowing experience for each operator. One of these features is an adjustable foot platform.
The patent-pending, adjustable, three-position toe board allows the operator to quickly adjust the footrest position for greatest comfort:
Short operators may be most comfortable with the platform in the rear position (as shown above), while tall operators may be more comfortable with the platform in the forward position. Or perhaps, the middle position provides just the right amount of leg room.
Patent-pending foot pegs (standard on R Series, optional on E and M Series) provide the operator with different foot placement options.

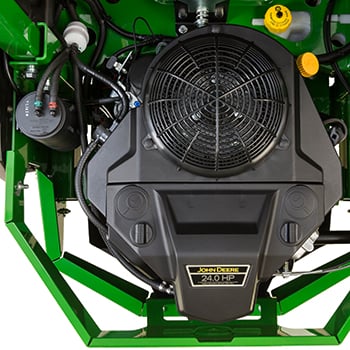

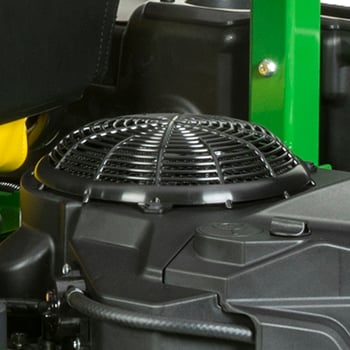

Key engine features:
The large-capacity fuel tank is easy to fill, and a convenient fuel level gauge is provided:
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
The large-capacity fuel tank is easy to fill, and a convenient fuel level gauge is provided:
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
Dual transmissions efficiently power the ZTrak© mower forward and reverse and give steering capability:
The hydrostatic drive features two Hydro-Gear ZT-3200© transmissions for superior performance and durability:
Transmission fluid expansion tanks are provided for each transmission. The yellow filler cap is easy to find and identify.
Tow-valve controls are provided for each transmission:
Hydro-Gear and ZT-3200 are trademarks of Hydro-Gear Limited Partnership AF Holding Company, a Delaware Corporation and Danfoss Power Solutions (US) Company, a Delaware Corporation
The operator station is designed to provide superior comfort for the operator:
The patent-pending, adjustable three-position toe board allows any operator to quickly adjust the footrest position for greatest comfort.

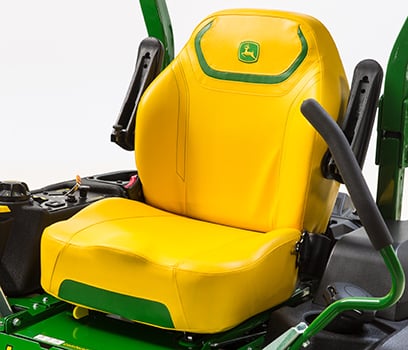

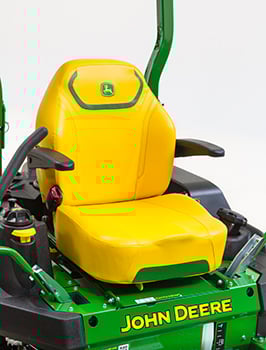

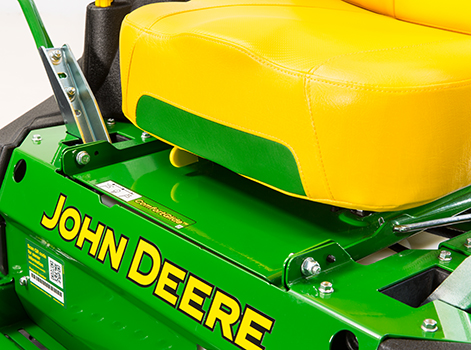

A deluxe comfort seat with ComfortGlide suspension, fore-aft seat adjustment, and two adjustable suspension springs offers superior ride comfort:
The ComfortGlide suspension is an additional system that generates a controlled fore and aft movement of the seat when experiencing undulations in uneven terrain:

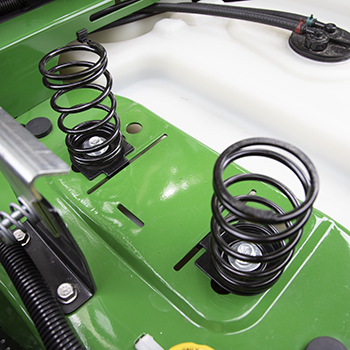

Two steel springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride:
The seat is securely held down, but is easy to raise when necessary:

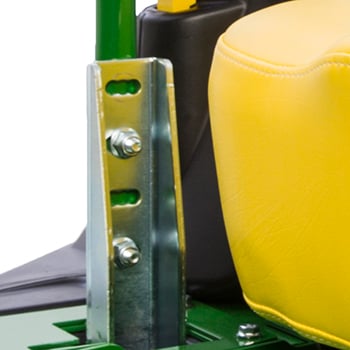

Adjustable steering levers are shaped for operator comfort and ease of controlling vehicle speed and direction:
Model year 2023 and newer R-Series Z700 ZTrak Mowers include standard LED work lights. The lights are integrated into the front of the foot platform and side fenders to protect them from damage and the elements. BUC11547 LED work lights are available as a field installed attachment to upgrade for E- and M- Series models. BUC10301 LED work light kit is for earlier model years that do not have provisions for integrated LED lights.
Operator convenience is provided with easy-to-reach and easy-to-use deluxe cup holder and storage areas:

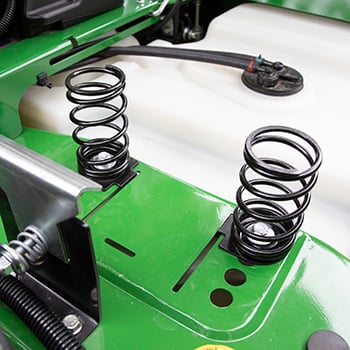

The ComfortGlide seat suspension comes with two adjustable springs and no-tools, fore-aft seat adjustment that can be used by the operator while seated:
Armrests can be raised for easier entry and exit from the machine.
Infinite height adjustment of the armrest can be made by an easy-to-use thumbscrew.
Two steel springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride.
The seat is securely held down, but is easy to raise when necessary:

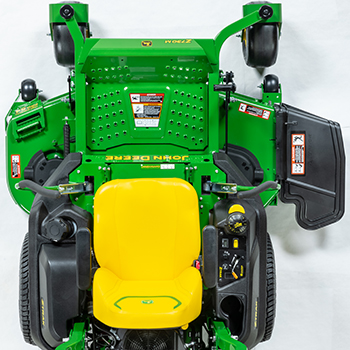

The operator control panel is conveniently located to the right of the operator for easy use.
The following controls are found on the right-hand console:
Motion control levers are shaped and located for operator comfort and ease of control.
Premium control levers on the Z730M, Z735M, and Z740R have a unique shape and size for more comfortable operation.

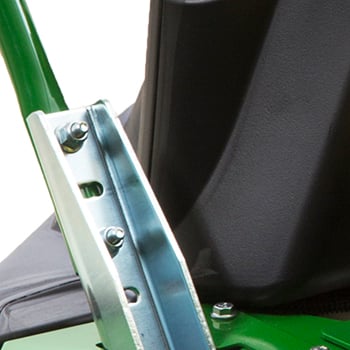

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:
On-board tracking adjustment can be made by the operator from the operator seat.
A patent-pending automatic parking brake system is designed into the steering control levers:
The internal parking brake rotor and puck are continually lubricated and cooled for dependable operation and long life.
Mower deck cutting height adjusts from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:
Safety interlocks help prevent operating in an unsafe way:
Exclusive, 4-year, single-source, bumper-to-bumper warranty is included for all John Deere Z700 Series ZTrak mowers. The warranty places John Deere at the forefront of the mowing industry. It is hassle free, with one company handling all the paperwork.
Z720E, Z735E |
4-year, 500-hour warranty |
Z730M, Z735M |
4-year, 750-hour warranty |
Z740R, Z760R |
4-year, 1000-hour warranty |
A convenient service decal gives basic maintenance information. It provides a quick reference for keeping recommended service up to date. It is located underneath the battery cover.
To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located under the right steering lever. The owner information web pages that include links to:
The professional-style steel foot platform is easy to remove without tools:
The engines are easy to service, including changing the oil and the oil filter and servicing the air filter:

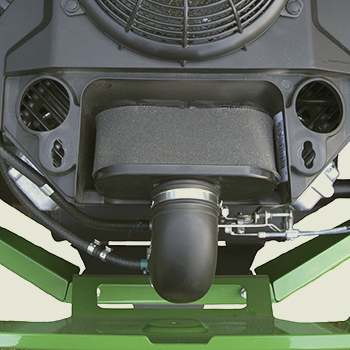

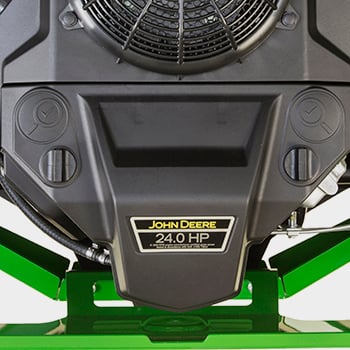

Engine air filters are at the top of the engine for easy service:
Only three grease fittings require service:
Three to lubricate the mower-blade spindles, two easily accessed from the spindle covers, and the third by removing the foot platform.
The battery is protected from debris, dust, and moisture:
A patent-pending deck-leveling system provides easy adjustment at all four mower mounting points:
Serviceability is designed into the mower deck:
Tow-valve controls are provided for each transmission:
Four tie-down locations are provided for convenience and safety when trailering the machine.
An operation and safety DVD is provided with each machine. Please consult the operatorâs manual for other safety and operating procedures.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
Each Z700 Series ZTrak© Mower is equipped with either a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) HC PRO Mower Deck.
High-capacity (HC) mower deck | ZTrak model | |||||
Z720E | Z735E | Z730M | Z735M | Z740R | Z760R | |
48-in. (122-cm) High-capacity PRO | X | X | X* | |||
54-in. (137-cm) High-capacity PRO | X | X | X | X* | X* | |
60-in. (152-cm) High-capacity PRO | X | X | X | X | X* | X* |
*Optional Tweel® tires are not compatible with material collection system (MCS) or with a 48-in. (122-cm) mower deck.
The mower deck has a deep-deck design:
Steel reinforcing bars are welded to the front edge and trim side of the mower deck:
The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:
Flip-up spindle covers make cleaning the spindle area convenient.
Dual-captured front and side anti-scalp wheels:
A permanent step weldment is located at the left front corner of the mower deck:
MulchControl is an innovative, simple design that is easy to use and maintain:
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material.
Advantages of mulching grass clippings include:
The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
MulchControl is a field-installed attachment and compatible with the 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) HC PRO Mower Decks available for the Z700 Series ZTrak Mowers.
Capacity |
6.5 bu (230 L) |
Material: |
|
Hopper top |
High impact polypropylene |
Chute |
Polyethylene |
Blower housing |
Nylon |
Fan |
Ultra-high molecular weight (UHMW) polyethylene |
Bags |
Polyester |
Filling |
Directly into bags for emptying on ground or in trailer or into plastic liners |
Fan diameter |
13 in. (33 cm) |
Fan width |
2.75 in. (7 cm) |
Number of fan blades |
Four |
NOTE: MulchControl attachments and MCS components are not included in base equipment for a Z700 Series ZTrak machine and must be ordered separately.
Tweel is a trademark of Compagnie Générale des Etablissements Michelin SCA.
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
NOTE: Appropriate hopper, Power Flow blower, chute, and attachment bar are required and ordered separately.
The 6.5-bu (230-L) rear bagger efficiently collects material from a 48-, 54-, or 60-in. (122-, 137-, or 152-cm) Mower Deck:
The spacious operator station has been designed for comfort, visibility, and ease of use:

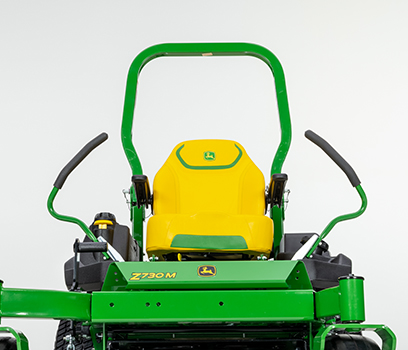

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
Foldable ROPS and retractable seat belt are standard equipment:
ROPS position | Z720E and Z735E machine height |
Z730M and Z735M machine height |
Z740R and Z760R machine height |
Full height | 71.7 in. (182.2 cm) | 71.7 in. (182.2 cm) | 72.1 in. (183.2 cm) |
Down position | 47.4 in. (120.3 cm) | 49.7 in. (126.2 cm) | 51 in. (129.5 cm) |
Key Specs | |
Engine power | 24 hp 17.9 kW |
Engine model number | FS730V |
Travel speed | |
Forward speed | 0-9.5 mph 0-15.3 km/h |
Chassis | |
Front caster tires | 13x6.5-6 |
Drive tires | 23X10.5-12 (54- and 60-in. decks) |
Seat | |
Seat back height | High back with adjustable armrests, 22.5 in. 57.1 cm |
Mower deck | |
Width of cut | 54 in. 137 cm 60 in. 152 cm |
Optional attachments | |
Mulching system | Optional MulchControl attachment |
Key Specs | |
U.S. warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine | |
Power | 24 hp 17.9 kW |
Model number | FS730V |
Displacement | 44.3 cu in. 726 cc |
Cylinders | V-twin |
Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
PTO | |
Type | Electric, 125 lb-ft 169 Nm |
Engine | |
Battery | 12 V 340 CCA |
Choke/speed control | Separate control levers |
Cooling method | Air |
Fuel tank capacity | 8 U.S. gal. 30.2 L |
Fuel gauge | Fuel level sight line |
Drive train | |
Dual hydros | Hydro-gear ZT3200 with 1-in. (2.54-cm) axles |
Travel speed | |
Reverse speed | 0-4 mph 0-6.4 km/h |
Speed and direction control | Twin premium levers |
Control adjustment | 2-height/18 positions |
Chassis | |
Frame | Heavy-duty frame tubing |
Primer/paint | E-coat/powder |
Front caster bearings | Sealed ball bearings |
Hourmeter | Yes |
Service interval decal | Yes |

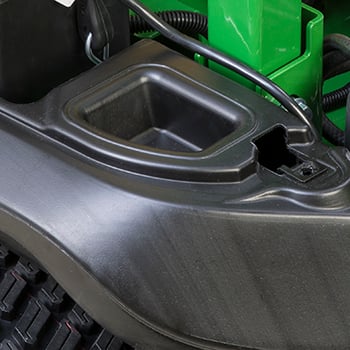

Storage compartment | Yes |
Cup holder | Yes |
Seat | |
Fore-aft adjustment | While seated, +/- 2 in. 5.08 cm |
Seat suspension | Two four-position springs with ComfortGlide™ fore/aft suspension |
Lift system | |
Mower cut height | 1.5-5 in. 3.8-12.7 cm |
Cut height increments | 0.25 in. 0.64 cm |
Preset cut height | Yes |
Mower deck | |
Mower deck material | 9 gauge 0.150 in. 3.8 mm |
Mower drive system | V-belt |
PTO | |
Drive | V-belt |
Dimensions | |
Wheelbase | 49.9 in. 126.7 cm |
Overall length | 82 in. 208.4 cm |
Width without mower | 50.6 in. 128.4 cm |
Width with mower | 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
Width with mower (deflector raised for storage) | 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
Height | ROPS up - 71.1 in. 182.2 cm ROPS down - 49.7 in. 126.2 cm |
Weight | With mower and fuel, 54 HC, 965 lb 437 kg With mower and fuel, 60 HC, 995 lb 451 kg |
Operation | |
Operator presence system | Yes |
Park brake interlock | Yes |
Safety | |
Safety video | Yes |
Optional attachments | |
Rubber floor mat | Optional |
Light kit | Optional LED work and beacon lights |
Material collection system | 54 HC PRO and 60 HC PRO Power Flow™ rear bagger, 6.5 bu 229.1 L |
Key Specs | |
Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Chassis | |
Hour meter | Yes |
Operation | |
Rollover protective structure (ROPS) | Yes |
Slope operating limit | 15 degrees; 10 degrees with MCS |
Operator video | Yes |
Additional information | |
Date collected | 1-Sept-2022 |
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.
Utility carts can be used to haul a variety of materials:
The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:
A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
10P Poly Utility Cart
Order number: LPPCT10JD
Oilite is a trademark of Beemer Precision, Incorporated.
Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.
Wheels are mounted on a solid, one-piece axle for durability.
Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.
The pneumatic tires offer the following:
A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
A large-diameter hitch pin provides plenty of strength:
An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.
Comparison with similar models
Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, S240, X300 Series, X500 Series, X700 Series |
13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump | 100 Series, S240, X300 Series, X500 Series, X700 Series |
17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, S240, X300 Series, X500 Series, X700 Series |
21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
Box capacity | ||||||||
Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
Box dimensions | ||||||||
Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.
7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 | |
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
S240 | X | X | X | X | X | X | X | |
LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
LX280, LX280AWS, LX289 | X | X | X | X | X | |||
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
SST15, SST16, SST18 | X | X | X | |||||
G110 | X | X | X | X | X | X | ||
GT235, GT245 | X | X | X | X | X | X | ||
GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:
Tractor | Additional weight |
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
Two 30-lb (14-kg) wheel weights, front Two 42-lb (19-kg) suitcase weights, rear |
S240 | Two 34-lb (15-kg) wheel weights, front (4) 42-lb (19-kg) suitcase weights, rear |
LT150, LT160, LT180, LT190, LTR180 | Two 34-lb (15-kg) wheel weights, front Two 31-lb (14.1-kg) plastic shell wheel weights, rear (not for LT190) |
LX280, LX280AWS, LX289 X300, X300R, X304, X310, X320, X324, X340, X360 X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
Two 34-lb (15-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, rear |
SST15, SST16, SST18 | One 88-lb (40-kg) weight kit, front Three 40-lb (18-kg) weights, rear |
G100 | Two 50-lb (23-kg) wheel weights, rear Two 42-lb (19-kg) suitcase weights, rear |
G110 | Two 50-lb (23-kg) plastic shell rear wheel weights |
GT235, GT245 | Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear |
GX255, GX335, GX345, GX355 X500, X520, X530, X534, X540 X570, X580, X584, X590 |
Two 30-lb (14-kg) wheel weights, front Four 42-lb (19-kg) suitcase weights, front Four 42-lb (19-kg) suitcase weights, rear Four 50-lb (23-kg) wheel weights, rear Two 50-lb (23-kg) wheel plastic shell weights, rear |
X465, X475, X485, X495, X575, X585, X595 |
Four 42-lb (19-kg) suitcase weights, front Two 70-lb (32-kg) wheel cast-iron starter weights, rear Four 50-lb (23-kg) cast-iron wheel weights, rear Two 50-lb (23-kg) plastic shell wheel weights, rear Six 42-lb (19-kg) suitcase weights, rear |
Please contact a local John Deere dealer for availability and pricing information.
7P Poly Utility Cart
Order number: LP21935
Oilite is a trademark of Beemer Precision, Incorporated.
The attachment bar, required for MCS installation, bolts to the ZTrak mower frame to support the hopper.
NOTE: When installing on M and R Series machines, remove the rear hitch from the engine shroud and re-install the hitch onto the attachment bar/bumper.
Ballast bracket and weights are included with the hopper attachment.
Four weights are included. For proper ballast with a complete material collection system, the number of weights required to be installed on the machine depends on the mower deck size as follows:
The appropriate Power Flow™ blower, chute, and attachment bar/bumper are sold separately and are required for installation of a complete material collection system.
The 6.5-bu (229-L) rear bagger efficiently collects material from the mower deck:
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
NOTE: Appropriate Power Flow blower, chute, and attachment bar are required (ordered separately).
The Power Flow blower can be used with the ZTrak Z700 Series. It, along with the hopper and chute, will provide 6.5-bu (229-L) material collection system capability, giving added versatility and value.
The Power Flow blower is mounted on a sturdy swing arm that allows easy installation and cleanout.
The Power Flow blower can be used with the ZTrak Z700 Series. It, along with the hopper and chute, will provide 6.5-bu (229-L) material collection system capability, giving added versatility and value.
The Power Flow blower is mounted on a sturdy swing arm that allows easy installation and cleanout.
The yard tool kit provides the ability to carry yard tools such as a rake and a shovel on the machine. The kit consists of an upper bracket and lower bracket and can be mounted on either the right or the left side of the rear engine shroud. A maximum of two yard tool kits are compatible with the machine.
The toolbox kit provides easy access and convenient storage for small, hand-held tools:
The main bracket fits snugly over the right side fender and the secondary bracket mounts to the caster arm on the discharge side of the machine. Rubber straps are provided to secure the trimmer in place. Not compatible with a complete material collection system.
Designed to carry smaller hand tools and similar items (20 lb weight limit):
The trash receptacle kit enables trash pickup and storage without the need to leave the mower seat. It includes everything needed:
A mounting bracket keeps the bucket out of the way and is designed to be mounted opposite the trim side of the mower:
The traction mat/floor mat is compatible with all Z700 Series ZTrak™ Mowers. It provides extra comfort and traction on the foot platform.
This kit is compatible with all Z700 Series ZTrak™ Mowers.
Not compatible with beacon light kit.
Please contact a local John Deere dealer for availability and pricing information.
Sun canopy
Order number: LPA11548
The front light kit provides the ability to mow at twilight, increasing productivity hours. LED bulbs provide superior lighting. Mounting brackets are adjustable for aiming the light beam.
Includes instructions, two lights, and mounting hardware.
Compatible with all Z700 ZTrak™ Mowers.
The jack allows easy access to the underside of the mower for maintenance or blade changing while in the field. The kit contains everything necessary to install the jack onto the front of a mower.
Holes in the vehicle frame cross member are pre-drilled for ease of installation:
Foot pegs are standard equipment on the ZTrak™ Z740R Mower and optional field installed kits on E and M Series. They provide the operator with more foot-placement options:
This light kit signals that the unit is approaching. The light is positioned near the top of the ROPS with a breakaway bracket; this ensures that, if struck, the light will not break but will move out of the way.
NOTE: Compatible with ZTrak™ Z700 E and M Series machines only.
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
Available to meet the law in the state of California requiring its use under certain conditions.
The law basically requires that purchasers of certain products be given written notice that it is illegal to use such machines on forest-covered, brush-covered or grass-covered land (except on watered lawns) without a spark arrester.
For further information on this law, consult No. 442.5 of the California Public Resources Code.
Also available in other states if needed to comply with local ordinances or customer requests.
Allows tractor to meet restrictions imposed by certain areas.
