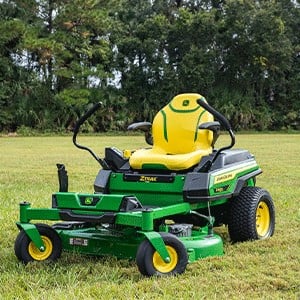

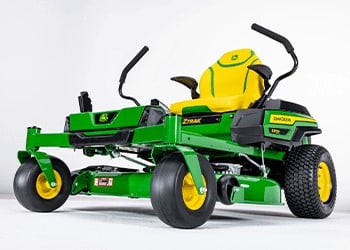

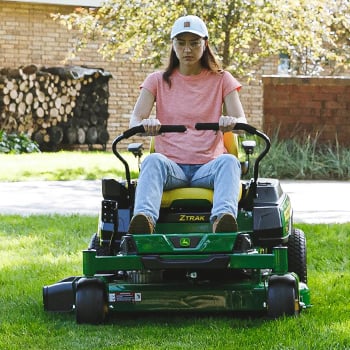

The Z370R Electric ZTrak Mower delivers the productivity and cut quality of a gas-powered Z300 ZTrak Mower. Many proven components, including the frame and Accel Deep© Mower Decks, are shared with the gas-powered models.

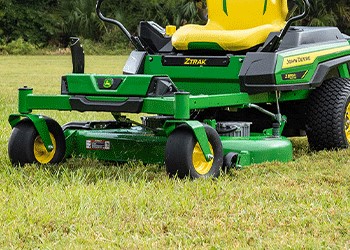

Mower decks are 4.83 to 4.97-in. (12.3 to 12.6-cm) deep with a flat top and large discharge opening.
Cut and suspended material can exit the mower deck without getting recut:
Stamped-steel construction eliminates sharp edges and corners:

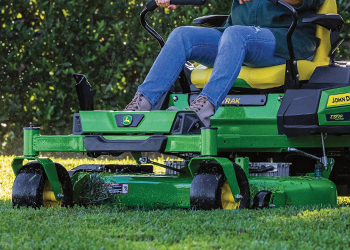

Adjustable mower wheels, positioned just above ground level give a more even cut and reduce scalping.
Optional MulchControl© with a 42-in. (107-cm) mower deck enables you to mulch frequently:
Optional 6.5-bu (230-L) rear bagger with a 42-in. (107-cm) mower deck for collecting grass clippings and leaves.
Standard 3.56 maximum (3.20 nominal) kilowatt-hour (kWh) battery has up to 40 percent more capacity than competitorâs batteries.
A Z370R with a 42-in (107-cm) mower deck can confidently mow 2 acres on a charge. AZ370R with a 48-in (122-cm) mower deck can confidently mow 1.8 acres on a charge.
The efficient Accel Deep Mower Decks with optimized blades extends runtime:
Go home mode gets you back:
The electric transaxle has the same 7-mph (11.3-km/h) maximum forward travel speed as the transaxle used on gas-powered Z300 ZTrak Mowers.

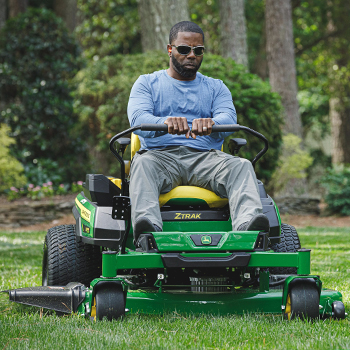

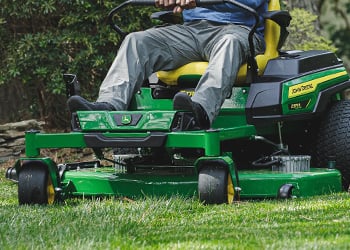

The wider 48-in. 122-cm mower deck is more productive and extends further leftward which improves trimming.

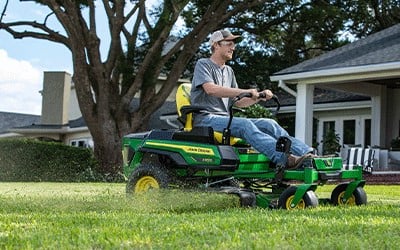

The Z370R Electric ZTrak Mower frees you from the hassles of gasoline.
Start your weekend with the scent of fresh cut grass instead of a trip to the gas station
No spilling, transporting, smelling, or storing gasoline
Minimal maintenance
Smart charger is built into the mower
Smart charger continuously monitors battery

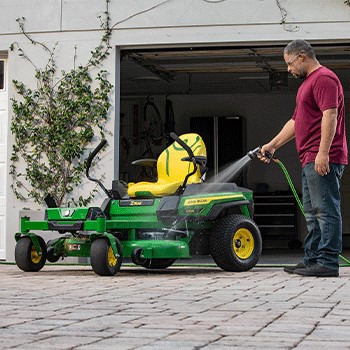

The Z370R Electric ZTrak© is designed to withstand dust and water so you can confidently weather the conditions, wash the mower with a water hose, and even store the mower outdoors. The same weatherization technology used on John Deereâs agriculture and construction products is found on the Z370R for dependable, trouble-free performance.
The battery is sealed to protect it from the elements:
The mower deck motors are also sealed to keep dust and water from entering. High-quality electrical connectors are also used throughout the mower.
All John Deere mowers are painted with a dual-stage E-coat process using powder-paint coatings to provide protection from fading and corrosion.
The Z370R Electric ZTrak Mower is built tough to provide many years of trouble-free service. Several proven components, including the frame and the Accel Deep© Mower Decks, are shared with the gas-powered Z300 ZTrak models.
The Z370R Electric ZTrak Mower frame is constructed of heavy-duty formed and welded steel for strength, reliability, and long life:
The Accel Deep Mower Decks are forged from heavy-gauge steel:
To withstand impacts both decks feature:
The 48-in. (122-cm) Accel Deep Mower Deck includes a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra protection.
The electric transaxle is maintenance free and reliable:

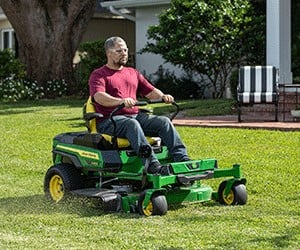

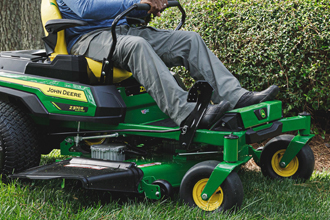

Look forward to the weekend and mowing with your Z370R Electric ZTrak Mower. The mowerâs seat, operator station, styling package, ergonomic controls, even the mower deck are designed to give a clean, quiet, and a smooth riding experience.
The Z370R Electric ZTrak is designed to be intuitive to use, with controls at your fingertips.
Display panel
Status display
The electric transaxle of the Z370R Electric ZTrak is tuned to be smooth, responsive, and operate like a gas-powered ZTrak Mower.
Three operating modes enable you to tailor the performance to your preferences and yard conditions:
Operating mode can be changed using the mode switch
*On the Z370R Electric ZTrak Mower, material collection is only available with the 42-in. (107-cm) mower deck.
The integrated park brake is automatically applied when motion control levers are stowed outward and disengaged when levers are placed into operating position.

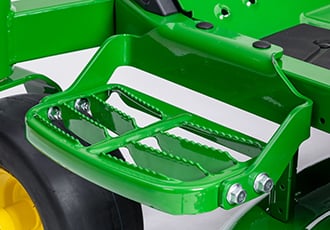

The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.
The Z370R Electric ZTrak© Mower has several features to simplify maintenance.

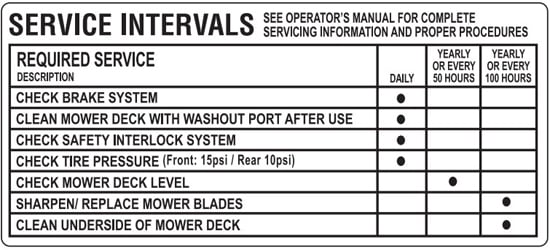

The service interval decal includes recommended service points, intervals, and part numbers.
You can quickly adjust the tracking from the operator seat using the included 13-mm wrench.
If you need to push or tow the mower you can activate the push-mode switch which allows the drive wheels to roll freely.
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located under the seat. Since each vehicle model has its own web page, the links are specific to the ownerâs model. The QR code also includes the vehicleâs unique PIN which allows for additional customization of the owner information web page in the future.

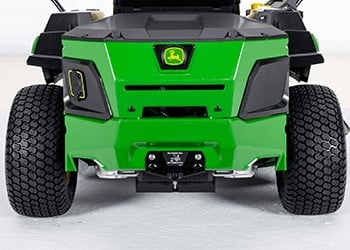

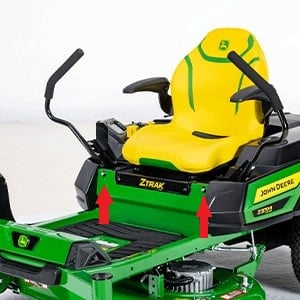

Front and rear tie-down locations are provided for convenience and safety when trailering the mower.
The Z370R Electric ZTrak is covered by a 3-year or 200-hour, whichever comes first, bumper-to-bumper warranty. The battery has even more coverage, with a 5-year or 200-hour coverage period. An optional PowerGard© Lithium-Ion Battery Protection Plan covers the battery for 10 years or 400 hours. An optional PowerGard Protection Plan Residential is available to cover the remaining components.
Benefits

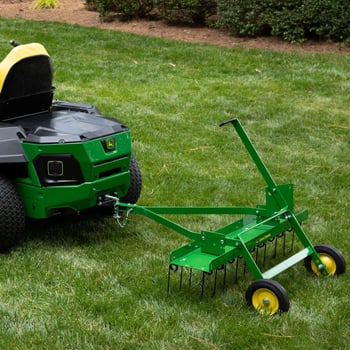

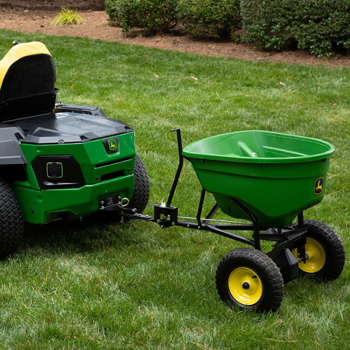

The Z370R Electric ZTrak provides the same versatile attachments as gasoline-powered Z300 ZTrak Mowers.
Attachments add versatility, comfort, or protect your mower
*On the Z370R Electric ZTrak Mower, MulchControl and bagger are only available with the 42-in. (107-cm) mower deck.

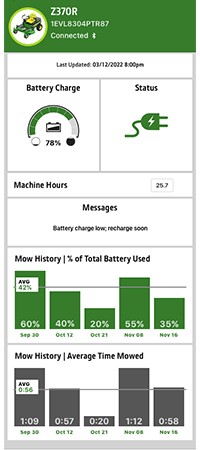

Keep your Z370R Electric ZTrak© Mower running its best with the John Deere MowerPlus app. The Z370R includes connector functionality that wirelessly transmits mower information to the MowerPlus app.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play© store. The John Deere MowerPlus app and operating system requirements can be found in the mobile deviceâs app store. The MowerPlus app is only available in the English language, and it is not available in all countries.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
Drive train | |
Battery | One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating |
Charger | On board, 700 Watts, 120 V input |
Travel speed | |
Forward speed | 0-7 mph 0-11.3 km/h |
Chassis | |
Front caster tires | 11x6-5 |
Drive tires | 18x8.5-8 |
Seat | |
Seat back height | High back with armrests, 20 in. 51 cm |
Mower deck | |
Width of cut | Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm |
Optional attachments | |
Mulching system | 42A: Optional MulchControl™ attachment 48A: No MulchControl™ attachment |
Key Specs | |
Warranty | 3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Drive train | |
Transmission | Dual electric motor with 1-in (2.5-cm) axles |
Travel speed | |
Reverse speed | 0-3.5 mph 0-5.6 km/h |
Speed and direction control | Twin levers |
Control adjustment | 3 height, 11 positions |
Chassis | |
Frame | Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing |
Primer/paint | E-coat/powder |
Front caster bearings | Sealed ball bearings |
Hour meter | Yes |
Service interval decal | Yes |
Storage compartment | Standard covered |
Cup holder | Yes |
Maximum towing capacity | 250 lb 113 kg |
Seat | |
Fore-aft adjustment | 2.9 in. 7 cm |
Seat suspension | Two springs |
Mower deck | |
Type | Side discharge |
Lift system | |
Mower cut height | 1.25-4.5 in. 3-11 cm |
Cut height increments | 0.25 in. 0.64 cm |
Preset cut height | Yes |
Mower deck | |
Mower deck material | 42A: 12 gauge 0.105 in. 2.7 mm 48A: 10 gauge 0.135 in. 3.4 mm |
Mower drive system | Electric motors |
Dimensions | |
Wheelbase | 49.4 in. 1255 mm |
Overall length | 75.4 in. 1915 mm |
Width without mower | 43.3 in. 1100 mm |
Width with mower | 42A: 50.4 in. 1280 mm 48A: 62.6 in. 1590 mm |
Width with mower (deflector raised for storage) | 42A: 46.5 in. 1180 mm 48A: 52.8 in. 1340 mm |
Height | 43.3 in. 1100 mm |
Weight | 42A: 490 lb 222 kg 48A: 540 lb 245 kg |
Operation | |
Rollover protective structure (ROPS) | No |
Slope operating limit | 13 degrees; 10 degrees with Material Collection System |
Operator presence system | Yes |
Park brake interlock | Yes |
Operator video | Yes, online |
Optional attachments | |
Rubber floor mat | Standard |
Storage cover | Optional |
Light kit | Standard |
Material collection system | 42A: Two-bag cut-and-throw MCS, 6.5 bu 229 L 48A: No material collection system |
Additional information | |
Manufacturing location | Greeneville, Tennessee, USA |
