John Deere Z325E

DEBUG Ind: Lawn Care Equipment, Cat: Mowers, SubCat: Zero Turn Mowers, SubSubCat: Z300 Series
Feature Overview
John Deere Z325E
  • Mow up to 2 acres
  • 24 HP* (17.9 kW) V-Twin engine
  • 48- and 54-in. (122- and  137 cm) forged Accel Deep™ Mower Decks available
  • Mow up to 7 mph (11.2 km/h) with a 3-gal. (13.6 litre) fuel tank capacity
  • 3-year/200-hour bumper-to-bumper warranty**
Engine power 20 hp / 14.9 kW
Engine model number M40 Intek
Warranty 2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
$3,599.00MSRP*

Get Financed
Request a Demo

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Feature Overview
John Deere Z325E
  • Mow up to 2 acres
  • 24 HP* (17.9 kW) V-Twin engine
  • 48- and 54-in. (122- and  137 cm) forged Accel Deep™ Mower Decks available
  • Mow up to 7 mph (11.2 km/h) with a 3-gal. (13.6 litre) fuel tank capacity
  • 3-year/200-hour bumper-to-bumper warranty**
Engine power 20 hp / 14.9 kW
Engine model number M40 Intek
Warranty 2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
$3,599.00 MSRP**

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

We are here to help
Features

Smooth and powerful V-twin engine

20-hp (14.9-kW) engine, left rear view 20-hp (14.9-kW) engine, left rear view
20-hp (14.9-kW) engine, right rear view 20-hp (14.9-kW) engine, right rear view

A 20-hp (14.9-kW) V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

  • V-twin cylinder design for greater torque, lower vibration, and improved sound quality
  • Engine model M40
  • Electronic ignition for fast starts
  • Cast-iron sleeves for longer engine life
  • Overhead valves for excellent power and fuel economy
  • Full-pressure lubrication and oil filter for keeping the oil cleaner for a long engine life and extending the time between oil changes; the full-pressure lubrication system is also more effective when operating the tractor on an incline
  • Easy access to the no-tools oil drain valve for oil changes
  • Rear engine guard for protecting the engine and providing additional strength and integrity
Engine oil check/fill tube and oil-drain tube Engine oil check/fill tube and oil-drain tube
Replaceable oil filter and fuel filter Replaceable oil filter and fuel filter

Replaceable fuel filter and oil filter are easy to access and change to minimize service time and cost.

John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

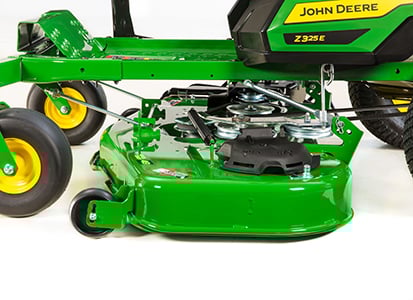

Z335E ZTrak© with 42A Mower Deck Z335E ZTrak© with 42A Mower Deck
42A Mower Deck 42A Mower Deck

The 42-in. (107-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

  • 4.97-in. (12.6-cm) deep throughout the entire deck shell for optimum mowing, mulching, and bagging performance
    • Optional MulchControl© system provides superior mulching performance and versatility
  • Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
  • Mower deck suspended from the vehicle for a smooth and level cut
    • Adjustable mower wheels, positioned just above ground level, help reduce scalping
  • 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
  • Compatible with efficient 6.5-bu (230-L) two-bag cut-and-throw material collection system
Excellent cut quality

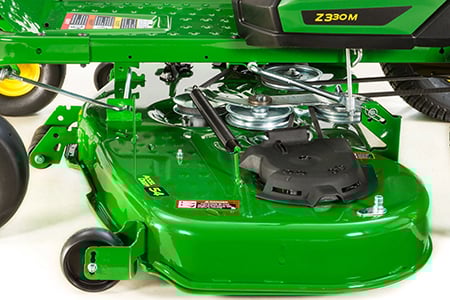

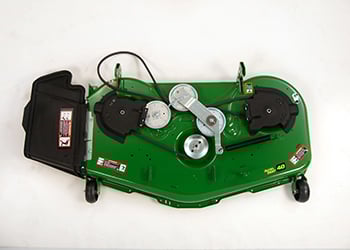

42A Mower Deck top (similar mower from X300 Series Tractor shown) 42A Mower Deck top (similar mower from X300 Series Tractor shown)

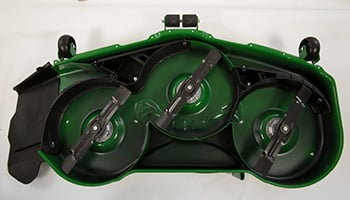

42A Mower Deck underside (similar mower from X300 Series Tractor shown) 42A Mower Deck underside (similar mower from X300 Series Tractor shown)

Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

  • Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
    • Helps maintain excellent cut quality at faster mowing speeds
  • Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
  • Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
Productivity - gets the job done fast

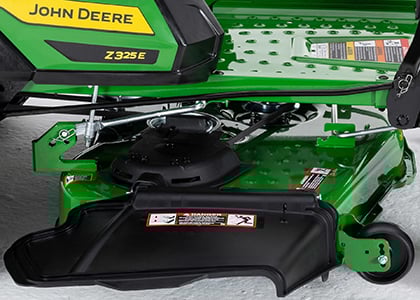

Side-discharge chute on Accel Deep 42A Mower Deck Side-discharge chute on Accel Deep 42A Mower Deck

Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

  • Greatly improves the mower's capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

  • Gives a smooth, even discharge of clippings at all mowing speeds
  • Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
  • Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening
Cleanliness - for the mower and the operator

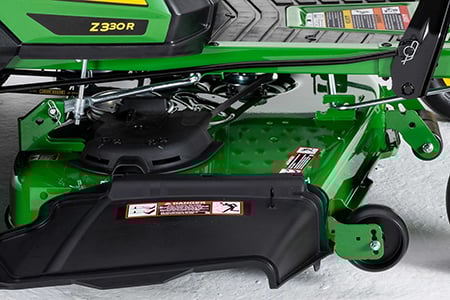

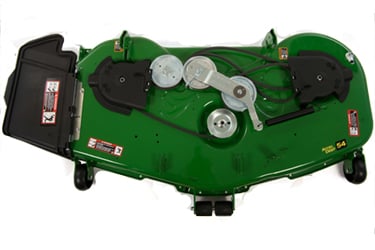

Accel Deep 42A Mower Deck Accel Deep 42A Mower Deck
Accel Deep 42A Mower Deck Accel Deep 42A Mower Deck

The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:

  • There are few places to catch and hold material on the top and underneath the deck.
    • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
    • Underside of deck is self-cleaning to maintain optimum performance without build-up of material to interfere with the flow of air and clippings
    • Less need to clean and remove build-up of material from underside deck
  • The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck
    • Limited amount of material to drift onto the operator and mower deck
    • Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
    • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

  • The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
Mower wash port Mower wash port
Mower wash port with hose connector Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy.

  • Hose connector is included with the mower deck.
Superior durability is designed in

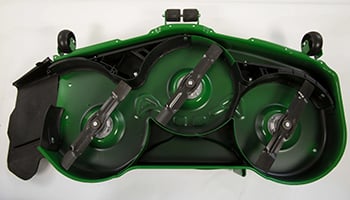

Spindle pockets on the 42A Mower Deck Spindle pockets on the 42A Mower Deck

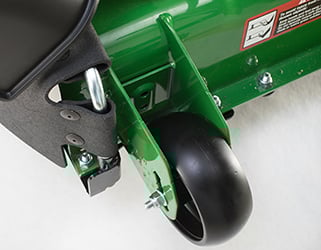

Mower deck wheels are double captured Mower deck wheels are double captured

The 42A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

  • Ribs in the deck shell add strength where it is needed.
  • The 42A has a 16 percent heavier overall weight than the Edge© Xtra 42-in. (107-cm) Mower Deck that it replaces.

Mower wheels are double captured:

  • Provides greater strength and durability for longer, trouble-free life.
  • Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on the engines lower bearing and mower deck bearings for longer life.

Rolled outer edge of the deck provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

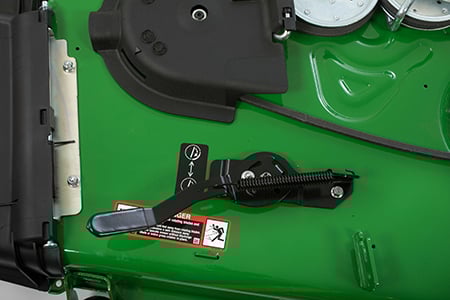

MulchControl handle MulchControl handle
  • The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
    • The operator is required to get off the machine in order to engage or disengage mulch mode.
  • Changing from mulching to side discharge or vice versa takes only a few seconds.

MulchControl is well-suited to the following mowing situations:

  • Usually mulch, but side discharge when grass gets too long
  • Usually side-discharge, but would like to be able to close the chute to control clippings
  • Always mulch a main lawn, but often side discharge secondary lawns
  • Bag clippings, but want to go farther before emptying bags

While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn cleanup is desired
Versatility - easy to change between side discharge, mulch, and bagging modes
Rear MulchControl baffle (A) that must be removed for bagging Rear MulchControl baffle (A) that must be removed for bagging
Rear MulchControl baffle removed to allow for chute installation (Mower shown on X330 Tractor) Rear MulchControl baffle removed to allow for chute installation (Mower shown on X330 Tractor)

The 42A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

  • With the optional MulchControl system installed (along with the special mulching blades), changing from side discharge to mulching or vice versa is done with the simple flip of a lever.
  • The cut-and-throw rear bagger can be used with MulchControl installed by removing the rear MulchControl baffle (A) before installing the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.



MulchControl option

The MulchControl system for the 42A Mower Deck is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer use
  • Elimination of the effort needed to dispose of clippings
How MulchControl works
MulchControl baffle open MulchControl baffle open
MulchControl baffle closed MulchControl baffle closed

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
    • When the MulchControl baffle is open, most of the material passes through the discharge opening.
    • When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.
6.5-bu (230-L) rear bagger
Z335E equipped with optional rear bagger Z335E equipped with optional rear bagger

An optional 6.5-bu (230-L) cut-and-throw rear bagger material collection system (MCS) is available for use with the 42-in. (107-cm) Accel Deep Mower. It provides an efficient means of collecting grass clippings and leaves.

The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:

  • 6.5-bu (230-L) capacity
  • Easy-to-attach lower chute
  • Air exhaust duct
  • Convenient spring-latch
  • Airflow fill indicator
  • Quik-Tatch© mounting
  • Sealed hopper top
  • Loose-knit bags available
Mower blades
Mower blades shipped with the rear bagger Mower blades shipped with the rear bagger

High-lift bagging blades are included with the chute. They provide optimum performance when bagging in difficult conditions, such as when the grass is moist, dense, or long:

  • High-lift bagging blades also work well when side discharging material.

Mulching blades are included with the MulchControl attachment. They can be used for mulching, side discharging, and bagging in most conditions.


Mower blade use chart

 Mode(s) of operation  Mower blade
 Side discharging mode only   Side-discharge blade (shipped with mower)
 Bagging mode only  Bagging blade (shipped with rear bagger chute)
 Mulching mode only  Mulching blade (shipped with MulchControl)
 Side discharge and mulching  Mulching blade (shipped with MulchControl)
 Side discharge and bagging  Bagging blade (shipped with rear bagger chute)
 Side discharge, mulching, and bagging  Mulching blade (shipped with MulchControl)

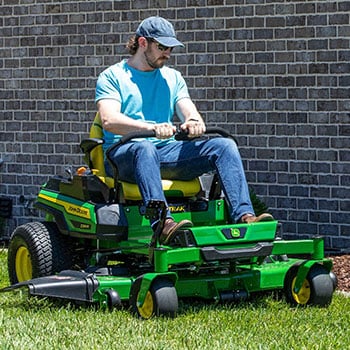

Operator station (Z335E shown) Operator station (Z335E shown)
Color-coded controls are easy to identify Color-coded controls are easy to identify
Low fuel warning light illuminated Low fuel warning light illuminated

The operator station is designed for operator comfort and convenience when operating all controls:

  • Excellent visibility forward and to the trim side of the deck makes operation easy and comfortable for the operator.
  • Controls are color coded for easy identification.
  • Low-fuel warning light is easily visible in daylight.
  • Twin-lever controls adjust, using cut-height pin/socket, for convenience and operator comfort.
  • A shock absorber dampens motion control lever movement to give smooth operation.
Comfortable seat
Comfortable seat (Z335E shown) Comfortable seat (Z335E shown)
Comfortable seat (Z355E shown) Comfortable seat (Z355E shown)

Comfortable seats make the operator experience more pleasant. Armrests, included on the Z355E seat, can be flipped up out of the way, if desired:

  • Z335E ™ 15-in. (38-cm) high seat back without armrests
  • Z355E ™ 15-in. (38-cm) high seat back with adjustable armrests
Comfortable seat (Z345M shown) Comfortable seat (Z345M shown)
  • Z345M ™ 18-in. (46-cm) high seat back with adjustable armrests
Seat suspension
Seat suspension springs Seat suspension springs
Making seat fore-aft adjustment (Z335E) Making seat fore-aft adjustment (Z335E)

Two steel coil suspension springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride.

The seat has a 2.5-in. (6.35-cm) fore-aft adjustment. The cut-height pin/socket can be used to loosen the bolts in order to make seat adjustments.

Cup holder and storage compartments
Cup holder Cup holder
#

The cup holder is designed to hold two common cup sizes securely.



Storage compartment with cover located under seat Storage compartment with cover located under seat
Open storage on left side of vehicle Open storage on left side of vehicle
Open storage on left side of vehicle Open storage on left side of vehicle

Covered storage under the seat and open storage along the left side of the vehicle provide safe and secure places for the operator to keep safety equipment, a cell phone, etc.

Operator foot platform
Comfortable operator's platform Comfortable operator's platform
#

Large foot platform helps the operator remain comfortable and secure:

  • Volcano grips give a secure grip.
  • Raised footrests at the front of the platform provide a comfortable area for the operator's feet.

Service interval decal (Z300 Series shown) Service interval decal (Z300 Series shown)

A convenient service interval decal provides basic maintenance information. It provides a quick reference for keeping recommended service up to date.

Quick response (QR) codes link to owner information web pages
Example product identification number (PIN) label with QR code Example product identification number (PIN) label with QR code

John Deere riding lawn mowers are supported by owner information web pages that include links to:

  • Safety and how-to videos
  • Operator’s manuals
  • Parts catalog
  • Maintenance reminder sheets
  • Attachments
  • Warranty statements

To To speed access to owner information web pages, a QR code is printed onto a PIN label located under the seat on the battery cover. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.

Mower deck access
Footrest easily removed for access to mower (Z335E shown) Footrest easily removed for access to mower (Z335E shown)
Footrest removal bolt and hand grip (Z335E shown) Footrest removal bolt and hand grip (Z335E shown)

The footrest area is hinged and easily raised for service to mower deck:

  • It is necessary to remove just one bolt that can be conveniently removed with the lift-height pin.
  • Easy to clean grass off the top of the mower
  • Provides convenient access to the mower drive
Loosening bolt to remove platform for access to mower deck Loosening bolt to remove platform for access to mower deck
Footrest opens for access to mower deck Footrest opens for access to mower deck
Engine service
Z335E engine Z335E engine
Z335E engine oil and fuel filters shown Z335E engine oil and fuel filters shown

The engines are easy to service, including changing the oil and the oil filter and servicing the air filter.

Replaceable fuel filter and oil filter (Z365R shown) Replaceable fuel filter and oil filter (Z365R shown)

The Z365R engine has the John Deere Easy Change© 30-second oil change system.

Accel Deep Mower Deck Accel Deep Mower Deck

Accel Deep© Mower Decks have several features that make them easy to service:

  • Flat-top design minimizes places for debris to collect.
  • Spring-loaded, flip-up belt guards make removing debris easy.
  • Provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.

Tie-down locations are provided for convenience and safety when trailering the machine.


Motion-control levers
Operator using motion-control levers Operator using motion-control levers
Adjustable motion-control levers Adjustable motion-control levers

The motion-control levers can be adjusted to two height settings and nine fore-aft settings for a total of 18 different positions:

  • Increased operator comfort
  • Adjustable for more precise control of the machine
Shock absorber for motion-control levers Shock absorber for motion-control levers
Cut-height pin doubles as tracking adjustment tool Cut-height pin doubles as tracking adjustment tool

A standard shock absorber for the motion-control levers makes maneuvering ZTrak© Mowers easy and comfortable:

  • Shock absorber modulates the movement of control levers for smoother operation.
  • Operator can smoothly and precisely control the machine.

On-board tracking adjustment from the operator seat is quick and easy. The cut-height pin includes a 13-mm wrench and doubles as a convenient tool for adjusting tracking and the motion-control lever position.

Control panel
Control panel (Z335E shown) Control panel (Z335E shown)
Low fuel warning light illuminated Low fuel warning light illuminated

The operator control panel is conveniently located and easy to use. The following instruments and controls are included:

  • Hour meter
  • Low fuel warning light
  • Ignition switch
  • Power take-off (PTO) control
  • Engine speed/choke control
    • A choke position is built into the engine speed control.
Park brake
Park brake Park brake

The park brake is conveniently located:

  • Large lever is easy to use.
  • Lever is color-coded for easy identification.
  • Park brake effectively holds the machine in the parked position.
  • Park brake must be engaged (in the upper position) to start the engine.
  • Once the engine is started, the park brake must be disengaged before operating the motion-control levers.
Mower deck lift/cut-height adjustment
Mower deck lift/cut-height adjustment Mower deck lift/cut-height adjustment
Mower deck lift/cut-height adjustment in place Mower deck lift/cut-height adjustment in place
  • Mower deck cutting height adjusts from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance.
  • Mower deck adjustment has built-in memory so the operator can easily return to the desired cutting height after raising the deck.
Steering is easy with large diameter front caster wheels
Motion-control levers shown on Z335E Motion-control levers shown on Z335E
Shock absorber dampens movement of control levers Shock absorber dampens movement of control levers

Motion-control levers are designed for comfortable and easy operation.

A shock absorber is included to dampen the movement of the control levers so any operator can make smooth, controlled turns.

Front caster wheel (Z335E) Front caster wheel (Z335E)

Pneumatic caster wheels give a smoother ride and easier steering:

  • Large diameter front caster wheels provide extra ride comfort and better steering control.
  • Caster wheels have sealed bearings for long life and easy steering.
  • Tires are sized for the size and weight of the vehicle.
ZTrak model Caster wheel tire size
Z335E, Z345M, Z345R 11x4.0-5
Z355E, Z355R, Z365R, Z375R 13x5.0-6
Controls are designed to promote safe operation
  • Park brake must be engaged for the engine to crank.
  • Motion-control levers must be in the outward position for the engine to crank.
  • Park brake must be disengaged before operating the motion-control levers or the engine will stall.
Interlock switch is located under the seat (Z345M shown) Interlock switch is located under the seat (Z345M shown)
  • Seat interlock switch disengages the mower when the operator leaves the seat.
  • Engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the park brake set.

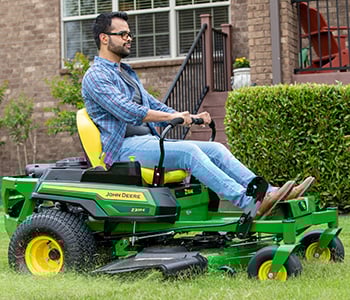

ZTrak© Z335E shown ZTrak© Z335E shown

ZTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability.

Large front caster wheels and large rear drive wheels provide several operator benefits:

  • Smoother ride
  • Better slope performance
  • More operator comfort over uneven ground
  • Better traction

The operator platform is roomy and uncluttered for maximum comfort, and the controls are convenient to use:

  • Easy to get on and off the mower
  • Ample legroom for comfortable operation
  • Adjustable motion-control levers for height and position, enabling the operator to stay comfortable while using them
  • Color-coded and logically placed controls
Styling is both functional and attractive
ZTrak Z335E ZTrak Z335E

The styling of ZTrak Mowers is functional and attractive to appeal to residential owners who value product appearance and the easy, comfortable operation that comes with thoughtful control designs:

  • Color-coded controls are not only attractive, but easy to find and use.
  • Large foot platform, surrounded by frame rails, has a safe and inviting appearance and provides easy access for the operator.
  • Contoured shape of the fenders provides improved visibility to the drive tires, minimizes storage space required, and adds to the stylish appearance of the vehicle.
Heavy-duty welded steel frame for reliability and long life
Heavy-duty frame tubing Heavy-duty frame tubing
ZTrak mower frame ZTrak mower frame

The ZTrak frame includes 1- x 1.5-in. (2.5- x 3.8-cm) steel tubing for long-term durability:

  • Heavy-duty frame tubing provides a solid support.
  • Reinforced frame offers additional strength where needed.
Loosening bolt to remove platform for access to mower deck Loosening bolt to remove platform for access to mower deck
Footrest opens for access to mower deck Footrest opens for access to mower deck
The footrest area is easily removed, utilizing the on-board tool, for access to the mower deck.

Electric PTO switch Electric PTO switch

A heavy-duty electric PTO clutch is controlled by a convenient, dash-mounted control.

Heavy-duty PTO clutch
PTO clutch PTO clutch

The PTO clutch is designed to operate through many on/off cycles.


Hydrostatic transmissions set low in vehicle Hydrostatic transmissions set low in vehicle
Hydro-Gear transmissions Hydro-Gear transmissions

Dual transmissions efficiently power the ZTrak© mower forward and reverse and give steering capability:

  • Transmissions are set low in the vehicle for excellent hillside stability.
  • Hydro-Gear® transmissions are reliable and durable.

    • Beefed-up 1-in. (2.5-cm) axles for greater strength
  • Maintenance-free unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.
Hydro-Gear EZT transmission Hydro-Gear EZT transmission
Tow-valve control (left side shown) Tow-valve control (left side shown)

Four-bolt hubs provide a reliable and convenient wheel-mounting system.

Tow-valve controls are provided for each transmission and located above the vehicle frame on either side of the engine:

  • Easy to reach and use
  • Allow the vehicle to be moved without the engine running

Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company, a Delaware Corporation and Danfoss Power Solutions (US) Company, a Delaware Corporation.


Fuel tank location Fuel tank location
Fuel-fill cap Fuel-fill cap

The fuel tank holds 2.1 U.S. gal. (8 L) of fuel. It is located low on the left side of the machine:

  • Fuel-fill opening is located low and angled for easy refueling.
  • Large, 2-in. (5.1-cm) fuel-fill opening reduces the chance of spilling when adding fuel.
  • Cap is tethered to the fuel tank.
  • Less chance of fuel cap getting lost
Low fuel warning light Low fuel warning light
Low fuel warning light illuminated Low fuel warning light illuminated

The low fuel warning light is clearly visible in daylight.


MowerPlus home screen MowerPlus home screen
MowerPlus maintenance screen MowerPlus maintenance screen
Overview

Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.

Benefits
  • Engine hours, fuel level, and battery health (as compatible)
  • Mowing history with time, distance, area, and speed
  • Current day and five-day weather forecast based on location
  • Walk-through setup guides
  • Expert mowing tips
  • Useful attachments for future purchase
  • Periodic maintenance reminders
  • Safety instructions



To download the free MowerPlus app, visit the Apple® App Store® or Google Play© store.

MowerPlus Hour Meter Connector MowerPlus Hour Meter Connector
MowerPlus Deluxe Smart Connector, with a phone MowerPlus Deluxe Smart Connector, with a phone

Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.



BUC10510 MowerPlus Hour Meter Connector is for use with:

  • Model year 2003 to 2020 100 Series Tractors, including all models with an E, D, LA, or L prefix
  • Model year 2015 to 2020 S240 Tractors (serial number -880,000)
  • S100, S110, S140, and S220 Tractors



BUC10929 MowerPlus Deluxe Smart Connector is for use with:

  • All S120, S130, S160, S170, and S180 Tractors
  • Model year 2021 and newer S240 Tractors (serial number 880,001-)
  • Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)



BUC10537 MowerPlus Smart Connector is for use with:

  • Model year 2016 and newer Select Series X300 and X500 Tractors



All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.



MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android© operating systems.



Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.

Additional details

MowerPlus connectors (sold separately)


Specs
Key Specs
Engine power 20 hp
14.9 kW
Engine model number M40 Intek
Travel speed
Forward speed 0-7 mph
0-11.3 km/h
Chassis
Front caster tires 11x4-5
Drive tires 18x8.5-8
Seat
Seat back height Medium back, 15 in.
38.1 cm
Mower deck
Width of cut Accel Deep™ mower deck, 42 in.
107 cm
Optional attachments
Mulching system Optional MulchControl™ attachment
Key Specs
Warranty 2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
Power 20 hp
14.9 kW
Model number M40 Intek
Displacement 40 cu in.
656 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L
PTO
Type Electric, 105 lb-ft
142 Nm
Engine
Battery 12 V
300 CCA
Choke/speed control Single lever
Cooling method Air
Fuel tank capacity 2.1 U.S. gal.
7.9 L
Fuel gauge Low-fuel light
Drive train
Dual hydros Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
Reverse speed 0-3.5 mph
0-5.6 km/h
Speed and direction control Twin levers
Control adjustment 2-height/9-fore-aft, 18 positions
Chassis
Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster bearings Sealed ball bearings
Hour meter Yes
Service interval decal Yes
Storage compartment Yes
Cup holder Yes
Seat
Fore-aft adjustment 2.5 in.
6.35 cm
Seat suspension Two springs
Lift system
Mower cut height 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes
Mower deck
Mower deck material 12 gauge
0.105 in.
2.7 mm
Mower drive system V-belt
PTO
Drive V-belt
Dimensions
Wheelbase 47.5 in.
121 cm
Overall length 72.2 in.
183.5 cm
Width without mower 44 in.
111.9 cm
Width with mower 51.9 in.
131.9 cm
Width with mower (deflector raised for storage) 46.3 in.
117.6 cm
Height 36.3 in.
92.2 cm
Weight With mower and fuel, 491 lb
223 kg
Operation
Rollover protective structure (ROPS) No
Slope operating limit 13 degrees; 10 degrees with Material Collection System
Operator presence system Yes
Park brake interlock Yes
Operator video Yes
Optional attachments
Rubber floor mat Yes
Sun shade Yes
Mounted sprayer Not available
Storage cover Yes
Light kit Dual headlight kit
Material collection system Two-bag cut-and-throw MCS, 6.5 bu
229.1 L
Additional information
Date collected 27-Aug-2020
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2022 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
