Engine Manufacturer/model | ECV740 EFI |
Engine Power | Gross at 3,600 rpm: 20 hp / 18.6 kW |
Mower deck Size | 52 in. / 132 cm |
Speed range | 0-9.5 mph / 0-15.3 km/h |
Engine Manufacturer/model | ECV740 EFI |
Engine Power | Gross at 3,600 rpm: 20 hp / 18.6 kW |
Mower deck Size | 52 in. / 132 cm |
Speed range | 0-9.5 mph / 0-15.3 km/h |

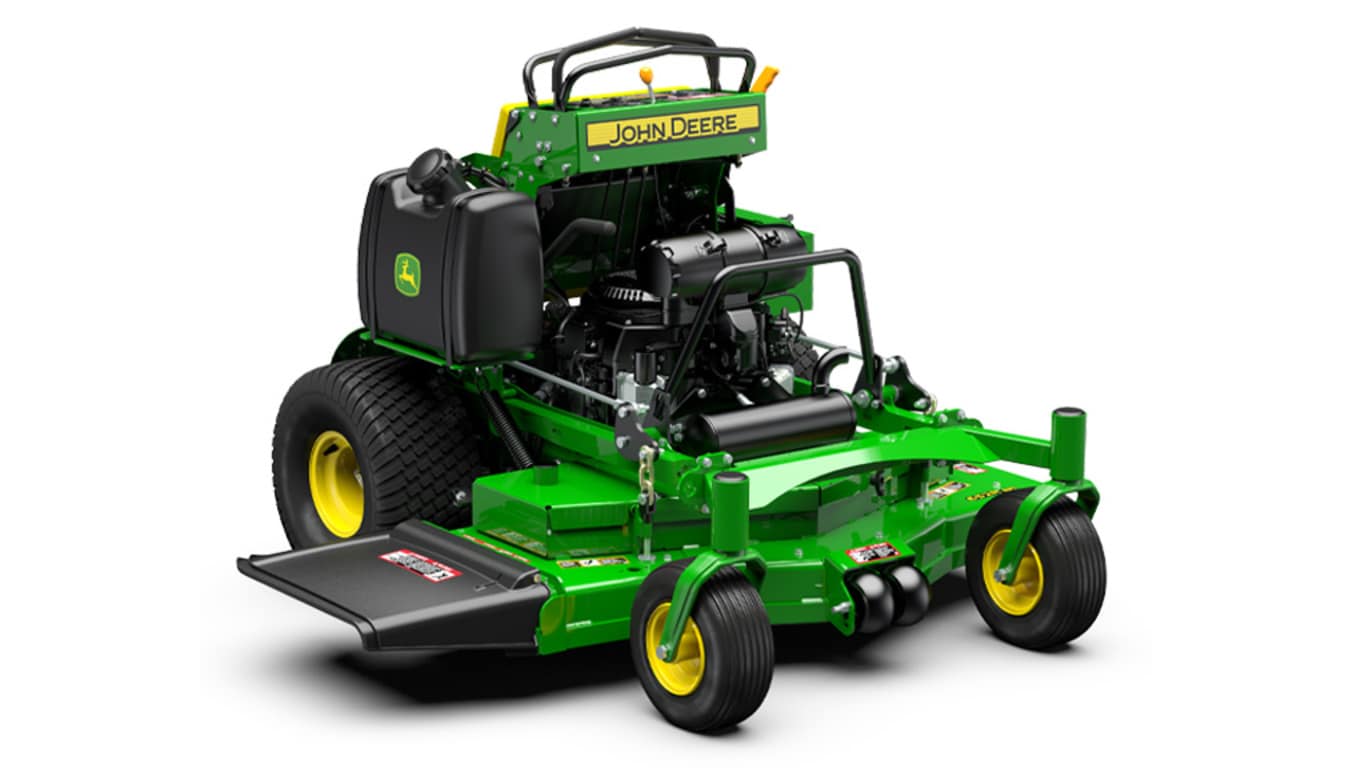

From the operator's platform to the mower deck, John Deere QuikTrak© Mowers have a compact and functional design:
Whether mowing hills or on level terrain, trimming or mowing straight-away, the operator of a John Deere QuikTrak is able to affect the performance of the machine with their body:
John Deere QuikTrak Mowers are designed, tested, and manufactured to provide the best commercial mowing machines available:
A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers an even higher quality of cut in even more diverse conditions to enhance mowing performance.
Key features of the fabricated mower deck include:
The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.
Caster wheels with flat-free tires contribute to a smooth, even cutting job:
Anti-scalp rollers are double-captured for durability. They enable the deck to float over the ground and provide a smooth, level cut on even the most challenging terrain.
The QuikTrak is equipped with a floating mower deck that offers several advantages over a fixed mower deck:
Mower cutting height can be set from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments:
Mower deck shields are easy to remove for access to the drive belt and other service points.
Optional mulching attachment and special mulching blades are available:
A commercial-quality, 24.6-hp (18.3-kW) at 3600 rpm, air-cooled engine with EFI powers the QuikTrak© Mower:
Full-pressure lubrication with full-flow filter
Engine is equipped with a replaceable oil filter for longer engine life.
Engine oil filter and oil drain are located close together for easy and convenient service.
Quality fuel-system components enhance performance and convenience:
A fuel gauge is conveniently located to keep the operator informed about the amount of fuel remaining in the tank.
A fuel shut-off valve is provided. It should be turned off whenever the QuikTrak© Mower is not in use.
A high-quality fuel filter is located where it easy to access and change.
QuikTrak Mowers use a heavy-duty hydrostatic pump and wheel-motor drive system that gives reliable and consistent performance and long life:
Two Hydro-Gear©, 0.73 cu in. (12-cc), axial piston, variable-displacement pumps provide hydraulic power to the wheel motors:
Two individual, 15-cu in. (245.8-cc), piston wheel motors power the QuikTrak drive wheels. Their heavy-duty construction and super-efficient axial-piston design provides superior performance and seamless power to the wheels:
A spin-on type replaceable hydraulic oil filter is conveniently located:
A hydraulic fluid oil reservoir is located behind the leaning pad:
Transmission bypass valves are provided on each hydrostatic pump to permit moving the QuikTrak without the engine running.
Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company.
Controls are color coded and logically placed to make them easy for the operator to find and use:
Separate choke is easy to locate and use.
A tire brake is provided to give stability for parking the vehicle on hillsides and for transport; it should be engaged whenever the machine is not being used:
On the 648R, 652R, 652R EFI, 661R, and 661R EFI QuikTrak Mowers, an easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:
NOTE: Additional information on mower cutting height adjustment can be found in the mower deck section.
Key safety features of QuikTrak Mowers include:
QuikTrak mower decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.
All service components are easy to access:
Canister-type heavy-duty air cleaner is easy to reach and easy to service:
Engine oil service points are grouped together in easy-to-reach locations:
Simply raising the leaning pad exposes the hydrostatic oil reservoir, control linkage and other service areas.
A periodic service chart is provided for convenience in keeping up on required service.
Remove service access shields on the mower deck, battery box, etc. to service the machine:
Threaded ball and socket rod ends are used throughout the QuikTrak Mowers:
Access to check and service the hydrostatic pumps and motors is readily available at the rear of the machine.
Transmission bypass valves are located on the hydrostatic pumps to enable moving the vehicle without the engine running.
A secure battery box is provided to protect the battery, for reliable operation:
Four tie-down locations, two at the front and two at the rear, are provided for safely towing or anchoring the vehicle.
NOTE: 18x8.5N10 Tweel turf tires are available as an ordering option for QuikTrak 648R, 652R, 652R EFI, 661R, and 661R EFI Mowers. Tweel tires for QuikTrak Mowers are not available as base code equipment.
John Deere leads the commercial zero-turn mower industry with use of the Michelin X Tweel Turf technology for the QuikTrak Mowers.
Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides an additional advantage to John Deere operators.
Advantages of the Michelin X Tweel Turf include:
Heavy-duty construction provides the ultimate in performance and reliable operation:
Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.
The large operator platform is supported with three suspension springs to absorb shock. The springs are adjustable for operator weight and preference to give each operator a smooth and comfortable ride.
A high-quality leaning pad is provided for operator comfort and to insulate the operator from heat given off by the machine.
A storage pocket on the battery box provides a convenient place for the operator to store a cell phone, gloves, etc.
The equipment comes with an exclusive two-year, bumper-to-bumper warranty. The warranty is best-in-class and places John Deere at the forefront of commercial mowing. It is hassle free, with one company covering the complete machine.
QuikTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:
The operator platform is roomy and uncluttered for maximum comfort, productivity, and safety:
M
Key Specs | |
Engine Manufacturer/model | ECV740 EFI |
Engine Power | Gross at 3,600 rpm: 20 hp 18.6 kW |
Fuel system | |
Fuel tank capacity | 5.6 U.S. gal. 21.2 L |
Key Specs | |
Mower deck Size | 52 in. 132 cm |
Blades | |
Blade tip speed | 18,900 fpm 5,761 m/min |
Drivetrain | |
Transmission | Hydrostatic |
Key Specs | |
Speed range | 0-9.5 mph 0-15.3 km/h |
Tires | |
Drive wheels | 20x10-8 Turf Master |
Wheels | |
Caster wheels | 13x6.5-6 |
Key Specs | |
Warranty | 24 months |
Engine | |
Manufacturer/Model | ECV740 EFI |
Power | Gross at 3,600 rpm: 20 hp 18.6 kW |
Displacement | 45.6 cu in. 747 cc |
Cylinders | Two, V-twin |
Oil filter | Full flow, replaceable |
Lubrication | Full pressure |
Cooling | Forced air |
Air cleaner | Heavy-duty canister with safety element |
Fuel system | |
Fuel type | Gasoline, electronic fuel injection |
Fuel tank switch/shut-off valve | Yes |
Electrical system | |
Charge system | At 3,600 rpm, 20 amp |
Battery voltage | 12 V |
Hour meter | Digital |
Operator presence starting system | Yes |
Drivetrain | |
Hydraulic pumps | Hydro-Gear with fans, 0.73 cu in. 12 cc |
Wheel motors | Hydro-Gear, 15 cu in. 246 cc |
Travel speed | Speed range 0-9.5 mph 0-15.3 km/h Forward 0-9.5 mph 0-15.3 km/h Reverse 0-5.5 mph 0-8.9 km/h |
Speed and direction control | Twin hand-controlled levers |
Hydraulic capacity | With filter-wet, 2.9 qt 2.7 L Dry, 5 qt 4.7 L |
Filter | Spin-on replaceable |
Tires | |
Load rating | 4 PR |
Brakes | |
Dynamic braking | Dual hand-controlled levers |
Park brake | Tire engagement |
Park brake actuation | Hand lever |
PTO | |
Type | Electro-Magnetic with brake, 200 lb-ft 271 Nm |
Drive | Dual B-section V-belt with Kevlar® cord |
Mower decks | |
Size | 52 in. 132 cm |
Deck construction | Fabricated steel, floating mount system |
Deck thickness | 7 gauge 0.18 in. 4.6 mm |
Discharge | Side |
Height-of-cut range | Increments 0.25 in. 0.64 cm 1.5-5 in. 3.8-12.7 cm |
Cutting width | 52 in. 132 cm |
Blades | |
Number | Three |
Wheels | |
Caster wheel type | No-flat semi-pneumatic with sealed bearings |
Front anti-scalp rollers | Center, left |
Dimensions | |
Length | 66 in. 167.6 cm |
Width | Deflector down, 66 in. 167.6 cm |
Height | 47 in. 119 cm |
Weight | 927 lb 420.5 kg |
The 52-in. (132-cm) Mulch On Demand attachment for the QuikTrak™ 652R and 652R EFI Mowers enhances versatility and productivity. A mower deck equipped with Mulch On Demand not only does an excellent job of mulching, it can also be quickly converted electronically to side-discharging material:
A QuikTrak 652R equipped with the Mulch On Demand attachment delivers unprecedented levels of productivity and versatility to commercial mower operations.
A convenient, dash-mounted switch provides operators the ability to change between side discharging and mulching.
A dependable electric linear actuator is used to close and open the mulching baffles and discharge gate. The mower deck can easily be converted from a wide-open side-discharge mode to a fully-chambered mulching mode or any position between by activating the switch.
Heavy-duty mulch and discharge baffles open and close easily with the touch of a switch.
When the discharge gate and mulch baffles are in the closed position, three separate blade chambers are created for optimum mulching performance.
Advantages of Mulch On Demand include:
Compatibility
BUC10057 Mulch On Demand attachment is field installed and compatible as follows:
