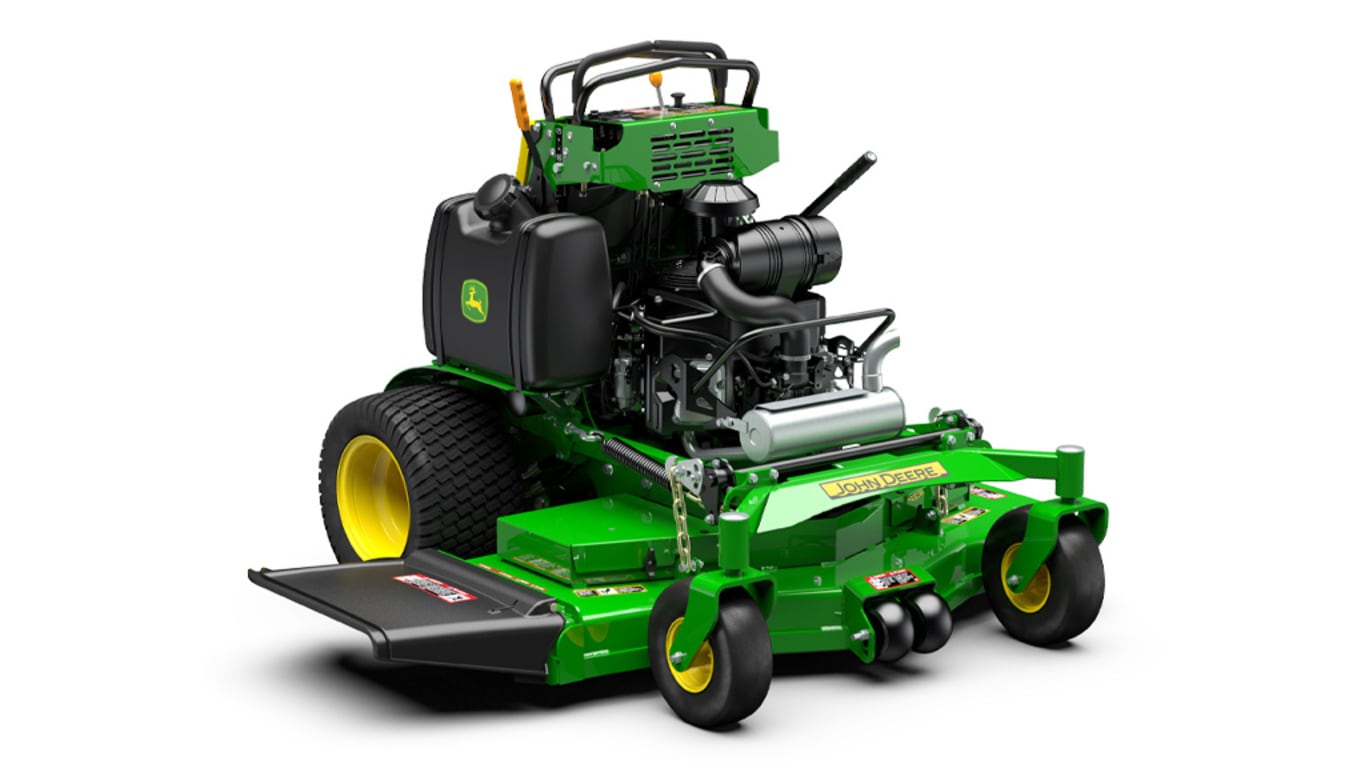

John Deere 652M

DEBUG Ind: Lawn Care Equipment, Cat: Mowers, SubCat: Commercial Mowers, SubSubCat: Quiktrak Mowers
Feature Overview
John Deere 652M
  • Compact design for easy hauling
  • Hydrostatic drive system
  • Commercial-quality engine
  • Easy to maintain
Engine Manufacturer/model FX691V
Engine Power Gross at 3,600 rpm: 22 hp / 16.4 kW
Mower deck Size 52 in. / 132 cm
Speed range 0-8.2 mph / 0-13.2 km/h
Feature Overview
John Deere 652M
  • Compact design for easy hauling
  • Hydrostatic drive system
  • Commercial-quality engine
  • Easy to maintain
Engine Manufacturer/model FX691V
Engine Power Gross at 3,600 rpm: 22 hp / 16.4 kW
Mower deck Size 52 in. / 132 cm
Speed range 0-8.2 mph / 0-13.2 km/h
Features

Field-installed propane conversion kits for Commercial Walk-Behind Mowers, QuikTrak™ Mowers, and Commercial ZTrak™ Mowers

Propane conversion kit on a walk-behind mower Propane conversion kit on a walk-behind mower
Dual propane conversion kit on a QuikTrak mower Dual propane conversion kit on a QuikTrak mower

John Deere provides application-specific Environmental Protection Agency (EPA) approved field-installed propane conversion kits for specific John Deere commercial walk-behind mowers, QuikTrak mowers, and ZTrak mowers. The conversion kits include all components required to convert the engines to operate on propane fuel. Single-tank or dual-tank brackets (depending on the vehicle) are provided for securely holding the propane tank(s) to the vehicle.

Propane tanks are not included.

An optional altitude kit is required when operating at altitudes above 2000 ft (610 m). The operator’s manual with the propane conversion kit provides further details. Parts must be ordered separately through John Deere Parts.

Propane facts:

  • Propane is flammable and commonly used as a fuel.
  • The molecular formula of propane is C3H8, and it is in the family of liquefied petroleum gases (LP gases). The other LP gases include butane, propylene, butadiene, butylene, isobutylene, and mixtures thereof.
  • Propane is commonly available and has proven to be a dependable, safe, economical, and clean-burning fuel. It can be used as household fuel, industrial fuel, and fuel for internal combustion engines. Propane has been used as a fuel since 1910.
  • At atmospheric pressure, propane boils at -44°F (-42.2°C), meaning it typically exists as a vapor. However, when contained under pressure, such as in a propane cylinder, it can exist as a liquid.
  • Propane is naturally odorless, but includes an additive odorant, usually mercaptan, which gives it a distinct odor.
  • Vapor propane is heavier than air, meaning it will settle in low areas such as along the ground or in drains.

 Advantages of John Deere propane conversion kits include:

  • Reduced fuel costs up to 30 percent depending on fuel prices
  • Lower emissions
  • Reduced fuel-system maintenance
  • Maintains John Deere warranty
  • EPA and CARB certified
  • May qualify for national and state rebate and incentive programs.

Propane tank mounting bracket options:

Single propane tank shown on QuikTrak mower Single propane tank shown on QuikTrak mower
Dual propane tanks shown on ZTrak mower Dual propane tanks shown on ZTrak mower

 Optional tank configurations and sizes are available to provide operators the ability to tailor for run time:

  • Commercial walk-behind mowers have only a single-tank mounting option.
    • The single-tank bracket is designed for one 20-lb (9.1-kg) Worthington tank.
      • Tank is not included.
  • QuikTrak mowers have single-tank and dual-tank mounting options.
    • The single-tank, right-side bracket is designed for one 33-lb (15-kg) Worthington tank.
      • Tank is not included.
    • The dual-tank brackets are designed for two 20-lb (9.1-kg) Worthington tanks.
      • Tanks are not included.
  • ZTrak mowers have single-tank and dual-tank mounting options.
    • The single-tank, left-side bracket is designed for one 33-lb (15-kg) or 43-lb (19.5-kg) Worthington tank.
      • Tank is not included.
    • The dual-tank brackets are designed for two 33-lb (15-kg) Worthington tanks.
      • Tanks are not included.
      • ZTrak mowers with dual-tank configurations are not compatible with any material collection systems.

NOTE: Reference the Propane and Attachment Compatibility Chart to determine tank configurations that are compatible.

Estimated run-time comparison
Engine displacement  FS603cc FS726cc  FX726cc FX852cc
Average consumption (lb [kg]/hr) 3.9 (1.8) 4.2 (1.9) 4.2 (1.9) 5.8 (2.6)
Run time (hours) with 20-lb (9.1-kg) tank 5.1 4.8 4.8 3.4
Run time (hours) with 33.5-lb (15.2-kg) tank Not available 8.0 8.0 5.8
Run time (hours) with 43.5-lb (19.7-kg) tank Not available 10.4 10.4 7.5
Field-installed propane conversion kit compatibility

NOTE: Conversion to propane is not intended for units with engines having more than 250 hours of use.

Commercial walk-behind mowers (model year 2019 and newer)

  M Series R Series
Model                                 W36M W48M W36R W48R W52R W61R
Engine model FS481V FS481V FS481V FS600V FS600V ECV740 EFI
Engine displacement 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 45.6 cu in. (747 cc)
Propane kit model number Not available Not available FS603cc FS603cc FS603cc Not available

QuikTrak mowers

  E Series M Series R Series
Model                                  652E 636M 648M 652M 648R 652R 652R EFI 661R 661R EFI
Engine model FX691V FS600V FX691V FX691V FX691V FX730V ECV740 EFI FX730V ECV740 EFI
Engine displacement 44.3 cu in. (726 cc) 36.8 cu in. (603 cc) 44.3 cu in. (726 cc) 44.3 cu in. (726 cc) 44.3 cu in. (726 cc) 44.3 cu in. (726 cc) 45.6 cu in. (747 cc) 44.3 cu in. (726 cc) 45.6 cu in. (747 cc)
Propane kit model number Not available Not available Not available Not available FX726cc FX726cc Not available FX726cc Not available

Commercial ZTrak mowers

  E Series M Series      R Series
Model                                  Z915E Z920M Z930M Z945M EFI Z950M  Z955M EFI Z960M Z930R Z950R Z955R EFI Z970R
Engine model CV742 FX730V FX801V ECV850 EFI FX850V ECV860J EFI FX921V FX801V FX850V ECV860J EFI FX1000V
Engine displacement 45.6 cu in. (747 cc) 44.3 cu in. (726 cc) 52 cu in.
(852 cc)
50.3 cu in. (824 cc) 52 cu in.
(852 cc)
50.3 cu in. (824 cc) 61 cu in.
(999 cc)
52 cu in.
(852 cc)
52 cu in.
(852 cc)
50.3 cu in. (824 cc) 61 cu in.
(999 cc)
Propane kit model number Not available FX726cc* FX852cc* Not available FX852cc* Not available Not available FX852cc* FX852cc* Not available Not available
*Not compatible with 48-in. (122-cm) mower decks.

Worthington tanks are manufactured by Worthington Industries, Inc.


QuikTrak© Mower (636M shown) QuikTrak© Mower (636M shown)
Control console (636M shown) Control console (636M shown)

 Controls are color coded and logically placed to make them easy for the operator to find and use:



  • Ground speed and direction are easily controlled by moving the two hand-lever hydrostatic drive controls forward or reverse.
    • Speeds are infinitely variable up to 8.2-mph (13.2-km/h) forward and 3.5-mph (5.6-km/h) reverse.
    • A positive neutral-lock position for the levers provides added safety.
  • Two stationary reference bars are provided for operator convenience and security.
    • Front reference bar is included to control speed and reduce fatigue from control lever operation.
    • Rear reference bar is included to make reverse operation easy while maintaining operator confidence.
  • Control levers return to neutral automatically for safety and convenience.
  • Separate choke is easy to locate and use.
    • Less adjustment is needed with the separate choke.
Brake lever (engaged position) Brake lever (engaged position)

A tire brake is provided to give stability for parking the vehicle on hillsides and for transport; it should be engaged whenever the machine is not being used:

  • Brake must be engaged to start the machine, for added safety.
  • The tire brake bars are easily adjusted, if necessary, to maintain effective operation.
Mower deck height-of-cut adjustment
Mower deck lift handle and height-of-cut adjustment Mower deck lift handle and height-of-cut adjustment

An easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:

  • Pull the lift lever back to the fully raised position.
  • Remove the tethered pin and place it at the desired cutting height.
  • Lower the lift lever; the lift lever and mower will stop at the desired cutting height.



NOTE: Additional information on mower cutting height adjustment can be found in the mower deck section.


636M showing compact design 636M showing compact design
636M showing compact design 636M showing compact design

From the operator's platform to the mower deck, John Deere QuikTrak© Mowers have a compact and functional design:

  • The compact design allows the QuikTrak to operate in tighter areas that a larger machine cannot. Often, this means the area can be mowed with a QuikTrak so it is not necessary to switch to a walk-behind mower, which helps reduce the time on site.
  • With the compact design of QuikTrak Mowers, less space is required on a truck or trailer - which can mean there is room for an extra mower, resulting in less time on property, saving time and money.

Whether mowing hills or on level terrain, trimming or mowing straight-away, the operator of a John Deere QuikTrak can affect the performance of the machine with their body:



  • The compact design of the QuikTrak allows the operator to use their body to help control the machine.
  • The innovative QuikTrak design puts the operator in line with the rear axle to keep traction when mowing across slopes, providing greater control.
  • Faster ground speeds get work done quicker.
  • Better traction on slopes gives more control and increased productivity.
  • Superior stability gives more control and confidence when operating.
  • Better visibility allows for quick operator reaction times to changing terrain and obstructions.
  • Standing area is designed for improved range of motion to allow the operator more room to move and avoid obstacles.
  • Minimal operator station obstruction allows safe and fast exits for clearing mower-path obstacles.
  • Operator area is designed for more comfort and less fatigue.
Inset caster wheels (636M shown) Inset caster wheels (636M shown)
Inset caster wheels (636M shown) Inset caster wheels (636M shown)

John Deere QuikTrak Mowers are designed, tested, and manufactured to provide the best commercial mowing machines available:

  • Bull-nosed shape of the front edge of the mower deck allows caster wheels to be set back further, closer to the blades, for more effective ground following capability.
  • Compact design takes less space for mowing tighter areas and may allow room for an extra machine when hauling to the worksite.

636M QuikTrak© Mower 636M QuikTrak© Mower
Hydrostatic pumps Hydrostatic pumps

QuikTrak Mowers use a heavy-duty hydrostatic pump and wheel-motor drive system that gives reliable and consistent performance and long life:

  • Heavy-duty components stand up to the rigors of commercial use.
  • Individual pump and wheel motor design allows placement of these heavy components low in the vehicle for a low center of gravity and excellent hillside stability.

Two Hydro-Gear©, 0.61-cu in. (10-cc) axial piston, variable-displacement pumps provide hydraulic power to the wheel motors:

  • Pumps are linked to the hand-control levers to allow the operator to make speed and direction changes.
  • Rugged construction is ideal for high-performance commercial use.
  • Piston design gives efficient and consistent performance.
  • A replaceable hydraulic filter helps ensure long life of the pumps and wheel motors.

Two individual, 12-cu in. (196.6-cc), piston wheel motors power the QuikTrak drive wheels. Their heavy-duty construction and super-efficient axial-piston design provides superior performance and seamless power to the wheels:

  • Integrated high-pressure shaft seal gives greater reliability.
  • Large bearings are designed with the capacity to carry heavier loads and give long life.
Transmission oil filter Transmission oil filter
Transmission fluid oil reservoir Transmission fluid oil reservoir

A spin-on-type replaceable hydraulic oil filter is conveniently located:

  • Extends life of transmission components by keeping oil clean
  • Easy to reach for easy and fast service

A hydraulic fluid oil reservoir is located behind the leaning pad:

  • Located in a cleaner environment
  • Easy to access for inspection and service
  • Sight glass built into the tank reduces risk of contamination when checking fluid level

Transmission bypass valves are provided on each hydrostatic pump to permit moving the QuikTrak without the engine running.

Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company.


QuikTrak™ 652M mower deckQuikTrak™ 652M mower deck
QuikTrak 652M mower deck reinforcementQuikTrak 652M mower deck reinforcement

A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.177-in. (4.6-mm) fabricated mower deck delivers an even higher quality of cut in even more diverse conditions to enhance mowing performance and the opportunity for profit for lawn-care businesses.



Key features of the fabricated mower deck include:

  • The mower deck is manufactured from 7-gauge, 0.177-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
  • A compact footprint delivers greater maneuverability when working in tight quarters.
  • A deep-deck design delivers excellent airflow so material is processed quickly and efficiently.
  • A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.

Flexible mower-discharge deflectorFlexible mower-discharge deflector
Large, inset caster wheelsLarge, inset caster wheels

The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.



Caster wheels with flat-free tires contribute to a smooth, even cutting job:

  • Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
  • Caster wheels are recessed to reduce the vehicle footprint and turning radius.
    • With the wheels less exposed, there is less chance they'll get snagged by immovable obstacles, thus improving maneuverability and reducing damage.

Anti-scalp rollers are double-captured for durability. They enable the deck to float over the ground and provide a smooth, level cut on even the most challenging terrain.

Mower lift lever (raised position)Mower lift lever (raised position)
Mower lift spring and lever (minimum cut-height position)Mower lift spring and lever (minimum cut-height position)

The QuikTrak is equipped with a floating mower deck that offers several advantages over a fixed mower deck:

  • The lift lever allows the operator to raise the mower to the full-up position from the operator's station.
    • Convenient when transporting from one mowing area to another and when loading on a trailer or truck
    • Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly
  • Lift-assist springs reduce the effort required to raise the mower deck.
Cutting-height adjustmentCutting-height adjustment
Easy-to-remove mower deck shieldsEasy-to-remove mower deck shields

Mower cutting height can be set from 1.25 in. (3.2 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments:

  • Pull the lift lever back to the full-raised position.
  • Remove the tethered pin and place it at the desired cutting height.
  • Lower the lift lever; the lift lever and mower will stop at the desired cutting height.



Mower deck shields are easy to remove, with one knob, for access to the drive belt and other service points.

Optional mulching attachment
Optional mulching attachment and blades (similar design shown)Optional mulching attachment and blades (similar design shown)
#

Optional mulching attachment and special mulching blades are available:

  • This is a high-performance mulching attachment that includes formed steel baffles to control the material for superior performance.
  • The special mulching blades can also be used for side discharging, though overall cutting performance may be slightly less than with the standard blades.

Operator trimming with 636M QuikTrak© Mower Operator trimming with 636M QuikTrak© Mower
Mower discharge deflector Mower discharge deflector

High-quality mower deflector directs cut clippings across the lawn for optimum appearance. Plastic material flexes if contacted to minimize damage.

Operator controls Operator controls
Curb wheels Curb wheels

Key safety features of QuikTrak Mowers include:

  • Start circuit requirements
    • Park brake engaged
    • Power take-off (PTO) disengaged
    • Control levers in neutral
    • Ignition key used to start the engine
  • A high-quality, polyethylene, mower-discharge deflector
    • Deflects if it strikes a solid obstruction, causing less damage
    • Returns to its original shape and function
  • Operator station designed to allow fast exit
  • Two large curb wheels
  • Easy to remove and replace shields
  • Stationary handles on either side of the traction controls for operator security
  • Control levers return to neutral when released
Mower deck safety certification

QuikTrak mower decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.


Engine (636M engine shown) Engine (636M engine shown)
Heavy-duty dual stage air cleaner (648M/652M engine shown) Heavy-duty dual stage air cleaner (648M/652M engine shown)

A commercial-quality, 22-hp (16.4-kW) at 3600 rpm, air-cooled engine powers the QuikTrak© Mower:

  • Overhead valve design
    • More horsepower and torque per cubic inch of displacement
    • Better fuel efficiency
  • Full-pressure lubrication with full-flow filter
    • Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
    • Filtered oil reduces risk of contamination for increased engine life
  • V-twin design
    • Fast starts
    • Smooth operation
  • Vertical shaft for efficient transfer of power to the transmission and mower
  • Standard dual-element, canister-type, dry replaceable, heavy-duty air cleaner with secondary safety element
  • Fuel pump for consistent and reliable fuel supply to the carburetor
  • Air-cooled engine design for minimum maintenance and maximum reliability
  • Standard cleanout ports for easy access to remove debris collecting in cooling fins
  • Aluminum cylinder block
    • Effectively dissipates heat
    • Lightweight and strong construction
    • Extends engine life due to elimination of debilitating engine temperatures
Engine oil-fill/check tube Engine oil-fill/check tube

The engine is equipped with a replaceable oil filter for longer engine life.

Engine oil fill/check tube, oil filter, and oil drain are located close together for easy and convenient service.

Large fuel tank saves refueling time and increases productivity
Fuel tank Fuel tank
Fuel cap, gauge, and shutoff valve Fuel cap, gauge, and shutoff valve

Quality fuel-system components enhance performance and convenience:

  • Large, 5.5-U.S. gal. (20.8-L) capacity
    • Wide fuel tank filler opening
      • Conveniently located
      • Makes adding fuel easy and helps eliminate spillage
  • Sealed and tethered fuel cap
    • Reduced fuel vapor loss
    • Less chance of losing fuel cap

A fuel gauge is conveniently located to keep the operator informed about the amount of fuel remaining in the tank.

A fuel shut-off valve is provided. It should be turned off whenever the QuikTrak© Mower is not in use.

Replaceable fuel filter Replaceable fuel filter

A high-quality, replaceable fuel filter is provided to help maintain reliable engine operation.


636M QuikTrak© Mower 636M QuikTrak© Mower
Open engine compartment Open engine compartment

All service components are easy to access:

  • Servicing is simplified because of the open engine compartment.
  • All service and maintenance points are within easy reach.
Dual-stage air cleaner Dual-stage air cleaner
Engine oil fill/check tube and oil filter Engine oil fill/check tube and oil filter

 Dual-stage air cleaner is easy to reach and easy to service:

  • Standard canister-type, dry replaceable, heavy-duty air cleaner.
  • Element is easy to access and easy to change.

Engine oil service points are grouped together in easy-to-reach locations:

  • Reduces the time required to check and/or change the oil and filter.
Leaning pad raised for service access Leaning pad raised for service access
Periodic service chart Periodic service chart

Simply raising the leaning pad exposes the hydrostatic oil reservoir, control linkage, and other service areas.

A periodic service chart is provided for convenience in keeping up on required service.

Easy-to-remove mower deck shield Easy-to-remove mower deck shield
Hydrostatic transmission control linkage Hydrostatic transmission control linkage

Remove service access shields on the mower deck, battery box, etc. to service the machine:

  • Panels are easy to remove and install.

Threaded ball and socket rod ends are used throughout the QuikTrak Mowers:

  • Provide precise control over a long period of time.
  • Easily replaced when necessary.
Convenient access panel Convenient access panel
Hydrostatic pump maintenance access Hydrostatic pump maintenance access

Access to check and service the hydrostatic pumps and motors is readily available at the rear of the machine.

Transmission bypass valves enable moving the vehicle without the engine running.

Battery box Battery box
Battery cover removed for service access Battery cover removed for service access

A secure battery box is provided to protect the battery, for reliable operation:

  • Cover is easily removed for servicing the battery.
Front tie-down Front tie-down
Rear-tie down Rear-tie down

Four tie-down locations, two at the front and two at the rear, are provided for safely towing or anchoring the vehicle.


652M QuikTrak© mower deck 652M QuikTrak© mower deck
652M QuikTrak mower deck reinforcement 652M QuikTrak mower deck reinforcement

A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers an even higher quality of cut in even more diverse conditions to enhance mowing performance.

Key features of the fabricated mower deck include:

  • The mower deck is manufactured from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
  • A compact footprint delivers greater maneuverability when working in tight quarters.
  • A deep-deck design delivers excellent airflow so material is processed quickly and efficiently.
  • A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.
  • 48-in. to 61-in. (122-cm to 155-cm) decks come standard with an adjustable striping flap to enhance the after-cut appearance.
Flexible mower-discharge deflector Flexible mower-discharge deflector
Large, inset caster wheels Large, inset caster wheels

The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.

Caster wheels with flat-free tires contribute to a smooth, even cutting job:

  • Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
  • Caster wheels are recessed to reduce the vehicle footprint and turning radius.
    • With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability and reducing damage.

Anti-scalp rollers are double-captured for durability. They enable the deck to float over the ground and provide a smooth, level cut on even the most challenging terrain.

Mower lift lever (cutting position) Mower lift lever (cutting position)
Mower lift spring and lever (minimum cut-height position) Mower lift spring and lever (minimum cut-height position)

The QuikTrak is equipped with a floating mower deck that offers several advantages over a fixed mower deck:

  • The lift lever allows the operator to raise the mower to the full-up position from the operator's station.
    • Convenient when transporting from one mowing area to another and when loading/unloading.
    • Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly.
  • Lift-assist springs reduce the effort required to raise the mower deck.
Cutting-height adjustment Cutting-height adjustment
Easy-to-remove mower deck shield Easy-to-remove mower deck shield

Mower cutting height can be set from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments:

  • Pull the lift lever back to the fully-raised position.
  • Remove the tethered pin and place it at the desired cutting height.
  • Lower the lift lever; the lift lever and mower will stop at the desired cutting height.

Mower deck shields are easy to remove, with one knob, for access to the drive belt and other service points.

Optional mulching attachment
Optional mulching attachment and blades (similar design shown) Optional mulching attachment and blades (similar design shown)
#

Optional mulching attachment and special mulching blades are available:

  • This is a high-performance mulching attachment that includes formed steel baffles to control the material for superior performance.
  • The special mulching blades can also be used for side discharging, though overall cutting performance may be slightly less than with the standard blades.

QuikTrak© Mower mowing (636M shown) QuikTrak© Mower mowing (636M shown)
Operator platform and leaning pad Operator platform and leaning pad

The large operator platform is cushioned to absorb shock to give the operator a smooth and comfortable ride.

A high-quality leaning pad is provided for operator comfort and to insulate the operator from heat given off by the machine.

Storage pocket Storage pocket
Operator controls Operator controls

A storage pocket on the battery box provides a convenient place for the operator to store a cell phone, gloves, etc.

Control levers are covered with cushioning material for operator comfort. Two stationary reference bars are provided for operator comfort and convenience:

  • Front reference bar is included to control speed and reduce fatigue from control lever operation.
  • Rear reference bar is included to make reverse operation easy while maintaining operator confidence.

QuikTrak two-year warranty

The equipment comes with an exclusive two-year, bumper-to-bumper warranty. The warranty is best-in-class and places John Deere at the forefront of commercial mowing. It is hassle free, with one company handling all of the paperwork.


636M QuikTrak© Mower frame 636M QuikTrak© Mower frame
648M QuikTrak frame 648M QuikTrak frame

QuikTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:

  • More-rounded corners contribute to a clean, attractive appearance.
  • Greater strength results from eliminating sharp angles where peak loads can cause failure.
  • Large 11x4.50-6 flat-free front caster wheels and large 18x8.50-10 (636M) or 18x10.50-10 (648M and 652M) 4-ply rear drive wheels provide a smoother ride.
    • Better slope performance
    • More operator comfort over uneven ground
    • Better traction
Operator platform Operator platform
#

The operator platform is roomy and uncluttered for maximum comfort, productivity, and safety:

  • Easy to get on and off the mower.
  • Plenty of legroom for comfortable operation.


F


Specs
Key Specs
Engine Manufacturer/model FX691V
Engine Power Gross at 3,600 rpm: 22 hp
16.4 kW
Fuel system
Fuel tank capacity 5.5 U.S. gal.
20.8 L
Key Specs
Mower deck Size 52 in.
132 cm
Blades
Blade tip speed 18,900 fpm
5,761 m/min
Drivetrain
Transmission Hydrostatic
Key Specs
Speed range 0-8.2 mph
0-13.2 km/h
Tires
Drive wheels 18x10.5-10 Turf Master
Wheels
Caster wheels 11x4.5-6
Key Specs
Warranty 24 months
Engine
Manufacturer/Model FX691V
Power Gross at 3,600 rpm: 22 hp
16.4 kW
Displacement 44.3 cu in.
726 cc
Cylinders Two, V-twin
Crankcase capacity With filter, 2.2 qt
2.1 L
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Forced air
Air cleaner Dry type, dual stage
Fuel system
Fuel type Gasoline
Fuel tank switch/shut-off valve Yes
Electrical system
Charge system At 3,600 rpm, 15 amp
Battery voltage 12 V
Cold cranking amp 300 amp
Hour meter Digital
Operator presence starting system Yes
Drivetrain
Hydraulic pumps Hydro-Gear®, 0.61 cu in.
10 cc
Wheel motors Hydro-Gear HGM-P, 12 cu in.
196 cc
Travel speed Speed range
0-8.2 mph
0-13.2 km/h
Forward
Infinite: 0-8.2 mph
Infinite, 0-13.2 km/h
Reverse
Infinite, 0-3.5 mph
Infinite, 0-5.6 km/h
Speed and direction control Twin hand-controlled levers
Hydraulic capacity With filter, dry, 5 qt
4.7 L
Hydraulic oil cooler Yes
Filter Spin-on replaceable
Tires
Load rating 4 PR
Brakes
Dynamic braking Dual hand-controlled levers
Park brake Tire engagement
Park brake actuation Hand lever
PTO
Type Electro-magnetic with brake, 125 lb-ft
169 Nm
Drive Dual B-section V-belt with Kevlar® cord
Mower decks
Size 52 in.
132 cm
Deck construction Fabricated steel, floating mount system
Deck thickness 7 gauge
0.18 in.
4.6 mm
Discharge Side
Height-of-cut range Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm
Cutting width 52 in.
132 cm
Dimensions
Length 59.75 in.
151.8 cm
Blades
Thickness 0.203 in.
5.16 mm
Number Three
Wheels
Caster wheel type No-flat semi-pneumatic with sealed bearings
Front anti-scalp rollers Single left, double-captured center
Dimensions
Width Deflector down, 66 in.
167.6 cm
Height 46 in.
117 cm
Weight With full fuel and oil, 828 lb
375 kg
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
