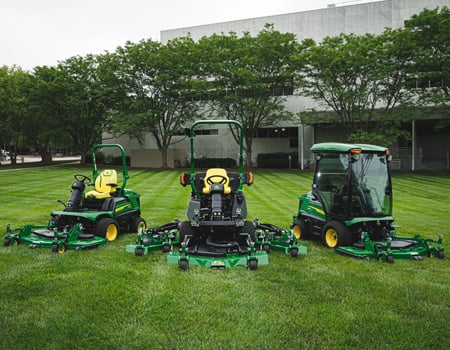

John Deere 1600 Turbo TerrainCut™

DEBUG Ind: Lawn Care Equipment, Cat: Mowers, SubCat: Commercial Mowers, SubSubCat: Front Mowers
Feature Overview
John Deere 1600 Turbo TerrainCut™
  • Turbocharged diesel engine
  • B20 compatible
  • Rear-discharge decks
  • FT4 engine compliant
Engine Manufacturer/model 4TNV86CT-DJWM (T4)
Engine Power Gross power SAE J1995 at 3,000 rpm, PS 60 hp / 44 kW
Mower deck Size 62, 94, 128 in. / 157, 239, 325 cm
Caster wheels Four, 11x4-5, flat-free / Two, 11x4-5, flat-free
Get Financed
Request a Demo/Quote Value Your Trade
Feature Overview
John Deere 1600 Turbo TerrainCut™
  • Turbocharged diesel engine
  • B20 compatible
  • Rear-discharge decks
  • FT4 engine compliant
Engine Manufacturer/model 4TNV86CT-DJWM (T4)
Engine Power Gross power SAE J1995 at 3,000 rpm, PS 60 hp / 44 kW
Mower deck Size 62, 94, 128 in. / 157, 239, 325 cm
Caster wheels Four, 11x4-5, flat-free / Two, 11x4-5, flat-free
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade

Powerful turbocharged diesel engine for superior performance

1600 Turbo TerrainCut© Wide-Area Mower (WAM) engine 1600 Turbo TerrainCut© Wide-Area Mower (WAM) engine
1600 Turbo TerrainCut WAM engine 1600 Turbo TerrainCut WAM engine

The 1600 Turbo TerrainCut WAM is powered by a liquid-cooled, turbocharged, four-cylinder, 60-hp (44.7-kW) at 3000 rpm, PS diesel engine.

Engine features include:

  • 117.3 lb-ft (159 Nm) of torque at 3000 rpm for extra lugging power on hills and in tough mowing conditions
  • Large 127.6-cu in. (2.091-L) displacement, which produces the torque needed to handle hills and tough mowing conditions

  Engine is a 16-valve (four valves per cylinder, two intake and two exhaust) design:

  • Cold-start device to increase engine timing for improved cold starting
  • Full-pressure lubrication for positive lubrication with continuous operation on slopes
  • Dual-element air filter that is completely sealed for effective cleaning
Air filter with air-restriction indicator Air filter with air-restriction indicator
Air-restriction indicator Air-restriction indicator
  • Progressive-type air-restriction indicator to let operator know when the filter needs servicing
  • Automotive-type alternator (75 amp) that provides plenty of charge to the battery
  • Glow plugs for quick starting in cold weather
  • Automotive sensing system, which tells the operator when the engine is ready to start
  • Isolated engine mounting, which reduces engine vibration in the operator's station for more comfortable operation
Direct fuel injection
  • Injects fuel directly on top of pistons for more efficient combustion, less emissions
  • Delivers more power per gallon of fuel
  • Quicker starting and quieter operation
  • Designed to meet California emission standards
  • Features low levels of exhaust and emissions and excellent fuel economy. It meets the necessary Environmental Protection Agency (EPA) Tier 4 standard and meets 97/68/EC EU non-road mobile machinery (NRMM) emissions regulation
  • Electronic engine control and cooled exhaust gas recirculation (EGR) system
  • High-pressure common fuel rail for lower emissions and improved engine responsiveness
Flow of exhaust during engine operation
  • Exhaust airflow enters into the EGR cooler from the exhaust manifold near the turbocharger
  • Cooler takes hot exhaust gases and cools them to where the temperature will not have excessive impact on combustion efficiency
  • Based on load, air temperatures, and rpm, the engine control unit (ECU) opens (or closes) the EGR valve, allowing exhaust gases into the intake manifold. The gases mix with the rest of the incoming air from the turbocharger and aftercooler.

Other engine features:

  • Overhead valve (OHV) for efficient combustion
  • Liquid-cooled for more consistent operating temperatures
  • Closed crankcase ventilation that burns crankcase hydro-carbon evaporation

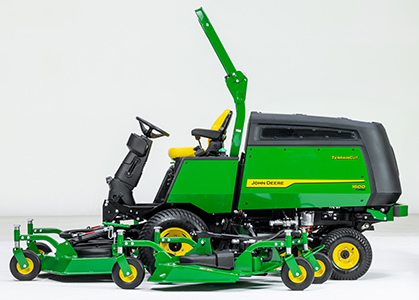

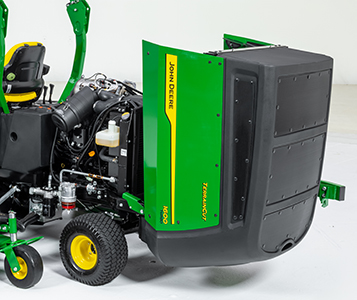

1600 Turbo TerrainCut WAM side view 1600 Turbo TerrainCut WAM side view

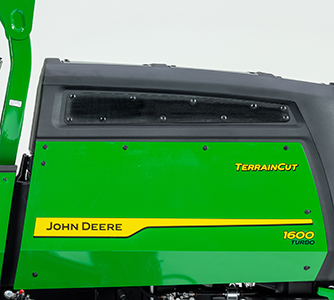

Deluxe air-intake system Deluxe air-intake system
  • Deluxe air-intake system
  • Hood that is composed of a large, black, cross-link polyethylene-composite center section with green, metal side panels
    • The composite center section includes air-intake screens and helps to guide the cooler air from above the machine to the radiator. The design provides a uniform distribution of clean air, as well as minimizing the amount of chaff collection on the exterior screens.
  • Additional sealing around the operator station reduces the amount of hot air blowing on the operator, which in turn improves operator comfort.

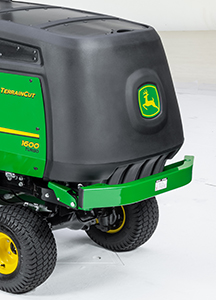

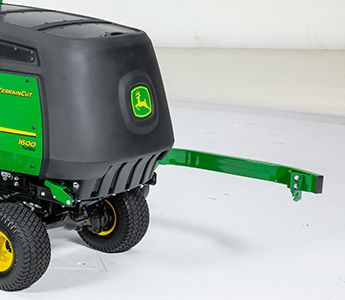

  • The rear bumper helps with hood sealing and reduces the potential for rear hood damage.
22 gal. (83.3 L) of fuel on board, plenty for a long day of mowing
Fuel tank Fuel tank
Large fuel fill opening Large fuel fill opening

The operator can fill the fuel tank without removing the hood. The fuel tank capacity is 22 U.S. gal. (83.3 L) for all-day mowing.

Hydrostatic transmission Hydrostatic transmission

A hydrostatic transmission is used for reliable operation.

Durability features include:

  • Large, forged, one-piece trunnion shaft with large support bearings to reduce vibration and noise
  • Charge pump used to efficiently deliver oil to the transmission
  • Oil cooler to cool transmission oil for longer transmission life
  • Pressure-side filtration to allow use of a finer mesh (10 micron filter) than suction filtration systems

High-range/low-range transaxle allows the following:

  • High range has maximum speed of 15 mph (24.1 km/h) for faster transport. Power take-off (PTO) can be engaged for mowing in high range.
  • Low range has a maximum speed of 9 mph (14.5 km/h). The wide-area mower (WAM) can mow in both low and high range.
Differential lock Differential lock

The differential lock is standard equipment:

  • It locks both the front drive wheels together for extra traction, when needed.
  • Conveniently located pedal allows the operator to engage the differential lock.
Planetary final drive and wet-disc brakes ensure durability and long life
Planetary final drive/wet-disc brakes Planetary final drive/wet-disc brakes

The planetary final drive (label 1 in the drawing) does the following:

  • Evenly distributes stress load for long life
  • Has heavy-duty drive axles for extra durability

Wet-disc brakes (label 2 in the drawing) do the following:

  • Provide positive stopping power and long life
  • Require minimal adjustment
  • Include individual turn brakes as standard
Mechanical rear-wheel drive
1600 Turbo TerrainCut© Wide-Area Mower (WAM) mechanical rear-wheel drive axle 1600 Turbo TerrainCut© Wide-Area Mower (WAM) mechanical rear-wheel drive axle

Two-function mechanical rear-wheel drive is standard equipment:

  • On-demand four-wheel drive (4WD) automatically engages and disengages as needed. The machine operates in two-wheel drive (2WD) until front-wheel slip is detected. If front-wheel slip is detected, the machine then automatically engages 4WD in the forward direction.
    • Constantly maximizes trimming ability
    • Better fuel economy than full-time 4WD
    • Less steering tire wear than full-time 4WD
    • Increases traction and trimming ability to allow a novice operator to mow like an expert
    • Works in the forward direction only
  • Full-time 4WD is on only when shifted into position by the operator.
    • Can be engaged or disengaged on the go
    • Provides maximum traction and flotation in difficult operating conditions
    • Works in reverse as well as the forward direction

Air-intake system Air-intake system
High-capacity cooling system High-capacity cooling system

An innovative, exclusive air-intake system draws clean air from the top of the machine instead of the rear. This keeps the radiator cleaner and prevents the engine from overheating.

The high-capacity cooling system combines the radiator and hydraulic oil cooler.

Control console Control console

Low-effort controls are conveniently grouped on the right-hand side.

The finger-touch controls are:

  • Left mower deck lift/lower switch
  • Front mower deck lift/lower switch
  • Right mower deck lift/lower switch
  • Electronically-controlled throttle lever
  • Electronically-activated power take-off (PTO) switch
  • Speed-range lever for high, neutral, and low range
  • Four-wheel drive (4WD) lever
Hydrostatic power steering
  • Makes it easy to turn the machine, reducing operator fatigue
  • Allows quick steering action, two and a half turns lock-to-lock, for excellent maneuverability
Two-pedal foot controls
Two-pedal foot controls Two-pedal foot controls
  • Convenient two-pedal hydrostatic control system
  • Allows the operator to select speed and direction with just a touch of the toe while resting heel on platform
  • Twin Touch© pedal design that allows the operator to change direction without having to lift his foot off the platform
  • Large pedal surface, which provides increased operator comfort
  • Keeps both hands free for steering and operating controls
Standard turning brakes
Standard turning brakes Standard turning brakes

The individual brakes can be applied by the operator as a traction aid or to reduce the turning radius.

Master stop brake
Master stop brake Master stop brake
  • Brake is easy to use.
  • Push-pull-type parking brake release allows the operator to simply pull out the knob and depress the foot brake to engage. To disengage, simply push the foot brake pedal and push the knob in to initiate release.
  • Brake provides stopping power to both drive wheels.
  • The stop brake is used for a parking brake.
Differential lock
Differential lock Differential lock
  • Locks both front drive wheels together for added traction
  • Increases traction and flotation in poor traction conditions

The differential lock is located on the left side of the platform; this allows for easy use of the Twin Touch foot pedals (on the right side) while engaging the differential lock at the same time.

High/low range lever
High-/low range lever High-/low range lever
  • The high-/low range lever allows the operator to select the desired speed range.
  • The machine must be stopped to shift between ranges.
  • Shifting to the neutral position allows the operator to by-pass the hydraulic drive for towing.
4WD lever
4WD lever 4WD lever
  • The 4WD lever allows the operator to engage 4WD in reverse. 4WD is automatically engaged when wheel slip occurs in forward drive.
Electronic cruise control
Electronic cruise control Electronic cruise control
  • Beneficial when mowing open areas or when transporting
  • Located on the steering column
Cruise control operation
  • To engage, simply push forward on the cruise control switch and hold until the foot is removed from the forward pedal.
  • For an emergency stop, cruise can be released by pushing on the master brake pedal or turning the cruise control switch off.
Tilt steering
Tilt steering Tilt steering
Headlights Headlights
  • Allows the operator to adjust the steering column to the most comfortable position and provides additional clearance for entry to the operator station
  • Two standard 20-W halogen headlights are located low in the column for the best illumination
Optional light-emitting diode (LED) road light, beacon light, and work light attachments

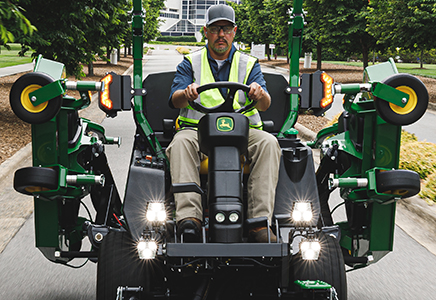

LED road and work lights LED road and work lights

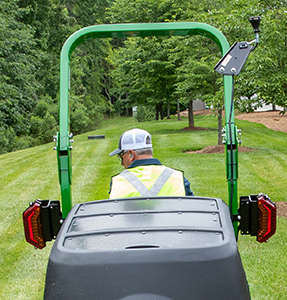

LED road and breakaway beacon lights LED road and breakaway beacon lights

The road, beacon, and work light attachments are available in LED designs.

  • BUC11407 breakaway LED beacon light kit is short to avoid damage.
  • BUC11408 LED work light kit includes four front-mounted LED work lights.
  • BUC11543 LED road light kit includes turn signals, warning flashers, taillights, mounting brackets, wiring harness, and turn signal switch. BUC11543 requires BUC11408 LED work light.
  • BUC11407, BUC11408, and BUC11543 are compatible with model year 2018 and newer (serial number 500,001-) wide-area mowers.
Mower deck lift switches
Mower deck lift switches Mower deck lift switches

The mower deck switches allow the operator to vary mowing widths, engage and disengage the wing-deck blades, and service and transport the machine.

Easy-to-view operator instrumentation
Instrumentation from seat Instrumentation from seat
Instrumentation panel Instrumentation panel
Engine rpm screen Engine rpm screen
System voltage screen System voltage screen
Diesel particulate filter screen Diesel particulate filter screen
Service menu screen Service menu screen
Engine coolant temperature screen Engine coolant temperature screen

An instrument panel is located on the steering column for both operator convenience and safety.

Instrumentation includes:

Hour meter

Hour meter Hour meter
  • Located on the steering column for easy viewing
  • Records the number of hours the engine has run
  • Used along with the periodic service chart (located in the engine compartment) to determine when service procedures need to be performed on the machine and mower deck

Engine glow plug light

The engine glow plug light indicates the intake manifold heater is energized. The operator should wait until the glow plug light goes off before starting the engine.

  • The manifold heater is controlled by a temperature-sensitive timer and turns off sooner in warm weather.
  • Starting the engine before the indicator turns off wastes fuel, creates smoke, and puts unnecessary wear on the starter.
  • If the starter does not engage when the key switch is turned to the start position, one of the start conditions has not been met. Trouble codes are presented as a sequence of flashes and pauses that must be counted and converted to a two digit number:
    • One flash, a short pause, and two flashes ™ operator attempted to start the machine without the park brake locked and the operator is off of the seat (one of these conditions must be met for the starter to engage).
    • One flash, a short pause, and three flashes ™ operator attempted to start the machine with the power take-off (PTO) engaged.
    • Two flashes, a short pause, and one flash ™ hydrostatic pedals are not centered in the neutral position.

Engine coolant temperature light

The engine coolant temperature light indicates the engine is overheating. A warning beeper also sounds when the light comes on.

Engine oil pressure light

The engine oil pressure light indicates the engine oil pressure is low. The indicator should be lit as a test to make sure it is working when the key switch is turned to the run position. A warning beeper sounds when the light comes on. The light (and beeper) should go off once the engine starts.

Battery discharge light

The battery discharge light indicates the battery is not getting enough charge from the alternator. The light should come on when the key switch is turned from off to run. The light should go off once the engine starts.

Primary display unit (PDU) navigation
Primary display unit Primary display unit

The PDU utilizes three buttons for navigation.

The display’s top-level screens can be cycled through by pressing the center button.

Operator screens Operator screens

Top level screen functions are as follows:

A - Engine coolant temperature (ECT) screen

B - Pre-heat countdown (HPH) screen

C - Engine rpm (erpm) screen

D - System voltage (SV) screen

E - Diesel particulate filter (DPF) screen

F - Service menu (IServ) screen

The top-level screens are shown in order of display. To navigate to next top-level screen, press the center button on the PDU. For more information on the different functions, please refer to the machine’s operator’s manual.

Tool tray and cup holder for operator convenience
Tool tray and cup holder Tool tray and cup holder

Tool tray and cup holder are convenient for the operator to get to:

  • Quick access to a drink and tools on the machine decreases downtime.
Power take-off (PTO) drive provides control and power
Hydraulic PTO drive Hydraulic PTO drive

Mower decks are hydraulically driven using a separate closed-loop system with one gear-type motor for each deck:

  • Mowers are designed to provide increased torque to the decks for additional power and productivity in tough mowing conditions.
  • The operator can raise one or both of the wing decks and all hydraulic power will be directed to the center deck (exclusive John Deere feature) to provide maximum hydraulic pressure for extreme conditions.
  • Blades are belt-driven from each deck motor.
Safety starting system

The 1600 Turbo TerrainCut© Wide-Area Mower (WAM) has an operator-presence system.

In order to start the engine, the following must be met:

  • The hydrostatic foot controls must be in neutral.
  • The power take-off (PTO) must be disengaged.
  • The operator must be in the seat or the parking brake must be set.
  • The ignition key must be used.

In addition, once the engine is running, an interlock automatically shuts the engine and PTO off if the operator leaves the seat. To keep the engine running, the operator must disengage the PTO and set the parking brake before dismounting.

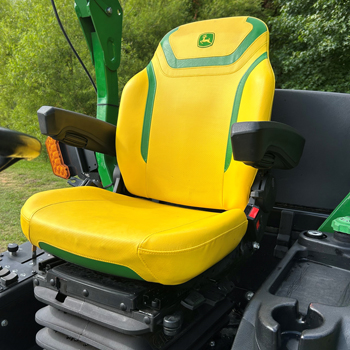

High-back, air-ride seat High-back, air-ride seat

An air-ride suspension seat is standard equipment and provides maximum operator comfort across a wide range of operator traits. Key adjustments include the following:

  • Weight and height adjustment allow for proper ride and suspension height.
  • Fore-aft sear slide adjustment helps account for a wide range of heights.
  • Fore-aft suspension travel to improve directional changes during operation.
  • Back angle tilt adjustment is available for the back portion of the seat.
  • Lumbar adjustment provides proper back support.
  • Standard, adjustable armrests are made of a durable material that provides adequate support and surface area for the operator's arms.
  • High seat-back profile features body-contoured seat cushions.
  • Cushions are ideal for those who seek proper back support. The highly-resilient contoured foam construction allows for all-day mowing comfort.
  • A raised seat ensures a commanding view to the front and side mower decks.
  • The retractable seat belt is convenient to use.

The comfortable seat, along with ample legroom in the operator's platform, convenient pedal locations, and adjustable steering column make operator comfort on the John Deere 1600 Turbo TerrainCut© Wide-Area Mower among the best in the industry.

The standard air-ride seat with adjustable armrests is designed with comfort, safety, and ergonomics in mind, ensuring relaxed, healthy sitting for hours on end.

The standard high-back, air-ride seat has many high-quality features:

Fore-aft lever Fore-aft lever
  • Adjustments are provided for operator armrests, lumbar support, and back angle, and air suspension is adjustable for the operator’s weight and ride.
Armrest adjustment Armrest adjustment

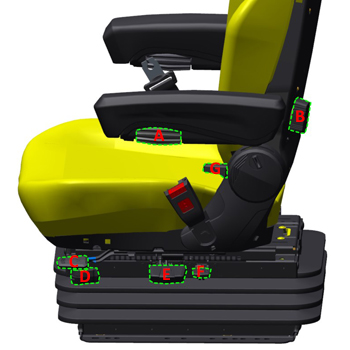

Air-ride seat adjustment Air-ride seat adjustment
Back-angle adjustment Back-angle adjustment

The armrests are standard and the seat pads are replaceable.

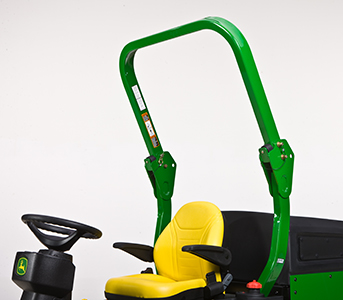

Two-post Roll-Gard ROPS Two-post Roll-Gard ROPS

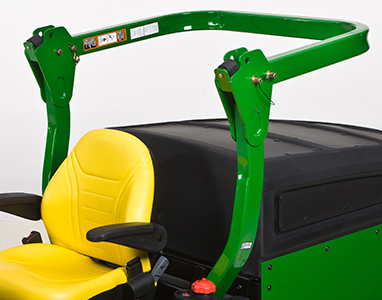

ROPS folded down for clearance ROPS folded down for clearance

The two-post folding Roll-Gard ROPS and seat belt are standard equipment:

  • When used in combination with seat belts and safe operating practices, the ROPS is effective in reducing serious injuries and death from rollover accidents.

The standard-equipment Roll-Gard ROPS can be folded to allow for additional clearance when needed. With the ROPS in the folded-down position, the machine fits under a standard doorway.
The ROPS meets the International Organization for Standardization (ISO) 21299 ROPS standard ™ defined test procedures and acceptance criteria for the rollover protective structures of powered ride-on turf care machinery. Under the support of the Outdoor Power Equipment Institute (OPEI), a panel was formed that brought together an international group of ROPS experts that presented the best-learned practices regarding off-highway vehicle operator crush protection. The result of this undertaking is a standard dedicated to protecting operators of powered ride-on turf maintenance equipment.

The ROPS can be folded down without tools for operation under tree canopies or in other confined operating spaces. Operators should leave the ROPS in the upright position for all other mowing:

  • The folding ROPS enhances operator safety and still provides clearance when loading on enclosed trailers.

Folding the ROPS is simple - remove two pins and rotate the top of the Roll-Gard ROPS down. Adjustments can be made from the operator's station.

The folding ROPS performance is certified at the date of manufacture, per the following standard:

  • ISO 21299

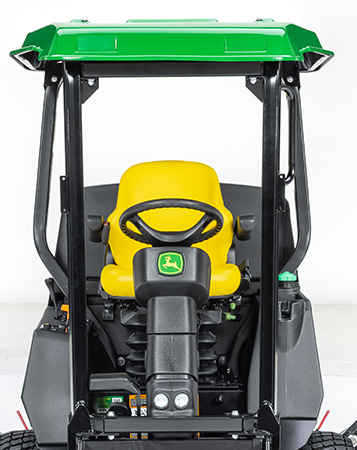

Four-post ROPS Four-post ROPS

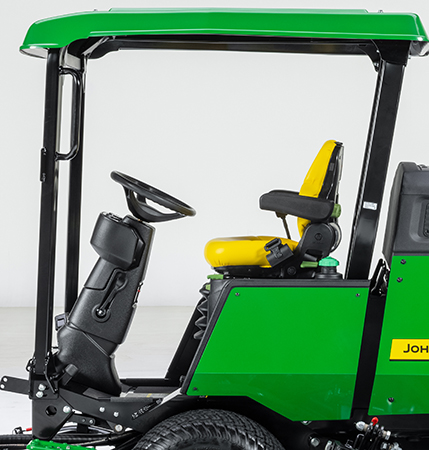

Four-post ROPS side view Four-post ROPS side view

Due to the high percentage of operators who prefer the four-post ROPS canopy, a factory-installed option is available. The rear ROPS structure is a black fixed two-post ROPS.

The ROPS comes standard with a canopy and assembles to the 1600 Turbo TerrainCut© Wide-Area Mower (WAM) along with a two-post
Roll-Gard© ROPS.

The four-post ROPS structure includes the following:

  • Two front posts
  • Rear ROPS
  • Welded top and bottom assemblies
  • Molded canopy

The four-post ROPS provides the ability to meet bid requirements that call for a four-post ROPS and offers the ability to use a weather enclosure. It also meets the International Organization for Standardization (ISO) 21299 standard.

Wing decks raised Wing decks raised

The wing decks rise to a narrow 84-in. (213.4-cm) width and can be locked into transport position. A machine transport speed of 15 mph (24.1 km/h) means the operator can spend less time transporting and more time mowing.

NOTE: The power take-off (PTO) can be engaged while in the transport position.

Proper trailering strap areas


Fasten the machine to the trailer with heavy-duty straps, chains, or cables. Fasten the rear strap to the tow point bracket above the rear axle. Fasten the front strap to tie down holes on the operator's platform. Both the front and rear straps must be directed down and outward from the machine.

Rear bumper Rear bumper

The rear, frame-mounted bumper provides for excellent rear protection and effective hood sealing for engine cooling.

To operate, pull out on the bottom of the engine cover latches on the left and right side of machine behind the operator’s seat. Unhook the tops of the engine cover latches from the hooks on the engine cover. Push down on the bumper lever and rotate the bumper to the right side of the machine.

Rear bumper latch in locked position Rear bumper latch in locked position
Rear bumper latch in unlocked position Rear bumper latch in unlocked position
Rear bumper in open position Rear bumper in open position
Engine cover open Engine cover open

Wide-area mower (WAM) top view Wide-area mower (WAM) top view
WAM front view with side mowers raised WAM front view with side mowers raised
128 in. (325.1 cm) with both wings down 128 in. (325.1 cm) with both wings down
94 in. (238.8 cm) with center deck and either side deck down 94 in. (238.8 cm) with center deck and either side deck down
Front and side mowing Front and side mowing
62 in. (157.5 cm) with center deck only 62 in. (157.5 cm) with center deck only

The 1600 Turbo TerrainCut© WAM is equipped with a 62-in. (157.5-cm) center deck and two 42-in. (106.7-cm) wings. Cutting widths are 128 in. (325.1 cm) using all three decks, 94 in. (238.8 cm) using the center deck and either wing deck, and 62 in. (157.5 cm) with the center deck only. All decks are rear discharge. Wings fold for transport and reduce the machine’s width to a narrow 84 in. (213 cm), so it can easily be driven along golf-cart-size paths or fit on a trailer. The wing decks will float 45 degrees above horizontal and 20 degrees below horizontal, following the ground contour.

Underside of 62-in. (157.5-cm) deck Underside of 62-in. (157.5-cm) deck
Side view of 42-in. (106.7-cm) deck Side view of 42-in. (106.7-cm) deck

All decks have a unique baffling system that reduces clumping and provides even clipping dispersal for exceptional appearance.


Features common to these rear-discharge mower decks include:

  • Mower decks are fabricated from 7-gauge, 0.179-in. (4.6-mm) steel, the thickest in the industry; strength has been designed into the 1600 Turbo TerrainCut© WAM mower decks for increased reliability
  • A 3/4-in. (1.9-cm) solid bar runs along the entire mower deck perimeter for added strength
  • Dual-range height of cut spans 1 in. (2.54 cm) to 5.5 in. (14 cm) in 0.5-in. (1.27-cm) increment adjustments
  • Wing deck float of 45 degrees upward and 20 degrees downward provides excellent cut quality when mowing undulating terrain
  • Each wing deck has four caster wheels to follow ground contour and provide unmatched cut quality
  • Unique baffling system produces even grass dispersal for superior appearance
Patented impact-absorbing system
Patented impact-absorbing system Patented impact-absorbing system

A patented impact-absorbing system is provided:

  • This exclusive feature allows the wing decks to move rearward and inward when contacting obstructions such as trees, curbs, or other solid objects to prevent damage.
  • Mowers are safety certified (meaning that mowers have been evaluated by the manufacturer [John Deere Turf Care] and conform to American National Standards Institute [ANSI] B71.4 Safety Certification Specifications for Commercial Turf Care Equipment).
Isolated deck motor design
Isolated deck motor design Isolated deck motor design

The isolated deck motor design consists of three cast-iron mounting structures for the deck motors. Rubber isolators that are similar to engine mount isolators are located between the castings and the deck shell brackets.


The rubber isolators allow the castings to flex relative to the deck shell. The addition of the isolators stops the vibration path between the hydraulic motor and the deck shell, thus preventing the amplification of sound by the deck shell.

Mower mulch kit available
WAM mulch kit illustration WAM mulch kit illustration
WAM mulch kit illustration WAM mulch kit illustration

A mulch kit is available as an attachment for field conversion. The mulch kit includes unique mulch blades, baffles, and a deflector shield to produce smaller clippings, which decompose faster than un-mulched clippings. Operators should follow the one-third rule when mulching grass.

This mulch kit also does an excellent job when mulching leaves.

BTC10335 TriCycler Mulching Kit

NOTE: Applicable for serial numbers starting with 1TC1600TPBT100007 and higher, model year 2012 and newer.

Viton is a trademark of The Chemours Company.

Deck motors
Deck motor Deck motor
D Series deck motor D Series deck motor
  1. Radial case drain
  2. Pressure balanced bronze-on-steel thrust plates
  3. Flexible configuration of shaft, flange, and ports
  4. One-piece steel gears with 12-tooth profile
  5. Heavy-duty, low-friction sleeve bearings
  6. Integrated dust protector
  7. High-strength ductile iron body and covers
  8. High-temperature Viton® rubber shaft seals
  9. Figure 8 monolithic high-temp load seals

The deck motors are capable of withstanding high pressure requirements for all-day mowing. Motors have Viton seals, which can withstand higher hydraulic temperatures. The motor contains a dust seal to help eliminate debris from entering into the hydraulic connections.

Lift valve
Lift valve Lift valve

The lift valve controls the cylinders that lift and lower the decks. It also controls the axial piston deck-motor pump (turns it on and off).

Mow valve
Mow valve Mow valve

The mow valve controls the hydraulic flow to the wing deck circuits.

Hood and seat platform open for excellent access Hood and seat platform open for excellent access
Overhead view Overhead view

The hood and seat platform open for excellent access to the engine and drivetrain. All daily service points are located on the left side of the machine:

  • Fuel fill
  • Engine oil check
  • Engine oil filter
  • Hydraulic oil fill
  • Hydraulic oil filter
  • Air filter restriction indicator
  • Engine coolant check
Front deck raised 70 degrees Front deck raised 70 degrees

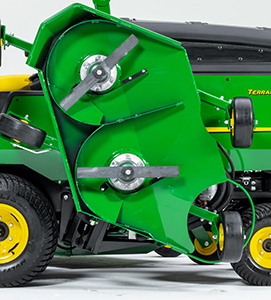

Wing deck raised 90 degrees Wing deck raised 90 degrees

The wing decks raise 90 degrees, and the front deck raises 70 degrees for excellent access.

No tools are required to access the mower deck belts.

Quick response (QR) codes link to owner information web pages

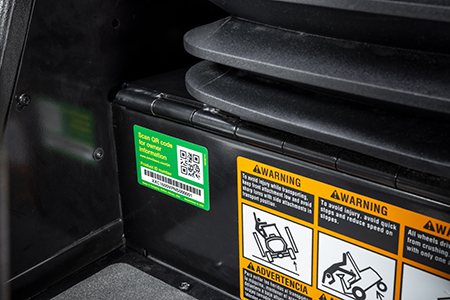

QR code label on seat base QR code label on seat base

To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on the seat base near the control console. The owner information web pages that include links to:

  • Safety and how-to videos
  • Operator’s manuals
  • Parts catalogs
  • Maintenance reminder sheets
  • Attachments
  • Warranty statements
Diagnostic control module
Control module Control module
Fuse box Fuse box

The diagnostic control module features light-emitting diode (LED) lights and a heartbeat to aid in diagnostics and lead the technician to the proper circuit. Each switch on the machine has its own LED light on the controller, so input and output functions can be diagnosed by observing the appropriate lights.

Service ADVISOR© diagnostics system
Diagnostic port Diagnostic port

Service ADVISOR is a John Deere dealership tool capable of providing technical and machine support for technicians and service managers using a laptop computer. It provides symptom-based diagnostics information, machine information, electronic technical information, and connection to John Deere through an extranet at workshops and in the field.

A data port outlet socket is provided on the right-hand instrument panel next to the diagnostic control module console to access important service information with a laptop computer equipped with Service ADVISOR software. Service ADVISOR reduces downtime by allowing technicians to quickly identify the root cause of problems, aid them in identifying the component needing repair, and aid them in the repair procedures. It also significantly reduces the amount of printed materials the technician is required to have at their disposal to perform the repair or maintenance work.

Quick-access foot panel for easy access
Quick-access foot panel Quick-access foot panel

The foot panel is easily removed to allow quick and easy access to service points.

Tires Tires

Large, 18x9.5-8 steering (rear) and 26x12-12 (front) drive tires provide excellent traction and flotation. Both tires have a six-ply rating.

Caster tires
Caster tire Caster tire

Semi-pneumatic mower deck caster tires are standard equipment. Benefits provided by semi-pneumatic tires include:

  • Looks and performs like a rubber air-filled tire
  • No flats means reduced downtime
  • Reduces maintenance time and expense
  • No need to worry about inflating caster tires ever again
  • Reduced incidents of caster tires rolling off of the rim
  • Semi-pneumatic tires never need air maintenance, nor will they become flat when punctured, making them truly flat-free

Key Specs
Engine Manufacturer/model 4TNV86CT-DJWM (T4)
Engine Power Gross power SAE J1995 at 3,000 rpm, PS 60 hp
44 kW
Fuel system
Fuel tank capacity 22 U.S. gal.
83.3 L
Key Specs
Mower deck Size 62, 94, 128 in.
157, 239, 325 cm
Blade tip speed 13,000 fpm
3,962 m/min
Transmission Hydrostatic
Travel speed
Speed range 0-15 mph
0-24 km/h
Drive tires Pressure
30 psi , 206.8 kPa (front)
28 psi, 193.1 kPa (rear)
Key Specs
Caster wheels Four, 11x4-5, flat-free
Two, 11x4-5, flat-free
Warranty 24 months
Model 4TNV86CT-DJWM (T4)
Displacement 127.6 cu in.
2.091 L
2,091 cc
Bore and stroke 3.4x3.5 in.
86x90 mm
Injection Direct
Starting aid Engine glow plug
Cylinders Four
Cycle Four
Power Gross power SAE J1995 at 3,000 rpm, PS 60 hp
44 kW
Rated engine speed 3,000 rpm
Operating range With isochronous governor 1,400-3,030 rpm
Lubrication Pressurized by lobe-style pump
Oil filter Spin-on
Cooling Liquid-cooled water centrifugal
Cooling system capacity 2.5 U.S. gal.
7.5 L
Crankcase capacity 6.1 U.S. qt
5.8 L
Compression ratio 19:01
Operating torque (net continuous @ 3000 rpm) 103 lb-ft
140 Nm
Max Torque per SAE J1349 (net continuous) 117.3 lb-ft
159 Nm
Air cleaner Dual element, dry type
Air restriction indicator Standard, progressive type
Engine shutoff Key
Radiator location Rear mounted
Radiator fins per inch 10 fins per inch
Fuel system
Fuel type Diesel
Fuel transfer pump Electric
Fuel filter Replaceable, spin-on type
Water separator Replaceable, 100-mesh element
Cold start device Increased timing for better cold starting
Fuel pump type Mechanical
Fuel neck opening 3 in.
7.6 cm
Fuel tank location Left side of the machine
Self bleeding System is self-bleeding because of the electric fuel transfer pump
Fuel consumption
Full load 3.33 U.S. gal./hr
12.7 L/hr
One-half load 1.93 U.S. gal./hr
7.31 L/hr
Anti-scalp rollers
Type Flat-free
Implement lift
Lift cylinders Bore 2 in.
50.8 mm
Pump Gear
Charging system Automotive type
Alternator 75 amp
Battery voltage 12 V
Battery cold crank amps 675 CCA
Starter size 1.9 hp
1.4 kW
Hydraulic system
Traction drive pump Displacement, axial piston pump, 3 cu in.
49 cc
Motor Displacement, axial piston pump, 2 cu in.
33 cc
Steering relief 1,087 psi
Implement relief 1,600 psi
Hydraulic reservoir capacity 14 U.S. gal.
53 L
Transaxle type Dual range
Transaxle Tuff Torque (Kanzaki)
4 wheel drive On demand or full time
4 wheel drive type Mechanical rear-wheel drive
Differential lock Mechanical, foot activated
Final drive Planetary
Steering brakes Standard
Parking brakes Hand brake
Travel speed
Low forward speed 0-9 mph
0-14.5 km/h
High forward speed 0-15 mph
0-24 km/h
Low reverse speed 0-4.5 mph
0-7.2 km/h
High reverse speed 0-7.5 mph
0-12 km/h
Sound level (without cab)
With deck 94 dBA
Without deck 89 dBA
Frame type Welded, tubular steel
Thickness 11 gauge
0.120 in.
3 mm
Tilt steering wheel Standard
Turns lock-to-lock 2.5
Turning radius 39 in.
99 cm
Operator station
Seat Adjustment positions
Yes, adjustable
Air-ride suspension seat, adjustable, deluxe, high-backed, back angle adjustment, lumbar adjustment, standard armrests
Safety Safety interlock and operator presence system
Steering tires (rear) 18x9.5-8
Tread Multi-trac
Ply rating 6 PR (both)
Length (with deck) 132 in.
335 cm
Wheel base 60 in.
152 cm
Tread width 52 in.
131 cm
Width with decks down 134 in.
340 cm
Height with ROPS ROPS up, 98 in.
249 cm
ROPS down, 74 in.
188 cm
With four-post canopy ROPS, 82 in.
208 cm
Transport width 84 in.
213 cm
Ground clearance 6.5 in.
16.5 cm
Vehicle weight 4,173 lb
1,892.8 kg
Machine weight without the deck 3,264 lb
1,474.2 kg
Throttle Hand
Forward/reverse Two-pedal
Mower lift Three two-function switches
Park brake Foot pedal/disk
Indicator lights Engine air heater, oil pressure light, engine temperature light, fuel gauge, hydraulic oil temperature light
PTO engagement Type
Hydraulic, independent
Electric solenoid switch
PTO engagement/disengagement Electric solenoid
Deck drive pump Displacement, axial piston pump, 2.48 cu in.
40.6 cc
Deck motor Type
Hydraulic, open center, closed loop
Displacement, gear motor, 2.5 cu in.
41 cc
Circuit Series
Mower decks
Deck drive type Hydraulic, closed loop
Spindles Heat treated, diameter, 1 in.
2.54 cm
Spindle bearings greaseable Yes
Energy-absorbing wing decks Yes
Deck circuit Series
Blade drive C-section, V-belt
Size 62, 94, 128 in.
157, 239, 325 cm
Center deck cutting width 62 in.
157 cm
Wing deck cutting width 42 in.
107 cm
Transport lock Standard
Discharge Rear
Deck construction Fabricated steel
Deck thickness 7 gauge
0.180 in.
4.6 mm
Height-of-cut range 1-5.5 in.
2.5-13.9 cm
Wing deck float Up (while maintaining PTO engagement)
45 degrees
Down (while maintaining PTO engagement)
20 degrees
Anti-scalp rollers
Wing deck caster wheels Four, 11x4-5, flat-free
Front deck caster wheels Two, 11x4-5, flat-free
Total mower blades Seven, three center and two each side
Blade length 22 in.
55.88 cm
Blade width 2.5 in.
6.35 cm
Blade thickness 0.312 in.
0.79 cm
Interchangeable mower blades between all decks Yes
Accessories and Attachments

This light kit signals that the unit is approaching. The light is positioned on top of the canopy or on the rollover protective structure (ROPS) with a breakaway bracket. This ensures that if struck, the light will not break, but move out of the way.

NOTE: Applicable for serial numbers:

  • BUC10062 - for wide­-area mowers with serial numbers 500,001 and higher.
  • TCB11580 - for wide-­area mowers with serial numbers 090,001 to 500,000.
  • TCB10353 (discontinued) - for wide-­area mowers with serial numbers 090,000 and lower.

The road light kit is for use when transporting the machine.


NOTE: Requires the work light kit to complete. Includes two combination turn signals/warning flashers/taillights, mounting brackets, a wiring harness, and a turn signal switch. Applicable for serial numbers:

  • BUC10063 - for wide­area mowers with serial numbers 500,001 and higher.
  • TCB11701 - for wide­area mowers with serial numbers 090,001 to 500,000.
  • TCB10582 (discontinued) - for wide­area mowers with serial numbers 090,000 and lower.



This front light kit allows operating mower during twilight hours for increased productivity.

NOTE: Includes four lights, mounting brackets, wiring harness, and on/off switch. Applicable for serial numbers:

  • BUC10064 - for wide­area mowers with serial numbers 500,001 and higher.
  • TCB11581 - for wide­area mowers with serial numbers 090,001 to 500,000.
  • TCB10583 (discontinued) - for wide­area mowers with serial numbers 090,000 and lower.

model year 2010 and earlier wide-area mowers, wiring harness part number TCA13797 is not part of this kit and must be ordered separately.


Bracket, Left-Hand Front Tie Down - TCU38441

Bracket, Right-Hand Front Tie Down - TCU38442

The cruise control kit maintains desired speed without foot pressure.

Sound systems provide powerful performance.
Sound systemSound system

AM/FM stereo radios are available with or without a compact disc (CD) player and other features.


The radio mount kit is available on 1575/1585 models only. This kit includes the following:

  • Two speakers
  • Control housing cover
  • Radio mounting bracket
  • Antenna mount bracket
  • Miscellaneous hardware

The following is for informational purposes; the three optional head units must be ordered separately to have a complete stereo:

  • Radio, Deere/Delco AM/FM stereo with clock, front audio input jack for MP3 players, and Weatherband

  • Radio, Deere/Delco AM/FM stereo with single compact disc player, clock, front audio input jack for MP3 players, and Weatherband
  • Stereo with AM/FM, Weatherband, SiriusXM® Satellite and iPod®-Ready

The systems feature:

  • Separate seek, treble/bass controls
  • Clock designed into radio for added convenience
  • Radio can be ordered with or without a CD player
  • Weatherband feature standard on all radios to allow the operator to listen to NOAA Weather Channel broadcasts at the touch of a button
  • Front audio input jack for MP3 players available on some radio options

For clear reception, an external antenna is included.


SiriusXM is a trademark of Sirius XM Radio Inc. iPod is a trademark of Apple Incorporated.

Rear work lightsRear work lights
  • Provides light to rear of vehicle for evening work
  • For cab, kit contains two lights

Allow 30 minutes to install.

The reverse alarm attachment is available for improved safety and for those who require an alarm in reverse speeds to satisfy safety regulations and governmental bid requirements.


This emblem attaches to the ROPS for transporting on public roads. Available on cab and open-station models.

Vehicle Enclosure Kit - TCA23365


Mounting hardware (one) for attaching 72-lb (34-kg) starter weight and (two) 50-lb (22.7-kg) cast-iron weights on 26-in. (66-cm) tire


The 42-lb (19-kg) Quik-Tatch weight can be used to counterbalance a heavy front or rear attachment and/or provide greater stability, especially when operating on hills.


Weights are constructed of cast iron and weigh approximately 42 lb (19 kg) each.

Rear weight mounting bracket partsRear weight mounting bracket parts
Rear weight mounting bracket with weightsRear weight mounting bracket with weights

Allows operator to mount ballast weights for additional traction (four R66949 or UC13263 42-lb (19-kg) Quik-Tach weights are recommended for snow blower applications).


0% APR fixed rate for 36 months†

on New John Deere Front Mowers & Wide Area Mowers

Offer Duration
October 28, 2023 - January 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

No Interest, No Payment until 01 April 2024 Followed by 3.9% APR fixed rate for 48 months AND Get up to $1,000 off2,3,4†

on new John Deere Commercial Mowing Equipment

Offer Duration
October 03, 2023 - January 02, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

No Interest, No Payment until 01 April 2024 Followed by 3.9% APR fixed rate for 48 months AND Get up to $1,000 off†

on new John Deere Commercial Mowing Equipment

Offer Duration
October 03, 2023 - January 02, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...

Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426

Map & Hours

22255 Cortez Blvd
Brooksville, FL 34601

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947

Map & Hours

127 N Krome Ave
Florida City, FL 33034

Map & Hours

775 E Main St
Immokalee, FL 34142

Map & Hours

6785 114th Ave
Largo, FL 33773

Map & Hours

1800 US-441
Leesburg, FL 34748

Map & Hours

13295 Southern Blvd
Loxahatchee, FL 33470

Map & Hours

1945 Pine Ridge Rd
Naples, FL 34109

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289

Map & Hours

2240 Success Dr
Odessa, FL 33556

Map & Hours

820 US-98
Okeechobee, FL 34972

Map & Hours

12049 S Orange Blossom Trail
Orlando, FL 32837

Map & Hours

906 US-301
Palmetto, FL 34221

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769

Map & Hours
©2023 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
