Engine manufacturer/model | FS481V |
Engine power | At 3600 rpm 14.5 hp* / 10.8 kW |
Mower deck Size | 48 in. / 122 cm |
Blade tip speed | Approximately 18,000 fpm / 5,486 m/min |
Engine manufacturer/model | FS481V |
Engine power | At 3600 rpm 14.5 hp* / 10.8 kW |
Mower deck Size | 48 in. / 122 cm |
Blade tip speed | Approximately 18,000 fpm / 5,486 m/min |

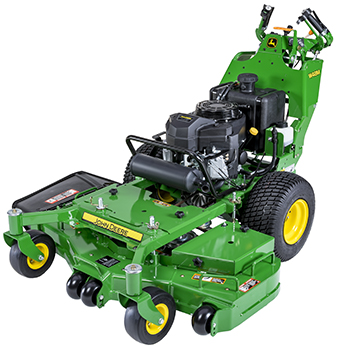

From the operator's station to the mower deck, John Deere walk-behind mowers have a compact and functional design:
Whether mowing hills or on level terrain, trimming, or mowing straight-away, the operator of a John Deere commercial walk-behind mower is able to control the machine:

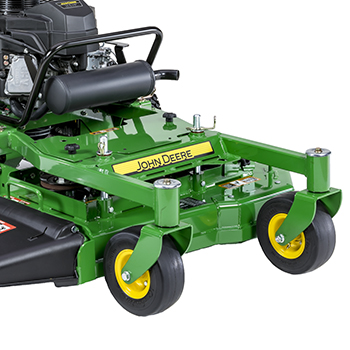

John Deere commercial walk-behind mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:
Front and rear tie-down points are provided to aid in transport.
Large, flat-free front caster wheels and 4-ply rear drive wheels provide smoother operation:
Powered by an air-cooled, vertical-shaft engine:
Large, 5.4-gal. (20.4-L) top draw fuel tank is easy to fill with large filler opening in an easy-to-reach location:
W36M and W48M Mowers are equipped with an infinitely variable hydrostatic drive system with reverse, which does the following:
Wide and large drive wheels provide excellent traction with low turf compaction. The square shoulder improves hillside performance compared to a round-shouldered tire. Tire width is matched to the machine and the mower size.

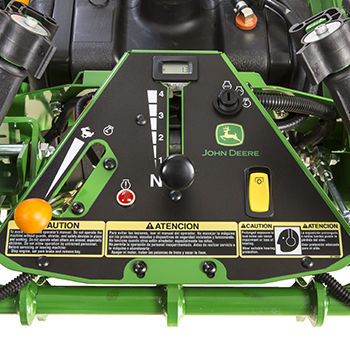

All of the controls are located within comfortable reach of the operator. Simplified operation of each control offers superior convenience, productivity, and safety:
A convenient and easy-to-operate switch is located on the console to operate the electric clutch, which powers the mower deck.
W36M and W48M parking brake control lever:

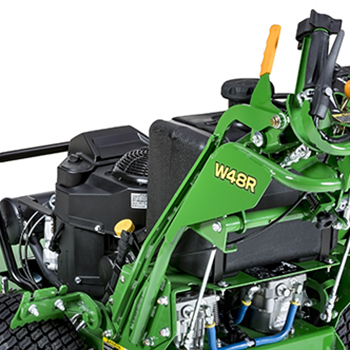

W36R, W48R, W52R, and W61R parking brake control lever:
Safety features are designed into M and R Series commercial walk-behind mowers:
John Deere warranty includes:
All parts, except tires and batteries (which are warranted under separate documents provided with each product), are warranted
Engine service points are easy to reach:
Control rods and ends are plated to stop rust and corrosion:
Control linkages are positioned tightly to the main frame structure to protect them from damage, such as being bent that could impact the speed and tracking of the unit.

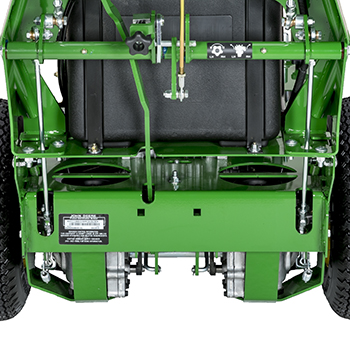

Transmission oil reservoirs are easy to access and fill.
The transmission oil filter is a replaceable spin-on type for easy service.
Transmission tow valves are easy to find and use.

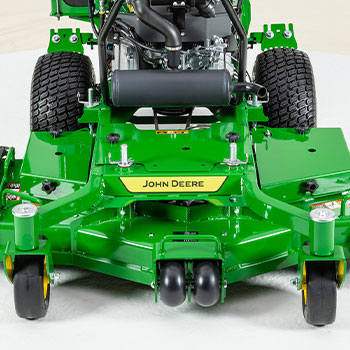

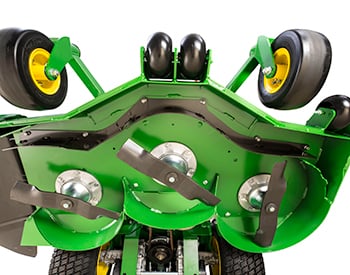

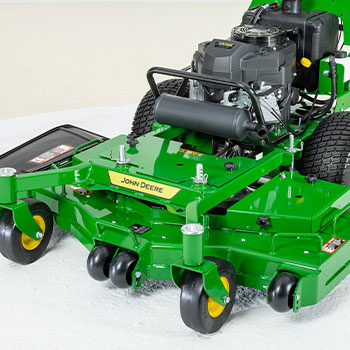

John Deere commercial mower decks have always demonstrated quality, performance, and durability. Each commercial walk-behind mower is equipped with a high-quality fabricated mower deck:

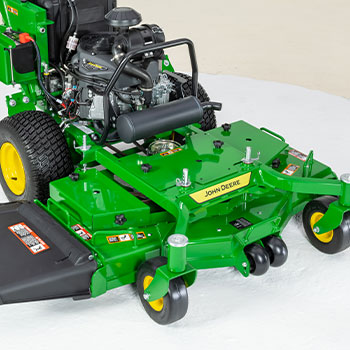

The fabricated, floating mower deck delivers an extremely high-quality cut in diverse conditions:

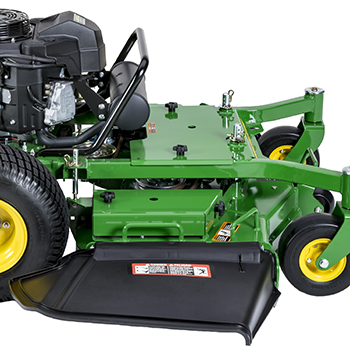

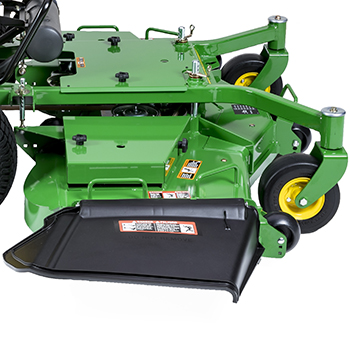

A high-quality polyethylene deflector gives an excellent finished appearance:

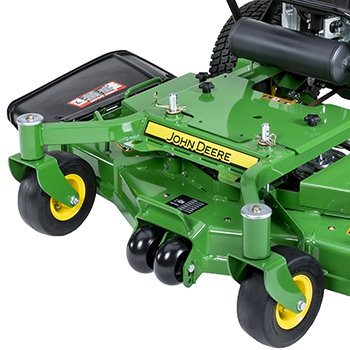

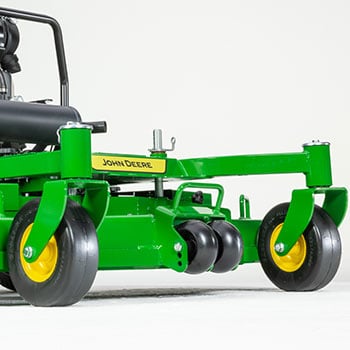

Caster wheels with flat-free tires contribute to a smooth, even cutting job:
A floating mower deck has several advantages over a fixed mower deck design:

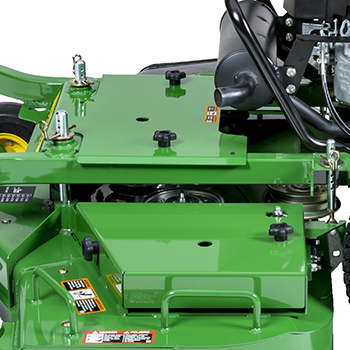

Mower cutting height can be set from 1.5 in. (3.8 cm) to 4.5 in. (11.4 cm) in 0.5-in. (1.3-cm) increments:

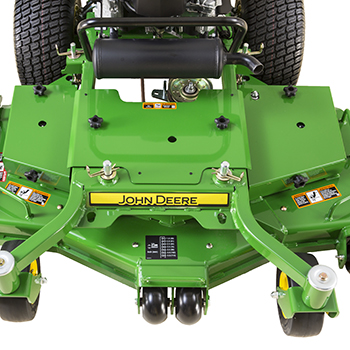

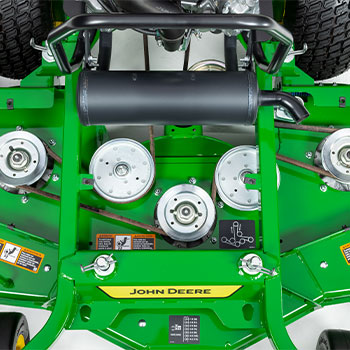

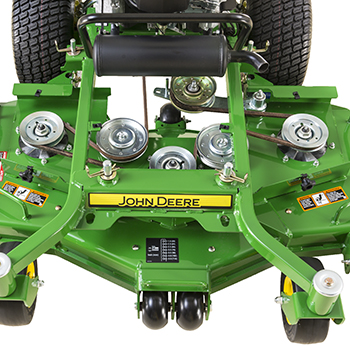

Mower deck shields are easily removed with hand knobs for access to the drive belt and other service points:
The grass catcher is designed to work with 36-in. (91-cm), 48-in. (122-cm), and 52-in. (132-cm) Mower Decks on John Deere Commercial Walk-Behind Mowers:
NOTE: The optional mulch and grass catcher attachments are not included in base equipment for the commercial walk-behind mower and must be ordered separately.
An optional mulching attachment and special mulching blades are available:
The grass catcher is designed to work with 36-in. (91-cm), 48-in. (122-cm), and 52-in. (132-cm) Mower Decks on John Deere Commercial Walk-Behind Mowers:
Model |
Warranty |
W36M, W48M |
24 months no hour limitation |
W36R, W48R, W52R, and W61R |
36 months or 1200 hours, whichever comes first First 24 months, no hour limitation |
John Deere warranty includes:
All parts, except tires and batteries (which are warranted under separate documents provided with each product), are warranted
Quick response (QR) codes link to owner information web pages
To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on frame (M-Series) or near handlebars (R-Series). The owner information web pages that include links to:
Engine service points are easy to reach:
Control rods and ends are plated to stop rust and corrosion:
Control linkages are positioned tightly to the main frame structure to protect them from damage, such as being bent that could impact the speed and tracking of the unit.
Transmission oil reservoirs are easy to access and fill.
The transmission oil filter is a replaceable spin-on type for easy service.
Transmission tow valves are easy to find and use.
Key Specs | |
Engine manufacturer/model | FS481V |
Engine power | At 3600 rpm 14.5 hp* 10.8 kW |
Fuel System | |
Fuel tank capacity | 5.4 U.S. gal. 20.4 L |
Key Specs | |
Mower deck Size | 48 in. 122 cm |
Blade tip speed | Approximately 18,000 fpm 5,486 m/min |
Drivetrain | |
Transmission | Two Hydro-Gear ZT-2800 unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock |
Travel Speed | |
Speed range | Forward, 0-6.5 mph 0-10.5 km/h Reverse, 0-3 mph 0-4.8 km/h |
Tires | |
Drive wheels | 18x8.5-8 |
Caster wheels | 9x3.5-4 semi-pneumatic |
Key Specs | |
Warranty | 24 month |
Engine | |
Manufacturer/model | FS481V |
Power | At 3600 rpm 14.5 hp* 10.8 kW |
Displacement | 36.8 cu in. 603 cc |
Cylinders | V-twin |
Operating speed | 3,600 rpm |
Ignition/Starter | Electronic/recoil start |
Valving | Overhead valves |
Oil filter | Standard |
Lubrication | Full pressure |
Governor | Flyweight all speed governor |
Electrical System | |
Hourmeter | Standard, digital |
Engine | |
Cooling system | Air cooled |
Air cleaner | Paper element with foam precleaner |
Muffler | Low tone |
Fuel System | |
Fuel type | Gasoline |
Fuel pump | Vacuum-operated diaphragm |
Fuel delivery system | Carburetor |
Fuel tank switch/Shut off valve | No |
Fuel pickup | Top draw |
Electrical System | |
Ignition | Electronic spark |
Operator presence starting system | PTO off, park brake engaged, speed lever in neutral |
Drivetrain | |
Shift mechanism | Ergonomic handles with spring-loaded neutral lock |
Travel Speed | |
Forward speeds | Infinite |
Reverse speeds | Infinite |
Dimensions | |
Height | 44.8 in. 114 cm |
Length with deck | 74 in. 188 cm |
Width | Deflector down - 62 in. 157 cm Deflector up for storage - 50 in. 127 cm |
Weight | 645 lb 293 kg |
Engine | |
Hour meter | Standard, digital |
An easy-to-install dual-wheel sulky increases the productivity of a W36M or W48M Commercial Walk-Behind Mower. A soft ride is delivered by the pneumatic tires. The large operator platform enables the operator to ride securely and comfortably.
Sunbelt Outdoor Products is a trademark of ATI Products, Inc.
An easy-to-install single-wheel sulky increases the productivity of a W36M or W48M Commercial Walk-Behind Mower. A soft ride is delivered by the pneumatic tire. The large operator platform enables the operator to ride securely and comfortably.
Sunbelt Outdoor Products is a trademark of ATI Products, Inc.
