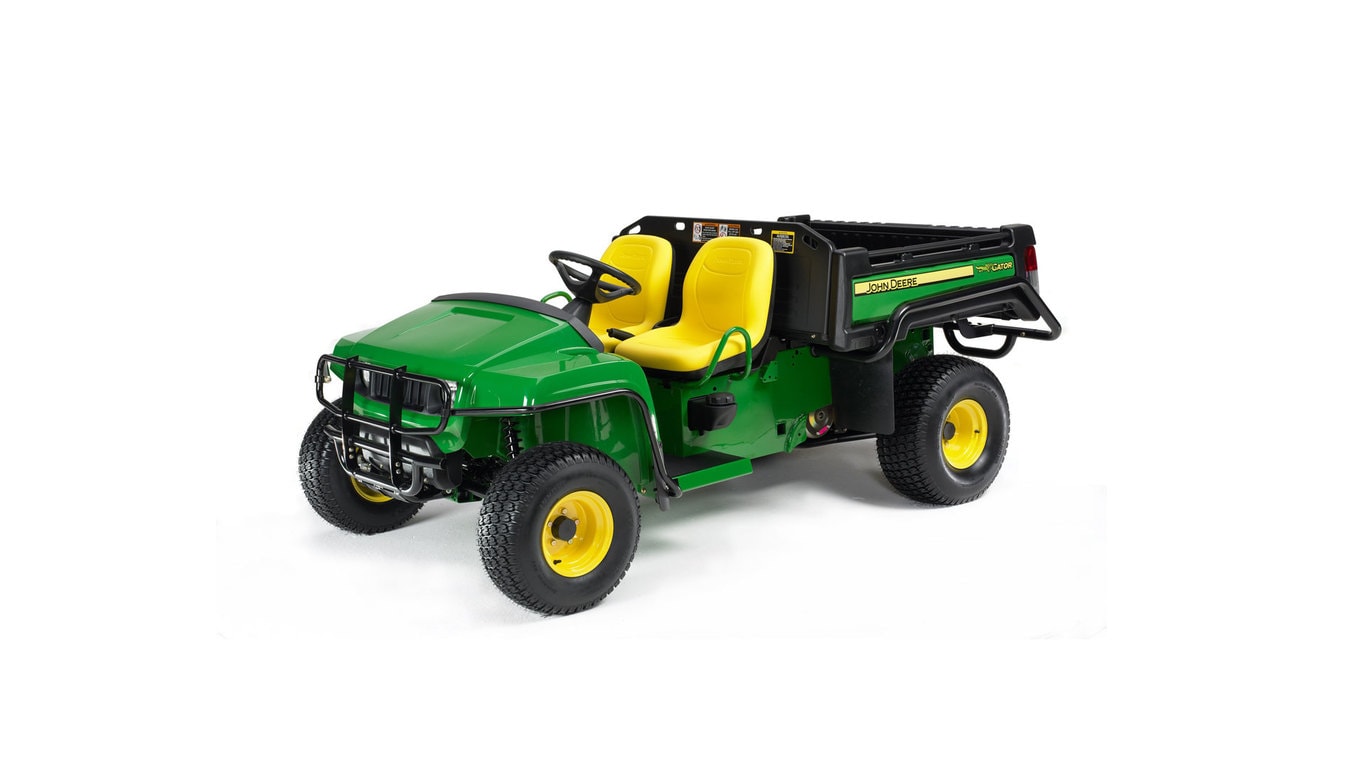

John Deere TX Turf

Variable-speed drive

Variable speed drive

The variable-speed drive consists of two clutches connected by a drive belt:

• Drive clutch is attached to and rotated by the engine.
• Driven clutch is attached to and drives the transaxle.

Features include:

• Infinite selection of speeds (0 km/h to 25 km/h [0 mph to 15.5 mph])
• No shifting necessary as operator increases speed
• Easy operation

Adjusts speed to the load to avoid bogging down when going up a hill or through challenging conditions because the wrong gear was selected.

Clutches are tuned to provide engine braking when going downhill if the throttle remains engaged.

Variable-speed drive functionality

Here is how the variable-speed drive works:

1. As the engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts the drive speed upward or downward, so the engine rpm remains constant at constant throttle position.

Transaxle

The transaxle is fully enclosed and runs in oil for reliability.

The differential design reduces scuffing of the turf during turns because the inside wheels turn slower than the outside wheels (other vehicles that have a solid axle shaft must skid the inside wheel when making a turn).

Helical gears are used to reduce transmission noise.

The neutral start safety interlock is provided for the engine ignition system.

Heavy-duty rear-axle housings

Large, sealed bearings are located inside the housing for better protection. One-piece forged axles are splined for maximum strength:

• Large sealed bearings for better protection and load-carrying capabilities
• Forged-splined shaft for increased torsional strength
• Nodular cast-iron housing for increased durability

Engine (shield removed for illustration)

The Gator© TX Turf is powered by a 13.5-hp*, 401-cc, single-cylinder, four-cycle gas engine.

*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

• Overhead valve design for greater efficiency and fuel economy
• Full-pressure lubrication system with a replaceable filter
• Replaceable single-element air cleaner with remote intake
• Large-capacity muffler for low sound levels
• Pedal start, which provides the ultimate in operator convenience
• Electronic ignition switch, which allows pedal start and provides reliable starts and less servicing
• Low fuel consumption and a large 18.9 L (5 U.S. gallon) fuel tank reduce fueling frequency; consumption at half load and average speed is 1.3 Lph (0.35 U.S. gph)

(A) Turf tires

One type of flotation tire is available for the Gator© TX Turf:

• (A) Turf tires

Product attributes:

• The turf tire is four-ply rated, and has an enhanced blend of material and more content that yields significantly more useful life
• This tread pattern gives all traditional series models a more aggressive showroom appeal
• Each tire combines superb puncture resistance with a tread designed for maximum traction and performance

All tires offer a wide profile and are designed to be inflated at a low psi.

• Provides good flotation and traction in mud, sand, and other wet or soft areas
• Flexes over bumps and ruts for a smoother, more comfortable ride
• Minimizes ground compaction to save turf and prevent ruts in soft ground

NOTE: John Deere recommends that all four or six (6x4 Gator© models) tires be the same. Although the wheel and tire sizes remain the same, current tires should not be mixed with existing tires. The existing tires will remain available to service existing Gator utility vehicles.

Engine (shield removed for illustration)

The Gator© TX Turf is powered by a 10.1-kW (13.5-hp)*, 401-cc (24.5-cu in.), single-cylinder, four-cycle gas engine.

*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

• Overhead valve design for greater efficiency and fuel economy
• Full-pressure lubrication system with a replaceable filter
• Replaceable single-element air cleaner with remote intake
• Large-capacity muffler for low sound levels
• Pedal start, which provides the ultimate in operator convenience
• Electronic ignition switch, which allows pedal start and provides reliable starts and less servicing
• Low fuel consumption and a large 18.9 L (5 U.S. gal.) fuel tank reduce fueling frequency; consumption at half load and average speed is 1.3 L/h (0.35 U.S. gph)
