Productivity
Productivity for aeration equipment is measured in two ways:
- Square feet per hour
- The number of holes per square foot

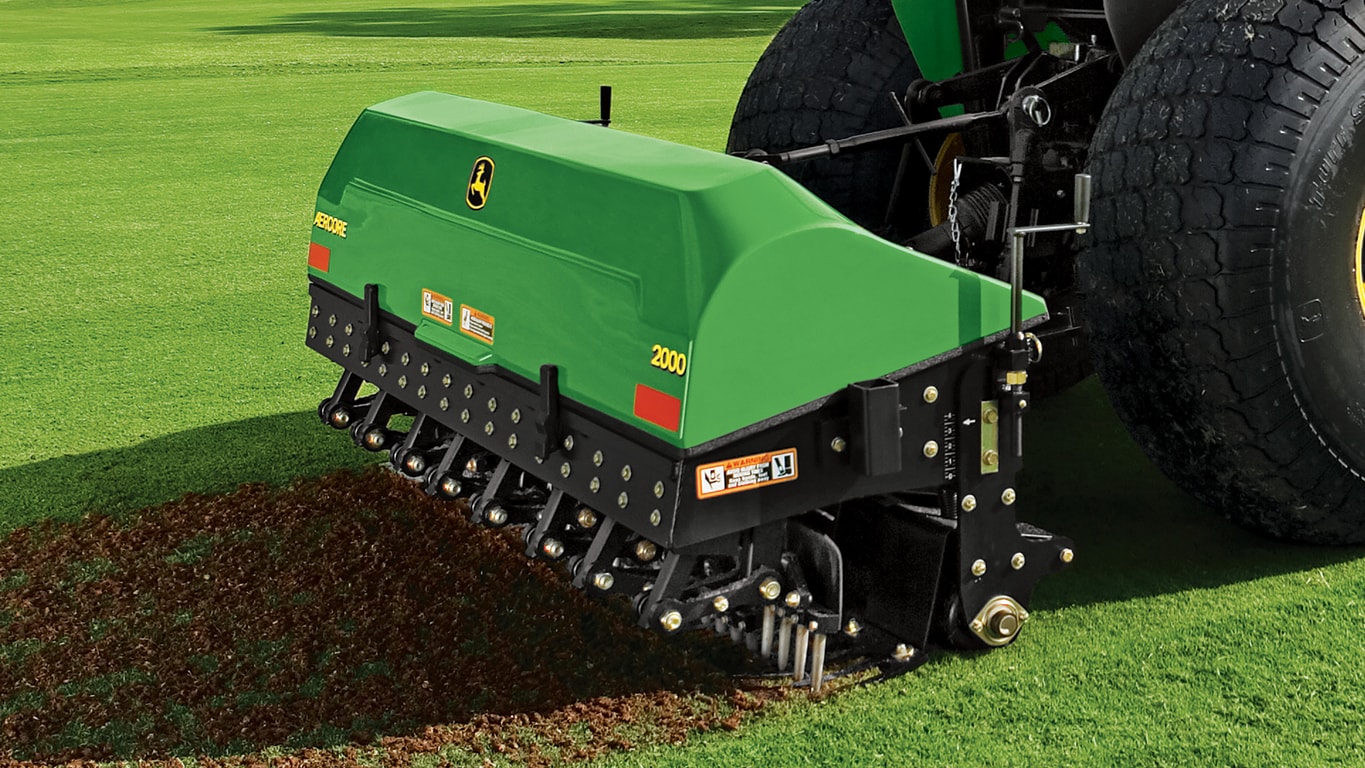

The Aercore© models excel in both areas. All of these aerators can pull as many as 30 cores per square foot. The number of holes per square foot is a variable number based on the ground speed of the tractor. Most competitors try to quote high numbers of square feet per hour.
Belt drive system
The Aercore© 2000, 1500, and 1000 use the same belt-driven design, which provides a quiet, smooth operation that does not require lubrication. A matched pair of fiberglass-reinforced belts provides long life and requires minimal adjustments.
Even the occasional belt replacement is made easy by having all the belt drive components located on top of the machine, where they are easily accessible. All the drive components are easily located for daily checks and routine maintenance. The entire drive assembly utilizes sealed bearings, so there is no need for daily lubrication.
The Aercore© 1000, 1500, and 2000 have a large, 6-in. (15.2-cm) diameter roller, which provides better ground clearance and reduces the potential for turf scuffing in undulating areas.
Tine holders
Four sizes of tine holders are available for the Aercore© aerators; the choice is determined by the turf's needs:
- 4X tine holders are suited for those who want larger tines that have the closest-possible side-to-side hole spacing. The 4X tine holders have a hole spacing of 2.4 in. (61 mm). There are two 4X tine holders—one for tines with a 7/8-in. (22.2-mm) mounting diameter and one for tines with a 3/4-in. (19.0-mm) mounting diameter.
- 3X tine holders are also for larger tines, but at a wider spacing. The 3X tine holders have a spacing of 3.2 in. (81.3 mm). There are also 3X tine holders—one for tines with a 7/8-in. (22.2-mm) mounting diameter and one for tines with a 3/4-in. (19.0-mm) mounting diameter.
- Mini tine holders are for those who want to poke a lot of small holes. Mini tine holders provide a hole spacing of 1-3/8 in. (34.5 mm). The mini tine holder is compatible with tines that have a 3/8-in. (9.65-mm) mounting diameter.
- Needle tine holders are for making the smallest-possible hole when aerating greens. Disruptions of play can be minimized by not having to pick up cores after aeration. Needle tine holders provide a hole spacing of 1-3/8 in. (34.5 mm). The needle tine holder is compatible with both the 0.20-in. (5-mm) and 0.31-in. (8-mm) tines. NOTE: These holders are for the L-shaped needle tines.
| Attachment number |
Attachment description |
Required quantities |
| |
|
1000 |
1500 |
2000 |
| BTC10180 |
(2) 4x tine holders for tines with 3/4-in. (19-mm)mounting diameter |
2 |
3 |
4 |
| BTC10181 |
(2) 4x tine holders for tines with 7/8-in. (22.2-mm) mounting diameter |
2 |
3 |
4 |
| BTC10182 |
(2) 3x tine holders for tines with 7/8-in. (22.2-mm) mounting diameter |
2 |
3 |
4 |
| BTC10183 |
(2) mini tine holders |
2 |
3 |
4 |
| BTC10184 |
(2) needle tine holders |
2 |
3 |
4 |
| BTC10185 |
3x turf guard base kit |
1 |
1 |
1 |
| BTC10186 |
3x turf guard add kit for 1500, 2000 |
|
1 |
2 |
| BTC10187 |
4x turf guard base kit |
1 |
1 |
1 |
| BTC10188 |
4x turf guard add kit for 1500, 2000 |
|
1 |
2 |
| BTC10189 |
Needle/mini tine base kit |
1 |
1 |
1 |
| BTC10190 |
Needle/mini tine add kit for 1500 |
|
1 |
2 |
*Part numbers in kit descriptions do not include hardware
Park stands
The park stand design allows quick and easy removal of the park stands for aerification and easy attachment for storage. No tools are needed to remove and attach the improved park stands.
These park stands are standard equipment according to the follow serial number ranges and are retrofittable to prior machines:
-
1000 Aercore© - TC1000X045001 and above
-
1500 Aercore - TC1500X045001 and above
-
2000 Aercore - TC2000X015001 and above
Aercore© 1000 service access
Serviceability is a key issue on aeration equipment, and the Aercore 1000, 1500, and 2000 have the best service access in the industry. As the photo illustrates, with the cover lifted up, the drive assembly is readily accessed.
The entire tine ram assembly can be removed in a matter of minutes by removing a single cap screw on the top end and four bolts on the rear frame. Tines can easily be changed from the rear of the machine in minutes, as well.
Access to the tine holders is also achieved from the rear of the machine, making it very convenient to alter the hole spacing with a different set of tine holders. Belt changes can be easily accomplished because they are readily accessible.
|
Key Specs
|
| Productivity |
2.4 x 2.0-in. (30 x 50 mm)
3722 sq m/hr
40,026 sq ft/hr
2.4 x 2.5-in. (30 x 64 mm)
4653 sq m/hr
50,033 sq ft/hr
2.4 x 3.0-in. (30 x 76 mm)
5584 sq m/hr
60,040 sq ft/hr
2.4 x 4.0-in. (30 x 101 mm)
7445 sq m/hr
80,053 sq ft/hr
2.4 x 4.5-in. (30 x 111 mm)
8376 sq m/hr
90,059 sq ft/hr
2.4 x 5.0-in. (30 x 127 mm)
9306 sq m/hr
100,066 sq ft/hr
|
|
Machine
|
| Coring width |
190.6 cm
77.5 in. |
| Coring depth |
Up to 100 mm
4 in. |
| Hole pattern |
Option 1
With 4X tine holders, variable 61x51-127 mm
2.4x2.0-5.0 in.
Option 2
With 3X tine holders, variable 81.3x50-125 mm
3.2x2.0-5.0 in.
|
|
Productivity
|
| 2.4 x 2.0-in. (30 x 50 mm) |
3722 sq m/hr
40,026 sq ft/hr |
| 2.4 x 2.5-in. (30 x 64 mm) |
4653 sq m/hr
50,033 sq ft/hr |
| 2.4 x 3.0-in. (30 x 76 mm) |
5584 sq m/hr
60,040 sq ft/hr |
| 2.4 x 4.0-in. (30 x 101 mm) |
7445 sq m/hr
80,053 sq ft/hr |
| 2.4 x 4.5-in. (30 x 111 mm) |
8376 sq m/hr
90,059 sq ft/hr |
| 2.4 x 5.0-in. (30 x 127 mm) |
9306 sq m/hr
100,066 sq ft/hr |
|
Tine Sizes, Open Side
|
| Option 1 |
25.4 mm
1 in. |
|
Tine Sizes, Solid
|
| Option 2 |
16 mm
0.625 in. |
| Option 3 |
10 mm
0.375 in. |
| Option 4 |
Cross with rib: 12.7 mm
0.5 in. |
| Option 5 |
Super Cross with rib: 19 mm
0.75 in. |
|
Tine Sizes, Open Side
|
| Option 6 |
12.7 mm
1/2 in. |
| Option 7 |
10 mm
0.375 in. |
| Option 8 |
0.25 in.
6.35 mm |
|
Dimensions
|
| Weight |
772 kg
1728 lb |
| Height |
990 mm
39 in. |
| Width |
2177 mm
85.7 in. |
| Length |
845 mm
33 in. |
Accessories and Attachments
Set of (2) 4X Tine Holders for Tines with 3/4 In. (19 mm) Mounting Diameter - BTC10180
Compatibility Information
BTC10180
For AC1000, AC1500, and AC2000 Golf Aeration. Does not include tines and turf guards.
BTC10181
For AC1500 and AC2000 Golf Aeration. Does not include tine and turf guards.
Set of (2) 4X Tine Holders for Tines with 7/8 In. (22.2 mm) Mounting Diameter - BTC10181
Turf Guard Add Kit for all 3X Tine Holders - BTC10186
Compatibility Information
BTC10186
For AC1500 and AC2000 Golf Aeration. Complete set of 3X Turf Guards for Aercore 2000 requires (1) BTC10185 and (2) BTC10186.
Turf Guard Add Kit for all 4X Tine Holders - BTC10188
Compatibility Information
BTC10188
For AC1000, AC1500, and AC2000 Golf Aeration. Complete set of Mini / Needle Tine Turf Guards for Aercore 1500 requires (1) BTC10189 and (1) BTC10190.
Turf Guard Add Kit for all Mini and Needle Tine Holders - BTC10190
Compatibility Information
BTC10190
For AC1500 and AC2000 Golf Aeration. Complete set of Mini/Needle Tine Turf Guards for Aercore 1500 requires (1) BTC10189 and (1) BTC10190.
Turf Guard Base Kit for all 3X Tine Holders - BTC10185
Compatibility Information
BTC10185
For AC1500 and AC2000 Golf Aeration. Complete set of 3X Turf Guards for Aercore 2000 requires (1) BTC10185 and (2) BTC10186.
Turf Guard Base Kit for all 4X Tine Holders - BTC10187
Compatibility Information
BTC10187
For AC1000, AC1500, and AC2000 Golf Aeration. Complete set of 4X Turf Guards for Aercore 1500 requires (1) BTC10185 and (1) BTC10186.
Turf Guard Base Kit for all Mini and Needle Tine Holders - BTC10189
Compatibility Information
BTC10189
For AC1500 and AC2000 Golf Aeration. Complete set of Mini/Needle Tine Turf Guards for Aercore 1500 requires (1) BTC10189 and (1) BTC10190.
Set of (2) 3X Tine Holders for Tines with 3/4 In. (19 mm) Mounting Diameter - BTC10182
Compatibility Information
BTC10182
For AC1000, AC1500, and AC2000 Golf Aeration. Does not include tines and turf guards.
3/8 In. Solid HD x 5 In. - TCU17346
Conventional solidtinesConventional solid tines, but with the long-life benefits of the HD design. Used when pulling a core is not necessary or desirable.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
3/8-in. HD solid | TCU17346 | Mini | 9 | 0.375 | 127 | 5 |
5/8-in. HD solid | TCU17338 | 3/4 | 15.9 | 0.625 | 127 | 5 |
5/8-in. HD solid | TCU17339 | 3/4 | 15.9 | 0.625 | 178 | 7 |
Super Quad HDT - TCU17348
Mini tinesAllow for a quicker recovery period for the playing surface. Pulls a core with minimal surface disruption.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
Mini tine HD | TCU17452 | Mini | 7.9 | 0.31 | 1.1 | 5.6 | 0.221 | 127 | 5 |
Mini tine HDT | TCU17453 | Mini | 7.9 | 0.31 | 1.2 | 5.5 | 0.218 | 130 | 5.25 |
Super mini HD | TCU17347 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 114 | 4.5 |
Super mini HDT | TCU17348 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 117 | 4.625 |
5/8 In. HD Solid - TCU17338
Conventional solidtines Conventional solid tines, but with the long-life benefits of the HD design. Used when pulling a core is not necessary or desirable.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
3/8-in. HD solid | TCU17346 | Mini | 9 | 0.375 | 127 | 5 |
5/8-in. HD solid | TCU17338 | 3/4 | 15.9 | 0.625 | 127 | 5 |
5/8-in. HD solid | TCU17339 | 3/4 | 15.9 | 0.625 | 178 | 7 |
5/8 In. HD Solid - TCU17339
Conventional solidtines Conventional solid tines, but with the long-life benefits of the HD design. Used when pulling a core is not necessary or desirable.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
3/8-in. HD solid | TCU17346 | Mini | 9 | 0.375 | 127 | 5 |
5/8-in. HD solid | TCU17338 | 3/4 | 15.9 | 0.625 | 127 | 5 |
5/8-in. HD solid | TCU17339 | 3/4 | 15.9 | 0.625 | 178 | 7 |
5/8 In. HD Tubular - TCU17335
Tubular top-eject coring tinesThe popular selection for coring on greens, tee boxes, approaches, and fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HD tubular top eject | TCU17343 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 140 | 5.5 |
1/2-in. HDT tubular top eject | TCU17344 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HD tubular top eject | TCU17355 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 140 | 5.5 |
5/8-in. HDT tubular top eject | TCU17356 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HD tubular top eject | TCU17454 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4-in. HDT tubular top eject | TCU17340 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
5/8 In. HDT Side-Eject - TCU17337
Side-eject tines - HDTSide-eject tines are useful in soils that tend to plug tubular tines, particularly fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerate will be comparable with the first green aerated.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HDT side eject | TCU17345 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HDT side eject | TCU17337 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HDT side-eject | TCU17341 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
5/8 In. HDT Tubular - TCU17336
Tubular top-eject coring tines The popular selection for coring on greens, tee boxes, approaches, and fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HD tubular top eject | TCU17343 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 140 | 5.5 |
1/2-in. HDT tubular top eject | TCU17344 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HD tubular top eject | TCU17355 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 140 | 5.5 |
5/8-in. HDT tubular top eject | TCU17356 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HD tubular top eject | TCU17454 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4-in. HDT tubular top eject | TCU17340 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
7/8 In. HD Side-Eject - TCU17342
Fairway side ejectSide-eject tine used for stickier soils that may tend to plug tubular tipped tines.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
13/16-in. HD side eject | TCU17456 | 3/4 | 18.5 | 0.73 | 3 | 12.5 | 0.49 | 152 | 6 |
13/16-in. HDT side eject | TCU17457 | 3/4 | 18.3 | 0.72 | 3 | 12.3 | 0.485 | 152 | 6 |
7/8-in. HD side eject | TCU17342 | 3/4 | 19.1 | 0.75 | 2.2 | 14.6 | 0.575 | 152 | 6 |
1-in. HD side eject | TCU17331 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT side eject | TCU17332 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
Bayonet Tine with 3/4 In. Rib HD - TCU17352
Bayonet tinesHigh surface area and little disruption to the playing surface. Holes stay open for a long time. Orient the bayonet with the direction of travel for optimum performance.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
Bayonet w/ 3/4-in. rib HD | TCU17352 | 3/4 | 19.1 | 0.75 | 178 | 7 |
Cross with 1/2 In. Rib HD - TCU17349
Cross tinesThe cross shape creates a hole with a large surface area compared to an equivalent-sized solid tine. The perimeter of the cross tine is greater than the perimeter around a comparable coring tine, impacting more surface area.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
Cross w/ 1/2-in. rib HD | TCU17349 | Mini | 12.7 | 0.5 | 140 | 5.5 |
Cross w/ 1/2-in. rib HDT | TCU17350 | Mini | 12.7 | 0.5 | 140 | 5.5 |
Super cross w/ 3/4-in. rib HD | TCU17351 | 3/4 | 19.1 | 0.75 | 146 | 5.75 |
Cross with 1/2 In. Rib HDT - TCU17350
Cross tines The cross shape creates a hole with a large surface area compared to an equivalent-sized solid tine. The perimeter of the cross tine is greater than the perimeter around a comparable coring tine, impacting more surface area.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
Cross w/ 1/2-in. rib HD | TCU17349 | Mini | 12.7 | 0.5 | 140 | 5.5 |
Cross w/ 1/2-in. rib HDT | TCU17350 | Mini | 12.7 | 0.5 | 140 | 5.5 |
Super cross w/ 3/4-in. rib HD | TCU17351 | 3/4 | 19.1 | 0.75 | 146 | 5.75 |
Mini tines Allow for a quicker recovery period for the playing surface. Pulls a core with minimal surface disruption.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
Mini tine HD | TCU17452 | Mini | 7.9 | 0.31 | 1.1 | 5.6 | 0.221 | 127 | 5 |
Mini tine HDT | TCU17453 | Mini | 7.9 | 0.31 | 1.2 | 5.5 | 0.218 | 130 | 5.25 |
Super mini HD | TCU17347 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 114 | 4.5 |
Super mini HDT | TCU17348 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 117 | 4.625 |
Super Cross with 3/4 In. Rib HD - TCU17351
Cross tines The cross shape creates a hole with a large surface area compared to an equivalent-sized solid tine. The perimeter of the cross tine is greater than the perimeter around a comparable coring tine, impacting more surface area.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Length (mm) | Length (in.) |
Cross w/ 1/2-in. rib HD | TCU17349 | Mini | 12.7 | 0.5 | 140 | 5.5 |
Cross w/ 1/2-in. rib HDT | TCU17350 | Mini | 12.7 | 0.5 | 140 | 5.5 |
Super cross w/ 3/4-in. rib HD | TCU17351 | 3/4 | 19.1 | 0.75 | 146 | 5.75 |
Mini tines Allow for a quicker recovery period for the playing surface. Pulls a core with minimal surface disruption.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
Mini tine HD | TCU17452 | Mini | 7.9 | 0.31 | 1.1 | 5.6 | 0.221 | 127 | 5 |
Mini tine HDT | TCU17453 | Mini | 7.9 | 0.31 | 1.2 | 5.5 | 0.218 | 130 | 5.25 |
Super mini HD | TCU17347 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 114 | 4.5 |
Super mini HDT | TCU17348 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 117 | 4.625 |
3/4 In. HDT Tubular - TCU17340
Tubular top-eject coring tines The popular selection for coring on greens, tee boxes, approaches, and fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HD tubular top eject | TCU17343 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 140 | 5.5 |
1/2-in. HDT tubular top eject | TCU17344 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HD tubular top eject | TCU17355 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 140 | 5.5 |
5/8-in. HDT tubular top eject | TCU17356 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HD tubular top eject | TCU17454 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4-in. HDT tubular top eject | TCU17340 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4 In. HDT Side-Eject - TCU17341
Side-eject tines - HDT Side-eject tines are useful in soils that tend to plug tubular tines, particularly fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerate will be comparable with the first green aerated.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HDT side eject | TCU17345 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HDT side eject | TCU17337 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HDT side-eject | TCU17341 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4 In. HD Tubular - TCU17454
Tubular top-eject coring tines The popular selection for coring on greens, tee boxes, approaches, and fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HD tubular top eject | TCU17343 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 140 | 5.5 |
1/2-in. HDT tubular top eject | TCU17344 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HD tubular top eject | TCU17355 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 140 | 5.5 |
5/8-in. HDT tubular top eject | TCU17356 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HD tubular top eject | TCU17454 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4-in. HDT tubular top eject | TCU17340 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4 In. (19mm) Tubular Tine - TCU18638
Conventional tubular coring tinesConventional tubular coring tines that can be used on greens, tees, approaches, and fairways.
MD - medium-duty tine. Lower-cost tines in comparison to the HD and HDT tines, but also shorter life.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
3/8-in. tubular top-eject MD | TCU17449 | 3/4 | 11.1 | 0.438 | 1.6 | 7.9 | 0.313 | 146 | 5.75 |
1/2-in. tubular top-eject MD | TCU17450 | 3/4 | 14.3 | 0.563 | 2.4 | 9.5 | 0.375 | 146 | 5.75 |
5/8-in. tubular top-eject MD | TCU17451 | 3/4 | 15.9 | 0.625 | 1.6 | 12.7 | 0.5 | 146 | 5.75 |
3/4-in. tubular top-eject MD | TCU18638 | 7/8 | 19.1 | 0.75 | 2.4 | 14.3 | 0.563 | 146 | 5.75 |
13/16 In. HDT Side-Eject - TCU17457
Fairway side eject Side-eject tine used for stickier soils that may tend to plug tubular tipped tines.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
13/16-in. HD side eject | TCU17456 | 3/4 | 18.5 | 0.73 | 3 | 12.5 | 0.49 | 152 | 6 |
13/16-in. HDT side eject | TCU17457 | 3/4 | 18.3 | 0.72 | 3 | 12.3 | 0.485 | 152 | 6 |
7/8-in. HD side eject | TCU17342 | 3/4 | 19.1 | 0.75 | 2.2 | 14.6 | 0.575 | 152 | 6 |
1-in. HD side eject | TCU17331 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT side eject | TCU17332 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
13/16 In. HD Side-Eject - TCU17456
Fairway side eject Side-eject tine used for stickier soils that may tend to plug tubular tipped tines.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
13/16-in. HD side eject | TCU17456 | 3/4 | 18.5 | 0.73 | 3 | 12.5 | 0.49 | 152 | 6 |
13/16-in. HDT side eject | TCU17457 | 3/4 | 18.3 | 0.72 | 3 | 12.3 | 0.485 | 152 | 6 |
7/8-in. HD side eject | TCU17342 | 3/4 | 19.1 | 0.75 | 2.2 | 14.6 | 0.575 | 152 | 6 |
1-in. HD side eject | TCU17331 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT side eject | TCU17332 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1/4 In. (6 mm) Open Sided Mini Tine - TCU17452
Mini tines Allow for a quicker recovery period for the playing surface. Pulls a core with minimal surface disruption.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
Mini tine HD | TCU17452 | Mini | 7.9 | 0.31 | 1.1 | 5.6 | 0.221 | 127 | 5 |
Mini tine HDT | TCU17453 | Mini | 7.9 | 0.31 | 1.2 | 5.5 | 0.218 | 130 | 5.25 |
Super mini HD | TCU17347 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 114 | 4.5 |
Super mini HDT | TCU17348 | Mini | 10.7 | 0.42 | 1.5 | 7.6 | 0.3 | 117 | 4.625 |
1/2 In. HDT Tubular - TCU17344
Tubular top-eject coring tines The popular selection for coring on greens, tee boxes, approaches, and fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HD tubular top eject | TCU17343 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 140 | 5.5 |
1/2-in. HDT tubular top eject | TCU17344 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HD tubular top eject | TCU17355 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 140 | 5.5 |
5/8-in. HDT tubular top eject | TCU17356 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HD tubular top eject | TCU17454 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4-in. HDT tubular top eject | TCU17340 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
1/2 In. HDT Side-Eject - TCU17345
Side-eject tines - HDT Side-eject tines are useful in soils that tend to plug tubular tines, particularly fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerate will be comparable with the first green aerated.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HDT side eject | TCU17345 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HDT side eject | TCU17337 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HDT side-eject | TCU17341 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
1/2 In. HD Tubular - TCU17343
Tubular top-eject coring tines The popular selection for coring on greens, tee boxes, approaches, and fairways.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
Side-eject fairway tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1/2-in. HD tubular top eject | TCU17343 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 140 | 5.5 |
1/2-in. HDT tubular top eject | TCU17344 | 3/4 | 13.3 | 0.523 | 2.2 | 8.8 | 0.346 | 146 | 5.75 |
5/8-in. HD tubular top eject | TCU17355 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 140 | 5.5 |
5/8-in. HDT tubular top eject | TCU17356 | 3/4 | 16 | 0.63 | 1.9 | 12.2 | 0.481 | 146 | 5.75 |
3/4-in. HD tubular top eject | TCU17454 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
3/4-in. HDT tubular top eject | TCU17340 | 7/8 | 19.1 | 0.75 | 2.7 | 13.7 | 0.54 | 159 | 6.25 |
1 In. HDT Tubular Top-Eject - TCU17334
Fairway tubular/top ejectHaving compaction problems on the fairways? These tines pull a larger core than any other John Deere tine.
HDT -- the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tines will retain their length during their working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1-in. HD tubular top eject | TCU17333 | 7/8 | 25.4 | 1 | 5.1 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT tubular top eject | TCU17334 | 7/8 | 25.4 | 1 | 5.1 | 15.2 | 0 .6 | 140 | 5.5 |
1 In. HDT Side-Eject - TCU17332
Fairway side eject Side-eject tine used for stickier soils that may tend to plug tubular tipped tines.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
13/16-in. HD side eject | TCU17456 | 3/4 | 18.5 | 0.73 | 3 | 12.5 | 0.49 | 152 | 6 |
13/16-in. HDT side eject | TCU17457 | 3/4 | 18.3 | 0.72 | 3 | 12.3 | 0.485 | 152 | 6 |
7/8-in. HD side eject | TCU17342 | 3/4 | 19.1 | 0.75 | 2.2 | 14.6 | 0.575 | 152 | 6 |
1-in. HD side eject | TCU17331 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT side eject | TCU17332 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1 In. HD Tubular Top-Eject - TCU17333
Fairway tubular/top eject Having compaction problems on the fairways? These tines pull a larger core than any other John Deere tine.
HDT -- the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tines will retain their length during their working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject fairway tines
Side-eject HDT tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
1-in. HD tubular top eject | TCU17333 | 7/8 | 25.4 | 1 | 5.1 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT tubular top eject | TCU17334 | 7/8 | 25.4 | 1 | 5.1 | 15.2 | 0 .6 | 140 | 5.5 |
1 In. HD Side-Eject - TCU17331
Fairway side eject Side-eject tine used for stickier soils that may tend to plug tubular tipped tines.
HDT - the highest quality of tine in the range. A hardened tip is joined to a high-quality body. These tines are exceptionally long lasting. Furthermore, the tine will retain its length during its working life, so the holes on the last green aerated will be comparable with the first green aerated.
HD - the same high-quality body as the HDT, but without the high-specification hardened tip. Tine length remains more consistent than conventional tines.
Variables such as soil conditions and operator behavior will influence actual life expectancy.
Please click on the links below for information on other high-quality John Deere tines:
HD/HDT tubular tines
Side-eject HDT tines
Tubular fairway tines
Medium-duty tubular tines
Mini tines
Solid cross tines
Conventional solid tines
Bayonet tines
Needle tines
Description | Part number | Mount | External diameter (mm) | External diameter (in.) | Wall thickness (mm) | Internal diameter (mm) | Internal diameter (in.) | Length (mm) | Length (in.) |
13/16-in. HD side eject | TCU17456 | 3/4 | 18.5 | 0.73 | 3 | 12.5 | 0.49 | 152 | 6 |
13/16-in. HDT side eject | TCU17457 | 3/4 | 18.3 | 0.72 | 3 | 12.3 | 0.485 | 152 | 6 |
7/8-in. HD side eject | TCU17342 | 3/4 | 19.1 | 0.75 | 2.2 | 14.6 | 0.575 | 152 | 6 |
1-in. HD side eject | TCU17331 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
1-in. HDT side eject | TCU17332 | 7/8 | 25 | 1 | 4.9 | 15.2 | 0.6 | 140 | 5.5 |
