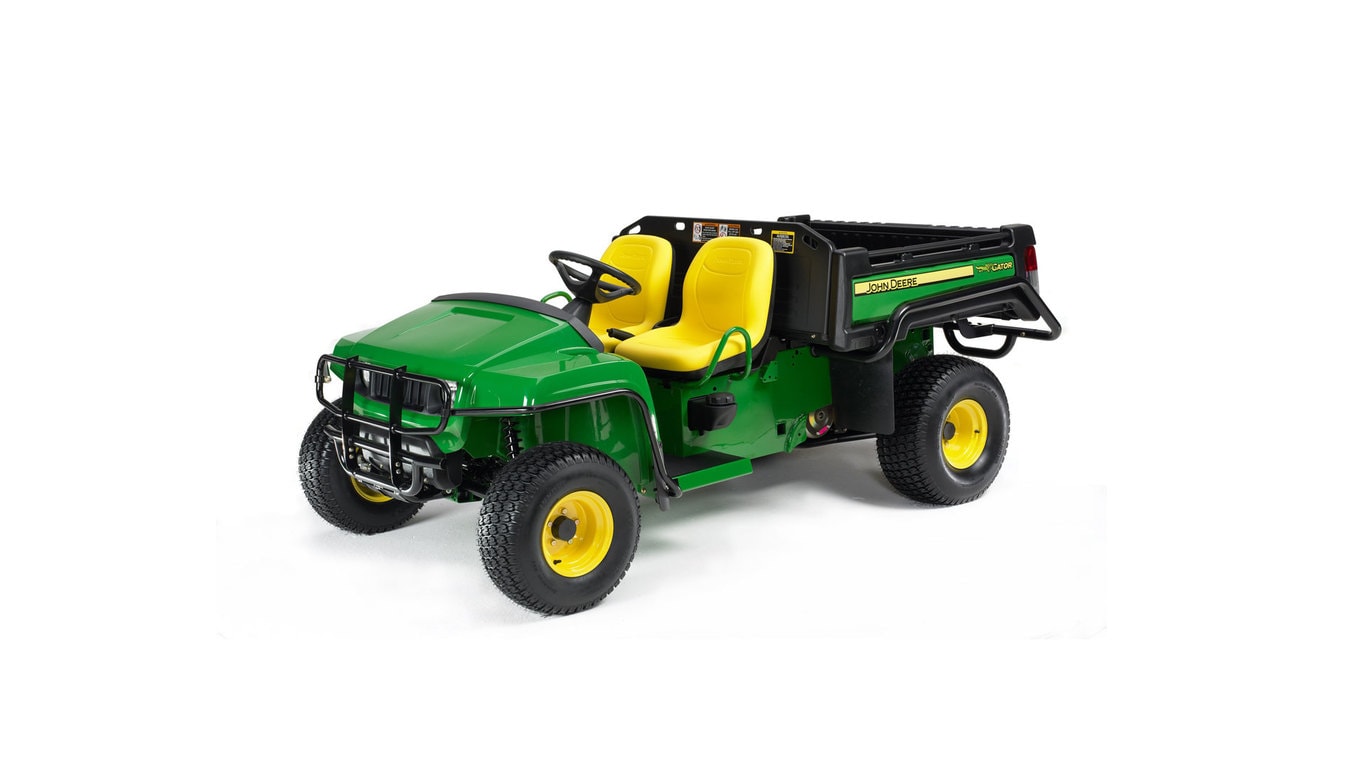

John Deere TX 4x2

DEBUG Ind: Gator Utility Vehicles, Cat: Gator Utility Vehicles, SubCat: Traditional Gators, SubSubCat: Tx 4x2 Utility Vehicle
Feature Overview
John Deere TX 4x2
  • Best in class work capability
  • Wide stance for enhanced stability
  • Best in class cargo box
Engine power 11.6 kW / 15.5 hp
Front suspension Independent spring-over-shock, single A-arm
Rear suspension Semi-independent coil over shock (COS) system
Feature Overview
John Deere TX 4x2
  • Best in class work capability
  • Wide stance for enhanced stability
  • Best in class cargo box
Engine power 11.6 kW / 15.5 hp
Front suspension Independent spring-over-shock, single A-arm
Rear suspension Semi-independent coil over shock (COS) system
Features

Powered by 11.6-kw (15.5-hp)*, 675-cc (41.2-cu in.), V-twin, four-cycle gas engine

TX engine (shield removed for illustration) TX engine (shield removed for illustration)

The Gator© TX 4X2 is powered by an 11.6-kW (15.5-hp)*, 675-cc (41.2-cu in.), V-twin, four-cycle gas engine.



*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.



The model year 2015 TX (49 state) and beyond receives evaporative emissions components to meet Environmental Protection Agency (EPA) Clean Air Act requirements.

Engine features

This engine has several performance and reliability features:

  • Overhead valve design for greater efficiency and fuel economy
  • Full-pressure lubrication system
    • Oil filter is standard on the Gator TX 4X2 engine
  • Replaceable single-element air cleaner with remote intake
  • Large-capacity spark-arresting muffler
  • Low fuel consumption and large 18.9 L (5 U.S. gal.) fuel tank;
    fuel consumption at half load and average speed is as follows:
    • Gator TX 4X2: 1.3 L/hr (0.35 U.S. gph)
  • EPA compliant

Gator© TX 4X2 Gator© TX 4X2

Power is transmitted from the engine, through a continuously variable clutch system, to a transaxle. Power is transmitted from the transaxle directly to the rear axle.



Key elements of the drive system are as follows:

Variable-speed drive



The variable-speed drive consists of two clutches connected by a drive belt:

  • Drive clutch is attached to and rotated by the engine.
  • Driven clutch is attached to and drives the transaxle.

Features include:

  • Infinite selection of speeds (0 km/h to 32 km/h [0 mph to 20 mph])
  • No shifting necessary as operator increases speed
  • Adjusts speed to the load to avoid bogging down when going up a hill or through challenging conditions because the wrong gear was selected
Variable-speed drive Variable-speed drive

How the variable-speed drive works:

  1. As the engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
  2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
  3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
  4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts the drive speed upward or downward, so the engine rpm remains constant at constant throttle position.

Transaxle



The transaxle is fully enclosed and runs in oil for reliability.



Helical gears are used for quiet operation.



Differential design reduces scuffing of the turf during turns because the inside wheels turn slower than the outside wheels (vehicles that have a solid axle shaft must skid the inside wheel when making a turn).



Traction assist (differential lock) is built into the transaxle:

  • Allows locking the rear drive wheels together
  • Provides increased traction in tough spots

A neutral start safety interlock is provided for the engine ignition system.



Heavy-duty rear axle housings



One-piece forged axles are splined for maximum strength.

  • Large, sealed bearings for better protection and load-carrying capabilities
  • Forged-splined shaft for increased torsional strength
  • Nodular cast-iron housing for increased durability

Hydraulic disc brakes Hydraulic disc brakes
  • Four-wheel hydraulic disc brakes
  • Braided stainless-steel brake lines with banjo fittings for increased durability
  • Optional hand-lever-operated mechanical park brake system
  • Integral cast-iron rotors with wheel hubs for extended life
  • Automotive-style dual-circuit master cylinder with a see-through reservoir
  • Larger front and rear brake calipers with sintered metallic brake pads
  • Smooth-feeling engagement

Automotive-type rack and pinion steering features include:

  • Smooth, responsive operation
  • Tight turning circle for excellent maneuverability
    • 2.74 m (9 ft) for Gator© TX 4X2
  • Completely sealed for long life
Front suspension
Automotive-type rack and pinion steering Automotive-type rack and pinion steering

Fully independent, single A-arm suspension features include:

  • 127 mm (5 in.) of total travel for better off-road control
  • Spring-over-shock dampening
  • Cast nodular iron 25-mm (1-in.) diameter spindles
  • Automotive-type maintenance-free rubber torsional pivots for long life and quiet operation
Rear suspension
Rear suspension Rear suspension

The semi-independent coil over shock (COS) rear suspension system provides a softer ride.


Stable design Stable design

A low center of gravity gives excellent stability.



The cargo-box load is centered over the rear wheels for balanced weight distribution.



NOTE: Shown with the optional front bumper, brush guard, and floor mat.


(A) AT tires (A) AT tires
(B) Turf tires (B) Turf tires

Four types of flotation tires are available for the Gator© TX 4X2:

  • (A) AT (all terrain) tires
  • (B) Turf tires

Product attributes:

  • Both options, turf and AT, are 4-ply rated, and have an enhanced blend of material and more content that yields significantly more useful life
  • These tread patterns give a more aggressive showroom appeal
  • Each tire combines puncture resistance with a tread designed for maximum traction and performance



All tires offer a wide profile and are designed to be inflated at a low psi.

  • Provides good flotation and traction in mud, sand, and other wet or soft areas
  • Flexes over bumps and ruts for a smoother, more comfortable ride
  • Minimizes ground compaction to save turf and prevent ruts in soft ground
Wheels/tires

Code

TX 4X2

AT, front (two 22x9.5-10 4PR)
AT, rear (two 24x10.5-10 4PR)

1016

X

Turf, front (two 22x9.50-10 4PR)

Turf, rear (two 24x12.00-10 4PR)

1015

X

NOTE: John Deere recommends that all four or six (6x4 Gator© models) tires be the same. Although the wheel and tire sizes remain the same, current tires should not be mixed with existing tires. The existing tires will remain available to service existing Gator utility vehicles.


Side-by-side bucket seating Side-by-side bucket seating

Numerous features offer the operator and passenger a comfortable ride and provide many operating conveniences.

  • Side-by-side bucket seating provides room for one operator and one passenger
  • Hip restraints serve as a handhold and help to keep the operator and passenger in their seats over rough terrain
  • Both seats tilt forward for dry storage and ease of service
  • Choice of adjustable or non-adjustable driver's seat
  • Hour-meter is standard to assist in maintaining regular service intervals
  • Integrated cupholders
  • 12-V outlet located on instrument panel
Convenient walk-through operator station Convenient walk-through operator station

The control location and walk-through platform provide easy entry/exit for operator and passenger.


NOTE: Shown above with the optional front bumper, brush guard, front fender guard, and floor mat.



NOTE: The front bumper is standard on the Gator© TH 6X4 Diesel.

  • All models feature a park brake indicator light, hour-meter, and tank-mounted fuel gauge as standard equipment
  • Traction assist (differential lock) is hand operated and conveniently located between the operator and passenger seats
  • Traction assist indicator light (Gator TH 6X4 only)
  • Glove box is located in the dash to provide a convenient storage area for small tools and the operator's manual
  • Grab bar is provided for the passenger
  • Center-mounted key switch
  • Additional storage is provided between the seats

Rear receiver hitch (shown on TX 4X2) Rear receiver hitch (shown on TX 4X2)

The rear receiver hitch is standard equipment on the Gator© TX 4X2 and TX Turf.

  • Versatile hitch accepts a 31.75-mm (1.25-in.) drawbar
  • No ball mount comes with the hitch

Deluxe cargo box Deluxe cargo box
Deluxe cargo box with tailgate lowered Deluxe cargo box with tailgate lowered

The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust, dents, and reduces noise.

Deluxe cargo box tailgate
Tailgate handle Tailgate handle
Tailgate lowered to 150 degrees Tailgate lowered to 150 degrees

The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.



The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.

Deluxe cargo box tilt
Integrated handle for manual cargo box tilt Integrated handle for manual cargo box tilt
Gas assist (A) and prop rod (B) Gas assist (A) and prop rod (B)

The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist (A).



A prop rod (B) is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.

Integrated tie-down points
Integrated tie-down point in cargo box bed Integrated tie-down point in cargo box bed
Additional tie-down points (TH 6X4 shown) Additional tie-down points (TH 6X4 shown)

The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

  • Four corners inside the cargo box bed
  • Four points on the load guard directly behind the operator station (A)
  • Tie-down bars on either side of the cargo box (B)
  • Six points on the underside of the cargo box frame (circled)
Converting deluxe cargo box to a flat bed
Deluxe cargo box converted to a flat bed Deluxe cargo box converted to a flat bed

The deluxe cargo box easily converts to a flat bed. The flatbed configuration allows loading larger cargo.

Optional accessories
Brake light and taillight Brake light and taillight
Bed mat protects the steel floor from dents Bed mat protects the steel floor from dents

Optional accessories for the deluxe cargo box include:

  • Factory-installed brake light and taillight
  • Factory-installed spray-in liner (not shown)
    • Improves skid resistance and surface abrasion protection
  • Cargo box bed mat
  • Cargo box power lift (not shown)
Specifications


Box capacity

Volume 0.46 m3 (16.4 cu ft)
Weight 272 kg (600 lb)





Box dump angles (degrees)

Manual dump 43 degrees +/-1
Power dump 43 degrees +/-1


CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.


Specs
Key Specs
Engine power 11.6 kW
15.5 hp
Dimensions / Capacities
Cargo box dimensions 1143 x 305 x 1320 mm
45 x 12 x 52 in.
Cargo box capacity 272 kg
600 lb
Towing capacity 454 kg
1000 lb
Key Specs
Front suspension Independent spring-over-shock, single A-arm
Rear suspension Semi-independent coil over shock (COS) system
Drivetrain
Final drive Fully enclosed; oil bath
Four wheel drive No
Dimensions / Capacities
Fuel capacity 18.9 L
5 U.S. gal.
Brakes
Type All-wheel hydraulic disc
Engine
Displacement 675 cc
41.2 cu in.
Power 11.6 kW
15.5 hp
Cooling system Air
Drivetrain
Transmission Continuously Variable Transmission (CVT)
Traction assist Mechanically activated differential lock
Descent control No
Tires / Wheels
Front Two 22x9.5-10 4PR all-terrain on steel wheels
Two 22x9.5-10 4PR turf on steel wheels
Rear Two 24x10.5-10 4PR all-terrain on steel wheels
Two 24x12-10 4PR turf on steel wheels
Brakes
Park brake Rear mechanical disk, hand operated
Dimensions / Capacities
Wheelbase 1955.8 mm
77 in.
Front tread centers 1270 mm
50 in.
Rear tread centers 1219.3 mm
48 in.
Vehicle weight 501 kg
1105 lb
Height 1108 mm
43.6 in.
Width 1525 mm
60 in.
Length 2745.7 mm
108.1 in.
Ground clearance 145 mm
5.7 in.
Payload capacity 454 kg
1000 lb
Hitch Standard: receiver hitch, 5.1 cm
2 in.
Features
Color Green/yellow
Power steering No
Battery 340 Cold Cranking Amps @ -18C (0F)
Alternator 16.6 @ 3700 rpm (regulated) amp
Instrumentation Fuel gauge, hour meter
Storage Cup holders, glove box
Seating Bucket seats
Additional information
Country of Manufacture U.S.
Dimensions / Capacities
Cargo box capacity (weight) 272 kg
600 lb
Weight Dry: 501 kg
1105 lb
Tread centers Front: 1270 mm
50 in.
Rear: 1220 mm
48 in.
Features
Battery / Alternator / Power port Battery: 12 V 340 CCA
Alternator: 16.6 amp
DC outlet: 12 V
Additional information
Date collected 8-Jun-22
Specials

3.9% APR fixed rate for 84 months†

on New Gator™ Utility Vehicles

Offer Duration
October 26, 2024 - February 03, 2025

More Details On This Offer

Some restrictions apply. Contact us for details.

Order Online for Free Delivery†

on Gator™ Utility Vehicles

Offer Duration
October 26, 2024 - February 03, 2025

More Details On This Offer

Some restrictions apply. Contact us for details.

*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
