Brake type | Dual rear wheel mechanical drum |
Front suspension | Independent, spring over shock, single A-arm |
Cargo capacity | 272 kg / 600 lb |
Cargo box volume | 460 L / 16.4 cu ft |
Brake type | Dual rear wheel mechanical drum |
Front suspension | Independent, spring over shock, single A-arm |
Cargo capacity | 272 kg / 600 lb |
Cargo box volume | 460 L / 16.4 cu ft |

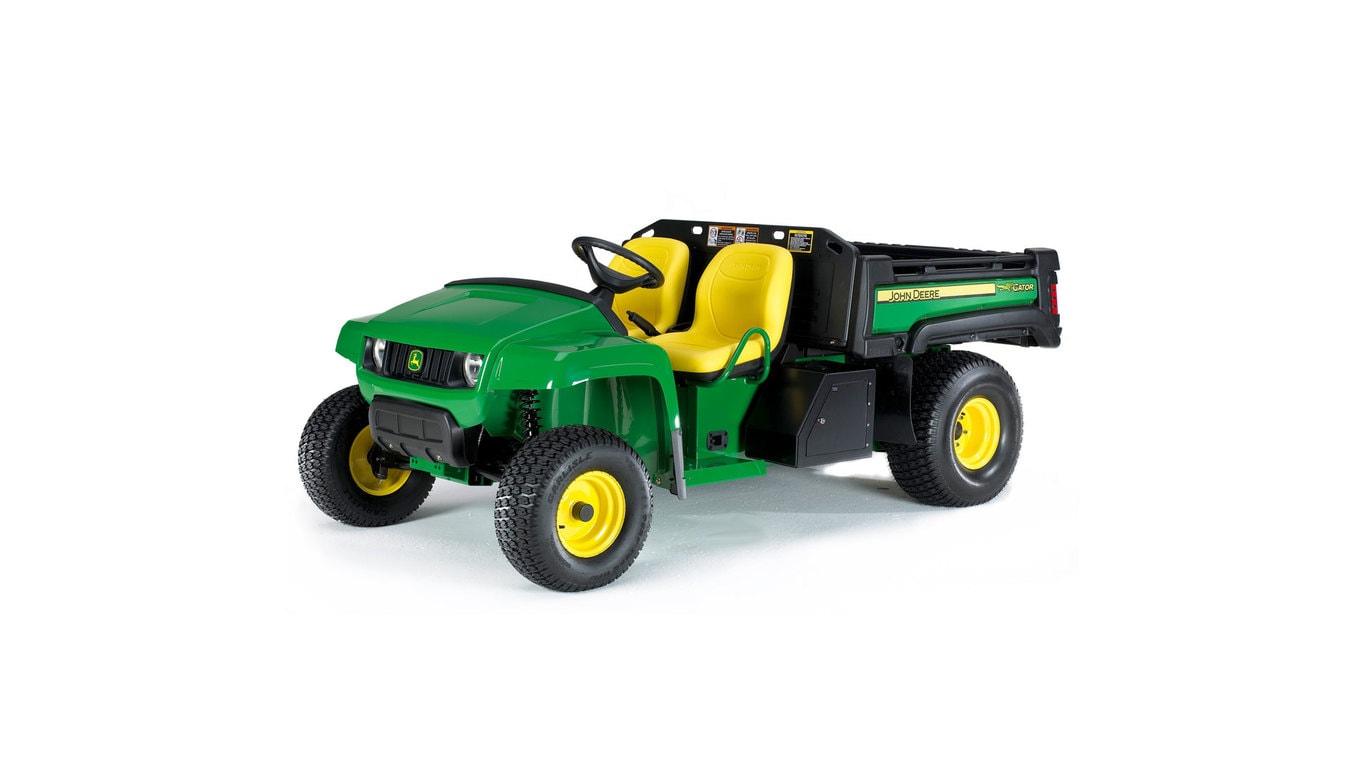

The Gator© TE Utility Vehicle features a motor powered by a 48-V electrical system.
Through the use of a separately excited controller, the Gator TE offers the following unique features:
Power is transferred through a transaxle with helical gearing for low gear noise.
The Gator© TE is equipped with an Underwriters Laboratories Inc. (UL) approved onboard charger. Located under the passenger seat, the onboard charger allows the user to charge their TE from any location containing a wall receptacle. This saves the user time, as they do not have to travel back to the maintenance area for charging; charging can be done anywhere.
The onboard charger is designed with a wide input voltage range from 85 - 265 VAC, making it capable for worldwide application. Power factor correction and 12A maximum current draw ensures the charger will work reliably from any power outlet in the world, even through surges and sags.
Improved run time
The onboard charger features advanced temperature sensor technology that improves the information flow coming in and out of charger. The batteries are allowed to charge more fully than they were ever able to before; this can improve run time by up to 75 percent (depending on use cycle).
Important safety features of the charger are as follows:
The Gator TE is equipped with an external AC input IEC connector on the driver side of the vehicle to allow the flexibility of where the charger cord is stored. There is a multicolor LED indicator for low charge, more than 80 percent charge, full charge, or fault.
The heavy-duty design with arc-welded uni-body construction provides strength and manufacturing tolerance control.
Many of the Gator© TE's standard features offer the operator and passenger a smooth, comfortable ride.
The Gator TE's controls and improved walk-through platform provide easy entry/exit for both operator and passenger.
The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust and dents and reduces noise.
The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.
The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.
The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist (A). Optional factory- or dealer-installed cargo box power lift is also available.
A prop rod (B) is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.
The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:
The deluxe cargo box easily converts to a flat bed. The flatbed configuration allows loading larger cargo.
NOTE: Cargo box shown on Gator TX. Gator TE rear axle configuration is different.
Optional accessories for the deluxe cargo box include:
Specifications
Box capacity |
|
Volume | 0.46 m3 (16.4 cu ft) |
Weight | 227 kg (500 lb) |
Box dump angles (degrees) |
|
Manual dump | 43 degrees +/-1 |
Power dump | 43 degrees +/-1 |
CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
The Gator© TE Utility Vehicle features a motor powered by a 48-V electrical system.
Through the use of a separately excited controller, the Gator TE offers the following unique features:
Power is transferred through a transaxle with helical gearing for low gear noise.
Drive system | |
Electrical system | 48 V 12 kWh Eight Trojan T-105 batteries |
Key Specs | |
Brake type | Dual rear wheel mechanical drum |
Drive system | |
Speed | 20.92 km/h 0-13 mph (Can be adjusted with handheld programmer) |
Key Specs | |
Front suspension | Independent, spring over shock, single A-arm |
Dimensions | |
Payload capacity | 408 kg 900 lb |
Towing capacity | 272 kg 600 lb |
Key Specs | |
Cargo capacity | 272 kg 600 lb |
Cargo box volume | 460 L 16.4 cu ft |
Charger type | High frequency switched-mode |
Drive system | |
Motor | Wound direct drive, 48 VDC separately excited |
Controller | Separately excited, maximum 400 amp Anti-roll away braking and alarm, anti-stall motor protection, regenerative braking, diagnostic indicator, full torque, reduced speed reverse |
Transaxle | 16.99:1 ratio with helical gearing |
Gear selection | Forward, neutral, reverse |
Torque converter | N/A |
Battery | Trojan T-105 |
Extended run time battery | Not available |
Charger | |
Type | High frequency switched-mode |
Brakes | |
Park brake | Hand operated, multi-latch |
Suspension and Steering | |
Front | Total Travel 127 mm 5 in. Independent, spring over shock, single A-arm |
Rear | Total travel Not available Two high-flotation, low pressure tires |
Steering | Rack and pinion |
Dimensions | |
Height | 1130 mm 44.5 in. |
Cargo box | |
Width | Inside: 1321 mm 52 in. |
Length | 1143 mm 45 in. |
Dimensions | |
Ground Clearance | Under transaxle 196 mm 7.7 in. Under foot platform 185 mm 7.3 in. |
Front tread centers | 1270 mm 50 in. |
Rear tread centers | 1219 mm 48 in. |
Wheelbase | 194 cm 76.4 in. |
Vehicle weight | 630 kg 1389 lb |
Turning clearance circle | 6.7 m 22 ft |
Seats | |
Seating capacity | Two |
Seat adjustment | Optional |
Cargo box | |
Depth | 304.8 mm 12 in. |
Capacity | 272 kg 600 lb |
Volume | 460 L 16.4 cu ft |
Height above ground | 762 mm 30 in. |
Material | Polypropylene side panels and tailgate; steel floor and load guard |
Tailgate | Hinged at bottom, removable; side panels are removable |
Dump | Manual, power lift (optional) |
Charger | |
Input voltage | 120 VAC 60 Hz |
Input amperage (Nominal) | 12 amp Breaker maximum: 15 amp |
Output voltage | 48 VDC nominal |
Output amperage | 21 ADC |
AC input connector | IEC320/C14 |
AC power cord | 2.4 m 94 in. |
