Feature Overview

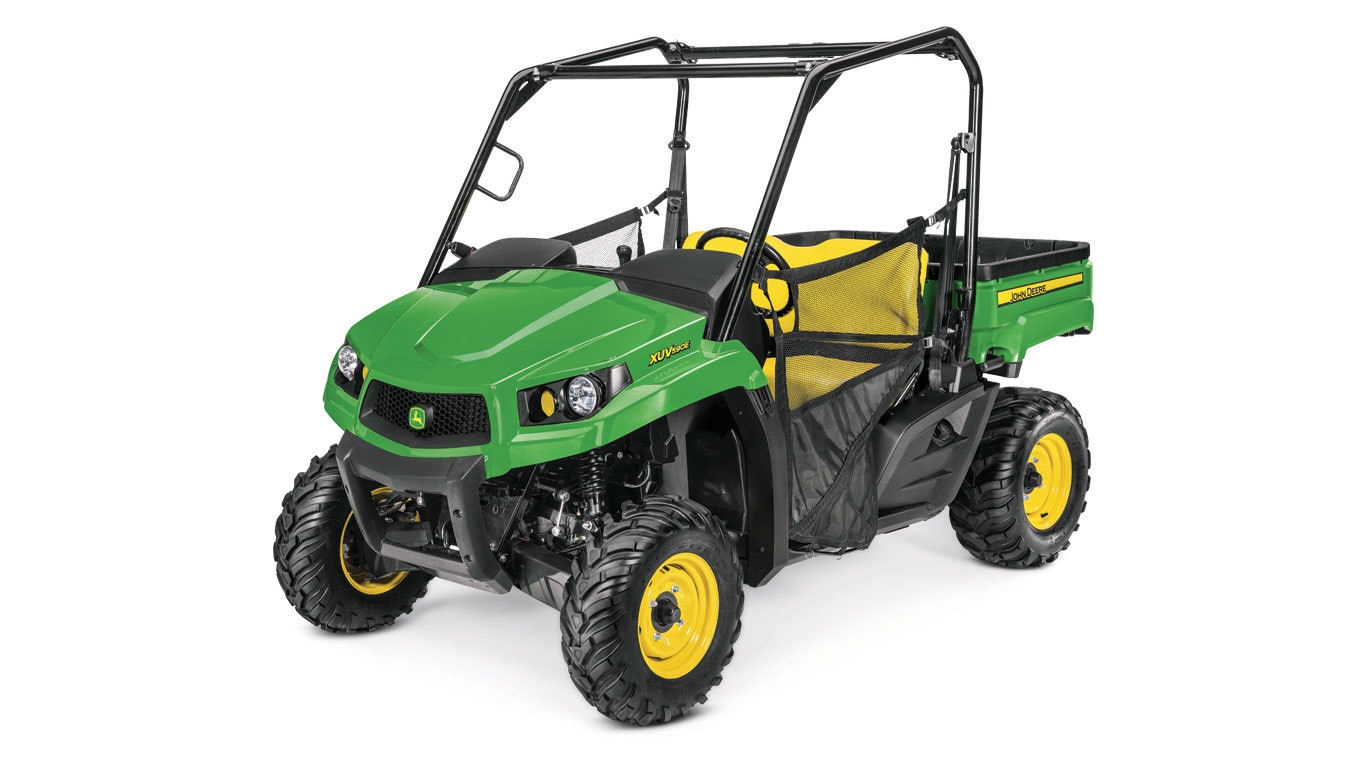

John Deere XUV590E
  • Our fastest Mid-Size XUV with 32-hp (23.8 kW)
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Enhanced dash display for operation at a glance
Engine power 23.8* kW / 32 hp
Front suspension Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear suspension Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Feature Overview
John Deere XUV590E
  • Our fastest Mid-Size XUV with 32-hp (23.8 kW)
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Enhanced dash display for operation at a glance
Engine power 23.8* kW / 32 hp
Front suspension Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear suspension Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Features

Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities

The Gator© XUV Mid-Size Crossover Series Utility Vehicles have a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.

Key elements of the drive system include:

Variable-speed drive
Variable-speed drive (shown on XUV590 engine) Variable-speed drive (shown on XUV590 engine)

The variable-speed drive consists of two clutches and a drive belt:

  • Drive clutch is attached to the engine.
  • Driven clutch is attached to the transaxle.

Features include:

  • Ability to creep along slowly to maneuver in tight spaces
  • Standard full-clutch enclosure with a high intake and exhaust ensures a dry belt when crossing water
    • High-speed fan on drive clutch provides longer belt and clutch life by keeping components cool
  • TEAM® industry clutches provide high performance and longevity

How the variable-speed drive works:

  1. As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
  2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
  3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
  4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
Four-wheel drive (4WD), transaxle, mechanical front-wheel drive (MFWD), and constant-velocity (CV) shafts
XUV590 transaxle XUV590 transaxle
XUV560/XUV590 MFWD XUV560/XUV590 MFWD

4WD

  • Selectable 4WD system with a limited slip front differential and dash-mounted electronic rocker switch
    • Provides exceptional traction in challenging conditions
    • Maintains turf-friendly operation in two-wheel drive (2WD) mode
    • Combined with rear traction assist (differential lock), provides excellent traction in challenging conditions
    • More control descending hills with 4WD engaged, as all four wheels help slow the vehicle down
      • Clutch engagement still necessary to prevent free coasting

Transaxle

  • Low, high, neutral, reverse, and park transaxle
  • Automotive-style, integrated park position in transmission
  • To shift out of park, service brake must be pressed to release the parking solenoid. An audible click will be heard and allows the vehicle to shift out of park into the desired gear.
  • Low range for maximum torque delivered to the wheels for hauling, pushing, and pulling
  • High range for maximum vehicle speed
  • Cast-aluminum design for lower weight
  • Helical forward and reverse gears are used for quiet operation
  • Rear traction assist (differential lock) is controlled with an electronic rocker switch
    • NOTE: Locked differential design may increase scuffing of the turf during turns because the rear wheels are turning at the same speed through a turn.
  • Contains gear-case for transferring power to the MFWD
  • Splined shaft interfaces for maximum torque transfer and durability
  • All drive gears machined from highest grade gear steel
  • Vertically oriented oil drain for easy maintenance
  • Protected by a skid plate

MFWD

  • Electronically selectable by the operator
    • Offers limited slip functionality for precision steering and great traction while pointing and shooting out of a corner.
  • Near instantaneous torque to the front wheels after engaging switch
  • Vertically oriented oil drain for easy maintenance
  • Protected by a steel skid plate and frame

Drive shafts

  • Front and rear CV shaft diameter measures 23 mm (0.9 in.) and designed for high engine torque
  • Propshaft (transaxle to MFWD shaft) diameter measures 23.8 mm (0.94 in.) and designed for high engine torque
  • All CV shaft joints are maintenance free and protected by exclusive inboard and outboard thermoplastic elastomer (TPE) boots for durability. TPE material is more puncture resistant than neoprene, which is used by many competitors.

TEAM is a trademark of TEAM Industries.


586-cc (35.8-cu in.) gasoline engine 586-cc (35.8-cu in.) gasoline engine
Radiator Radiator

The Gator© XUV590E and XUV590M Crossover Series Utility Vehicle is powered by a 586-cc (35.8-cu in.), inline twin-cylinder, electronic fuel-injected (EFI) gasoline engine. The engine is electronically controlled through an engine control unit (ECU) to ensure optimal engine performance.



The engine offers the following performance and reliability features:

  • 23.8 kW (32 hp*) at 5600 rpm
  • 77 km/h (48 mph) top speed
  • Electronic fuel injection (EFI) with engine control unit (ECU)
  • Liquid cooled
  • Designed for cold-weather starting (tested to -28.9°C [-20°F])
  • Wet-sump lubrication system
  • Spin-on oil filter and oil pan drain accessible through skid plate for easy servicing
  • High air-flow air filter
  • 875-W (65 maximum amp) charging system for accessory capability (see engine section for alternator output curve)
  • Spark-arresting muffler is United States Forest Service (USFS) approved
  • Low fuel consumption and large 28-L (7.4-U.S. gal.) fuel tank
  • Environmental Protection Agency (EPA) and California Air Resources Board (CARB) compliant



* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.


Instrument panel and backlit switches Instrument panel and backlit switches
Sealed under-hood storage Sealed under-hood storage
Ergonomically placed controls Ergonomically placed controls
In-dash cup holders and sealed glove box In-dash cup holders and sealed glove box
S4 optional under-seat storage S4 optional under-seat storage
  • Display features include:
    • Speed
    • rpm
    • Fuel
    • Mechanical front-wheel drive (MFWD)/rear diff-lock
    • Gear position
    • Hour meter
    • Service interval warning light
  • Operator-centric design provides class-leading ergonomics and comfortable seats
    • Easy entry/exit and pass through for operator and passenger
    • Optimal seating position provides more legroom
    • Automotive-like ergonomics
    • Excellent comfort while driving
  • Best-in-class sealed storage volume of 34 L (9 gal.) with a large in-dash glove box and under hood storage. An additional 34 L (9 gal.) of under-seat storage is available on the S4 models.
  • Hinged hood rotates open without tools for access to storage
  • Side-by-side seating provides ample room for one operator and one passenger
    • Seats tilt forward for ease of service and to keep dry during outdoor storage
  • Two cup holders are located within reach of the operator's station
  • Standard 12-V direct current (VDC) outlet is conveniently located on the instrument panel
  • Seven predrilled dash switch locations with snap out caps for various electrical accessories
  • Occupant protective structure (OPS) with three-point seat belts and passenger side grab handle located on front post
  • Start in gear, neutral, or park position for quick starting. The service brake must be engaged to start when in gear, neutral, or park.

The cargo box consists of a high-density polyethylene copolymer composite material that eliminates rust, dents, and reduces noise. This large, one-piece design has rounded inside corners to ensure material removal when tilted. The composite box is highly ribbed and supported with a welded, steel-ladder structure to ensure hard-driving performance and longevity. The three highly styled exterior pieces are made of TPO for extra durability.

Cargo box tailgate
Tailgate handle Tailgate handle
Tailgate pivot and removal feature Tailgate pivot and removal feature
Removable lanyards Removable lanyards

The tailgate can be opened or removed for easier cleanout and to carry longer items. It features truck-like performance and can be operated with one hand.

The tailgate’s pivot point is made of hardened steel for durability and designed for tool-free removal. The standard lanyards can also be disconnected without tools to remove the tailgate for convenient loading and unloading tasks.

Cargo box tilt and removal
Integrated handle for manual cargo box tilt (both sides) Integrated handle for manual cargo box tilt (both sides)
Tilted cargo box Tilted cargo box

The cargo box ease of use is critical to performing tasks quickly and efficiently. Starting with the truck-style tailgate, the removal of content in this cargo box could not be easier. The manual release also functions as the lift lever, done in a smooth, one-step motion. It can even be tilted from both sides of the vehicle. To reduce the overall effort of lift, the pivot point of the cargo box is closer to the center. The combination of easy-to-use attributes makes this cargo box best-in-class.

For servicing the vehicle’s systems, the cargo box is easily removable. With the removal of two bolts, the cargo box can easily be detached from the vehicle frame.

Integrated tie-down points
Integrated tie-down point in cargo box bed Integrated tie-down point in cargo box bed
Additional tie-down points Additional tie-down points

The cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

  • Flip-up D-shaped rings in all four corners inside the cargo box bed
  • Multiple points along the edge of the cargo box side walls
  • Tie-down bars on either side of the cargo box with optional cargo box rail kit. This kit also provides a mounting system using accessories that possess the 25.4-mm (1-in.) quick clamp.
Optional accessories
Cargo box rail system Cargo box rail system
Box mat Box mat
Cargo box wall extensions (shown on RSX) Cargo box wall extensions (shown on RSX)

Optional accessories for the cargo box include (see price pages or JDConfigurator for complete list):

  • Cargo box rail system
  • Cargo box mat
  • Cargo box wall extensions
  • Spare tire rack
  • Bucket holder
Specifications
Length  82 cm (32.3 in.)
Width 120.9 cm (47.6 in.)
Depth 29.7 cm (11.7 in.)
Volume 0.25 m3 (8.9 cu ft)
Weight capacity 227 kg (500 lb)
Dump angle
Bed height (from ground)


45 degrees

76.3 cm (30 in.)

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.


XUV front suspension detail XUV front suspension detail

To complement the comfortable operation station, the XUV560 and XUV590 Series are equipped with four-wheel independent suspension. This unique suspension set-up provides an unparalleled ride over challenging terrain and excellent handling through corners.



The engineering team, in collaboration with engineering firms that consult with Formula 1®, NASCAR®, and INDYCAR® teams, built a capable suspension system for class-leading operator comfort no matter what the terrain.

Dual A-arm front suspension features include:
  • Dual, wide arch A-arm design provides maximum front-wheel control, precise steering, and maximum ground clearance out to the wheel
  • 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
  • Adjustable coil-over shocks absorb the most demanding terrain
  • Solid anti-roll bar with fully rubber isolated connecting links and pivots is tuned to provide the most agile and predictable handling
  • Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
  • Increasing vehicle width during compression for additional stability.
  • High-strength ASTM 80-55-06 ductile cast-iron knuckle and upper A-arm to support the high stresses of the shocks, constant-velocity (CV) shaft, and wheels
  • Automotive-style, fully boxed and welded, high-strength steel, lower A-arms to minimize unsprung mass and maximize strength
  • Maintenance-free, rubber torsional A-arm pivots for long life and quiet operation
  • CV shaft protection from sticks that may puncture the rubber boot
  • Anti-dive front suspension geometry provides a solid platform for confident braking
  • Optimized steering geometry using ADAMS CAR simulation to minimize steering effort and maximize terrain feedback
XUV rear suspension detail XUV rear suspension detail
Independent rear suspension features include:
  • 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
  • Unique, independent rear-suspension design ensures a great ride and protection for the CV shafts
  • Adjustable coil-over shocks absorb the most demanding terrain
  • Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
  • Increasing vehicle width during compression for additional stability.
  • High-strength ASTM 80-55-06 ductile cast-iron knuckle, lower A-arm, and upper link to support the high stresses of the shocks, CV shaft, and wheels with the toughness to survive impacts from boulders
  • Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
Optional Fox© Shocks are available to factory install

Exclusive aluminum-body, high-pressure monotube FOX racing shocks

  • Fully adjustable spring preload for different driving styles
  • High-pressure nitrogen gas is separated from the damping oil by an internal floating piston (IFP). The separation prevents aeration (frothing) and viscosity degradation of the oil which improves damping consistency and performance fade.
  • Pressure and heat generation in the monotube is less than a traditional twin-tube shock, allowing for better vehicle control in aggressive conditions.
  • The single aluminum shell of the monotube design allows for more efficient heat rejection and lower overall unsprung mass.
  • Mounting the shaft end of the shock to the suspension arm lowers the unsprung mass of the suspension system, leading to improved suspension response.

NASCAR is a trademark of NASCAR. INDYCAR is a trademark of Brickyard Trademarks Incorporated. Formula 1 is a trademark of Formula One Licensing BV, a Formula One Group Company.


Specs
Key Specs
Engine power 23.8* kW
32 hp
Dimensions / Capacities
Cargo box dimensions 82L x 120.9W x 29.7D (0.25 m3) cm
32.3L x 47.6W x 11.7D (8.9 ft3) in.
Cargo box capacity (weight) 227 kg
500 lb
Towing capacity 1500 lb
680 kg
Key Specs
Front suspension Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear suspension Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Drivetrain
Final drive High, Low, Neutral, Reverse Transaxle
Four wheel drive Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Dimensions / Capacities
Fuel capacity 28 L
7.4 U.S. gal.
Brakes
Type 196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers
Engine
Displacement 586 cc
Power 23.8* kW
32 hp
Cooling system Liquid cooled
Drivetrain
Transmission Continuously Variable Transmission (CVT) with clutch enclosure
Traction assist Positive locking, mechanically actuated (hand lever operated) rear differential lock
Descent control Not available
Tires / Wheels
Front 25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Rear 25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Brakes
Park brake Automotive-style foot-actuated mechanical park brake system
Dimensions / Capacities
Wheelbase 1.86 m
72.8 in.
Operating weight (includes fuel/fluids) 645 kg
1423 lb
Length 2870 mm
113 in.
Width 1435 mm
56.5 in.
Height 1867 mm
73.5 in.
Tread centers Front: 1220 mm
Front: 48 in.
Rear: 1168 mm
Rear: 46 in.
Ground clearance 267 mm minimum
10.5 in. minimum
Payload capacity 408 kg
900 lb
Hitch Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features
Color Green/Yellow; Olive/Black, Camo
Power steering Not Available
Battery / Alternator / Power port 340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet
Instrumentation Digital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time
Storage 2 cupholders, sealed underhood storage, glove box
Seating Bench seat
Additional information
Country of Manufacture U.S.
Dimensions / Capacities
Weight Wet weight (includes fuel/fluids): 644 kg
Wet weight (includes fuel/fluids): 1421 lb
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
