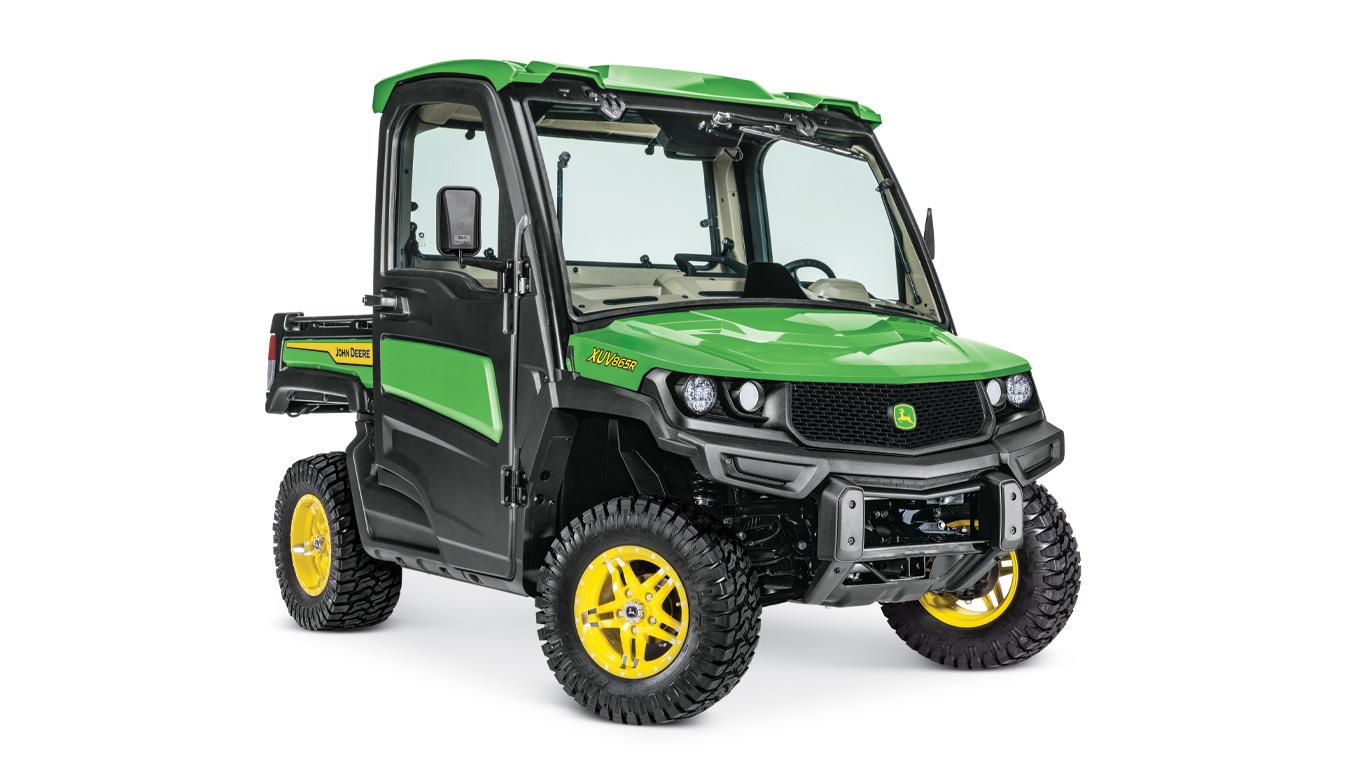

John Deere XUV865R Diesel Premium Cab
  • Premium HVAC cab with light-stone interior
  • Powerful diesel engine with up to 4,000-lb  towing capacity
  • Cargo box power lift
  • LED headlights
Engine power 17.0 kW / 22.8 hp
Front suspension Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Feature Overview
John Deere XUV865R Diesel Premium Cab
  • Premium HVAC cab with light-stone interior
  • Powerful diesel engine with up to 4,000-lb  towing capacity
  • Cargo box power lift
  • LED headlights
Engine power 17.0 kW / 22.8 hp
Front suspension Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Features

Superior terrain capability

The Gator© XUV Crossover Series Utility Vehicle has a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.

Key elements of the drive system include:

Variable-speed drive
Variable-speed drive Variable-speed drive

The variable-speed drive consists of two clutches and a drive belt:

  • Drive clutch is attached to the engine.
  • Driven clutch is attached to the transaxle.

Features include:

  • The engine braking system utilizes a tight belt for operation, requiring an idler sleeve on the primary clutch for neutral. The secondary clutch is a build- on-shaft design that utilizes a cam to tune the acceleration and deceleration of the vehicle. The clutch stays engaged, providing deceleration until approximately 5 km/h (3 mph).
  • The continuously variable transmission (CVT) air intake draws in cool air to reduce heat and the amount of water ingestion into the CVT system. The system reduces belt slippage and improve durability.
  • A two-range transmission provides:
    • Ability to maneuver in tight spaces and increased pulling torque in low range
    • Faster speeds and reduced transport time in high range
  • Standard full-clutch enclosure with high speed fan provides longer belt and clutch life
  • High-ratio clutches with three cam weights for maximum belt-clamp load in high torque conditions


How the variable-speed drive works:

  1. As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
  2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
  3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
  4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
Transaxle, mechanical front-wheel drive (MFWD), and constant velocity (CV) shafts

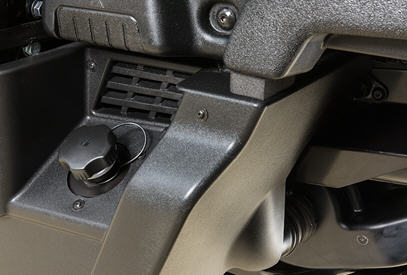

Side view of CVT intake and clutch enclosure (XUV835M shown) Side view of CVT intake and clutch enclosure (XUV835M shown)
Differential lock switch and MFWD switches Differential lock switch and MFWD switches
Rear view of transaxle, suspension components, and CV shafts (XUV865M shown) Rear view of transaxle, suspension components, and CV shafts (XUV865M shown)
CV boot protection CV boot protection

Operator interface features:

  • Selectable four-wheel drive (4WD) system with a limited slip front differential and dash-mounted electronic rocker switch
    • Provides exceptional traction in challenging conditions
    • Near instantaneous torque to the front wheels once rocker switch is engaged
    • Maintains turf-friendly operation in two-wheel drive (2WD) mode
    • Combined with rear traction assist (differential lock), provides excellent traction in challenging conditions
    • More control descending hills with 4WD engaged as all four wheels help slow the vehicle down
      • Clutch engagement still necessary to prevent free coasting

Transaxle features:

  • Low, high, neutral, reverse, and park transaxle
  • Automotive-style, integrated park position in transmission
  • Low range for maximum torque delivered to the wheels for hauling, pushing, and pulling
  • High range for maximum vehicle speed
  • To shift out of park, service brake must be pressed to release the parking solenoid. An audible click will be heard and allows the vehicle to shift out of park into the desired gear.

NOTE: Differential design reduces scuffing of the turf during turns because it allows the inside wheels to turn slower than the outside wheels.

  • Start in gear, neutral, or park position for quick starting. The service brake must be engaged to start when in gear or neutral.
  • For operators living in regions with homologation requirements or certain bid language stating the need for a secondary park brake, such as governmental or municipalities, a secondary park brake is available as a factory-installed option. A secondary brake attachment is not available for field installation.
  • Large, sealed bearings are located inside the housing for better protection and durability
  • Contains gear case for transferring power to the MFWD
  • Splined shaft interfaces for maximum torque transfer and durability
  • All drive gears machined from highest grade gear steel
  • Protected by a skid plate

MFWD features:

  • Electronically selectable by the operator
    • Offers limited slip functionality for precision steering and great traction while pointing and shooting out of a corner.
  • Vertically oriented oil drain for easy maintenance
  • Protected by a steel skid plate and frame

Drive shaft features:

  • Rear CV shaft diameter measures 27 mm (1.1 in.) and is designed for peak engine and braking torque
  • Front CV shaft diameter measures 23 mm (0.91 in.) and is designed for peak engine torque
  • Propshaft is designed for peak engine torque
  • All CV shaft and propshaft joints are maintenance free and protected by exclusive thermoplastic elastomer (TPE) boots for durability

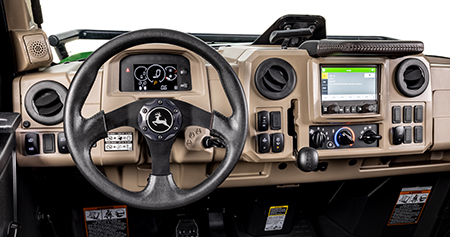

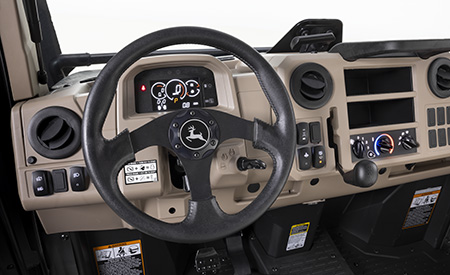

Heating, ventilation, and air conditioning (HVAC) dash shown with model year 2021 tan interior Heating, ventilation, and air conditioning (HVAC) dash shown with model year 2021 tan interior

Whether it is a completely open operator station or a factory-installed cab, the interior has been redesigned with comfort and ergonomics in mind.

  • Gear shift control and differential switch on the dash

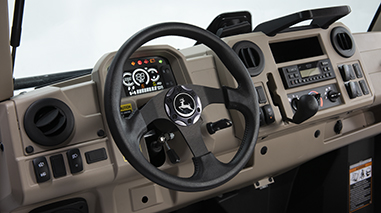

HVAC dash shown with model year 2021 tan interior (R trim) HVAC dash shown with model year 2021 tan interior (R trim)
  • Tilt steering
Tilt steering Tilt steering
Tilt steering (up position) Tilt steering (up position)
Tilt steering (down position) Tilt steering (down position)

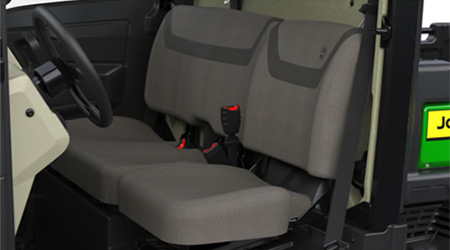

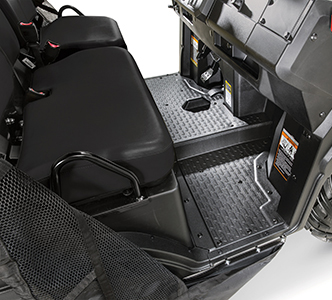

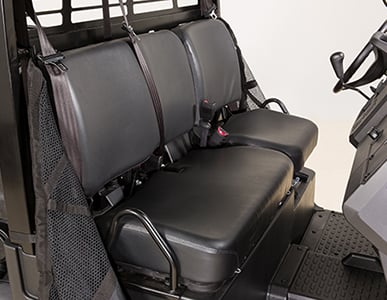

  • Bench seat with driver adjustment
Bench seat adjustment Bench seat adjustment

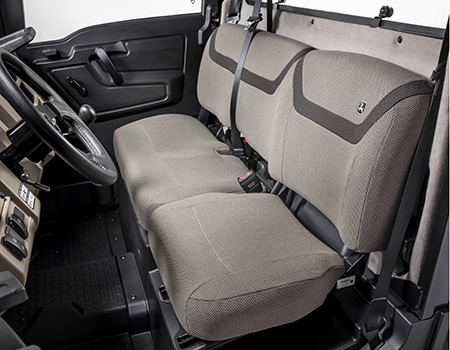

  • Three-wide seating
Seating Seating

Cab
M and R spec cab door M and R spec cab door
Side windows and front window Side windows and front window
Venting position Venting position
  • Functioning door windows ™ roll up and down
  • Fully opening front window with vent position

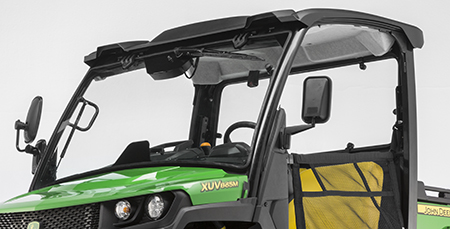

Headliner shown on an M-trim open station (with optional windshield, wipers, rear panel, and side mirrors installed) Headliner shown on an M-trim open station (with optional windshield, wipers, rear panel, and side mirrors installed)
  • Available interior roof headliner factory installed on M-trim cab units and M-trim heating, ventilation, and air conditioning (HVAC) cab units
Door sealing Door sealing
  • Automotive-style sealing
Styled roof (R roof shown) Styled roof (R roof shown)
  • Styled roof with channels designed-in to move water to the outside edges
Front roof light Front roof light
Rear roof light Rear roof light
  • Molded-in pockets for front and rear light mounting
    • Keeps lights below the roof line for protection
Inner door handle Inner door handle
Outer door handle Outer door handle
  • Easy-opening door handles and mechanisms

HVAC details

Automotive-style controls on the center of the dash are easy and convenient to reach for the operator or passengers

  • Four dash vents
    • Adjustable louvers and face plates
  • Windshield vents mounted on the top of the dash
    • Fast defrost
    • Efficient air flow
  • Air filter on the passenger side of the cab at foot level
  • Three fan speeds
    • 0: off
    • 1: low
    • 2: medium
    • 3: high
  • Temperature adjustment knob
    • Counterclockwise for cooler temperature
    • Clockwise for warmer temperature
  • Four air flow modes
    • Dash vents
    • Dash and floor vents
    • Defroster vents and floor vents
    • Defroster vents
  • HVAC compressor on/off button
    • Pushing the button once turns the air conditioning on - indicator light illuminates blue
    • Push the button again to turn off the air conditioning
  • Air flow constant with compressor on or off
  • Turn compressor off for full engine power
  • Gas machines have an idle bump to raise rpms to assist driving more power for the HVAC system
    • 1075 rpm in any gear at idle with air conditioning on
    • 1400 rpm when in neutral and the park brake is engaged

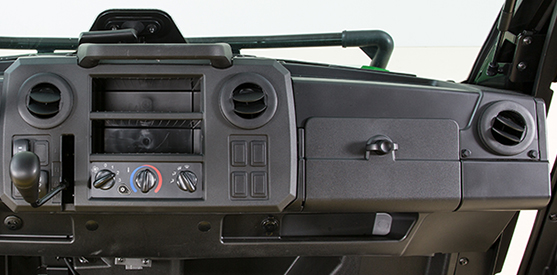

HVAC controls and vents on the dash HVAC controls and vents on the dash

854-cc (52.1-cu in.) diesel engine 854-cc (52.1-cu in.) diesel engine

The machine is powered by an 854-cc (52.1-cu in.), 3-cylinder, liquid-cooled, four-cycle diesel engine. It produces 48 Nm (35.5-lb-ft) of torque at 2600 rpm.

The advanced engine delivers superb starting, idling, and throttle response during operation.

The engine offers the following performance and reliability features:

  • Indirect-injection diesel with glow plugs ensures fast starts in cold temperatures
  • 17.1 kW (22.9 hp*) at 3600 rpm
  • Overhead valve design for greater efficiency and fuel economy
  • Spin-on oil filter for easy servicing
  • Quiet operation through the entire rpm range
  • Molybdenum-coated pistons
  • High-stiffness cylinder block and gearcase
  • High-flow water pump and optimized water jackets maintain a steady operating temperature and eliminate hot spots
  • Full-pressure lubrication system
  • In-line mechanical fuel pump
  • Five-point, rubber isolated for quiet operation and minimal vibration
  • Dry replaceable dual-element air cleaner with remote intake and a restriction indicator
  • See-through coolant recovery tank permits the operator to check the coolant level without removing the radiator cap
  • Open front grille allows proper air flow and ventilation to the radiator.

*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

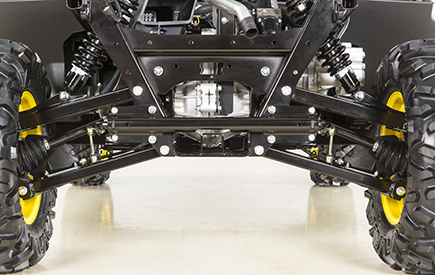

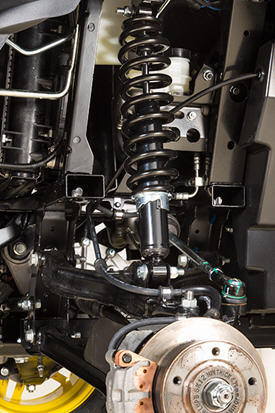

XUV front suspension detail XUV front suspension detail

To complement the robust frame, the XUV is equipped with four-wheel independent suspension.

A dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics.

The entire suspension system has been optimized to handle no cargo to maximum cargo without compromising ride quality or vehicle stability.

M-trim units with factory-installed cabs and R-trim units have heavy-duty front and rear shocks installed from the factory.

  • A higher spring rate and higher preload force versus standard springs prevent the vehicle from sagging with a heavy payload.
  • These heavy-duty shocks help with the heavier weight of the cab and when attachments are installed, like blades.
Dual A-arm independent front suspension features include:
  • 201 mm (7.9 in.) of travel provides ample wheel travel to keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
  • Heavy-duty nodular cast-iron knuckles support the constant-velocity (CV) shaft and wheel
  • Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
  • CV shaft protection from sticks that may puncture the rubber boot
  • Coil-over shocks absorb the most demanding terrain

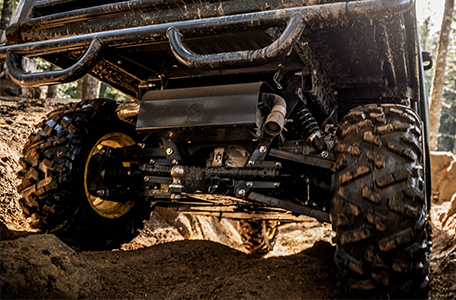

XUV rear suspension detail XUV rear suspension detail
XUV rear suspension detail (shown on XUV865M) XUV rear suspension detail (shown on XUV865M)

Dual A-arm independent rear suspension features include:

  • Unequal length and dual A-arm construction for superior wheel control and travel
  • 231 mm (9.1 in.) of total travel provides ample wheel travel to keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
  • Coil-over shocks absorb the most demanding terrain
  • A-arms made from square/rectangular tubing reduce weight while remaining rigid
  • Heavy-duty nodular cast-iron uprights support wheel loads with a double row of ball bearings
  • CV driveshaft protection from sticks that may puncture the rubber boot
  • Rear sway bar for lateral stability

Deluxe cargo box with optional light protectors Deluxe cargo box with optional light protectors
Top view of cargo box Top view of cargo box

The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust and dents and reduces noise.

Deluxe cargo box tailgate
Tailgate handle Tailgate handle

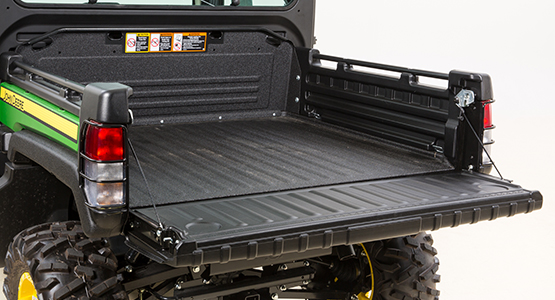

Tailgate open Tailgate open
Tailgate lowered to 150 degrees Tailgate lowered to 150 degrees

The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.

The standard-installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.

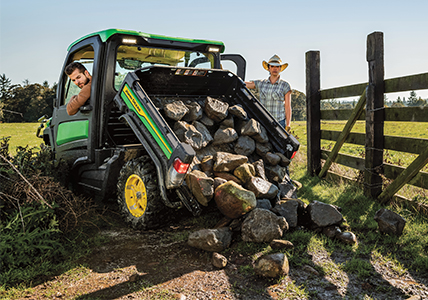

Deluxe cargo box tilt
Integrated handle for manual cargo box tilt Integrated handle for manual cargo box tilt

The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist.

A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.

Integrated tie-down points
Integrated tie-down point in cargo-box bed Integrated tie-down point in cargo-box bed
Additional tie-down points (TH 6X4 shown) Additional tie-down points (TH 6X4 shown)

The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

  • Four corners inside the cargo box bed
  • Four points on the load guard directly behind the operator station (A)
  • Tie-down bars on either side of the cargo box (B)
  • Six points on the underside of the cargo box frame (circled)

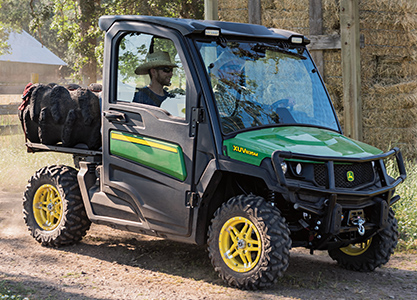

Converting deluxe cargo box to a flatbed
XUV835M Cab shown XUV835M Cab shown
XUV835M Cab shown XUV835M Cab shown

Optional accessories for the deluxe cargo box:

  • See attachment information in the Sales Manual
Specifications



 Length  1143 mm (45 in.)
 Width  1320 mm (52 in.)
 Depth  305 mm (12 in.)
 Volume  0.46 m3 (16.4 cu ft)
 Weight capacity  454 kg (1000 lb)
 Dump angle  47 degrees

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.


On M- and R-trim vehicles, adding attachments and accessories is made easier by the inclusion of some main wiring harnesses that facilitate efficient hook-up.

Roof harness electrical port Roof harness electrical port
Main vehicle harness ™ winch connection Main vehicle harness ™ winch connection
  Cargo box lift Backup alarm Brake / tail / reverse lights Base radio Heater 2041-kg (4500-lb) winch Premium radio (base radio kit needed) LED lights - front OPS Windshield wiper Windshield washer LED lights - brush guard LED headlights Turn signals Horn Beacon light LED lights - rear OPS Sprayers Spreaders AMS integration kit
         a a,c a,c,d a,c,d a,c,d a,b a,b a,b a,b a,c,e  a,c,e a,f a,f a,c,e,f
M open              c c,d c,d c,d b b b b c,e c,e f f c,e,f
M cab                      b b b b e f f e,f
R                                 f f  f



                 = connections in base harness
E-spec attachment harness
Front attachments harness
Roof attachment harness
Front cab harness
Rear cab harness
Dash port harness
If blank, the base chassis harness has the connector for the attachment

If dual beam headlights are desired, the following bundles are required:

XUV835E/865E:

  • BM26589 ™ dual beam LED headlights, including three-position rocker switch
  • BUC10809 ™ front light harness kit
  • BUC10810 ™ E-spec attachment harness

XUV835M/865M:

  • BM26589 ™ dual beam LED headlights, including three-position rocker switch
  • BUC10809 ™ front light harness kit

XUV835R/865R:

  • BM26589 ™ dual beam LED headlights, including three-position rocker switch

This Gator© XUV Crossover Utility Vehicle is equipped with power steering and a dual A-arm front suspension. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort:

  • Steel ball bearings secure the steering shaft and deliver smooth, responsive operation
  • Completely sealed rack-and-pinion for long life
  • Low steering ratio (lock-to-lock) provides more responsive steering and less operator input
  • Shaft U-joints are phased for a smooth, uninterrupted motion of the steering wheel
  • Tilt steering wheel with 15 degrees of travel (XUV835M, XUV835R, XUV865M, and XUV865R models only; S4 models do not have tilt steering)
Electric power-assist steering system Electric power-assist steering system

Electric power-assist steering (EPAS) system has advanced features:

  • Anti-kickback feature reduces the amount of steering unwinding when traversing difficult terrain.
  • The system is speed sensing and adjusts steering effort as the speed of the vehicle changes.
    • As speed increases, there is less steering assist for improved road feel.
    • As speed decreases, steering assist increases to give lower steering efforts for improved maneuverability.
  • A warning/functional light on the instrument panel provides self-diagnostics and a warning light in the situation of no assist.
  • Torque sensor measures steering wheel input so the on-board computer can provide the appropriate output for various driving situations.

With the EPAS system, the operator maintains a direct, mechanical linkage from the steering wheel to the front wheels. The power-steering system interfaces mechanically with the steering system by being inserted between the steering wheel and the rack-and-pinion assembly.

A differential torque sensor is integrated into the power steering assembly. The circuit board assembly is also integral with the power-steering assembly.

Power steering does not reduce turning radius but significantly reduces steering effort by approximately 85 percent compared to those models without power steering.

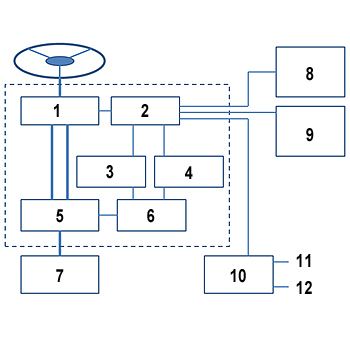

EPAS interface diagram
EPAS interface diagram EPAS interface diagram

The numbered descriptions refer to the EPAS interface diagram shown above:

  1. Torque sensor
  2. Electronic control unit (ECU)
  3. Fail-safe relay
  4. Current/thermal control circuit
  5. Reduction gears
  6. DC motor
  7. Rack and pinion
  8. Function/warning light
  9. Key power and ground
  10. Vehicle speed sensor
  11. Instrument cluster
  12. Relay module

The R trim is cab only and comes with a stone interior and heating, ventilation, and air conditioning (HVAC) as standard equipment. Electrical wiring for increased flexibility for attachments also comes standard.

R-trim level interior (shown in tan on a model year 2021 vehicle) R-trim level interior (shown in tan on a model year 2021 vehicle)
  • Headliner is standard
Standard headliner (shown in tan on a model year 2021 vehicle) Standard headliner (shown in tan on a model year 2021 vehicle)
  • Cloth 40/60 bench seat
Cloth bench seat Cloth bench seat
  • Standard single-beam light-emitting diode (LED) headlights
LED headlight LED headlight
  • A and B post covers
Post cover (shown in tan on a model year 2021 vehicle) Post cover (shown in tan on a model year 2021 vehicle)
Post cover (shown in tan on a model year 2021 vehicle) Post cover (shown in tan on a model year 2021 vehicle)
  • Rear panel cover
Rear panel cover (shown in tan on a model year 2021 vehicle) Rear panel cover (shown in tan on a model year 2021 vehicle)
  • Interior rearview mirror
Rearview mirror (shown in tan on a model year 2021 vehicle) Rearview mirror (shown in tan on a model year 2021 vehicle)
  • Sun visors
Sun visor (shown in tan on a model year 2021 vehicle) Sun visor (shown in tan on a model year 2021 vehicle)
Sun visor (shown in tan on a model year 2021 vehicle) Sun visor (shown in tan on a model year 2021 vehicle)
  • Dome light
Dome light (shown in tan on a model year 2021 vehicle) Dome light (shown in tan on a model year 2021 vehicle)
  • Windshield wiper and washer
Windshield wiper Windshield wiper
Windshield washer Windshield washer
Build-to-order options
  • Available factory-installed winch
  • Available factory-installed brush guard
  • Available factory-installed brush guard extensions
  • Available factory-installed rear cargo box fender guards (rear bumper required, also factory installed)

You will feel confident and comfortable, even on tough terrain, with a full-size Gator© Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with rear differential lock
Dash mounted four-wheel drive and rear differential lock switches Dash mounted four-wheel drive and rear differential lock switches

With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension
Rear suspension and ground clearance Rear suspension and ground clearance

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.

Tires for any terrain
Terra Hawk all-terrain tire Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire Predator Heavy-Duty all-terrain radial tire

Full-Size Gator Utility Vehicles are available with three tire options:

  • Terra Hawk all-terrain tires
    • Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
  • Maxxis Bighorn 2.0 extreme terrain radial tires
    • Radial construction provides shock absorption, allowing for a smoother ride
    • Non-directional tread pattern provides predictable cornering and claws up roots and rocks
  • Predator Heavy-Duty all-terrain radial tire
    • Radial construction provides shock absorption, allowing for a smoother ride
    • Flat profile increases footprint area, reducing ground pressure
    • 8-ply rating delivers up to three times the life of Bighorn tires



Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.


Full-size Gator© XUVs are built to work hard and go the extra mile.

Heavy-duty frame
Underside view of XUV865M Underside view of XUV865M
Underside view of XUV825M S4 Underside view of XUV825M S4

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.

Constant velocity boot protection
Constant velocity boot protection Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.



TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.


Instrument display, shift lever, and switches (shown on XUV835R Signature Edition) Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)

When you sit behind the wheel of a full-size Gator© Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.



Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.



When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.


When you hop into the seat of a full-size Gator© Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare
40/60 split three-passenger bench seat 40/60 split three-passenger bench seat
Operator platform Operator platform

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Climate-controlled comfort
HVAC controls HVAC controls
Partially-open door windows and fully-open windshield Partially-open door windows and fully-open windshield

On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.

Upgrade to R-trim refinements
Stone colored dash with sport steering wheel Stone colored dash with sport steering wheel
Headliner, sun visors, rearview mirror, and dome light Headliner, sun visors, rearview mirror, and dome light

R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.

Stone cloth seat
Stone cloth seat Stone cloth seat

R-trim vehicles also include a stone cloth seat that keeps cool in the hot sun and warms up quickly in the winter.

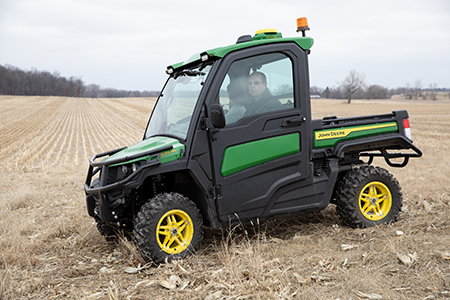

XUV835R with AutoTrac Ready option XUV835R with AutoTrac Ready option

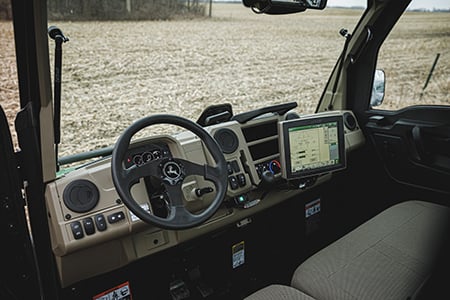

Interior of XUV835R with Gen 4 4640 Universal Display Interior of XUV835R with Gen 4 4640 Universal Display

Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the AutoTrac© assisted steering system and JDLink© Modem options to Gator Utility Vehicles brings precision ag technology to farms of all sizes.



The AutoTrac Ready option enables hands-free steering through the field decreasing overlap and lowering input costs while reducing operator fatigue. The JDLink Modem option connects your vehicle to the John Deere Operations Center so the vehicle can be managed with the rest of your fleet.

Simplify field boundaries

  • Check field boundaries and identify hazards as the Gator Utility Vehicle steers itself along established boundary lines.
  • Create new boundary lines, even when the soil is too wet for larger equipment.



Improve soil mapping

  • The days of picking a tree across the field to navigate are over. Use guidance lines to create a sampling grid and let your Gator Utility Vehicle keep you on track as you pull plugs across the field.



Connect your Gator Utility Vehicle to the rest of your fleet

  • Leave the USB drives at home as you wirelessly send your data to and from your Gator Utility Vehicle.
  • A planter operator can flag the exact location of a large rock so the Gator UV can be sent to the location to remove the hazard.



Save time and stop waiting for the perfect day to spray

  • When paired with a tow behind sprayer and rate controller, the Gator Utility Vehicle’s lighter weight allows work to be completed when the ground is too wet for larger equipment.
  • Speed through spraying by allowing the Gator Utility Vehicle to steer a predefined path around buildings and fence rows.



Track productivity, maintenance, and machine vitals

  • Track the current and past locations of your Gator Utility Vehicle in the John Deere Operations Center, just like the rest of your fleet.
  • Know when your Gator Utility Vehicle is ready for scheduled maintenance



Share StarFire© Receiver and Universal Display

  • You can leave precision ag technology components installed year-round or share your StarFire Receiver and Universal Display with another piece of equipment.

The full-size Gator© XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Built-tough cargo box
Cargo box (shown with spray-in liner and optional taillight protectors) Cargo box (shown with spray-in liner and optional taillight protectors)
Cargo box converted to flatbed Cargo box converted to flatbed

The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.



The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.

One-handed tailgate
Tailgate handle Tailgate handle

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Power lift
Deluxe cargo box unloading rocks Deluxe cargo box unloading rocks

To save your back, the optional cargo box power lift empties heavy loads with the push of a button.


854-cc (52.1-cu in.) diesel engine and drivetrain 854-cc (52.1-cu in.) diesel engine and drivetrain

The XUV865 and XUV825M S4 Gator© Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.


One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

Cup holders
Four cup holders and center tray (shown on XUV835E) Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket Cab door cup holder and pocket

The dash has four cup holders, and cab vehicles have a cup holder in each door.

Dash and under-seat storage

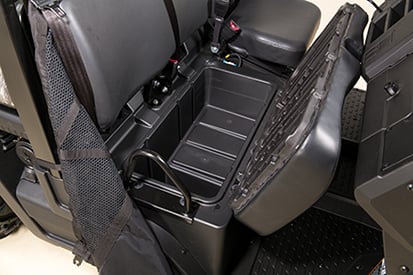

Under seat storage (shown on XUV835E) Under seat storage (shown on XUV835E)
Glove box, storage pocket, and two dash bins (shown on XUV835M cab) Glove box, storage pocket, and two dash bins (shown on XUV835M cab)

The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.


Green and yellow XUV835R Signature Edition with included Ultimate Protection Package Green and yellow XUV835R Signature Edition with included Ultimate Protection Package
Olive and black XUV865M with cab and optional brush guard Olive and black XUV865M with cab and optional brush guard

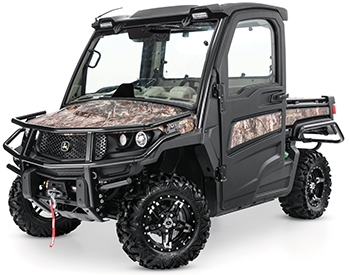

TrueTimber® KANATI camo XUV865R with optional Premium Protection Package TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

You will get noticed with the distinctive styling of full-size Gator© XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.



TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.


Large fuel tank fill opening Large fuel tank fill opening

Full-size Gator© XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.


Specs
Key Specs
Engine power 17.0 kW
22.8 hp
Dimensions / Capacities
Cargo box dimensions 1143 x 305 x 1320 mm
45 x 12 x 52 in.
Cargo box capacity (weight) 454 kg
1000 lb
Towing capacity Up to 1814 kg
4000 lb
Key Specs
Front suspension Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Drivetrain
Final drive Park, high, low, neutral, reverse transaxle
Four wheel drive Dash switch actuated four-wheel drive system
Dimensions / Capacities
Fuel capacity 42.4 L
11.2 U.S. gal.
Brakes
Type Front/rear hydraulic disc with twin piston front calipers
Engine
Displacement 854 cc
Power 17.0 kW
22.8 hp
Cooling system Liquid
Drivetrain
Transmission Continuously Variable Transmission (CVT) with clutch enclosure
Traction assist Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent control Yes
Tires / Wheels
Front 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels
27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Rear 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on alloy wheels
27x11-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Brakes
Park brake Park in-transmission, Optional factory-installed secondary foot operated with hand release
Dimensions / Capacities
Wheelbase 2146 mm
84.5 in.
Operating weight (includes fuel/fluids) 1058 kg
2332 lb
*Additional attachments and accessories will add weight
Length 3228 mm
127 in.
Width 1763 mm
69.4 in.
Height 1987 mm
78.2 in.
Tread centers Front: 1341 mm
52.8 in.
Rear: 1259 mm
49.6 in.
Ground clearance 284 mm
11.2 in.
Payload capacity 487 kg
1074 lb
Hitch Standard receiver: 5.1 cm
2 in.
Features
Color Green and yellow, TrueTimber® KANATI® camo, olive and black
Power steering Yes
Battery / Alternator / Power port Battery: 12 V 480 CCA
Alternator: 85 amp
DC outlet: 12 V
Instrumentation Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Storage Total: 69.5 L 18.4 gal.
Six cup holders: 4.6 L 1.2 gal.
Center tray: 1.2 L 0.3 gal.
Two dash bins: 3.3 L 0.9 gal.
Storage pocket: 1.4 L 0.4 gal.
Glove box: 3.8 L 1.0 gal.
Under seat: 55.3 L 14.6 gal.
Seating Stone cloth or black vinyl 40/60 split three-passenger bench
Headlights Single-beam halogen (single-beam LED on R Trim)
Additional information
Country of Manufacture U.S.
Dimensions / Capacities
Weight With fuel and fluids: 1058 kg
2332 lb
Additional information
Date collected 8-Jun-22
Specials

Order Online for Free Delivery†

on Gator™ Utility Vehicles

Offer Duration
November 01, 2023 - October 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
