Engine power | 17.0 kW / 22.8 hp |
Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Engine power | 17.0 kW / 22.8 hp |
Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
The Gator© XUV Crossover Series Utility Vehicle has a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.
Key elements of the drive system include:
The variable-speed drive consists of two clutches and a drive belt:
Features include:
How the variable-speed drive works:
Operator interface features:
Transaxle features:
NOTE: Differential design reduces scuffing of the turf during turns because it allows the inside wheels to turn slower than the outside wheels.
MFWD features:
Drive shaft features:
The machine is powered by an 854-cc (52.1-cu in.), 3-cylinder, liquid-cooled, four-cycle diesel engine. It produces 5.1 kgm (36.9 lb-ft) of torque at 2400 rpm.
The advanced engine delivers superb starting, idling, and throttle response during operation. With minimal noise vibration and harshness (NVH), the XUV855 is the smoothest and quietest running diesel in its class.
The engine offers the following performance and reliability features:
* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.
To complement the most capable frame available in a high-performance utility vehicle, the XUV is equipped with four-wheel independent suspension.
A dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics.
The entire suspension system has been optimized to handle no cargo to maximum cargo without compromising ride quality or vehicle stability.
Dual A-arm independent rear suspension features include:
The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust, dents, and reduces noise.
The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.
The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.
The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist.
A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.
The deluxe cargo box offers integrated tie-down points for increased versatility. Tie down points are located in the following areas:
The deluxe cargo box easily converts to a flat bed. The flatbed configuration allows loading larger cargo.
Optional accessories for the deluxe cargo box include:
Length | 1143 mm (45 in.) |
Width | 1320 mm (52 in.) |
Depth | 305 mm (12 in.) |
Volume | 0.46 m3 (16.4 ft3) |
Weight capacity | 454 kg (1000 lb) |
Dump angle | 47 degrees |
CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
This Gator© XUV Crossover Utility Vehicle is equipped with power steering and a dual A-arm front suspension. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort:
Electric power-assist steering (EPAS) system has advanced features:
With the EPAS system, the operator maintains a direct, mechanical linkage from the steering wheel to the front wheels. The power-steering system interfaces mechanically with the steering system by being inserted between the steering wheel and the rack-and-pinion assembly.
A differential torque sensor is integrated into the power steering assembly. The circuit board assembly is also integral with the power-steering assembly.
Power steering does not reduce turning radius but significantly reduces steering effort by approximately 85 percent compared to those models without power steering.
The numbered descriptions refer to the EPAS interface diagram shown above:

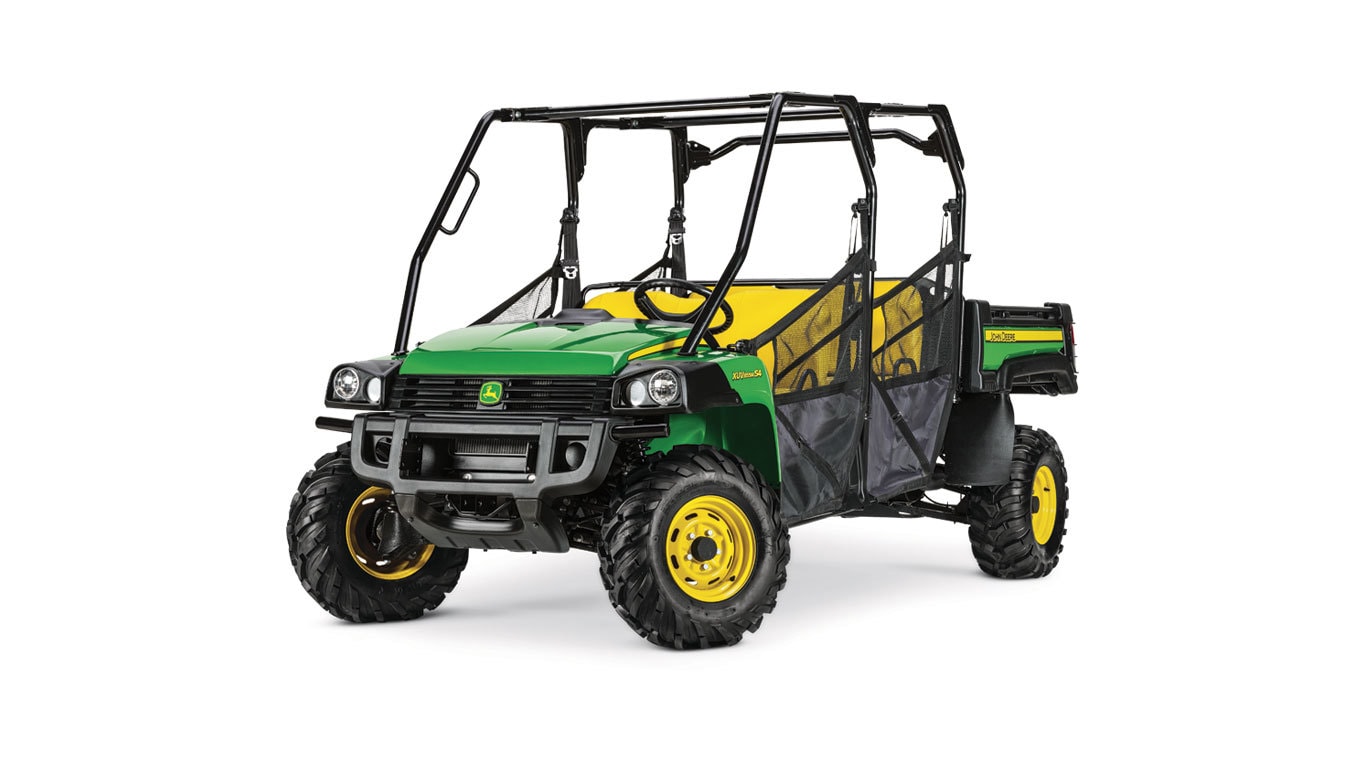

The XUV825M S4 and XUV855M S4 models feature seating for four. The rear seat converts to provide a flat surface for extra payload and there is sealed under-seat rear storage for additional cargo.
You will feel confident and comfortable, even on tough terrain, with a full-size Gator© Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.
Full-Size Gator Utility Vehicles are available with three tire options:
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
Full-size Gator© XUVs are built to work hard and go the extra mile.
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
When you sit behind the wheel of a full-size Gator© Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.
When you hop into the seat of a full-size two-row Gator© Utility Vehicle, you will notice the front and rear bench seats accommodate yourself and three passengers.
Your entire crew will enjoy spacious seating. Passenger grab handles, hip restraints, and rear bar help everyone feel secure.
Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Poly cab doors with roll down windows and heater attachments keep you warm all winter.
The full-size Gator© XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.
The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
The XUV865 and XUV825M S4 Gator© Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.
Two-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
The rear seat of two-row vehicles folds forward providing additional cargo space. An under-seat storage compartment is also found under the rear seat.
Two front and two rear cup holders, glove box, and center tray are within reach.
You will get noticed with the distinctive styling of full-size Gator© XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
Full-size Gator© XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
Key Specs | |
Engine power | 17.0 kW 22.8 hp |
Dimensions / Capacities | |
Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
Cargo box capacity (weight) | 454 kg 1000 lb |
Towing capacity | 680 kg 1500 lb |
Key Specs | |
Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Drivetrain | |
Final drive | Park, high, low, neutral, reverse transaxle |
Four wheel drive | Dash switch actuated four-wheel drive system |
Dimensions / Capacities | |
Fuel capacity | 27.6 L 7.3 U.S. gal. |
Brakes | |
Type | Front/rear hydraulic disc with twin piston front calipers |
Engine | |
Displacement | 854 cc |
Power | 17.0 kW 22.8 hp |
Cooling system | Liquid |
Drivetrain | |
Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
Descent control | Yes |
Tires / Wheels | |
Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
Brakes | |
Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
Dimensions / Capacities | |
Wheelbase | 2896 mm 114 in. |
Operating weight (includes fuel/fluids) | 957 kg 2109 lb |
Length | 3911 mm 154 in. |
Width | 1574 mm 62.0 in. |
Height | 1903 mm 74.9 in. |
Tread centers | 1305 mm 51.4 in. |
Ground clearance | 280 mm 11.0 in. |
Payload capacity | 588 kg 1297 lb |
Hitch | Standard receiver: 5.1 cm 2 in. |
Features | |
Color | Green and yellow, TrueTimber® KANATI® camo, olive and black |
Power steering | Yes |
Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 55 amp DC outlet: 12 V |
Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) |
Storage | Total: 45.1 L 11.9 gal. Front console tray with two cup holders: .9 L 2 gal. Rear console tray with two cup holders: 1.0 L .3 gal. Glove box: 7.6 L 2.0 gal. Under rear seat: 29.8 L 7.9 gal. Under hood: 5.8 L 1.5 gal. |
Seating | Black vinyl front and rear bench (four-passenger) |
Additional information | |
Country of Manufacture | U.S. |
Dimensions / Capacities | |
Weight | With fuel and fluids: 957 kg 2109 lb |
Additional information | |
Date collected | 8-Jun-22 |
