Feature Overview
John Deere XUV835R Signature Edition
  • Ultimate HVAC cab with genuine leather seats
  • 7-speaker infotainment system with touchscreen
  • Rear-facing camera and sliding rear window
  • Versatile Bumper Pro Brush Guard
Engine power 40.3 kW / 54 hp
Front suspension Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Feature Overview
John Deere XUV835R Signature Edition
  • Ultimate HVAC cab with genuine leather seats
  • 7-speaker infotainment system with touchscreen
  • Rear-facing camera and sliding rear window
  • Versatile Bumper Pro Brush Guard
Engine power 40.3 kW / 54 hp
Front suspension Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Features

Signature Edition Gator™ Utility Vehicles are loaded with exclusive features

The Signature Edition Gator Utility Vehicles leverage technology to deliver a distinctive experience. Features include:

  • Factory-installed touchscreen infotainment system
  • Bumper Pro Brush Guard, rear fender flares, rear fender guards, and rear bumper
  • Genuine leather 40/60 split three-passenger bench seat
  • Rear-facing camera
  • Easy-access rear-sliding window
  • Leather-wrapped grab handle
  • Signature Edition badges
  • Front roof-mounted light-emitting diode (LED) driving lights
  • Maxxis® Bighorn® 2.0 extreme terrain or Predator Heavy-Duty all-terrain radial tires with alloy wheels
  • Cargo box power lift
  • Deluxe cargo box with spray-in liner, brake lights, and taillights
  • Green and yellow color
  • All existing R-trim cab features including:
    • Integrated heating, ventilation, and air conditioning (HVAC)
    • Stone interior
    • Sport steering wheel
    • Sound dampening headliner and rear panel cover
    • A- and B-post covers
    • Interior rearview mirror, sun visor, and dome light
    • Windshield wiper and washer
Factory-installed touchscreen infotainment system
Automotive grade touchscreen entertainment system Automotive grade touchscreen entertainment system
Rear facing camera view Rear facing camera view

Signature Edition’s standard 16.3-cm (6.4-in.) touchscreen infotainment system delivers seven speakers, rear-facing camera, Bluetooth® wireless connectivity, AM/FM, and SiriusXM® satellite radio. The infotainment system is designed for use during operation and while parked.



The touchscreen infotainment system is compatible with Apple CarPlay and Android Auto. CarPlay allows iPhone users to place hands-free phone calls, send messages, check the weather, and access Apple Music and Maps through the infotainment system touchscreen or with their voice through Siri. Android Auto enables Android smartphone users to place hands-free phone calls, send messages, check the weather, play music, and get driving directions. An operator can also control the apps on the infotainment system using Google Assistant voice controls.



When using CarPlay or Android Auto, the touchscreen and voice control user experiences are provided by the iPhone or Android smartphone app software. Screen layouts, icons, menu structures, and voice commands are designed to be familiar to the iPhone or Android smartphone user. To use CarPlay or Android Auto, the iPhone or Android smartphone must be connected using an USB cable. A Bluetooth® wireless connection provides basic smartphone functions using infotainment system’s software.



Background noise may limit the usability of voice controls while the vehicle is being operated. The iPhone or Android smartphone app software must also be compatible with CarPlay or Android Auto.



Seven-speaker infotainment system professionally tuned by Harman:

  • Two headliner and two dash full-range speakers
  • Two A-pillar tweeters and an under-seat subwoofer
  • Water-resistant construction prevents damage in outdoor environments
  • Powerful for listening outside the vehicle

Rear-facing camera:

  • Is displayed on the infotainment screen with the push of a button
  • Can be used at any time, including spreading and spraying
  • Assists in positioning the vehicle to accurately place material dumped from the cargo box
  • Provides visibility to the hitch ball to precisely align trailer hitches
  • Is mounted to cargo box, and the box can be raised for a hitch-focused perspective

Sirius XM satellite radio:

  • Provides access to hundreds of channels of music, live sports, world-class news, and entertainment
  • Includes a factory-installed antenna
  • Requires a separate subscription

USB ports:

  • Can be used to charge phones and USB devices
  • Supports connectivity
  • Are located under the radio

Auxiliary port:

  • Allows any audio device with a headphone jack to play music through the infotainment system
  • Is located under the radio
Bumper Pro Brush Guard, rear fender flares, rear fender guards, and rear bumper

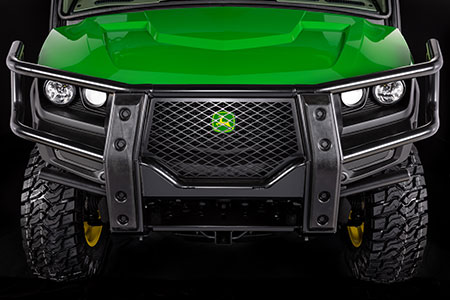

Bumper Pro Brush Guard Bumper Pro Brush Guard

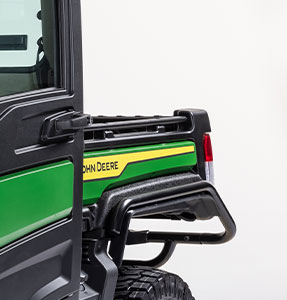

Rear fender guard, and fender flare Rear fender guard, and fender flare

Signature Edition vehicles include components to protect the vehicle:



  • Bumper Pro Brush Guard:
    • Protects the front grille, lights, hood, and sides
    • Has eye-catching and assertive appearance
    • Includes full-height rubber bumpers to soften contact with obstructions, including cattle gates
    • Has center screen that keeps trash from entering the radiator, which eases maintenance
    • Reaches around the side, so there is no need for brush guard extensions
    • Tilts forward for hood access
    • Is compatible with BUC10247 front fender guards
    • Is not compatible with BM26215 LED driving lights
  • Rear fender flares:
    • Keeps mud and debris off the vehicle
    • Refined molded construction
    • Includes BUC11375 rear fender flares
  • Rear fender guards and rear bumper:
    • Protects the rear and sides of cargo box
    • Includes BUC11320 rear fender guard and BM22767 rear bumper

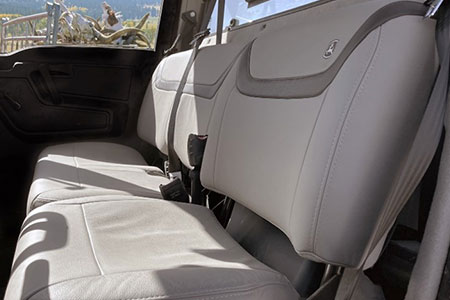

Genuine leather 40/60 split three-passenger bench seat
Genuine leather 40/60 split three-passenger bench seat Genuine leather 40/60 split three-passenger bench seat

Signature Edition vehicles feature a genuine leather bench seat that is durable and comfortable. An embroidered John Deere logo adds to the distinctiveness of a Signature Edition vehicle.

Rear-sliding window
Rear sliding window Rear sliding window

Signature Edition vehicles include a rear-sliding window that can provide access to the cargo box and provide additional ventilation.

Leather-wrapped grab handle
Leather-wrapped grab handle Leather-wrapped grab handle

Signature Edition vehicles include a leather-wrapped grab handle. The stitching is eye catching, and a foam base layer gives a soft feel.

Signature Edition badges

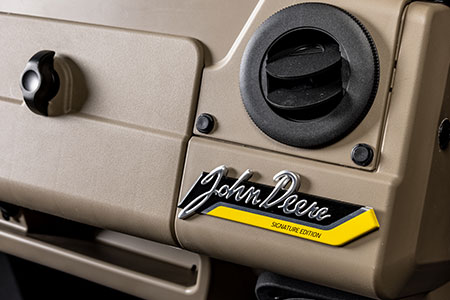

Signature Edition badge on dash Signature Edition badge on dash

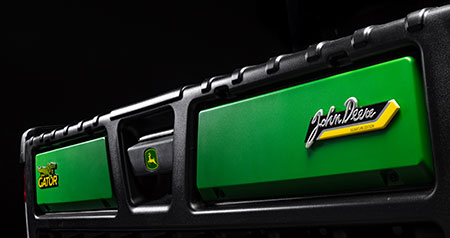

Upgraded Gator and Signature Edition badges on tailgate Upgraded Gator and Signature Edition badges on tailgate

Signature Edition vehicles include badges on the dash and tailgate to designate their exclusivity. The tailgate’s Gator badge is also upgraded to complement the Signature Edition badge.

Front roof-mounted LED driving lights
Front roof-mounted LED driving lights Front roof-mounted LED driving lights

Signature Edition vehicles include factory-installed LED driving lights mounted to the front of the cab roof. The LED lights have a driving-focused beam pattern to illuminate directly in front of the vehicle.

R-trim cab features
Ultimate dash in stone with sport steering wheel Ultimate dash in stone with sport steering wheel
Headliner, visors, rearview mirror, and dome light Headliner, visors, rearview mirror, and dome light
A-post cover A-post cover
B-post cover B-post cover
Rear panel cover Rear panel cover

Signature Edition vehicles include all the R-trim cab features including:

  • Heating and air-conditioning
  • Stone interior
  • Sport steering wheel
  • Sound dampening headliner and rear panel cover
  • A- and B-post covers
  • Interior rearview mirror, sun visor, and dome light
  • Windshield wiper and washer

The Gator© XUV Crossover Series Utility Vehicle has a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.

Key elements of the drive system include:

Variable-speed drive
Variable-speed drive Variable-speed drive

The variable-speed drive consists of two clutches and a drive belt:

  • Drive clutch is attached to the engine.
  • Driven clutch is attached to the transaxle.

Features include:

  • The engine braking system utilizes a tight belt for operation, requiring an idler sleeve on the primary clutch for neutral. The secondary clutch is a build- on-shaft design that utilizes a cam to tune the acceleration and deceleration of the vehicle. The clutch stays engaged, providing deceleration until approximately 5 km/h (3 mph).
  • The continuously variable transmission (CVT) air intake draws in cool air to reduce heat and the amount of water ingestion into the CVT system. The system reduces belt slippage and improve durability.
  • A two-range transmission provides:
    • Ability to maneuver in tight spaces and increased pulling torque in low range
    • Faster speeds and reduced transport time in high range
  • Standard full-clutch enclosure with high-speed fan provides longer belt and clutch life
  • High-ratio clutches with three cam weights for maximum belt-clamp load in high torque conditions


How the variable-speed drive works:

  1. As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
  2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
  3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
  4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
Transaxle, four-wheel drive (4WD), and constant velocity (CV) shafts

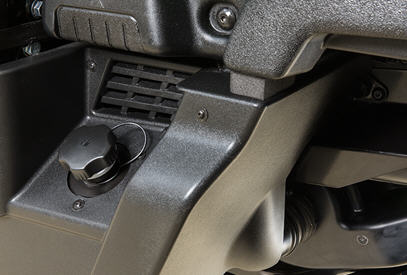

Side view of CVT intake and clutch enclosure (XUV835M shown) Side view of CVT intake and clutch enclosure (XUV835M shown)
Differential lock and 4WD switches Differential lock and 4WD switches
Rear view of transaxle, suspension components, and CV shafts (XUV865M shown) Rear view of transaxle, suspension components, and CV shafts (XUV865M shown)
CV boot protection CV boot protection

Operator interface features:

  • Selectable 4WD system with a limited slip front differential and dash-mounted electronic rocker switch
    • Provides exceptional traction in challenging conditions
    • Near instantaneous torque to the front wheels once rocker switch is engaged
    • Maintains turf-friendly operation in two-wheel drive (2WD) mode
    • Combined with rear traction assist (differential lock), provides excellent traction in challenging conditions
    • More control descending hills with 4WD engaged as all four wheels help slow the vehicle down
      • Clutch engagement still necessary to prevent free coasting

Transaxle features:

  • Low, high, neutral, reverse, and park transaxle
  • Automotive-style, integrated park position in transmission
  • Low range for maximum torque delivered to the wheels for hauling, pushing, and pulling
  • High range for maximum vehicle speed
  • To shift out of park, service brake must be pressed to release the parking solenoid. An audible click will be heard and allows the vehicle to shift out of park into the desired gear.

NOTE: Differential design reduces scuffing of the turf during turns because it allows the inside wheels to turn slower than the outside wheels.

  • Start in gear, neutral, or park position for quick starting. The service brake must be engaged to start when in gear or neutral.
  • For operators living in regions with homologation requirements or certain bid language stating the need for a secondary park brake, such as governmental or municipalities, a secondary park brake is available as a factory-installed option. A secondary brake attachment is not available for field installation.
  • Large, sealed bearings are located inside the housing for better protection and durability
  • Contains gear case for transferring power to the 4WD
  • Splined shaft interfaces for maximum torque transfer and durability
  • All drive gears machined from highest grade gear steel
  • Protected by a skid plate

4WD features:

  • Electronically selectable by the operator
    • Offers limited slip functionality for precision steering and great traction while pointing and shooting out of a corner.
  • Vertically oriented oil drain for easy maintenance
  • Protected by a steel skid plate and frame

Drive shaft features:

  • Rear CV shaft diameter measures 27 mm (1.1 in.) and is designed for peak engine and braking torque
  • Front CV shaft diameter measures 23 mm (0.91 in.) and is designed for peak engine torque
  • Propshaft is designed for peak engine torque
  • All CV shaft and propshaft joints are maintenance free and protected by exclusive thermoplastic elastomer (TPE) boots for durability

Whether it is a completely open operator station or a factory-installed cab, the interior has been redesigned with comfort and ergonomics in mind.

  • Gear shift control, four-wheel drive (4WD), and differential lock switches on the dash
  • Tilt steering
  • Available 40/60 split three-passenger bench seat with driver adjustment
Gear shift control with differential lock and 4WD switches (R Trim) Gear shift control with differential lock and 4WD switches (R Trim)
Tilt steering Tilt steering
Tilt steering (up position) Tilt steering (up position)
Tilt steering (down position) Tilt steering (down position)
Driver adjustment shown on 40/60 split three-passenger bench Driver adjustment shown on 40/60 split three-passenger bench
Three-wide seating Three-wide seating

Cab
Cab door interior Cab door interior
Side windows and front window Side windows and front window
Venting position Venting position
  • Functioning door windows ™ roll up and down
  • Fully opening front window with vent position
Windshield wiper Windshield wiper
  • Windshield wiper
Headliner shown on an XUV835R with R-trim features (visors, mirror, and dome light) Headliner shown on an XUV835R with R-trim features (visors, mirror, and dome light)

An interior headliner dampens sound, is available as a factory-installed option on M-trim cab vehicles, and is standard on R-trim vehicles.

Door sealing Door sealing
  • Automotive-style sealing
Styled roof Styled roof
  • Styled roof with channels designed-in to move water to the outside edges
  • M-trim vehicles have a black roof, and R-trim vehicles have a green roof.
Front roof-mounted light-emitting diode (LED) driving light Front roof-mounted light-emitting diode (LED) driving light
Rear roof light Rear roof light
  • Molded-in pockets for front and rear light mounting
    • Keeps lights below the roof line for protection
    • Front roof-mounted LED driving lights are in base equipment on Signature Edition, optional on other models
    • Rear roof light optional on all models
Inner door handle Inner door handle
Outer door handle Outer door handle
  • Easy-opening door handles and mechanisms

HVAC details

Automotive-style controls on the center of the dash are easy and convenient to reach for the operator or passengers

  • Four dash vents
    • Adjustable louvers and face plates
  • Windshield vents mounted on the top of the dash
    • Fast defrost
    • Efficient air flow
  • Air filter on the passenger side of the cab at foot level
  • Three fan speeds
    • 0: off
    • 1: low
    • 2: medium
    • 3: high
  • Temperature adjustment knob
    • Counterclockwise for cooler temperature
    • Clockwise for warmer temperature
  • Four air flow modes
    • Dash vents
    • Dash and floor vents
    • Defroster vents and floor vents
    • Defroster vents
  • HVAC compressor on/off button
    • Pushing the button once turns the air conditioning on - indicator light illuminates blue
    • Push the button again to turn off the air conditioning
  • Air flow constant with compressor on or off
  • Turn compressor off for full engine power
  • Gas machines have an idle bump to raise rpms to assist driving more power for the HVAC system
    • 1075 rpm in any gear at idle with air conditioning on
    • 1400 rpm when in neutral and the park brake is engaged
HVAC controls and vents on the dash HVAC controls and vents on the dash

812-cm<sup>3</sup> (49.6-cu in.) gasoline engine 812-cm3 (49.6-cu in.) gasoline engine

The machine is powered by an 812-cm3 (49.6-cu in.), 3-cylinder, dual overhead cams, liquid-cooled, four-cycle gasoline engine. It produces 6.5 kgm (47 lb-ft) of torque at 3200 rpm. The advanced electronic controls and fuel-injection system deliver superb starting, idling, and throttle response during operation.

The engine offers the following performance and reliability features:

  • 40.3 kW (54 hp*) at 6000 rpm
  • Electronic fuel injection for superb performance, altitude adjustment, and cold-weather starting (tested to -28.9°C [-20°F])
  • Electronic ignition is continuously variable for optimum engine power and provides fast, reliable starts
  • Exclusive electronic ground-speed governor and throttle body
  • Auto-compensates by providing more power when going up a hill or through difficult terrain
  • Eliminates top-speed degradation from belt wear
  • Overhead valve design provides greater efficiency and fuel economy
  • Full-pressure lubrication system
  • Spin-on oil filter with drain bracket and oil drain plug enable easy servicing
  • Dry, replaceable, single-element air cleaner with easy access for service
  • See-through coolant recovery tank permits the operator to check the coolant level without having to remove the radiator cap
  • Open front grille allows air flow and proper ventilation to the radiator
  • Standard high-capacity alternator - 85 amps for maximum accessory capability

*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

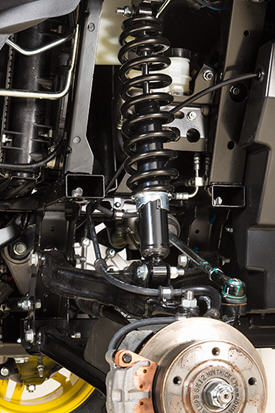

XUV front suspension detail XUV front suspension detail

To complement the robust frame, the XUV is equipped with four-wheel independent suspension.

A dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics.

The entire suspension system has been optimized to handle no cargo to maximum cargo without compromising ride quality or vehicle stability.

M-trim vehicles with factory-installed cabs and R-trim vehicles have heavy-duty front and rear shocks installed from the factory.

  • A higher spring rate and higher preload force versus standard springs prevent the vehicle from sagging with a heavy payload.
  • These heavy-duty shocks help with the heavier weight of the cab and when attachments are installed, like blades.
Dual A-arm independent front suspension features include:
  • 203 mm (8 in.) of travel provides ample wheel travel to keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
  • Heavy-duty nodular cast-iron knuckles support the constant-velocity (CV) shaft and wheel
  • Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
  • CV shaft protection from sticks that may puncture the rubber boot
  • Coil-over shocks absorb the most demanding terrain
XUV rear suspension detail XUV rear suspension detail
XUV rear suspension detail (shown on XUV865M) XUV rear suspension detail (shown on XUV865M)

Dual A-arm independent rear suspension features include:

  • Unequal length and dual A-arm construction for superior wheel control and travel
  • 229 mm (9 in.) of total travel provides ample wheel travel to keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
  • Coil-over shocks absorb the most demanding terrain
  • A-arms made from square/rectangular tubing reduce weight while remaining rigid
  • Heavy-duty nodular cast-iron uprights support wheel loads with a double row of ball bearings
  • CV driveshaft protection from sticks that may puncture the rubber boot
  • Rear sway bar for lateral stability

Deluxe cargo box with optional brake lights, taillights, and light protectors Deluxe cargo box with optional brake lights, taillights, and light protectors
Top view of deluxe cargo box with optional spray-in liner Top view of deluxe cargo box with optional spray-in liner

The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust and dents and reduces noise.

Deluxe cargo box tailgate
Tailgate handle Tailgate handle
Tailgate open Tailgate open
Tailgate lowered to 150 degrees Tailgate lowered to 150 degrees

The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate features truck-like performance and can be operated with one hand.



The standard-installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.

Deluxe cargo box tilt
Integrated handle for manual cargo box tilt Integrated handle for manual cargo box tilt

The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist.

A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.

Integrated tie-down points
Integrated tie-down point in cargo-box bed Integrated tie-down point in cargo-box bed
Additional tie-down points (TH 6X4 shown) Additional tie-down points (TH 6X4 shown)

The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

  • Four corners inside the cargo box bed
  • Four points on the load guard directly behind the operator station (A)
  • Tie-down bars on either side of the cargo box (B)
  • Six points on the underside of the cargo box frame (circled)
Converting deluxe cargo box to a flatbed
XUV835M Cab shown XUV835M Cab shown
XUV835M Cab shown XUV835M Cab shown

The deluxe cargo box easily converts to a flat bed. The flatbed configuration allows loading larger cargo.

Optional accessories
Brake light and taillight with optional protector Brake light and taillight with optional protector
Cargo bed mat Cargo bed mat
Specifications
 Length  1143 mm (45 in.)
 Width  1320 mm (52 in.)
 Depth  305 mm (12 in.)
 Volume  0.46 m3 (16.4 cu ft)
 Weight capacity  454 kg (1000 lb)
 Dump angle  47 degrees

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.

Cargo box power lift Cargo box power lift

Optional accessories for the deluxe cargo box include:

  • Factory-installed brake lights and taillights
  • Taillight protectors
  • Factory-installed spray-in liner that improves skid resistance and surface abrasion protection
  • Cargo box bed mat to protect the steel floor from dents
  • Factory-installed cargo box power lift

Factory-installed options

Several popular attachments can be ordered with the vehicle:

  • Roof on E- and M-trim open station vehicles (included with cab)
  • Front glass windshield on M-trim open station vehicles (included with cab)
  • Rear glass panel on M-trim open station vehicles (included with cab)
  • Brush guard (standard on Honor and Signature Edition)
  • Brush guard extensions
  • Rear bumper (standard on Signature Edition)
  • Front fender guards
  • Rear fender guards and rear fender flares (standard on Signature Edition)
  • Cargo box power lift (standard on Honor and Signature Edition)
  • Deluxe cargo box with spray-in liner, brake lights, and taillights (standard on Honor and Signature Edition)
  • Winch on M- and R-trim vehicles (except Honor and Signature Editions)



Electric power-assist steering (EPAS)

E-trim vehicles have manual steering; an M-trim or R-trim vehicle is needed for power steering.



Factory cabs

E-trim vehicles are only built in an open-station configuration. M-trim vehicles are built in both open-station and cab configurations. Cab components can be purchased as attachments for field conversion, however an M-trim vehicle with a factory-installed cab is recommended. All R-Trim vehicles are built with a factory cab.





Attachment-ready electrical system

All vehicles include wires and connectors for attachments like cargo box lift, brake lights, and taillights. Adding attachments to M- and R-trim vehicles is simplified because the base vehicle’s wiring harness includes connectors for additional attachments. See the following chart for details.





  Cargo box lift Backup alarm Brake / tail / reverse lights Base radio speaker kit Heater

2041-kg (4500-lb) winch

Premium radio speaker kit

LED lights-front OPS

Windshield wiper Windshield washer

LED lights-brush guard

LED headlights

Turn signals Horn Beacon light LED lights - rear OPS Sprayers and spreaders Hydraulic blade

AMS integration kit

         a a,c a,c,d a,c,d a,c,d a,b a,b a,b a,b a,c,e  a,c,e a,f a,f,g a,c,e,f
M open              c c,d c,d c,d b b b b c,e c,e f f,g c,e,f
M cab                      b b b b e f f,g e,f
R                                 f f,g  f



                 = connections in base harness
E-spec attachment harness
Front attachment harness
Roof attachment harness
Front cab attachment harness
Rear cab attachment harness
Front attachment (dash port) harness
Hydraulic blade and winch harness (only needed if hydraulic blade and winch are installed on same vehicle)
If blank, the base chassis harness has the connector for the attachment
Headlights

E- and M-trim vehicles have single beam halogen headlights. R-trim vehicles have single beam light-emitting diode (LED) headlights. The following attachments can be used to upgrade vehicles to dual beam LED headlights.



XUV835E and XUV865E

  • BM26589 dual beam LED headlights, including three-position rocker switch
  • BUC10809 front light harness kit
  • BUC10810 E-spec attachment harness



XUV835M and XUV865M:

  • BM26589 dual beam LED headlights, including three-position rocker switch
  • BUC10809 front light harness kit



XUV835R and XUV865R:

  • BM26589 dual beam LED headlights, including three-position rocker switch

This Gator© XUV Crossover Utility Vehicle is equipped with power steering and a dual A-arm front suspension. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort:

  • Steel ball bearings secure the steering shaft and deliver smooth, responsive operation
  • Completely sealed rack-and-pinion for long life
  • Low steering ratio (lock-to-lock) provides more responsive steering and less operator input
  • Shaft U-joints are phased for a smooth, uninterrupted motion of the steering wheel
  • Tilt steering wheel with 15 degrees of travel (XUV835M, XUV835R, XUV865M, and XUV865R models only; S4 models do not have tilt steering)
Electric power-assist steering system Electric power-assist steering system

Electric power-assist steering (EPAS) system has advanced features:

  • Anti-kickback feature reduces the amount of steering unwinding when traversing difficult terrain.
  • The system is speed sensing and adjusts steering effort as the speed of the vehicle changes.
    • As speed increases, there is less steering assist for improved road feel.
    • As speed decreases, steering assist increases to give lower steering efforts for improved maneuverability.
  • A warning/functional light on the instrument panel provides self-diagnostics and a warning light in the situation of no assist.
  • Torque sensor measures steering wheel input so the on-board computer can provide the appropriate output for various driving situations.

With the EPAS system, the operator maintains a direct, mechanical linkage from the steering wheel to the front wheels. The power-steering system interfaces mechanically with the steering system by being inserted between the steering wheel and the rack-and-pinion assembly.

A differential torque sensor is integrated into the power steering assembly. The circuit board assembly is also integral with the power-steering assembly.

Power steering does not reduce turning radius but significantly reduces steering effort by approximately 85 percent compared to those models without power steering.

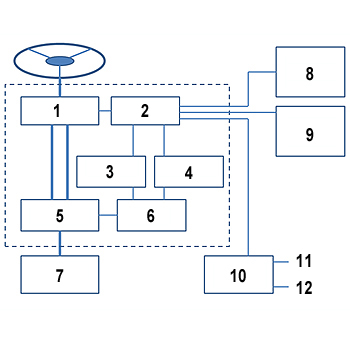

EPAS interface diagram
EPAS interface diagram EPAS interface diagram

The numbered descriptions refer to the EPAS interface diagram shown above:

  1. Torque sensor
  2. Electronic control unit (ECU)
  3. Fail-safe relay
  4. Current/thermal control circuit
  5. Reduction gears
  6. DC motor
  7. Rack and pinion
  8. Function/warning light
  9. Key power and ground
  10. Vehicle speed sensor
  11. Instrument cluster
  12. Relay module

You will feel confident and comfortable, even on tough terrain, with a full-size Gator© Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with rear differential lock
Dash mounted four-wheel drive and rear differential lock switches Dash mounted four-wheel drive and rear differential lock switches

With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension
Rear suspension and ground clearance Rear suspension and ground clearance

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.

Tires for any terrain
Terra Hawk all-terrain tire Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire Predator Heavy-Duty all-terrain radial tire

Full-Size Gator Utility Vehicles are available with three tire options:

  • Terra Hawk all-terrain tires
    • Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
  • Maxxis Bighorn 2.0 extreme terrain radial tires
    • Radial construction provides shock absorption, allowing for a smoother ride
    • Non-directional tread pattern provides predictable cornering and claws up roots and rocks
  • Predator Heavy-Duty all-terrain radial tire
    • Radial construction provides shock absorption, allowing for a smoother ride
    • Flat profile increases footprint area, reducing ground pressure
    • 8-ply rating delivers up to three times the life of Bighorn tires



Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.


Full-size Gator© XUVs are built to work hard and go the extra mile.

Heavy-duty frame
Underside view of XUV865M Underside view of XUV865M
Underside view of XUV825M S4 Underside view of XUV825M S4

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.

Constant velocity boot protection
Constant velocity boot protection Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.



TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.


Instrument display, shift lever, and switches (shown on XUV835R Signature Edition) Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)

When you sit behind the wheel of a full-size Gator© Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.



Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.



When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.


When you hop into the seat of a full-size Gator© Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare
40/60 split three-passenger bench seat 40/60 split three-passenger bench seat
Operator platform Operator platform

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Climate-controlled comfort
HVAC controls HVAC controls
Partially-open door windows and fully-open windshield Partially-open door windows and fully-open windshield

On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.

Upgrade to R-trim refinements
Stone colored dash with sport steering wheel Stone colored dash with sport steering wheel
Headliner, sun visors, rearview mirror, and dome light Headliner, sun visors, rearview mirror, and dome light

R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.

Stone cloth seat
Stone cloth seat Stone cloth seat

R-trim vehicles also include a stone cloth seat that keeps cool in the hot sun and warms up quickly in the winter.


XUV835R with AutoTrac Ready option XUV835R with AutoTrac Ready option
Interior of XUV835R with Gen 4 4640 Universal Display Interior of XUV835R with Gen 4 4640 Universal Display

Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the AutoTrac© assisted steering system and JDLink© Modem options to Gator Utility Vehicles brings precision ag technology to farms of all sizes.



The AutoTrac Ready option enables hands-free steering through the field decreasing overlap and lowering input costs while reducing operator fatigue. The JDLink Modem option connects your vehicle to the John Deere Operations Center so the vehicle can be managed with the rest of your fleet.

Simplify field boundaries

  • Check field boundaries and identify hazards as the Gator Utility Vehicle steers itself along established boundary lines.
  • Create new boundary lines, even when the soil is too wet for larger equipment.



Improve soil mapping

  • The days of picking a tree across the field to navigate are over. Use guidance lines to create a sampling grid and let your Gator Utility Vehicle keep you on track as you pull plugs across the field.



Connect your Gator Utility Vehicle to the rest of your fleet

  • Leave the USB drives at home as you wirelessly send your data to and from your Gator Utility Vehicle.
  • A planter operator can flag the exact location of a large rock so the Gator UV can be sent to the location to remove the hazard.



Save time and stop waiting for the perfect day to spray

  • When paired with a tow behind sprayer and rate controller, the Gator Utility Vehicle’s lighter weight allows work to be completed when the ground is too wet for larger equipment.
  • Speed through spraying by allowing the Gator Utility Vehicle to steer a predefined path around buildings and fence rows.



Track productivity, maintenance, and machine vitals

  • Track the current and past locations of your Gator Utility Vehicle in the John Deere Operations Center, just like the rest of your fleet.
  • Know when your Gator Utility Vehicle is ready for scheduled maintenance



Share StarFire© Receiver and Universal Display

  • You can leave precision ag technology components installed year-round or share your StarFire Receiver and Universal Display with another piece of equipment.

The full-size Gator© XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Built-tough cargo box
Cargo box (shown with spray-in liner and optional taillight protectors) Cargo box (shown with spray-in liner and optional taillight protectors)
Cargo box converted to flatbed Cargo box converted to flatbed

The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.



The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.

One-handed tailgate
Tailgate handle Tailgate handle

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Power lift
Deluxe cargo box unloading rocks Deluxe cargo box unloading rocks

To save your back, the optional cargo box power lift empties heavy loads with the push of a button.


812-cc (49.6-cu in.) gasoline engine and drivetrain 812-cc (49.6-cu in.) gasoline engine and drivetrain

The XUV835 and XUV825M S4 Gator© Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.



It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.


One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

Cup holders
Four cup holders and center tray (shown on XUV835E) Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket Cab door cup holder and pocket

The dash has four cup holders, and cab vehicles have a cup holder in each door.

Dash and under-seat storage
Under seat storage (shown on XUV835E) Under seat storage (shown on XUV835E)
Glove box, storage pocket, and two dash bins (shown on XUV835M cab) Glove box, storage pocket, and two dash bins (shown on XUV835M cab)

The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.


Green and yellow XUV835R Signature Edition with included Ultimate Protection Package Green and yellow XUV835R Signature Edition with included Ultimate Protection Package
Olive and black XUV865M with cab and optional brush guard Olive and black XUV865M with cab and optional brush guard
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

You will get noticed with the distinctive styling of full-size Gator© XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.



TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.


Large fuel tank fill opening Large fuel tank fill opening

Full-size Gator© XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.


Specs
Key Specs
Engine power 40.3 kW
54 hp
Dimensions / Capacities
Cargo box dimensions 1143 x 305 x 1320 mm
45 x 12 x 52 in.
Cargo box capacity (weight) 454 kg
1000 lb
Towing capacity Up to 1814 kg
4000 lb
Key Specs
Front suspension Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Drivetrain
Final drive Park, high, low, neutral, reverse transaxle
Four wheel drive Dash switch actuated four-wheel drive system
Dimensions / Capacities
Fuel capacity 42.4 L
11.2 U.S. gal.
Brakes
Type Front/rear hydraulic disc with twin piston front calipers
Engine
Displacement 812 cc
Power 40.3 kW
54 hp
Cooling system Liquid
Drivetrain
Transmission Continuously Variable Transmission (CVT) with clutch enclosure
Traction assist Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent control Yes
Tires / Wheels
Front 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels
27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Rear 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on alloy wheels
27x11-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Brakes
Park brake Park in-transmission, Optional factory-installed secondary foot operated with hand release
Dimensions / Capacities
Wheelbase 2146 mm
84.5 in.
Weight With fuel and fluids: 1138 kg
2509 lb
Length 3356 mm
132 in.
Width 1763 mm
69.4 in.
Height With antenna: 2215 mm
87.2 in.
Antenna removed: 2038 mm
80.2 in.
Tread centers Front: 1341 mm
52.8 in.
Rear: 1259 mm
49.6 in.
Ground clearance 284 mm
11.2 in.
Payload capacity 407 kg
897 lb
Hitch Standard receiver: 5.1 cm
2 in.
Features
Color Green and yellow
Power steering Yes
Battery / Alternator / Power port Battery: 12 V 480 CCA
Alternator: 85 amp
DC outlet: 12 V
Instrumentation Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
16.3 cm (6.4-in.) touchscreen infotainment system with seven speakers, rear-facing camera, Android™ Auto, Bluetooth® connectivity, AM/FM/SiriusXM® Satellite bands
Storage Total: 47.3 L 12.5 gal.
Six cup holders: 4.6 L 1.2 gal.
Center tray: 1.2 L 0.3 gal.
Storage pocket: 1.4 L 0.4 gal.
Glove box: 3.8 L 1.0 gal.
Under seat: 36.4 L 9.6 gal.
Seating Genuine leather 40/60 split three-passenger bench
Additional information
Country of Manufacture U.S.
Date collected 8-Jun-22
Specials

Order Online for Free Delivery†

on Gator™ Utility Vehicles

Offer Duration
November 01, 2023 - October 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

3.9% APR fixed rate for 84 months†

on New Gator™ Utility Vehicles

Offer Duration
May 01, 2024 - July 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

0.9% APR fixed rate for 36 months†

on New John Deere XUV and HPX Gator™ Utility Vehicles

Offer Duration
May 01, 2024 - July 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

Order Online for Free Delivery†

on Gator™ Utility Vehicles

Offer Duration
May 01, 2024 - July 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
