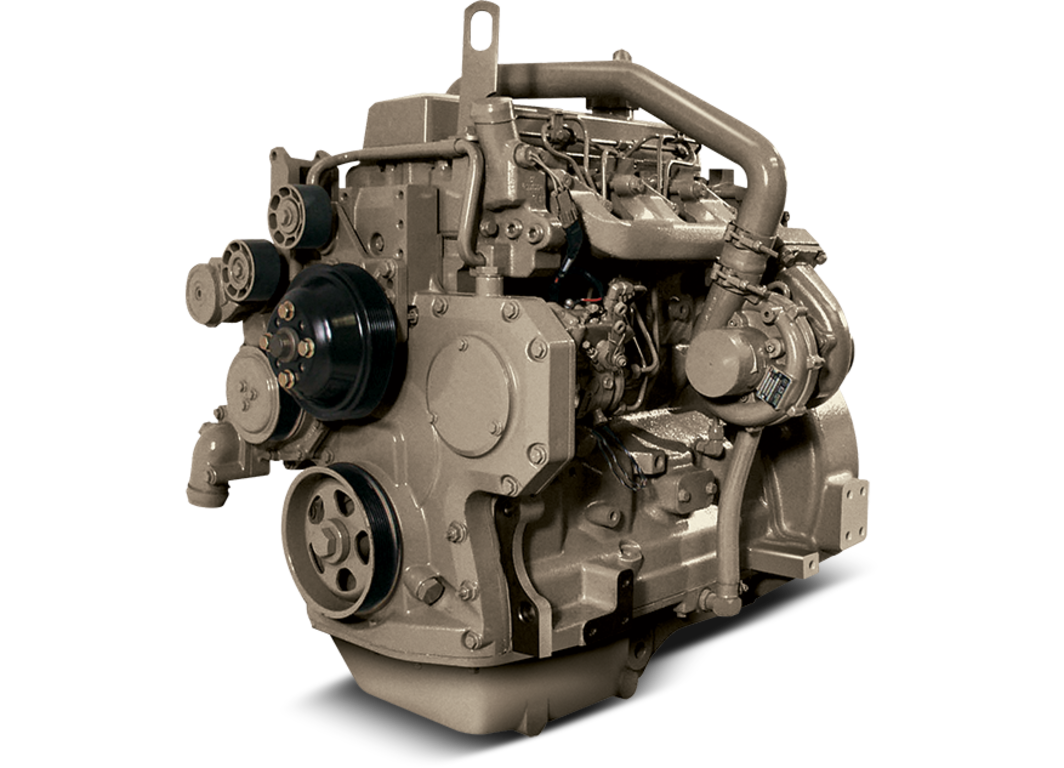

John Deere 4045TF275

DEBUG Ind: Engine and Drivetrain, Cat: Generator Drive Engines, SubCat: Tier 3 Lesser Regulated, SubSubCat: Powertech M 4 5l Tf275
Feature Overview
John Deere 4045TF275
  • PowerTech™ M
  • Standby: 84 kW (113 hp) @ 1800 rpm
  • Prime: 76 kW (102 hp) @ 1800 rpm
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 4045TF275
  • PowerTech™ M
  • Standby: 84 kW (113 hp) @ 1800 rpm
  • Prime: 76 kW (102 hp) @ 1800 rpm
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Dynamically balanced crankshaft

  • Induction-hardened journals for long hours of reliable service
  • Robust design to drive machinery from the front of the crankshaft
  • Supported by five main bearings

  • 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability

  • Provide excellent heat dissipation
  • Precision machined for long life
  • Rebuild to original specifications

  • Smooth vibration with full length engine balancers

  • Front and rear engine mounting pads on the side of the block facilitates installations
  • Either-side service for filters and service points
  • Engine mounted ECU and electronic speed control simplify installation and packaging
  • All connection points in common locations make it easy to install or package

  • Short length is ideal for both skid and packaged installations
  • High mount or low mount turbocharger position to meet packing requirements

  • Excellent fuel economy and low oil consumption

  • Electronically controlled rotary fuel injection pump with variable timing resulting in excellent fuel economy and excellent performance
  • Self diagnostics and protection
  • 3-5% Droop Governing
  • 12V or 24V Electric Shutoff

  • Induction-hardened journals for long hours of reliable service
  • Robust design to drive machinery from the front of the crankshaft
  • Supported by five main bearings

Specs
General engine data
Model 4045TF275
Number of cylinders 4
Displacement-- L (cu in) 4.5 (275)
Bore and Stroke-- mm (in) 106 x 127 (4.17 x 5.00)
Compression Ratio 17.0:1
Engine Type In-line, 4-Cycle
Aspiration Turbocharged
Length - mm (in) 867 (34.1)
Width-- mm (in) 637 (25.1)
Height-- mm (in) 982 (38.7)
Weight, dry - kg (lb) 451 (994)
Performance data range
Hz (rpm) 60 ( 1800 )
Generator Efficiency % 88-92
Power Factor 0.8
Engine power - Prime kW 76
Engine power - Prime hp 102
Engine power - Standby kW 84
Engine power - Standby hp 113
Rated Fan Power - kW 4.2
Rated Fan Power - hp 5.6
Calculated generator set output - Prime kWe 64-66
Calculated generator set output - Prime kVA 79-83
Calculated generator set output - Standby kWe 70-73
Calculated generator set output - Standby kVA 88-92
Emissions Certifications
CARB
EPA Tier 2
Performance data range
Calculated generator set output - Prime kWe 64-66
Calculated generator set output - Prime kVA 79-83
Calculated generator set output - Standby kWe 70-73
Calculated generator set output - Standby kVA 88-92
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
