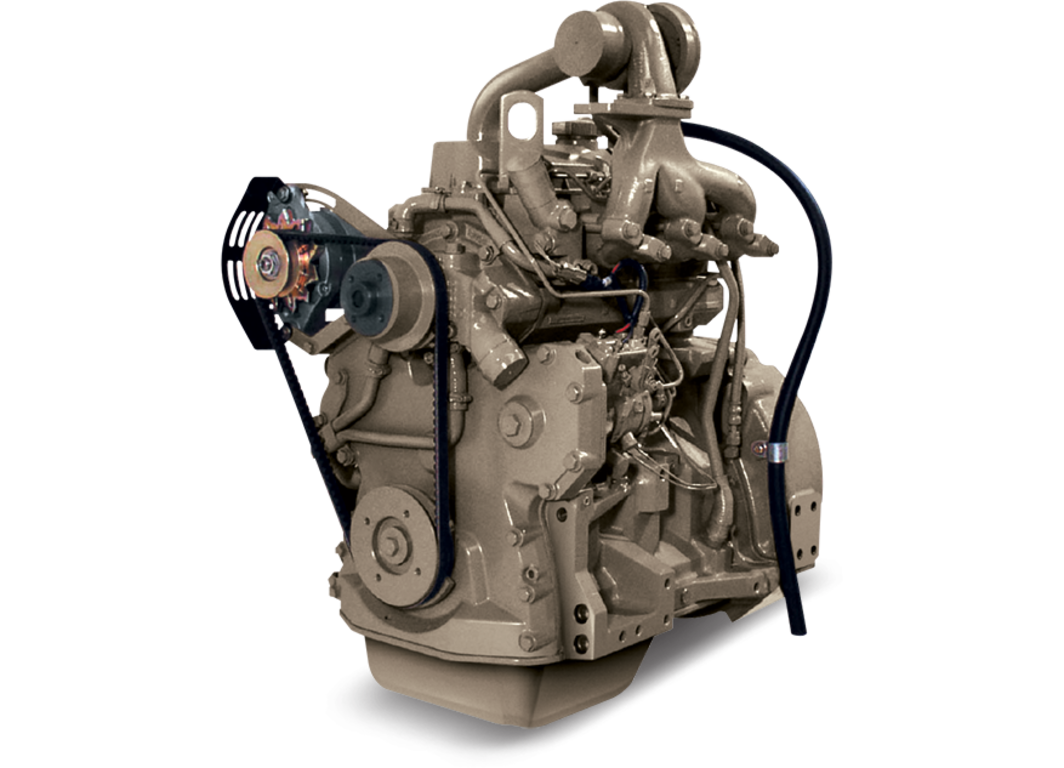

John Deere 3029TF270

DEBUG Ind: Engine and Drivetrain, Cat: Industrial Engines, SubCat: Tier 2 Lesser Regulated, SubSubCat: Powertech 2 9l Tf270
Back
Feature Overview
John Deere 3029TF270
  • PowerTech™
  • 48 - 53 kW (64 - 71 hp)
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 3029TF270
  • PowerTech™
  • 48 - 53 kW (64 - 71 hp)
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Have Questions?
Features

Meets epa, carb, and eu off-road emission regulations

  • Engine developed to meet off-road emission requirements without degradation in performance or power level
  • Journal surfaces induction-hardened for significantly increased wear life
  • 45-degree connecting-rod/cap-joint design allows the use of larger crankshaft-connecting-rod bearings for increased durability
  • Provides excellent heat dissipation
  • Precision machined for long life
  • Weight of cylinder block reduced, while maintaining overall strength
  • Crankshaft supported by four main bearings
  • Mounting points for new engine have not changed, making it easy to replace previous model
  • Additional front engine mounts are available for application ease
  • Compact in-line 3-cylinder configuration allows model to be used in applications where length is critical
  • Optional drive, with an SAE "A" flange, increases application flexibility of the 3-cylinder engine
  • Higher torque rise, excellent fuel economy, and low oil consumption result in superior engine performance
Specs
General engine data
Model 3029TF270
Number of cylinders 3
Displacement-- L (cu in) 2.9 (177)
Bore and Stroke-- mm (in) 106 x 110 (4.17 x 4.33)
Compression Ratio 17.2:1
Engine Type In-line, 4-Cycle
Aspiration Turbocharged
Length - mm (in) 716 (28.2)
Width-- mm (in) 519 (20.4)
Height-- mm (in) 928 (36.5)
Weight, dry - kg (lb) 328 (723)
Performance data range
Intermittent - Rated power/Rated speed 48-53 kW (64-71 hp) @2500 rpm
Intermittent - Peak power 48-53 kW (64-71 hp) @2500 rpm
Intermittent - Peak torque 225-245 N·m (166-181 ft-lb) @1500-1600 rpm
Intermittent - Torque rise NA
Emissions Certifications
CARB
EPA Tier 2
EU Stage II
