Emissions certifications | |
N | N |
General engine data | |

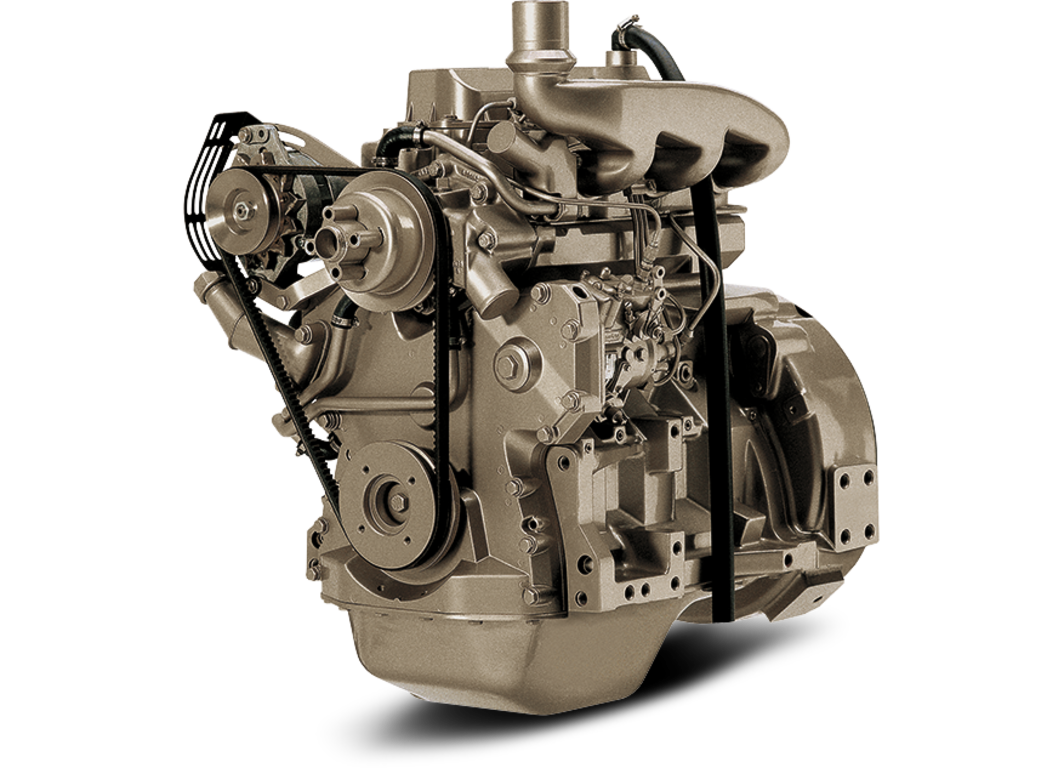

Model | 3029DF129 |
Number of cylinders | 3 |
Displacement-- L (cu in) | 2.9 (177) |
Bore and Stroke-- mm (in) | 106 x 110 (4.17 x 4.33) |
Compression Ratio | 17.2:1 |
Engine Type | In-line, 4-Cycle |
Aspiration | Naturally aspirated |
Length - mm (in) | 716 (28.2) |
Width-- mm (in) | 519 (20.4) |
Height-- mm (in) | 819 (32.2) |
Weight, dry - kg (lb) | 316 (697) |
Performance data range | |
Hz (rpm) | 60 ( 1800 ) 50 ( 1500 ) |
Generator Efficiency % | 88-92 88-92 |
Power Factor | 0.8 0.8 |
Engine power - Prime kW | 31 27 |
Engine power - Prime hp | 42 36 |
Engine power - Standby kW | 35 31 |
Engine power - Standby hp | 47 42 |
Rated Fan Power - kW | 3 2 |
Rated Fan Power - hp | 4 2.7 |
Calculated generator set output - Prime kWe | 25-26 22-23 |
Calculated generator set output - Prime kVA | 31-33 28-29 |
Calculated generator set output - Standby kWe | 28-30 26-27 |
Calculated generator set output - Standby kVA | 35-37 32-34 |
Emissions Certifications | |
& | & |
Performance data range | |
Calculated generator set output - Prime kWe | 25-26 22-23 |
Calculated generator set output - Prime kVA | 31-33 28-29 |
Calculated generator set output - Standby kWe | 28-30 26-27 |
Calculated generator set output - Standby kVA | 35-37 32-34 |
