Feature Overview
John Deere 1025R
  • Standard LED headlights and fender lights
  • Premium Operator Station with deluxe seat suspension and armrests
  • AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes


Steering hydraulics 13.2 L/min / 3.5 gpm
Implement hydraulics 13.2 L/min / 3.5 gpm
Hitch type Limited Category 1
Feature Overview
John Deere 1025R
  • Standard LED headlights and fender lights
  • Premium Operator Station with deluxe seat suspension and armrests
  • AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes


Steering hydraulics 13.2 L/min / 3.5 gpm
Implement hydraulics 13.2 L/min / 3.5 gpm
Hitch type Limited Category 1
Features

Powerful Tier 4-compliant diesel engine and standard dual mid-selective control valve (SCV)

Powerful engine
  • Tier-4-compliant isolated Yanmar® TNV clean and silent diesel engine
  • 24.2 gross hp (PS) - 18.0 power take-off (PTO) hp
  • 3200 rpm rated speed
Strong hydraulics
  • Standard dual mid-selective control valve (SCV) with integrated loader joystick
  • Third-SCV kit
  • Power-beyond kit
  • Independent hydraulic-lift kit
Comfortable operator station and controls
  • Ag tractor family styling with sloping hood design
  • Folding rollover protective structure (ROPS)
  • Deluxe-suspension seat with armrests
  • Standard cruise control
  • Tilt steering
  • Standard tool box
  • 12-V outlet
  • Ergonomic-floor mat
  • Cup holder
  • Standard side fender lights
Versatile implements
  • D120 and H120 Loaders
  • 54D AutoConnect™ and 60D AutoConnect 7-Iron™ mower decks
  • Material-collection system
  • 260 Backhoe
  • iMatch™ AutoHitch™
  • Rotary brooms 132.1 cm and 152.4 cm (52 in. and 60 in.)
  • Front blade 137.2 cm (54 in.)
  • Snow blowers 119.4 cm and 137.2 cm (47 in. and 54 in.)
  • Rotary tillers (647)



Yanmar is a U.S.-registered trademark of Yanmar Company Limited.


Both 4WD and power steering are standard equipment on the 1025R. This combination allows for excellent maneuverability and ease of operation of the tractor.

  • Narrow overall width allows the 1025R to work in tight areas where most compact tractors just cannot fit, yet the 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all type of terrains.
  • Power steering means fewer turns of the steering wheel than manual steering; especially valuable when mowing around obstacles or when the tractor is used with a front loader.
  • High horsepower-to-weight ratio makes the 1025R a good choice for a variety of tasks; overall tractor weight reduces ground compaction and makes the 1025R an excellent mowing tractor.
  • The power take-off (PTO) is a fully-independent PTO on the 1025R, allowing engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

  • Front Quik-Tatch™ hitch makes changing front implements quick and easy
  • All front implements (blade, brooms, and snow blowers) use a common hitch
  • AutoConnect™ mid-mount mower decks, D120 and H120 Loaders, and 260 Backhoe can be taken on or off within 5 minutes, and no tools are necessary
  • Changing rear implements is a snap with the iMatchTM Quick-Hitch, which has three fixed points to back in and pick up a rear implement that is iMatch compatible

*Features shown are available with all current model year tractors.


Implement compounding (1025R Tractor shown)Implement compounding (1025R Tractor shown)
  • Allows mounting more than one implement at a time, eliminating implement changeover
  • Loader, mid mower, backhoe, and a variety of 3-point hitch implements can be attached to the tractor at the same time

The 1023E and 1025R Tractors feature a HST.

  • Fluid under pressure transmits engine power to the drive wheels through a hydraulic pump and motor
  • The hydrostatic-drive unit functions both as a clutch and transmission
Twin Touch foot controls Twin Touch foot controls

Twin Touch foot controls allow selecting both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.

  • Infinite ground speeds, even at full throttle, to match the job
  • No clutching for fast direction changes
  • Faster, easier, and more precise to operate than competitive tractors with treadle pedal design (toe-heel)
  • Provides high torque for start up
  • Reduces power train shock loads
  • Large foot pedals were designed for operator comfort and allow for convenient operation of the tractor
Two-speed transmissionTwo-speed transmission

Transmission has two speeds - Hi and Lo range.

  • The range lever is located next to the seat, conveniently within reach of the operator
  • Lo range allows performing tougher tasks at higher speeds than competitive tractors equipped with a three-range transmission (that is, lo range on three-speed transaxle is slower than lo range on a two-speed transaxle)



Durability features include:

  1. Large forged one-piece trunnion shaft with larger support bearings that reduce vibration and noise.
  2. Innovative transaxle combines an HST, gear reduction axle, and clutch.
  3. Pressure side filtration allows using a finer-mesh filter (10 micron) than suction filtration systems use on many competitive tractors.
  4. One pump to supply charge pressure and implement flow. A flow divider splits the flow to various circuits throughout the tractor.
  5. The transaxle has an oil cooler which provides improved hydraulic cooling performance.

iMatch Quick-HitchiMatch Quick-Hitch
iMatch Quick-Hitch with rotary cutter hookupiMatch Quick-Hitch with rotary cutter hookup
iMatch Quick-Hitch (LVB25976)iMatch Quick-Hitch (LVB25976)
iMatch Quick-Hitch with rotary cutter hookup (LVB25976)iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

  • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

  • Upper bushing
    • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
    • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
  • Lower bushings
    • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
    • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)

Gas-lift springGas-lift spring
  • The under-hood gas-lift support provides easy one-finger access to the engine compartment and eliminates the need for a mechanical prop rod.
  • This design of the support structure provides excellent rigidity for the hood.

1025R Tractor1025R Tractor

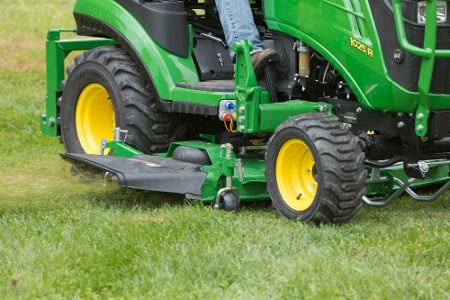

  • The 1 Family tractors includes factory-installed mechanical deck lift components.
  • The addition of these components from the factory significantly reduces the time required to do the initial mower deck installation at the time of purchase.
  • Refer to the mowers and material collection page for more details on mower deck installation and compatibility.

The cab offers protection from the elements and expands the versatility of 1025R Tractors to perform in all climates.

1025R Cab ™ LP680871025R Cab ™ LP68087
#

Key features:

  • Full glass doors for maximum visibility
    • Curved glass for a styled look
    • Sealed for cold weather operation
    • Easily removable for summer operation
  • Heater with fan
    • Switches and vents integrated into headliner
  • Dome light
  • Fully openable front and rear windows with gas struts
  • Front sun visor
#
#
  • Front work lights
#
#
  • Front wiper with washer system
  • Dual outside mirrors
  • Rollover protective structure (ROPS) certified cab frame
    • Allows for improved rear visibility
    • Reduces overall height
  • Rubber isolation at all mounting points
  • Interior sound insulation
#
#
  • Immersion-primed and powder-coated cab frame
    • Provides superior corrosion resistance
  • Integrated John Deere styling
#
#

Specifications:

  • Cab height: 1525 mm (60 in.)
  • Overall height when installed: 1990 mm (78.4 in.)
  • Overall height when installed to top of beacon: 2159 mm (85 in.)
  • Overall width with cab installed: same as tractor width
  • Cab weight: 200 kg (440 lb)
#
#
#

Optional kits:

  • Rear wiper kit – BLV11241
  • Stereo kit – LVB26198
  • Radio (AM/FM, weatherband, SIRIUS® Satellite, and iPod® ready) - SWJHD1630
  • Beacon light kit – BLV11024
  • Light-emitting diode (LED) rear work light kit – BLV11244
  • Illuminated license plate kit – BLV11246

Compatibility and Installation:

  • Not compatible with:
    • 1023E
    • 1025R TLB (FILB)
    • 1026R TLB (FILB)
  • Compatible with all tractor implements except 260 Backhoe.



SIRIUS is a trademark of Sirius XM Radio, Inc. iPod is a trademark of Apple Inc.

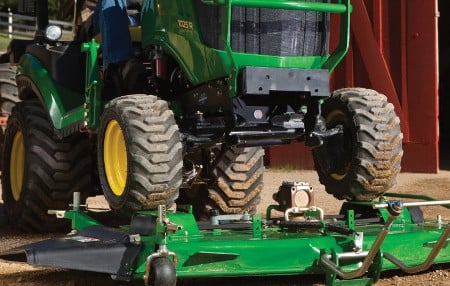

Drive-over deck makes connection simple Drive-over deck makes connection simple

1 Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.



  • AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
    • Load-N-Go attachment: Easily move your 54D or 60D AutoConnect Deck with your John Deere Loader after it has been disconnected from the tractor with the Load-N-Go ramps.
  • Quik-Park© Loader System: 120R Quik-Park© Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
  • Quik-Tatch© front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
  • iMatch© quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
    • Position control hitch: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
  • Quik-Knect© system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.



1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.

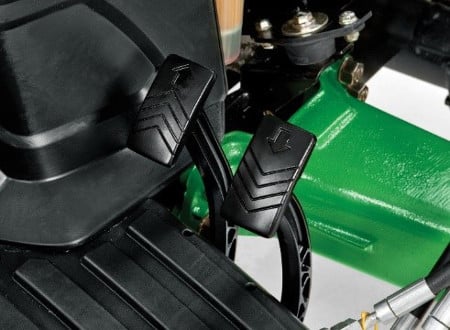

Twin Touch© pedals Twin Touch© pedals

The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.

  • Ideal for loader or mower applications where frequent direction and speed changes are needed
  • No clutching for fast direction changes
  • Match the job at hand with infinite ground speeds

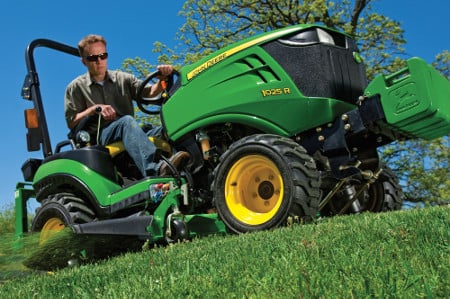

Standard 4WD and power steering make 1 Family Tractors excellent for mowing Standard 4WD and power steering make 1 Family Tractors excellent for mowing

Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.

  • Narrow overall width allows you to work in tight areas where most compact tractors just cannot fit. The 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all types of terrain.
  • Power steering means fewer turns of the steering wheel than manual steering, which is especially valuable when mowing around obstacles or during front loader work.
  • High horsepower-to-weight ratio makes the 1 Family Tractors a good choice for a variety of tasks. The overall tractor weight reduces ground compaction and makes them excellent for mowing.
  • The fully-independent power take-off (PTO) allows engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

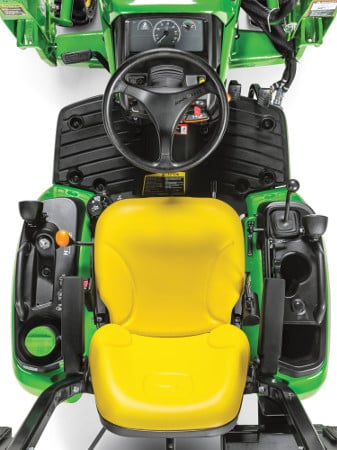

1025R open operator station 1025R open operator station

The 1025R open operator station is designed for greater comfort and increased visibility.



Comfortable operation

  • Thick, textured rubber floor mat reduces vibrations and absorbs shock and noise
  • Step-through flat platform and fender-mounted handrails make it easy to get on and off the tractor from either side
  • Controls are conveniently located next to the fenders and are color-coded for quick identification
  • Tilt steering lets you keep your arms in a natural position to reduce fatigue
  • Deluxe suspension seat has moveable armrests and provides great back support
  • Easy access toolbox puts common tools within quick reach
  • Standard 12-V outlet for convenient charging of electronics
  • Easy-lift hood with dual gas-charged lift struts as standard equipment. A simple flip of the latch lets you open the rugged composite hood, providing wide open access to the engine compartment.
  • Foldable rollover protective structure (ROPS) keeps you protected during operation and improve the ability to store tractor in a garage
Foldable Roll-Gard ROPS Foldable Roll-Gard ROPS

Foldable Roll-Gard© ROPS is standard equipment on 1025R

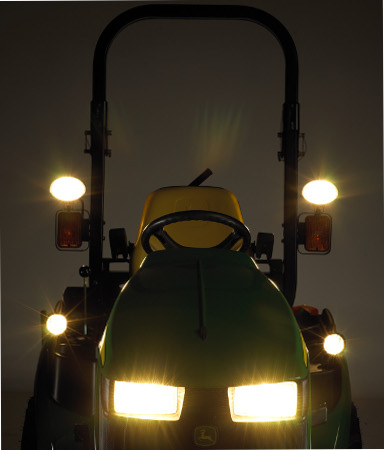

Increased visibility
  • Sloping hood design provides improved visibility especially during front loader work
  • Standard lighting equipment allows you to work from early in the morning to late at night:
    • Two front-mounted light-emitting diode (LED) headlights
    • Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
    • Two LED fender work lights
    • Additional front- and rear-light kits are available
Instrumentation
Instrumentation Instrumentation

Updated instrumentation is standard equipment for operating convenience and confidence. Instrumentation includes:

  • Tach/hour meter
  • Oil-pressure indicator light
  • Alternator-indicator light
  • Flashing-warning lights
  • Coolant-temperature light
Premium seat
Premium seat Premium seat

The thick, soft padding on this seat provides a smooth and comfortable ride. A high, scalloped back makes it easier for the operator to turn to view rear implements. The embroidered logo and premium vinyl not only provide an easy-to-clean surface but also a well-polished design.

  • Seat adjusts fore/aft for operator convenience
  • Seat flips forward for protection from the elements
  • High seat back and armrests are in base equipment and allow for a more comfortable operation
  • Retractable seat belt feature prevents the seat belt from becoming tangled in the seat suspension and controls
Mower deck height-adjustment knob
Mower deck height-adjustment knob Mower deck height-adjustment knob
  • The mower deck height-adjustment knob allows the mower height to be adjusted from 2.5 cm to 10.2 cm (1 in. to 4 in.).
  • A spring-loaded detent ensures the height position is locked into place.
  • The transport lock position holds the deck 10.2-cm (4-in.) from the ground, so that rear implements can be used separately while the mower is installed.
Rear installed toolbox
Rear installed toolbox Rear installed toolbox

The 1 Family Tractor features a rear installed toolbox for easy accessibility and convenience.

Beverage holder
Beverage holder Beverage holder

The beverage holder is contour-molded and seated into the fender for a clean look. It is conveniently located and dual-sized to accommodate many containers. The placement of the cup holder is within arm's reach.

12-V outlet
12-V outlet 12-V outlet

The 1025R Tractor features a 12-V outlet conveniently located on the right-hand side fender for easy access. The placement of the 12-V outlet is within arm's reach.

Fuel fill and fuel gauge locations
Fuel fill and fuel gauge locations Fuel fill and fuel gauge locations

The fuel fill location is conveniently accessible on the left-hand side fender. The fuel gauge is located in close proximity to make the fuel refilling process easier.

Tilt steering
Tilt steering Tilt steering

The 1 Family Tractors feature tilt steering for easy maneuverability and convenience.

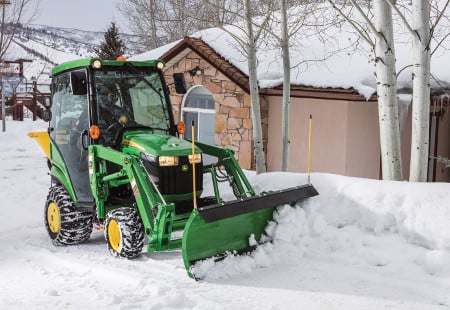

Heated cab is ideal for cold weather chores Heated cab is ideal for cold weather chores

The John Deere 1R cab is about comfort, security, and helping you get year-round performance. The cab offers protection from the elements to expand the versatility of 1025R Tractors to perform in all climates.

  • Sound damping system for quiet, peace-of-mind operation
  • Heated cab keeps you warm in colder months
  • Removable doors and front and rear windows that open nearly 90 degrees provide a cooler work environment in warmer months.
  • Excellent visibility to your surroundings with the full glass doors
  • Compatible with all tractor implements except the 260B Backhoe

Mid-mower lift system options Mid-mower lift system options
Mid-mower lift system options

Standard mechanical mower lift

The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.



Optional hydraulic mower lift

The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.



Optional independent hydraulic mower lift

The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.



For more information on this mid mower lift system click here.


Specs
Engine
Engine power (gross) SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 seconds
Power take-off (PTO) power 12.8 kW
17.2 hp
Key Specs
Steering hydraulics 13.2 L/min
3.5 gpm
Implement hydraulics 13.2 L/min
3.5 gpm
Hitch type Limited Category 1
3-point hitch
Lift capacity, 24-in. behind link arms 344 kg
758 lb
Transmission
Standard transmission; forward/reverse Hydrostatic - two range
Cruise control Standard
Dimensions
Approximate shipping weight (open-station; cab) Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Wheelbase 1450 mm
57.1 in.
Engine
Family EYDXL1.27NS1
FYDXL1.27NS1
GYDXL1.27NS1
Manufacturer Yanmar®
Engine model 3TNV80F-NCJT
Rated engine speed 3200 rpm
Final drive
Type Spur gear
Engine
Injection pump type Indirect injection
Aspiration Natural
Emissions compliance Final Tier 4
Cylinders/displacement Three cylinders: 1.267 L
77.3 cu in.
Number of cylinders Three
Cylinder liners Cast-in-block
Bore and stroke 80 x 84 mm
3.15 x 3.31 in.
Compression ratio 23.1:1
Lubrication Pressurized
Cooling system Water pump
Air cleaner Dual element with mechanical restriction indicator
Engine torque at rated speed 53.1 Nm
39.2 lb-ft
Fuel tank capacity 24 L
6.3 U.S. gal.
Electrical
Battery size 500 CCA
Alternator (12-V) 40 amp
Starter size 1.2 kW
1.6 hp
Fuel system
Fuel consumption
Transmission
Left-hand reverser No
Final drive Spur gear
Brakes Wet disc (left-hand pedal)
Steering Power
Clutch, wet/dry N/A
Axle capacity Front
612 kg
1349 lb
Rear
715 kg
1576 lb
Creeper No
Final drive
Differential lock Yes
Hydraulics
Pump rated output Steering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm
Pump type Single gear
Maximum operating pressure 138 bar
2000 psi
Draft control sensing Position control
Remote control valves available Three
Power take-off (PTO)
Standard Rear: 540 rpm
Mid: 2100 rpm
Control Independent
Clutch Wet disk
Brake (for mid and rear PTO) Wet disk
Fluid capacities
Crankcase with filter 2.7 L
2.9 gal.
Transmission and hydraulic system 12.3 L
3.2 gal.
Operator station
Rollover protective structure Type
Foldable
Yes
Platform - flat/straddle One-piece semi flat
Gear shift location - console/floor Left-hand side
Cab
Compliance NA
Visibility NA
Air conditioning, temperature differential Heat only
Doors Two
Noise rating NA
Seat equipment Premium seat
Dimensions
Front axle clearance 195 mm
7.7 in.
Turning radius without brakes Outside front tire: 2.51 m
8.2 ft
Limited slip differential No
Tires
Front R3 Turf: 18x8.50-10
R3 Turf Radial: 18x8.50-10
R4: 18x8.5-10
Rear R3 Turf: 26x12-12
R4: 26x12-12
Front tread range 931 mm
36.7 in.
Miscellaneous
Toolbox Yes
Tires
Rear tread spacing 895 mm
35.2 in.
Accessories and Attachments
Accessories

Canopy Kit - Rigid Plastic - LP64809


3-Point Hitch Tractor Receiver Hitch - LP25001


Seat Cover - LP68694


Tractor Cover - LP95637


Ballast
Ballast box with extensionBallast box with extension

The ballast box can be used to carry additional ballast for greater tractor stability.



A 23-cm (9-in.) high extension can be added to ballast box for even greater capacity.



The hitch utilizes a standard Category 1 configuration for connection to the tractor Category 1 hitch.



A bushing kit is required for the ballast box to be used with the iMatch™ Quick-Hitch.



The ballast box extension is only available through Parts; it is not a factory option.


Ballast boxBallast box
Ballast box with 3E TractorBallast box with 3E Tractor

A ballast box can be used to carry additional ballast for greater tractor stability.



A 23-cm (9-in.) high extension can be added to ballast box for even greater capacity.




Ballast box extension



The hitch utilizes a standard Category 1 configuration for connection to the tractor Category 1 hitch.



A bushing kit is required for the ballast box to be used with the iMatch™ Quick-Hitch.


Front Wheels And Tires

18x8.50-10 (4PR, R4 Industrial, 1 Position) Front Wheels and Tires - BLV10857


18x8.50-10 (4PR, R3 Turf, 1 Position) Front Wheels and Tires - BLV10859


Hydraulics

Power Beyond Kit - BLV11216


Power Beyond Kit (1023E, 1025R, 1026R) - LVB25956


Rear Hydraulic Kit - BLV10948


Single Rear Selective Control Valve (SCV) Kit - BLV10351


Lighting

Beacon Light Kit - LP68116


#
#
#

An optional premium light kit is available to provide extra visibility when working in dark conditions. The premium light kit includes the following:

  • Two light-emitting diode (LED) fender lights
  • Two LED rollover protective structure (ROPS) work lights (adjustable 360 degrees for forward or rear lighting)
  • One LED rear PTO light

Rear work lightRear work light

This kit provides light to the rear of the tractor for evening work.



For open-station tractors only, this kit contains individual light.



Allow 30 minutes to install.



NOTE: Kit includes one rear light.

NOTE: Both the rear- and forward-work lights are compatible together and with the light-brush guard kits. The light kit contains a two-to-four pigtail that plugs into the main harness, as if only plugging one set of lights, providing two sets of plugs to use for forward and rear-work lights. The forward light is installed on top of the brush guard, and the rear light is installed inside the ROPS using the bolt holding the light and brush guard on.

NOTE: For 102E3 and 1026R Tractors – kit interference during backhoe operations (mounted inside ROPS) – use LVB25546 forward-light kit as an alternative.


#

The forward-lighting kit provides extra visibility when working in dark conditions. Lights attach to the brush guards located on the rollover protective structure (ROPS). Each kit contains two lights.



NOTE: Requires BLV10400 warning light brush guard kit and LVB26026 light kit harness. Not compatible with LVB25547 rear work light kit (1023E).



NOTE: Requires BLV10400 warning light brush guard kit. Not compatible with LVB25547 rear work light kit (1025R, 2025R, 2032R, 2038R, 3025E, 3032E, 3038E, 4105, 4044M, 4052M, 4066M).



NOTE: Requires BLV10620 premium warning light brush guard kit. Not compatible with LVB25547 rear work light kit (3033R, 3039R, 3046R, 4044R, 4052R, 4066R).


#
#

 Rollover protective structure (ROPS) mounted LED work lights

An optional LED work light kit is available for all open-station compact utility tractors. These lights provide extra visibility when working in dark conditions and have 180-degree rotation to face forward or backward. The kit contains two lights and the mounting hardware required for installation.

This lighting kit is mounted to the warning light brush guard kit, which is mounted to the ROPS and requires attachment BLV10400 for installation.

The halogen work light kit attachment is still available (LVB25546).


ROPS warning-light brush guards protect turn signal/warning lights from damage caused by low branches on trees.

Two guards are included in each kit and are for open-operator station (OOS) tractors only.


#
#
#

An optional premium light kit is available to provide extra visibility when working in dark conditions. The premium light kit includes the following:

  • Two light-emitting diode (LED) fender lights
  • Two LED rollover protective structure (ROPS) work lights (adjustable 360 degrees for forward or rear lighting)
  • One LED rear PTO light

Miscellaneous

Spark Arrester Screen for Muffler - LVA15392


Rear License Plate Kit (Includes Light) - BLV11042


A 55-amp alternator can be ordered as an upgrade kit to replace the standard equipment 40-amp alternator. This alternator is suited for tractors equipped with aftermarket cab enclosures and lighting kits requiring higher amperage to operate.


Front Weight Bracket Extension Kit (1023E, 1025R, 1026R, 2305, 2025R, 2026R, 2320, 2520, 2027R, 2032R) - BLV10623


Operator's Station

Console Adapter Kit for Non-Current Tractors - LP68119


Dual USB Charger - RE566705


Rear Selective Control Valves

Single Rear Selective Control Valve Kit - BLV11217


Rear Hydraulic Kit - BLV11218


Rear Wheels And Tires

26x12-12 (4PR, R4 Industrial, 1 Position) Rear Wheels and Tires - BLV10856


26x12-12 (4PR, R3 Turf, 1 Position) Rear Wheels and Tires - BLV10858


Three-point Hitch
iMatch Quick-Hitch bushingiMatch Quick-Hitch bushing
Ordering information

Customers, please contact your local John Deere dealer for availability and pricing information.

iMatch Quick-Hitch Bushings
Order number: LP19969


iMatch Quick-Hitch (LVB25255)iMatch Quick-Hitch (LVB25255)
iMatch Quick-Hitch with rotary cutter hookup (LVB25255)iMatch Quick-Hitch with rotary cutter hookup (LVB25255)
iMatch Quick-Hitch (LVB25976)iMatch Quick-Hitch (LVB25976)
iMatch Quick-Hitch with rotary cutter hookup (LVB25976)iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

One of the greatest customer concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.



The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.

  • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.



NOTE: In the picture above, you see the bushing set. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

  • Upper bushing
    • Inside diameter: 0.76-0.77 in.
    • Outside diameter: 1.24-1.25 in.
  • Lower bushings
    • Inside diameter: 0.88 to 0.89 in.
    • Outside diameter: 1.43 to 1.44 in.

iMatch Quick Hitch Bushings - LVU12858


iMatch quick-coupler bushing kitiMatch quick-coupler bushing kit

This bushing kit is for use with Category 1 implements (ballast box) to make them function correctly with the iMatch Quick-Hitch.


iMatch Quick Hitch Bushings - LVU15507


iMatch Bushing Kit - LP25004


iMatch Quick Hitch Upper Adapter Bushing - PM00353


iMatch Quick Hitch Upper Adapter Bushing - PM03008


Weights
#

One or two 23-kg (50-lb) cast-iron weights may be installed on each rear wheel to provide extra traction and stability.

  • Made of durable cast iron and painted John Deere yellow
  • May be installed with wheel in either the narrow or wide position
  • To stack the weights and install two on a wheel, two 1/2x8-in. bolts are required per wheel (not furnished)

23-kg (50-lb) plastic-shell rear-wheel weight23-kg (50-lb) plastic-shell rear-wheel weight

One 23-kg (50-lb) plastic-shell rear-wheel weight may be installed on each rear wheel to provide extra traction and stability.

  • Outer shell made of tough polyethylene plastic
  • Filled with a heavy granular material that contains a high iron percentage
  • A bonding substance is added to hold the material together so that it will remain intact even if shell is damaged

Multiple stacking is not recommended.



Overall width of the tractor will be increased by approximately 5 cm (2 in.) when weights are installed.

Schematic of weight installed on wheelSchematic of weight installed on wheel

Weights are packaged one per carton, with necessary hardware for installation on a wheel, in either the narrow or wide position.


70-lb (32-kg) cast-iron starter weight70-lb (32-kg) cast-iron starter weight
Starter weight with 50-lb (22.7-kg) cast-iron weightStarter weight with 50-lb (22.7-kg) cast-iron weight

70-lb (32-kg) cast-iron starter weights can be bolted to the outside of the rear wheels for ballast.

Additional 50-lb (22.7-kg) cast-iron wheel weights may be bolted to the starter weight.

NOTES:

1. For 26-in. (660-mm) tire and rim only.

2. Starter weight not for use on all-wheel-steer tractors.

3. X700 Special Edition Tractors (model year 2012 and prior) and X738, X739, and X758 Signature Series Tractors require a BM21497 wheel weight adapter ring on each rear wheel on which weights are to be installed.


NOTE: Plastic rear-wheel weight comes with necessary hardware for installation.

23-kg (50-lb) cast-iron wheel weights23-kg (50-lb) cast-iron wheel weights

For 23-kg (50-lb) cast-iron wheel weights on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter cast-iron wheel weight33-kg (72-lb) starter cast-iron wheel weight

For 33-kg (72-lb) starter cast-iron wheel weight on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)

For 33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s):



NOTE: Order two sets for both sides of the tractor


NOTE: Plastic rear-wheel weight comes with necessary hardware for installation.

23-kg (50-lb) cast-iron wheel weights23-kg (50-lb) cast-iron wheel weights

For 23-kg (50-lb) cast-iron wheel weights on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter cast-iron wheel weight33-kg (72-lb) starter cast-iron wheel weight

For 33-kg (72-lb) starter cast-iron wheel weight on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)

For 33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s):



NOTE: Order two sets for both sides of the tractor


NOTE: Plastic rear-wheel weight comes with necessary hardware for installation.

23-kg (50-lb) cast-iron wheel weights23-kg (50-lb) cast-iron wheel weights

For 23-kg (50-lb) cast-iron wheel weights on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter cast-iron wheel weight33-kg (72-lb) starter cast-iron wheel weight

For 33-kg (72-lb) starter cast-iron wheel weight on 26x12-in. rear tyres:

NOTE: Order two sets for both sides of the tractor.

33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s)

For 33-kg (72-lb) starter and 23-kg (50-lb) cast-iron weight(s):



NOTE: Order two sets for both sides of the tractor


Quik-Tatch Weight, 42 lb (19 kg) - UC13263


Videos
Specials

Order Online for Free Delivery†

on 1, 2, 3, and 4 Series Compact Tractors

Offer Duration
November 01, 2023 - October 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

Order Online for Free Delivery†

on 1, 2, 3, and 4 Series Compact Tractors

Offer Duration
November 01, 2023 - October 31, 2024

More Details On This Offer

Some restrictions apply. Contact us for details.

*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
