Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
Unique Tri-Cool design resists debris buildup and employs large coolers for standout performance in severe, high-load conditions. Add a reversible fan in high-debris applications for quick core cleanout.
Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, thereâs more productivity-enhancing foot- and legroom.
Three-way switchable controls between EH foot, ISO joystick, or H-pattern joystick modes. Includes switchable accelerator/decelerator with right-side foot pedal when operating in ISO or H-pattern joystick-control mode.
Add the new 90-in. bucket, available for the 332G and watch productivity soar.
Factory-installed performance package offers increased productivity and ease-of-use with the following capabilities:
This option, installed in-factory or in the field, provides cross-slope or roll and mainfall slope or pitch of the machine within the in-cab monitor display.
The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.
Increased auxiliary hydraulic flow and power enable the 330G and 332G to make the most of an even broader range of attachments.
Swing open the rear door and tilt up the hood for convenient ground-level access to dipsticks, fuel- and fluid-filler necks, and filters.

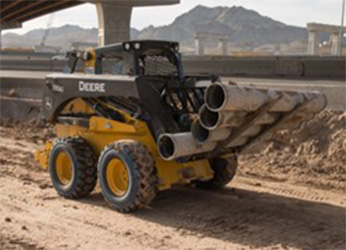

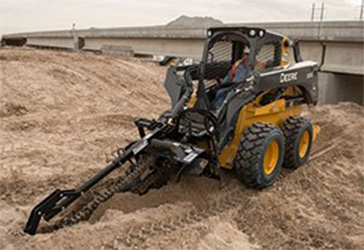

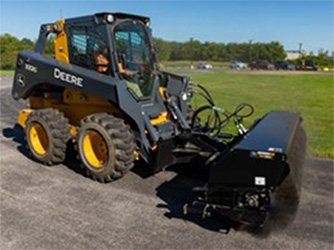

With the universal Quik-Tatch,© you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
With over 100 attachments offered in the John Deere portfolio you can make the most out of your skid steer by equipping it with a number of popular attachments.
For additional information on attachments and compatibility, check out the John Deere attachments guide.
The spacious and pressurized cab means operators can stay fresh throughout the entire workday through designs that minimize noise levels and keep water and dust out. Switchable controls allow an operator to choose the pattern they prefer [International Organization for Standardization (ISO), H-pattern, foot controls, or ISO plus foot controls] meaning they can get to work quicker and easier.
A: EH Self-Level (up and down)
B: EH Self-Level (up only)
C: Return to Carry (RTC)
D: Return to Dig (RTD)
E: Boom Height Kickout (BHKO)
The optional factory-installed EH boom performance package offers increased productivity through shorter cycle times for applications where repetitive boom functions are common by automating these functions and setting them to match operator preference from inside the cab.
Skid steers and compact track loaders (CTL) have features that result in higher productivity in applications like V-pattern truck loading, bale handling, and grading when compared to the competition.
Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours
Enhanced visibility features enable the operator to view the jobsite to be as precise and productive as possible while also increasing jobsite awareness.
|Emission Rating||Tier 4|
|Displacement, ltr (Inches�)||3.1 (186.3)|
|Rated Engine Speed, rpm||2500|
|SAE Net Power, kW (hp)||72 (96.6)|
|SAE Gross Power, kW (hp)||74.6 (100)|
|Max. Gross Torque, Nm (lbf / ft)||395 (291.3)|
|Drive Chain Rating [ANSI]||100 - HD|
|Tire size - Standard||14 - 17.5 - 14 PR Hauler|
|Length - No Bucket, mm (inches)||3100 (122)|
|Length - With Bucket, mm (inches)||3710 (146)|
|Width - No Bucket, mm (inches)||1990 (78.4)|
|Overall Height, mm (inches)||2190 (86.3)|
|Ground Clearance, mm (inches)||250 (9.7)|
|Wheelbase, mm (inches)||1270 (49.9)|
|Rear Departure Angle, �||29|
|Height to Hinge Pin, mm (inches)||3350 (132)|
|Dump Angle, �||48|
|Dump Height - Maximum, mm (inches)||2680 (105.6)|
|Reach - Max Dump Height, mm (inches)||710 (28)|
|Rollback - Ground Level, �||35|
|Rated Operating Capacity - Optional Counterweight, kg (lbs)||1703 (3750)|
|Rated Operating Capacity, kg (lbs)||1633 (3600)|
|Tipping Capacity (SAE), kg (lbs)||3269 (7200)|
|Axle Torque - Maximum, Nm (lbf / ft)||9289 (6830)|
|Speed - Maximum, kph (mph)||19.3 (12)|
|Breakout - Lift, kN (lbf)||37.8 (8520)|
|Breakout - Bucket, kN (lbf)||61.8 (13904)|
|Hydraulic Power, kW (hp)||37.29 (50)|
|Hydraulic Power - Option, kW (hp)||61.234 (82.1)|
|Pump Output, lt/min (gallons (US) / min)||95 (25)|
|Pump Flow - Option, lt/min (gallons (US) / min)||156 (41.1)|
|System Pressure, bar (PSI)||237.87 (3450)|
|Displacement, ltr (Inches³)||3.1 (186.3)|
|Length - With Bucket Foundry, mm (inches)||3710 (146)|
|Rear Departure Angle, Degrees||29|
|Dump Angle, Degrees||48|
|Dump Height - Maximum Foundry, mm (inches)||2690 (106.1)|
|Reach - Max Dump Height Foundry, mm (inches)||710 (28)|
|Rollback - Ground Level, Degrees||35|
|Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs)||1703 (3750)|
|Rated Operating Capacity - Foundry, kg (lbs)||1633 (3600)|
|Tipping Load - Foundry, kg (lbs)||3269 (7200)|
|Breakout - Lift Foundry, kN (lbf)||37.8 (8520)|
|Breakout - Bucket Foundry, kN (lbf)||61.8 (13904)|
|Rated Speed, rpm||2500|
