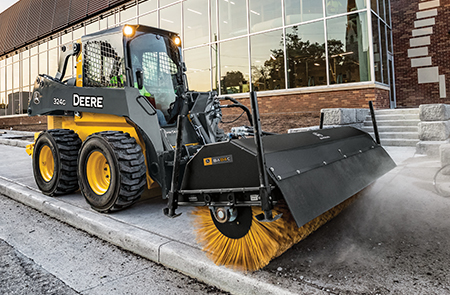

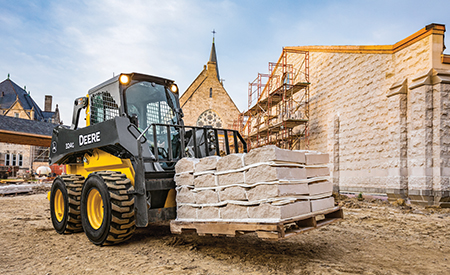

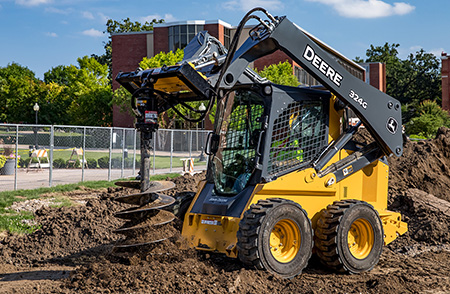

With the universal Quik-Tatch,© you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
| DESCRIPTION | |
| Lift Geometry | Vertical |
| Fleet Management | Yes |
| Precision Guidance | No |
| Proximity Guidance | No |
| DRIVELINE | |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV98CT |
| Emission Rating | Tier 4 |
| Aspiration | Turbo |
| Displacement, ltr (Inches³) | 3.3 (203) |
| Rated Engine Speed, rpm | 2500 |
| SAE Net Power, kW (hp) | 52.5 (70) |
| SAE Gross Power, kW (hp) | 55 (74) |
| Max. Gross Torque, Nm (lbf / ft) | 280 (207) |
| Drive Chain Rating [ANSI] | 80 - HD |
| Tire size - Standard | 12 x 16.5 - 12 PR SKS |
| DIMENSIONS | |
| Length - No Bucket, mm (inches) | 2850 (112.3) |
| Length - With Bucket, mm (inches) | 3460 (136.3) |
| Width - No Bucket, mm (inches) | 1700 (67) |
| Overall Height, mm (inches) | 2060 (81.1) |
| Ground Clearance, mm (inches) | 240 (9.3) |
| Wheelbase, mm (inches) | 1120 (44.2) |
| Rear Departure Angle, ° | 28 |
| Height to Hinge Pin, mm (inches) | 3200 (126) |
| Dump Angle, ° | 41 |
| Dump Height - Maximum, mm (inches) | 2590 (102.1) |
| Reach - Max Dump Height, mm (inches) | 760 (29.9) |
| Rollback - Ground Level, ° | 34 |
| PERFORMANCE | |
| Rated Operating Capacity - Optional Counterweight, kg (lbs) | 1294 (2850) |
| Rated Operating Capacity, kg (lbs) | 1221 (2690) |
| Tipping Capacity (SAE), kg (lbs) | 2443 (5380) |
| Axle Torque - Maximum, Nm (lbf / ft) | 6771 (4994) |
| Speed - Maximum, kph (mph) | 11.1 (6.9) |
| Speed - Maximum Option, kph (mph) | 17.9 (11.1) |
| Breakout - Lift, kN (lbf) | 23.3 (5250) |
| Breakout - Bucket, kN (lbf) | 38.9 (8750) |
| Hydraulic Power, kW (hp) | 31.009 (41.5) |
| Hydraulic Power - Option, kW (hp) | 47.103 (63.1) |
| Pump Output, lt/min (gallons (US) / min) | 78 (21) |
| Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) |
| System Pressure, bar (PSI) | 237.87 (3450) |
| DIMENSIONS | |
| Length - With Bucket Foundry, mm (inches) | 3460 (136.3) |
| Rear Departure Angle, Degrees | 28 |
| Dump Angle, Degrees | 41 |
| Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
| Reach - Max Dump Height Foundry, mm (inches) | 760 (29.9) |
| Rollback - Ground Level, Degrees | 34 |
| PERFORMANCE | |
| Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs) | 1294 (2850) |
| Rated Operating Capacity - Foundry, kg (lbs) | 1221 (2690) |
| Tipping Load - Foundry, kg (lbs) | 2443 (5380) |
| Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
| Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
