The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.
Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
Unique Tri-Cool© design resists debris buildup and employs large coolers for superior performance in severe, high-load conditions. Add a reversible fan for quick core cleanout in high-debris applications.
Factory-installed performance package offers increased productivity and ease-of-use with the following capabilities:
This option, installed in-factory or in the field, provides cross-slope or roll and mainfall slope or pitch of the machine within the in-cab monitor display.

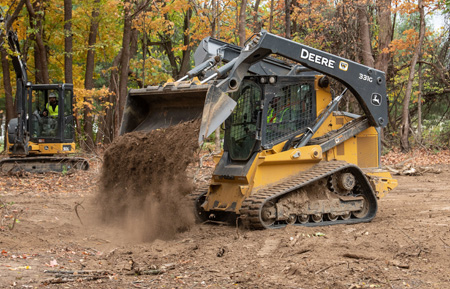

Boom design keeps the load close to the machine for better stability. Low center of gravity, 35-degree bucket rollback, and optional ride control and self-leveling also helps keep buckets full and forks loaded.
Large entryway, tightly sealed swing-out door, and ample foot- and legroom simplify getting in, getting comfortable, and getting things done.
Industry-exclusive three-way switchable controls and electrohydraulic (EH) joystick performance package for even more operating flexibility.
Generous tank capacity and fuel-efficient diesels enable daylong operation, letting you accomplish more between fill-ups.
Tilt up the hood for convenient ground-level access to dipsticks, fuel- and fluid-filler necks, and filters.

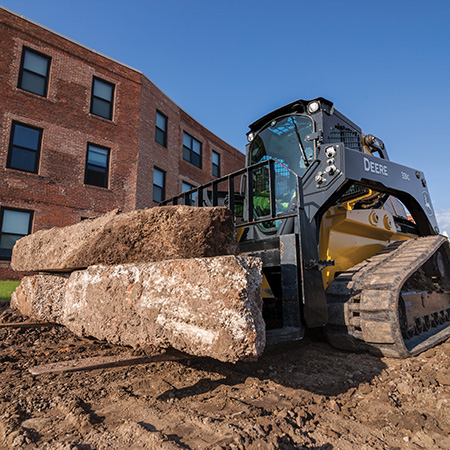

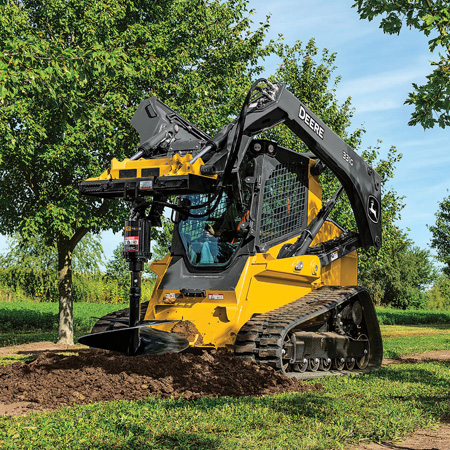

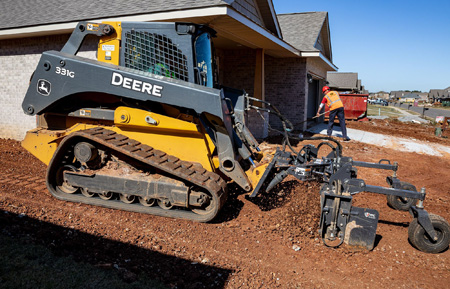

With the universal Quik-Tatch,© you can go from compact loader bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, hydraulic hammers, roller levels, trenchers, or power rakes, to list just a few.
DRIVELINE | |
Engine Manufacturer | Yanmar |
Engine Model | 4TNV94FHT |
Emission Rating | Tier 4 |
Aspiration | Turbo. Intercooled |
Displacement, ltr (Inches�) | 3.1 (186.3) |
Rated Speed, rpm | 2500 |
Engine Output - Net, kW (hp) | 66 (88.5) |
Engine Output - Gross, kW (hp) | 68 (91.2) |
Torque, Nm (lbf / ft) | 382 (281.8) |
Track Shoe Width, mm (inches) | 400 (15.8) |
DIMENSIONS | |
Length - No Bucket, mm (inches) | 3100 (122) |
Length - With Bucket, mm (inches) | 3710 (146) |
Width - No Bucket, mm (inches) | 2000 (78.9) |
Height - Top Of Cab, mm (inches) | 2200 (86.7) |
Ground Clearance, mm (inches) | 240 (9.4) |
Rear Departure Angle, � | 31 |
Track Gauge, mm (inches) | 1600 (63.1) |
Height to Hinge Pin, mm (inches) | 3350 (132) |
Dump Angle, � | 48 |
Dump Height - Maximum, mm (inches) | 2690 (106.1) |
Rollback - Ground Level, � | 35 |
PERFORMANCE | |
Rated Operating Capacity, kg (lbs) | 1407 (3100) |
Tipping Load, kg (lbs) | 4021 (8857) |
Ground Bearing Pressure, kPa (PSI) | 38.1 (5.5) |
Speed - Maximum, kph (mph) | 12.6 (7.8) |
Breakout - Lift, kN (lbf) | 31.1 (7000) |
Breakout - Bucket, kN (lbf) | 41.5 (9350) |
Hydraulic Power, kW (hp) | 31.402 (42.1) |
Hydraulic Power - Option, kW (hp) | 54.168 (72.6) |
Pump Flow, lt/min (gallons (US) / min) | 80 (23.5) |
Pump Flow - Option, lt/min (gallons (US) / min) | 138 (36.5) |
System Pressure, bar (PSI) | 237.87 (3450) |
DRIVELINE | |
Displacement, ltr (Inches³) | 3.1 (186.3) |
DIMENSIONS | |
Length - Foundry Bucket, mm (inches) | 3710 (146) |
Rear Departure Angle, Degrees | 31 |
Dump Angle, Degrees | 48 |
Dump Height - Maximum Foundry, mm (inches) | 2690 (106.1) |
Rollback - Ground Level, Degrees | 35 |
PERFORMANCE | |
Rated Operating Capacity - Foundry, kg (lbs) | 1407 (3100) |
Tipping Load - Foundry, kg (lbs) | 4021 (8857) |
Ground Bearing Pressure - Foundry, kPa (PSI) | 38.1 (5.5) |
Breakout - Lift Foundry, kN (lbf) | 26.6 (6000) |
Breakout - Bucket Foundry, kN (lbf) | 45.9 (10325) |
