Feature Overview
John Deere 8370RT
  • 370 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • New cab suspension system and CommandView™ III cab and Generation 4 CommandCenter™
Engine description John Deere PowerTech™ PSS 9.0 L (B20 diesel compatible)
Engine displacement 9 L / 549 cu in.
Rated engine power 97/68EC: 272 kW / 370 hp
Transmission type Standard: John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h / 26 mph / Optional: e23 Powershit with Efficiency Manager™ 40K, 40 km/h
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 8370RT
  • 370 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • New cab suspension system and CommandView™ III cab and Generation 4 CommandCenter™
Engine description John Deere PowerTech™ PSS 9.0 L (B20 diesel compatible)
Engine displacement 9 L / 549 cu in.
Rated engine power 97/68EC: 272 kW / 370 hp
Transmission type Standard: John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h / 26 mph / Optional: e23 Powershit with Efficiency Manager™ 40K, 40 km/h
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Lighting packages provide 360 degrees of coverage for maximum productivity

Premium lights Premium lights
#

The 7R, 8R, and 8RT Series Tractors feature two lighting package options:

  • Standard
  • Premium

The cab lighting pattern provides 330 degrees of coverage while the hood lighting provides the remaining 30 degrees for completely programmable 360-degree, stadium-style lighting. This ensures there are no dead zones or lighting adjustments needed. The lighting configurations are available to match various applications and ensure maximum around-the-clock productivity.

Bulb housings are large, allowing for optimum total lumens and available light. The standard lighting packages use 65-W halogen bulbs, whereas the premium lighting package uses light-emitting diode (LED) lights. In the premium lighting package, these tractors take advantage of the high-performing and efficient LED technology.

The low- and high-beam driving/work lights are adjustable. Please refer to the electrical section in the operator’s manual for complete details on adjusting lights.

7R/8R/8RT lighting 7R/8R/8RT lighting
#

Yellow circles

  • All lighting packages: 65-W halogen: road low beam



Red circles

  • Standard: 65-W halogen
  • Premium: LED



Blue circles

  • Standard: 65-W halogen; field and road high beams
  • Premium: LED

Orange circles

  • Standard: blank
  • Premium: LED




Adjustable high-beam driving light/work light

License plate bracket with light

Rotary beacon

Fixed halogen light

Adjustable low- beam driving light/work light

Fixed amber light

Adjustable halogen light

Adjustable mid-body halogen light

Fixed high-intensity discharge (HID) light

Adjustable HID light

Mid-body hazard, turn, and width indicating light

Amber turn and brake light

Standard lighting
Standard lighting (8R) Standard lighting (8R)
Standard lighting (7R) Standard lighting (7R)

Six front grill-mounted lights:

  • Two 65-W low-beam driving/work lights (mid grill screen)
  • Two 65-W high-beam driving/work lights (top of grill screen, hood mounted)
  • Two front corner-facing halogen work lights (top of grill screen, hood mounted)

10 cab roof-mounted lights:

  • Two rear-facing 65-W floodlights
  • Four side-facing 65-W floodlights
  • Four corner-facing amber lights

Other lights:

  • Two rear fender-mounted floodlights
  • Two rear turn signal and brake/tail lights (fender mounted)
  • Two folding-extremity lights

Plus these lights:

  • Two adjustable front roof 65-W halogen floodlights
  • Two front belt-line floodlights
  • Rotary beacon light
Premium lighting

Eight front grill-mounted lights:

  • Two 65-W low-beam halogen driving/work lights (mid grill screen)
  • Two LED high-beam driving/work lights (top of grill screen, hood mounted)
  • Two front corner-facing LED work lights (top of grill screen, hood mounted)
  • Two front-facing LED working lights (top of grill screen, hood mounted, inner position on the sides)

12 cab roof-mounted lights:

  • Four side-facing LED lights
  • Four corner-facing amber lights
  • Two rear-facing LED lights
  • Two adjustable front roof LED lights



Other lights:

  • Two rear fender-mounted LED lights
  • Two rear turn signal and brake lights (fender mounted)
  • Two folding-extremity lights
  • Two front belt-line LED floodlights
  • Rotary beacon light



The premium lighting package replaces all previous halogen and HID lights with LED lights. The only lights that are not LED are the low-beam driving lights, they remain halogen. This allows each LED light to work at a lower temperature and no one light works harder than any other. The uniformity in LED coverage allows only one type of light output surrounding the tractor.



The lighting pattern in the premium package provides industry-leading performance in nighttime visibility. LED bulbs provide maximum brightness and a true color output for excellent field definition that is easy on the operator's eyes.



The LED lights provide 40 percent greater coverage width and 10 percent more light coverage in the rear. LED lighting packages use 45 percent less amps than standard halogen lights and have an increased life expectancy over HID lights which leads to lower costs of ownership over the life of the tractor.



NOTE: Lighting packages may vary depending on region.

Selecting a lighting mode/programmable lighting
Lighting mode selector Lighting mode selector
#

Operators can quickly select a lighting mode on the steering console:

  • Lights, off position
  • Road lights
  • Field lights
The CommandCenter© display The CommandCenter© display

The CommandCenter display allows operators to customize light settings. Operators can select only the lights they need or want for a given application and store these settings. The operator-programmed configurations can then be turned on or off with the push of a button on the CommandARM© controls.

  • Programmable field lights 1
  • Programmable field lights 2
  • Beacon light
  • Emergency flashers



NOTE: Road/loader lights are also referred to as high-mounted driving lights for use in front hitch applications that obscure the headlights. See the Attachments section.

The battery power saver feature is also standard. When the engine is off and the outside lights have been left on, this feature is designed to avoid battery run down.

After the lights have been left on for 30 minutes and the key is in the off position, the lights cycle or blink on and off five times as an alert. The lights continue to illuminate for one more minute and then automatically shut off to protect the battery.

Programmable exit lighting

Another feature is programmable exit lighting. Exit lighting allows the lights outside the cab to stay on for up to 300 seconds.  They can be programmed in increments from 0 to 300 seconds.



Refer to the operator’s manual for complete instructions on programming field, driving, and exit lighting.

Field-installed options

Field-installed options are also available. To find this information, use the Build Your own Configurator application for US/Canada or Build & Price in John Deere Sales Centre for Australia/NZ.

Option code Description
7201 Standard lighting
7206 Premium lighting

ACS overview
8R in transport 8R in transport
#

With ACS, John Deere has designed one of the most robust and full-encompassing steering system in the industry. Whether in the field or on the road, ACS reduces steering effort, which can result in reduced operator fatigue and can improve operator comfort.



There are four key features of the ACS system:



Dynamic road wheel offset:

  • A gyroscope senses tractor yaw and can automatically make small steering adjustments to provide unprecedented line-holding abilities. Drive down a bumpy road and experience how ACS makes it easier to keep the tractor straight, even over rough terrain.  ACS delivers the ultimate in comfort.
  • ACS works to prevent over-steering when a sudden obstacle causes the operator to make a quick steering reaction.



Variable ratio steering:

  • Approximately 3.5 turns lock-to-lock at in-field speeds for quick headland turns.
  • Approximately 5 turns lock-to-lock at transport speeds.

Elimination of steering slop and hand wheel drift:

  • Steering wheel drift and slop are eliminated with the ACS electronic control system.



Variable effort steering:

  • Steering wheel resistance automatically changes with ground speed to deliver light steering effort at slower speeds for less effort during headland turns, and higher steering wheel torque at transport speeds for better comfort.



A fail operational system

The ACS system is fail operational, which means steering is still functional in the event of any single-point failure. John Deere has gone to great lengths to help ensure the operator has the ability to steer the tractor if something goes wrong in the steering system.

For example, if the primary controller fails, a second controller takes over. If power from the alternator fails, the battery resumes control. If the engine quits running and is unable to supply hydraulic oil to the system, an electric-driven backup pump is used to supply the oil. There is a backup for ACS components.

ACS components ACS components
#

The ACS system consists of several key components:

  1. Gyroscope: this is used to measure the yaw rate (turn rate) of the tractor during transport speeds.
  2. Road-wheel angle sensors: these sensors simply measure the steer angle of the tractor.
  3. Power supply module: this module distributes the power of the battery and alternator throughout the ACS system.
  4. Hand-wheel angle sensors and tactile feedback unit: this includes the steering wheel position sensors and a brake which can increase or decrease resistance dependent on speed. Lighter feedback is desired during normal field use, and slightly heavier feedback is desired during transport and while the tractor is cornering at high speeds.
  5. Controllers: two controllers are located in the back of the tractor and are the brains of the system.
  6. Control valves: also known as steering valves, control valves are used to steer the tractor.
  7. Electric-drive backup pump: this pump supplies oil to the steering system, brakes, and park (for towing) brake if there is no longer a sufficient oil supply to the steering and brakes.
Value of ACS
  • Improves line holding when driving at transport speeds
  • Fewer turns lock-to-lock: 3.5 turns lock-to-lock in the field for quicker headland turns and 5 turns lock-to-lock at transport speeds
  • Eliminates hand wheel backlash and drift
  • Reduces steering effort results in reduced operator fatigue
  • Smaller hand-wheel diameter for improved operator comfort and visibility
  • Maintains operator feel and touch-points of traditional steering column system
  • Fully integrates with AutoTrac© guidance assisted steering stems
  • Compatible with suspended and non-suspended front axles
  • Compatible with wide and narrow section width tires

The brakes are designed with large-diameter rear disc brakes and powerful activating pistons. The brakes run in oil for cooling and long life in the most demanding situations. Braking in the field during a turn can be accomplished with light pedal effort and excellent modulation of brake forces.



Hydraulically actuated, power wet-disc brakes:

  • Never require adjustment
  • Oil cooled for long life
  • Tractors equipped with front brakes use annular pistons that automatically retract after each braking operation to reduce friction for better fuel economy
  • Self-equalizing feature ensures even braking to each wheel
  • Integrated backup braking capabilities built into the brake system to provide positive brake engagement should the engine or hydraulic system fail
  • Brake valve is located externally of the cab to provide a quiet operating environment

An integrated park brake is included with all transmission options.



Front wet-disc brakes are included on 8R Series Tractors equipped with the 50-km/h (31-mph Independent-Link Suspension (ILS©) axle and 7R Series Tractors equipped with a 50-km/h (31-mph) Triple-Link Suspension (TLS©) Plus front axle. Front Brakes are optional equipment on the 8R 42-km/h (26-mph) ILS axle and 40-km/h (25-mph) TLS Plus front axles.



Foot brakes on tractors equipped with AutoPowr©/Infinitely Variable Transmission (IVT©) transmissions have an integrated AutoClutch©, as described in the IVT section. Similarly, foot brakes on tractors equipped with e23© transmissions have integrated AutoClutch©, as described in the e23 section.



For towing very large loads, the 7R and 8R Series Tractors can be equipped with a complete air-brake-system or a hydraulic brake coupler, or both. The brakes supply air or oil pressure to a brake-equipped trailer or implement.


All 8R and 8RT Series Tractors come standard with an 85-cc displacement integrated hydraulic pump. This pump provides 227.1 L/min (60 gpm) of hydraulic flow.



A dual-pump option, featuring 85-cc and 35-cc displacement hydraulic pumps, is available for all 8R wheel models. The dual-pump system provides a hydraulic flow of 321 L/min (85 gpm), ideal for running at lower engine speeds.



SCV flow (approximate)

Engine rpm

Pump flow (85-cm3 pump) L/min (gpm)

High pump flow (85-cm3 pump + 35-cm3 optional pump) L/min (gpm)

800

86 (23)

122 (32)

1500

162 (43)

229 (61)

1700

184 (49)

260 (69)

1900

206 (54)

290 (77)

2100

227 (60)

321 (85)



Operating the tractor at reduced engine rpm contributes to a quieter cab, reduced fuel usage, and maintains the vacuum while turning and raising the planter on end rows. At 1500 erpm with a 321 L/min (85 gpm) system there will be an available flow of 229 L/min (61 gpm). This is an improvement over an available 162 L/min (43-gpm) flow when operating with a 227 L/min (60 gpm) system at 1500 erpm.



The maximum flow through one selective control valve (SCV) with a standard coupler is 132 L/min (35 gpm). A 19.1-mm (3/4-in.) high-flow coupler allows for a maximum flow rate out of one SCV of 153 L/min (40.5 gpm).



The hydraulic system is a closed-center, power-on-demand system using a load-sensing pressure-flow compensated axial piston pump with full-flow charge and flow prioritization for steering and brakes.



The pump outlet pressure available on demand can range from 3000 kPa (435 psi) for track models and 4000 kPa (580 psi) for wheel models at low standby to 20,400 kPa (2958 psi) at high standby.



Hydraulic pump options:

  • 85-cc displacement, 227-L/min (60-gpm) hydraulic pump
    • NOTE: Standard on all 8R models.
  • 85-cc and 35-cc dual pump option, 321-L/min (85-gpm)
    • NOTE: Compatible with 2014 Final Tier 4 (FT4) and newer 8R Wheel Tractors only.

CommandView III cab CommandView III cab

The Premium CommandView III cab offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

Features:

  • ComfortCommand© seat with air suspension and lumbar support, swivel, fore-aft and lateral attenuation, backrest angle adjustment, adjustable left-hand armrest, and 40-degree right-hand seat swivel
  • Four-corner cab suspension
  • Behind-the-seat storage and left-hand storage compartment
  • Folding instructional seat
  • Beverage holders sized to accommodate various containers
  • Interior left-hand dome light
  • Tilt/telescoping steering wheel with position memory
  • Adjustable right-hand CommandARM© armrest controls with integrated CommandCenter© display
  • Monitor mounts on right-hand front post and rear cab post
  • Digital cornerpost display with:
    • Fuel level gauge, including low fuel warning
    • Temperature gauge
    • Diesel exhaust fluid (DEF) gauge, including low DEF warning
    • Engine rpm
    • Transmission commanded gear or speed
    • Vehicle system functions, such as iTEC© system, that are operating
  • Swing-out rear window that opens 30 degrees
  • Front, rear, and right-hand windshield wiper and washer
    • Two-speed and intermittent front and rear wiper
  • Front, rear, and right-hand side sunshades
  • Right and left outside wide-angle mirrors (electrically adjustable and heated)
  • Inside-mounted rearview mirror
  • Roof-mounted license plate bracket with light
  • Window break
  • Pin for tow point
  • Passive noise reduction system
  • Laminated glass
  • Service ADVISOR© data port
  • Power strip with convenience plug adapter
  • Two 12-V convenience outlets (cigarette lighter style)
  • One 12-V 3-pin outlet with adapter (provides switched and unswitched power)
  • One International Organization for Standardization (ISO) 9-pin connector
  • Standard radio package, including AM/FM stereo and weatherband with remote controls, auxiliary input jack, four speakers, and an external antenna
Four-corner cab suspension

8RT Series Tractors feature the Premium CommandView III cab with cab suspension in base. Producers will enjoy all the features they have come to expect in the Premium CommandView III cab plus the addition of improved ride quality in the field and on the road with the cab suspension. The cab suspension, combined with the proven AirCushion© suspension system, will give John Deere operators the most comfortable operating experience available in a two-track tractor.

Four-corner cab suspension system Four-corner cab suspension system
Cab suspension components Cab suspension components
Cab suspension components Cab suspension components
Cab suspension components Cab suspension components
Steering system
Steering sensitivity adjustment screen Steering sensitivity adjustment screen
Steering pump and loop override circuit Steering pump and loop override circuit

Steering circuit change and steering sensitivity adjustment



8RT Series Tractors include an improved steering pump, changes to the loop-override circuit, and in-cab steering sensitivity adjustment.



The improved steering pump and changes to the loop-override circuit increase steering response and steering authority on 8RT Series Tractors. Operators will notice this change when working in heavy draft, soft field conditions, and obstacle avoidance. The steering pump and loop-override circuit give the 8RT the ability to turn under load like no other two-track tractor in the industry.



8RT steering sensitivity adjusted in the 4600 CommandCenter Display



This feature allows operators to fine tune the steering system based on the application or environment.



Steering sensitivity adjustment does not only help when steering the tractor manually. Operators using guidance systems will also experience improved response with the ability to input tractor tread settings in the 4600 CommandCenter Display. From there, the tractor will control the steering pump to ensure steering is consistent no matter which tread setting the operator is utilizing.

Pull-down front, rear, and right-hand sunshade
Pull-down sunshades Pull-down sunshades

These variable-length sunshades provide excellent adjustability to keep direct sun off of the operator. Perforations in sunshade material provide visibility through the sunshade as well. The sunshades are also recessed into the headliner for storage when not in use.

Right- and left-outside mirrors, electrically adjustable
Right-hand mirror shown on 8RT Series Tractor Right-hand mirror shown on 8RT Series Tractor

Right and left outside wide-angle mirrors are electrically adjustable with simple in-cab adjustments to view variable-width implements, wagons, or carts. The in-cab controls are located directly above the radio.

ComfortCommand seat
ComfortCommand seat ComfortCommand seat

The ComfortCommand seat with air suspension improves ride quality and helps to reduce operator fatigue. The ComfortCommand seat with air suspension is offered with cab suspension. The ActiveSeat© is available on fixed cab tractors.

Features include:

  • Armrests, lumbar support, and backrest angle are easily adjusted to match operator preference
  • Shock absorbers dampen the motion effect of the tractor for an improved ride
  • Seat height adjustments are conveniently located on the left armrest
  • Fore-aft adjustment is easy to reach located on the left front of the seat
  • Swivel adjustment, located on the front of the seat, allows the seat to be swiveled 40 degrees to the right or eight degrees to the left of the center position
  • Operator presence switch warns if the operator is out of the seat while operating key functions
  • Seat belt retractor
  • Centered cab seat, providing excellent over-shoulder visibility
  • Adjustable shock absorber permitting ride adjustment from soft to firm to match the operator's desired comfort level
  • Removable cushions for easy cleaning
Leather comfort option

The leather seat option is available on 8RT Series Tractors. The kit includes leather operator seat, leather instructional seat, leather-wrapped steering wheel, rear window decal, and carpet floormat.



NOTE: The leather comfort package is not available with Scraper Special Tractors.

Leather seats Leather seats
Leather-wrapped steering wheel Leather-wrapped steering wheel
Rear window decal Rear window decal
CommandARM
CommandARM controls CommandARM controls

John Deere 8RT Series Tractors feature the CommandARM with integrated Generation 4 CommandCenter display. The control layout of the CommandARM utilizes a clean and efficient design which groups controls by function and builds upon John Deere’s history of intuitive and ergonomic control placement and operation. The CommandARM control’s design allows for a 40 degree right seat swivel and adjustable positioning matching the operator’s preference.

Controls located on the CommandARM include:

  • Engine throttle
  • FieldCruise© system
  • Minimum engine speed ™ e23© transmission with Efficiency Manager© feature, Infinitely Variable Transmission (IVT©)
  • Eco mode
  • Foot pedal lock (if equipped)
  • Transmission control
  • Hitch/selective control valve (SCV) controls
  • Rotary encoder hitch control
  • Power take-off (PTO) controls
  • iTEC sequence switches
  • AutoTrac© assisted steering system resume switch (if equipped)
  • Joystick (if equipped)
  • Radio
  • Beacon light on/off
  • Hazard lights on/off
  • Field lights 1/2
  • Heating, ventilation, air conditioning (HVAC) system
Seat swivel
Seat swivel Seat swivel

The design of the CommandARM controls allows for up to 40 degrees of right-hand seat swivel.

Transmission controls

John Deere 8RT Series Tractors equipped with the e23 transmission with Efficiency Manager feature or AutoPowr© IVT transmission feature either a left-hand or right-hand reverser.



The transmission control lever is placed on the CommandARM control’s left side closest to the operator for convenient setting and adjustment.

Left-hand IVT and PowerShift© transmission reverser Left-hand IVT and PowerShift© transmission reverser
Right-hand IVT and PowerShift transmission reverser Right-hand IVT and PowerShift transmission reverser
Hydraulic and hitch controls

Hydraulic and hitch controls utilize fingertip paddle pots for raise/lower and extend/retract functions. An optional crossgate joystick replaces fingertip paddle pots for control of SCVs and allows for programmable hydraulic functionality according to operator preference. Rear hitch position can also be controlled with the encoder wheel located on the right side of the CommandARM. The encoder wheel allows for finite positioning of the rear 3-point hitch.



Three buttons near the encoder are for hitch set, lock, and return to height. Adjustment for the 3-point hitch is done via the CommandCenter display.



Fingertip paddle pots Fingertip paddle pots
Encoder wheel Encoder wheel
Optional crossgate joystick Optional crossgate joystick





Throttle

The throttle design incorporates buttons which control FieldCruise speed, foot pedal mode (if equipped), and transmission eco settings.

Throttle Throttle
Foot throttle Foot throttle
Tractor function controls

Located just to the right of the throttle is the AutoTrac activation button and four sequence controls for iTEC functions.

AutoTrac resume and iTEC strip AutoTrac resume and iTEC strip

Controls for radio, lights, rotary beacon (if equipped), hazard flashers, and HVAC system are located to the center-right on the CommandARM, along with PTO for both front (if equipped) and rear.



Radio, HVAC, hazard flashers, and PTO controls Radio, HVAC, hazard flashers, and PTO controls





CommandCenter display
Generation 4 CommandCenter display Generation 4 CommandCenter display

The Generation 4 CommandCenter displays feature fast adjustment of tractor functions and controls and are integrated into the CommandARM to create a seamless control center. The 4600 CommandCenter features a 26.4-cm (10.4-in.) touchscreen display and is standard equipment on 8RT models.



The following functions can be adjusted using the CommandCenter display:

  • Hydraulic settings
  • Hitch settings
  • Transmission settings
  • FieldCruise
  • iTEC programming functions
  • Radio
  • Lights

PowerTech© PSX 9.0-L engine PowerTech© PSX 9.0-L engine
#

How exhaust gas recirculation (EGR) works

EGR reduces the high temperatures where nitrogen oxide (NOx) compounds are formed in the engine cylinders by replacing excess oxygen with a prescribed amount of cooled exhaust gas.

Exhaust gases contain more carbon dioxide than oxygen. The EGR valve in conjunction with the venturi and engine control unit (ECU) allows a controlled amount of exhaust gas to enter the intake manifold to mix with the incoming fresh air. Replacing excess oxygen with cooled exhaust gas leads to lower combustion temperatures, creating less NOx. In addition, EGR allows for advanced timing, leading to optimal performance of the engine, maximizing fuel economy.

The following diagrams illustrate how air flows through the engine.

For added performance and efficiency, the engine passes the exhaust gases through an EGR cooler before it enters the engine.

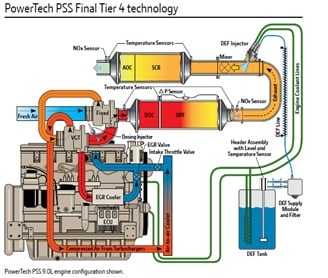

PSS engine diagram PSS engine diagram
#

Flow of exhaust during engine operation

Exhaust airflow enters into the EGR cooler from the exhaust manifold near the turbocharger.

Based on engine load, air temperatures, and rpm, the engine control unit (ECU) opens or closes the EGR valve, allowing a measured percentage of exhaust gas to enter the intake manifold.

The gases mix with the rest of the incoming air from the turbocharger and aftercooler before entering the cylinders.

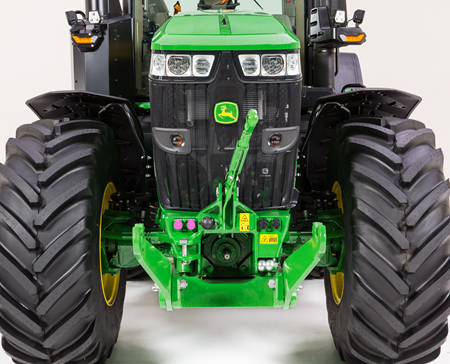

Front PTO Front PTO

For increased versatility, two 1000-rpm front PTO options are available from the factory for 7R and 8R Series Tractors equipped with the John Deere front hitch.

  • Type 2, 1000-rpm (counterclockwise as seen from front), 35-mm (1 3/8-in.), 21-spline front PTO
  • Type 3, 1000-rpm (counterclockwise as seen from front), 45-mm (1 ¾-in.) 20-spline front PTO (available through Parts only)

Front PTO features include:

  • The ability to be incorporated with iTEC© sequences
  • Three choices of engagement modulation: auto, low, and high
  • Integrated controls
  • Cornerpost display indicators
  • Bolt-on shaft makes it easy to change shafts if necessary.
  • Remote PTO engagement

7R specific features:

  • 130 kW (175 hp)
  • Integrated with all transmissions
  • PTO disconnect for efficiency
  • Requires Triple-Link Suspension (TLS©) front axle

8R specific features:

  • 112 kW (150 hp)
  • Integrated with the infinitely variable transmission (IVT©)
  • Requires Independent-Link Suspension (ILS©) with front brakes


Intelligent Power Management (IPM)

IPM is compatible with 7R and 8R Series Tractors equipped with a front PTO option. The front PTO, rear PTO, or transport speeds can activate IPM on 7R Tractors. However, on 8R Tractors, IPM is only activated by the rear PTO or by transport speeds. For example:

  • A front snow blower will not benefit from IPM on an 8R since the front PTO alone will not activate IPM.
  • A triple-mounted mower-conditioner will benefit from IPM as high power levels are transmitted via the rear PTO. The front mower-conditioner will have 112 kW (150 hp) available to it on an 8R, which is adequate to operate these mowers in most crop conditions.
  • See Intelligent Power Management for more information.
PTO disconnect on 7 Family Tractors

Disconnecting the PTO drive to the PTO box when not in use increases tractor efficiency by reducing:

  • Power requirements, which saves nearly 70 percent of power required to run the PTO disengaged
  • Wear on components of the PTO box; components are not moving when the PTO is disconnected

Refer to the Operator’s Manual for instructions on how to disconnect the PTO when not in operation.

Front PTO operation
Remote control at front of tractor Remote control at front of tractor

Front PTO engagement is actuated through an engagement switch similar to the rear PTO located on the CommandARM© controls.

  • PTO clutch is electronically activated with automatic torque modulation.
    • PTO modulation is selectable through the CommandCenter© display.
  • To activate the PTO remotely, select the remote PTO enable button in Generation 4 CommandCenter display, push down and forward on the front PTO switch in the cab and use the remote control at the front of the tractor.

NOTE: For the 8R Series, if the tractor is equipped with a front PTO, additional IPM power will transfer through the front PTO. However, IPM activation is only sensed through the rear PTO. Adequate load must be sensed on the rear PTO in order for IPM to activate.


#
#



The John Deere Waterloo Operations Gold Key Program was designed to recognize and honor those purchasing Waterloo-built tractors. The Gold Key tour provides an opportunity for a customer to follow his or her tractor as it is built on the assembly line. If a Gold Key customer is unable to visit the day the tractor is on the assembly line, the customer may elect an alternative date within 90 days to schedule a tour. This will be recognized as a Gold Key experience where the customer adopts a tractor to follow rather than watch his or her own tractor being built. After 90 days, the visit will be deemed a VIP tour and Gold Key memorabilia will not be provided.

Definition of a Gold Key tour

A Gold Key tour entails an exclusive, behind-the-scenes guided tour of the assembly production lines. The customer, or product owner, may bring up to three additional guests on the tour. Tour participants will wear Gold Key owner identification bump caps and other personal protective equipment while being escorted privately by a tour guide. Every attempt will be made to make sure the customer will see the specific tractor ordered come off the final assembly line; however, in order to satisfy delivery needs, the first priority is to keep the manufacturing lines running at full capacity.



The Gold Key visit date is based on when the customer’s tractor is expected to reach the final line. It is John Deere’s goal that a customer drives his or her tractor off the final line at the end of the tour. It is imperative to notify the John Deere dealer from whom the tractor was purchased in order to initiate a Gold Key tour. The John Deere dealer will be required to register guests on the Gold Key registration website as soon as possible if a Gold Key visit is requested. The owner will be presented with a gold key, a certificate, and other memorabilia at the conclusion of the factory visit. Breakfast and lunch will also be provided the day of the tourisit.

Process of Gold Key tour

The owner will need to notify the John Deere dealer where the Waterloo-built 6000 Series ™ 9000 Series Tractor was purchased. The Gold Key coordinator will be the sole contact with the dealership representative to make visit arrangements and confirmations for the visit.



Shortly after the Gold Key coordinator confirms the request, all appropriate paperwork and information will be sent to the dealer. The customer will then receive all welcome documents in the mail. The Gold Key coordinator will also make direct contact with the customer to confirm the visit.

Ahrens Farms Ahrens Farms
#



Ahrens Farms of Owatonna, MN participated in the Gold Key Tour at John Deere Waterloo Works in 2015. They purchased a 9470RT Tractor.

Gold Key Tour guidelines
  • All Gold Key tours must be initiated by the selling John Deere dealer through the Gold Key profile request form.
  • The Gold Key coordinator at the Waterloo Tractor Factory will be responsible for updating the customer and dealer of the tractor build status.
  • Gold Key treatment will not be recognized if any of the requirements are not met prior to arrival at the factory.
  • The Gold Key Program is only available within 90 days of the tractor's build date.
  • Every attempt will be made to make sure the customer will see his or her tractor come off the assembly line; however, the factory has first priority for production obligations.
  • Gold Key tours are limited to the customer and three other persons, no more than four people total (excluding dealer).
  • All guests attending Gold Key tours must be 13 years of age or older. Any teenage children must be accompanied and under constant supervision of a parent and/or guardian.
  • No personal cameras or video cameras are allowed on the production floor during the tour. A camera from John Deere will be given to Gold Key guests for the duration of the tour.
  • Tour participants must abide by all factory tour safety rules and regulations.
  • Gold Key tours will be restricted if maximum tour capacity has been reached due to previously scheduled tours or special events.

While every attempt will be made, and the factory will do everything possible to allow a customer to see his or her tractor being built, production schedules change for many reasons. Should production change at the last minute, the owner may arrive only to find that either the tractor has been pushed back or pulled ahead and already built. While that is certainly not the intention, the possibility remains.



The factory cannot  be responsible for:

  • Production delays, work ahead, or production revisions
  • Any option changes at the factory level
  • Overnight accommodations; however, assistance with information is available upon request
  • Travel costs

The 4200 and 4600 CommandCenter, also known as the Generation 4 CommandCenter, create the primary user interface for 6R, 7R, 8R/8RT, and 9R/9RT/9RX Tractors; F4365 High-Capacity Nutrient Applicator; 4 Series Self-Propelled Sprayers; and S700 Combines. The Generation 4 CommandCenter provides an excellent, user-savvy, efficient operating experience.

Display options

Generation 4 CommandCenter is available in the following configurations:

  • 21.3-cm (8.4-in.) display on the 4200 CommandCenter
  • 25.4-cm (10-in.) display on the 4600 CommandCenter

For growers wanting to maximize their viewing real estate, the 25.4-cm (10-in.) touchscreen color display is an excellent choice. With the 25.4-cm (10-in.) display, the title bar and all shortcut keys may be viewed at all times, allowing operators to monitor more information at once.

John Deere 4200 CommandCenterJohn Deere 4200 CommandCenter

A. Next run page
B. Status center
C. Expand shortcut keys
D. Menu
E. Run page

John Deere 4600 CommandCenterJohn Deere 4600 CommandCenter

A. Next and previous run page
B. Status center
C. Shortcut keys
D. Menu
E. Run page
F. Title bar

John Deere Generation 4 CommandCenter processors

A Generation 4 CommandCenter is made up of a processor and a display. Two processor options are available for the Generation 4 CommandCenter.

4200 CommandCenter 21.3-cm (8.4-in.) display4200 CommandCenter 21.3-cm (8.4-in.) display

The 4200 Processor is base equipment and only offered on 6R, 7210R, and 7230R Tractors.

It offers:

  • Compatibility with 21.3-cm (8.4-in.) touchscreen display
  • One video camera input
  • One USB input
  • AutoTrac, Data Sync, and Section Control capable (machine-specific activation sold separately)
CommandCenter compatibility

The table below shows the model year of machines equipped with CommandCenter. Upgrade kits are available for 4100 to 4600 for machines that came equipped with a 4100 CommandCenter from the factory. There are no upgrade kits for converting a 4200 to 4600 at this time.

4200 CommandCenter is available starting with model year 2019 6R, 7210R, and 7230R Tractors.



VehiclesModel year4200 Processor4600 Processor
John Deere tractors
6R Series (AutoQuad™ transmission/CommandQuad™ transmission) Series2019 and newerStandardNot applicable
6R (IVT transmission/DirectDrive), 7210R, 7230R Series2019 and newerStandardOption
7250R, 7270R, 7290R, 7310R Series2014 and newerNot applicableStandard
8R/8RT SeriesMid-2014 and newerNot applicableStandard
9R/9RT/9RX Series2015 and newerNot applicableStandard
John Deere nutrient applicators
F4365 Nutrient Applicator2017 and newerNot applicableStandard
John Deere self-propelled sprayers
4 Series Sprayers2018 and newerNot applicableStandard
John Deere combines
S-Series Combines2018 and newerNot applicableStandard



Expect easier set-up, along with increased operator confidence, thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.

Some of the easy-to-use benefits of the Generation 4 CommandCenter include:

  • Custom-defined views
  • Intelligent warnings
  • Context-based help
  • Ability to import, export, and delete files

Producers can use a variety of implements with the Generation 4 CommandCenter as it is Agricultural Industry Electronics Foundation (AEF) ISOBUS compliant for manual control of IOSBUS implements (UT) as well as automatic section control (TC-SC) and documentation in ISOXML format (TC-Basic).

Help iconHelp icon
Help center main pageHelp center main page

Additionally, application-based help is also available in all locations of the CommandCenter. Simply click on the {i} icon available on the title bar and it will lead directly to more information on the application currently being used.

Context-based help iconContext-based help icon
Context-based help on iTEC™ system main pageContext-based help on iTEC™ system main page

Diagnostic text and information is available for better understanding of whether applications are operating as directed.

Machine monitor
Machine monitor pageMachine monitor page

The machine monitor application provides the operator instantaneous readings about the status or condition of the machine. Values shown in the machine monitor vary by application, but typically include parameters like engine speed, coolant temperature, and ground speed. The machine monitor supports run page modules in the Layout Manager, allowing the operator to populate specific machine parameters directly to a run page.

NOTE: The machine monitor application replaces part of the universal performance monitor in previous machines.

Work setup shortcut key (far left)Work setup shortcut key (far left)
Work setupWork setup

Video capability



Tractors with a 4200 CommandCenter are equipped with one video input, and the 4600 CommandCenter Display has four video inputs. The operator has the ability to set a variety of triggers, including reverse, PTO, hitch, and selective control valve (SCV) levers to activate the camera. Once triggered, the image will then appear on the CommandCenter display. The camera (video observation system) is available through JD Parts and Ag and Industrial (A and I) Products.



NOTE: 6R Tractors equipped with a 4600 CommandCenter Display have two video inputs.

Help iconHelp icon
4600 CommandCenter 25.4-cm (10-in.) Display4600 CommandCenter 25.4-cm (10-in.) Display

The 4600 Processor is the premium processor, offered as an option on all 6R*, 7210R, and 7230R Tractors and is standard on 7250R, 7270R, 7290R, 7310R, 8R/8RT, 9R/9RT/9RX Tractors, F4365 Nutrient Applicator, 4 Series Self-Propelled Sprayers, and S700 Combines.

Available features with the premium processor include:

  • Compatible with 25.4-cm (10-in.) touchscreen display Four video camera inputs Four USB inputs
  • Wireless Data Transfer
  • AutoTrac™ guidance capable (machine-specific activation sold separately)
  • Machine specific activations including CommandCenter Premium and CommandCenter Automation enables Section Control, Data Sync, RowSense, In-Field Data Sharing, AutoTrac Implement Guidance, AutoTrac Turn Automation, Machine Sync and John Deere Wireless Data Transfer (WDT) (with a JDLink™ Connect subscription)
  • Export screenshots and troubleshooting information easily from the display

*Only compatible with Infinitely Variable Transmission (IVT™) and DirectDrive™ transmission

Layout manager
Layout manager selection pageLayout manager selection page
Layout manager module buildLayout manager module build

The Generation 4 CommandCenter features a modular-designed layout manager, so operators can easily create the page views that meet their needs. From the factory, machines are equipped with default run pages. An unlimited number of run pages can be added to the Generation 4 CommandCenter based on operator preference or operational needs. Toggling between run pages is as easy as swiping the screen or using the arrow buttons on the top right portion of the title bar.



Users and access



Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with a defined four-digit code.



Lock-out features are available for:

  • Factory data reset

  • Hitch

  • Hydraulic

  • Transmission

  • Power take-off (PTO)

  • FieldCruise™ system

  • Display

  • Machine monitor

On-screen help and diagnostic text



There are a number of different ways to get meaningful on-screen help when navigating the Generation 4 CommandCenter. Operators can find the help icon on the shortcut bar on the bottom of every page. This icon gives detailed information on everything from tractor operation to application information. Simply select the help icon and navigate to the information section that is needed.

Work monitor
Work monitor pageWork monitor page

The work monitor application displays performance information about the task being performed by the machine. The operator is shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage. The values of the work monitor can be reset by the operator at any time. Specific values of the work monitor can be configured by the operator to be shown on a run page.



NOTE: The work monitor application replaces part of the Universal Performance Monitor in previous machines.



Work setup application

Work setup places the settings needed to properly setup AutoTrac, Documentation, and Section Control in a single location.



Settings include:

  • Client, farm, and field
  • Crop type
  • Machine and implement dimensions
  • Variety/hybrid and planting/ seeding rates
  • Variable rate prescriptions
  • Product and application rates
  • Application rates through the implement screens

Work setup can be quickly accessed from a shortcut key or the display menu, allowing operators and managers to quickly review display and machine settings to ensure a job is completed properly.

Flags
Create flags to mark items in the fieldCreate flags to mark items in the field

Mark areas of the field that need special attention or items that need to be addressed such as rocks, tile lines, or weed pressure. Flags previously recorded on the Gen 4 or GreenStar™ 3 (GS3) 2630 Display can be transferred between displays to ensure each operator is aware of upcoming field obstacles.

Document field boundaries

Manually drive field boundaries with the Generation 4 CommandCenter or import existing boundary information from the GS3 2630 Display or John Deere Operations Center. Gen 4 documentation data can be used to create boundaries from coverage within the John Deere Operations Center.

The display uses a streamlined boundary creation process that generates exterior and interior field boundaries from coverage, simplifying the process and reducing steps. Operators can delete interior boundaries without impacting the exterior boundary or headlands. In addition, operators can chose to turn boundaries off for section control while using them for field locator and documentation.

Headland boundaries can also quickly be generated by simply entering a distance or the number of passes from an exterior boundary.

Boundary creation from coverageBoundary creation from coverage
Headland creationHeadland creation

Boundaries can be imported from the following sources:

  • John Deere Operations Center
  • Directly from a GS3 2630 Display or another Gen 4 Display
  • APEX™ software or another farm management information system (FMIS) system that exports in GS3 2630 Display format
Dual-display mode
Dual displayDual display

Generation 4 CommandCenter display and GreenStar displays comparison and compatibility

The Generation 4 CommandCenter works in dual-display mode with GreenStar 3 2630 Display, GreenStar 2 1800 Display, and GreenStar 2 2600 Display.

Generation 4 CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost of a John Deere tractor:

  • GreenStar 2 1800 Display
  • GreenStar 2 2600 Display
  • GreenStar 3 2630 Display
  • 4640 Universal Display
  • 4240 Universal Display

Vehicle applications will always be located on the Gen 4 CommandCenter.

View on-screen help to properly set up the display when in dual-display mode by clicking on the icon (pictured below).


The Generation 4 CommandCenter was designed to provide a consistent user experience by providing full-screen viewing of more run page modules, shortcut keys, and precision agriculture capabilities.

Expect easier set-up, along with increased operator confidence, thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.

In order to increase your efficiency, take advantage of the following features offered by the Generation 4 CommandCenter:

Layout manager
Layout manager selection page Layout manager selection page
Layout manager module build Layout manager module build
  • Easily create page views that meet your needs and that are also equipped with default run pages.
    • Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings with a defined four-digit code.
    • Gather on-screen help by selecting the help icon on the shortcut bar on the bottom of every page.
Language and units
Switch between active and alternate language on the display Switch between active and alternate language on the display

Easily switch between languages with the option to set the active and alternate language. Configure the shortcut bar to include the language toggle allows different individuals to easily switch the display between languages.

Machine monitor
Machine monitor page Machine monitor page
  • The Machine Monitor application provides you instantaneous readings about the status or condition of your machine.
    • This application shows parameters such as engine speed, coolant temperature, and ground speed.
Work monitor
Work monitor page Work monitor page
  • The Work Monitor application displays performance information about the task being performed by the machine.
    • You are shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage.
    • Work setup places the settings needed to properly setup features such as AutoTrac, Documentation, and Section Control in a single location. Settings include:
      • Client, farm, and field
      • Crop type
      • Machine and implement dimensions
      • Variety/hybrid and planting/seeding rates
      • Variable rate prescriptions
      • Product and application rates
      • Application rates through the implement screens
Video capability
  • Machines equipped with a 4200 CommandCenter are equipped with one video input, and the 4600 CommandCenter has four video inputs.
    • You have the ability to set a variety of triggers. With each trigger, the image will then appear on the display.
Video looping supported with Gen 4 4600 CommandCenter Display and 4640 Universal Display
  • This feature enables users to scan or loop through all of the available video feeds for a specified duration. The default scan time is set to 7 seconds per image. The scan time is customizable per image allowing for consistent visibility to all video feeds.
Flags
Create flags to mark items in the field Create flags to mark items in the field
  • Mark areas in the field that need special attention such as rocks, tile lines, or weed pressure.
    • Flags previously recorded on the Gen 4 or GreenStar© 3 2630 Display can be transferred between monitors.
Field boundaries
Boundary creation from coverage Boundary creation from coverage
Headland creation Headland creation
  • Manually drive field boundaries with the Generation 4 CommandCenter or import existing boundary information from the GreenStar 3 2630 Display or John Deere Operations Center. Gen 4 documentation data can be used to create boundaries from coverage within the John Deere Operations Center.
Automatic base station switching
Setup base stations in Fields and Boundaries applications Setup base stations in Fields and Boundaries applications
  • Customers using John Deere RTK Radio 450 or 900 can link a base station to a desired client,/ farm,/ or field. This allows automatic switching to the associated base station when changing fields. The ability to import base station assignments into Operations Center and send back to machines will be available at a later date.
Dual-display mode
Dual display Dual display
  • Generation 4 CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost of a John Deere tractor:
    • GreenStar 2 1800 Display
    • GreenStar 2 2600 Display
    • GreenStar 3 2630 Display
    • 4640 Universal Display
    • 4240 Universal Display

NOTE: Vehicle applications will always be located on the Gen 4 CommandCenter.


Specs
Engine specifications
Description John Deere PowerTech™ PSS 9.0 L (B20 diesel compatible)
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Engine family JJDXL09.0308
Rated speed 2,100 rpm
Aspiration Dual series turbocharger with fixed geometry first stage, variable geometry second stage; air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 9 L
549 cu in.
Engine performance
Rated power 97/68EC: 272 kW
370 hp
Rated PTO power (hp SAE) 225 kW
303 hp
Power boost (available in transport and/or mobile PTO applications) 10 percent
Engine peak torque At 1600 rpm: 1,732 Nm
1,277 lb-ft
PTO torque rise 40 percent
Rear power take-off (PTO)
Type Independent
Standard: 46 mm (1.75 in.) 20-spline, 1,000 rpm
Hydraulic system
Pump rated output Standard: 85-cc pump: 227.1 L/min
60 gpm
Available flow at a single rear SCV 0.5 in. couplers: 132 L/min
35 gpm
0.75 in. couplers: 159 L/min
42 gpm
Number of rear selective control valves (SCVs) Standard: 10.5 in. ISO couplers: 4
Optional: 0.5 in. ISO couplers: 5 and 6 available
0.75 in. ISO coupler: 1
SCV control Electronic
Rear hitch
Hitch category (SAE designation) Standard: Category 4N/3: 6,803 kg (15,000 lb) at 610 mm behind hitchpoint
Optional: Category 4N/3: 9,072 kg (20,000 lb) at 610 mm behind hitchpoint
Maximum lift capacity behind lift points Category 4 4N/3: 9,072 kg (20,000 lb) at 610 mm behind hitchpoint
Sensing type Electrohydraulic
Drawbar
Drawbar category Standard: Category 4
Optional: Category 4 with heavy duty support
Maximum vertical load Standard: 2,245 kg
4,950 lb
Optional: 4990 kg (11,000 lb) (dependent on drawbar position)
Rear power take-off (PTO)
Engine rpm (at rated PTO speeds) 1,000 PTO rpm @ 2,000 engine rpm
Rear axle
Final drive type Inboard planetary
Tires
Wheel tread range 1,828.8 to 3,048 mm
72 - 120 in.
2,844.8 to 4,064 mm
112 - 160 in.
Electrical system
Alternator size Standard: 200 amp
Battery options 12 V
Total cold cranking amps 1,850 CCA
Operator station
Rollover protective structure, OOS

Seat Standard: ComfortCommand™
Optional: ActiveSeat™
Instructional seat Standard
Display Standard: 4100 Generation 4 CommandCenter™ with 7 in. display
Optional: 4600 Generation 4 CommandCenter™ with 10 in. display
Radio Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume 3.597 m3
127 cu ft
Cab glass area 6.52 m2
70.18 sq ft
Weight
Base machine weight

15,364 kg
33,871 lb
Maximum ballast level 17,690 kg
39,000 lb
Maximum permissible weight 19,958 kg
44,000 lb
Capacities
Crankcase oil volume 25 L
6.8 U.S. gal.
Fuel tank 750 L
200 U.S. gal.
Diesel Exhaust Fluid (DEF) tank 25.3 L
6.7 U.S. gal.
Cooling system 32.6 L
8.6 U.S. gal.
Transmission-hydraulic system 180 L
47.5 U.S. gal.
Serviceability
Interval for engine oil change 500 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours
Precision AG
Guidance AutoTrac Ready
Telematic Available with JDLink™ hardware, activations, and Ethernet Harnesses (availability dependent upon destination)
Remote diagnostics Available with activated JDLink™ hardware and activations
Key Specs
Engine description John Deere PowerTech™ PSS 9.0 L (B20 diesel compatible)
Engine displacement 9 L
549 cu in.
Rated engine power 97/68EC: 272 kW
370 hp
Transmission type Standard: John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h
26 mph
Optional: e23 Powershit with Efficiency Manager™ 40K, 40 km/h
Hydraulic system type Closed-center, pressure/flow compensated
Hydraulic pump rated output Standard: 85-cc pump: 227.1 L/min
60 gpm
Rear hitch category (SAE designation) Standard: Category 4N/3: 6,803 kg (15,000 lb) at 610 mm behind hitchpoint
Optional: Category 4N/3: 9,072 kg (20,000 lb) at 610 mm behind hitchpoint
Engine performance
Power boost 10 percent
Electrical system
Type of bulb in beacon (Halogen, Zenon, LED)
Type of bulb in headlight (Halogen, Zenon, LED)
Miscellaneous
Country of manufacture USA
Accessories and Attachments
Electrical
Battery disconnect installedBattery disconnect installed
#

Available as either a factory- or field-installed attachment, the battery disconnect switch is used to disconnect the batteries in preparation for 20-day to 90-day storage periods. The switch cuts the power to the entire tractor to aid in maintaining battery life.

An indicator light allows for safe and proper disconnect. The light will flash until it is safe to disconnect. This allows the diesel exhaust fluid (DEF) tank and lines to purge. (Final Tier 4 has an indicator light and Interim Tier 4 has no indicator light)



Cummins is a trademark of Cummins Incorporated.


Implement switch Implement switch

The implement switch indicates to the CommandCenter™ when the implement is raised or lowered, to provide accurate data collection when using a performance monitor.


Dual-beam radar emission horns Dual-beam radar emission horns
Dual-beam radar (tracks tractor shown)Dual-beam radar (tracks tractor shown)

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.



There are several key features that have changed from previous designs.



First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.



Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.



Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.

In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.



The radar true ground speed sensor activates the following CommandCenterTM or performance monitor readouts:

  • Percent slip
  • Hitch slip command (if equipped)


Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

  • Area covered
  • Area/hour
  • Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.


Dual-beam radar emission horns Dual-beam radar emission horns
Dual-beam radar (tracks tractor shown)Dual-beam radar (tracks tractor shown)

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.



There are several key features that have changed from previous designs.



First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.



Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.



Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.

In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.



The radar true ground speed sensor activates the following CommandCenterTM or performance monitor readouts:

  • Percent slip
  • Hitch slip command (if equipped)


Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

  • Area covered
  • Area/hour
  • Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.


Backup alarm on an 8R Series TractorBackup alarm on an 8R Series Tractor
Transmission backup alarm kit for 8030 SeriesTransmission backup alarm kit for 8030 Series

To better accommodate governmental or commercial sales, a back-up alarm is available as a factory- or field-installed attachment on select models. An alarm sounds whenever the transmission is placed in reverse. The alarm provides a high level of warning that the tractor is changing direction.

A backup alarm is base equipment on Scraper Special Series Tractors.


9-pin implement electrical connector9-pin implement electrical connector

The RE58827 9-pin electrical connector is required for TouchSetTM  depth control to be used with implements with this feature. The harness provides a position input to the tractor selective control valve unit enabling the TouchSet system.



This feature allows the operator to adjust height and depth of remote lift cylinders by using the TouchSet controls in the cab.


Engine

Engine Block Heater (110V) - DZ102076


Ether valve and canisterEther valve and canister
Block heaterBlock heater

The optional cold start package is recommended for tractors frequently started at or below -6°C (21.2°F).

The kit includes factory-installed activation switch and ether valve with ether canister. A 110-V, high-wattage block heater and grounded cord are also included with the factory-installed option.


Ether valve and canisterEther valve and canister
#

The engine ether kit is recommended for tractors frequently started in cold weather.  This kit injects ether into the engine allowing quick combustion in below-average temperatures.


7030 Series Large-Frame Tractor shown7030 Series Large-Frame Tractor shown

The severe-duty water separator factory-installed option or field-installed kit is available for locations where fuel quality can at times be in question. This kit will extend service intervals and help protect the tractor fuel system from damage if the fuel contains more water than the base filtering equipment can handle on a continual basis.

The 60 micron constructed of stainless-steel filter element must be backflushed whenever the bowl is half full of water. The filter can be backflushed up to five times before the filter must be removed and cleaned. Filter element must be replaced when light is no longer visible through the filter. The replacement interval will vary depending on fuel quality.


7030 Series Large-Frame Tractor shown7030 Series Large-Frame Tractor shown

The severe-duty water separator factory-installed option or field-installed kit is available for locations where fuel quality can at times be in question. This kit will extend service intervals and help protect the tractor fuel system from damage if the fuel contains more water than the base filtering equipment can handle on a continual basis.

The 60 micron constructed of stainless-steel filter element must be backflushed whenever the bowl is half full of water. The filter can be backflushed up to five times before the filter must be removed and cleaned. Filter element must be replaced when light is no longer visible through the filter. The replacement interval will vary depending on fuel quality.


Hitch and Drawbar

Scraper drawbar (universal) - BXT10027


Scraper drawbar (quick hitch) - BXT10026


Category 3/3N Quik-CouplerCategory 3/3N Quik-Coupler
Category 4N/3 Quik-CouplerCategory 4N/3 Quik-Coupler

The Category 4N/3 and Category 3/3N cast Quik-Couplers provide increased clearance between an implement and the tractor’s tires, and allow fast and convenient attachment to implements.


All 8R and 8RT Series Tractors offer a Category 4 drawbar, with or without heavy-duty supports. The heavy- duty support option provides a maximum vertical load-carrying capacity of up to 4990 kg (11,000 lb). A Category 3 drawbar is also available for wheel models. The Category 4 drawbars include a 50-mm (2-in.) pin, and the Category 3 drawbar includes a 38-mm (1.5-in.) pin.

All drawbar options provide an easy-to-use linkage that allows the drawbar pin to drop into the field position when hooking up to an implement. This linkage is activated when it is tapped by the implement drawbar.



Drawbar description

Model availability (A=Available)

8R

8RT

Category 3 adjustable swinging drawbar with 38-mm (1.5-in.) pin

A

--

Category 4 adjustable swinging drawbar with 50-mm (2-in.) pin

A

A

Category 4 adjustable swinging drawbar with 50-mm (2-in.) pin with heavy-duty support

A

A


Center Link Bracket - R177682


Rear Hitch Premium Controls Upgrade Kit - BRE10144


Hydraulics

RESERVOIR KIT, ADDITIONAL OIL TAKEOUT - BRE10309


Five remote SCVsFive remote SCVs

The field-installed electronic SCV kits are made available for tractors needing additional SCVs. These kits provide metered flow rates and timed detents with pressure and load sense compensation. The additional SCV(s) can also be integrated into the Headland Management System.

The field-installed kit includes International Organization for Standardization (ISO) lever-assisted breakaway couplers and armrest control lever.


The 7R and 8R Series Tractors offer dual-line hydraulic trailer brakes, dual-line air trailer brakes, or dual-line air and dual-line hydraulic trailer brakes, which allow the tractor braking system to connect to implements with high-pressure air or hydraulic brakes. Both systems automatically balance the brake pressure of both the tractor and implement to provide comfortable braking performance.

Trailer brake settings are fully customizable by adjusting gain and pre-brake settings. Trailer brake gain will give customers the ability to adjust how aggressive the trailer brakes are as the tractor brake pedal is depressed. Pre-brake adjustment will allow operators to adjust when the brakes are initiated in reference to the tractor brake pedal being depressed. This along with AutoClutch™ system settings will help the operator achieve optimum braking performance of both tractor and implement. Operators will also be able to test the trailer brake park release while the tractor is still in park during connecting and pre-trip activities.

#
#

Factory options include dual-line hydraulic trailer brakes, dual-line air trailer brakes, or dual-line air and dual-line hydraulic trailer brake systems. The dual-line hydraulic trailer brake option is also available as a field-installed kit.

Trailer brake connections – 8R shownTrailer brake connections – 8R shown
Air trailer brake tank and dryer – 8R shownAir trailer brake tank and dryer – 8R shown
Air trailer brake tank – 8R shownAir trailer brake tank – 8R shown
Dual-line hydraulic trailer brake system

Permits the use of hydraulic trailer brakes on the tractor. This system connects directly to the tractor’s hydraulic circuit and does not require the use of an auxiliary oil reservoir.

Hydraulic trailer brake system includes:

  • Rear tractor line hydraulic couplers
Dual-line air trailer brake system

Permits the use of air trailer brakes on the tractor.

Air trailer brake system includes:

  • Compressor
  • Tank
  • Air dryer
  • Control valves
  • Two line couplers



CAUTION: The agricultural tractor air trailer brake system is designed for use only with agricultural implements and agricultural trailers. This system is not compatible with the air trailer brake system used by over-the-road vehicles and does not conform to the standards established for over-the-road air trailer brake contamination and electrical systems.

Dual-line air and dual-line hydraulic trailer brake system

Permits the use of hydraulic or air brakes on the tractor. This system connects directly to the tractor’s hydraulic circuit and does not require the use of an auxiliary oil reservoir.

Air and hydraulic trailer brake system includes:

  • Compressor
  • Tank
  • Air dryer
  • Control valves
  • Two line couplers
  • Rear tractor line hydraulic couplers



CAUTION: The agricultural tractor air trailer brake system is designed for use only with agricultural implements and agricultural trailers. This system is not compatible with the air trailer brake system used by over-the-road vehicles and does not conform to the standards established for over-the-road air trailer brake contamination and electrical systems.


Hydraulic Motor Return Coupler Kit without Case Drain, Tracks - RE344103


Hydraulic Motor Case Drain (Flush Face Coupler) Kit - BRE10281


Auxiliary hitch lift assist kitAuxiliary hitch lift assist kit
Auxiliary hitch lift assistAuxiliary hitch lift assist

Lift assist wheels are often used with heavy 3-point-hitch-mounted implements. The hitch auxiliary raise kit provides hydraulic power for use with the lift assist wheels. Turning and transport are made easier using this feature.


HYDRAULIC TRAILER BRAKE KIT - BRE10289


Five remote SCVsFive remote SCVs

The field-installed electronic SCV kits are made available for tractors needing additional SCVs. These kits provide metered flow rates and timed detents with pressure and load sense compensation. The additional SCV(s) can also be integrated into the Headland Management System.

The field-installed kit includes International Organization for Standardization (ISO) lever-assisted breakaway couplers and armrest control lever.


Lighting
Xenon HID lights improve nighttime visibility
HID lights HID lights

John Deere has taken advantage of advanced lighting technology. This lighting provides the operator with industry-leading performance in nighttime visibility.

The important part of the system is the use of Xenon high-intensity discharge (HID) bulbs. These bulbs provide extreme brightness and a daylight color output for excellent definition of the field. The performance of this system allows the operator to easily view as much as 250 percent farther ahead, compared to previous tractors. A further benefit is there are no filaments in the HID bulb. Bulb life is increased by as much as 10 times vs. filament-style bulbs.

Standard lightingStandard lighting
FieldVision lightingFieldVision lighting
Front FieldVision lighting
Front HID locationsFront HID locations
Roof lighting locationRoof lighting location

The front lighting package adds three high-intensity discharge (HID) lights to the front grille (see 1 in the image above). To further enhance all-around tractor lighting, there are two additional 65-W halogen work lights added to the left- and right-hand cab roof.



The center of the bulb has a semi-spot lens, and the outer light housings have a flood lens. In row-crop, the operator will notice there is a longer beam of light in the center for following marker furrows. The overall width of the lighting pattern for a non-row-crop operation will be obvious so tilled or seeded passes are easily identified. The inner, larger-diameter light assemblies are used for road transport and use conventional halogen 60-/55-W H4 bulbs. These larger light housings are also used in the base lighting system. With the dual-wattage H4 bulb, the operator will notice that there is a true automotive-style high/low function when operating in the road position.



The cab roof lights can be adjusted to aim to the side or rear of the tractor.

Rear FieldVision lighting
Rear FieldVision HID lightingRear FieldVision HID lighting

The premium HID lighting package (code 1720) adds two adjustable-position HID lights on the rear fenders.



Unlike aftermarket lights where the operating ballast is integral, these lights use a smaller housing with remote-mounted ballast.  The smaller housing decreases obstruction for a clear view looking out the rear window.  Using the light’s wide-angle flood lens will make it much easier to monitor the widest or longest equipment available.


Front roof-mounted floodlightsFront roof-mounted floodlights
Side roof-mounted floodlightsSide roof-mounted floodlights

Nighttime visibility can be improved on tractors with two roof-mounted front floodlights or two roof-mounted side floodlights.


For additional transport visibility, install a rotary beacon light.
Rotary beacon light installed on 7030Rotary beacon light installed on 7030
Rotary beacon light installed on 7020Rotary beacon light installed on 7020

Option code 9779 on the 7030 Series Large-Frame Tractors includes the rotary beacon light. The light features a fully-adjustable, double-clamp design that provides a more rigid vertical support stem.



Rotary beacon lights can be installed for additional transport visibility and commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored lens.


9R Series with rotary beacon light9R Series with rotary beacon light
9R with left and right side beacon lights9R with left and right side beacon lights

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.



The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.


9R Series with rotary beacon light9R Series with rotary beacon light
9R with left and right side beacon lights9R with left and right side beacon lights

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.



The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.


Miscellaneous

With loads of capacity, two removable shelves, and an innovative front door and lid design, this new tractor utility box breaks new ground for convenience, versatility, and rugged design. Grease guns, tow chains, hitch pins, and many other essential items can be stored safely and can be easily accessed, putting an end to cluttered cabs.

Front utility boxFront utility box
Front utility box and bracketFront utility box and bracket

Built from welded, heavy-gauge sheet steel, this new box offers long-term durability not seen with other toolboxes. A heavy-duty gas strut on the lid and locking pins make opening and locking simple and easy.

Specifications:

  • Made in the USA
  • 23 in. x 8 in. x 12 in.
  • Two removable shelves
  • Heavy-duty construction
  • Fold down front door for easy access
  • Mount with existing R127764 tractor weights using BRE10153 bracket
  • Mount on 9X30 Series Wheel Tractors (front left side) using BRE10291 bracket

Track tensioning kit in useTrack tensioning kit in use
Track tensioning kitTrack tensioning kit

Track tensioning hose kit must be used to relax/tension the track when changing tracks.



Kit includes hose and shutoff valve.


With loads of capacity, two removable shelves, and an innovative front door and lid design, this new tractor utility box breaks new ground for convenience, versatility, and rugged design. Grease guns, tow chains, hitch pins, and many other essential items can be stored safely and can be easily accessed, putting an end to cluttered cabs.

Front utility boxFront utility box
Front utility box and bracketFront utility box and bracket

Built from welded, heavy-gauge sheet steel, this new box offers long-term durability not seen with other toolboxes. A heavy-duty gas strut on the lid and locking pins make opening and locking simple and easy.

Specifications:

  • Made in the USA
  • 23 in. x 8 in. x 12 in.
  • Two removable shelves
  • Heavy-duty construction
  • Fold down front door for easy access
  • Mount with existing R127764 tractor weights using BRE10153 bracket
  • Mount on 9X30 Series Wheel Tractors (front left side) using BRE10291 bracket

StarFire 6000 Locking Bracket - BPF11074


Operator Environment
Foot-operated speed control (8R Series)Foot-operated speed control (8R Series)

The foot-operated speed control increases productivity of the tractor/operator unit by allowing the operator better control of engine speed for loader work, maneuvering in tight spaces, and transport. This option provides the operator excellent modulation of engine speed on wheel tractors.



Infinitely Variable Transmission (IVT™) equipped tractors can have an automotive-type operation with the use of foot throttle. This is especially useful in transport applications. Foot throttle and AutoClutch™ clutch action of the transmission are easily coordinated by the operator for smooth operation.


Tablet Mount Kit - BRE10255


Sound systems provide powerful performance with four-speaker system
Radio with CD player shownRadio with CD player shown
Bosch radioBosch radio

The John Deere/Bosch radios are available with or without a compact disc (CD) player.



The system also features:



  • Separate seek, treble/bass controls
  • Radio can be ordered with or without a CD player
  • Weatherband feature standard on all radios to allow the operator to listen to NOAA Weather Channel broadcasts at the touch of a button

For clear reception, an external antenna is included.



Bosch is a trademark of Robert Bosch GmBH. Bluetooth is a trademark of Bluetooth SIG Incorporated. XM is a trademark of XM Satellite Radio Incorporated.


Electrical power accessories
Power strip installedPower strip installed
Power stripPower strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cordElectrical cord
Three-way convenience adapterThree-way convenience adapter
  • The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
  • The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.
Cigar lighter outlet adapterCigar lighter outlet adapter
#
  • The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

Single Lever Multi Function Joystick - BRE10143


A favorite worldwide, the RAM self-leveling cup holder is now available as a kit - designed specifically for Deere equipment. It is easily installed to keep your favorite beverage upright even in the roughest terrain. The perfect accessory for any cab that has 10-mm mounting bosses.

Self-leveling cup holder John Deere branded beverage insulator includedSelf-leveling cup holder John Deere branded beverage insulator included
#

The new cup holder features a unique self-leveling design. This pivoting design allows easy adjustment for the holder while offsetting motion of the vehicle when moving.

Features and applications:

  • Self-leveling action reduces spills
  • Durable design for rough environments
  • Easy adjustable mounting for ideal placement
  • Includes John Deere branded beverage insulator
  • Compatible with most monitor brackets and all 10-mm threaded bosses

Seat belt for 8R Series TractorsSeat belt for 8R Series Tractors

The 3-in. field-installed seat belt kit is designed for use with the 8R and 8RT Series Tractor operator seats. The seat belt kit is offered to meet regulations that require a seat belt anchorage force similar to the SAE J386 (including previous versions up to 22.2 kN anchorage strength), IOS 6683, and OSHA requirements (29CFR1926.602) for earthmoving operations and non-agricultural tractor operations.



NOTE: John Deere recommends reviewing the seat belt kit performance capabilities to ensure compliance with local, state, regional, and national requirements.


Sound systems provide powerful performance with four-speaker system
Radio with CD player shownRadio with CD player shown
Bosch radioBosch radio

The John Deere/Bosch radios are available with or without a compact disc (CD) player.



The system also features:



  • Separate seek, treble/bass controls
  • Radio can be ordered with or without a CD player
  • Weatherband feature standard on all radios to allow the operator to listen to NOAA Weather Channel broadcasts at the touch of a button

For clear reception, an external antenna is included.



Bosch is a trademark of Robert Bosch GmBH. Bluetooth is a trademark of Bluetooth SIG Incorporated. XM is a trademark of XM Satellite Radio Incorporated.


Electrical power accessories
Power strip installedPower strip installed
Power stripPower strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cordElectrical cord
Three-way convenience adapterThree-way convenience adapter
  • The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
  • The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.
Cigar lighter outlet adapterCigar lighter outlet adapter
#
  • The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

Right-hand mirror shown on 8RT Series TractorRight-hand mirror shown on 8RT Series Tractor

7R and 8R Series Tractor mirror options

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

8RT Series Tractor mirror options

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping

9R and 9RX Series Tractor mirror options

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

9RT Series Tractor mirror options

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping

The electrically adjustable mirrors on both sides of the cab are handy to assist in getting the view needed of variable-width implements, wagons, or carts.



Field-installed kits are also available to convert a manual mirrors to electrically adjustable. See the attachment section for further information.



NOTE: Electrically telescoping mirrors are not compatible with 8RT and 9RT Tractors.


Ethernet Adapter Cable (Square to Round - 2.5 ft. / .8m) - PFP12950


Display Harness - GS2 / GS3 Display with Video to GreenStar (Round) Cornerpost (30 in. / 762 mm) - PFP12435


Cornerpost Display Bracket - PF90385


CommandARM bracketCommandARM bracket
CommandARM bracketCommandARM bracket

The CommandARM bracket for Final Tier 4 (FT4) tractors offers a convenient way to mount a cell phone or tablet to the CommandARM for easy use of a mobile device. This bracket is not compatible with joystick-equipped tractors.



NOTE: Cell phone, tablet, and Ram mount hardware sold separately.



NOTE: This bracket is not compatible with joystick-equipped tractors.


Electrical power accessories
Power strip installedPower strip installed
Power stripPower strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cordElectrical cord
Three-way convenience adapterThree-way convenience adapter
  • The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
  • The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.
Cigar lighter outlet adapterCigar lighter outlet adapter
#
  • The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

Carpet without foot throttle - RE556830


Carpet with foot throttle - RE346238


Ash Tray - RE275532


Antenna Mount and Wiring for Business Band (2-Way) Radio - RE269615


Electrical power accessories
Power strip installedPower strip installed
Power stripPower strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cordElectrical cord
Three-way convenience adapterThree-way convenience adapter
  • The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
  • The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.
Cigar lighter outlet adapterCigar lighter outlet adapter
#
  • The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

Power strip and accessories
Power strip kitPower strip kit
Power strip installedPower strip installed

The power strip provides six additional electrical outlets that give either permanent or ignition-key-controlled power for such items as:

  • Computers
  • Portable telephone chargers
  • Implement monitor
  • Implement supply
  • 12-V and up to 30-amp total current can be taken from these outlets



The power strip is not a surge suppressor. Electrical equipment with program memory or capacity for data storage requires protection from the damage of electrical surges and spikes that could occur in systems without transient voltage protection.


Transmission
Ether valve and canisterEther valve and canister
Block heaterBlock heater

The optional cold start package is recommended for tractors frequently started at or below -6°C (21.2°F).

The kit includes factory-installed activation switch and ether valve with ether canister. A 110-V, high-wattage block heater and grounded cord are also included with the factory-installed option.


Ether valve and canisterEther valve and canister
Block heaterBlock heater

The optional cold start package is recommended for tractors frequently started at or below -6°C (21.2°F).

The kit includes factory-installed activation switch and ether valve with ether canister. A 110-V, high-wattage block heater and grounded cord are also included with the factory-installed option.


Weights

Front Weight - R127764


8RT Series Tractor shown with idler weight8RT Series Tractor shown with idler weight

Front idler weights can be used by operators to add additional idler weights to the front of a track tractor to offset the weight of a hitch-mounted or drawn implement that exerts heavy loads on the rear of the tractor.

One pair of starter weights is required per idler to add additional wheel weights on the inside and outside of the front idler wheel.

NOTES:
1. Starter weight is required to install additional wheel weights on the idler.
2. Order attaching hardware through Parts.

Weight, Front Support, 170kg. (375 Lb.) - R548745


*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
