Feature Overview

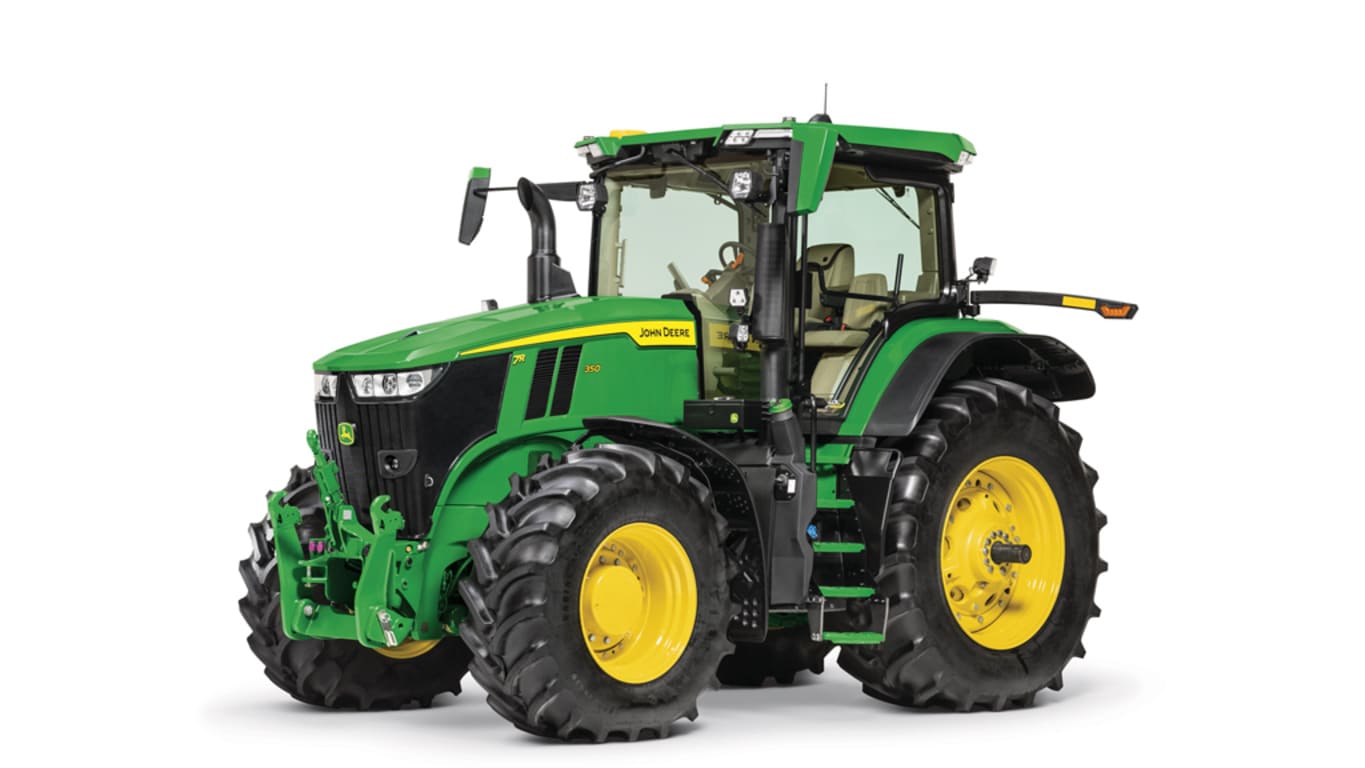

John Deere 7R 350
  • Engine HP1: 385 Max | 350 hp Rated
  • Fully integrated precision ag technology
  • Infinitely Variable Transmission (IVT™)
  • Three cab and visibility packages available to customize your tractor
  • Industry-leading power transfer with Cat 4 HD drawbar for heavier implements

1Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.

Engine description John Deere PowerTech™ (B20 diesel compatible) 9.0L
Engine displacement 9.0 L / 549 cu in.
Rated engine power ECE-R120: 257 kW / 350 hp
Transmission type Standard: John Deer Infinitely Variable transmission (IVT™): 0.05-42 km/h / 0.03-26 mph / Optional: John Deere IVT: 0.05-50 km/h / 0.03- 31 mph
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 7R 350
  • Engine HP1: 385 Max | 350 hp Rated
  • Fully integrated precision ag technology
  • Infinitely Variable Transmission (IVT™)
  • Three cab and visibility packages available to customize your tractor
  • Industry-leading power transfer with Cat 4 HD drawbar for heavier implements

1Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.

Engine description John Deere PowerTech™ (B20 diesel compatible) 9.0L
Engine displacement 9.0 L / 549 cu in.
Rated engine power ECE-R120: 257 kW / 350 hp
Transmission type Standard: John Deer Infinitely Variable transmission (IVT™): 0.05-42 km/h / 0.03-26 mph / Optional: John Deere IVT: 0.05-50 km/h / 0.03- 31 mph
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Experience the ultimate in comfort with the Ultimate Comfort and Convenience package

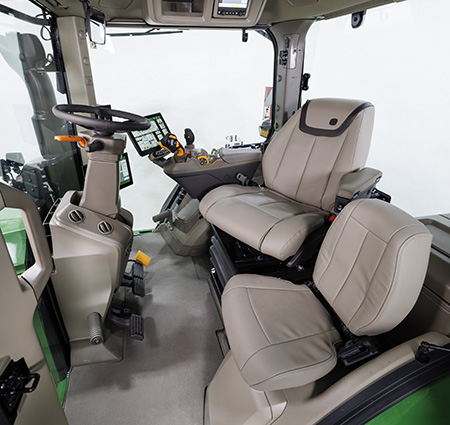

Ultimate Comfort and Convenience package Ultimate Comfort and Convenience package

The Ultimate Comfort and Convenience package offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality. Features in this package include:



Controls

  • CommandARM© console with hitch and hydraulic integrated controls
  • Air conditioner and heater with automatic temperature controls
  • Radio and volume controls
  • Hitch control lever lock and selective control lever lock
  • Tilt/telescoping steering wheel with position memory
  • Auto trac resume button
  • iTEC© engagement buttons



Displays

  • G5Plus Display (for more information on the G5Plus, please see the Precision Ag Technology Sales Manual and Extended Monitor option
  • Digital cornerpost display with:
    • Fuel level gauge, including low fuel warning
    • Temperature gauge
    • Diesel exhaust fluid (DEF) gauge, including low DEF warning
    • Engine rpm
    • Transmission commanded gear or wheel speed
    • Vehicle system functions, such as iTEC system, that are operating
  • Monitor mounts on right-hand front post and rear cab post



Storage

  • Storage compartment underneath the instructor seat
  • Left-hand ceiling storage compartment
  • Refrigerator located on the left side behind the instructor seat
  • Beverage holders sized to accommodate various containers



Sound

  • Passive noise reduction system
  • Premium sound system, including touchscreen radio, smartphone interface, AM/FM/WX, aux and Bluetooth® wireless with voice control, inputs, XM® ready, six speakers with one subwoofer, and business band ready



Outlets

  • Three 12-V convenience outlets (cigarette lighter style)
  • Six 12-V three-pin outlets with adapter (provides switched and unswitched power)
  • Four charging USB ports (two USB-A and two USB- C)
  • 120-V AC power outlet
  • One International Organization for Standardization (ISO) nine-pin connector
  • Service ADVISOR© data port



Windows

  • Swing-out rear window that opens 30 degrees
  • Laminated glass with optional rear window tint
  • Two-speed and intermittent front, rear, and right-hand side wiper with washer
  • Front, left and right-hand side, and rear pull-down sunshade



Lights

  • Interior dome light in the ceiling
  • Map lights



For additional attachments and mounting solutions, see Cab convenience or Cab mounting solutions.

Seat
Leather seat Leather seat

The seat improves ride quality and helps to reduce operator fatigue.



Features include:

  • Leather
  • Heat and ventilation to keep the operator at a comfortable temperature
  • Adjustable bolsters
  • Massage functionality
  • Electronic controls to adjust to operator preference
  • Pneumatic lumbar adjustment
  • Seat height adjustments conveniently located below the left armrest
  • Fore-aft adjustment is easy to reach, located below the left armrest
  • Swivel adjustment, located on the front of the seat, allows the seat to be swiveled 40 degrees to the right or 25 degrees to the left of the center position with a pivoting CommandARM console
  • Seat can be configured with air seat suspension, ActiveSeat© II suspension, or air seat plus cab suspension
  • Operator presence switch warns if the operator is out of the seat while operating key functions
  • Seat belt retractor
  • Centered cab seat provides excellent over-shoulder visibility
  • Adjustable shock absorber permits ride adjustment from soft to firm to match the operator's desired comfort level
  • Removable cushions allow for easy cleaning
  • Folding instructional seat



Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio, Inc.


Ultimate Visibility package Ultimate Visibility package

Visibility is one of the most important attributes of the cab. While lighting is a large portion of that, features like windshield wipers, mirrors, sunshades, and cameras are also important to overall visibility. For this reason, John Deere offers three visibility packages on 7 and 8 Series Tractors:

  • Select
  • Premium
  • Ultimate
Lighting

The lighting configurations are available to match various applications and ensure maximum around-the-clock productivity.



Light housings are large, allowing for optimum total lumens and available light. The Select Visibility package uses 65-W halogen bulbs, whereas the Premium and Ultimate Visibility packages use light-emitting diode (LED) lights. The Premium and Ultimate Visibility packages replace Select Visibility package’s halogen lights with LED lights. The only lights that are not LED are the low-beam driving lights; they remain halogen. This allows each LED light to work at a lower temperature and no one light works harder than any other. The uniformity in LED coverage allows only one type of light output surrounding the tractor.



The lighting pattern in the Ultimate Visibility package provides industry-leading performance in nighttime visibility. LED lights provide maximum brightness and a true color output for excellent field definition that is easy on the operator's eyes.



The LED lights provide 40 percent greater coverage width and 10 percent more light coverage in the rear. LED lighting packages use 45 percent less amps than standard halogen lights and have an increased life expectancy over HID lights which leads to lower costs of ownership over the life of the tractor.



The low- and high-beam driving/work lights are adjustable. Please refer to the electrical section in the Operator’s Manual for complete details on adjusting lights.



NOTE: Lighting packages may vary depending on region.


ActiveSeat II and controls ActiveSeat II and controls

The John Deere Active Seat II utilizes an electrical control system to control the vertical seat top movement. The "active" control system minimizes vertical seat top acceleration by sensing vertical tractor inputs and actively positioning the seat top to cancel those inputs. This results in a significantly smoother ride for the operator.



The John Deere ActiveSeat II has many of the same features of the air suspension seat with the addition of a ride firmness switch. The ride firmness switch is located on the left-hand armrest and replaces the suspension shock-dampening seat attenuation lever on the front right-hand side of the seat controls.


The ride firmness switch has three positions: plus, minus, and mid position. The three positions provide three different levels of seat performance:

  • The plus position provides the greatest degree of ride firmness. This position allows more of the tractor's inputs to be felt by the operator (slightly rougher ride).
  • The minus position provides the least degree of ride firmness, allowing minimal tractor inputs to reach the operator, resulting in maximum seat performance.
  • The mid position allows a balance between the plus (+) and minus (-) settings.
ActiveSeat II left armrest controls ActiveSeat II left armrest controls

The ActiveSeat II is also available as a heated and ventilated leather seat for increased comfort and easier cleaning. This is only available with the Ultimate Comfort and Convenience package. For tractor applications where operating speed is not limited by the implement, the ActiveSeat II can allow for faster field speeds and increased overall comfort and productivity.



The leather seat includes massaging capability to alleviate operator fatigue.



Right-hand seat swivel has been improved above current 8R Tractors to 25 degrees (versus 8 degrees) to the left and 40 degrees to the right in the Premium and Ultimate Comfort and Convenience packages.



NOTE: The John Deere ActiveSeat II is not available on track tractors.


CommandARM© console with CommandPRO control CommandARM© console with CommandPRO control

The unique driving strategy is designed to deliver highest performance in combination with operator comfort making the daily work much easier and efficient.

Driving strategy
  • Pedal and joystick mode are active at the same time
  • ActiveZero keeps the output speed actively at 0 km/h (0 mph) until command for acceleration is given independent of load or engine speed
  • Command top and zero speed simply by one push or pull
  • Unique inching control
  • Three easily adjustable travel set speeds
  • Two engine set speeds
  • Three acceleration response settings
Driving strategy Driving strategy
  Forward movement Reverse movement
1 Accelerate Decelerate
2 Top set speed Zero speed
3 Decelerate Accelerate
4 Zero speed Accelerate
5 Activate set speed
6 Select direction
7 Inching speed
8   Inching speed



NOTE: The CommandPRO control is only available on IVT© transmissions.


7R with TLS Plus 7R with TLS Plus

The optional TLS Plus is a fully integrated, self-leveling front suspension system available on 7R Tractors equipped with the 1300 mechanical front-wheel drive (MFWD) axle. TLS Plus provides exclusive front suspension using a hydro-pneumatic self-leveling system to increase productivity and improve ride dramatically. TLS Plus provides more control over the front suspension of the tractor.



TLS Plus increases both transport and field productivity with superior stability, ride, and comfort. Loader operators appreciate the enhanced performance when transporting bales or a full bucket of silage. In the field, the TLS Plus front suspension maintains ground-to-tire contact, enabling more power to the ground.



CommandCenter screen CommandCenter screen

In the Generation 4 CommandCenter© Display, the operator is able to select maximum pressure to accommodate for the transfer of heavy loads with minimal front axle movement.



The TLS Plus front axle is available with or without wet-disk front brakes. While TLS Plus is available on all 7R Tractors, it is a requirement for the following:

  • 31 mph/50K e23© transmission
  • 31 mph/50K Infinitely Variable Transmission (IVT©)

Maximizing uptime for John Deere customers through the use of connectivity and technology Maximizing uptime for John Deere customers through the use of connectivity and technology

John Deere Connected Support is a proactive service approach that utilizes the telematics machine connection to leverage a suite of remote support tools available to improve service efficiency and reduce machine downtime on all 7, 8, and 9 Series Tractors.

  • Proactive services that drive more uptime
  • In-the-moment services to ensure quality job performance
  • Leveraging technology to be more effective and efficient



You know that when you’re in the field the unexpected can happen. When it does, you need a quick resolution. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you promptly—in the cab or anywhere you are. Better yet, your dealer can receive alerts and connect to your equipment. You know your dealer is always ready to keep you farming ™ and farming better. Starting with model year 2020, your John Deere tractors will come with a 5-year JDLink© subscription from the factory that makes this connection possible.

John Deere Connected Support tools John Deere Connected Support tools

Stop fearing the unexpected and start planning for it with the following John Deere Connected Support tools.




Monitor machines on the go Monitor machines on the go
Connectivity provides data that drives better decisions Connectivity provides data that drives better decisions

Producer needs and their success is John Deere’s focus. As functionality becomes more accepted and even expected, that functionality moves from being optional to being included with the machine. In model year 2019, AutoTrac© guidance and documentation was included on machines equipped with a 4600 CommandCenter© Display. Five years of JDLink is also included with the purchase of all model year 2020 and newer machines equipped with a 4G LTE Modular Telematics Gateway (MTG). The functionality of JDLink on these machines includes everything that was previously included with JDLink Access + Remote Display Access (RDA) and JDLink Connect subscriptions. This added connectivity enables customers to more easily realize the value of a connected machine.

  • Easily transfer data and collaborate with trusted advisors to plan your field work quickly. You or your employees can spend more time in the field working rather than sitting on a headland setting up the technology. With a connection between John Deere Operations Center and your machines, changes to field plans occur as needed. Those changes may include changes in varieties, application rates, or machines.
  • Better enable data-driven decisions. By using the insights gathered from machines along with the tools in Operations Center (e.g., Field Analyzer, Field Analyzer Beta, and Machine Analyzer) you can understand how your fields are performing and what field plans had an impact. John Deere Operations Center gives you access to more than 100 connected software tools, so you have the ultimate choice of popular industry tools. And, if you don't want to analyze the data yourself, you can share the data with those that help you make decisions to provide the insights you need.
  • Report work completed accurately and timely for compliance and billing purposes.
  • Increase machine uptime with Connected Support. Your local John Deere dealer can provide remote monitoring services and diagnostics to help keep your machines up and running, reduce your maintenance expenses through early detection of problems, and provide over-the-air software updates for displays, receivers, and controllers.
  • Get quick in-field support with RDA. You can monitor your machines from your office computer or a mobile device on the go.
  • Remotely manage machines and employees to give you insights into how they are performing. If machines are being underutilized or field operations are not being properly conducted, you can put plans in place to improve productivity.
  • Quickly make changes to improve your harvesting operations by remotely viewing and adjusting combine settings.

To use JDLink, the following is required:

  • MTG
  • An active JDLink subscription
  • A John Deere Operations Center account to access machine and agronomic data

The Generation 4 CommandCenter was designed to provide a consistent user experience by providing full screen viewing of more run page modules, shortcut keys, and precision agriculture capabilities.

Expect easier setup, along with increased operator confidence thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.

In order to increase your efficiency, take advantage of the following features offered by the Generation 4 CommandCenter:

Layout Manager
Layout Manager selection page Layout Manager selection page
Layout Manager application Layout Manager application
  • Easily create page views that meet user needs and that are also equipped with default run pages.
Language and units
Switch between active and alternate language on the display Switch between active and alternate language on the display

Easily switch between languages with the option to set the active and alternate language. Configure the shortcut bar to include the language toggle allows different individuals to easily switch the display between languages.

Users and access

Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with a defined pin for the administrator.

The Generation 4 CommandCenter can be set to one of two profiles, administrator or operator. The administrator profile is always set to the full access group. This group allows unlimited access to all the features and can lock and unlock features in the operator profile.

Machine Monitor
Machine Monitor page Machine Monitor page
  • The Machine Monitor application provides you instantaneous readings about the status or condition of your machine.
    • This application shows parameters such as engine speed, coolant temperature, and ground speed.
Work Monitor
Work Monitor page Work Monitor page
  • The Work Monitor application displays performance information about the task being performed by the machine.
    • You are shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage.
    • Work set up places the settings needed to properly setup features such as AutoTrac© guidance, Documentation, and Section Control in a single location. Settings include:
      • Client, farm, and field
      • Crop type
      • Machine and implement dimensions
      • Variety/hybrid and planting/seeding rates
      • Variable rate prescriptions
      • Product and application rates
      • Application rates through the implement screens
Video capability

The video application on 4600 CommandCenter and 4640 Universal Display has been redesigned to improve user interface and prepare for future enhancements. Features include the ability to name and configure cameras for viewing and scanning.

  • Machines equipped with a 4200 CommandCenter are equipped with one video input, and the 4600 CommandCenter has four video inputs.
    • You can set a variety of triggers. With each trigger, the image appears on the display.
Flags
View of run page with flag options View of run page with flag options
  • Mark areas in the field that need special attention such as rocks, tile lines, or weed pressure.
    • Flags previously recorded on the Gen 4 or GreenStar© 3 2630 Display can be transferred between monitors.
Field boundaries
Boundary creation from coverage Boundary creation from coverage
Headland creation Headland creation
  • Manually drive field boundaries with the Generation 4 CommandCenter or import existing boundary information from the GreenStar 3 2630 Display or John Deere Operations Center. Gen 4 documentation data can be used to create boundaries from coverage within the John Deere Operations Center.
Automatic base station switching
Setup base stations in Fields and Boundaries applications Setup base stations in Fields and Boundaries applications
  • Procuers using John Deere RTK Radio 450 or 900 can link a base station to a desired client, farm, or field. This allows automatic switching to the associated base station when changing fields. The ability to import base station assignments into Operations Center and send back to machines will be available at a later date.
Dual-display mode
Dual display Dual display
  • Generation 4 CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost of a John Deere tractor:
    • GreenStar 2 1800 Display
    • GreenStar 2 2600 Display
    • GreenStar 3 2630 Display
    • 4640 Universal Display
    • 4240 Universal Display

NOTE: Vehicle applications will always be located on the Gen 4 CommandCenter.


7 Series with front hitch 7 Series with front hitch

The 7R Tractors offer two front hitch options to best fit a variety of applications.

Standard (non-ground-engaging) hitch option for applications including, but not limited to:

  • Front-mounted mowers, toppers, and snow blowers
  • Carrying front seed hoppers and plow packers
  • Carrying front ballast
  • Operating light-draft implements

Premium (ground-engaging) hitch option for applications including, but not limited to:

  • Operating primary tillage equipment and standard blades

Premium hitches include a push bar and heavier lift arms:

  • Hitches with zero front auxiliary valves include one mid-mount valve.
  • Hitches with one front auxiliary valve include two mid-mount valves.
  • Hitches with two front auxiliary valves include three mid-mount valves.

To ensure adequate hydraulic availability, up to two selective control valves (SCVs) can be included with a front hitch.

Joystick control Joystick control
Paddle pot SCV Paddle pot SCV

Tractors equipped with a factory front hitch have the option of selecting a joystick control or paddle pot SCV controls. The joystick control is not compatible with the sixth rear electrohydraulic SCV because of the CommandARM© controls space required for the front hitch joystick.


StarFire 6000 Integrated Receiver on 8R Tractor StarFire 6000 Integrated Receiver on 8R Tractor
StarFire 6000 Integrated Receiver on X9 Combine StarFire 6000 Integrated Receiver on X9 Combine

The John Deere StarFire© 6000 Integrated Receiver is the new standard in John Deere Precision Ag technology. The integrated design further enhances the value that you have come to expect from StarFire products.

The StarFire 6000 Integrated Receiver eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

With updated Ethernet connectivity, software updates are easier and faster. StarFire 6000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 6000 Integrated Receiver because of Ethernet connectivity.


Connected Support technology Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink© telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

  • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
  • Saves time by remotely viewing in-cab displays, reducing trips to the machine
  • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
  • Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.


SCV stack SCV stack

Beginning with model year 2024, 7, 8 and 9 Series tractors will feature a new SCV stack to improve performance and aftermarket serviceability. The change will further enable customers to fine-tune hydraulic flow rates and more precisely adjust the flow. This change will make it easier and more affordable to customize an SCV stack by switching coupler sizes because previously it would’ve been done by changing an entire SCV slice.


7R driving on roadway 7R driving on roadway

Is your 7R tractor the “Road Warrior” of your operation? If so, then Reactive Steering is for you.  Adopted from the automotive industry, Reactive Steering brings a balanced feeling to the steering wheel much like your automobile.

The load-reactive steering valve uses hydraulic inputs from both the left and right steering cylinders. When pressures increase on one side (during a turn, for instance) the valve provides feedback to the steering wheel to help assist the steering wheel back to center.

On straightaways, Reactive Steering reduces hand movements by helping the operator to maintain a center line.  During internal testing, hand movements are reduced by as much as 44 percent during straight line driving.

Do you find it challenging to navigate roundabouts, intersections, or curvy back roads? Then Reactive Steering is a game changer. As you rotate the steering wheel to complete your turn, simply relax your grip on the wheel and notice how the steering wheel of your 7R returns to center.

7R performing transport work 7R performing transport work

Relieve the stress from transport jobs like towing tankers, trailers, and dump wagons for long hours. Reactive steering provides a balanced, automotive feeling to your 7R. Have confidence that your operators can perform transport jobs day after day with less fatigue.

Taking your 7R off-road? No problem. Reactive Steering works great in the field too. However, if you prefer to operate with traditional steering, a toggle button on the display puts the steering mode into traditional hydraulic steering for that familiar feel in the field. Operators always have the option to enable or disable Reactive Steering from the display.

Reactive Steering page Reactive Steering page
AutoTrac© Integration

Reactive Steering is not available while AutoTrac is engaged.

When an operator engages AutoTrac, Reactive Steering is automatically disabled. Once AutoTrac is disengaged, the steering mode will resume the previous state that was selected by the operator.

In addition, Reactive Steering is disabled when the tractor is placed into reverse. Once the tractor is placed into forward direction, the steering mode will resume the previous state that was selected by the operator.


Visibility package (without rear window tint) Visibility package (without rear window tint)
Visibility package (with rear window tint*) Visibility package (with rear window tint*)

Visibility is more than just lighting. It’s mirrors where you need them, shades for the blinding late-fall and early-spring sun, wipers to help keep all the glass clear, and integrated camera capability. The 7 and 8 Series Tractors let you choose the visibility package that best suits your needs ™ Select, Premium, or Ultimate with 360-degree light-emitting diode (LED) lighting ™so you and your operators can run with all-conditions confidence.



Visibility packages Select Premium Ultimate
Lighting 18 halogen work lights 18 LED work lights 22 LED work lights and eight LED convenience lights**
Mirrors Mechanical Electric, heated Electric, heated, and telescoping
Sunshades Front Front, right-hand side, and rear Front, right-hand side, and rear
Wipers Front and rear Front, right-hand side, and rear Front, right-hand side, and rear
Cameras Camera ready Camera ready Integrated digital cameras

*Rear window tint: À la carte option for all cab packages
**Convenience lights illuminate the corners of the cab for easier entry and exit


Maximizing uptime using connectivity and technology Maximizing uptime using connectivity and technology

Your needs and success are the focus of John Deere. John Deere makes it easy for you to benefit from having a connected tractor in your operation. All tractors come standard with JDLink© telematics system and users can turn on connectivity in the John Deere Operations Center© application. With a StarFire© Integrated Receiver and G5Plus Display, you can easily step right into advanced technology. If you’re an advanced tech user, you’ll enjoy the benefits of a highly intelligent machine connected to a full suite of solutions on the most open platform in the industry. Advantages of a connected machine include:



  • A StarFire Integrated Receiver eliminates all setup, installation, and global positioning system (GPS) calibrations
  • AutoTrac© assisted steering guides the machine with accuracy in a variety of field conditions
  • Automation is an option with some applications
  • John Deere Connected Support© is a proactive service approach to improve service efficiency and reduce machine downtime
  • JDLink gives you access to information anytime, anywhere, to make data driven decisions with John Deere Operations Center and Documentation


The technology and connectivity in John Deere tractors allow you to optimize productivity, increase uptime, and boost profits with machine information from any device, anywhere.



Large tractor equipment Precision Technology JDLink

Base equipment:

  • G5Plus CommandCenter© display
  • StarFire Integrated Receiver

Optional equipment:

  • G5Plus CommandCenter display plus extended monitor
  • SF-RTK
  • SF1

Base equipment:

  • AutoTrac
  • Section Control
  • Documentation
  • Data Sync

Optional equipment*:

  • AutoPath©
  • AutoTrac Turn Automation
  • AutoTrac Implement Guidance
  • G5Plus Machine Sync
  • In-Field Data Sharing

Base equipment:

  • JDLink telematics system
  • Wireless Data Transfer
  • John Deere Connected Support service
  • Expert Alerts
  • Remote Display Access
  • Service ADVISOR© Remote service tool

*Available with G5 Advanced Tractor License, for more information on G5 Advanced Licenses please visit the Precision Ag Technology Guidance, Automation and Autonomy Sales Manual.


Specs
Key Specs
Engine description John Deere PowerTech™ (B20 diesel compatible) 9.0L
Engine displacement 9.0 L
549 cu in.
Rated engine power ECE-R120: 257 kW
350 hp
Engine performance
Maximum engine power ECE-R120: 283 kW
385 hp
Rated PTO power (hp SAE) 193 kW
260 hp
Key Specs
Transmission type Standard: John Deer Infinitely Variable transmission (IVT™): 0.05-42 km/h
0.03-26 mph
Optional: John Deere IVT: 0.05-50 km/h
0.03- 31 mph
Hydraulic pump rated output Standard: 63 cc: 162 L/min
43 gpm
Optional: 85 cc: 222.3 L/min
59 gpm
Rear hitch category (SAE designation) Standard: Category 3N/3 with Quik-Coupler
Optional: Category 3/3N with hook ends
Category 3N/3 with hook ends
Weight
Base machine weight IVT, TLS, 480/80R50 tires: 11,000 kg
24,300 lb
Engine specifications
Description John Deere PowerTech™ (B20 diesel compatible) 9.0L
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head
Engine family MJDXL09.0319
Rated speed 2100 rpm
Aspiration Single turbocharger, variable geometry turbo
Emission level Final Tier 4
After treatment type Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)
Displacement 9.0 L
549 cu in.
Engine performance
Rated power ECE-R120: 257 kW
350 hp
Power boost IPM: 18.6 kW
25 hp
Engine peak torque At 1600 rpm: 1,580 Nm
1,165 lb-ft
PTO torque rise 40 percent
Front axle
Type Standard: TLS with front brakes
Hydraulic system
Pump rated output Standard: 63 cc: 162 L/min
43 gpm
Optional: 85 cc: 222.3 L/min
59 gpm
Available flow at a single rear SCV 132 L/min
35 gpm
Available flow at front SCVs 126 L/min
33 gpm
Number of rear selective control valves (SCVs) Standard: Four SCVs
Optional: Three to six ISO couplers: 12.7 mm
0.5 in.
Five ISO couplers (SCV 1: 19 mm [0.75 in.] , SCV 2-5: 12.7 mm [0.5 in.])
Number of front selective control valves (SCVs) One with front hitch
SCV control Electronic
Rear hitch
Hitch category (SAE designation) Standard: Category 3N/3 with Quik-Coupler
Optional: Category 3/3N with hook ends
Category 3N/3 with hook ends
Maximum lift capacity behind lift points Standard (Category 3): 6,894 kg
15,200 lb
Optional (Category 3N): 7,847 kg
17,300 lb
Standard (Category 3 with hook ends): 6,894 kg
Optional (Category 3N with hook ends): 7,847 kg
Sensing type Electrohydraulic
Drawbar
Drawbar category Standard: Category 4
Maximum vertical load Standard: Category 4: 4,990 kg
11,000 lb
Rear power take-off (PTO)
Engine rpm (at rated PTO speeds) 540/1000 PTO rpm at 1950 engine rpm
540E/1000E PTO rpm at 1750 engine rpm
PTO actuation Electric switch with adjustable modulation
Front hitch
Category Category 3N, ground engaging
Electric power Seven-pin connector
Standard lift capacity 5,200 kg
11,464 lb
Front power take-off (PTO) Available: 35 mm (1.375 in.) 21 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)
Available through Parts: 44.45 mm (1.75 in.), 20 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)
PTO speed 1,000 PTO rpm at 1940 engine rpm
Rear axle
Final drive type Inboard planetary three pinion
Rear differential lock Full-locking electrohydraulic
Front axle
Front axle differential lock Full-locking electrohydraulic (actuated at same time as rear diff lock)
Tires
Front RCI Group 43/44
Rear RCI Group 48/49
Turning radius with brakes 600/70R30 group 43 tires at 188.2-cm (74.1-in.) spacing, TLS: 6.7 m
22 ft
620/75R30 group 44 tires at 208.3-cm (82-in.) spacing, TLS: 8.7 m
28.5 ft
Electrical system
Alternator size Standard: 210 amp
Optional: 250 amp
Battery options 12 V
Working lights Standard: 18 halogen
Available: 18 LED
22 LED
Type of bulb in headlight (Halogen, Zenon, LED) Standard: 65-W halogen
Available: LED
Type of bulb in beacon (Halogen, Zenon, LED)
Total cold cranking amps With two 925-CCA group 31 batteries: 1850 CCA
Operator station
Rollover protective structure, OOS

Seat Degree of seat swivel, left hand
Optional: 25 degree
Degree of seat swivel, right hand
40 degree
Standard: air suspension
Optional: ActiveSeat™ II
Cab suspension Optional
Instructional seat Standard
Display Standard: 4600 Generation 4 CommandCenter™ with 25.4-cm (10 in.) display
Radio Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume 3.24 m3
114 cu ft
Cab glass area 6.56 m2
70.61 sq ft
Dimensions
Wheelbase 2,925 mm
115.2 in.
Overall length 5,540 mm
218 in.
Drawbar clearance Group 48 rear tires: 415 mm
16.3 in.
Group 49 rear tires: 461 mm
18.1 in.
Weight
Maximum ballast level SAE PTO hp: 61.2 kg
135 lb
Capacities
Crankcase oil volume 23 L
6.1 gal.
Fuel tank IVT: 513 L
135 U.S. gal.
Diesel exhaust fluid (DEF) tank 26.2 L
6.9 U.S. gal.
Cooling system 44.5 L
11.8 U.S. gal.
Transmission-hydraulic system 160 L
42.3 U.S. gal.
Serviceability
Interval for engine oil change 500 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours
Loaders
Loader 700M
Lift capacity at full height 2,417 kg
5,304 lb
Maximum lift height 4,741 mm
186 in.
Precision AG
Guidance Integrated AutoTrac™
Telematic JDLink™
Remote diagnostics ServiceADVISOR™ remote: available with JDLink hardware and activations
Remote Display Access: available with JDLink hardware and activations
Miscellaneous
Country of manufacture USA
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
