Soil probe helps to determine proper operating depth
Soil probeThe soil probe helps operators to determine the proper operating depth of their ripper points,
38 mm (1.5 in.) below the bottom of the compaction layer.
The probe allows obtaining the maximum amount of soil fracturing from the entire family of John Deere ripper points. Marked in 51-mm (2-in.) increments from 254 mm to 559 mm (10 in. to 22 in.), the probe provides accurate feedback of compaction layer depth.
Â
It is stored on the mainframe of the ripper for convenient access. The operator's manual explains the proper use of the soil probe.
Strong V-pattern frame promotes leading-edge shattering of center shank and material flow

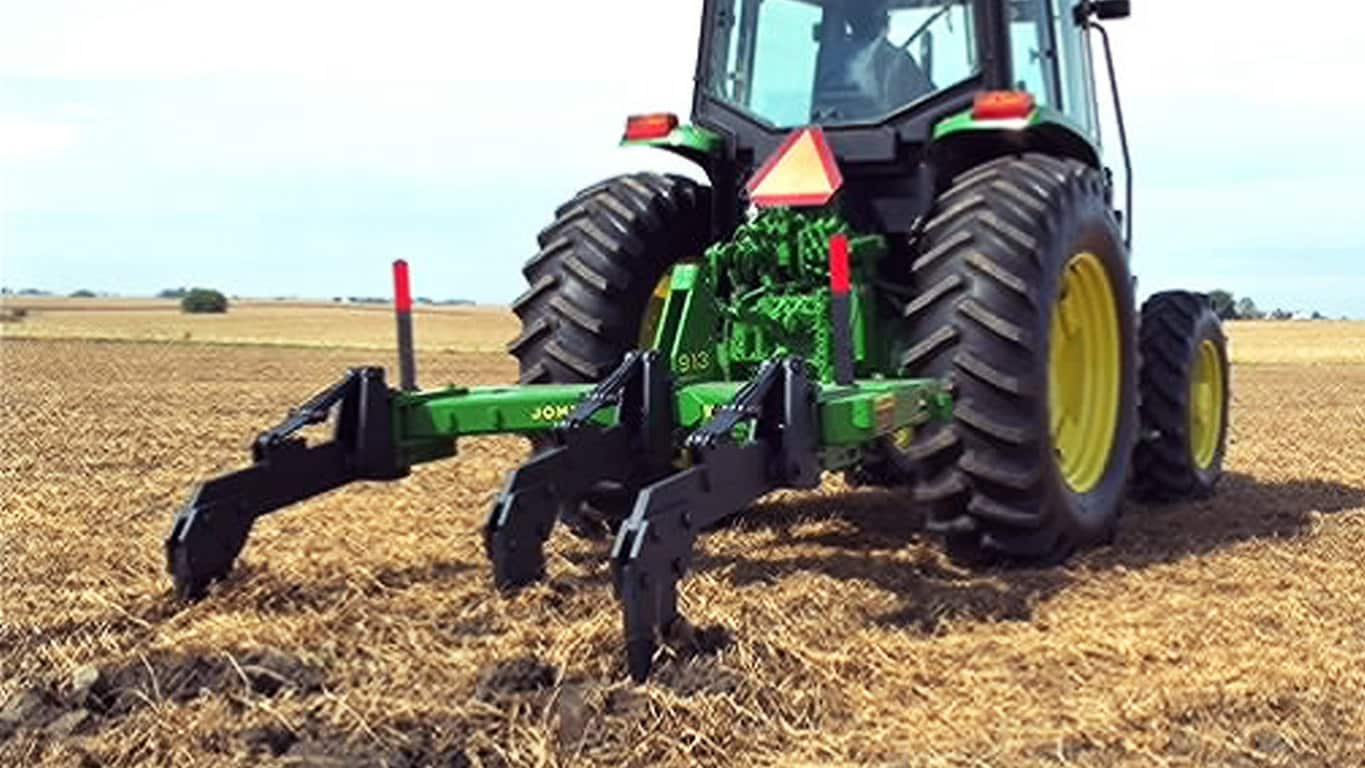

913 V-Ripper The frame design of the 913 V-Ripper positions the standards in a V pattern:
- Promotes leading-edge shattering of the center shank and material flow through the machine
The 127-mm x 178-mm (5-in. x 7-in.) cross-section frame has 10-mm (3/8-in.) thick walls:
- Provides strength to handle tractors of up to 150 power take-off (PTO) horsepower
- Same frame-size tubing as non-expandable 915 V-Ripper
- Parking stands are included in base equipment
Two-position integral hitch to meet operator requirements
Low and high positions on 3-point mast3-point hitch hookup is for Category 2 or 3N tractors.
The integral hitch can be set to two positions:
- 1 = Low position
Gives maximum transport clearance and allows ripping to approximately 508 mm (20 in.) deep with the 838-mm (33-in.) standards. - 2 = High position
Enables ripping to a maximum depth of 584 mm (23 in.) deep with the 838-mm (33-in.) standards.
|
Tool configuration
|
| Type |
V-ripper |
|
Standard options
|
| Option 1 |
Trip force
5,443 kg
12,000 lb
Standard type
Straight or parabolic with wear shin
Shear-bolt |
| Option 2 |
Trip force
2,540 kg
5,600 lb
Standard type
Straight with wear shin or parabolic
Safety-trip |
| Option 3 |
Trip force
2,404 kg
5,300 lb
Standard type
Straight with wear shin or parabolic
Cushion-trip |
|
Hitch
|
| Options |
Integral |
| Three-point hitch requirements |
Category 2 or 3N with Quik Coupler
Category 3N without Quik Coupler |
|
Standard options
|
| Spacings |
50.8 cm
20 in.
63.5 cm
25 in.
76.2 cm
30 in. |
| Option 4 |
Trip force
1,451.5 to 2,404 kg
3,200 to 5,300 lb
Standard type
Parabolic
Spring-reset rock standard |
|
Key Specs
|
| Working width |
Option 1: 2.5 m
8.33 ft
Option 2: 3.2 m
10.42 ft
Option 3: 3.8 m
12.5 ft |
| Transport width |
Option 1: 2.1 m
7 ft
Option 2: 2.1 m
Option 3: 2.1 m |
| Operating depth |
Maximum
58.4 cm
23 in.
|
Accessories and Attachments
Bushing, Shouldered - N181591
Hitch Pin, Category II - A17383
Mast Ball, Category II - N180506
