John Deere 610

DEBUG Ind: Agriculture, Cat: Tillage, SubCat: 610 Integral Chisel Plow, SubSubCat:
Feature Overview
John Deere 610
  • Offers a variety of sizes
  • Implement warning lights enable safe transport
  • Shovels and attaching hardware
  • Sweeps and attaching hardware
Transport width -Rigid frame /
Working widths - Rigid frame /
Feature Overview
John Deere 610
  • Offers a variety of sizes
  • Implement warning lights enable safe transport
  • Shovels and attaching hardware
  • Sweeps and attaching hardware
Transport width -Rigid frame /
Working widths - Rigid frame /
We are here to help
Features

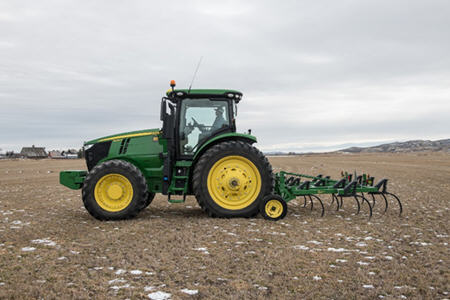

Offers a variety of sizes and excellent residue flow

610 Chisel Plow 610 Chisel Plow



The 610 Chisel Plow is available in a variety of sizes to help match tractor horsepower and work designs.





Model

Width

Type of fold

Standards

Three-bar integral 2.44 m to 6.10 m
(8 ft to 20 ft)
Non-fold Rigid
      TruPosition©
      Tru-Depth©



Typical percents of the residue cover that remains from the 610 are listed as follows (the percentages do not take into account variables such as the condition of the residue, speed, and soil type):





Starting residue cover (percent)

Remaining non-fragile* residue cover (percent)

Remaining fragile** residue cover (percent)



with
406-mm
(16-in.) sweeps

with
51-mm
x
356-mm
(2-in. x 14-in.) chisel point

with
102-mm x
368-mm
(4-in. x 14.5-in.) shovel

with
76-mm
x
610-mm
(3-in. x 24-in.) shovel

with
406-mm
(16-in.) sweeps

with
51-mm
x
356-mm
(2-in. x 14-in.) chisel point

with
102-mm
x
368-mm
(4-in. x 14.5-in.) shovel

with
76-mm
x
610-mm
(3-in. x 24-in.) shovel

100

80

70

60

60

55

50

45

45

90

72

65

55

55

50

45

40

40

80

65

56

50

50

45

40

35

35

70

55

50

42

42

38

35

30

30

60

50

42

35

35

33

30

27

27

50

40

35

30

30

27

25

22

22

40

32

28

25

25

22

20

18

18

*Non-fragile residue includes crops like corn, sorghum, wheat (more than 45 bu).
**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, cotton.

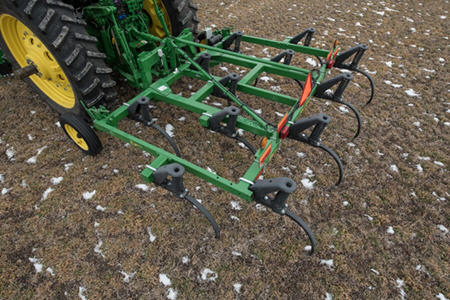

610 rigid frame 610 rigid frame

The 610 Chisel Plow features a large 102-mm x 102-mm (4-in. x 4-in.) tubular steel mainframe.



Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.


Rigid standard Rigid standard

The rigid standard:

  • Is in base equipment on three-section models
  • Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
  • Design is suited for fields having few obstructions
  • Will till to 203 mm (8 in.) deep
  • Good clearance to handle heavy trash
    • 711-mm (28-in.) underframe
    • 305-mm (12-in.) spacing
TruPosition standard TruPosition standard

The TruPosition standard:

  • Is optional on all models
  • Cast pivot assembly holds shank firm while working in the soil
  • Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
  • Shank is replaceable without disassembly of the standard assembly
  • Trip action is suited for fields having rocks or other obstructions
    • 550-lb trip 711-mm (28-in.) standard will till to 203 mm (8 in.) deep
    • 711-mm (28-in.) underframe
    • 305-mm (12-in.) spacing
    • Trip height of 254 mm (10 in.) for good clearance
  • Slotted lower hole to aid in removing ground-engaging tools
Tru-Depth standard Tru-Depth standard

The Tru-Depth standard:

  • Is optional on drawn rigid and select drawn flexible models up to 838 mm (33 ft)
  • Is 51 mm x 32 mm x 813 mm (2 in. x 1.25 in. x 32 in.); edge is bent for extra strength
  • Designed to work in rocky ground and heavy draft conditions
    • Will till to 305 mm (12 in.) deep
    • Trip height of 279 mm (11 in.)
    • 568-kg (1250-lb) trip force
  • Excellent clearance to handle heavy trash
    • 813-mm (32-in.) underframe
    • 305-mm (12-in.) spacing

An implement warning light harness with a turn-signal module for two amber and two red lights are included as standard equipment for safe transport on roads.

The implement warning light harness requires one of the following:

  • Category 2, 3-point hitch with or without Quik-Coupler
  • Category 3 and 3N, 3-point hitch with or without Quik-Coupler
Horsepower requirements
The rigid and TruPosition© standards require engine horsepower of 6 hp per ft to 10 hp per ft.



The Tru-Depth© standard requires engine horsepower of 6 hp per ft to 14 hp per ft.


Harrow Harrow
#

A handy three-bar coil-tine harrow attachment fits compactly behind the chisel plow.


There is 305 mm (12 in.) of fore-aft clearance between the bars plus vertical clearance of 305 mm (12 in.).

NOTE:  Use the harrow attachment only on machines equipped with sweeps; do not use with the
Tru-Depth© standard.

Specs
Fold
N N
Transport height
Rigid frame

Rolling basket harrow
Option 1





Frame
Tubing High strength, box beam steel cross members: 10.2x10.2 cm
4x4 in.
Steel end tubes, welded construction: 5.1x10.2 cm
2x4 in.
Fore-and-aft 182.9 cm
72 in.
Underframe clearance Rigid and TruPosition™ standards: 71.1 cm
28 in.
Tru-Depth: 81.3 cm
32 in.
Rolling basket harrow
Option 2





Option 3





Ground-engaging components
V V
Wheels
Stabilizer wheels Option 1
Stabilizer wheel frames with 5.90 - 15 4PR implement tires (optional on 2.4-m [8-ft] base models, standard on 4.9-m [16-ft] base models)

Warranty
w w
Transport width
Drawn rigid fold
Transport height
3-section


5-section

Rigid over-center fold

Standard options
Option 4


Wheels
Centerframe depth control wheels and tires



Wing frame wheels and tires

Key Specs
Transport width -Rigid frame
Working widths - Rigid frame
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
