The John Deere 2630 Series offer three disk models that provide a wide range of variety for all tillage applications.
|2630 Disk||2633 Disk||2635 Disk|
|Purpose||Secondary (light duty)||Dual purpose (medium duty)||Primary (heavy duty)|
|Working depth||Up to 130 mm (5 in.)||Up to 180 mm (7 in.)||Up to 200 mm (8 in.)|
|Weight per blade||Minimum 68 kg (150 lb)||Under 13.4 m (44 ft)
Minimum 86 kg (190 lb)
Over 13.4 m (44 ft)
Minimum 91 kg (200 lb)
|Minimum 127 kg (280 lb)|
|Blade size||560 or 610 mm
(22 or 24 in.)
|610 or 660 mm
(24 or 26 in.)
|610 or 660 mm
(24 or 26 in.)
|Blade spacing||185 or 230 mm
(7.25 or 9 in.)
|230 mm (9 in.)||230 mm (9 in.)
front and 280 mm
(11 in.) rear,
or 280 mm (11 in.)
|Horsepower||23 to 36 hp/m (7 to 11 hp/ft)||23 to 36 hp/m (7 to 11 hp/ft)||26 to 36 hp/m (8 to 11 hp/ft)|
|Working widths||6.3 m to 15.0 m
(20.75 ft to 49.25 ft)
|6.3 m to 15.0 m
(20.75 ft to 49.25 ft)
|7.2 m to 12.4 m
(23.58 to 40.66 ft)
|Operating speed||6.5 to 11.3 km/h
(4 to 7 mph)
|6.5 to 11.3 km/h
(4 to 7 mph)
|6.5 to 11.3 km/h
(4 to 7 mph)
John Deere's 2630 Series Disks offer different blade options for soil penetration and residue sizing.
|Blade type||Solid-spherical blades||Cutout-spherical blades|
|Recommended soil type||Light to medium soils||Heavy to medium soils|
|Benefits||Better control of soil than cone blades since less sensitive to over speeding||Chopping or trapping residue|
|Penetration||Penetrate best at a 20-degree gang angle||Penetration is excellent with a cutout blade|

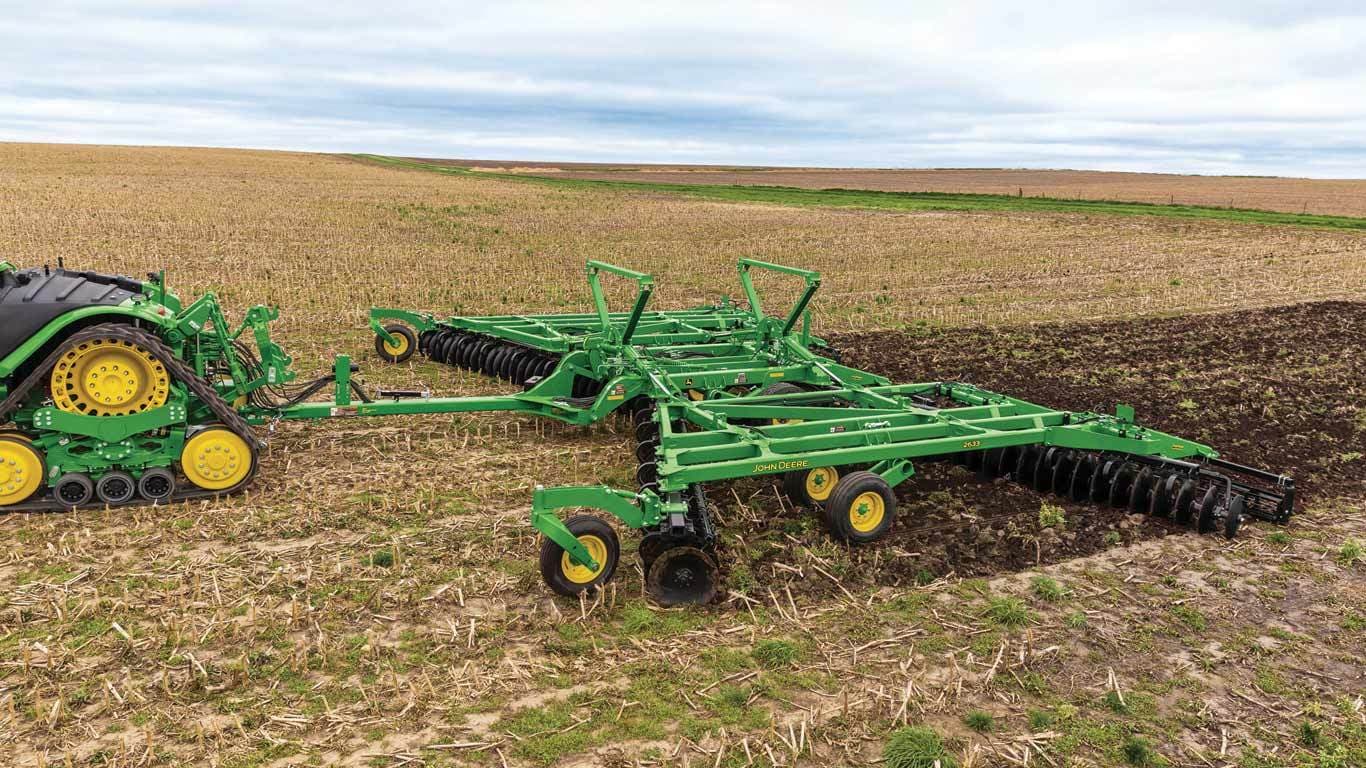

The 2633 Dual-Purpose Disk comes equipped with front solid- or cutout-spherical blades and rear solid spherical disk blades with 230-mm (9-in.) spacing. The base blade size is 610 mm x 5 mm (24 in. x 0.197 in.).
Available blade options for the 2633 are listed below.
230-mm (9-in.) spacing, front and rear
John Deere's 2630 Series Disks provide an innovative approach to tension disk gang bolts.
Hydraulic fore-aft leveling comes as standard equipment with John Deere's 2630 Series Disks. Operators can level the disk from the comfort of the tractor cab.
As crop yields increase, so does the amount of residue after harvest. The John Deere 2633 and 2635 Disks provide operators with a disk that can be set to prepare a seedbed for planting or set to bury and size tough residue in primary tillage applications.
John Deereâs mechanical wing control helps producers keep their frames level for five-section disks. Mechanical wing control is included in base equipment for all five-section 2630 Series Disks.
With this feature, a large spring is placed in the wing frame on each side of the disk. As the pivot point in the wing starts to raise, the spring presses against that point to keep the disk level through tough field conditions.
The red circles in the following image illustrate the area of the disk where the large spring is placed in the wing frame.
John Deere mechanical wing control is an industry-exclusive feature. A five-section disk without mechanical wing control can show up to 75-mm (3-in.) of depth inconsistency across the wing frame.
John Deere 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil types.
The flange-mounted bearing and sealing system features improved contamination resistance. The advanced seal material is highly resistant to wear and damage caused by abrasive soils and other crop materials. The design of these is more durable and reliable than previous bearings.
The design of this bearing system allows for dynamic self-alignment to the gang bolt, as opposed to trunnion-mounted bearings that have limited alignment capability. This system features additional freedom of movement, accommodating a wider variety of field conditions. The bearing system has been designed to decrease stress and fatigue on the inner rolling surfaces, supporting extended bearing life.
The bearing and seal design allows for a limited, seasonal maintenance interval to minimize downtime. They also allow producers to customize the maintenance for specific growing conditions and soil types. The multi-lipped sealing system cannot be damaged by frequent greasing. It allows bearings to accept grease within the bearing as well as provide grease to the outer bearing surface to eliminate wear between the bearing and housing. With this design, the bearings can accept grease even if misaligned to the housing.
The 2630 Series Disks offer multiple upgrades and additional items as options versus the 2620 Series Disks to enhance the machine. Check out the following video to see more about the 2630 Series Disks.
John Deere 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil type.
John Deere TruSet system is featured in base equipment for the 2630 Series Disks and Vertical Tillage Implements. TruSet side-to-side is also available and features individual section leveling.
The hydraulic rolling basket is offered with a round bar, flat bar, or knife-edge. The knife-edge is best for heavier, wet soil, and can be used in rocky conditions.
The 2630 Series Disks and Vertical Tillage Implements feature radial tires for the mainframes in base equipment. Radial tires are available as an option on the wing frame and stabilizer wheels. These tires are designed to offer longer wear life and help minimize compaction with a wider plate and lower inflation pressures.
Producers can choose either mechanical stabilizer wheels or TruSet hydraulic stabilizer wheels as an option. Stabilizer wheels help to maintain a consistent, level depth and are recommended for operation on rolling ground. The mechanical stabilizer wheels can be manually adjusted with a turnbuckle. TruSet with side-to-side leveling capabilities also enables operators to control the TruSet hydraulic stabilizer wheels from the cab while on the go.
With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By responding to conditions as they change throughout the field, TruSet Active enables operators to generate a higher-quality tillage performance within the first pass.
Using a GreenStar© display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.
Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.
John Deere has expanded TruSet features to bring even more functionality into the cab:
TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.
|Control of:||Set-point depth||Active depth||Basket pressure||Side-to-side leveling||Gang angle||Fore-aft||Wing down pressure||Stabilizer wheels|
|2230 Floating Hitch Field Cultivator||---||Select**||Select||Premium||---||---||---||---|
|2230 Level-Lift© Field Cultivator||---||Select**||Select||---||---||---||---||---|
|2330 Mulch Finisher||---||Select**||Select||Premium**||---||Premium**||---||---|
|2630 Series Disks||---||Select**||Select||Premium||---||Premium**||---||Option|
|2633VT Vertical Tillage||---||Select**||Select||Premium||---||Premium**||---||---|
|2660VT Vertical Tillage||---||Select**||Select||Premium||Premium||Premium||Premium||Option|
|2680H High-Speed Disk*||In base||---||---||---||---||---||---||---|
*Currently not available in feature packaging
NOTE: All Select package features are also included in the Premium package.
Active depth (Select and Premium package)
Basket pressure and raise (Select and Premium package)
Side-to-side leveling (Premium package)
Gang angle (Premium package)
Fore-aft (Premium package)
Wing down pressure (Premium package)
NOTE: TruSet hydraulic wing control pressure is only offered on three-section models.
Stabilizer wheels (additional factory option)
NOTE: Stabilizer wheels are not offered on one-section models.
With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature allows producers to capture and analyze the tillage pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.
Operators can document data for the depth of their tillage tool along with rolling basket down pressure. By creating an as-applied map based off global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.
Additionally, the Prescription Creator by Agrian® company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area on the tillage tools. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that command the implement to the desired depth and pressure settings for optimum agronomic results.
Agrian is a trademark of Agrian, Inc.
|Working width||15.01 m
|Transport width||4.95 m
|Transport height||3.96 m
|Working depth||Up to 15.24 cm
|Blade spacing||22.9 cm
|Horsepower per ft||6.7 to 8.2 kW
9 to 11 hp
|Operating speed||8 to 11.3 km/h
5 to 7 mph
|Gang angle||21/19 degree (angle)|
|Purpose||Primary or secondary|
|Weight per blade||102.1 kg
|Blade size||60.96 cm
or 66.04 cm
|Number of blades|
|Front blades||68 with spacing of 22.9 cm
|Rear blades||68 with spacing of 22.9 cm
|Number of C-Springs|
|Total||42 with spacing of 22.9 cm
|Main frame front||6 with spacing of 22.9 cm
|Main frame rear||6 with spacing of 22.9 cm
|1st wing front||6 with spacing of 22.9 cm
|1st wing rear||8 with spacing of 22.9 cm
|2nd wing front||8 with spacing of 22.9 cm
|2nd wing rear||8 with spacing of 22.9 cm
