TruSet™ Tillage technology

TruSet Tillage technology on the 2430 Chisel Plow

The 2430 Chisel Plow is designed for precise, accurate depth control. Precise depth control is very important for conservation of moisture, fertilizer placement, and soil management. Soil layers of differing soil type vary across farms and even across fields. The ability to adjust for these conditions is extremely important to producers today.

TruSet and single-point depth control both come as standard equipment. Both provide accurate depth control to best utilize available tractor horsepower.

With TruSet, these adjustments can be done on the move, increasing productivity and making the day go easier for operators. TruSet provides accurate and precise depth control using individual wheel sensors and electronic circuitry to perform tasks of leveling and depth measurements unprecedented in the industry until now. Accurate depth is displayed to the nearest 2.5 mm (1/10 in.).

The floating hitch, frame strength of the Tube-Thru-Tube manufacturing, and the wheel package placement allow the 2430 to offer unmatched consistency of depth (front-to-back and side-to-side). Fuel can be saved, soil can be mixed and shattered, and accurate depth can be maintained. This represents true soil management for the producer.

TruSet Side-to-Side

TruSet Side-to-Side gives producers the same level of individual section control that was available with AccuDepth© hydraulics. However, there are differences in how the two systems are hydraulically plumbed.

The AccuDepth hydraulics required a correction valve on every frame section since the hydraulics were plumbed in parallel. The TruSet system is plumbed into a single-point (series) system.

The series hydraulics give producers the option of controlling depth with just the single-point depth control valve or individually controlling each frame section with a correction valve mounted at the base of each depth control cylinder on the wings. The individual section control with TruSet Side-to-Side is an upgrade to the base TruSet Tillage system.

TruSet Side-to-Side is controlled by five sensors compared to one sensor with the base TruSet Tillage system. With the five-sensor control, the implement can make depth control adjustments via sensor feedback on the wings.

TruSet Side-to-Side eliminates the need to rephase the depth control cylinders after several rounds in the field. However, it does require another step when calibrating.

Documentation and prescription

With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature will give producers the ability to capture and analyze the pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.

Operators can document data for the depth of their sweeps along with rolling basket down pressure. By creating an as-applied map based off of global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.

Additionally, the Prescription Creator by Agrian® company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that will command the implement to the desired depth and pressure settings for optimum agronomic results.

Functionality by control option

	Single-point	TruSet	TruSet Side-to-Side
One adjustment to change implement depth	X	X	X
Mechanical adjustment option	X	X	X
In-cab adjustment option	---	X	X
In-cab individual section leveling	---	---	X
Tillage documentation and prescription	---	X	X

Agrian is a trademark of Agrian, Inc.

Radial tires

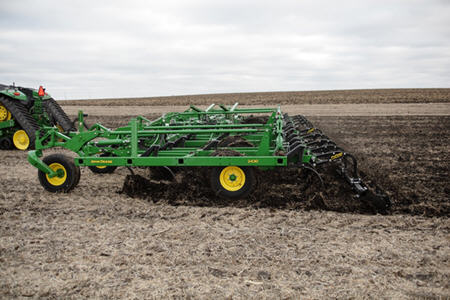

Radial tires on the chisel plow

Radial tires reduce compaction points while operating in the field and minimize downtime caused by tire failures both in the field and during transportation. Radial mainframe tires now come in base equipment and can be an option on the wings. With a wider tire plate and lower inflation pressure, radial tires have a larger contact area with the ground to help minimize compaction.

Finishing components

The 2430 offers different rear attachment options to meet the unique agronomic needs of each producer. Producers have a choice of two rear attachments on the 2430 Chisel Plow.

Knife-edge hydraulic rolling basket with internal basket scraper

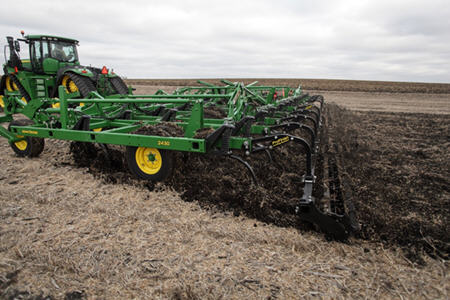

Knife-edge rolling basket for the 2430 Chisel Plow

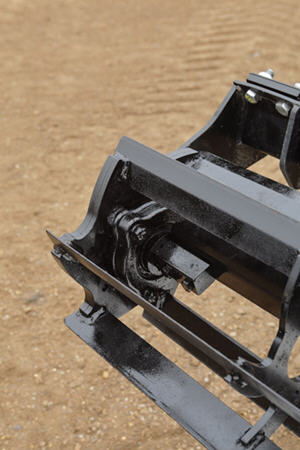

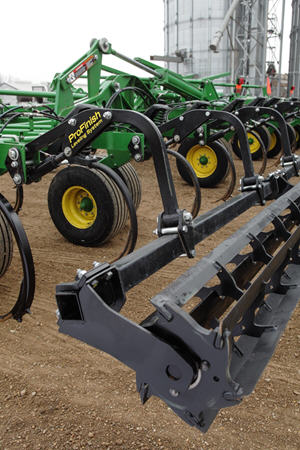

Internal basket scraper

Close-up of internal basket scraper

The knife-edge rolling basket for the 2430 Chisel Plow is made of hardened steel and handles rock strikes and adverse conditions well. The ease of down pressure adjustability allows the tool to adapt to changing field conditions. The internal basket scraper allows for a uniform field finish in wet conditions because baskets do not need to be raised out of the ground to avoid plugging; they can remain in the ground 100 percent of the time.

The John Deere 2430 Chisel Plow offers an active hydraulic rolling basket that gives the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for the demanding fall conditions. The system was designed to have the ability to run the rolling baskets in three different positions to finish and level the soil:

Raised: allows the operator to raise the rolling baskets in harsh, muddy conditions
Float: allows the operator to float the rolling baskets to lightly fluff soil
Apply down pressure: allows the operator to adjust the basket pressure to provide consistent contact with the ground, provides a firm seedbed, and shatters root balls

The hydraulic rolling basket is offered with the knife-edge basket, which is the best for heavier, wet soil.

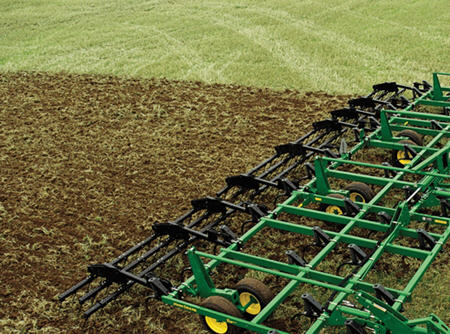

240 Coil-Tine Chisel Plow Harrow

The 240 Coil-Tine Chisel Plow Harrow is designed specifically for the 2430 Chisel Plows. Harrow performance has grown increasingly important over the last few years as soil profile finish and residue-handling capability are on the top of the list for producers. Both attributes are standouts on this heavy harrow.

Internal basket scraper

The internal basket scraper allows for a uniform field finish in wet conditions because the baskets will not need to be raised out of ground to avoid plugging and can stay in the ground 100 percent of the time.

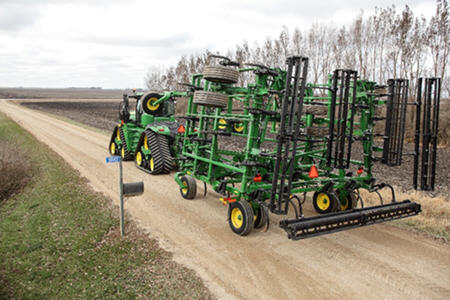

Variety of models and sizes available

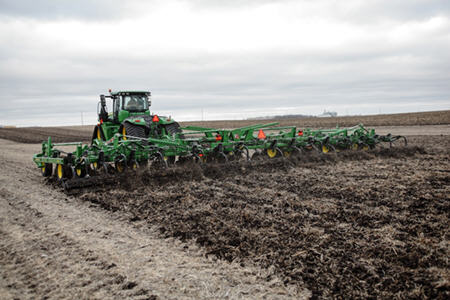

2430 Chisel Plow

The 2430 Chisel Plow is available in rigid and rigid fold, three-section folding, and five-section folding frame models.

Models	Type of fold	Standards
Rigid	Non-fold or horizontal fold	Spring reset, TruPosition™, or Tru-Depth
Flexible	Three-section over-center fold	Spring reset, TruPosition, or Tru-Depth
Flexible	Five-section over-center fold	TruPosition

Rigid configurations
Working widths	Centerframe size	Transport width
11 ft. 0 in. - 14 ft. 8 in.	12 ft. non-folding	11 ft. - 16 ft.
14 ft. 0 in. - 17 ft. 8 in.	15 ft. non-folding
17 ft. 6 in. - 21 ft. 0 in.	12 ft. folding

3-section configurations
Working widths	Centerframe size	Centerframe size
21 ft. 0 in. - 24 ft. 7 in.	10 ft.	15 ft. 9 in.
25 ft. 0 in. - 28 ft. 8 in.
23 ft. 1 in. - 25 ft. 9 in.	12 ft.	17 ft. 11 in.
27 ft. 0 in. - 30 ft. 8 in.
30 ft. 4 in. - 33 ft. 8 in.
35 ft. 0 in. - 37 ft. 3 in.
30 ft. 0 in. - 32 ft. 5 in.	15 ft.	20 ft. 11 in.
34 ft. 2 in. - 38 ft. 2 in.
40 ft. 0 in. - 42 ft. 3 in.

5-section configurations
Working widths	Centerframe size	Centerframe size
44 ft. 0 in. - 46 ft. 8 in.	12 ft.	17 ft. 4 in.
46 ft. 9 in. - 50 ft. 0 in.
52 ft. 0 in. - 54 ft. 8 in.
46 ft. 11 in. - 49 ft. 10 in.	15 ft.	20 ft. 0 in.
55 ft. 0 in. - 57 ft. 10 in.
60 ft. 2 in. - 63 ft. 0 in.

NOTE: Tru-Depth standards are available through 10 m (33 ft) only.

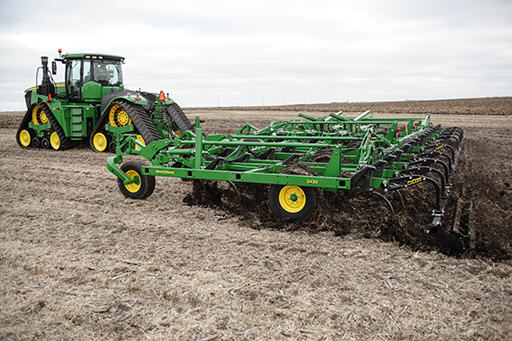

Excellent residue-handling capability

2430 Chisel Plow

The 2430 Chisel Plow has excellent residue-handling capability in primary tillage at all residue levels.

Typical percentages of residue cover remaining from the 2430 are listed in the following table. The percentages do not consider variables such as the condition of the residue, speed, and soil type.

For machines with 305-mm (12-in.) spacing:

Starting residue cover (percent)	Remaining non-fragile* residue cover (percent)				Remaining fragile** residue cover (percent)
Starting residue cover (percent)	406-mm (16-in.) sweeps	51-mm x 356-mm (2-in. x 14-in.) chisel point	102-mm x 368-mm (4-in. x 14.5-in.) shovel	406-mm (16-in.) sweeps	51-mm x 356-mm (2-in. x 14-in.) chisel point	51-mm x 356-mm (2-in. x 14-in.) chisel point	406-mm (16-in.) sweeps	51-mm x 356-mm (2-in. x 14-in.) chisel point
100	80	70	100	80	70	100	80	70
90	72	65	90	72	65	90	72	65
80	65	56	80	65	56	80	65	56
70	55	50	70	55	50	70	55	50
60	50	42	60	50	42	60	50	42
50	40	35	50	40	35	50	40	35
40	32	28	40	32	28	40	32	28

*Non-fragile residue includes crops like corn, sorghum, wheat than 1585.8 L [45 bu]).

**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 1585.8 L [45 bu]), sunflower, peanuts, and cotton.

For machines with 406-mm (16-in.) spacing:

Starting residue cover (percent)	Remaining non-fragile* residue cover (percent)				Remaining fragile** residue cover (percent)
Starting residue cover (percent)	457-mm (18-in.) sweeps	51-mm x 356-mm (2-in. x 14-in.) chisel point	102-mm x 368-mm (4-in. x 14.5-in.) shovel	76-mm x 610-mm (3-in. x 24-in.) shovel	457-mm (18-in.) sweeps	51-mm x 356-mm (2-in. x 14-in.) chisel point	102-mm x 368-mm (4-in. x 14.5-in.) shovel	76-mm x 610-mm (3-in. x 24-in.) shovel
100	83	73	63	63	55	50	45	45
90	75	68	58	58	50	45	40	40
80	68	59	53	53	45	40	35	35
70	58	53	45	45	38	35	30	30
60	53	45	38	38	33	30	27	27
50	43	38	33	33	27	25	22	22
40	35	31	28	28	22	20	18	18

*Non-fragile residue includes crops like corn, sorghum, and wheat (more than 45 bu).

**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, and cotton.

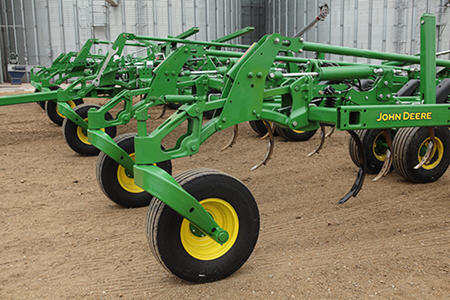

Proven frame construction

3.4-m (11.17-ft) four-bar frame

Operators are requiring faster field working speeds, larger implements, and tractors because of a dramatic increase in farm size. The market is asking for and receiving tractors with more torque, more weight, and more horsepower.

Accommodating 600 engine horsepower tractors requires more from implement frame and hitch components, including thicker frame tubes, additional diagonal bracing, and frame gussets.

The frame is constructed of continuous 102-mm x 102-mm (4-in. x 4-in.) cross members inserted through 51-mm x 152-mm (2-in. x 6-in.), 76-mm x 152-mm (3-in. x 6-in.), and 102-mm x 152-mm (4-in. x 6-in.) fore-aft members. The mainframe boasts a structure made up of 102-mm x 152-mm (4-in. x 6-in.) fore-aft tubes.

The large frame member sizes, joint welds, and wheel module placement adds to the structural integrity, providing a stable front-to-rear and side-to-side operation.

Frame construction offers:

Consistent operating depth
Level operation
Restricts frame dip

Walk-Over wheels help provide consistent working depth

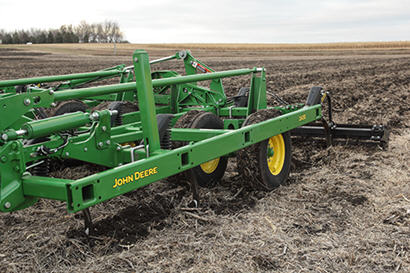

Walk-Over wheels

Walk-Over wheels provide a consistent working depth in uneven ground for level seedbeds and complete weed control.

The staggered wheel design provides extra room for residue flow, obstacles, and transport stability.

Wide variety of ground-engaging tools available

Shovels, chisels, and sweeps

A wide variety of tools such as sweeps, chisels, and twisted shovels are available for the operator to maintain surface residue and ground profile under varying weather and soil conditions.

Click here to explore more about points, chisels, and sweeps.

Variety of models and sizes available

2430 Chisel Plow

The 2430 Chisel Plow is available in rigid and rigid fold, three-section folding, and five-section folding frame models.

Models	Type of fold	Standards
Rigid	Non-fold or horizontal fold	TruPosition© or Tru-Depth
Flexible	Three-section over-center fold	TruPosition or Tru-Depth
Flexible	Five-section over-center fold	TruPosition

Rigid configurations
Working widths	Centerframe size	Transport width
3.35 m to 4.47 m (11 ft to 14 ft, 8 in.)	3.66 m (12 ft) non-folding	3.35 m to 4.9 m (11 ft to 16 ft)
4.3 m to 5.4 m (14 ft to 17 ft, 8 in.)	4.6 m (15 ft) non-folding
5.3 m to 6.4 m (17.5 ft to 21 ft)	3.66 m (12 ft) folding

Three-section configurations
Working widths	Centerframe size	Transport width
6.4 m to 7.5 m (21 ft to 24 ft, 7 in.)	3.05 m (10 ft)	4.8 m (15.3 ft)
7.6 m to 8.7 m (25 ft to 28 ft, 8 in.)
7.04 m to 7.8 m (23 ft, 1 in. to 25 ft, 9 in.)	3.66 m (12 ft)	5.5 m (17.58 ft)
8.2 m to 9.3 m (27 ft to 30 ft, 8 in.)
9.2 m to 10.3 m (30 ft, 4 in. to 33 ft, 8 in.)
10.7 m to 11.35 m (35 ft to 37 ft, 3 in.)
9.14 m to 9.9 m (30 ft to 32 ft, 3 in.)	4.6 m (15 ft)	6.375 m (20.58 ft)
10.4 m to 11.6 m (34 ft, 2 in. to 38 ft, 2 in.)
12.2 m to 12.9 m (40 ft to 42 ft, 3 in.)

Five-section configurations
Working widths	Centerframe size	Transport width
13.4 m to 14.2 m (44 ft to 46 ft, 8 in.)	3.66 m (12 ft)	5.3 m (17.25 ft)
14.2 m to 15.2 m (46 ft, 9 in. to 50 ft)
15.85 m to 16.7 m (52 ft to 54 ft, 8 in.)
14.3 m to 15.2 m (46 ft, 11 in. to 49 ft, 10 in.)	4.6 m (15 ft)	6.1 m (20 ft)
16.8 m to 17.6 m (55 ft to 57 ft, 10 in.)
18.3 m to 19.2 m (60 ft, 2 in. to 63 ft)

NOTE: Tru-Depth standards are available through 10 m (33 ft) only.

TruSet™ features, packages, and documentation

Overview
With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By responding to conditions as they change throughout the field, TruSet Active enables operators to generate a higher-quality tillage performance within the first pass.

Using a GreenStar© display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.

TruSet allows for adjustments from the cab

TruSet Tillage system

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.

John Deere has expanded TruSet features to bring even more functionality into the cab:

Active depth, and basket pressure and raise

Gang angle

Hydraulic active stabilizer wheels

Hydraulic wing control

Hydraulic fore-aft control

TruSet features and packages

TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.

TruSet Functions
Models:	Set-point depth	Active depth	Basket pressure	Side-to-side leveling	Gang angle	Fore-aft	Wing down pressure	Stabilizer wheels
2230 Floating Hitch Field Cultivator	---	Select**	Select	Premium	---	---	---	---
2230 Level-Lift© Field Cultivator	---	Select**	Select	---	---	---	---	---
2330 Mulch Finisher	---	Select**	Select	Premium**	---	Premium**	---	---
2630 Series Disks	---	Select**	Select	Premium	---	Premium**	---	Option
2633VT Vertical Tillage	---	Select**	Select	Premium	---	Premium**	---	---
2660VT Vertical Tillage 1-Section 4.27 m (14 ft)	---	Select**	Select	Premium	Premium	Premium	---	---
2660VT Vertical Tillage 3-Section 7.8, 9.2, 10.1 m (25.5, 30.3, 31.10 ft)	---	Select**	Select	Premium	Premium	Premium	Premium	Option
2660VT Vertical Tillage 5-Section 14.1, 15.1 m (43.6, 49.6 ft)	---	Select**	Select	---	Premium	Premium	---	Option
2680H High-Speed Disk*	In base	---	---	---	---	---	---	---
2430C	---	Select**	---	Premium	---	---	---	---
2430 Drawn Chisel Plow	---	Select**	Select	Premium	---	---	---	---

*Currently not available in feature packaging

**New feature

NOTE: All Select package features are also included in the Premium package.

Active depth (Select and Premium package)

Adjust depth and pressure while in the field

With TruSet Active, the tillage tool automatically adjusts and keeps the desired depth even through changing field conditions, such as tire sink in soft soils or mud buildup in damp and sticky conditions.
This is possible using an ultrasonic sensor that measures the distance from the mainframe to the soil as the implement travels through the field.

Basket pressure and raise (Select and Premium package)

Integrated TruSet Tillage technology enables the operator to adjust their down pressure on the hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.
Easily raise your baskets with one touch to avoid certain areas of the field, whether you are wanting to check the tillage tool with the baskets up or avoid going through a wet spot in the field. Once youâ€™re through the area and ready to lower the baskets, simply press the basket lower to resume your desired basket pressure.

Side-to-side leveling (Premium package)

Individual section leveling with TruSet side-to-side

Operators have the option to enhance the TruSet Tillage system with individual section leveling functionality. TruSet side-to-side is available as a field-installed option that can be ordered with the tillage tool or through aftermarket parts. The base TruSet Tillage system can also be upgraded to TruSet side-to-side with a conversion kit.

Gang angle (Premium package)

Gang angle adjustment

With TruSet gang angle control, operators can adjust the gang angle on the go right from the cab. Adjusting the gang angle from 0 to 12 degrees provides more horizontal soil movement. The more aggressive the gang angle, the more soil mixing and burying of residue. Operators can also remove light ruts, tracks, and weeds at the most aggressive gang angle.

Fore-aft (Premium package)

Hydraulic fore-aft control levels the 2660VT

TruSet hydraulic fore-aft control enables operators to level the implement from the comfort of the tractor cab.

Wing down pressure (Premium package)

Hydraulic wing control pressure

TruSet hydraulic wing control transfers the weight from the mainframe to the wings to improve penetration in hard or heavy soils. In high-speed, shallow-depth tillage operations, maintaining a consistent depth across the tillage tool is critical to the consistency of the seedbed.

NOTE: TruSet hydraulic wing control pressure is only offered on three-section models.

Stabilizer wheels (additional factory option)

Getting the best field performance is easier with TruSet Active hydraulic stabilizer wheels. Choose the option to easily adjust the depth of the stabilizer wheels from the cab to match the overall depth as changes are made. This feature replaces the mechanical linkage on stabilizer wheels with a hydraulic cylinder.

NOTE: Stabilizer wheels are not offered on one-section models.

TruSet documentation

With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature allows producers to capture and analyze the tillage pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.

Operators can document data for the depth of their tillage tool along with rolling basket down pressure. By creating an as-applied map based off global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.

Additionally, the TELUS Agronomy Prescription Creator company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area on the tillage tools. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that command the implement to the desired depth and pressure settings for optimum agronomic results.

TELUS Agronomy Prescription Creator is a trademark of TELUS Agriculture and Consumer Goods

Specs

Key Specs
Working widths - Rigid frame	Option 1 3.56 to 5.28 m 11.67 to 17.33 ft 3.05 to 5.49 m 10 to 18 ft
Maximum depth	Rigid, TruPosition: max: 20.32 cm 8 in. Spring-reset TruDepth: max: 30.5 cm 12 in.
Miles per hour	8 to 11.3 km/h 5 to 7 mph
Horsepower per foot	14.7 to 24.5 kW/m 6.0 to 10 hp/ft Rigid and TruPosition standards on spacing: 30.5 cm 12 in. 11 to 18.35 kW/m 4.5 to 7.5 hp/ft Rigid and TruPosition standards on spacing of: 40.6 cm 16 in. 14.7 to 34.3 kW/m (6.0 to 14 hp/ft) - Spring-reset and TruDepth standards on spacing of: 30.5 cm (12 in.) 11 to 26.9 kW/m (4.5 to 11 hp/ft) - Spring-reset and TruDepth standards on spacing of 40.6 cm (16 in.)
Standard spacings - Inches	30.5 cm 12 in. 40.6 cm 16 in.
Transport width
Rigid frame	Option 1 3.05 to 5.49 m 10 to 18 ft
Drawn rigid fold	Option 1 3.35 to 4.88 m 11 to 16 ft
Transport height
3-section	Option 1 3.3 to 4.2 m 10.83 to 13.75 ft Mainframe: 3.05 m 10 ft Option 2 3.28 to 5.05 m 10.75 to 16.58 ft Mainframe: 3.66 m 12 ft Option 3 3.89 to 5.36 m 12.75 to 17.58 ft Mainframe: 4.57 m 15 ft
5-section	Option 1 4.37 to 4.98 m 14.33 to 16.33 ft Mainframe: 3.66 m 12 ft Option 2 4.4 to 5.3 m 14.42 to 17.42 ft Mainframe: 4.57 m 15 ft
Rigid over-center fold
Operating speed
M	M
Standard options
Option 1	Spec 3.2x5.08x81.3 cm 1.25x2x32 in. Maximum operating depth 20.3 cm 8 in. Underframe clearance 81.3 cm 32 in. Spacing 30.5 cm 12 in. 40.6 cm 16 in. Spring-reset
Option 2	Spec 3.2x5.08x71.1 cm 1.25x2x28 in. Trip height 25.4 cm 10 in. Maximum operating depth 30.5 cm 12 in. Underframe clearance 71.1 cm 28 in. Spacing 30.5 cm 12 in. 40.6 cm 16 in. TruPosition
Frame
Tubing	High strength, box beam steel cross tubes: 10.2x10.2 cm 4x4 in. End tubes, patented 4-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm 2x5 in.
Fore-and-aft	340.4 cm 134 in.
Underframe clearance	Rigid and TruPosition: 71.1 cm 28 in. Spring-reset and TruDepth: 81.3 cm 32 in.
Standard options
Option 3	Spec 3.2x5.08x81.3 cm 1.25x2x32 in. Trip height 27.9 cm 11 in. Maximum operating depth 30.5 cm 12 in. Underframe clearance 81.3 cm 32 in. Spacing 30.5 cm 12 in. 40.6 cm 16 in. TruDepth
Option 4
Ground-engaging components
V	V
Wheels
Centerframe depth control wheels and tires	Option 1 Drawn Rigid: Castering Front and Walk-Over Tandem Rear with (6) IF280/70R15 134D Tires Option 2 3-section: 6.4 to 8.7 m 21 to 28.7 ft Center Frame - 10 ft 3.05 m Castering Front with (2) IF280/70R15 134D Tires and Single Rear with (2) IF 320/70R15 144D Tires on Center Frames Option 3 3-section mainframe of: 6.7 to 10.3 m 22 to 33.67 ft (3.7-m [12-ft] Center Frame) Castering Front and Walkover TandemTM Rear with (6) IF 280/70R15 134D Tires on Center Frames Option 4 3-section: mainframe: 10.7 to 11.4 m 35 to 37.25 ft (3.7-m [12-ft] Center Frame) 0 through 11.79 m Castering Front and Walkover TandemTM Rear with (6) IF 280/70R15 134D Tires on Center Frame Option 5 5-section: 13.4 to 16.8 m 44 to 55 ft Castering Front and Walk-over™ Tandem Rear with (6) IF 320/70R15 144D Tires on Center Frames Option 6 5-section: 18.6 m 61 ft Castering Front and Walk-over™ Tandem Rear with (2) IF 320/70R15 144D Tires on Center Frames (4) 285/70R19.5
Wing frame wheels and tires	Option 1 3-section: (6) 11L-15FI Load Range D Option 2 5-section: 13.4 to 16.8 m 44 to 55 ft Castering Front with (2) 11L-15FI Load Range D and Walk-over™ Tandem Rear with (4) 12.5L-15FI Load Range F on Inner Wing Frames Castering Front and Walkover Tandem Rear with (6) 11L-15FI Load Range D on Outer Wing Frames Option 3 5-section: 18.6 m 61 ft Castering Front (2) 280/70R15 and Walk-over™ Tandem Rear with (4) 320/70R15 on Inner Wing Frames Castering Front and Walk-over™ Tandem Rear with (6) 280/70R15 on Outer Wing Frames
Stabilizer wheels
Rear hitch
Tubing size	Rectangular box construction: 7.62x12.7 cm 3x5 in.
Telescoping	Yes
Tongue weight rating	45.4 kg 100 lb
GVW	10,000
Wiring harness for transport lights	includes Y-harness, allowing both the 2430 and towed implement lights to work simultaneously
Hydraulic hoses and couplers	Available as field attachment
Warranty
w	w
Additional feature
Opton 1	Rear Attachment Options: -Coil-tine Harrow -Hydraulic Knife-edge Rolling Basket

Working widths - Rigid frame	Option 1 / 3.56 to 5.28 m / 11.67 to 17.33 ft / 3.05 to 5.49 m / 10 to 18 ft /
Maximum depth	Rigid, TruPosition: max: 20.32 cm / 8 in. / Spring-reset TruDepth: max: 30.5 cm / 12 in.
Miles per hour	8 to 11.3 km/h / 5 to 7 mph
Horsepower per foot	14.7 to 24.5 kW/m / 6.0 to 10 hp/ft / Rigid and TruPosition standards on spacing: 30.5 cm / 12 in. / 11 to 18.35 kW/m / 4.5 to 7.5 hp/ft / Rigid and TruPosition standards on spacing of: 40.6 cm / 16 in. / 14.7 to 34.3 kW/m (6.0 to 14 hp/ft) - Spring-reset and TruDepth standards on spacing of: 30.5 cm (12 in.) / 11 to 26.9 kW/m (4.5 to 11 hp/ft) - Spring-reset and TruDepth standards on spacing of 40.6 cm (16 in.)

All Equipment

John Deere Equipment

Equipment Packages

Current Specials

Used Equipment

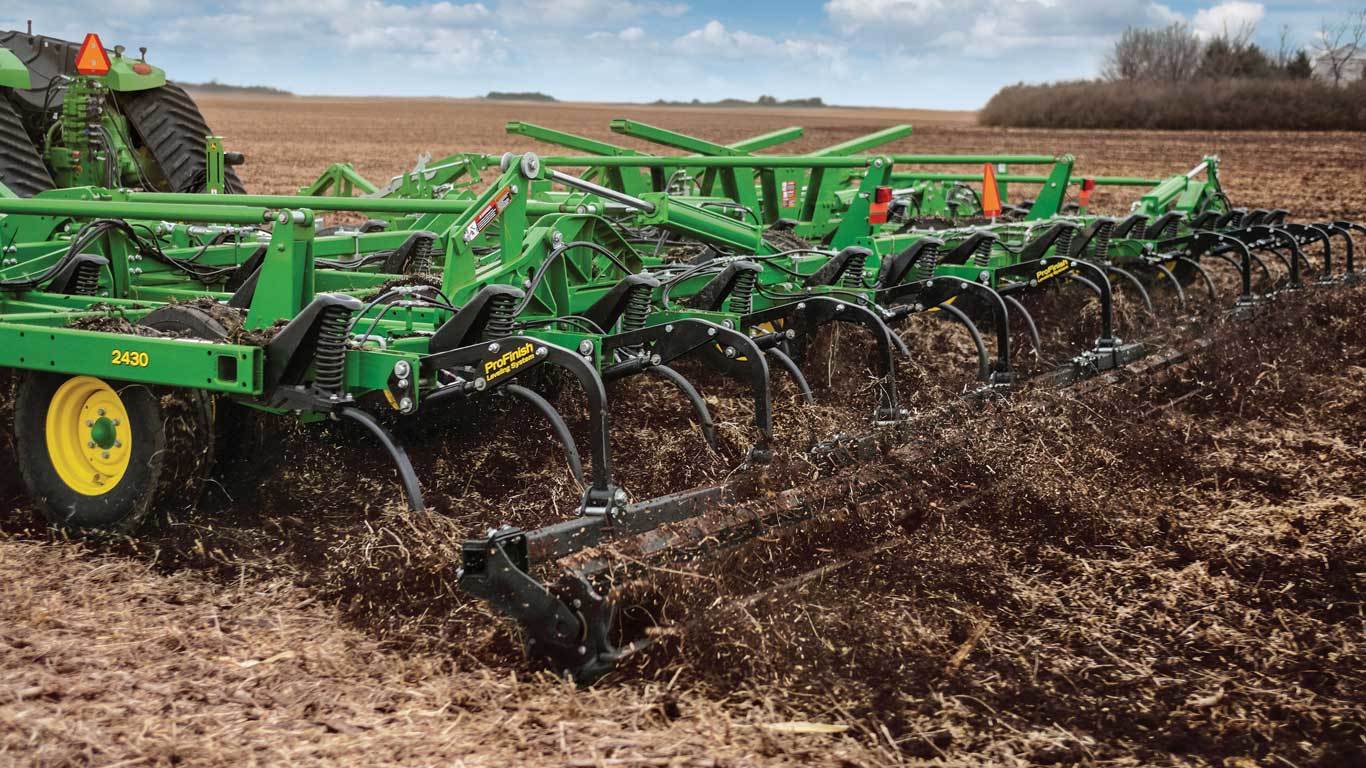

John Deere 2430

Feature Overview

John Deere 2430

Feature Overview

John Deere 2430

TruSet™ Tillage technology

TruSet Side-to-Side

Documentation and prescription

Functionality by control option

Radial tires

Finishing components

Knife-edge hydraulic rolling basket with internal basket scraper

240 Coil-Tine Chisel Plow Harrow

Internal basket scraper

Variety of models and sizes available

Excellent residue-handling capability

Proven frame construction

Frame construction offers:

Walk-Over wheels help provide consistent working depth

Wide variety of ground-engaging tools available

Variety of models and sizes available

TruSet™ features, packages, and documentation

TruSet features and packages

TruSet documentation

Submitting Form... Submitting Form...

Belle Glade

Boynton Beach

Brooksville

Fort Myers

Fort Pierce

Homestead

Immokalee

Largo

Leesburg

Loxahatchee

Naples

North Port

Odessa

Okeechobee

Orlando

Palmetto

Plant City

St Cloud

Submitting Form...
Submitting Form...
