Feature Overview

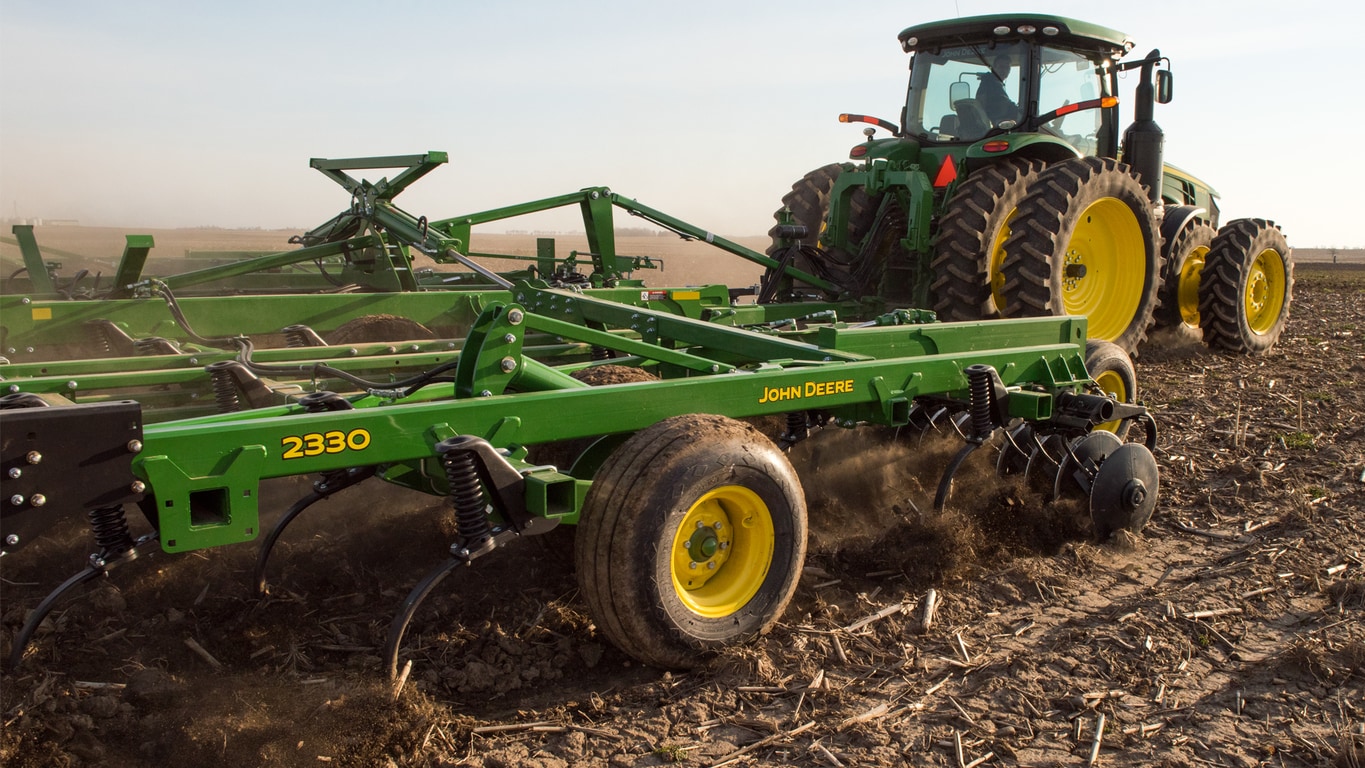

John Deere 2330
  • Working widths from 21 ft, 9 in. to 56 ft, 3 in. (6.6 to 17.2 m)
  • Excellent residue handling capabilities
  • Lattice-style frame design
  • TruSet™ Active improves tillage depth accuracy and makes adjustments for varying field conditions, such as tire sink in soft soils or residue build up on tires, with no need for operator input
Working widths - 3-section Option 1: 6.63 m / 21.75 ft / Option 2: 7.54 m / 24.75 ft / Option 3: 8.46 m / 27.75 ft / Option 4: 9.37 m / 30.75 ft / Option 5: 10.29 m / 33.75 ft
Transport width (without rear harrow) - 3-section Option 1: 4.32 m / 14.17 ft / Option 2: 4.27 m / 14 ft / Option 3: 4.44 m / 14.58 ft / Option 4: 4.5 m / 14.75 ft / Option 5: 4.72 m / 14.5 ft
Transport height (without rear harrow) - 3-section Option 1: 3.12 m / 10.25 ft / Option 2: 3.76 m / 12.33 ft / Option 3: 4.04 m / 13.25 ft / Option 4: 4.62 m / 15.17 ft / Option 5: 5.08 m / 16.67 ft
Operating depth - Inches Maximum: 15.2 cm / 6 in.
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 2330
  • Working widths from 21 ft, 9 in. to 56 ft, 3 in. (6.6 to 17.2 m)
  • Excellent residue handling capabilities
  • Lattice-style frame design
  • TruSet™ Active improves tillage depth accuracy and makes adjustments for varying field conditions, such as tire sink in soft soils or residue build up on tires, with no need for operator input
Working widths - 3-section Option 1: 6.63 m / 21.75 ft / Option 2: 7.54 m / 24.75 ft / Option 3: 8.46 m / 27.75 ft / Option 4: 9.37 m / 30.75 ft / Option 5: 10.29 m / 33.75 ft
Transport width (without rear harrow) - 3-section Option 1: 4.32 m / 14.17 ft / Option 2: 4.27 m / 14 ft / Option 3: 4.44 m / 14.58 ft / Option 4: 4.5 m / 14.75 ft / Option 5: 4.72 m / 14.5 ft
Transport height (without rear harrow) - 3-section Option 1: 3.12 m / 10.25 ft / Option 2: 3.76 m / 12.33 ft / Option 3: 4.04 m / 13.25 ft / Option 4: 4.62 m / 15.17 ft / Option 5: 5.08 m / 16.67 ft
Operating depth - Inches Maximum: 15.2 cm / 6 in.
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Wide range of working widths available to match acreage and horsepower requirements

Three-section configuration Three-section configuration
Five-section configuration Five-section configuration

At 16-km/h (10-mph) working speeds, the 2330 Mulch Finisher can cover up to 27.5 ha (68 acres) per hour enabling producers to size their implements for their unique productivity and agronomic needs.

The 2330 is available in sizes ranging from 6.6 to 17.2 m (21 ft, 9 in. to 56 ft, 3 in.). Horsepower requirements range from 24.5 to 34.2 kW/m (10 to 14 hp-ft), depending on the soil, depth, and speed.

Three-section configurations
Working width Centerframe size Productivity per hour at 16 km/h (10 mph)
7.54 m (24 ft, 9 in.) 13.14 m (10 ft, 3 in.) 12.1 ha (30 acres)
8.46 m (27 ft, 9 in.) 13.8 ha (34 acres)
9.37 m (30 ft, 9 in.) 15ha (37 acres)
10.29 m (33 ft, 9 in.) 15 ha (37 acres)
Five-section configurations
Working width Centerframe size Productivity per hour at 16 km/h (10 mph)
11.66 m (38 ft, 3 in.) 13.14 m (10 ft, 3 in.) 18.6 ha (46 acres)
13.49 m (44 ft, 3 in.) 21.9 ha (54 acres)
15.32 m (50 ft, 3 in.) 24.7 ha (61 acres)
17.15 m (56 ft, 3 in.) 27.5 ha (68 acres)


NOTE: Specification and design subject to change without notice.


T-hitch with Level-Lift turnbuckle T-hitch with Level-Lift turnbuckle
Level-Lift turnbuckle Level-Lift turnbuckle

The Level-Lift hitch ensures a level operation through all operating depths. It also provides consistent gang and sweep depth fore to aft for thorough seedbed preparation. This quick, easy adjustment ensures a flat seedbed floor and level soil profile for planting.

The combination of the disk gang, sweep, and harrow functions promotes consistent and uniform chemical placement and mixing. The T-hitch enables easy turnbuckle adjustment for fast tractor changeover and quick implement leveling fore to aft.

The heavy-duty T-hitch allows for tighter turning, decreasing the number of headlands required for quick turns on the end. The T-hitch also houses the hoses and wiring harness, protecting them from crop and incidental tire contact.


Low-concavity disk blades Low-concavity disk blades
Disks engaged on 2330 Disks engaged on 2330

The producer can work ground faster with the 508-mm x 5-mm (20-in. x 0.197-in.) low-concavity disk blades and outside blades tapered to 457 mm (18 in.) on the 2330 Mulch Finisher"

  • Allows aggressive cutting action
  • Minimizes ridging

Blades are spaced 184-mm (7.25-in.) apart and are fixed at an 8-degree gang angle:

  • Results in effective slicing in heavy residue
  • Moves the soil inward toward the center of the implement for a level seedbed

C-spring cushion gangs help protect against rocks and other obstructions in the field. Dura-Flex© (3+1) bearings are standard equipment:

  • Triple lip on the inner race and a wide seal between the outer race and flange prevents soil from entering between the bearings and flanges, and helps retain lubrication in the bearings
  • Greaseable for long life

All disk gangs feature combination rigid/self-adjusting scrapers as standard equipment:

  • Prevent soil buildup on inside of disk blades
  • Adjustable to compensate for wear
  • Self-adjusting operation—the spring tension helps hold the scrapers against the disk blade in sticky soil conditions

Engaged disk gangs add to the stability of the implement at higher ground speeds for consistent working depth in uneven ground.

  • Allow for good weed kill and tilling
  • Provide excellent chemical incorporation

229-mm (9-in.) spacing 229-mm (9-in.) spacing

Thanks to an updated frame design that enables true 229-mm (9-in.) split-the-middle shank spacing, the 2330 Mulch Finishers can maintain consistent depth and evenly cover the field to achieve an optimal seedbed while flowing residue and managing weeds.

Seedbed preparation

Even at high speeds and in tough field conditions, the TruPosition© C-shanks with 91 kg (200 lb) of trip force minimize side-to-side movement and provide the operator better control of the soil profile for improved leveling capabilities.

These shanks provide a full tillage cut across the entire width of the implement. The shanks stay firmly planted in tough soils without quickly relieving. As a result, the soil is mixed completely and streaks are reduced. This helps producers maximize their productivity and create flat seedbeds for smooth planter operation and consistent seed depth.

Weed management

The even 229-mm (9-in.) split-the-middle shank spacing enables the 2330 Mulch Finisher to minimize the potential of remaining strips of weeds that survive the tillage pass. With a mulch finisher pass just prior to planting/seeding, the crop can emerge into a weed-free field that gives it the best chance to reach canopy ahead of the weeds.

If some weeds emerge and a post-emergence herbicide is needed, weeds should be smaller and easier to control. As a result, the mulch finisher pass helps keep weed management costs under control and helps preserve crop yield potential.


TruPosition standards TruPosition standards
TruPosition standard components TruPosition standard components

Producers are working ground at faster speeds and in tighter soil conditions, requiring more from standards and frames.

The 91-kg (200-lb) trip TruPosition standards include:

  • Heat-treated mounting bracket
  • Cast pivot assembly with front stop
  • 19-mm x 45-mm x 610-mm (3/4 x 1-3/4 x 24-in.) C-shank, retained by a bolt through the casting and U-bolt—ensures consistent sweep depth, level seedbeds in all secondary conditions, and thoroughly incorporated chemicals
  • 610-mm (24-in.) underframe clearance provides extra room for excellent residue flow on 229-mm (9-in.) spacing
  • 254-mm (10-in.) trip height (at shank) clears rocks and obstacles
  • Replaceable split-tension sleeve and chrome bushing extend life of standard and implement

These standards provide 91 kg (200 lb) of trip force and enable producers to maintain a consistent sweep depth. A combination of spring pressure and pivot casting geometry minimizes side-to-side movement and provides the ultimate in soil profile and seedbed.


Bolt-on and knock-on sweep options are available to customize the 2330 Mulch Finisher to perform well in a variety of field conditions.



Bolt-on sweeps Knock-on sweeps
Tru-Width© sweeps Perma-Loc© sweeps
High-productivity sweeps High-productivity Perma-Loc sweeps

The John Deere high-productivity sweep options are recommended for the high-working-speed market and perform best at speeds of 11-16 km/h (7-10 mph). With a low profile and curved wing shape, the high-productivity sweeps provide low draft and consistent penetration while easily getting through tough and heavy residue. Compared to Tru-Width sweeps, high-productivity sweeps are designed to exert less draft and retain their shape for longer wear life so producers can stay productive in the field longer.

The high-productivity sweeps for the John Deere 2330 Mulch Finisher come in a 254-mm (10-in.) width, both in the bolt-on and the knock-on Perma-Loc version. They fit all 47-degree standards with 44-mm (1.75-in.) hole spacing and 11 mm (0.4375 in.) that currently take Tru-Width sweeps, both John Deere and other makes.

Bolt-on sweeps
Tru-Width sweep Tru-Width sweep
High-productivity sweep High-productivity sweep

254-mm (10-in.) Tru-Width sweeps are optional on mulch finishers with 229-mm (9-in.) shank spacing.

The Tru-Width design offers the following benefits:

  • Maintains full cutting width and point through the life of the sweep
  • Gives greater wear life and improved performance over regular sweeps
  • Provides superior scouring and penetration
  • Works soil well for level seedbed and good seed-to-soil contact
  • Gives excellent chemical incorporation
  • Wears evenly and pulls easily
  • Replacement without charge if breakage occurs before appreciable wear
Knock-on sweeps
Perma-Loc sweep Perma-Loc sweep
High-productivity Perma-Loc sweep High-productivity Perma-Loc sweep

Perma-Loc utilizes a self-tightening ratcheting system for easy installation. Indentations formed in the sweep stem provide the spring clip with a locking surface. The adapter edge, sweep, and spring all act together to tightly lock the sweep to the shank. The operator simply pushes the sweep on by hand to the first notch (audible click). As the resistance is increased (ground engagement), the sweep progressively wedges tighter. The mounting design minimizes lost sweeps and wear on adapter.

Utilizing the removal tool to depress the spring through the stem access opening and a tap with a hammer easily releases the sweep from the adapter and spring.

Perma-Loc sweeps have the advantage of using a Tru-Width design for penetration, residue flow, and long life. The proven 47-degree sweep angle minimizes soil slabbing yet promotes soil movement. The narrow stem enhances excellent soil and residue flow. Stem geometry ensures soil flow over the spring access opening, effectively separating and lifting flow to a point higher on the shank. The force of soil flow is reduced on the shank, improving shank life.

The Perma-Loc system is standard equipment and consists of the following:

  • Adapter
  • Spring hardware
  • Sweep
  • Removal tool (separate option on field cultivators)

Tru-Width sweeps with the Perma-Loc adapter can seamlessly move the high-productivity sweeps.

The high-productivity sweeps use the current Perma-Loc adapter for 47-degree curved standard, N237614.


#

Depending on agronomic needs, producers have a choice of six rear harrow options included in the ProFinish Leveling System on the 2330 Mulch Finisher.

Capabilities Five-bar coil-tine
harrow
Six-bar spike-tooth
harrow
Three-bar coil-tine with
round-bar basket
Three-bar coil-tine with
flat-bar basket
Four-bar spike-tooth with
round-bar basket
Four-bar spike-tooth with
flat-bar basket
Level seedbed Good Better Best Best Best Best
Firm seedbed Fair Good Best Better Best Better
Handle residue Best Better Best Best Better Better
Break up clods Good Better Better Best Better Best
Handle moisture/wet soil Best Better Good Good Good Good
Handle rocks Best Good Better Good Better Good




TruSet TillageTruSet Tillage

Integrated TruSet Tillage technology enables 2330 Mulch Finisher operators to adjust disk and sweep depth along with down pressure on the active-hydraulic rolling baskets.

With a short window of time to perform tillage operations, TruSet can provide significant productivity improvements as operators are able to adjust the mulch finisher while covering acres with the push of a button. By responding to conditions as they change throughout the field, TruSet enables operators to generate better-quality tillage performance with the first pass.

Using a GreenStar™ display, a user sees real-time data for disk and sweep depth, and basket down pressure for assurance of desired tillage outcomes. Once the actual set point is validated and configured to the display in the cab, operators are able to make independent adjustments as small as 2.5 mm (0.1 in.). Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions.

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the 2330 Mulch Finisher are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.

Components

TruSet is compatible with John Deere and competitive tractors. Depending on the tractor, a compatibility kit may be needed in addition to the TruSet Tillage system. The following chart identifies the components needed to operate TruSet on a 2330 Mulch Finisher with a GreenStar-ready tractor.



TruSet productJohn Deere 30 Series and newer tractorsJohn Deere 20 Series Tractors (large frame or IVT™ system) John Deere 20 Series Tractors (small frame or non-IVT)
 John Deere 10 Series and older tractorsCompetitive tractors
TruSet Tillage systemYesYesYesYesYes
TruSet compatibility kitNoNoYesYesYes


Both the TruSet Tillage system and the compatibility kit will be available as a field-installed option that can be ordered with the mulch finisher or through aftermarket parts.

All model years of the 2330 can be retrofitted with TruSet.

TruSet requires a GreenStar ready tractor with a supported display. The TruSet Tillage system must have a connection to the tractor ISO connection.

Additional TruSet information:

  • Tractor compatibility
  • Display compatibility
  • TruSet compatibility kit

With integrated TruSet Tillage technology, 2330 Mulch Finisher operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature will give producers the ability to capture and analyze the mulch finisher pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.

Operators can document data for the depth of their mulch finisher disks and sweeps along with rolling basket down pressure. By creating an as-applied map based off of global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage pass then later review and analyze the data for future agronomic decisions.

Additionally, the Prescription Creator by Agrian® company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area on the 2330 Mulch Finisher. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that will command the implement to the desired depth and pressure settings for optimum agronomic results.

Agrian is a trademark of Agrian, Inc.


Rear hitch Rear hitch

A substantial rear hitch is available to give the 2330 the versatility to pull other tow-behind attachments. The rear hitch includes:

  • Rectangular tube construction
  • Telescoping hitch
  • Serviceable drawbar
  • 453-kg (1000-lb) tongue weight rating
  • 13,000 gross vehicle weight (GVW) rating for five-section machines; 10,000 gross vehicle weight (GVW) rating for three-section machines
  • Wiring harness for transport lights
  • Hydraulic hoses and couplers

The rear hitch is fully compatible with all 2330 rear harrow configurations.


Overview

With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By responding to conditions as they change throughout the field, TruSet Active enables operators to generate a higher-quality tillage performance within the first pass.



Using a GreenStar© display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.

TruSet allows for adjustments from the cab TruSet allows for adjustments from the cab
TruSet Tillage system TruSet Tillage system

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.



John Deere has expanded TruSet features to bring even more functionality into the cab:

  • Active depth, and basket pressure and raise
  • Gang angle
  • Hydraulic active stabilizer wheels
  • Hydraulic wing control
  • Hydraulic fore-aft control
TruSet features and packages

TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.



TruSet Functions
Models: Set-point depth Active depth Basket pressure Side-to-side leveling Gang angle Fore-aft Wing down pressure Stabilizer wheels
2230 Floating Hitch Field Cultivator --- Select** Select Premium --- --- --- ---
2230 Level-Lift© Field Cultivator --- Select** Select --- --- --- --- ---
2330 Mulch Finisher --- Select** Select Premium** --- Premium** --- ---
2630 Series Disks --- Select** Select Premium --- Premium** --- Option
2633VT Vertical Tillage --- Select** Select Premium --- Premium** --- ---
2660VT Vertical Tillage 1-Section 4.27 m (14 ft) --- Select** Select Premium Premium Premium --- ---
2660VT Vertical Tillage 3-Section 7.8, 9.2, 10.1 m (25.5, 30.3, 31.10 ft) --- Select** Select Premium Premium Premium Premium Option
2660VT Vertical Tillage 5-Section 14.1, 15.1 m (43.6, 49.6 ft)  --- Select** Select --- Premium Premium --- Option
2680H High-Speed Disk* In base --- --- --- --- --- --- ---
2430C --- Select** --- Premium --- --- --- ---
2430 Drawn Chisel Plow --- Select** Select Premium --- --- --- ---

*Currently not available in feature packaging

**New feature



NOTE: All Select package features are also included in the Premium package.



Active depth (Select and Premium package)

Adjust depth and pressure while in the field Adjust depth and pressure while in the field
  • With TruSet Active, the tillage tool automatically adjusts and keeps the desired depth even through changing field conditions, such as tire sink in soft soils or mud buildup in damp and sticky conditions.
  • This is possible using an ultrasonic sensor that measures the distance from the mainframe to the soil as the implement travels through the field.



Basket pressure and raise (Select and Premium package)



  • Integrated TruSet Tillage technology enables the operator to adjust their down pressure on the hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.
  • Easily raise your baskets with one touch to avoid certain areas of the field, whether you are wanting to check the tillage tool with the baskets up or avoid going through a wet spot in the field. Once you’re through the area and ready to lower the baskets, simply press the basket lower to resume your desired basket pressure.



Side-to-side leveling (Premium package)

Individual section leveling with TruSet side-to-side Individual section leveling with TruSet side-to-side
  • Operators have the option to enhance the TruSet Tillage system with individual section leveling functionality. TruSet side-to-side is available as a field-installed option that can be ordered with the tillage tool or through aftermarket parts. The base TruSet Tillage system can also be upgraded to TruSet side-to-side with a conversion kit.



Gang angle (Premium package)

Gang angle adjustment Gang angle adjustment
  • With TruSet gang angle control, operators can adjust the gang angle on the go right from the cab. Adjusting the gang angle from 0 to 12 degrees provides more horizontal soil movement. The more aggressive the gang angle, the more soil mixing and burying of residue. Operators can also remove light ruts, tracks, and weeds at the most aggressive gang angle.



Fore-aft (Premium package)

Hydraulic fore-aft control levels the 2660VT Hydraulic fore-aft control levels the 2660VT
  • TruSet hydraulic fore-aft control enables operators to level the implement from the comfort of the tractor cab.



Wing down pressure (Premium package)

TruSet documentation

With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature allows producers to capture and analyze the tillage pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.



Operators can document data for the depth of their tillage tool along with rolling basket down pressure. By creating an as-applied map based off global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.



Additionally, the TELUS Agronomy Prescription Creator company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area on the tillage tools. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that command the implement to the desired depth and pressure settings for optimum agronomic results.



TELUS Agronomy Prescription Creator is a trademark of TELUS Agriculture and Consumer Goods

Hydraulic wing control pressure Hydraulic wing control pressure
  • TruSet hydraulic wing control transfers the weight from the mainframe to the wings to improve penetration in hard or heavy soils. In high-speed, shallow-depth tillage operations, maintaining a consistent depth across the tillage tool is critical to the consistency of the seedbed.



NOTE: TruSet hydraulic wing control pressure is only offered on three-section models.



Stabilizer wheels (additional factory option)

  • Getting the best field performance is easier with TruSet Active hydraulic stabilizer wheels. Choose the option to easily adjust the depth of the stabilizer wheels from the cab to match the overall depth as changes are made. This feature replaces the mechanical linkage on stabilizer wheels with a hydraulic cylinder.

NOTE: Stabilizer wheels are not offered on one-section models.


Specs
Key Specs
Working widths - 3-section Option 1: 6.63 m
21.75 ft
Option 2: 7.54 m
24.75 ft
Option 3: 8.46 m
27.75 ft
Option 4: 9.37 m
30.75 ft
Option 5: 10.29 m
33.75 ft
Wing frame wheels and tires
5-section Option 1: (eight) 12.5-L-15 FI LR D tires
Option 2: (eight) 12.5-L-15 FI LR D tires
Option 3: (eight) 12.5-L-15 FI LR D tires
Option 4: (eight) 12.5-L-15 FI LR D tires
Key Specs
Transport width (without rear harrow) - 3-section Option 1: 4.32 m
14.17 ft
Option 2: 4.27 m
14 ft
Option 3: 4.44 m
14.58 ft
Option 4: 4.5 m
14.75 ft
Option 5: 4.72 m
14.5 ft
Transport height (without rear harrow) - 3-section Option 1: 3.12 m
10.25 ft
Option 2: 3.76 m
12.33 ft
Option 3: 4.04 m
13.25 ft
Option 4: 4.62 m
15.17 ft
Option 5: 5.08 m
16.67 ft
Operating depth - Inches Maximum: 15.2 cm
6 in.
Miles per hour 9.7 to 16 km/h
6 to 10 mph
Horsepower per foot 24.5 to 34.2 kW/m
10 to 14 hp/ft
Standard spacings - Inches Split-the-middle - 22.9 cm
9 in.
Wing frame wheels and tires
3-section Option 1: (four) 11L-15 FI LR D tires
Option 2: (four) 12.5-L-15 FI LR D tires
Option 3: (four) 12.5-L-15 FI LR D tires
Option 4: (four) 12.5-L-15 FI LR D tires
Option 5: (four) 12.5-L-15 FI LR D tires
Electrical
Standard 9-pin connector for warning lights, 12-volt required for 5-section models
Frame
Tubing Centerframe - 3 m
10 ft, in.
Rank tubes - 10.2x10.2 cm
4x4 in.
Mainframe fore-aft tubes - 7.6x20.3 cm
3x8 in.
Wing fore-aft tubes - 7.62x15.2 cm
3x6 in.
Number of ranks Five
Fore-and-aft 340.4 cm
134 in.
Underframe clearance 61 cm
24 in.
Standard options
Option 1


Option 2


Option 3


Disk gangs
Depth adjustment Base equipment
TruSet in-cab depth/pressure control and single-point depth control
Maximum depth Even with sweep: 12.7 cm
5 in.
Vertical adjustment From even with the sweeps to 20.3 cm
8 in.
Gang angle, degrees 8 degree (angle)
Blade size 50.8x0.5 cm
20x0.197 in.
Blade spacing 18.42 cm
7.25 in.
Blade concavity Low
Type of scrapers Combination
Type of spool Steel fabricated
Gang shaft diameter 28.6 mm
1.125 in.
Castering Wheels
Type Active-hydraulic castering wheels and tires available for 3- and 5-section
Radial tire option available
Options 9.5L-15 FI LR D tires (two)
Rear harrow
Spike tooth harrow option 1 Rank spacing
30.5 cm
12 in.
Spike spacing
26.67 cm
10.5 in.
Effective spacing
4.45 cm
1.75 in.
Spike dimension
1.9x1.9x30.5 cm
0.75x0.75x12 in.
Angle
15 to 45 degree (angle)
Adjustable 6-bar spike-tooth
Spike tooth harrow option 2


Spike tooth harrow option 3


Coil tine harrow option 1 Rank spacing
38.1 cm
15 in.
Tine spacing
31.75 cm
12.5 in.
Effective spacing
63.5 mm
2.5 in.
Tine dimensions
40.6 cm
16 in.
Angle
15 to 60 degree (angle)
Adjustments
Depth, pitch, and angle
Adjustable 5-bar coil-tine
Coil tine harrow option 2


Rolling basket harrow option 1 Spike/tine
30.5 cm
12 in.
Rank spacing
30.5 cm
12 in.
Spike/tine spacing
26.67 cm
10.5 in.
Effective spacing
8.89 cm
3.5 in.
Spike/tine dimensions
1.9x1.9x30.5 cm
0.75x0.75x12 in.
Basket diameter
35.56 cm
14 in.
Bearings
Dura-Flex, diameter of: 7.62 cm
3 in.
Self-aligning and greasable
Adjustments
Angle and aggressiveness
4-bar spike with single flat-bar rolling basket
Rolling basket harrow option 2 Spike/tine
30.5 cm
12 in.
Rank spacing
30.5 cm
12 in.
Spike/tine spacing
26.67 cm
10.5 in.
Effective spacing
8.89 cm
3.5 in.
Spike/tine dimensions
1.9x1.9x30.5 cm
0.75x0.75x12 in.
Basket diameter
35.6 cm
14 in.
Bearings
Dura-Flex, diameter of 7.62 cm
3 in.
Self-aligning, greasable
Adjustments
Angle and aggressiveness
4-bar spike with single, round-bar rolling basket
Rolling basket harrow option 3 Spike/tine
Tine: 40.6 cm
16 in.
Rank spacing
38.1 cm
15 in.
Spike/tine spacing
22.9 cm
9 in.
Effective spacing
7.62 cm
3 in.
Spike/tine dimensions
40.6 cm
16 in.
Basket diameter
35.6 cm
14 in.
Bearings
Dura-Flex, diameter: 7.62 cm
3 in.
Self-aligning, greasable
Adjustments
Angle and aggressiveness
3-bar coil with flat-bar rolling basket
Rolling basket harrow option 4 Spike/tine
Tine: 40.6 cm
16 in.
Rank spacing
38.1 cm
15 in.
Spike/tine spacing
22.9 cm
9 in.
Effective spacing
7.62 cm
3 in.
Spike/tine dimensions
40.6 cm
16 in.
Basket diameter
35.6 cm
14 in.
Bearings
Dura-Flex, diameter: 7.62 cm
3 in.
Self-aligning, greasable
Adjustments
Angle and aggressiveness
3-bar coil with round-bar rolling basket
Rear hitch
Telescoping Yes
Tongue weight rating 680 kg
1,500 lb
Wiring harness for transport lights Yes
Hydraulic hoses and couplers One set
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
