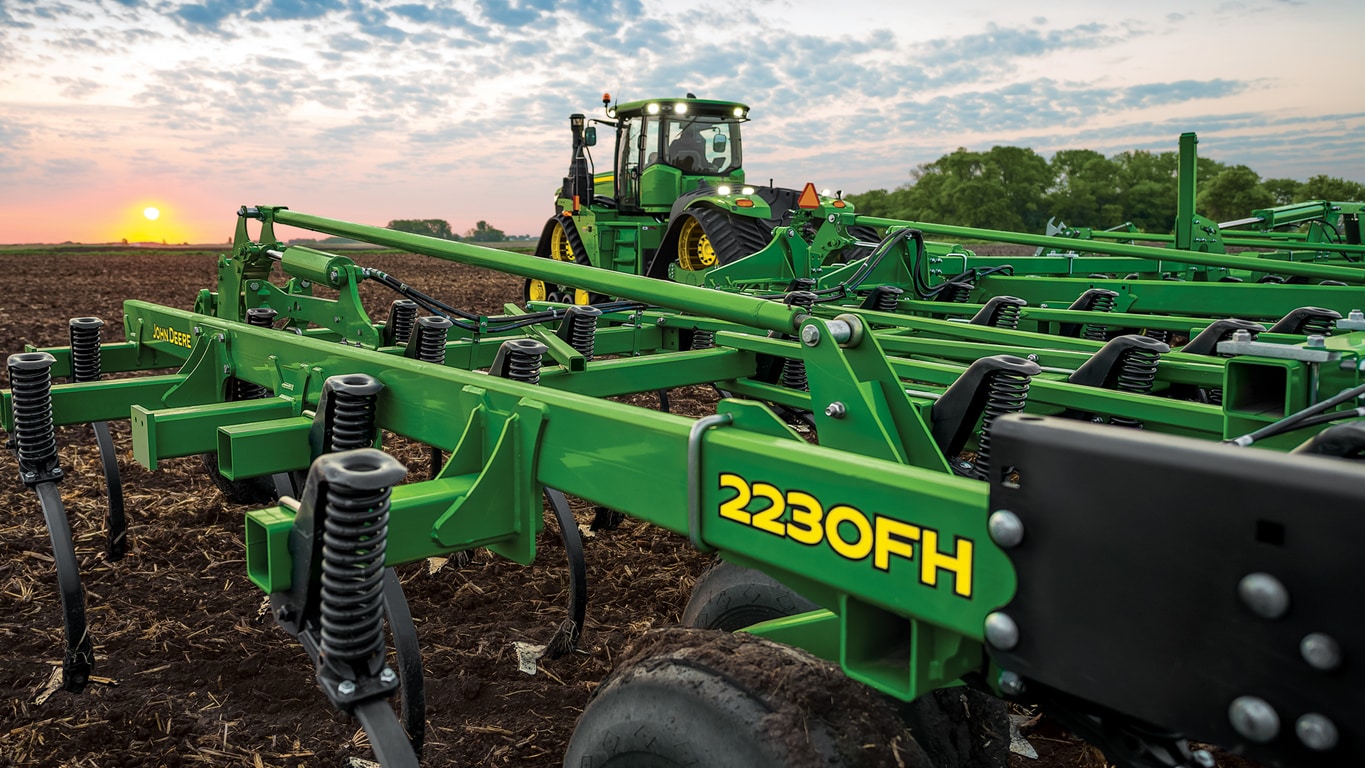

John Deere 2230FH

The ProFinish Leveling System offers a wide range of rear harrows to meet agronomic needs.

Depending on agronomic needs, producers have a choice of six rear harrow options included in the ProFinish Leveling System on the 2230 Field Cultivators.

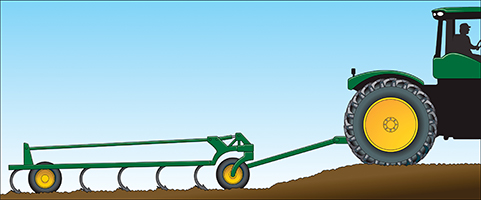

Floating hitch frame on 2230FH

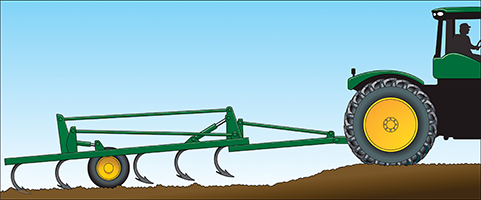

Level-lift hitch frame on 2230LL

The 2230FH Floating Hitch Field Cultivator offers superior ground-hugging capability with precise depth and pressure control across all types of terrain. The floating hitch frame design enables this field cultivator to work independently of the tractor and follow the contour of the ground so the implement remains level. The 2230FH commands consistent depth from front to back and from side to side.

Active-hydraulic castering wheel

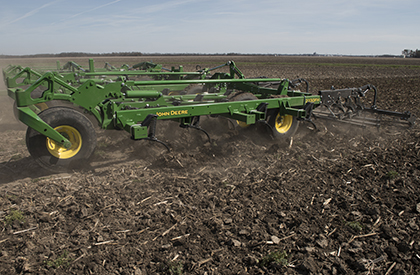

Castering wheels on 2230FH

Front-mounted active-hydraulic castering depth-control wheels come standard on the 2230FH Floating Hitch Field Cultivator’s centerframe and wings. These active-hydraulic castering wheels rotate a full 360 degrees and provide good stability at the front of the implement and facilitate excellent turning, reducing tire scuffing.

Working together with John Deere’s floating hitch, the active-hydraulic castering wheels help ensure level operation for the 2230FH as the implement is free to follow the contour of the terrain. This frame flexibility over rolling terrain provides more uniform depth integrity fore to aft for:

• Consistent sweep depth
• Thorough seedbed preparation through the entire width and length of the implement
• Consistent chemical placement and mixing

The active-hydraulic castering wheels can be manually adjusted with a turnbuckle. TruSet© with side-to-side leveling capabilities also enables operators to individually control wing depth and the castering wheels from the cab while on the go.

Three-section configuration

Five-section configuration

At 16-km/h (10-mph) working speeds, the 2230FH can cover up to 34 ha (84 acres) per hour, enabling producers to size their implement for their unique productivity and agronomic needs.

The 2230FH is available in sizes ranging from 7.8 to 21.2 m (25.5 ft to 69.5 ft). Horsepower requirements range from 19.6-29.4 kW/m (8 to 12 hp-ft), depending on the soil, depth, and speed.

Three-section configurations

Five-section configurations

Low-transport field cultivator

Low power lines and bridges can be a concern when transporting equipment. The 2230 Field Cultivator lineup includes low-transport configurations as a solution for transportation concerns.

The 12.95-m (42-ft, 6-in.) 2230FH folds like a five-section implement, but operates like a three-section implement. A small wing is added to these implements. This allows them to have an extra fold to achieve the tight and narrow transport dimensions. When the implement is unfolded for operation, the small, outer-wings lock rigid to allow for three-section operation.

Another advantage of the low-transport models is operation in uneven terrain. The low-transport models allow for the rigid wing to follow the contour of the ground.

Bolt-on, knock-on, and s-tine sweep options are available to customize the 2230 Field Cultivators to perform well in a variety of field conditions.

*NOTE: S-tine sweeps not available for all 2230 configurations.

John Deere’s high-productivity sweep options are recommended for the high-working-speed market and perform best at speeds of 11-16 km/h (7-10 mph). With a low profile and curved wing shape, the high-productivity sweeps provide low draft and consistent penetration while easily getting through tough and heavy residue. Compared to Tru-Width sweeps, high-productivity sweeps are designed to exert less draft and retain their shape for longer wear life so producers can stay productive in the field longer.

The high-productivity sweeps are available bolt-on and the knock-on Perma-Loc versions. They fit all 47-degree standards with 44-mm (1.75-in.) hole spacing and 11 mm (0.4375 in.) that currently take Tru-Width sweeps, both John Deere and other makes.

Sweep sizes

229-mm (9-in.) sweeps and 178-mm (7-in.) sweeps can both be utilized on a machine with shanks on 152-mm (6-in.) spacing. The decision between the two is dependent on soil type, operating speed, and the agronomic goal of the tillage pass.

• 229-mm (9-in.) sweeps ™ When weed management or weed removal is an important part of the tillage pass, a 229-mm (9-in.) sweep provides more of a cutting edge and can catch weeds that may bend around the wings of the 178-mm (7-in.) sweep.
• 178-mm (7-in.) sweeps ™ These sweeps provide enough wing width to maintain full-width tillage, but with less draft load than a 229-mm (9-in.) sweep. Less draft results in the shank maintaining a more consistent depth, especially at higher speeds, and less of a horsepower draw on the tractor. This will be most evident in harder, heavier soil types.
• 114-mm (4.5-in.) sweeps ™ These sweeps are only available on S-tine configurations.

Bolt-on sweeps

The Tru-Width design offers the following benefits:

• Maintains full cutting width and point through the life of the sweep
• Gives greater wear life and improved performance over regular sweeps
• Provides superior scouring and penetration
• Works soil well for level seedbed and good seed-to-soil contact
• Gives excellent chemical incorporation
• Wears evenly and pulls easily
• Replacement without charge if breakage occurs before appreciable wear

Knock-on sweeps

Perma-Loc sweep

High-productivity Perma-Loc sweep

Perma-Loc utilizes a self-tightening ratcheting system for easy installation. Indentations formed in the sweep stem provide the spring clip with a locking surface. The adapter edge, sweep, and spring all act together to tightly lock the sweep to the shank. The operator simply pushes the sweep on by hand to the first notch (audible click). As the resistance is increased (ground engagement), the sweep progressively wedges tighter. The mounting design minimizes lost sweeps and wear on adapter.

Utilizing the removal tool to depress the spring through the stem access opening and a tap with a hammer easily releases the sweep from the adapter and spring.

Perma-Loc sweeps have the advantage of using a Tru-Width design for penetration, residue flow, and long life. The proven 47-degree sweep angle minimizes soil slabbing yet promotes soil movement. The narrow stem enhances excellent soil and residue flow. Stem geometry ensures soil flow over the spring access opening, effectively separating and lifting flow to a point higher on the shank. The force of soil flow is reduced on the shank, improving shank life.

Tru-Width sweeps with the Perma-Loc adapter can seamlessly move the high-productivity sweeps. The high-productivity sweeps use the current Perma-Loc adapter for 47-degree curved standard, N237614.

TruPosition© standards on 2230 Field Cultivator

152-mm (6-in.) split-the-middle shank spacing

Thanks to an updated frame design that enables true 152-mm (6-in.) split-the-middle shank spacing, the 2230 Field Cultivators can maintain consistent depth and evenly cover the field to achieve an optimal seedbed and manage weeds.

Seedbed preparation

Even at high speeds and in tough field conditions, the TruPosition C-shanks with 91 kg (200 lb) of trip force minimize side-to-side movement and provide the operator better control of the soil profile for improved leveling capabilities.

These shanks provide a full tillage cut across the entire width of the implement. The shanks stay firmly planted in tough soils without quickly relieving. As a result, the soil is mixed completely and streaks are reduced. This helps producers maximize their productivity and create flat seedbeds for smooth planter operation and consistent seed depth.

Weed management

The even 152-mm (6-in.) split-the-middle shank spacing enables the 2230 Field Cultivator to minimize the potential of remaining strips of weeds that survive the tillage pass. With a field cultivator pass just prior to planting/seeding, the crop can emerge into a weed-free field that gives it the best chance to reach canopy ahead of the weeds.

If some weeds emerge and a post-emergence herbicide is needed, weeds should be smaller and easier to control. As a result, the field cultivator pass helps keep weed management costs under control and helps preserve crop yield potential.

Spacing options

True 152-mm (6-in.) split-the-middle spacing

152-mm (6-in.) shank spacing base equipment on the 2230LL and 2230FH. Additional options for implement customization include:

• 229-mm (9-in.) shank spacing
• 114-mm (4.5-in.) s-tine spacing (on select configurations)

TruSet and single-point depth control

TruSet controller

Integrated TruSet Tillage technology enables field cultivator operators to adjust sweep depth and down pressure on the active hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.

With short window of time to perform tillage operations, TruSet can provide significant productivity improvements as operators are able to adjust the field cultivator while covering acres with the push of a button. By responding to conditions as they change throughout the field, TruSet enables operators to generate better-quality tillage performance with the first pass.

Using a GreenStar™ display, a user sees real-time data for sweep depth and basket down pressure for assurance of desired tillage outcomes. Once the actual set point is validated and configured to the display in the cab, operators are able to make independent adjustments as small as one tenth of an inch. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions.

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the 2230 Field Cultivators are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.

Components

TruSet is compatible with John Deere and competitive tractors. Depending on the tractor, a compatibility kit may be needed in addition to the TruSet Tillage system. The following chart identifies the components needed to operate TruSet on a 2230LL or 2230FH Field Cultivator with a GreenStar ready tractor.

Both the TruSet Tillage system and the compatibility kit will be available as a field-installed option that can be ordered with the field cultivator or through aftermarket parts.

All model years of the 2230LL and 2230FH can be retrofitted with TruSet.

TruSet Tillage requires a GreenStar ready tractor with a supported display. The TruSet Tillage system must have a connection to the tractor ISO connection. Additional TruSet Tillage information:

• Tractor compatibility
• Display compatibility
• TruSet compatibility kit
• TruSet with side-to-side leveling

2230FH Floating Hitch Field Cultivator operators have the option to enhance the TruSet Tillage system with individual section leveling functionality. TruSet Side-to-Side will be available as a field-installed option that can be ordered with the 2230FH or through aftermarket parts. The base TruSet Tillage system can also be upgraded to TruSet Side-to-Side on the 2230FH with a conversion kit.

Functionality by depth control option

Low-transport field cultivator

Low power lines and bridges can be a concern when transporting equipment. The 2230 Field Cultivator lineup includes regular- and low-transport configurations as a solution for transportation concerns.

The 12.95-m (42.5-ft) 2230FH folds like a five-section implement, but operates like a three-section implement. A small wing is added to these implements. This allows them to have an extra fold to achieve the tight and narrow transport dimensions. When the implement is unfolded for operation, the small, outer-wings lock rigid to allow for three-section operation.

Another advantage of the low-transport models is operation in uneven terrain. The low-transport models allow for the rigid wing to follow the contour of the ground.

The regular-transport model features an 18.44-m (60.5-ft) working width on a 4.6-m (15-ft) mainframe that allows for a lower transport height compared to the other 18.44-m (60.5-ft) configuration.
