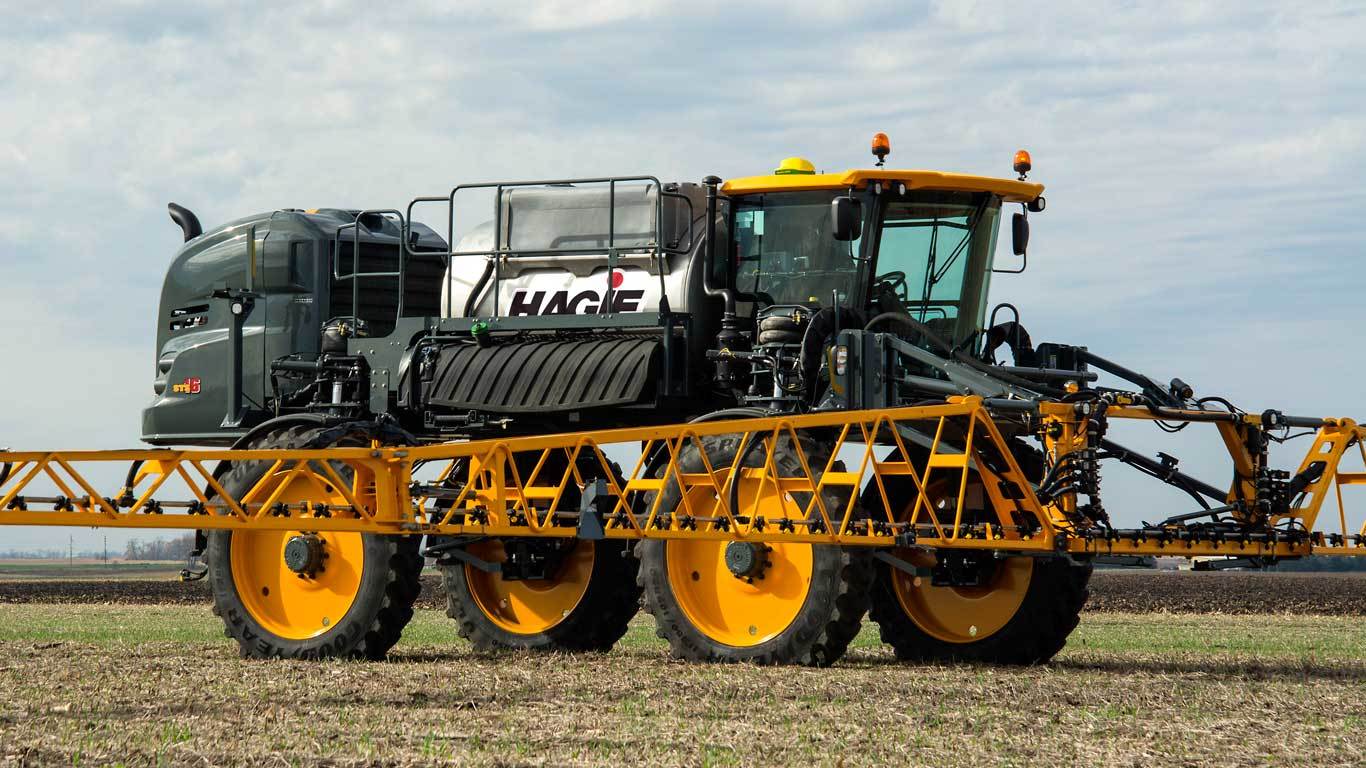

John Deere STS16

The solution system is a constantly monitored, continuously adjusted, computer-controlled system. The cab-mounted digital spray system console receives information from various inputs to help determine L/ha (gpa) and L/min (gpm).

Solution tank

Solution tank

Solution pump

Solution pump

The Hypro® 9306C-HM1C-BU solution pump (located beneath center of machine) is a centrifugal-type, hydraulically-driven pump that is controlled by the solution pump control valve and the spray system console. It comes with silicon-carbide seals, 7.6-cm (3-in.) inlet plumbing and 5.1-cm (2-in.) outlet plumbing.

The solution pump draws solution out of the tank at the rate determined during calibration. It dispenses solution through the many valves and hoses that make up the spray system and also dispenses fluids through the agitation and rinse systems.

Solution pump switch

Solution pump switch

Machine control display - Home

The solution pump switch is located on the side console and is used to turn the solution pump on and off.

NOTE: When the solution pump is on, a solution pump indicator (located on the machine display home page - field mode) will be illuminated.

Hypro is a trademark of Pentair Flow Technologies, LLC.

STS Series Sprayer booms

The spray booms are controlled by an electrohydraulic system. This system consists of operator-manipulated switches (located on the side console and the hydrostatic drive control handle) and hydraulic cylinders (attached to the booms), which provide lift, level, and horizontal extension.

The spray booms are offered in a variety of configurations depending on the model and the producer's application needs.

27.4-m (90-ft) boom with 38.1-cm (15-in.) row spacing

Numerical values key:

1. Section one
2. Section two
3. Section three
4. Section four
5. Section five
6. Section six
7. Section seven
8. Section eight
9. Section nine

Alphabetical values key:

1. 18.3-m (60-ft) 24-row planter
2. 9.1-m (30-ft) 12-row planter
3. 9.1-m (30-ft) 12-row planter
4. 9.1-m (30-ft) 12-row planter

30.5-m (100-ft) boom with 38.1-cm (15-in.) row spacing

Numerical values key:

1. Section one
2. Section two
3. Section three
4. Section four
5. Section five
6. Section six
7. Section seven
8. Section eight
9. Section nine

Alphabetical values key:

1. 18.3-m (60-ft) 24-row planter
2. 3.05 m (10 ft)
3. 9.1-m (30-ft) 12-row planter
4. 9.1-m (30-ft) 12-row planter
5. 9.1-m (30-ft) 12-row planter
6. 3.05 m (10 ft)

36.6-m (120-ft) boom with 38.1-cm (15-in.) row spacing

Numerical values key:

1. Section one
2. Section two
3. Section three
4. Section four
5. Section five
6. Section six
7. Section seven
8. Section eight
9. Section nine

Alphabetical values key:

1. 9.1 m (30 ft)
2. 18.3-m (60-ft) 24-row planter
3. 9.1 m (30 ft)
4. 9.1-m (30-ft) 16-row planter
5. 9.1-m (30-ft) 16-row planter
6. 9.1-m (30-ft) 16-row planter
7. 4.6 m (15 ft)
8. 9.1-m (30-ft) 12-row planter
9. 9.1-m (30-ft) 12-row planter
10. 9.1-m (30-ft) 12-row planter
11. 4.6 m (15 ft)

Boom configurations

Materials used in boom construction:

• 27.4-m/30.5-m (90-ft/100-ft) booms - steel
• 36.6-m (120-ft) booms - steel/aluminum hybrid

Chassis mainframe

Horizontal cross-through axle tube

The STS Series mainframe design features horizontal cross-through axle tubes, as well as boom and platform mounts on weldment.

• 144.8-cm (57-in.) mainframe width (from outside of each mainframe tube)
• 301-cm (118.5-in.) mainframe width (from outside of each boom cradle weldment)
• 183-cm (72-in.) ground clearance

STS Series Sprayer booms

The spray booms are controlled by an electrohydraulic system. This system consists of operator-manipulated switches (located on the side console and the hydrostatic drive control handle) and hydraulic cylinders (attached to the booms), which provide lift, level, and horizontal extension. Hybrid booms are available in widths of 27.4 m, 30.5 m, 36.6 m, and 40.2 m (90 ft, 100 ft, 120 ft, and 132 ft).

The spray booms are offered in a variety of configurations depending on the model and the producer's application needs.

27.4-m (90-ft) boom with 38.1-cm (15-in.) row spacing

Numerical values key:

1. Section one
2. Section two
3. Section three
4. Section four
5. Section five
6. Section six
7. Section seven

Alphabetical values key:

1. 18.3-m (60-ft) 24-row planter
2. 9.1-m (30-ft) 12-row planter
3. 9.1-m (30-ft) 12-row planter
4. 9.1-m (30-ft) 12-row planter

30.5-m (100-ft) boom with 38.1-cm (15-in.) row spacing

Numerical values key:

1. Section one
2. Section two
3. Section three
4. Section four
5. Section five
6. Section six
7. Section seven
8. Section eight
9. Section nine

Alphabetical values key:

1. 18.3-m (60-ft) 24-row planter
2. 3.05 m (10 ft)
3. 9.1-m (30-ft) 12-row planter
4. 9.1-m (30-ft) 12-row planter
5. 9.1-m (30-ft) 12-row planter
6. 3.05 m (10 ft)

36.6-m (120-ft) boom with 38.1-cm (15-in.) row spacing

Numerical values key:

1. Section one
2. Section two
3. Section three
4. Section four
5. Section five
6. Section six
7. Section seven
8. Section eight
9. Section nine

Alphabetical values key:

1. 9.1 m (30 ft)
2. 18.3-m (60-ft) 24-row planter
3. 9.1 m (30 ft)
4. 9.1-m (30-ft) 16-row planter
5. 9.1-m (30-ft) 16-row planter
6. 9.1-m (30-ft) 16-row planter
7. 4.6 m (15 ft)
8. 9.1-m (30-ft) 12-row planter
9. 9.1-m (30-ft) 12-row planter
10. 9.1-m (30-ft) 12-row planter
11. 4.6 m (15 ft)

Boom configurations

Materials used in boom construction:

• 27.4-m, 30.5-m, 36.6-m, and 40.2-m (90-ft, 100-ft, 120-ft, and 132-ft) booms ™ steel/aluminum hybrid

Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink© telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

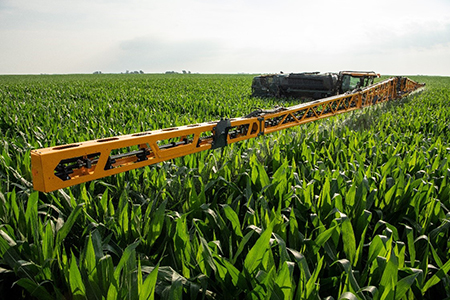

Hagie© STS Sprayer in corn

No matter the field or crop conditions, it is important to be able to feed and protect your crops throughout the entire growing season. The all-season capability and performance of the STS Sprayers enable you to enter the field any day.

• Gliding over crop with 1.88 m (74 in.) of underframe clearance combined with a narrow in-row crop package and smooth transition shields minimizes impact and crop disturbance.
• Standard AWS ensures the rear tires follow the front tires, leaving only two tracks while turning.
• Not only does the STS excel in late-season, tall-crop applications, but its balanced weight distribution with the tank full, empty, or anywhere in between and optional floatation tires enable it to perform in challenging field conditions all year long.

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

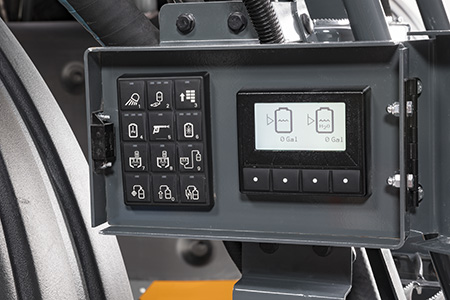

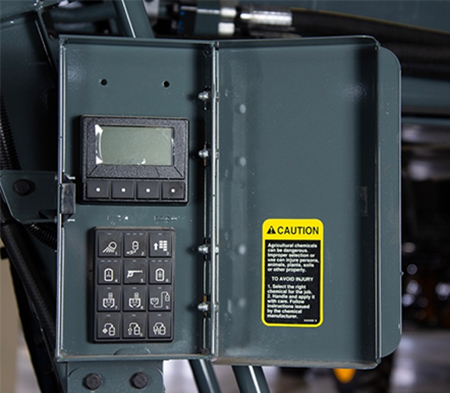

PowrSpray solution keypad

Covering acres is important and doing so with accuracy and precision is essential. The PowrSpray solution control system found on the Hagie© STS Sprayers makes sure every acre is covered precisely. The predictive pump control ensures target rates are accomplished faster, even in challenging dynamic conditions. Add the optional dedicated pull-on pump for fast and accurate solution tank loading and/or ExactApply© for nozzle-by-nozzle control.

• Predictive pump control anticipates changes in flow to maintain target rate
• Electronic solution tank level indication
• Fast and accurate loading with the optional dedicated pull-on pump
• Optional eductor
• Optional ExactApply nozzle control

The solution keypad found on the cab entry ladder provides control of critical solution functions from the ground, eliminating the need to climb back into the cab during tending.

For operators that prefer the front fill location, there is an option to relocate the PowrSpray solution control system keypad to the front fill location for ease of utilizing the features offered on the keypad.

Dealer Use Only:

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

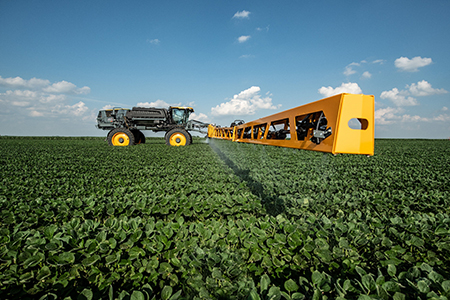

Hybrid sprayer boom

Cover acres with confidence and control. The Hagie hybrid front boom lineup offers a lightweight yet durable design by combining both steel and aluminum. Strong steel composes the interior sections of these booms, providing strength and flexibility where you need it. The outer sections are made of aluminum, reducing overall weight and improving control. Special consideration for hose and plumbing routing improves operator visibility and overall boom cleanliness. Spray tips and nozzle bodies are protected from impact as they are positioned within the booms structure.

• Improved visibility and lighter overall weight than all-aluminum booms on previous-generation models
• Available in a range of widths and nozzle spacings
• Large range of application heights from 58.4 to 279.4 cm (23 to 110 in.)
• Three-direction, spring-applied outer breakaway
• Hydraulic main boom breakaway
• 18-m (60-ft) outer wing folded width on 27-, 30-, and 36-m (90-, 100-, and 120-ft) booms
• 21-m (70-ft) outer wing folded with on 40-m (132-ft)
• Locking connection between the inner and outer sections of the boom ensures rigidity

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Boom Update

The hydraulic cylinders have been updated along with surrounding structure to improve the folding and unfolding of the booms. The improved performance is especially beneficial when a drop system is installed.

The electronically controlled CommandDrive drive system provides an infinite range of field speeds and operator adjustability. The single hydrostatic drive pump provides flow to four variable displacement wheel motors. The system works automatically to continuously adjust they system to match target speed.

• Real time traction control ™ CommandDrive monitors for wheel slip and diverts oil flow to send power to the other wheels. This system monitors for slip front to rear, side to side, and crossways for maximum control and minimal slippage. Two predefined traction control settings are available (normal and severe) in addition to a custom setting that allows for manual control of both slip and de-stroke percentages.
• Operator programmable speed ranges ™ Select the number of speed ranges from 1 to 20 and the first and last range top speed. This allows the drive system to be tuned for operator preference and field conditions.
• Scroll wheel speed range selection ™ By scrolling the wheel on the back of the control handle, operators select the desired speed range. In addition to the scrolling feature, the scroll wheel can be pushed to rapidly change between spray and turn speed. Spray and turn speed can be set by the operator within the corner post display.

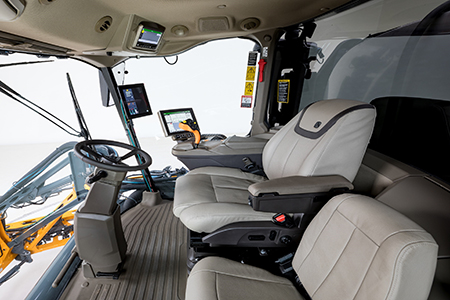

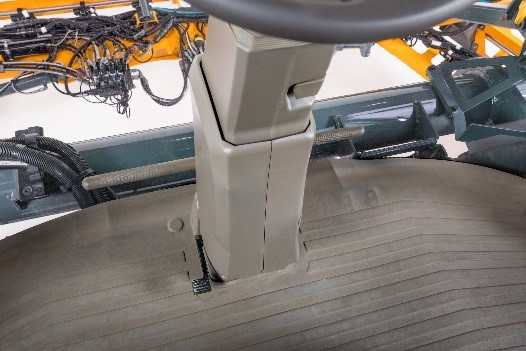

Cab with Ultimate Comfort and Convenience package

The Ultimate Comfort and Convenience package offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

• Increased comfort from leather seat with massage, heating and cooling, electronic controls and better swivel
• Easily make adjustments on the go
• Improved visibility on the left and right with better sight lines to the crop

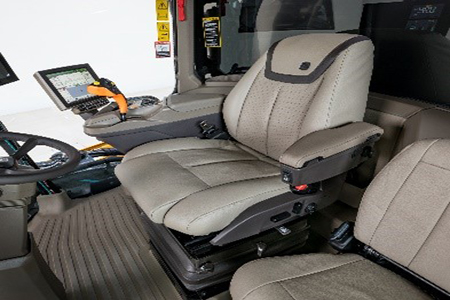

Vision leather seat

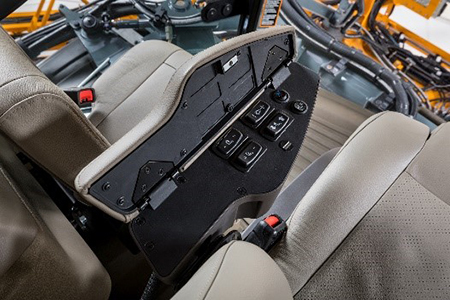

Heating, ventilation, and massage controls for Vision seat

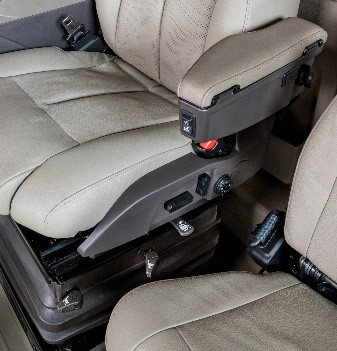

Electric position controls for Vision seat

Vision leather seat

• Improved swivel seat ™ 16 degrees to the left and 16 degrees to the right
• Heated and ventilated cooling
• Massaging functions to reduce fatigue during long days in the field
• Electronic controls that make it easier to adjust the seat to the preferred location
• Pneumatic lumbar
• Cushion length adjust

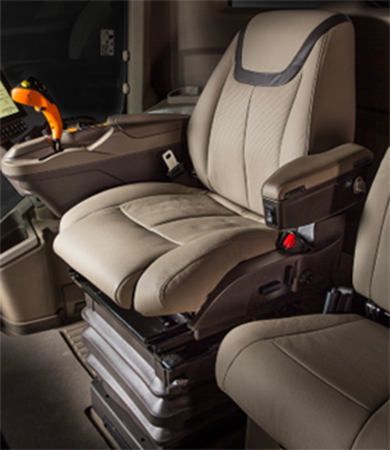

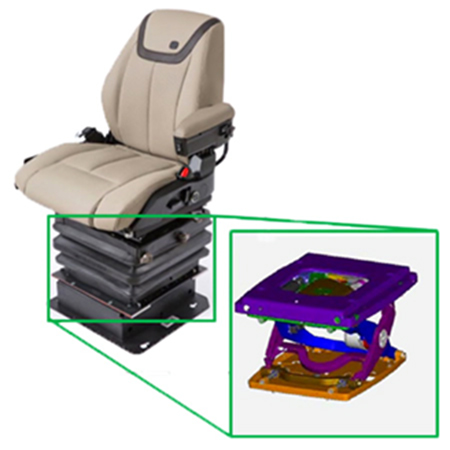

ActiveSeat II

ActiveSeat II

ActiveSeat II

When spraying and transport conditions are not ideal, it is important that comfort is not sacrificed. With the Hagie’s Ultimate cab package, a seat suspension package is offered to improve spraying comfort even further. This seat provides the highest level of comfort during bumpy conditions and ensures operators will finish their long harvest days without aches and pains.

Redesigned using an electric motor for quicker response and a simplified design, the ActiveSeat II seat suspension option significantly reduces vertical motion of the operator up to 90 percent compared to the machine, ensuring a smoother ride than any seat suspension options offered by Hagie in the past.

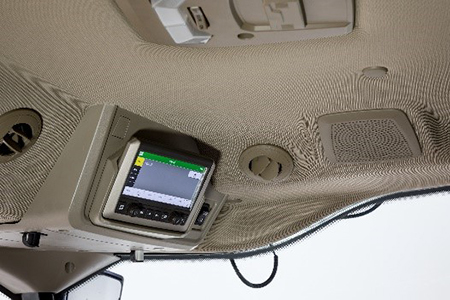

Digital touchscreen radio

Apple CarPlay® radio
The 16.5-cm (6.5-in.) state-of-the-art digital touchscreen radio works with Apple CarPlay and provides a multitude of entertainment options. CarPlay is a smarter, safer way to use an iPhone® mobile device when driving.

• Connect phone via Bluetooth® wireless or USB to play music
• Check the weather
• Navigation
• Phone calls
• Voice control

Door cinch with remote door opening

• Door cinch reduces the force needed to close the door
• Electric motor makes it easier to open and close the door without slamming
• Remote door opening and door lock-unlock fob
• Minimize residue exposure from outside surfaces by using the door fob to remotely open the door

CommandARM© console and controls with display

4600 CommandCenter© Display

• Improved visibility with 80 degrees of swivel to the right

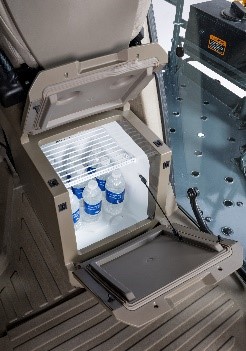

Refrigerator

Refrigerator

• Keep beverages and other items cool

Plenty of storage

• Three cup holders
• Easily accessible storage compartments located to the right and behind the seat

Footrest

Bluetooth is a trademark of Bluetooth SIG, Inc. Apply CarPlay and iPhone are trademarks of Apple Inc.

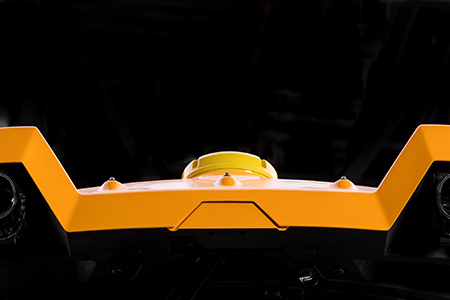

StarFire 7000 Integrated Receiver on Hagie© STS Sprayers

The StarFire 7000 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7000 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.

Similar to the StarFire 6000 Integrated Receiver, the StarFire 7000 eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

With updated Ethernet connectivity, software updates are easier and faster. StarFire 7000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 7000 Integrated Receiver because of Ethernet connectivity.

Benefits to the StarFire 7000 with SF-RTK

• 5-year repeatability
• 10-minute pull-in time
• 2.5-cm (1-in.) pass-to-pass accuracy
• Drop-in replacement for StarFire 6000 Integrated Receivers

To learn more about the StarFire 7000, visit the StarFire 7000 page.
