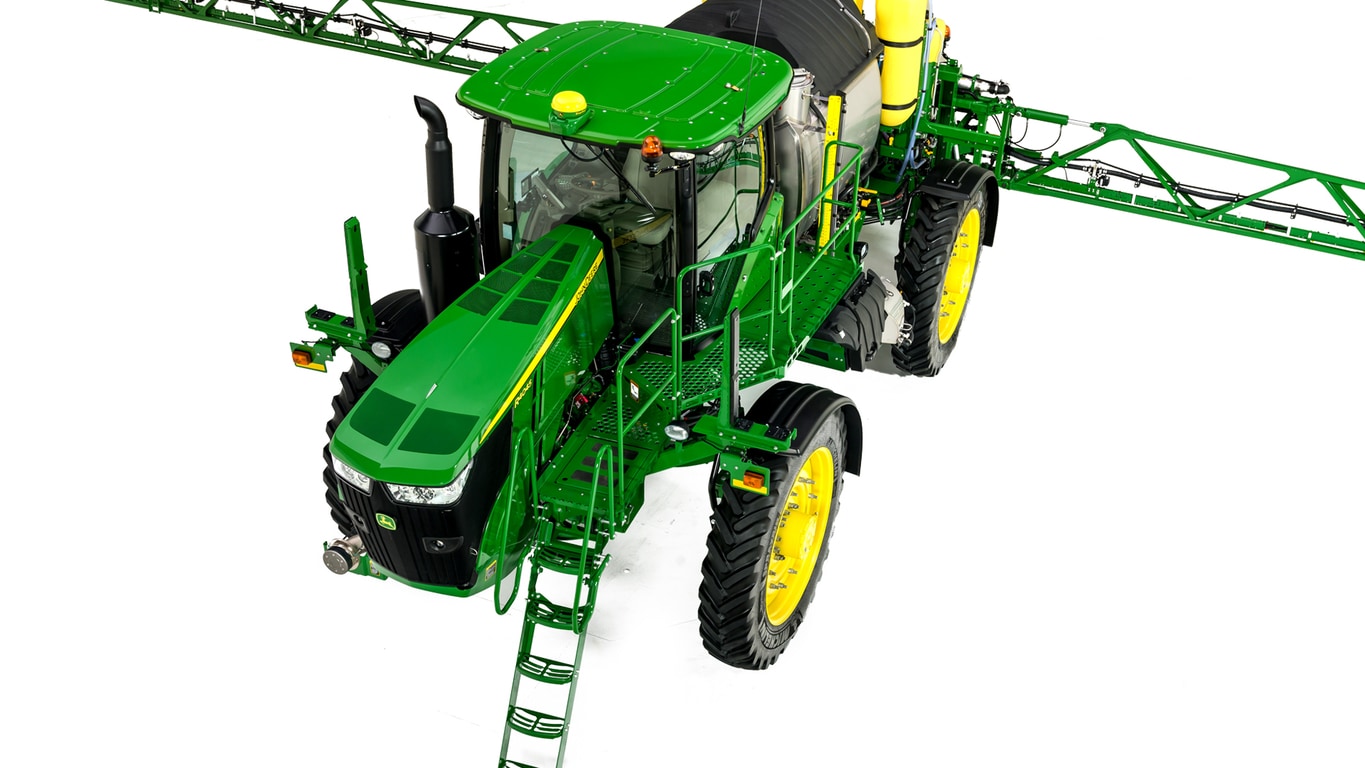

John Deere R4045

Make fewer passes through the field and reduce compaction, as well as time spent spraying, with the optional 36.6 m (120 ft) boom.

All 27.4-m (90-ft), 30.5-m (100-ft), and 36.6-m (120-ft) booms are more stable thanks to the swing link suspension, which helps translate rough areas in the field into horizontal (side-to-side) movement of the boom rather than lateral (up and down) movement. This additional stability means increased productivity as the boom now has the ability to more accurately maintain spray height above the crop, delivering a precise spray pattern. The swing link suspension also translates into uptime as the additional stability means less crop damage, resulting in less mechanical boom damage.

Finally, the enhanced design allows the boom to unfold and fold faster, getting the operators into the field more quickly, and the flat fold design delivers superior transport visibility.

Field speeds increased to 40 km/h (25 mph)

Road speeds increased to 56 km/h (35 mph)

Efficiency and productivity are key drivers to any successful application operation. To meet this need, the R4038 and R4045 have increased spray and transport speeds allowing operators to get jobs done faster and move onto the next field sooner. Operators can now travel 25 percent faster across the field, allowing them to spray more acres per day. Transport speed has also been increased by 16.5 percent, which gets operators to the next field quicker. This translates into a 40 km/h (25 mph) spray speed and 56 km/h (35 mph) road transport speed, boosting overall productivity throughout the day.

NOTE: If product is in the solution tank or dry bin, the level sensor inside of the tank or bin will limit machine transport speed to 48.3 km/h (30 mph).

Dual strut suspension

Smoother ride in field

Machine performance and operator comfort are requirements during long days of operation. The field-proven dual strut independent wheel air-ride suspension reduces overall machine maintenance. This suspension also provides a best-in-class ride, even in the roughest fields.

At the end of the spraying season operators can keep their sprayers working for them by converting them to dry nutrient applicators with the addition of the New Leader® DN456 or DN485 Dry Spinner Spreader dependent upon the dry product they wish to apply. This conversion can be completed in as little as four hours and involves the removal of the wet solution skid and the installation of the dry spinner spreader.

The DN456 features a carrying capacity of up 5.6 m³ (200 cu ft) of dry fertilizer or Ag lime while the larger DN485 features a carrying capacity of up to 8.5 m³ (300 cu ft) of dry fertilizer only. The DN456 is capable of holding 6.6 tons of fertilizer or 10 tons of ag lime and the DN485 is capable of holding 10 tons of fertilizer with variable rate applications from 34 kg/ha (75 lb/acre u)p to 3 ton/ha (acre). The 1.83-m (72-in.) spinner heights allow spread width up to 32 m (105 ft) as it propels material across the pass. This equates to a consistent spread pattern across the field and decreased cost of operation for the 4 Series Sprayers.

The DN456 and DN485 can be ordered with either 304 stainless-steel or 409 painted spreader material, single or dual product bin configuration, with a #4 belt over chain conveyor.

New Leader is a trademark of Highway Equipment Company.

Solution Command offer push button loading

12-button keypad and micro-display

4 Series Sprayers are available with the SCS and have been completely redesigned to allow quick and easy operation at the load station for all operator skill levels. The optional system allows complete automation at the load station with a 12-button keypad. The features include the following:

• Fill station light on/off
• Pump on/off
• Agitation
• Pump speed increase
• Pump speed decrease
• Eductor on/off
• Master on/off
• Automated rinse cycle
• Visual nozzle check
• Pull-on fill
• Push-on fill
• Target fill

The system also features a micro-display, providing real-time feedback on the system operations, as well as ability to select a rinse method and the ability to monitor progress during the automated rinse function. Overall, the enhanced Solution Command System increases operational performance by increasing ease of use through automation at the load station.

Field-installed 511-L (135-gal.) direct-injection system

Field-installed 889-L (235-gal.) direct-injection system

As solution tank mixes become more complex, operators need a better way to manage the products they are mixing in helping to reduce the risk of chemical residue. The integrated direct-injection system provides an additional carrying capacity for raw chemicals and allows injection of single, dual, or triple products directly into the boom depending on installed configuration.

NOTE: Low-volume tanks and pumps must be configured with at least one high-volume tank and pump. High-volume tank and pump can be configured by itself.

Direct injection helps provide quicker changeovers and faster cleanouts while also helping to minimize the risk of using multiple chemicals. This is accomplished by allowing operators the ability to isolate higher-residual-risk chemicals in the injection system while mixing lower-risk chemicals in the solution tank.

The minimum and maximum application rates for each pump are as follows:

NOTE: See Operator’s Manual for additional details based on boom size and speed range, and refer to Tools/Direct Inject Calculator within the ApplyPlus™ mobile app (download via Apple® App Store® or Google Play™ store).

Apple and App Store are trademarks of Apple Inc. Google Play is a trademark of Google LLC.

Custom applicators are consistently looking for ways to achieve more acres per day. For this, John Deere offers the Load Command system, a fully-integrated solution designed specifically for the R4045 Self-Propelled Sprayer.

With this solution, load applicators are able to load 4542 L (1200 gal.) of liquid in as fast as 3 minutes. This increased loading time allows for more spraying time or more acres per day.

The Load Command system is a revolutionary product that further complements the three-season asset-utilization value offered by John Deere’s largest sprayer.

How it works

The Load Command system allows the operator to pull the sprayer up to the tender unit, couple the Load Command tender arm to the Load Command coupler on the sprayer, and receive a full 4542-L (1200-gal.) load in as fast as 3 minutes.

Load Command dramatically reduces the fill time and the amount of operator interface time. When the system completes loading, the couplers automatically disengage from each other. This allows the operator to remain in the cab with the ability to quickly return to spraying.

By providing improved loading times, the John Deere R4045 Sprayer with Load Command is more versatile, more productive, and will provide a better overall return on investment.

With the ability to create more spraying time, the Load Command system enables a custom applicator to achieve more value by applying products more efficiently and, in turn, generating more revenue per season.

NOTE: Load Command and Front Fill are not compatible to be installed on the machine at the same time. Additionally, load Command is compatible as a field-installed bundle for the 4542-L (1200-gal.) 4940 machine as well.

Additional information

• Tender arm
• Couplers
• Load Command pump

Increase productivity up to 20 acres per hour* through wider spray speeds and rate ranges. Better manage drift and improve spray quality and precise application.

*NOTE: Assumes a 3.2-km/h (2-mph) average operating speed increase.

Wider speed range while maintaining target rate and pressure

Consistent droplet size is critical to drift management and precise application. The ExactApply system produces a consistent droplet size through:

• 15/30-hz pulse width modulation that maintains spray pressure throughout a wider speed and rate range
• Automatic nozzle switching between two nozzles that maintains the desired spray pressure range while conventional spraying

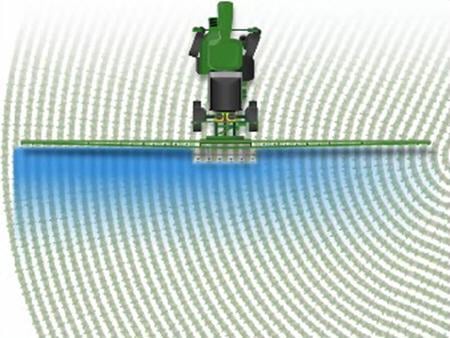

Turn compensation

Control gallons per acre throughout turns

Conventional spraying technology applies the same rate throughout the width of the boom while turning, causing under application on the outside of the boom and over application on the inside of the boom.

ExactApply varies the rate across the boom, ensuring the desired application rate. The rate decreases on the inside of the turn to not subject crop to chemical burn, while the rate on the outside of boom increases, ensuring the crop receives the desired application rate.

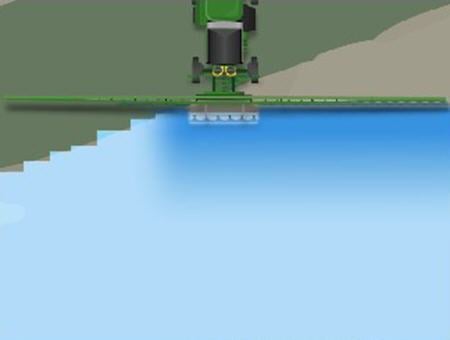

Individual nozzle control

Traditional nozzle control functions in 11 sections, meaning section widths vary from 2.4 to 3.35 m (8 to 11 ft), depending upon boom width.

Avoid spraying waterways while ensuring coverage

Individual nozzle control minimizes overlap by controlling product application through individual nozzles. This reduces chemical cost and ensures the product is placed where it is needed most.

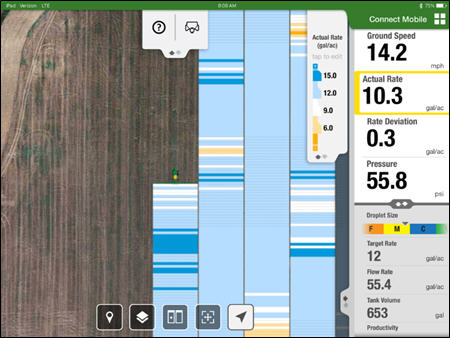

Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance

Connect Mobile overview

John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.

Spraying attributes

Monitor key performance indicators in map layers and dashboard tiles such as:

• Actual rate
• Rate deviation
• Pressure
• Ground speed
• Droplet size
• Target rate
• Flow rate
• Tank volume
• Productivity
• Fuel rate

In base equipment

Connect Mobile hardware is factory installed on all model year 2017 and newer R4030, R4038, and R4045 Sprayers, making it easy to get started with Connect Mobile.

Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.

iPad and Apple are trademarks of Apple Inc.

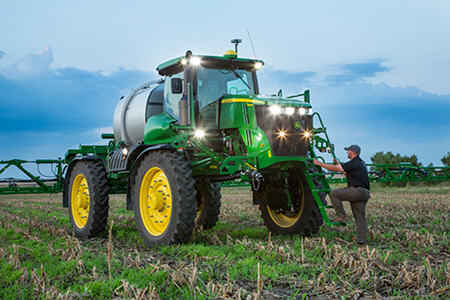

Experience fuel saving and noise reduction with CommandDrive

Spray more acres per day at a lower cost of operation with the CommandDrive powertrain. You will see an improved system response to maintain consistent application and transport speeds in challenging conditions, while reducing overall fuel consumption and cab noise.

The CommandDrive powertrain comes in base on all R4060 and R4045 Sprayers. This powertrain has the following features:

• Auto Mode dynamically commands engine speed depending on load requirements
• Reduce engine speed and save up to 20 percent on fuel consumption
• 3- to 5-decibel reduction in noise for long hours in the cab
• Single pump flow instead of two
• Improved traction control

Make fewer passes through the field and reduce compaction, as well as time spent spraying, with John Deere booms.

All John Deere booms are more stable due to the swing link suspension, which helps translate rough areas in the field into horizontal (side-to-side) movement of the boom rather than lateral (up and down) movement. This additional stability means increased productivity as the boom now has the ability to more accurately maintain spray height above the crop, delivering a precise spray pattern. The swing link suspension also translates into uptime as the additional stability means less crop damage, resulting in less mechanical boom damage.

The enhanced design allows the boom to unfold and fold faster, getting the operators into the field quicker, and the flat fold design delivers superior transport visibility.

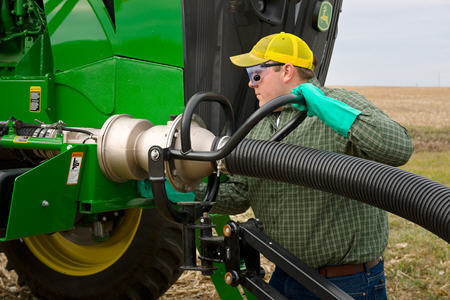

Quick loading with the Load Command system

Load at speeds as fast as 1500 L/min (400 gpm) with the fully integrated Load Command system available for John Deere’s largest sprayer models. This highly efficient loading time allows for more spraying time or more acres per day while complementing the machine’s three-season asset-utilization value.

How it works

Load Command allows the operator to pull the sprayer up to the tender unit, couple the Load Command tender arm to the Load Command coupler on the sprayer, and receive a full 4542-L (1200-gal.) load in as fast as 3 minutes and a full 6057-L (1600-gal.) load in 4 minutes.

Load Command dramatically reduces the fill time and the amount of operator interface time. When the system completes loading, the couplers automatically disengage from each other. This allows the operator to remain in the cab with the ability to quickly return to spraying.

By providing improved loading times, the John Deere R4045 and R4060 Sprayers with Load Command are more versatile, more productive, and will provide a better overall return on investment.

With the ability to create more spraying time, the Load Command system enables a custom applicator to achieve more value by applying products more efficiently and, in turn, generating more revenue per season.

Compatibility

Load Command can be ordered from the factory for R4045 and R4060 Sprayer models equipped with Auto Fill.

NOTE: Load Command and Front Fill are not compatible to be installed on the machine at the same time.

Additional information

• Tender arm
• Couplers
• Load Command pump

Turn compensation mode

Individual nozzle control mode

John Deere’s intelligent nozzle control system ExactApply helps producers better manage drift and deliver a precise application. By maintaining target rate and pressure over a wider speed range, ExactApply can improve productivity up to 20 acres per hour*.

*NOTE: Assumes a 3.2-km/h (2-mph) average operating speed increase.

ExactApply is offered as a factory-installed option as well as a performance upgrade kit that can be added to existing 4 Series Sprayer models.

How it works

The ExactApply system features multiple modes of operation including pulse-width modulation (PWM) and individual nozzle control:

• 15-Hz PWM pulses one solenoid to achieve a consistent droplet size and maintain spray pressure throughout a wider range of speeds and application rates.
• 30-Hz PWM (combined mode) pulses both solenoids in the ExactApply nozzle body at 15 Hz, providing superior coverage. Combined mode allows ExactApply to have a 25 percent increased flow over current competitive systems in the market.
• AutoSelect A/B automatically switches between two nozzles to maintain the desired spray pressure range while spraying conventionally.
• Turn compensation varies the rate across the boom, ensuring the desired application rate. The rate decreases on the inside of the turn to not subject crop to chemical burn, while the rate on the outside of boom increases, ensuring the crop receives the desired application rate.
• Individual nozzle control minimizes overlap by controlling product application through individual nozzles. This reduces chemical cost and ensures the product is placed where it is needed most. In comparison, traditional nozzle control functions in 11 sections, meaning section widths vary from 2.4 to 3.35 m (8 to 11 ft), depending upon boom width.

Experience fuel saving and noise reduction with CommandDrive

Spray more acres per day at a lower cost of operation with the CommandDrive powertrain. You will see an improved system response to maintain consistent application and transport speeds in challenging conditions, while reducing overall fuel consumption and cab noise.

The CommandDrive powertrain comes in base on all R4060, R4045, R4044, R4038, and R4030 Sprayers. This powertrain has the following features:

• Auto Mode dynamically commands engine speed depending on load requirements
• Reduce engine speed and save up to 20 percent on fuel consumption
• 3- to 5-decibel reduction in noise for long hours in the cab
• Single pump flow instead of two
• Improved traction control

4 Series Sprayer operator station

When operators first enter the Command View III cab, they will notice that significant changes have been made. Key sprayer controls are more easily accessible to the operator on the redesigned CommandARM© control panel and the multifunction handle has a more ergonomic fit and feel.

The multifunction handle has six reconfigurable buttons, a scroll to select speed range, and allows operators to better manage their headlands with the Headland Management System (HMS©) button. To finish out the upgrades, the GreenStar© display has been upgraded to a faster, more user-friendly 4600 CommandCenter© display, which allows operators to efficiently capture, manage, and transfer data.

Comfort continues to be enhanced by the ComfortCommand© seat, which offers both fore-aft and lateral attenuation along with 15 degrees of right-hand seat swivel on all cab options. For first-class comfort, the premium cab offers a heated/ventilated leather seat and light-emitting diode (LED) cab lights.

The 4 Series Sprayers are JDLink© telematics system capable, which enable features such as John Deere Wireless Data Transfer (WDT), Service ADVISOR© Remote diagnostics, and Remote Display Access (RDA). These integrated solutions enable additional uptime and reduce cost of operation. All of the CommandView III cab features allow operators to run longer hours, increasing the ability to get more acres sprayed in a day.

Make fewer passes through the field and reduce compaction, as well as time spent spraying, with John Deere booms.

All John Deere booms are more stable due to the swing link suspension, which helps translate rough areas in the field into horizontal (side-to-side) movement of the boom rather than lateral (up and down) movement. This additional stability means increased productivity as the boom now has the ability to more accurately maintain spray height above the crop, delivering a precise spray pattern. The swing link suspension also translates into uptime as the additional stability means less crop damage, resulting in less mechanical boom damage.

The enhanced design allows the boom to unfold and fold faster, getting the operators into the field quicker, and the flat fold design delivers superior transport visibility.

Solution Command offer push button loading

12-button keypad and micro-display

4 Series Sprayers are available with the SCS and have been completely redesigned to allow quick and easy operation at the load station for all operator skill levels. The optional system allows complete automation at the load station with a 12-button keypad. The features include the following:

• Fill station light on/off
• Pump on/off
• Agitation
• Pump speed increase
• Pump speed decrease
• Eductor on/off
• Master on/off
• Automated rinse cycle
• Visual nozzle check
• Pull-on fill
• Push-on fill
• Target fill

The system also features a micro-display, providing real-time feedback on the system operations, as well as ability to select a rinse method and the ability to monitor progress during the automated rinse function. Overall, the enhanced Solution Command System increases operational performance by increasing ease of use through automation at the load station.

Quick loading with the Load Command system

Load at speeds as fast as 1500 L/min (400 gpm) with the fully integrated Load Command system available for John Deere’s largest sprayer models. This highly efficient loading time allows for more spraying time or more acres per day while complementing the machine’s three-season asset-utilization value.

How it works

Load Command allows the operator to pull the sprayer up to the tender unit, couple the Load Command tender arm to the Load Command coupler on the sprayer, and receive a full 4542-L (1200-gal.) load in as fast as 3 minutes and a full 6057-L (1600-gal.) load in 4 minutes.

Load Command dramatically reduces the fill time and the amount of operator interface time. When the system completes loading, the couplers automatically disengage from each other. This allows the operator to remain in the cab with the ability to quickly return to spraying.

By providing improved loading times, the John Deere R4045 and R4060 Sprayers with Load Command are more versatile, more productive, and will provide a better overall return on investment.

With the ability to create more spraying time, the Load Command system enables a custom applicator to achieve more value by applying products more efficiently and, in turn, generating more revenue per season.

Compatibility

Load Command can be ordered from the factory for R4045 and R4060 Sprayer models equipped with Auto Fill. Load Command is also available as a performance upgrade kit for existing 4930, 4940, R4045, and R4060 Sprayers.

NOTE: Load Command and Front Fill are not compatible to be installed on the machine at the same time.

Field-installed 511-L (135-gal.) direct-injection system

Field-installed 889-L (235-gal.) direct-injection system

As solution tank mixes become more complex, operators need a better way to manage the products they are mixing in helping to reduce the risk of chemical residue. The integrated direct-injection system provides an additional carrying capacity for raw chemicals and allows injection of single, dual, or triple products directly into the boom depending on installed configuration.

NOTE: Low-volume tanks and pumps must be configured with at least one high-volume tank and pump. High-volume tank and pump can be configured by itself.

Direct injection helps provide quicker changeovers and faster cleanouts while also helping to minimize the risk of using multiple chemicals. This is accomplished by allowing operators the ability to isolate higher-residual-risk chemicals in the injection system while mixing lower-risk chemicals in the solution tank.

The minimum and maximum application rates for each pump are as follows:

NOTE: See Operator’s Manual for additional details based on boom size and speed range, and refer to Tools/Direct Inject Calculator within the ApplyPlus© mobile app (download via Apple® App Store® or Google Play© store).

Apple and App Store are trademarks of Apple Inc. Google Play is a trademark of Google LLC.

Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance

Connect Mobile overview

John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.

Spraying attributes

Monitor key performance indicators in map layers and dashboard tiles such as:

• Actual rate
• Rate deviation
• Pressure
• Ground speed
• Droplet size
• Target rate
• Flow rate
• Tank volume
• Productivity
• Fuel rate

In base equipment

Connect Mobile hardware is factory installed on all model year 2017 and newer R4030, R4038, R4044, R4045, and R4060 Sprayers, making it easy to get started with Connect Mobile.

Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.

iPad and Apple are trademarks of Apple Inc.

Keep your machines working for you by converting them to dry nutrient applicators with the addition of a New Leader® DN456 Dry Spinner Spreader. This conversion can be completed in as little as 4 hours and involves the removal of the wet solution skid and the installation of the dry spinner spreader.

The DN456 features a carrying capacity of up 5.6 m³ (200 cu ft) or 6.6 tons of dry fertilizer (not approved for ag lime) and is capable of variable rate applications from 34 kg/ha (75 lb/acre) up to 3 ton/acre. The 1.83-m (72-in.) spinner heights allow spread width up to 32 m (105 ft) as it propels material across the pass. The New Leader G4 spinner technology provides a consistent spread pattern across the field for uniform pass to pass application.

The DN456 can be ordered with either 304 stainless-steel or 409 painted spreader material in single or dual product bin configurations with a #4 belt over chain conveyor.

New Leader is a registered trademark of Highway Equipment Company.

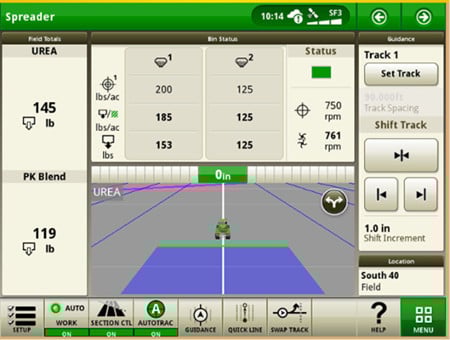

SpreadStar dry rate control on Gen 4 4600 CommandCenter© display

The SpreadStar dry rate control system is a standard feature that is integrated into the design of the self-propelled spreader chassis (not a third-party ISO control add-on) and delivers accurate and consistent on-target rate control. All dry spreading and vehicle functions are displayed on the Gen 4 4600 CommandCenter display for easy operation and setup. In addition to these functions, all precision technology can be used on the same display for complete integration and ease of operation. The engine, chassis, dry spreader system, and precision controllers provide central communication through the display for many vehicle and dry system functions that are simple and easy to use.

• Provides superior rate control, response times, and ease of use
• Rate control locks on to the desired application rate much more quickly and maintains it better than third-party controllers
• Easy to understand and simple to set up the key values you must enter to execute the spreading job
  • No cross reference to nodes or a task controller like other third-party systems
• High-speed hydraulic pulse-width modulated control valve varies conveyor shaft speed to produce only the required product flow with easy-to-follow feed rate calibration procedures

Engine, transmission, and hydraulic drive pump work together to optimize efficiency of the entire system, providing fuel savings and optimizing power to the ground and delivery of product to the spinners

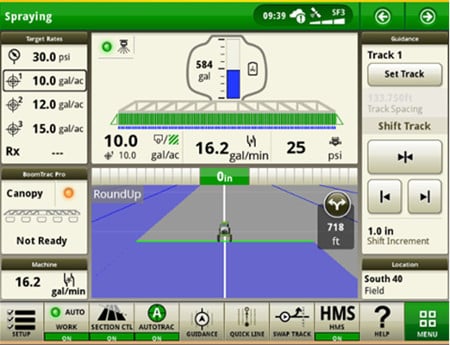

SprayStar spray rate control on Gen 4 4600 CommandCenter© display

The SprayStar spray rate control system is a standard feature that is integrated into the design of the self-propelled sprayer system (not a third-party ISO control add-on) and delivers accurate and consistent on-target rate control. All spraying and vehicle functions are displayed on the Gen 4 4600 CommandCenter display for easy operation and setup. In addition to these functions, all precision technology can be used on the same display for complete integration and ease of operation. The engine, chassis, solution system, and precision controllers provide central communication through the display for many vehicle and solution system functions that are simple and easy to use.

• Provides superior rate control, response times, and ease of use
• Rate control locks on to the desired application rate much more quickly and maintains it better than third-party controllers
• Easy to understand and simple to set up the key values you must enter to execute the spraying job
  • No cross reference to nodes or task controller like other third-party systems
• High-speed hydraulic pulse-width modulated control valve varies solution pump speed to produce only the required solution flow in coordination with the flow meter and pressure sensor rather than a valve to restrict flow

Engine, transmission, and hydraulic drive pump work together to optimize efficiency of the entire system, providing fuel savings and optimizing power to the ground and delivery of product through the solution system to the nozzles

Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink© telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
