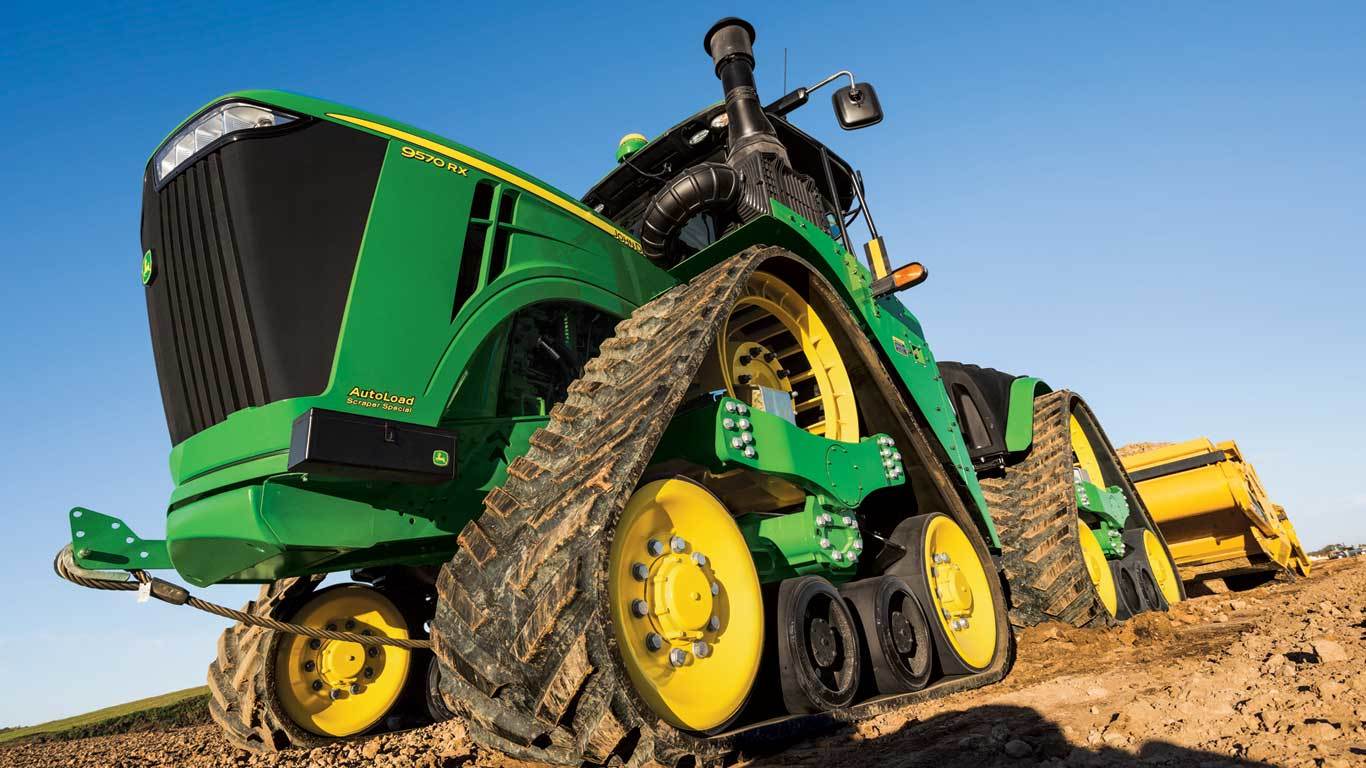

John Deere 9570RX

DEBUG Ind: Agriculture, Cat: Scraper Systems, SubCat: Scraper Special Tractors, SubSubCat: 9570rx Scraper Special Tractor
Feature Overview
John Deere 9570RX
  • Cummins QSX 15L
  • e18™ PowerShift Transmission
  • Cab Suspension
  • CommandView™ III cab
Engine description Cummins QSX15 (B20 diesel compatible)
Engine displacement 14.9 L / 912 cu in.
Rated engine power 419 kW / 570 hp
Transmission type Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h / 25 mph
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 9570RX
  • Cummins QSX 15L
  • e18™ PowerShift Transmission
  • Cab Suspension
  • CommandView™ III cab
Engine description Cummins QSX15 (B20 diesel compatible)
Engine displacement 14.9 L / 912 cu in.
Rated engine power 419 kW / 570 hp
Transmission type Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h / 25 mph
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Standard CommandView™ III cab offers unsurpassed amenities

CommandView III cab CommandView III cab

The standard CommandView III cab offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

Features:

  • ComfortCommand© seat with air suspension, lumbar support, swivel, fore-aft and lateral attenuation, backrest angle adjustment, adjustable left-hand armrest, and 40-degree right-hand seat swivel
  • Operator presence system that warns if the operator is out of the seat while operating key functions
  • Folding instructional seat
  • CommandARM© control center with integrated controls
  • 4100 or 4600 Generation 4 CommandCenter© processor
  • Behind-the-seat storage
  • Left-hand storage compartment
  • Passive noise reduction system
  • Service ADVISOR© diagnostic system data port
  • Tilt/telescoping steering wheel with position memory
  • Swing-out rear window, opens 30 degrees
  • Right- and left-outside mirrors (manually adjustable mirror head)
  • Monitor mounts on right-hand front post and rear cab post
  • Standard radio package, including AM/FM stereo and weatherband with remote controls, auxiliary input jack, four speakers, and an external antenna
  • Laminated glass
  • Air conditioner and heater with automatic temperature controls (ATC)
  • Two 12-V convenience outlet (cigarette lighter style)
  • One 12-V 3-pin outlet with adapter (provides switched and unswitched power)
  • One International Organization for Standardization (ISO) nine-pin connector
  • Power strip with convenience plug adapter
  • Hitch control lever lock and selective control lever lock
  • Two-speed and intermittent front and rear wiper with washer
  • Front pull-down sunshade
  • Digital cornerpost display with:
    • Fuel level gauge, including low fuel warning
    • Temperature gauge
    • Diesel exhaust fluid (DEF) gauge, including low DEF warning
    • Engine rpm
    • Transmission commanded gear or speed
    • Vehicle system functions, such as iTEC© end-row guidance, that are operating
  • Inside-mounted rearview mirror
  • Beverage holders sized to accommodate various containers
  • Interior left-hand dome light
ComfortCommand seat
ComfortCommand seat ComfortCommand seat

ComfortCommand seat improves ride quality and helps to reduce operator fatigue

Features include:

  • Armrests, lumbar support, and backrest angle are easily adjusted to match operator preference.
  • Shock absorbers dampen the motion effect of the tractor for an improved ride.
  • Seat height adjustments are conveniently located on the left armrest.
  • Fore-aft adjustment is easy to reach located on the left front of the seat.
  • Swivel adjustment, located on the front of the seat, allows the seat to be swiveled 40 degrees to the right or eight degrees to the left of the center position.
  • Operator presence switch warns if the operator is out of the seat while operating key functions.
  • Seat belt retractor.
  • Centered cab seat, providing excellent over-shoulder visibility.
  • Adjustable shock absorber permitting ride adjustment from soft to firm to match the operator's desired comfort level.
  • Removable cushions for easy cleaning.
CommandARM
CommandARM controls CommandARM controls

John Deere 9 Family Tractors feature the CommandARM with integrated Generation 4 CommandCenter display. The control layout of the CommandARM utilizes a clean and efficient design which groups controls by function and builds upon John Deere’s history of intuitive and ergonomic control placement and operation. The design of the CommandARM allows for a 40-degree right seat swivel and adjustable positioning matching the operator’s preference.

Controls located on the CommandARM include:

  • Engine throttle
  • Transmission control for e18© transmission speed PowerShift© transmission
  • Eco mode (minimum engine speed) for e18 speed PowerShift transmission
  • FieldCruise© engine controls
  • Selective control valve (SCV) controls
  • AutoLoad© controls (if equipped)
  • Differential lock on/off and automatic
  • iTEC© sequence switches
  • AutoTrac© assisted steering system resume switch (if equipped)
  • Radio
  • Beacon light on/off
  • Hazard lights on/off
  • Field lights 1/2
  • Heating, ventilation, air-conditioning (HVAC) system
Hydraulic controls

Hydraulic controls utilize fingertip paddle pots for raise/lower and extend/retract functions.

Fingertip paddle pots Fingertip paddle pots

Throttle

The throttle design incorporates buttons which control FieldCruise speed, and transmission eco settings.

Throttle Throttle

Tractor function controls

Located just to the right of the throttle is the Auto-Trac activation button and four sequence controls for iTEC functions. Behind the iTEC sequence controls there are buttons which control the activation and deactivation of differential lock. Differential lock can also be activated by the foot switch on the cab floor.

AutoTrac resume and iTEC strip AutoTrac resume and iTEC strip

Controls for radio, lights, rotary beacon (if equipped), hazard flashers, and HVAC system are located to the center-right on the CommandARM, along with power take-off (PTO) for rear PTO.

Radio, HVAC, hazard flashers, and PTO controls Radio, HVAC, hazard flashers, and PTO controls

Seat swivel

The design of the CommandARM allows for up to 40 degrees of right-hand seat swivel.

Seat swivel Seat swivel
40-degree seat swivel shown 40-degree seat swivel shown
CommandCenter
Generation 4 CommandCenter Generation 4 CommandCenter

The Generation 4 CommandCenters features fast adjustment of tractor functions and controls and are integrated into the CommandARM to create a seamless control center.



The following functions can be adjusted and accessed using the CommandCenter display:

  • Hydraulic settings
  • Hitch settings
  • Transmission settings
  • FieldCruise
  • iTEC programming functions
  • Radio
  • Lights
  • Add all functionality ™ diagnostics, display settings, etc.

The Generation 4 CommandCenter systems have the capability of Remote Display Access (RDA). RDA allows improved communication between an offsite farm manager or dealer and the equipment operator. The user can view exactly what the operator sees on the GreenStar© 3 2630 Display and Generation 4 CommandCenter from almost any internet-connected device. RDA is available on the 4600 and 4100 CommandCenter and allows for an increase in productivity with quicker problem resolution. By using RDA, the cost of operation will decrease due to reduced labor and travel costs, and maximum efficiency will increase profit.


JDLink
JDLink Dashboard JDLink Dashboard

JDLink is the John Deere telematics system designed for operators and managers who desire to take their operations to the next level of productivity and efficiency without leaving the office. Whether it is receiving an e-mail or text message, users can manage the operation in real-time without being in the cab. Using the power of JDLink can optimize productivity, increase uptime, and boost profits with JDLink information all accessible from a laptop, desktop, or mobile device.

JDLink Ultimate provides enhanced machine performance and utilization information that can only be achieved through direct communication with on-board machine controllers. Utilizing John Deere-exclusive telematics technology, users can remotely link to Ultimate-compatible machines to achieve a new level of optimization.

NOTE: Mobile device compatibility and functionality varies.

Monitor assets, performance, and more with JDLink:

  • Increase uptime and reduce time spent managing equipment with JDLink Ultimate
  • Coordinate machine and labor logistics
  • Unleash new possibilities with wireless machine connectivity
  • Locate machines on-the-go with the JDLink app for iPhone®, iPad® or Android© devices
  • Leverage common components from the JDLink system to enable remote support and machine monitoring
  • Industry-exclusive Service ADVISOR Remote with JDLink (Canada link)

For more information on JDLink activations and subscriptions, visit www.StellarSupport.com.


NOTE: JDLink is not available in all geographic regions.

Service ADVISOR
Service ADVISOR Service ADVISOR

Service ADVISOR diagnostics greatly assist in reducing service costs and downtime. It allows the John Deere service technician to readily extract vital information about tractor malfunctions through the Service ADVISOR data port. Diagnostic codes and controller area network (CAN) bus statistics stored by the tractor and visible in the CommandCenter© display are used by service technicians to isolate, identify, and resolve problems.

Diagnostics and CAN bus statistics are not normally used by the operator. Access and use of trouble codes should only be done by a qualified, factory-trained John Deere service technician.

Service ADVISOR Remote

Service ADVISOR Remote takes the machine connectivity of JDLink and takes it one step further. With Service ADVISOR Remote, machines can be diagnosed remotely, saving the cost of a field service call. For example, diagnostic trouble codes can be reset and software updates can be uploaded remotely.



Apple, iPhone, and iPad are trademarks of Apple Inc. Android is a trademark of Google LLC.




High flow hydraulics High flow hydraulics
#

The 115-gpm (435 L/min) hydraulic system (order code 2813) is designed to reduce scraper hydraulic cycle times, thus increasing the efficiency of the tractor/scraper combination.

Two hydraulic pumps are combined for a total of 115-gpm (435 L/min).  Flow through one 19.1-mm (3/4-in.) SCV is 45 gpm (140 L/min). The selective control valves (SCVs) are designed for commercial applications. This system is not recommended for agricultural implements with continuous flow requirements. When maximum hydraulic pump capacity is reached, multiple functions will continue to operate at the same proportional flow rate. This will prevent the rear scraper from slowing down, in relation to the front scraper, when operating the front and rear scrapers at the same time.

When ordering this scraper high-flow option, the tractor will come standard with four SCVs. The two system pumps provide their combined oil flow of 115 gpm (435 L/min) to all four SCVs through a common valve manifold. All of the SCV oil returns to one common reservoir.

19.1-mm (3/4-in.) couplers reduce restriction for increased flow to the scraper. A secondary lowering function accumulator is included with the hydraulic valves so the scraper can be lowered if hydraulic power is lost.

NOTE: This system is not recommended with agricultural implements with continuous flow demand (scraper applications only).


IMPORTANT: Do not use this system with scrapers/implements with 12.7-mm (1/2-in.) couplers/hoses/hydraulic systems. Damage could occur to implement hoses/couplers/components due to high-flow capability of the tractor system.



NOTE: Power Beyond connections are not recommended for use with scraper systems or high hydraulic oil take out demand (example: large or multiple single acting cylinders, raising multiple scraper pans). Power Beyond connections are recommended for agricultural equipment with continuous flow demands (example: variable rate drives, CCS fans).


9R, 9RT, and 9RX service access 9R, 9RT, and 9RX service access

Regular service and maintenance are essential to the performance, productivity, and longevity of all farm machinery.

Maximum uptime is an important element of productivity.

  • 9 Series service points are quick and simple to check.
  • Greater accessibility improves serviceability.

All items in the daily service schedule can be performed without the use of tools:

  • Engine oil, hydraulic oil, coolant level, and water separator can be conveniently accessed from ground level without having to open the hood. Engine oil can be checked by simply removing one small engine side panel.
Engine oil service point Engine oil service point
  • Engine can be easily accessed by simply raising the one-piece hood and removing two engine side panels for more periodic maintenance checks.
  • Single-point latch mechanism ensures easy hood opening and closure.



NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

Refueling
Fuel tank on the 9R Fuel tank on the 9R
Refueling Refueling

The 9R Tractors fuel tank is located over the rear axle. The fuel tank features a dual fill design. This design allows the machine to be filled from either side of the fuel tank. A fuel nozzle holder is located when the operator positions themselves on the gudgeon platform to fill the fuel tank.



The diesel exhaust fluid (DEF) tank is located on the left-hand side of the tractor indicated by a blue cap. It is fillable from ground level and has a protective shield to keep debris out of the fill neck.



Model

Diesel

DEF

9420R

1514 L (400 gal.)* 120 L (31.7 gal.)

9470R

1514 L (400 gal.)* 120 L (31.7 gal.)

9520R

1514 L (400 gal.) 120 L (31.7 gal.)

9570R

1514 L (400 gal.) 120 L (31.7 gal.)

9620R

1514 L (400 gal.) 120 L (31.7 gal.)

*When equipped with double-reduction axle. 1211-L (320-gal.) when equipped with single-reduction axle.

Fuel tank on the left side of 9RT Fuel tank on the left side of 9RT

The 9RT fuel tank is located behind the cab; the fuel fill is located conveniently on the left-hand main platform.



The 9RT Tractors all feature a DEF tank capacity of 93.9 L (24.8 gal.). The fill location is near the diesel fill location.



Model

Diesel

DEF

9470RT

1325 L (350 gal.) 93.9 L (24.8 gal.)

9520RT

1325 L (350 gal.) 93.9 L (24.8 gal.)

9570RT

1325 L (350 gal.) 93.9 L (24.8 gal.)

Model

Diesel

DEF

9470RX

1514 L (400 gal.) 120 L (31.7 gal.)

9520RX

1514 L (400 gal.) 120 L (31.7 gal.)

9570RX

1514 L (400 gal.) 120 L (31.7 gal.)

9620RX

1514 L (400 gal.) 120 L (31.7 gal.)



NOTE:

  • John Deere supports the usage of bio diesel. Bio diesel should meet ASTM D6751 (US) or EN 14214 (European) fuel quality standards.
  • Tractors receive fuel containing a 2 percent bio-diesel blend at the factory.
  • Acceptable blend levels may vary by geographic region.
  • Diesel exhaust fluid will freeze when exposed for longer than three hours to conditions below -11°C (12.2° F).

For more information about the use of bio-diesel in John Deere engines, refer to www.JohnDeere.com/biodiesel.



DEF fill

9R, 9RT, and 9RX Tractors feature an easy-to-use DEF fill system. The 9R and 9RX feature a ground-level fill location, and DEF fill on 9RT is conveniently located on the step platform.



Machine DEF tank capacity
9R 120 L (31.7 gal.)
9RT 93.9 L (24.8 gal.)
9RX 120 L (31.7 gal.)
DEF tank on 9R/9RX DEF tank on 9R/9RX
Engine access
Engine access on 9RX Engine access on 9RX

The tilt hood and side panel design provides additional engine compartment protection. The 9R, 9RT, and 9RX hoods feature the same design for access to engine components.

Pull out the hood release (located on the front, left side) and tilt hood back to open. Engine side panels are quickly and easily removed for access to periodic maintenance items.

In-line DEF filter

9R, 9RT, and 9RX Tractors feature an in-line DEF filter to help protect the DEF pump from any contamination in the DEF tank. This in-line DEF filter is easily serviced with a drain plug to drain any remaining DEF from the filter housing and a replaceable cartridge-style filter.

In-line DEF filter In-line DEF filter

Severe-duty water separator, if equipped

The severe-duty water separator can extend service intervals and helps to protect the tractor’s fuel system from damage associated with lower-quality fuel.

Simply open the drain valve on the bottom of the separator and drain accumulated water.

NOTE: Cummins® QSX 15 L (915.4-cu in.) engines cannot be equipped with a severe-duty water separator; however, the fuel filter has separating capabilities like the primary filter on John Deere Power System engines.

Removing side engine panel Removing side engine panel
Transmission, hydraulic, and axle oil level
Sight gauge on 9R and 9RX Sight gauge on 9R and 9RX
Sight gauge on 9RT Sight gauge on 9RT

A sight glass for the transmission, hydraulic, and axle oil level is located at the back right side of the gudgeon, indicating proper oil levels, and an oil fill neck is located on the back right side of the gudgeon for the 9R and 9RX Tractors. The oil fill is located on the top of the common reservoir on the left side of the 9RT Tractor and a fill tube is located between the steps and engine of the tractor.

  • Provides increased filter capacity compared to previous 9R and 9RT Tractors
  • Transmission, hydraulic, and axle oil should be changed every 1500 hours
  • Filter should be changed every 1500 hours unless filter restriction code occurs
  • Daily and 10-hour inspections of the transmission hydraulic oil level are recommended

NOTE: The tractor should be off and parked on level ground with the hitch in the lowered position when checking the oil level.

  • Sight glass observations will be significantly higher with hot oil temperatures and lower with cold oil or if engine has not run long enough.


NOTE: Oil level above the top mark on the sight glass can result in power loss and heat generation during transport applications.

Battery boost terminal
Battery boost terminal Battery boost terminal

On the 9R and 9RX, a battery boost terminal is located on the left-hand side of the engine for convenient and proper boost assisted starting.

Primary air filter access
Primary engine air filter inspection Primary engine air filter inspection

On the 9R and 9RX, the primary engine air filter is accessible from the left-hand platform for replacement annually or as operating conditions require. The filter is aspirated and extends filter life in dusty conditions by aspirating more than 95 percent of incoming dust. Aspirator suction is created by utilizing the air flow from the cooling fan.



On the 9RT, the primary engine air filter is located at ground level on right side of tractor.

Oil change intervals
Engine oil check/fill location Engine oil check/fill location

Tractors with the 9.0L (549.2-cu in.) and 13.5L (823.2-cu in.) John Deere Power Systems engines feature a 500-hour change interval when using approved John Deere Plus-50© II oil and a John Deere oil filter.

Tractors equipped with the Cummins QSX 15-L (915.4-cu in.) engine have a 400-hour engine oil and oil filter change interval.

  • Previous initial oil and filter change at 100 hours is no longer required due to the factory fill of Break-In© Plus oil.
  • If using anything other than John Deere Plus-50 II oil, a 250-hour change interval is required.  CJ-4 must still be used.
  • Only use ultra-low sulfur diesel fuel and CJ-4, ACEA E9, or ACEA E6 oil.
  • An oil change of 500 hours is possible when using fuel with less than 15 parts per million (ppm) of sulfur, along with John Deere Plus-50 II oil.

See the tractor's operator's manual for oil change intervals and further details.

Battery access
Battery location on 9R and 9RX Battery location on 9R and 9RX
Battery location on 9RT Battery location on 9RT

The 9R and 9RX battery location is behind the left-hand step assembly. There are three bolts that secure the swinging step assembly that need to be removed to completely access the batteries. The 9RT top step of the platform conceals the tractor’s three 12-V batteries with 2775 CCA (925-CCA each). Tractors with the Cummins X15 engine will have four 12-V batteries in the same location as tractors equipped with John Deere Power System engines.

Although the batteries are maintenance free, conditions such as long periods of operation at high ambient temperatures and excessive engine cranking may require adding water.

Windshield washer
Windshield washer bottle on 9R and 9RX Windshield washer bottle on 9R and 9RX

The windshield washer bottle is optional on 9R and 9RX Tractors and is located on the left side of the tractor near the DEF fill point. On 9RT Tractors, it is located on the right-side frame.

Maintenance-free U-joint

Maintenance-free U-joint bearings require no servicing to reduce maintenance time.

Fuse and relay panel
Fuse and relay panel Fuse and relay panel

The electrical fuse and relay panel is located behind the operator’s seat and just below the cab's rear window. Simply lift up on the operator manual cover for access.

  • Contains easy-to-replace automotive blade-type fuses and relays for quick servicing.
  • Spare fuses are provided for each amperage size used.

The diode module contains many of the diodes contained in the system:

  • If a diode problem occurs, simply replace the diode module for easy service and increased uptime.
  • Relays are also fully interchangeable for quick service.



Electrical system (smart load center)

The electrical system provides a full controller area network (CAN) bus based system on the tractor for improved tractor implement integration and flexibility. Incorporated with the system is a smart load center, which provides fewer fuses, fewer connectors, and simplified wiring for increased reliability.

The solid-state load center’s primary function is to control the majority of high-current loads, such as fender floodlights and the horn. This electronic circuitry will monitor loads and voltages to provide fast reaction time and the ability to alert the operator if a circuit overloads or if voltage is out of specification ™ for example, open circuit (undercurrent) or short circuit (overcurrent).

Cab air filters
Cab fresh air filter inspection Cab fresh air filter inspection
Cab recirculation filter Cab recirculation filter

The cab fresh air filter is conveniently located beneath the left side of the cab for all 9 Series products:

  • External service means no mess in the cab from dusty filters
  • Filter housing acts as a dust accumulator compartment
  • Hand screw eliminates need for tools
  • Replace cab fresh air filter every 1000 hours or sooner if plugged or damaged

Cab air recirculation filter



Cab air recirculation filter is located in the roof liner above the operator. 70 percent of the total air volume is recirculated with a blanket effect for enhanced operator comfort.

  • Replace cab air recirculation filter every 1000 hours or sooner if plugged or damaged.

Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator’s manual and those given by the chemical manufacturer when using agricultural chemicals.

Toolbox
Toolbox for 9R, 9RT and 9RX Toolbox for 9R, 9RT and 9RX

A convenient toolbox is located on the left-hand side of the front frame for tool storage and comes standard on all 9R, 9RT, and 9RX Tractors.

9R and 9RX Tractors have an additional storage box conveniently located on top the left-hand platform.

The 9RT has an additional toolbox conveniently located next to the left side of the batteries for additional storage.

Cummins is a trademark of Cummins, Inc.


The e18 transmission delivers smooth shifting and intuitive controls in a reliable 18-speed PST transmission. The e18 transmission with enhanced Efficiency Manager is standard equipment on all 9 Family Tractors.

The e18 has evolved from more than 50 years of John Deere PowerShift technology. With more automatic features, the e18 is easy to operate for all levels of operators and operations. It features three modes of operation, full AUTO, custom, and manual modes. Full AUTO and custom modes manage the engine and transmission to match the desired ground speed to the field conditions. These two modes are ideal for most conditions and take the guess work out of operation. Manual mode is perfect for operators looking to operate the e18 like a traditional PowerShift by bump shifting and managing the engine throttle to their liking.

As the next generation of PowerShift technology, the e18 delivers the strength to handle sudden, high-torque power loads while maintaining responsive, quick, and smooth shifts.

e18 controls
Shift lever and hand throttleShift lever and hand throttle
#
CommandCenter™ controls
254-mm (10-in.) Generation 4 CommandCenter254-mm (10-in.) Generation 4 CommandCenter
#

The CommandCenter is the central information system for tractors and allows the operator to program various settings tailored to a specific operation.

To access the tractor’s transmission settings, press the transmission shortcut button on the CommandCenter shortcut bar.

CommandCenter transmission shortcut buttonCommandCenter transmission shortcut button
#

Operating modes

The e18 application settings employ three modes to take full advantage of the engine-transmission communication: Full AUTO mode, custom mode, and manual mode.

Custom mode
e18 custom transmission pagee18 custom transmission page
#

Custom mode operates similar to full AUTO mode but allows operators to adjust operating parameters to meet a specific operation. It also has the ability to activate eco mode for a higher level of operation.

Eco buttonEco button
Display screenDisplay screen

Eco allows two minimum engine speeds to be set. Operators can turn eco on and off by either pushing the eco button on the side of the throttle or by selecting eco in the transmission settings page of the CommandCenter controls. For example, operators may choose to turn eco on during transport to utilize a lower minimum engine speed and then turn eco off while operating in the field where a higher minimum engine speed is desired.

Custom settings pageCustom settings page
#

In the advanced settings page, operators can customize the auto shift engine speed droop as a percentage of the full engine speed. In addition, the load anticipation feature can be enabled for the hitch engagement, hydraulic engagement, or both.

Manual mode
Manual mode operates very similarly to a traditional PowerShift transmission with Efficiency Manager.
In manual mode the operator manages the engine and transmission inputs by controlling the shift lever and hand throttle.

Manual mode pageManual mode page
#

Efficiency Manager

Set speed buttons and set speed adjusterSet speed buttons and set speed adjuster
#

Efficiency Manager is automatically enabled in auto and custom modes. Efficiency Manager can be turned on in manual mode by selecting the set speed one or set speed two button on the CommandARM™ console. The set speed adjuster on the top of the single-lever gear selector allows the operator to dial in the desired ground speed to establish set speed one or two. Once engaged, Efficiency Manager will manage the engine rpm and gear selection to maintain the desired working speed. To reach the desired set speed, the throttle must be set to full engine rpm.

Full AUTO mode
Full AUTO main pageFull AUTO main page
#

Full AUTO mode manages the tractor’s engine and transmission inputs to reach and maintain the desired ground speed set by the operator. This means the tractor will manage shifts and engine rpm to operate at the most efficient level possible. Operators have the ability to set the maximum forward and reverse speeds for their particular applications. In full AUTO mode the operator can adjust the desired ground speed in two ways, by conducting a traditional bump shift or by rotating the dial on the thumb wheel.

When shifting in full AUTO mode, the transmission shifts set speeds and does not always shift gears, meaning the transmission may not necessarily shift gears if it can reach the desired ground speed with a slightly higher or lower engine rpm. Efficiency Manager is automatically engaged while operating in full AUTO mode. As a result, shifting will not take the tractor out of Efficiency Manager in full AUTO mode.

e18 operation
e18 operatione18 operation
#

Setting start-up gears

The 9 Family Tractors default to 7F and 2R at start up. However, these default start-up gears can be adjusted from 1-13F and 1-3R through the CommandCenter. Refer to the operator’s manual for additional information.

Start-up gears in advanced settingsStart-up gears in advanced settings
#

9R Series Tractor - e18-speed chart for PowerShift transmission (PST) with Efficiency Manager

9R table





Group 47 tires

Group 48 tires

Tire size

(480R46, 20.8R42, 520R42, 620R42, 710R38)

(480R50, 520R46, 620R46, 710R42, 800R38)

Engine (rpm)

2100

2100

18-speed gear

km/h

mph

km/h

mph

Forward gears



F1

4.0

2.5

4.2

2.6

F2

4.8

3.0

5.0

3.1

F3

5.3

3.3

5.6

3.5

F4

5.9

3.7

6.2

3.9

F5

6.5

4.0

6.8

4.3

F6

7.3

4.5

7.6

4.8

F7

8.0

5.0

8.5

5.3

F8

9.0

5.6

9.5

5.9

F9

9.9

6.1

10.4

6.5

F10

11.0

6.9

11.6

7.2

F11

12.2

7.6

12.9

8.0

F12

13.5

8.4

14.2

8.8

F13

15.0

9.3

15.8

9.8

F14

16.6

10.3

17.5

10.9

F15

20.5

12.8

21.6

13.4

F16

25.3

15.7

26.6

16.5

F17

31.2

19.4

32.9

20.4

F18

38.5

23.9

40.5

25.2

Reverse gears



R1

3.9

2.4

4.1

2.5

R2

5.3

3.3

5.6

3.5

R3

5.9

3.7

6.2

3.9

R4

8.0

5.0

8.5

5.3

R5

9.0

5.6

9.5

5.9

R6

12.2

7.6

12.9

8.0



Group 47 tire based on 710/70R38

Group 48 tire based on 800/80R38



9RT and 9RX Series Tractor - e18-speed chart for PowerShift transmission (PST) with Efficiency Manager



9RT and 9RX table





9RT

9RX

Engine (rpm)

2100

2100

18-speed gear

km/h

mph

km/h

mph

Forward gears









F1

4.0

2.5

4.0

2.5

F2

5.0

3.1

4.9

3.0

F3

5.5

3.4

5.5

3.4

F4

6.1

3.8

6.1

3.8

F5

6.8

4.2

6.7

4.2

F6

7.6

4.7

7.5

4.7

F7

8.4

5.2

8.3

5.2

F8

9.3

5.8

9.2

5.7

F9

10.3

6.4

10.2

6.3

F10

11.4

7.1

11.4

7.1

F11

12.6

7.8

12.6

7.8

F12

14.1

8.7

14.0

8.7

F13

15.6

9.7

15.5

9.6

F14

17.3

10.7

17.2

10.3

F15

21.4

13.3

21.3

13.2

F16

26.3

16.3

26.2

16.3

F17

32.3

20.1

32.2

20.0

F18

39.8

24.7

39.6

24.6

Reverse gears









R1

4.0

2.5

4.0

2.5

R2

5.5

3.4

5.5

3.4

R3

6.1

3.3

6.1

3.8

R4

7.3

3.8

8.3

5.2

R5

9.3

5.8

9.2

5.7

R6

12.6

7.8

12.6

10.3


9RT engine9RT engine
9RT with Cummins QSX15 15.0L engine9RT with Cummins QSX15 15.0L engine

John Deere and Cummins have partnered to provide customers with a reliable, productive and efficient engine solution in the QSX15.  Extensive work has been done between John Deere and Cummins on software development and other engine/tractor application interface points to provide producers with the performance and efficiency they have come to expect from John Deere.

The QSX15 has followed the same building block approach to meet emissions requirements as similar John Deere engines.  This allows John Deere to provide common technologies to producers throughout different horsepower and engine displacement offerings ensuring a consistent experience for producers. Just like the other two engine offerings in the 9 Family of tractors, the QSX15 features exhaust gas recirculation (EGR) and an exhaust aftertreatment combination of a diesel particulate filter (DPF) and selective catalytic reduction (SCR) to meet the near-zero NOx and particulate matter (PM) emissions standards.

QSX15 technology

XPI fuel system
– the XPI common-rail fuel system delivers a precise quantity of fuel at ultra-high pressures. This, together with electronic engine controls, enables multiple injection events per cycle. Flexibility in injection timing increases fuel economy and performance while decreasing exhaust emissions.

VGT turbocharger – the QSX15 utilizes a single Cummins VGT™ turbocharger which features electric actuation for infinite adjustment.

Cooled EGR –system has been rebalanced for use with SCR, reducing flow volume and minimizing diesel exhaust fluid (DEF) consumption levels.

Fully integrated electronic controls – a single electronic control module (ECM) controls everything from air intake to exhaust aftertreatment.

Cummins particulate filter and SCR – Cummins particulate filter operates as a nearly passive device, with minimal regeneration required.

Cummins and VGT are a trademarks of Cummins Incorporated.


9RT engine 9RT engine
9RT with Cummins X15 15.0L engine 9RT with Cummins X15 15.0L engine

John Deere and Cummins have partnered to provide customers with a reliable, productive and efficient engine solution in the X15.  Extensive work has been done between John Deere and Cummins on software development and other engine/tractor application interface points to provide producers with the performance and efficiency they have come to expect from John Deere.

The X15 has followed the same building block approach to meet emissions requirements as similar John Deere engines.  This allows John Deere to provide common technologies to producers throughout different horsepower and engine displacement offerings ensuring a consistent experience for producers. Just like the other two engine offerings in the 9 Family of tractors, the X15 features exhaust gas recirculation (EGR) and an exhaust aftertreatment combination of a diesel particulate filter (DPF) and selective catalytic reduction (SCR) to meet the near-zero NOx and particulate matter (PM) emissions standards.

X15 technology

XPI fuel system
™ the XPI common-rail fuel system delivers a precise quantity of fuel at ultra-high pressures. This, together with electronic engine controls, enables multiple injection events per cycle. Flexibility in injection timing increases fuel economy and performance while decreasing exhaust emissions.

VGT turbocharger ™ the X15 utilizes a single Cummins VGT© turbocharger which features electric actuation for infinite adjustment.

Cooled EGR ™system has been rebalanced for use with SCR, reducing flow volume and minimizing diesel exhaust fluid (DEF) consumption levels.

Fully integrated electronic controls ™ a single electronic control module (ECM) controls everything from air intake to exhaust aftertreatment.

Cummins particulate filter and SCR ™ Cummins particulate filter operates as a nearly passive device, with minimal regeneration required.

Cummins and VGT are a trademarks of Cummins Inc.


Tow cable front hook Tow cable front hook
Rear tow cable connection point Rear tow cable connection point

The front tow cable is recommended for pulling all 9 Family Tractors in time of needed assistance. Tow cables are available as a factory-installed option on all ag tractors and are base equipment on all Scraper Special Tractors. The tow cable attaches to the area in front of the drawbar and is also available as a field-installed option.


The e18 transmission delivers smooth shifting and intuitive controls in a reliable 18-speed PowerShift transmission. The e18 transmission with enhanced Efficiency Manager is standard equipment on all 9 Family Tractors.

The e18 has evolved from more than 50 years of John Deere PowerShift technology. With more automatic features, the e18 is easy to operate for all levels of operators and operations. It features three modes of operation, full AUTO, custom, and manual modes. Full AUTO and custom modes manage the engine and transmission to match the desired ground speed to the field conditions. These two modes are ideal for most conditions and take the guess work out of operation. Manual mode is perfect for operators looking to operate the e18 like a traditional PowerShift by bump shifting and managing the engine throttle to their liking.

As the next generation of PowerShift technology, the e18 delivers the strength to handle sudden, high-torque power loads while maintaining responsive, quick, and smooth shifts.

e18 controls
Shift lever and hand throttle Shift lever and hand throttle
CommandCenter© controls
254-mm (10-in.) Generation 4 CommandCenter 254-mm (10-in.) Generation 4 CommandCenter

The CommandCenter is the central information system for tractors and allows the operator to program various settings tailored to a specific operation.

To access the tractor’s transmission settings, press the transmission shortcut button on the CommandCenter shortcut bar.

CommandCenter transmission shortcut button CommandCenter transmission shortcut button

Operating modes

The e18 application settings employ three modes to take full advantage of the engine-transmission communication: Full AUTO mode, custom mode, and manual mode.

Full AUTO mode
Full AUTO main page Full AUTO main page

Full AUTO mode manages the tractor’s engine and transmission inputs to reach and maintain the desired ground speed set by the operator. This means the tractor will manage shifts and engine rpm to operate at the most efficient level possible. Operators have the ability to set the maximum forward and reverse speeds for their particular applications. In full AUTO mode the operator can adjust the desired ground speed in two ways, by conducting a traditional bump shift or by rotating the dial on the thumb wheel.

When shifting in full AUTO mode, the transmission shifts set speeds and does not always shift gears, meaning the transmission may not necessarily shift gears if it can reach the desired ground speed with a slightly higher or lower engine rpm. Efficiency Manager is automatically engaged while operating in full AUTO mode. As a result, shifting will not take the tractor out of Efficiency Manager in full AUTO mode.

Custom mode
e18 custom transmission page e18 custom transmission page

Custom mode operates similar to full AUTO mode but allows operators to adjust operating parameters to meet a specific operation. It also has the ability to activate eco mode for a higher level of operation.

Eco button Eco button
Display screen Display screen

Eco allows two minimum engine speeds to be set. Operators can turn eco on and off by either pushing the eco button on the side of the throttle or by selecting eco in the transmission settings page of the CommandCenter controls. For example, operators may choose to turn eco on during transport to utilize a lower minimum engine speed and then turn eco off while operating in the field where a higher minimum engine speed is desired.

Custom settings page Custom settings page

In the advanced settings page, operators can customize the auto shift engine speed droop as a percentage of the full engine speed. In addition, the load anticipation feature can be enabled for the hitch engagement, hydraulic engagement, or both.

Manual mode
Manual mode operates very similarly to a traditional PowerShift transmission with Efficiency Manager.
In manual mode the operator manages the engine and transmission inputs by controlling the shift lever and hand throttle.

Manual mode page Manual mode page
Efficiency Manager
Set speed buttons and set speed adjuster Set speed buttons and set speed adjuster

Efficiency Manager is automatically enabled in auto and custom modes. Efficiency Manager can be turned on in manual mode by selecting the set speed one or set speed two button on the CommandARM© console. The set speed adjuster on the top of the single-lever gear selector allows the operator to dial in the desired ground speed to establish set speed one or two. Once engaged, Efficiency Manager will manage the engine rpm and gear selection to maintain the desired working speed. To reach the desired set speed, the throttle must be set to full engine rpm.

e18 operation
e18 operation e18 operation

Setting start-up gears

The 9 Family Tractors default to 7F and 2R at start up. However, these default start-up gears can be adjusted from 1-13F and 1-3R through the CommandCenter. Refer to the operator’s manual for additional information.

Start-up gears in advanced settings Start-up gears in advanced settings

9R Series Tractor - e18-speed chart for PowerShift transmission with Efficiency Manager



9R table



Group 47 tires

Group 48 tires

Tire size

(480R46, 20.8R42, 520R42, 620R42, 710R38)

(480R50, 520R46, 620R46, 710R42, 800R38)

Engine (rpm)

2100

2100

18-speed gear

km/h

mph

km/h

mph

Forward gears



F1

4.0

2.5

4.2

2.6

F2

4.8

3.0

5.0

3.1

F3

5.3

3.3

5.6

3.5

F4

5.9

3.7

6.2

3.9

F5

6.5

4.0

6.8

4.3

F6

7.3

4.5

7.6

4.8

F7

8.0

5.0

8.5

5.3

F8

9.0

5.6

9.5

5.9

F9

9.9

6.1

10.4

6.5

F10

11.0

6.9

11.6

7.2

F11

12.2

7.6

12.9

8.0

F12

13.5

8.4

14.2

8.8

F13

15.0

9.3

15.8

9.8

F14

16.6

10.3

17.5

10.9

F15

20.5

12.8

21.6

13.4

F16

25.3

15.7

26.6

16.5

F17

31.2

19.4

32.9

20.4

F18

38.5

23.9

40.5

25.2

Reverse gears



R1

3.9

2.4

4.1

2.5

R2

5.3

3.3

5.6

3.5

R3

5.9

3.7

6.2

3.9

R4

8.0

5.0

8.5

5.3

R5

9.0

5.6

9.5

5.9

R6

12.2

7.6

12.9

8.0



Group 47 tire based on 710/70R38

Group 48 tire based on 800/80R38

9RT and 9RX Series Tractor - e18-speed chart for PowerShift transmission with Efficiency Manager



9RT and 9RX table



9RT

9RX

Engine (rpm)

2100

2100

18-speed gear

km/h

mph

km/h

mph

Forward gears









F1

4.0

2.5

4.0

2.5

F2

5.0

3.1

4.9

3.0

F3

5.5

3.4

5.5

3.4

F4

6.1

3.8

6.1

3.8

F5

6.8

4.2

6.7

4.2

F6

7.6

4.7

7.5

4.7

F7

8.4

5.2

8.3

5.2

F8

9.3

5.8

9.2

5.7

F9

10.3

6.4

10.2

6.3

F10

11.4

7.1

11.4

7.1

F11

12.6

7.8

12.6

7.8

F12

14.1

8.7

14.0

8.7

F13

15.6

9.7

15.5

9.6

F14

17.3

10.7

17.2

10.3

F15

21.4

13.3

21.3

13.2

F16

26.3

16.3

26.2

16.3

F17

32.3

20.1

32.2

20.0

F18

39.8

24.7

39.6

24.6

Reverse gears









R1

4.0

2.5

4.0

2.5

R2

5.5

3.4

5.5

3.4

R3

6.1

3.3

6.1

3.8

R4

7.3

3.8

8.3

5.2

R5

9.3

5.8

9.2

5.7

R6

12.6

7.8

12.6

10.3


Connected Support technology Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink© telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

  • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
  • Saves time by remotely viewing in-cab displays, reducing trips to the machine
  • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
  • Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.


Specs
Key Specs
Engine description Cummins QSX15 (B20 diesel compatible)
Engine displacement 14.9 L
912 cu in.
Rated engine power 419 kW
570 hp
Transmission type Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h
25 mph
Hydraulic system type Closed-center, pressure/flow compensated
Hydraulic pump rated output Standard: 220 L/min
58 gpm
Optional: 435 L/min
115 gpm
Weight
Base machine weight

24,494 kg
54,000 lb
Engine specifications
Description Cummins QSX15 (B20 diesel compatible)
Engine type Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head
Rated speed 2,100 rpm
Aspiration Single Variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Emission level Final Tier 4
After treatment type DOC/DPF/SCR
Displacement 14.9 L
912 cu in.
Engine performance
Rated power 419 kW
570 hp
Power boost (available in transport and/or mobile PTO applications) 10 percent
Engine peak torque At 1,600 rpm: 2,631 Nm
3800 lb-ft
PTO torque rise 38 percent
Hydraulic system
Type Closed-center, pressure/flow compensated
Pump rated output Standard: 220 L/min
58 gpm
Optional: 435 L/min
115 gpm
Available flow at a single rear SCV 0.5 in. couplers: 132 L/min
35 gpm
0.75 in. couplers: 159 L/min
42 gpm
Number of rear selective control valves (SCVs) Standard: ISO Couplers: 4
Optional: ISO Couplers: 6
SCV control Electronic
Drawbar
Drawbar category Drawbar Support for Short Scraper Drawbars
Rear axle
Final drive type Bull gear and double idler with floating pinion
Rear differential lock Full-locking electrohydraulic
Front axle
Front axle differential lock Full-locking electrohydraulic
Tires
Front Tracks: 762 mm
30 in.
Rear Tracks: 762 mm
30 in.
Wheel tread range 2,235 mm
88 in.
Turning radius without brakes 9,144 mm
30 ft
Electrical system
Alternator size Standard: 200 amp
Optional: 240 amp
Battery options 12 V
Total cold cranking amps 925 CCA
Operator station
Rollover protective structure, OOS

Seat ComfortCommand™
Cab suspension Standard
Instructional seat Standard
Display Standard: 4100 Generation 4 CommandCenter™ with 7 in. display
Optional: 4600 Generation 4 CommandCenter™ with 10 in. display
Radio Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume 3.597 m3
127 cu ft
Cab glass area 6.52 m2
70.18 sq ft
Dimensions
Wheelbase 4,154 mm
163.5 in.
Overall length Excluding hitch: 7,637 mm
300.7 in.
Approximate shipping wheight, Open;Cab 24,494 kg
54,000 lb
Weight
Maximum ballast level 28,122 kg
62,000 lb
Capacities
Crankcase oil volume 43.5 L
11.5 U.S. gal.
Fuel tank 1,514 L
400 U.S. gal.
Diesel Exhaust Fluid (DEF) tank 83 L
22 U.S. gal.
Cooling system 62 L
16.3 U.S. gal.
Transmission-hydraulic system With 3-point hitch and PTO: 223 L
59 U.S. gal.
Serviceability
Interval for engine oil change 400 hours
Interval for hydraulic/transmission oil change 1,500 hours
Interval for engine coolant change 6,000 hours
Precision AG
Guidance AutoTrac™ Ready
Telematic Available with JDLink™ hardware, activations, and Ethernet Harnesses (availability dependent upon destination)
Remote diagnostics Available with activated JDLink hardware and activations
Miscellaneous
m m
Dimensions
Approximate shipping weight, Open;Cab 24,494 kg
54,000 lb
Engine performance
Power boost 10 percent
Electrical system
Type of bulb in beacon (Halogen, Zenon, LED)
Type of bulb in headlight (Halogen, Zenon, LED)
Miscellaneous
Country of manufacture USA
Accessories and Attachments
Beacon Lighting
9R Series with rotary beacon light9R Series with rotary beacon light
9R with left and right side beacon lights9R with left and right side beacon lights

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.



The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.


9R Series with rotary beacon light9R Series with rotary beacon light
9R with left and right side beacon lights9R with left and right side beacon lights

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.



The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.


Electrical

Battery Disconnect Kit - BRE10265


Electrical Equipment
Battery disconnect installedBattery disconnect installed



A. disconnection switch

B. yellow light-emitting diode (LED) indicator

C. reference label



Available as either a factory- or field-installed attachment, the battery disconnect switch is used to disconnect the batteries in preparation for 20-day to 90-day storage periods. The switch cuts the power to the entire tractor to aid in maintaining battery life.

An indicator light allows for safe and proper disconnect. The light will flash until it is safe to disconnect. This allows the diesel exhaust fluid (DEF) tank and lines to purge.


Battery disconnect installedBattery disconnect installed

Available as either a factory- or field-installed attachment, the battery disconnect switch is used to disconnect the batteries in preparation for 20-day to 90-day storage periods. The switch cuts the power to the entire tractor to aid in maintaining battery life.

An indicator light allows for safe and proper disconnect. The light will flash until it is safe to disconnect. This allows the diesel exhaust fluid (DEF) tank and lines to purge. (Final Tier 4 has an indicator light and Interim Tier 4 has no indicator light.)



Cummins is a trademark of Cummins Incorporated.


Dual-beam radar emission horns Dual-beam radar emission horns
Dual-beam radar (tracks tractor shown)Dual-beam radar (tracks tractor shown)
Shield for dual radar beamShield for dual radar beam

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.



There are several key features that have changed from previous designs.



First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.



Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.



Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.



In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.



The radar true ground speed sensor activates the following CommandCenterTM display or performance monitor readouts:

  • Percent slip
  • Hitch slip command (if equipped)


Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

  • Area covered
  • Area/hour
  • Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.


Dual-beam radar emission horns Dual-beam radar emission horns
Dual-beam radar (tracks tractor shown)Dual-beam radar (tracks tractor shown)
Shield for dual radar beamShield for dual radar beam

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.



There are several key features that have changed from previous designs.



First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.



Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.



Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.



In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.



The radar true ground speed sensor activates the following CommandCenterTM display or performance monitor readouts:

  • Percent slip
  • Hitch slip command (if equipped)


Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

  • Area covered
  • Area/hour
  • Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.


Hydraulics
9RT rear hydraulics9RT rear hydraulics
CommandARM™ SCV controlsCommandARM™ SCV controls

High-flow fifth and sixth SCVs provide additional hydraulic flow for use with triple scraper pans.


Hydraulic Trailer Brake Kit for 4 track - BRE10306


Lighting

Auxiliary Lighting Kit - BRE10244


Mirrors
#

John Deere CommandView™ III cab offers several options for outside mirrors to increase rear visibility to assist in getting the view needed of variable-width implements, wagons, or carts. The wide-angle mirror options provide excellent overall rear visibility and are easily adjusted and telescope to maintain visibility for a variety of implements.



7R and 8R Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

8RT Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

9R and 9RX Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

9RT Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping



Field-installed kits are also available to convert a manual mirror to an electrically adjustable mirror. See the attachment section for further information.



NOTE: Left-hand electrically telescoping mirrors are not compatible with 8RT and 9RT Tractors.

Manually adjustable, single pane mirrorsManually adjustable, single pane mirrors
Wide-angle, heated, electrically adjustable top pane, manually telescoping mirrorsWide-angle, heated, electrically adjustable top pane, manually telescoping mirrors
Wide-angle, heated, electrically adjustable top pane, electrically telescoping mirrorsWide-angle, heated, electrically adjustable top pane, electrically telescoping mirrors
Wide-angle, heated top pane, electrically adjustable top pane, non-telescoping left-hand mirror for 8RT and 9RT Series TractorsWide-angle, heated top pane, electrically adjustable top pane, non-telescoping left-hand mirror for 8RT and 9RT Series Tractors

#

John Deere CommandView™ III cab offers several options for outside mirrors to increase rear visibility to assist in getting the view needed of variable-width implements, wagons, or carts. The wide-angle mirror options provide excellent overall rear visibility and are easily adjusted and telescope to maintain visibility for a variety of implements.



7R and 8R Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

8RT Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

9R and 9RX Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, manual telescoping
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping

9RT Series Tractor mirror options:

  • Manually adjustable, single pane
  • Wide angle, heated, electrically adjustable top pane, electrically telescoping



Field-installed kits are also available to convert a manual mirror to an electrically adjustable mirror. See the attachment section for further information.



NOTE: Left-hand electrically telescoping mirrors are not compatible with 8RT and 9RT Tractors.

Manually adjustable, single pane mirrorsManually adjustable, single pane mirrors
Wide-angle, heated, electrically adjustable top pane, manually telescoping mirrorsWide-angle, heated, electrically adjustable top pane, manually telescoping mirrors
Wide-angle, heated, electrically adjustable top pane, electrically telescoping mirrorsWide-angle, heated, electrically adjustable top pane, electrically telescoping mirrors
Wide-angle, heated top pane, electrically adjustable top pane, non-telescoping left-hand mirror for 8RT and 9RT Series TractorsWide-angle, heated top pane, electrically adjustable top pane, non-telescoping left-hand mirror for 8RT and 9RT Series Tractors

Miscellaneous

StarFire 6000 Locking Bracket - BPF11074


Hydraulic hose supportHydraulic hose support
#



This field-installed option reduces stress on the couplers by providing support to the heavy hydraulic hoses used in scraper application. The hydraulic hose support attaches to the back of the tractor next to the drawbar and is available on all 9R, 9RT and 9RX Scraper Tractors.


Mounting brackets are available to mount a standard ABC extinguisher to your tractor. The bracket mounts to the entrance platform at the top of the entrance/egress steps on 9R series tractors.



This location allows quick access to the extinguisher near the cab door, should it ever be needed.


Operator Environment

Antenna Mount and Wiring for Business Band (2-Way) Radio - RE269615


Backup alarm on a 9R Series TractorBackup alarm on a 9R Series Tractor
#

To better accommodate governmental or commercial sales, a back-up alarm is available as a factory- or field-installed attachment on select models. An alarm sounds whenever the transmission is placed in reverse. The alarm provides a high level of warning that the tractor is changing direction.

A backup alarm is base equipment on 9R and 9RT Scraper Special Series Tractors.


Cornerpost Display Bracket - PF90385


The floor insulation kit can reduce cab heat generated by transmission and hydraulic oil temperatures below the cab floor. It can reduce the overall cab temperature, as it works as a thermal barrier. The product comes in a large sheet, which is easily cut to fit the contours of the cab floor.



The kit is large enough to fit the floor pan design of 6 through 9 Series Tractor cabs.


Radio, SubWoofer Kit - BRE10005


Seat belt for 8R Series TractorsSeat belt for 8R Series Tractors

The 3-in. field-installed seat belt kit is designed for use with the 8R and 8RT Series Tractor operator seats. The seat belt kit is offered to meet regulations that require a seat belt anchorage force similar to the SAE J386 (including previous versions up to 22.2 kN anchorage strength), IOS 6683, and OSHA requirements (29CFR1926.602) for earthmoving operations and non-agricultural tractor operations.



NOTE: John Deere recommends reviewing the seat belt kit performance capabilities to ensure compliance with local, state, regional, and national requirements.


A favorite worldwide, the RAM self-leveling cup holder is now available as a kit - designed specifically for Deere equipment. It is easily installed to keep your favorite beverage upright even in the roughest terrain. The perfect accessory for any cab that has 10-mm mounting bosses.

Self-leveling cup holder John Deere branded beverage insulator includedSelf-leveling cup holder John Deere branded beverage insulator included
#

The new cup holder features a unique self-leveling design. This pivoting design allows easy adjustment for the holder while offsetting motion of the vehicle when moving.

Features and applications:

  • Self-leveling action reduces spills
  • Durable design for rough environments
  • Easy adjustable mounting for ideal placement
  • Includes John Deere branded beverage insulator
  • Compatible with most monitor brackets and all 10-mm threaded bosses

Single Lever Multi Function Joystick - BRE10143


Tablet Mount Kit - BRE10255


Radio

Premium Radio Package with XM Radio - BRE10196


RadioRadio

John Deere radio packages provide powerful performance with standard four-speaker systems. The standard radio package features easy-to-use operator controls located on the CommandCenter™ display and at the radio faceplate. AM/FM and weatherband tuner allows operators to stay tuned to their favorite radio stations and keep current with ever-changing weather patterns. An auxiliary input for connecting an external media source is conveniently located on the right-side console.



The premium radio package adds to these great features with Bluetooth® to connect with compatible media devices and a USB input for connecting external media sources. A subwoofer is also available in this package to increase the operator experience within the cab.



Both radio packages help create a comfortable operator environment for long hours in the cab.

Standard radio package
  • AM/FM and weatherband tuner (NOAA broadcast channels)
  • External antenna
  • Remote controls through the CommandARM™ controls (volume, mute, channel up/down)
  • CommandCenter display with station selection, volume level, and station presets
  • Auxiliary input (3.5 mm [0.14 in.]) on right-side console
  • Four coaxial speakers
Premium radio package*
  • AM/FM, weatherband (NOAA broadcast channels), and worldwide premium tuner
  • External antenna
  • Remote controls through CommandARM (volume, mute, channel up/down)
  • CommandCenter display with station selection, volume level, and station presets
  • Universal serial bus (USB) input
  • Auxiliary input on right-side console
  • Bluetooth capable with microphone (allows phone and streaming audio)
  • Four coaxial speakers
  • Subwoofer

*XM Satellite functionality for premium radio needs to be upgraded by purchasing the XM antenna, XM receiver, brackets, and wiring harnesses via a kit from your local John Deere dealer.

Radio controlsRadio controls

Bosch is a trademark of Robert Bosch GmBH. Bluetooth is a trademark of Bluetooth SIG Incorporated. XM is a trademark of XM Satellite Radio Incorporated. Delco is a trademark of General Motors LLC.


Tracks
Inner drive sprocket mud scraperInner drive sprocket mud scraper
Idler debris shieldIdler debris shield



The 9RX Series undercarriage includes mud scrapers on the exterior of the drive sprocket as standard equipment.



There are two optional self-cleaning kits available as an attachment.



The inner drive-sprocket mud scraper continuously removes bulk debris from the sprocket hub and discards it to the outside of the track assembly while the tractor is in forward motion.



The idler debris shield is attached to the rearward idler and continuously removes bulk debris from the idler as well as protecting the track-tensioning cylinders from light impact and debris buildup while the tractor is in forward motion.



Both kits are designed to significantly reduce mud, sand, rocks, and other potential buildup in the track assembly, while also increasing track belt life by discarding debris directly to the ground rather than on the track surface.


Inner drive sprocket mud scraperInner drive sprocket mud scraper
Idler debris shieldIdler debris shield



The 9RX Series undercarriage includes mud scrapers on the exterior of the drive sprocket as standard equipment.



There are two optional self-cleaning kits available as an attachment.



The inner drive-sprocket mud scraper continuously removes bulk debris from the sprocket hub and discards it to the outside of the track assembly while the tractor is in forward motion.



The idler debris shield is attached to the rearward idler and continuously removes bulk debris from the idler as well as protecting the track-tensioning cylinders from light impact and debris buildup while the tractor is in forward motion.



Both kits are designed to significantly reduce mud, sand, rocks, and other potential buildup in the track assembly, while also increasing track belt life by discarding debris directly to the ground rather than on the track surface.


*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
