Feature Overview
John Deere John Deere
  • Monitors moisture levels and feeds data to web-based interface
  • Support timely irrigation decisions helping to reduce over watering and nutrient leaching
  • Alerts you when moisture levels are reaching full or refill points
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere John Deere
  • Monitors moisture levels and feeds data to web-based interface
  • Support timely irrigation decisions helping to reduce over watering and nutrient leaching
  • Alerts you when moisture levels are reaching full or refill points
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Reduce input costs through water management

Field irrigation Field irrigation
#

Energy costs are rising, water conservation practices including allocations are becoming more prevalent, and chemical application continues to be a significant input cost to a producer’s operations. John Deere Field Connect© system can provide producers the information needed to ensure that irrigation is used only when it is required, thereby reducing the tendency to overwater. Running an irrigation system only when needed will save on fuel costs and reduce the risk of washing chemical applications away from where the crop can use it. In areas with water restrictions, saving water today could make the difference between having a crop next season and not.


John Deere Field Connect© system enhances decision making John Deere Field Connect© system enhances decision making

A producer's yields are highly dependent on the inputs provided to the crop. Just as important is the time at which those inputs are provided. For corn, this means ensuring moisture is available during the pollination stage. Inadequate moisture during this key time can cause significantly lower yields. However, having too much moisture can be damaging as well.



The quality of a crop can also be affected if correct moisture levels are not maintained during fruit fill. In processing tomatoes, moisture levels are lowered in the final weeks of the season. This ensures that tomatoes are produced that have appropriate brix levels and high solids/sugars, to bring the highest possible price for the producer.



John Deere Field Connect provides detailed soil moisture levels throughout the growing season. When combined with optional environmental sensors, producers have a wealth of site-specific information at their fingertips. This ability to monitor moisture levels and key environmental conditions means decisions can be made around those key crop stages, allowing producers to make informed moisture management decisions.


With so many options available to producers, there is endless variation in the types of field configurations that they can use. John Deere Field Connect© system can be used in irrigated fields utilizing drip irrigation, center pivot systems, furrow irrigation, and a host of others, helping the producer to schedule the appropriate irrigation.

Tiled field situations provide another opportunity for utilizing the system. While moisture may be plentiful, a producer’s ability to control the movement of moisture away from the field can be critical. In these fields, John Deere Field Connect can be used to determine when to open and close tile gates to ensure moisture levels are optimized.

Moisture information can also be important in chemical applications as well, enabling producers to make the most of their input, by ensuring soil moisture content and environmental conditions are appropriate for the application. This is true whether or not the field has systems in place to control moisture levels.

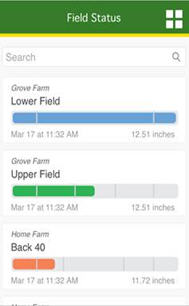

Landing page showing current status Landing page showing current status

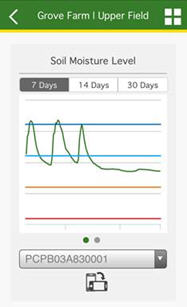

Sum graph portrait view Sum graph portrait view
Line graph landscape view Line graph landscape view

Accessing John Deere Field Connect© has never been easier. All of the John Deere Field Connect data can be accessed from a mobile phone. Get the latest readings for soil moisture levels and attached environmental sensors. Scroll easily from sum graph to line graph and add notes while viewing up to 30 days of data. Currently, the app works with smartphones. Tablets will continue to utilize the full web version to allow admin functionality.

Features
Using the Field Connect Mobile app Using the Field Connect Mobile app

Compatible with iOS® and Android© smartphones

  • Optimized for mobile phones
  • Credentials are stored for one year after initial log in, allowing quick and easy access to data
  • Available on the App Store® on iTunes® systems, or from supported Web browsers on a mobile device
  • Improved user experience

Access key web application features

  • Ability to monitor soil moisture levels with sum and line graphs
  • Quickly view the most recent environmental sensor measurements
  • Hardware status view provides the user with the most recent information regarding the status of equipment in the field
  • Quickly add detailed notes on the go pertaining to a management zone

App Store and iTunes are trademarks of Apple Inc. IOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc. Android is a trademark of Google LLC.


This document lists all the compatible equipment approved with the software update 20-1 release and is subject to change with newer software updates. To ensure complete and proper compatibility, the most current version of implement control unit software, Generation 4 Display software, or compatible farm management information software (FMIS) should be used. Non-current software versions will require an update before support can be provided. Unapproved software version configurations will not be supported.

The software update 20-1 release is only compatible with 4600 CommandCenter© v2 processors. Software update 17-2 is the last release that was compatible with 4600 v1 processors.

Server serial numbers are as follows:

  • v1 = RWG prefix
  • v2 = PCG prefix
Machine compatibility

John Deere Large Ag Tractors

John Deere Large Ag Tractors
(list of all automatically detected machines)
Model year CommandCenter Universal Display
4600 v2 4200 4640 4240
9R/9RT/9RX Series 2018 and newer X --- X X
9R/9RT/9RX Series 2015-2017 * --- X X
9R/9RT Series 2012-2014 --- --- X X
9030/9030T Series 2008 and newer --- --- X X
9020/9020T Series 2002-2007 --- --- X ---
9000 Series 1997-2001 --- --- X ---
9000T Series 2000-2001 --- --- X ---
8R/8RT Series 2018 and newer X --- X X
8R/8RT Series Mid-2014 - 2017 * --- X X
8R/8RT Series 2010-2013 --- --- X X
8030/8030T Series 2006 and newer --- --- X X
8020/8020T Series 2002-2005 --- --- X ---
8010/8010T Series 2000-2002 --- --- X ---
8000 Series 1994 --- --- X ---
8000T Series 1997-1999 --- --- X ---
7R Series 2018 and newer X X X X
7R Series 2014-2017 * --- X X
7R Series 2011-2013 --- --- X X
7J Series 2018 and newer --- --- X X
7030 Series 2007 and newer --- --- X X
7030 Series (Large Frame) 2007 and newer --- --- X X
7030 Series (Small Frame) 2006 and newer --- --- X X
6030 Series (Small Frame) 2006 and newer --- --- X X
6R Series 2018 and newer X X X X
6R Series (Final Tier 4) 2015-2017 * --- X X
6R Series (Interim Tier 4) 2013-2015 --- --- X X
6M Series 2013 and newer --- --- X X
6J Series 2018 and newer --- --- X X
5R Series 2019 and newer --- --- X X

*NOTE: For latest Precision Ag functionality, update machines equipped from the factory with v1 processor to v2.

John Deere Nutrient Applicators

John Deere Nutrient Applicators

Model year CommandCenter Universal Display
4600 v2 4200 4640 4240
F4365 High-Capacity Nutrient Applicator 2017 and newer X --- --- ---

John Deere Self-Propelled Sprayers

John Deere self-
propelled sprayers
Model year CommandCenter Universal Display
4600 v2 4200 4640 4240
4 Series Sprayers  2018 and newer X --- --- ---
4 Series Sprayers  2013 - 2017 --- --- X** ---
4940 2012 - 2014 --- --- X** ---
4630 2008 and newer --- --- X** ---
4730 2008 and newer --- --- X** ---
4830 2008 - 2014 --- --- X** ---
4930 2008 - 2013 (SN 4000+) --- --- X** ---
Hagie© sprayers 2014 and newer Compatible with GreenStar© 3 2630 Displays and 4640 Universal Displays*

*NOTE: When using the 4640 Universal Display on a Hagie Sprayer, additional mounting and harnessing may be required.

  • 4640 Ram© Mount - SJ34503
  • 4640 power/video harness - BPF11527 (1-3 video plus machine power), PF90687 (machine power only)

NOTE: Current John Deere/Hagie field kits only offer GreenStar 3 2630 Display parts.

NOTE: AutoTrac© Vision/AutoTrac RowSense and multi-rank section control are not supported on Hagie at this time.

NOTE: VIN detection on Hagie Sprayers is only supported on model year 2019 and newer machines.

**NOTE: The 4640 Universal Display will replace the GreenStar 3 2630 Display on the armrest. Dual display with the GreenStar 3 2630 Display is not supported with sprayers. Adding the 4640 Universal Display will disable the assignable buttons located on the sprayer armrest.

John Deere Self-Propelled Forage Harvesters (SPFH)

John Deere Self-Propelled
Forage Harvesters

Model year CommandCenter Universal Display
4600 v2 4200 4640 4240
9000 Series SPFH 2019 and newer --- --- X ---
8000 Series SPFH 2015 and newer --- --- X ---

John Deere Combines

John Deere combines Model year CommandCenter Universal Display
4600 v2 4200 4640 4240
S700 Series 2018 and newer X --- --- ---
S430 and S440 2017 and newer X --- --- ---
S600 Series 2012 - 2017 --- --- X* X*
S540 and S550 Series 2012 and newer --- --- X* X*
T-Series 2012 and current --- --- X* X*
70 Series 2008 - 2013 --- --- X* X*

NOTE: Competitive equipment may be compatible with 4640 Universal Display and 4240 Universal Display. For additional compatibility information, contact a John Deere dealer.

*NOTE: When adding the 4640 Universal Display to a John Deere combine, it will only be compatible as a cornerpost precision ag display.

John Deere Cotton Harvesters

John Deere
Cotton Harvesters
Model year CommandCenter Universal Display
4600 v2 4200 4640 4240
CP690 2015 and newer --- --- X ---
CS690 2015 and newer --- --- X ---

NOTE: Update cab controller software to the latest version on model year 2017 and newer cotton harvesters to use Harvest Identification, Cotton Pro.

Equipment compatibility

John Deere planters

SeedStar© 4HP planters are only compatible with 4600 CommandCenter displays with a version 2 (v2) processor and 4640 Universal Displays. Displays should be running Generation 4 OS software version 10.10.404-390 or newer and the most current version of tractor applications to be compatible with SeedStar 4HP planter applications. Additionally, dual-display mode is available for use with SeedStar 4HP planter applications, along with Generation 4 Extended Monitor. SeedStar 4HP planters are compatible with no more than two GreenStar Rate Controllers.

The SeedStar 2 configuration below is available only on factory-installed model year 2011 and newer planters and may be field-installed on model year 2009 and 2010 planters. Green PM/PA controllers (factory-installed on model year 2009 and 2010 planters) are not supported with a Generation 4 display.

A Service ADVISOR© tool (available at a John Deere dealer) is needed to update SeedStar 2, SeedStar XP, and SeedStar 3 HP software. Documentation is not supported when using a rate controller to control row clutches on a John Deere planter.



John Deere planters Control unit name Software version (or newer) CommandCenter Universal Display
4600 v2 4200 4640 4240*
SeedStar 2
Black PM1 22.0 X X X X
Black PA1, (if available PA 2) 22.0 X X X X
Green PM1 10.11 --- --- --- ---
Green PA1 (if available PA 2) 10.11 --- --- --- ---
SeedStar XP
Black PM1 22.0 X X X X
Black PA1, (if available PA 2) 22.0 X X X X
PM2 7.0 X X X X
SeedStar 3 HP
Planter Main A (PCMA) 6.0 X X X X
Planter Main B (PCMB or MMC) 8.0 X X X X
Row-unit Controller (RUC) 2.0 X X X X
EPG 3.0 X X X X
SeedStar 4HP
Planter Apps 10.4.332-12 X --- X ---
Planter Main A (PMCA) 6.0 X --- X ---
Planter Main B (PMCB or MMC) 8.0 X --- X ---
Row-unit Controller (RUC) 4.0 X --- X ---
Electrical Power Generation (EPG) 5.0 X --- X ---
Electrical Power Module, 2 (PC2) 3.0 X --- X ---
ExactRate© liquid fertilizer system Master Nozzle Control Unit (MNC) 1.0 X --- X ---
Spray Rate Control Unit (SRC)  1.0 X --- X ---
Liquid Blockage Controller (LBC) 1.0 X --- X ---
Nozzle Control Unit (NZC) 6.04 X --- X ---
ExactRate app  10.1.269-41 X --- X ---

*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.

John Deere Air Seeders

The C650 and C850 Air Carts and N500C Seeder require a 4600/4200 CommandCenter Display or a 4640/4240 Universal Display. GreenStar 3 2630 monitors are not supported. Additionally, tow-behind C850 Air Carts are compatible with AutoTrac Implement Guidance (passive) with software update 18-2 and newer.



John Deere Air Seeder Model year/control unit name Software version (or newer)  CommandCenter Universal Display
4600 v2 4200 4640 4240*
C650 Air Cart
Cart Master Controller (CMC) 1.0 X X X X
Mini Tank Controller (TCX) 1.0 X X X X
Front, Middle, Rear Tank Controller (TCU) 1.0 X X X X
C850 Air Cart Cart Master Controller (CMC) 13 X X X X
Mini Tank Controller (TCX) 6 X X X X
Front, Middle, Rear Tank Controller (TCU) 6 X X X X
1870 Seeding Tool - TruSet© system 2017 and newer (IDC) 5.0 X X X X
1870 Seeding Tool - RelativeFlow© blockage sensors 2017 and newer (BMU) 5.0 X X X X
1910 Air Cart - ground drive 2009 and newer 3.0 X X X X
1910 Air Cart - hydraulic drive
2013 and newer 9.0 X X X X
Seeding tools with air-run blockage - primary blockage
2009 and newer (BMU) 12.0 X X X X
Seeding tools with air-run blockage - air-run blockage 2009 and newer (BMU) 12.0 X X X X
Member Module 5.0 X X X X
1990 Central Commodity System (CCS©)
2009 and newer (BMU) 12.0 X X X X
N500C Series Seeder apps 10.2.18-31 X --- X ---
SMCA or SMC 3.0 X --- X ---
SMCB or BMU 3.0 X --- X ---
EPG 3.0 X --- X ---

*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.

John Deere Tillage

John Deere Tillage Control unit name Software version (or newer)  CommandCenter Universal Display
4600 v2 4200 4640 4240
AccuDepth© cultivator Implement Depth Control (IDC) 11 X X X X
2730 with TruSet
Tillage Controller 1 (TC1) 2.66K9 X X X X
2230 with TruSet Tillage Controller 1 (TC1) 2.75K6 X X X X
2330 with TruSet Tillage Controller 1 (TC1) 2.35K6 X X X X
2620/2630 with TruSet Tillage Controller 1 (TC1)

2.95K6

X X X X
2720 with TruSet Tillage Controller 1 (TC1) 2.24K6 X X X X
2660VT with TruSet Tillage Controller 1 (TC1) 3.03K12 X X X X
2430 with TruSet Tillage Controller 1 (TC1) 2.14K4 X X X X
2510H with TruSet Tillage Controller 1 (TC1) 2.85K5 X X X X

*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.

John Deere Round Balers



John Deere Round Balers Control unit name Software version (or newer) CommandCenter Universal Display
4600 v2 4200 4640 4240
0 Series Baler Automation 10.07 X X X X
9 Series Premium
Baler Automation 7.16 X X X X
V451R/V461R  Baler Automation 11.5 X X X X





John Deere Large Square Balers

John Deere Large Square Balers
Including Harvest Tec applicator and PhiBer accumulator
Control unit name Software version (or newer) CommandCenter  Universal Display
4600 v2 4200 4640 4240
0 Series Gen 4 VT 3.04 X X X X
1 Series
Gen 4 VT 5.07 X X X X
Precision Ag Technology software compatibility
John Deere control units Control unit name Software version (or newer) CommandCenter Universal Display
4600 v2 4200 4640 4240
*StarFire 6000 Receiver --- 4.30F X X X X
StarFire 6000 Integrated Receiver --- 4.30F X X X X
StarFire 3000 Receiver --- 2.70A X X X X
*Modular Telematics Gateways (MTG) - 3G --- 21.03 X X X X
*MTG - 4G --- 27.01.541 X X X X
GreenStar Rate Controller --- 3.70K X X X X
GreenStar Rate Controller Dry --- 2.11A X X X X
*John Deere Rate Controller 2000 --- 1.13A X X X X
*AutoTrac Universal 200 --- 2.30A --- --- X X
*AutoTrac Universal 300 --- 3.23G --- --- X X
AutoTrac Controller 250 --- 11933B --- --- X X
*AutoTrac Controller - Deere --- 1.11B --- --- X X
AutoTrac Controller - Raven --- 10.13.909-158 --- --- X X
AutoTrac Controller - Reichhardt® --- SW 1.3 --- --- X X
AutoTrac RowSense RG3 AKK15783F X --- X ---
AutoTrac Vision VGC 4.01V X --- X ---
AutoTrac Turn Automation --- 19-2 X --- X ---
AutoTrac Implement Guidance --- 19-2 X --- X ---
Active Implement Guidance (VT) Application Controller 1100 2.71Z X X* X X*
Application Controller 1100 (S.N. PCXL01C201000-) 3.11A X X* X X*
iGrade©  Application 1100 2.71Z X X X X
Application Controller 1100 (S.N. PCXL01C201000-) 3.11A X X X X
Distance Trip  Application 1100 2.71Z X* X X X
Application Controller 1100 (S.N. PCXL01C201000-) 3.11A X* X X X
Yield Documentation, Specialty Crop  Application Controller 1120 1.51Y X X X X
Application Controller 1120 (S.N. PCXL02C201000-) 3.11A X X X X
Mobile Weather Application Controller 1120 1.51Y X X* X X*
Application Controller 1120 (S.N. PCXL02C201000-) 3.11A X X* X X*
Harvest Identification, Cotton Application Controller 1120 1.51Y --- --- X ---
Application Controller 1120 (S.N. PCXL02C201000-) 3.11A --- --- X ---
Gen 4 Extended Monitor     X --- X ---
Wireless Data Server Wireless Data Server

1.591.2 (Planting)
7.564.1
(Application)
2.573.1
(Harvesting)

X --- X ---
Mobile Data Transfer MyTransfer© app

3.8.6 (iOS®)
3.8.5 (Android©)

X X X X
Connect Mobile app Connect Mobile app 8.4.0 or newer X --- X ---
Connect Mobile server Connect Mobile server 2.3.101-1 X --- --- ---
Manure Constituent Sensing Manure Controller 19.06 X --- X ---

*NOTE: See additional information below.

StarFire Receivers

StarFire Receivers can be updated in the following ways:

  • Receiver USB port (available only for StarFire 6000 Receivers)
  • Generation 4 display USB port
  • Remote software updates application (in ISOBUS VT app)

Additionally, StarFire iTC Receivers are no longer supported with software update 2017-1 and newer software. StarFire 6000 Receivers require software version 3.80F or higher when used with AutoTrac Implement Guidance.

John Deere Operations Center

To use RDA on a Generation 4 CommandCenter Display with a GreenStar 3 2630 Display connected in the same machine, GreenStar 3 2630 software version 3.22.1095 (SU2014-1) or higher is required (for 4600 CommandCenter Display and 4640 Universal Display only).

GreenStar Rate Controller and GreenStar Rate Controller Dry

GreenStar Rate Controller Dry is supported with display software update 2017-2 and newer. The 4600 and 4200 CommandCenter Displays and 4640 and 4240 Universal Displays support documentation and section control of up to five GreenStar Rate Controller units.

To update the GreenStar Rate Controller and GreenStar Rate Controller Dry, utilize a Generation 4 Display USB port. John Deere dealers can also utilize Service ADVISOR. GDC 2.11A was the last software version available through Software Manager. GDC 2.20A has been available since spring 2015 and contains diagnostic language updates. This software can only be obtained through Service ADVISOR.

John Deere Rate Controller 2000

The Generation 4 Displays and John Deere Rate Controller 2000 can support documentation and control up to five operations. ISO controllers such as SeedStar or TruSet can be used alongside a John Deere Rate Controller 2000 that is documenting additional operations. The John Deere Rate Controller 2000 will not control the planter clutches or half-, third-, or quarter-width disconnects on a John Deere planter.

AutoTrac© Vision

AutoTrac Vision Guidance Camera 19-1 software 4.01V is only compatible with RowGuidance 3 Controller software AKK15783F and GreenStar 3 2630 17-1 software 3.34.1345 or newer and Generation 4 18-1 software 10.10.404-345 or newer.

AutoTrac Universal 200, AutoTrac Universal 300, and AutoTrac Controller

AutoTrac Universal 200, AutoTrac Universal 300, and AutoTrac Controllers are for use with the 4640 Universal Display and 4240 Universal Dis


Specs
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
