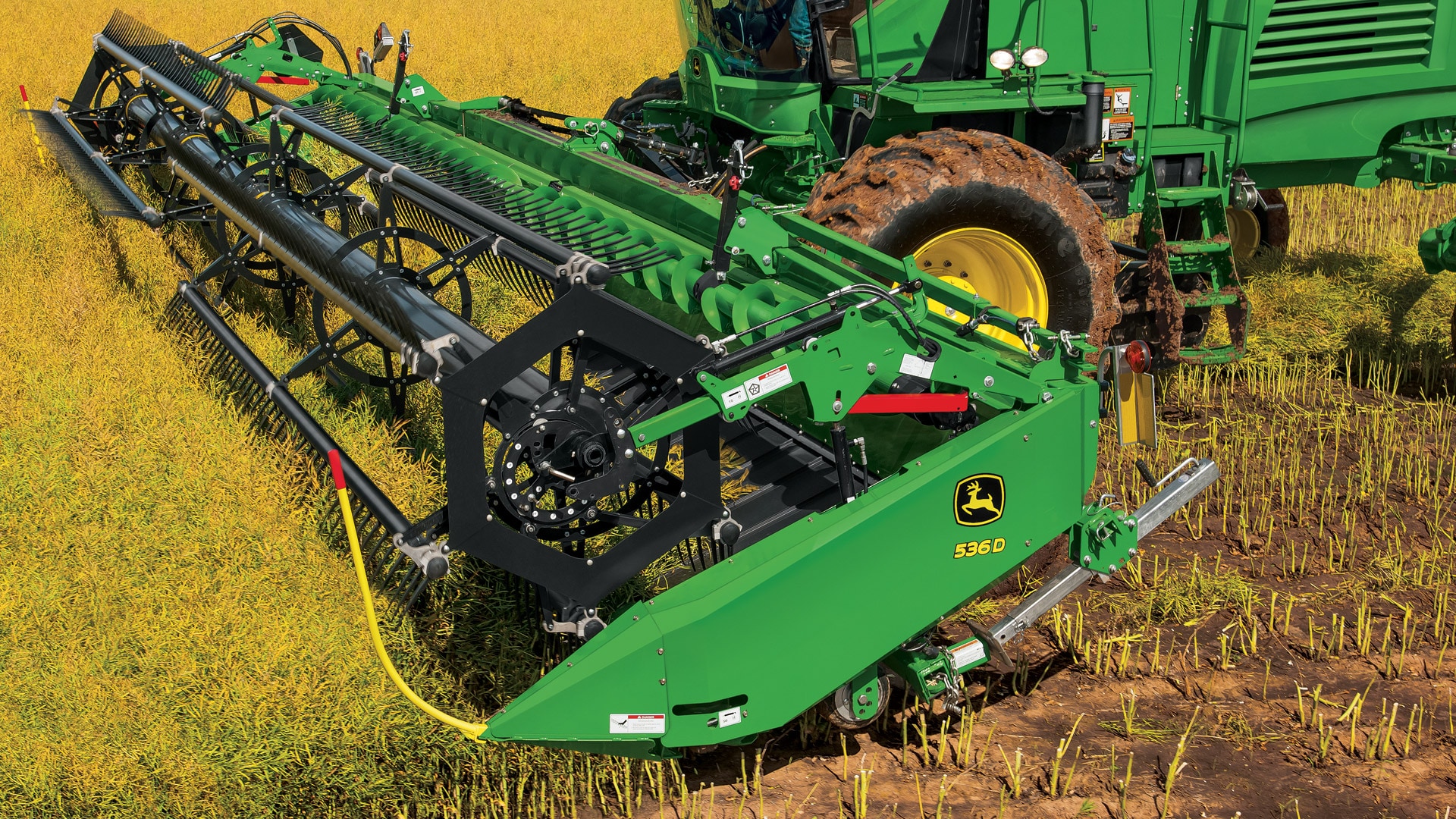

John Deere 536D

DEBUG Ind: Agriculture, Cat: Hay Forage, SubCat: Mowing, SubSubCat: Windrowers Platforms
Feature Overview
John Deere 536D
  • In 30 minutes or less, you can switch from a rotary head to a 500D Draper head, which means you can harvest small grains and hay with one traction unit.
  • Quick-change reel teeth can be removed and replaced with minimal effort and tools. Then it’s back to cutting.
  • Fully integrated controls to the draper means no need for a secondary control box.
Cutterbar - Type SCH® Easy Cut with roller guides, spring steep guards, and bolted sections / Standard: dual knife
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 536D
  • In 30 minutes or less, you can switch from a rotary head to a 500D Draper head, which means you can harvest small grains and hay with one traction unit.
  • Quick-change reel teeth can be removed and replaced with minimal effort and tools. Then it’s back to cutting.
  • Fully integrated controls to the draper means no need for a secondary control box.
Cutterbar - Type SCH® Easy Cut with roller guides, spring steep guards, and bolted sections / Standard: dual knife
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Strong, positive-feeding reel handles all crop conditions

500D Draper 500D Draper

The 500D Series includes an improved reel that increases durability in heavy crop conditions.



500D Draper teeth 500D Draper teeth



  • Easy reel tooth replacement is done with a 90-degree turn with a wrench. It will allow the reel tooth to be removed and replaced.
  • Additional teeth can be added at any location along the extruded tooth bar.






A double swath package (hydraulic deck shift) is available as an option for the 525D, 530D, and 536D Draper Platforms.



Double swath is controlled from the cab using hydraulics and two shifting decks. Operators can choose right, left, or center delivery of the windrow.



The double swath package is a valuable asset for producers who want to combine the two windrows into one to match up with the material handling capacity of larger combines and self-propelled forage harvesters (SPFHs).



Additionally, the package gives the ability to discharge crop to the outside on the headland to prevent running over the windrow while cutting the rest of the field.

Right-hand discharge
First pass with right dischargeFirst pass with right discharge
Second pass with right dischargeSecond pass with right discharge

The first and second passes are done with the discharge to the right of the windrower.

Left-hand discharge
Third pass with left dischargeThird pass with left discharge

The third pass is done with the discharge to the left of the windrower.

Center discharge
Center dischargeCenter discharge

When the operator wants to switch back to center delivery, it can be completed with the touch of a button using the controls inside the cab.


500D Draper on windrower 500D Draper on windrower

The draper hydraulic pump control maintains knife, belt, and reel speeds regardless of engine rpm changes.

  • Results in uniform cut quality and windrow formation regardless of the terrain or engine load
  • Reduces crop loss or shatter

Center-driven belts
500D Draper on W235 Windrower 500D Draper on W235 Windrower
  • Deliver increased torque
  • Enable greater productivity with minimal belt slippage
  • Increase performance in heavy crop conditions
#
Red circles point out the location of the belt drive motors Red circles point out the location of the belt drive motors
  • Draper belts on the 500D are driven from the center of the platform
    • Delivers increased belt performance compared to drapers with end-driven belts
Belt drive motors
Motor driving the left-hand belt Motor driving the left-hand belt
Motor driving the right-hand belt Motor driving the right-hand belt

Due to the motors pulling the belt (instead of pushing in an end drive system), there is less slack in the belt. This delivers an increase in belt torque.



As a result, producers will experience minimal belt slippage and increased performance in heavy crop conditions due to the center-driven belt system.


Sales, parts, and service support from a local John Deere dealer offer overnight parts delivery and a well-trained support staff.


500D Draper and interchangeable rotary platform 500D Draper and interchangeable rotary platform

500D Draper has an interchangeable rotary platform:

  • Interchangeable on W235 or W260 traction units in 30 minutes or less
  • Growers can use one traction unit for harvesting both small grains and hay

John Deere 525D, 530D, and 536D Drapers can windrow out of the center, right, or left ends of the draper with the press of a button using the hydraulic shift option (double swath package).

  • Larger windrows to match combine or self-propelled forage harvester
  • Match narrower-width drapers with higher-capacity harvesting
  • Place higher-density windrows in front of harvesters when yields are low
  • Discharge two windrows side by side for uniform combine or forage harvester feeding
First pass with right discharge First pass with right discharge
Second pass with right discharge Second pass with right discharge
Third pass with left discharge Third pass with left discharge
Center discharge Center discharge

Specs
Key Specs
Cutterbar - Type SCH® Easy Cut with roller guides, spring steep guards, and bolted sections
Standard: dual knife
Cutterbar
Cut width (length) 11 m
36 ft
Reel
Reel type Hydraulic
Fingers Plastic
Draper and decks
Belt width V-guided draper belt: 106.7 cm
42 in.
Dimensions
Transport length, hitch extended 12.5 m
40.8 ft
Cutterbar
Type SCH® Easy Cut with roller guides, spring steep guards, and bolted sections
Standard: dual knife
Knife drive Two hydraulic motors and two knife drives
Knife speed 1,100 to 1,440 spm
Stroke length 84 mm
3.3 in.
Cutterbar tilt Hydraulic, adjustable from cab
Reel
Number of bats Six
Diameter 1118 mm
44 in.
Height control Hydraulic, adjustable from cab
Draper and decks
Speed control Adjustable in windrower cab
Reel
Reel lift Hydraulic, adjustable from cab
Reel fore and aft Hydraulic, adjustable from cab
Draper and decks
Delivery opening width Delivery, double swath opening: 137.2 cm
54 in.
Delivery, single swath opening: 203.2 cm
80 in.
Delivery opening height 205.7 cm
81 in.
Draper drive Two hydraulic motors
Operating speed 0 to 232 m/min
0 to 760 fpm
Remote canvas speed control Standard
Deck tilt Standard
Deck extensions Optional, dealer-installed deck extensions: 35.6 cm
14 in.
Dimensions
Operating width (field) 11 m
36 ft
Transport width (reel fully retracted) 2.6 m
8.5 ft
Transport height 2.44 m
8 ft
Weight
Approximate weight (base platform without reel) 1458 kg
4852 lb
Approximate weight (base platform with reel) 3207 kg
7070 lb
Gauge wheels and transportation
Gauge wheels Adjustable castoring gauge wheel optional
Integrated slow speed transport system Self-contained transport, including hitch, jack and axle, is conveniently stored on the swather table
