Feature Overview

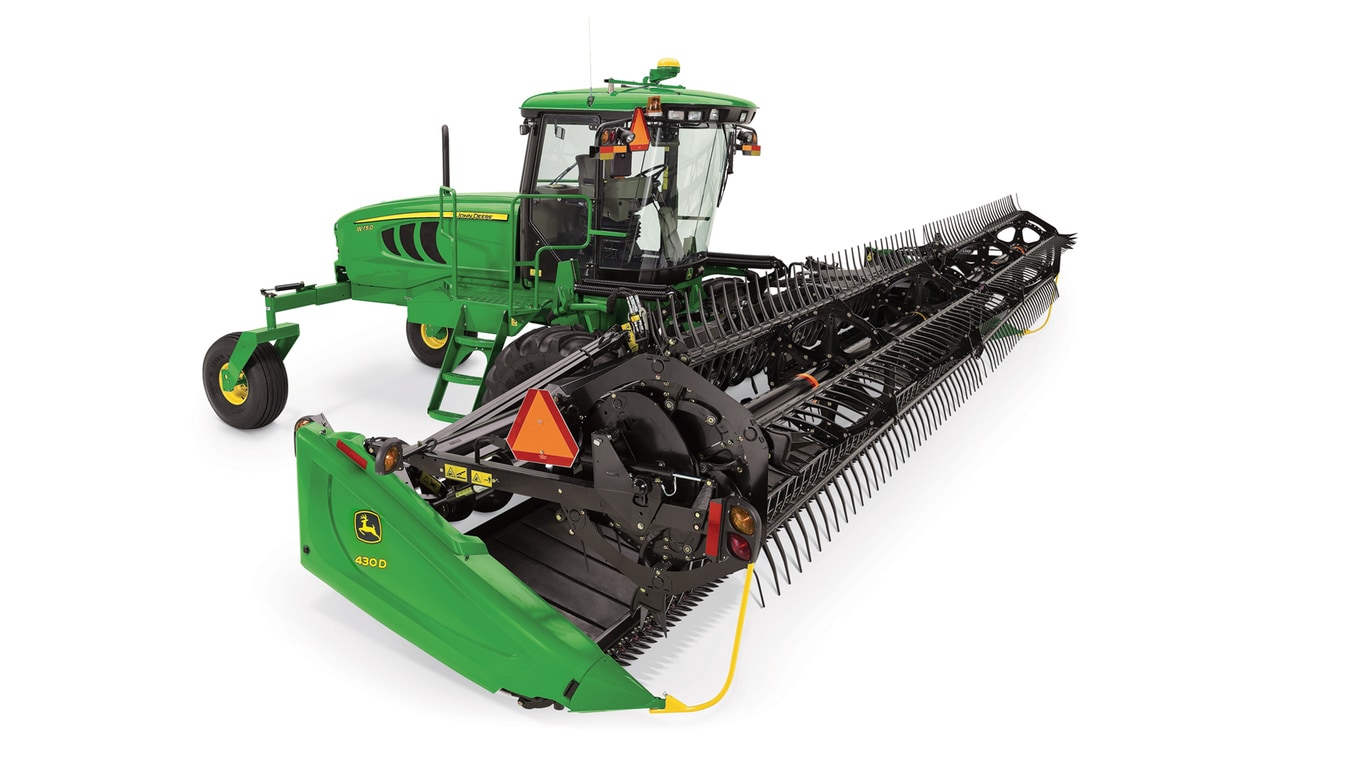

John Deere 430D
  • Cutterbar and frame profile gives uninterrupted crop flow
  • Strong, positive-feeding reel handles all crop conditions
  • Excellent visibility to cutterbar and belt
  • Gauge wheels provide ground following for uniform cut
Cutterbar - Type Dual knife standard / Single knife optional
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 430D
  • Cutterbar and frame profile gives uninterrupted crop flow
  • Strong, positive-feeding reel handles all crop conditions
  • Excellent visibility to cutterbar and belt
  • Gauge wheels provide ground following for uniform cut
Cutterbar - Type Dual knife standard / Single knife optional
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

John Deere parts and service support provide uptime for a timely harvest

Sales and service delivered Sales and service delivered
#

Sales, parts, and service support from a local John Deere dealer offers overnight parts delivery and a well-trained support staff.


John Deere 425D, 430D, 435D, and 440D Drapers can windrow out of the center, right, or left ends of the draper with effortless change using the hydraulic deck-shift option.

Double windrow using deck shift Double windrow using deck shift
Double windrow being combined Double windrow being combined

Hydraulic deck shift option:

  • Larger windrows to match combine or self-propelled forage harvester
  • Match narrower-width drapers with higher-capacity harvesting
  • Place higher-density windrows in front of harvesters when yields are low
  • Discharge two windrows side by side for uniform combine or forage harvester feeding
  • Move chain stop to change center belt opening quickly and easily for different crop types and density (see operator’s manual for more information)
  • Discharge crop to the outside of the headland to prevent running over the windrow while cutting the rest of the field
  • Platform stays balanced with automatic fine-float adjustment when using deck shift
  • Optional double draper drive bundle is recommended when using deck shift and harvesting silage or wet, heavy crops
    • NOTE: The double draper drive option is not compatible with the 425D Platform.
First pass - right discharge First pass - right discharge
Second pass - right discharge Second pass - right discharge
Third pass - left discharge Third pass - left discharge
#
Swath forming rods Swath forming rods
#

Optional left- and right-end swath deflector rods form a space between the windrow and uncut crop to have adequate clearance for the crop divider on the next pass.


400D integral slow-speed transport system (W155 shown) 400D integral slow-speed transport system (W155 shown)
#

Slow-speed transport system:

  • 400D Drapers are towable only with W155 and W170 Self-Propelled Windrowers
  • Transport is recommended behind a tractor with seven-pin electrical lighting outlet
  • 430D, 435D and 440D Drapers only
  • Convert draper from field to transport in minutes with one person and without tools
  • Dual front dolly wheel tires and two, gauge wheel tires carry weight of transport



It is a simple four-step process to switch from field to transport:

  1. Move right gauge wheels from field to transport
  2. Move left gauge wheels from field to transport
  3. Attach the tongue.
  4. Detach from the windrower.

Platform reverser controls on W155 Platform reverser controls on W155
#

Platform reverser controls are available for the W155 Self-Propelled Windrower only:

  • Easily activated from operator's station to clear platform of plugs
  • Reverser slowly reverses the knife drive and optional hay conditioner, if equipped, to clear plugs
  • Highly recommended when using optional hay conditioner with 400D Platforms
  • Operators can run machines closer to their maximum capacity and it will take less time to unplug
Reverser valve block Reverser valve block
#

The reverser consists of a valve block and valves, shown in the image above. It is the gold-colored valve block on the right side. It is shown plumbed for a 100A Auger Platform.


C-shaped cutterbar profile C-shaped cutterbar profile
#

The C-shaped cutterbar profile provides:

  • Smooth crop flow
  • Superior draper-to-cutterbar seal
  • Reduced amount of material under belts
  • Minimized crop loss in shatter-prone crops

Dual gauge wheel option Dual gauge wheel option
#

400D Series Draper Platforms offer optional dual gauge wheels with spring suspension:

  • 1-cm (15-in.)
  • Excellent ground following and flotation in all conditions
  • Fine adjust the float on the go from the cab for high-speed harvesting and stable flotation
  • Available as part of the integrated slow-speed transport system option

Cutterbar visibility Cutterbar visibility
Center visibility Center visibility
Left-side visibility Left-side visibility
Right-side visibility Right-side visibility

The cutterbar design provides excellent visibility across the full range of tilt:

  • Cutterbar and belt can be easily seen from cab even with optional top-crop conveying auger installed
  • Cutterbar can be tilted from cab mechanically or hydraulically depending on windrower option chosen
  • Change cutterbar angle with varying crop and field conditions for best cut height and crop flow

435D split-span reel with plastic fingers 435D split-span reel with plastic fingers
Cam reel tooth action Cam reel tooth action
Reel in full forward position Reel in full forward position

The cam reel design of the 400D Series Draper Platform features:

  • 165-cm (65-in) diameter
  • Heavy-duty plastic or steel fingers
  • Tooth position control
  • Smoother and quieter operation at higher reel speeds
  • Less wear on reel drive components
  • Less shattering of the crop
Hourglass-shaped reel Hourglass-shaped reel
Reel end fingers Reel end fingers

The hourglass-shaped reel has:

  • End positioned closer to the cutterbar to provide smooth feeding
  • Adjustable bolt position to change distance of reel to cutterbar
Adjustable cam positions Adjustable cam positions
#

The cam position and reel position are adjustable, enabling the machine settings to be matched with the crop conditions for a trouble-free harvest. The finger release position is easily adjustable to one of four cam positions.



The reel is hydraulically positioned up, down, and fore-aft to allow perfect positioning for gentle yet positive feeding action.



Plastic fingers:

  • Standard from the factory on all 400D Series Platforms
  • Recommended for all crop conditions
  • Lighter weight and easy to replace

Steel fingers:

  • Only available through Parts
  • Recommended for heavy forage crop
  • Longer life



Optional end fingers improve feeding aggressiveness in difficult feeding and cutting conditions with down and tangled crop.

Plastic tine split reel with end feed fingers Plastic tine split reel with end feed fingers
#

Single span reel:

  • Available on 415D, 420D, 425D, 430D and 435D Drapers
  • Less weight
  • Better center visibility
  • Good option for canola and small grains harvesting

Double span reel:

  • Available on 430D, 435D and 440D Drapers
  • Better feeding in heavy, wet, or down crop
  • Better control of the reel height for more consistent feeding
Five-bat reel Five-bat reel
Six-bat reel Six-bat reel
Nine-bat reel Nine-bat reel

The reel is available in five-six- or nine-bat configurations:

  • Six- to nine-bat conversion is available with field installation
    • Recommended for heavy conditions such as silage or grass seed crops

Specs
Cutterbar
Type Dual knife standard
Single knife optional
Cut width (length) 9.1 m
30 ft
Knife drive Hydraulic motor to belt to enclosed heavy-duty wobble box
Knife speed Dual: 600-800 cycles/min
1,200-1,600 spm
Single: 600-700 cycles/min
1,200-1,400 spm
Cutterbar tilt Standard hydraulic
Optional mechanical (2.5-12.0 degree lift)
Reel
Reel type Pick up cam 4 position adjustable release
Number of bats 6 bats split span standard
9 bats optional
5 bats single span optional, capped ends
Fingers Heavy-duty plastic
Diameter 1,650 mm
65 in.
Height control Hydraulic
Draper and decks
Speed control Hydraulic from cab
Reel
Reel lift Hydraulic
Reel fore and aft Hydraulic
Operating speeds 0-85 rpm
Draper belts
Width Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm
41.6 in.
Draper and decks
Operating speed 0-225 m/min
0-742 fpm
Header height sensing
Header height sensing on the ground Float springs on traction unit
Header height sensing off the ground Return to cut height standard
Gauge wheels optional
Dimensions
Platform length 9.5 m
31.3 ft
Overall operating depth With crop dividers 2.6 m
8.7 ft
Transport width, field position 9.5 m
31.3 ft
Transport width on wheel, less dividers 2.5 m
8.1 ft
Transport length, hitch extended 12.8 m
42.1 ft
Weight
Approximate weight (pickup reel) 1,907-2,315 kg
4,200-5,100 lb
Center opening / crop delivery
Center opening width between belts 1,720-1,950 mm
67.1-76.7 in.
Deck shift / double windrow capability (manual / hydraulic / not available) Manual standard
Hydraulic optional
Gauge wheels and transportation
Gauge wheels Optional dual gauge wheels
Integrated slow speed transport system Optional includes dual gauge wheels
Key Specs
Cutterbar - Type Dual knife standard
Single knife optional
Draper and decks
Belt width Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm
41.6 in.
Weight
Approximate weight (base platform with reel) 1,907-2,315 kg
4,200-5,100 lb
Accessories and Attachments
Drives

Hydraulic Drive Kit - Double Draper & Top Crop Converging Auger - BE32419


Vertical Knife Mounts - LH - BE32401


Vertical Knife Mounts - RH - BE32402


Feeding

End Swath Deflector Rods (For LH End) - BE32379


End Swath Deflector Rods (For RH End) - BE32380


Top Crop Conveying Auger - 30 Ft. - BE32415


Frame and Chassis

The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


Miscellaneous

Steel End Finger Kit for Reel - BE32404


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


Inboard Gauge Shoes with Poly (Set of 2) - BE32400


Gauge Wheels and Integrated Slow Speed Road Transport System - BE32430


Gauge Wheels - BE32426


Cutterbar Full Width Poly Skid Shoes and Hardware Kit - 430D - BE32408


Swath Forming Rods (Center Delivery) - BE32381


Auxiliary Vertical Knife Plumbing Kit - BE32403


Hay Conditioner with Center Feed Section - BE32386


Draper Extension Kit - BE32387


Hose Kit, 400D Draper Platform Case Drain Kit - BE32510


Double Draper Drive Kit (For Heavy Forage Side Delivery Applications) - BE32388
