Feature Overview

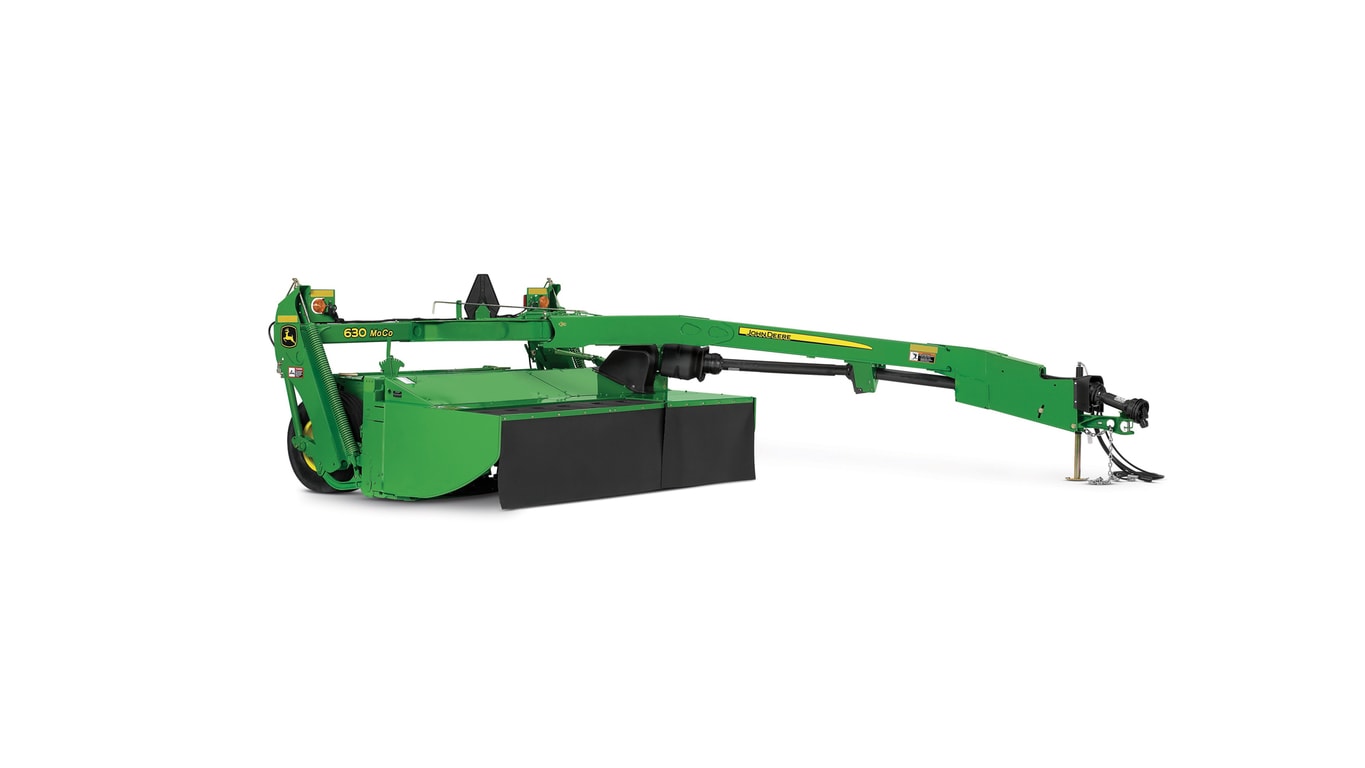

John Deere 630
  • Urethane roll conditioner available
  • Cutting platform is gear-driven
  • Adjustable gauge shoes
  • Flotation tires
Cutterbar - cutting width 3 m / 9.75 ft
Number of disks/knifes 6 / 12
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 630
  • Urethane roll conditioner available
  • Cutting platform is gear-driven
  • Adjustable gauge shoes
  • Flotation tires
Cutterbar - cutting width 3 m / 9.75 ft
Number of disks/knifes 6 / 12
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Clevis hitch

Clevis hitch Clevis hitch
#

The clevis hitch is in base equipment on the 630 and 635 Mower-Conditioners. This design attaches directly to the tractor drawbar for operator convenience. The heavy-duty clevis design provides a strong attaching point to the drawbar.



For added convenience, the hitch pin retaining bracket can also be used to store the  power take-off (PTO) shaft when the machine is not attached to the tractor.



The clevis hitch is designed to be towed by a tractor only and includes a screw jack and safety chain.



Turn limiters may be required to prevent powerline damage if the hitch point of the tractor is beyond the rear drive wheels of the tractor.

1000-rpm overrunning clutch 1000-rpm overrunning clutch
#

An overrunning clutch is located near the platform gearcase on all models. This design enables free rotation of the tractor hookup to make attachment to the tractor easier.



On 540-rpm machines (optional on the 630 model only), a slip clutch is incorporated into the overrunning clutch to provide protection to the platform. No clutch is required on 1000-rpm machines due to the reduced torque loads.


Drawbar equal-angle hitch Drawbar equal-angle hitch
Drawbar extension Drawbar extension

The drawbar equal-angle hitch is optional equipment on the 630 and 635 Mower-Conditioners. This hitch option includes:

  • Ball-joint hitch—to be installed on the mower-conditioner tongue
  • Tractor hookup
  • Drawbar extension—to be installed on the tractor drawbar and adjustable with one wrench

The drawbar equal-angle hitch is designed to be towed by a tractor only and includes a screw jack and safety chain.



Turn limiters may be required to prevent powerline damage if the hitch point of the tractor is beyond the rear drive wheels of the tractor.

1000-rpm overrunning clutch 1000-rpm overrunning clutch
#

An overrunning clutch is located near the platform gearcase on all models. This design enables free rotation of the tractor hookup to make attachment to the tractor easier.



On 540-rpm machines (optional on the 630 model only), a slip clutch is incorporated into the overrunning clutch to provide protection to the platform. No clutch is required on 1000-rpm machines due to the reduced torque loads.


Swivel hitch Swivel hitch

For added maneuverability, the 630 and 635 Mower-Conditioners offer an optional rockshaft swivel hitch. Turn limiters are not required with the swivel hitch.



The swivel hitch is available in a 1000-rpm power take-off (PTO) only. It attaches to the lower lift arms of a Category 2 or 3N 3-point hitch with or without quick-hitch.



This option enables cutting square corners as well as making it easier to cut around field obstacles. Tractor hookup U-joint angles remain constant for reduced driveline noise and vibration in turns.



NOTE: If the platform is to be maneuvered while under power, it is recommended the rear powerline with single constant-velocity (CV) U-joint be ordered.



A powerline support cable keeps the tractor hookup out of the dirt when detached from the tractor.



The parking stand allows quick and easy hookup. A down stop chain is also included which limits the travel of the rockshaft to help prevent implement driveline damage.

1000-rpm overrunning clutch 1000-rpm overrunning clutch

An overrunning clutch is located near the platform gearcase on all models. This design enables free rotation of the tractor hookup to make attachment to the tractor easier.


Rotary cutterbar Rotary cutterbar
#

The rotary cutterbar is designed and built by John Deere. Large oval disks with free-swinging knives are used to cut the crop.



All cutting disks are the same and are computer-designed for improved wear and cutting performance.



Cutting disks are made of high-strength, austempered steel to ensure the steel is thoroughly and evenly tempered for good wear characteristics.



The disks rotate to give a knife-tip speed of 307 km/h (191 mph) for clean cutting.



The knives are free-swinging to reduce damage if a solid object is struck, and they are reversible to double the useful life.



The knives are removed at the front of the cutterbar for convenience.

Wear caps
Wear caps Wear caps

Made of austempered, heat-treated, ductile steel for excellent wear characteristics, wear caps are installed on each end of the cutting disks (except on the end disks where crop accelerators are used) to increase the wear life of the cutting disks and knife-bolt nuts.



Wear caps are open on the end to prevent debris from packing in close to the nut, making hardware and knives easier to change.


Modular cutterbarModular cutterbar
#

John Deere's patented design cutterbar is made from individual, diagonal-cut modules.



Serviceability is easy. Modules can be removed individually while leaving the cutterbar attached to the frame.



Made of high-strength, nodular iron castings, each module consists of two idler gears and one drive gear. The large-diameter idler gears transmit power from module to module. The idler gears turn at a relatively slow speed for added durability.



The smaller-diameter pinion drive gear is used only to power the cutting disk. Power is not transmitted from one cutting disk to another except through the large-diameter idler gears.



The modules are interchangeable. Disk rotation is determined by the position of the quill (A). There is a rubber oil seal between each cutting module.


Impeller conditioner Impeller conditioner

Impeller conditioning is standard equipment on all John Deere mower-conditioners.



Proper conditioning in a wide range of crops can be achieved when the conditioner is properly adjusted.



The impeller conditioner works well in legumes, especially alfalfa and most all-grass crops. Impeller conditioners are not recommended for thick-stemmed or cane-type crops, such as sudan or sudex, or crops over 1.5 m (5 ft) tall.

How an impeller conditioner works:

1. As hay is cut by rotating knives, tines pick up the plants and carry them through the machine:

  • 33 V-shaped tines are on the 625 Mower-Conditioner; 45 V-shaped tines are on the 630 and 830 Mower-Conditioners; and 57 V-shaped tines are on the 635 and 835 Mower-Conditioners.
  • Tines are free swinging to reduce damage to the conditioner if rocks or other solid objects are struck.

2. As the plant passes through, it rubs against the conditioning hood (A) and other plants:

  • Scuffing action removes the waxy surface from the stem of the plant to allow for faster evaporation of moisture.

Impeller hood crank handle Impeller hood crank handle
Impeller hood position indicator Impeller hood position indicator
  • The conditioner hood opening is adjustable to accommodate various crop volumes.
  • The crank handle allows an infinite number of adjustments between the minimum and maximum conditioning levels. The closer the hood is to the tines, the more aggressive the conditioning.
  • A conditioner position indicator provides an easy reference point to control the degree of conditioning.
630 Mower-Coonditioner (shown with shields removed) 630 Mower-Coonditioner (shown with shields removed)

3. The speed at which the tines rotate will also affect the degree of conditioning. Two impeller speeds can be achieved by interchanging the upper sheave (A), located under the shield, and the lower sheave (B).

  • With the sheaves in the position shown, the impeller turns at 870 rpm; this is ideal for grasses.
  • If the sheaves are reversed, the impeller turns at 630 rpm; this is ideal for legume crops.

Urethane rolls Urethane rolls

The 630 and 635 Side-Pull Mower-Conditioners and the 830 and 835 Center-Pivot Mower-Conditioners are available with a urethane roll conditioner.



The urethane roll conditioner works well in legumes, especially alfalfa, and most all-grass crops.



In general, roll conditioners are better suited for thick-stemmed, cane-type crops and crops more than 1.5 m (5 ft) tall.

Molded urethane rolls are formed by a cool molding process that does not distort or warp the steel core of the roll:

  • This process ensures the rolls are straight and cylindrical, so they can be accurately spaced close together for uniform conditioning along the length of the roll.

An intermittent recessed cleat design gives more crimping edges for greater pressure per square inch, which results in superior conditioning and faster crop drying.

Shields removed for illustration purposes Shields removed for illustration purposes
#

Power is distributed by the platform and conditioner drive gearboxes:

  • Gearbox uses heat-treated, steel-forged spur gears for added strength.
  • Drive gears operate in a sealed environment to prevent excessive wear or contamination.
  • Telescoping drivelines ensure positive drive.
  • Spur gears have two to three teeth intermeshing at all times for a smooth, positive drive.

Handle for forming-shield adjustment Handle for forming-shield adjustment

Forming shields are easily adjusted to control material flow. This allows the operator to match the windrow width to harvesting requirements.

Handle for swathboard adjustment Handle for swathboard adjustment

A swathboard is in base equipment for additional control of the windrow formation (for 630 and 635 Mower-Conditioner models only).

Windrow width* is as follows:



625 78.7 cm to 149.9 cm (31 in. to 59 in.)
630 88.9 cm to 198.1 cm (35 in. to 78 in.)
635 99 cm to 238.8 cm (39 in. to 94 in.)

*Depending on crop conditions.


Close-up of V10 steel conditioning rolls Close-up of V10 steel conditioning rolls

The V10 steel conditioner rolls feature 10 angled flutes arranged in a chevron pattern, or V-pattern, along the length of the steel core.

Steel rolls offer improved wear life over urethane rolls, particularly in adverse crop conditions.

Advantages of the V10 conditioner roll over the previous straight flute design are as follows:

  • More crimping edges for improved conditioning
  • Improved feeding
  • Improved windrow formation

Wide swath kit Wide swath kit

The wide swath kit is a factory-installed option for the 630, 635, 830, and 835 Mower-Conditioner models.

When equipped with an impeller conditioner, the kit consists of a redesigned, base swath board and four (3.0-m [9.8-ft]) or six (3.5-m [11.5-ft]) steel vanes bolted to the bottom of the swath board.

On roll conditioner machines, the kit also comes with a redesigned, base swath board but has six (3.0-m [9.8-ft]) or eight (3.5-m [11.5-ft]) steel vanes.

When the forming shields are fully open, this kit will increase windrow width up to 25 percent over the base configuration of the machines.


Gauge shoe Gauge shoe

Steel runners are located under each disk. Right-hand and left-hand adjustable gauge shoes further protect the cutterbar.



The half-moon shaped disk protectors extend past the cutterbar module to protect the cutting disk.



The disk protectors are made of heat-treated boron steel, whose material characteristics are very similar to spring steel. Resistance to bending is nearly three times greater than molded ductile iron.



Knives rotate close to the disk protectors to give a good shearing action and help to keep the cutterbar clean.

Shearhub Shearhub

Each cutting disk is attached to a driver (shearhub) on the splined pinion gear. The driver has part of its splines removed so it will shear if the cutting disk receives a severe impact.



The shear strength of the driver is designed to be just slightly less than that of the pinion gear.



Power to the disk is interrupted when the driver shears to protect the internal components of the cutterbar.



Damage is limited to exposed components and does not require disassembly of the cutting modules.

U-joint U-joint

Power is transmitted through a U-joint to the first cutting disk.



The U-joint attaches with four bolts to the driver on the first cutting disk. No special tools are required to remove the first cutting disk.



The torque for attaching bolts is the same as for attaching the disk to the driver (149.1 Nm [110 lb-ft] compared to the 339 Nm [250 lb-ft] required to attach the driver to the pinion gear).


Modular cutterbar Modular cutterbar
#

John Deere's patented design cutterbar is made from individual, diagonal-cut modules.



Serviceability is easy. Modules can be removed individually while leaving the cutterbar attached to the frame.



Made of high-strength, nodular iron castings, each module consists of two idler gears and one drive gear. The large-diameter idler gears transmit power from module to module. The idler gears turn at a relatively slow speed for added durability.



The smaller-diameter pinion drive gear is used only to power the cutting disk. Power is not transmitted from one cutting disk to another except through the large-diameter idler gears.



The modules are interchangeable. Disk rotation is determined by the position of the quill (A). There is a rubber oil seal between each cutting module.

Tough enough for a three-year cutterbar warranty
#

The durable John Deere cutterbar comes standard with a three-year warranty on all 600 and 800 Series Mower Conditioners.  This warranty covers all internal drive components, such as idler and pinion gears. Wear components, such as knives, wear caps, and shear hubs are not included in the warranty.


Specs
Power requirements
PTO speed 540 or 1,000 rpm
HP 1000 rpm 1-3/8 in. PTO 48-112 kW
65-150 hp
Powerline type Double-telescoping Grob spline
Tractor equipment
Hydraulic pressure required 13,790 kPa
2,000 psi
Cutterbar
Type John Deere
Cutting width 3 m
9.75 ft
Cutting height Without extension: 28 to 98 mm
1.1 to 3.7 in.
Number of disks 6
Number of knives 12
Disk speed 2,650 rpm
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 7 L
7.4 qt
Cutterbar oil check Drain plug
Cutterbar angle Adjustable
Angle adjustment Mechanical or hydraulic
Cutterbar protection Shear hub
Adjustable gauge shoes Yes
Conditioner
Impeller Width
1,854 mm
73 in.
Diameter
594 mm
23.4 in.
Number of V-tines
45
Number of speeds
Two
Drive
3-V powerband belt and sheaves
Conditioner hood
Infinite adjust, single hand crank
Rolls Width
1,854 mm
73 in.
Diameter
254 mm
10 in.
Type of material
Urethane
Design
Recessed cleat
Speed
664 rpm
Drive
Telescoping shaft
Tractor equipment
Standard hitch Clevis
Tractor hookup
Ball joint equal angle hitch Optional
Rockshaft swivel hitch Optional
Dimensions
Overall width Transport
3 m
9.75 ft
Overall length Conventional transport
With equal angle tongue: 6.2 m
20.5 ft
Weight With urethane roll conditioner
2,273 kg
5,012 lb

With impeller conditioner
2,130 kg
4,696 lb
Standard tires Standard: 11L-15
Optional: 31x13.5L 15
General
< <
Power requirements
1000 rpm 1-3/8 in. PTO 48-112 kW
65-150 hp
Tractor equipment
Optional hitch Ball joint equal angle hitch
Rockshaft swivel hitch
Key Specs
Cutterbar - cutting width 3 m
9.75 ft
Number of disks/knifes 6
12
Dimensions
Transport width
3 m
9.75 ft
Rolls conditioner
Width 1,854 mm
73 in.
Diameter 254 mm
10 in.
Impeller conditioner
Tines type V-tines
Number of tines 45
Number of speeds Two
Rolls conditioner
Drive Telescoping shaft
Impeller conditioner
Conditioner hood Infinite adjust, single hand crank
Rolls conditioner
Type of material Urethane
Design Recessed cleat
Speed 664 rpm
Dimensions
Transport length
With equal angle tongue: 6.2 m
20.5 ft
Weight, impeller conditioner 2,130 kg
4,696 lb
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
