John Deere 625

DEBUG Ind: Agriculture, Cat: Implements, SubCat: Hay and Forage, SubSubCat:
Feature Overview

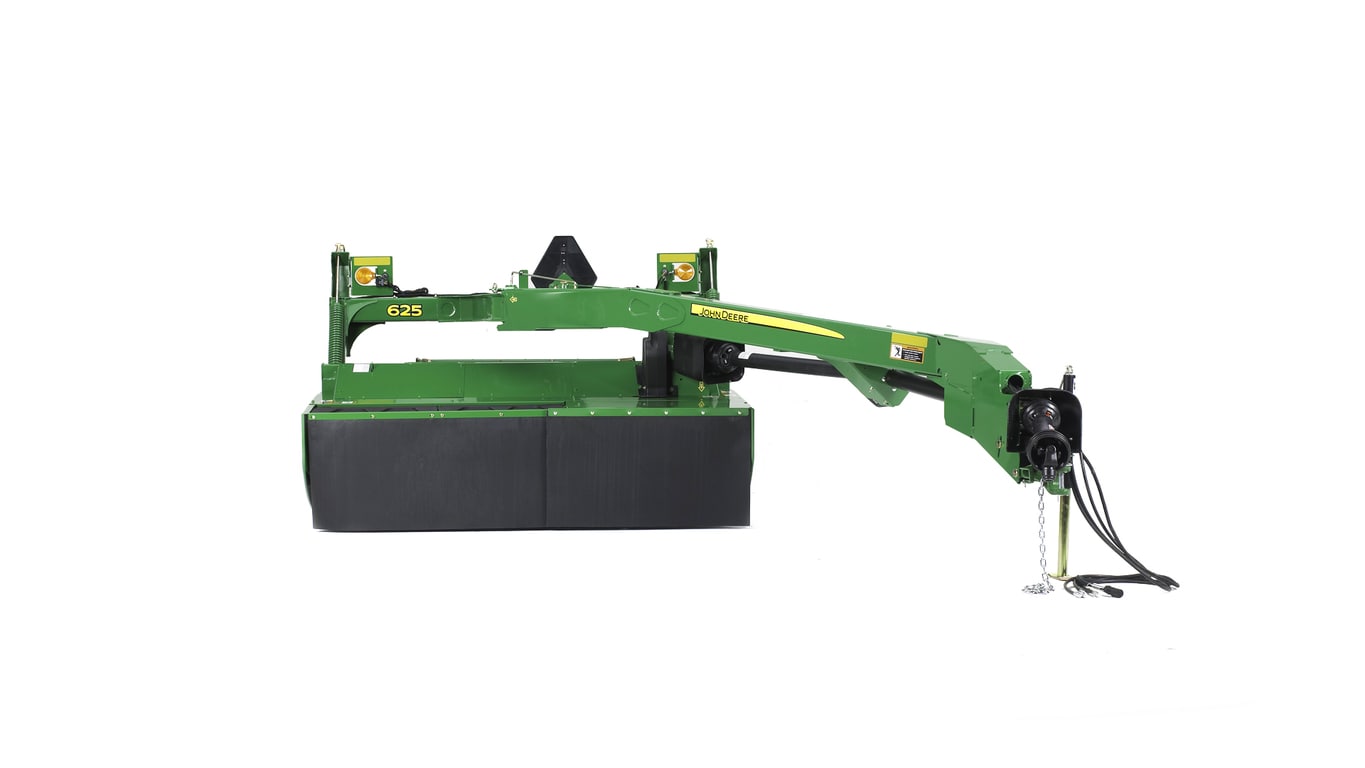

John Deere 625
  • Modular-design cutterbar
  • Easy hookup to tractor drawbar
  • Adjustable cutterbar angle
  • Flotation tires
Cutterbar - cutting width 2.4 m / 8.1 ft
Number of disks/knifes 5 / 10
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 625
  • Modular-design cutterbar
  • Easy hookup to tractor drawbar
  • Adjustable cutterbar angle
  • Flotation tires
Cutterbar - cutting width 2.4 m / 8.1 ft
Number of disks/knifes 5 / 10
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Clevis hitch

Clevis hitch Clevis hitch

The clevis hitch is in base equipment. This design attaches directly to the tractor drawbar for operator convenience. The heavy-duty clevis design provides a strong attaching point to the drawbar.



For added convenience, the hitch-pin retaining bracket can also be used to store the power take-off (PTO) shaft when the machine is not attached to the tractor.



The clevis hitch is designed to be towed by a tractor only and includes a screw jack and safety chain.



Turn limiters may be required to prevent powerline damage if the hitch point of the tractor is beyond the rear drive wheels of the tractor.

540-rpm overrunning and slip clutch 540-rpm overrunning and slip clutch

An overrunning clutch is located near the platform gearcase; this design enables free rotation of the tractor hookup to make attaching to the tractor easier.



A slip clutch is incorporated into the overrunning clutch to provide protection to the platform.


Drawbar equal-angle hitch Drawbar equal-angle hitch
Drawbar extension Drawbar extension

The drawbar equal-angle hitch is optional equipment. This hitch option includes:

  • Ball-joint hitch—to be installed on the mower-conditioner tongue
  • Tractor hookup
  • Drawbar extension—to be installed on the tractor drawbar and adjustable with one wrench

The drawbar equal-angle hitch is designed to be towed by a tractor only and includes a screw jack and safety chain.



Turn limiters may be required to prevent powerline damage if the hitch point of the tractor is beyond the rear drive wheels of the tractor.

540-rpm overrunning and slip clutch 540-rpm overrunning and slip clutch

An overrunning clutch is located near the platform gearcase. This design enables free rotation of the tractor hookup for easier attaching to the tractor.



A slip clutch is incorporated into the overrunning clutch to provide protection to the platform.


Rotary cutterbar Rotary cutterbar
#

The rotary cutterbar is designed and built by John Deere. Large oval disks with free-swinging knives are used to cut the crop.



All cutting disks are the same and are computer-designed for improved wear and cutting performance.



Cutting disks are made of high-strength, austempered steel to ensure the steel is thoroughly and evenly tempered for good wear characteristics.



The disks rotate to give a knife-tip speed of 307 km/h (191 mph) for clean cutting.



The knives are free-swinging to reduce damage if a solid object is struck, and they are reversible to double the useful life.



The knives are removed at the front of the cutterbar for convenience.

Wear caps
Wear caps Wear caps

Made of austempered, heat-treated, ductile steel for excellent wear characteristics, wear caps are installed on each end of the cutting disks (except on the end disks where crop accelerators are used) to increase the wear life of the cutting disks and knife-bolt nuts.



Wear caps are open on the end to prevent debris from packing in close to the nut, making hardware and knives easier to change.


Modular cutterbarModular cutterbar
#

John Deere's patented design cutterbar is made from individual, diagonal-cut modules.



Serviceability is easy. Modules can be removed individually while leaving the cutterbar attached to the frame.



Made of high-strength, nodular iron castings, each module consists of two idler gears and one drive gear. The large-diameter idler gears transmit power from module to module. The idler gears turn at a relatively slow speed for added durability.



The smaller-diameter pinion drive gear is used only to power the cutting disk. Power is not transmitted from one cutting disk to another except through the large-diameter idler gears.



The modules are interchangeable. Disk rotation is determined by the position of the quill (A). There is a rubber oil seal between each cutting module.


Impeller conditioner Impeller conditioner

Impeller conditioning is standard equipment on all John Deere mower-conditioners.



Proper conditioning in a wide range of crops can be achieved when the conditioner is properly adjusted.



The impeller conditioner works well in legumes, especially alfalfa and most all-grass crops. Impeller conditioners are not recommended for thick-stemmed or cane-type crops, such as sudan or sudex, or crops over 1.5 m (5 ft) tall.

How an impeller conditioner works:

1. As hay is cut by rotating knives, tines pick up the plants and carry them through the machine:

  • 33 V-shaped tines are on the 625 Mower-Conditioner; 45 V-shaped tines are on the 630 and 830 Mower-Conditioners; and 57 V-shaped tines are on the 635 and 835 Mower-Conditioners.
  • Tines are free swinging to reduce damage to the conditioner if rocks or other solid objects are struck.

2. As the plant passes through, it rubs against the conditioning hood (A) and other plants:

  • Scuffing action removes the waxy surface from the stem of the plant to allow for faster evaporation of moisture.

Impeller hood crank handle Impeller hood crank handle
Impeller hood position indicator Impeller hood position indicator
  • The conditioner hood opening is adjustable to accommodate various crop volumes.
  • The crank handle allows an infinite number of adjustments between the minimum and maximum conditioning levels. The closer the hood is to the tines, the more aggressive the conditioning.
  • A conditioner position indicator provides an easy reference point to control the degree of conditioning.
630 Mower-Coonditioner (shown with shields removed) 630 Mower-Coonditioner (shown with shields removed)

3. The speed at which the tines rotate will also affect the degree of conditioning. Two impeller speeds can be achieved by interchanging the upper sheave (A), located under the shield, and the lower sheave (B).

  • With the sheaves in the position shown, the impeller turns at 870 rpm; this is ideal for grasses.
  • If the sheaves are reversed, the impeller turns at 630 rpm; this is ideal for legume crops.

Handle for forming-shield adjustment Handle for forming-shield adjustment

Forming shields are easily adjusted to control material flow. This allows the operator to match the windrow width to harvesting requirements.

Handle for swathboard adjustment Handle for swathboard adjustment

A swathboard is in base equipment for additional control of the windrow formation (for 630 and 635 Mower-Conditioner models only).

Windrow width* is as follows:



625 78.7 cm to 149.9 cm (31 in. to 59 in.)
630 88.9 cm to 198.1 cm (35 in. to 78 in.)
635 99 cm to 238.8 cm (39 in. to 94 in.)

*Depending on crop conditions.


Gauge shoe Gauge shoe

Steel runners are located under each disk. Right-hand and left-hand adjustable gauge shoes further protect the cutterbar.



The half-moon shaped disk protectors extend past the cutterbar module to protect the cutting disk.



The disk protectors are made of heat-treated boron steel, whose material characteristics are very similar to spring steel. Resistance to bending is nearly three times greater than molded ductile iron.



Knives rotate close to the disk protectors to give a good shearing action and help to keep the cutterbar clean.

Shearhub Shearhub

Each cutting disk is attached to a driver (shearhub) on the splined pinion gear. The driver has part of its splines removed so it will shear if the cutting disk receives a severe impact.



The shear strength of the driver is designed to be just slightly less than that of the pinion gear.



Power to the disk is interrupted when the driver shears to protect the internal components of the cutterbar.



Damage is limited to exposed components and does not require disassembly of the cutting modules.

U-joint U-joint

Power is transmitted through a U-joint to the first cutting disk.



The U-joint attaches with four bolts to the driver on the first cutting disk. No special tools are required to remove the first cutting disk.



The torque for attaching bolts is the same as for attaching the disk to the driver (149.1 Nm [110 lb-ft] compared to the 339 Nm [250 lb-ft] required to attach the driver to the pinion gear).


Modular cutterbar Modular cutterbar
#

John Deere's patented design cutterbar is made from individual, diagonal-cut modules.



Serviceability is easy. Modules can be removed individually while leaving the cutterbar attached to the frame.



Made of high-strength, nodular iron castings, each module consists of two idler gears and one drive gear. The large-diameter idler gears transmit power from module to module. The idler gears turn at a relatively slow speed for added durability.



The smaller-diameter pinion drive gear is used only to power the cutting disk. Power is not transmitted from one cutting disk to another except through the large-diameter idler gears.



The modules are interchangeable. Disk rotation is determined by the position of the quill (A). There is a rubber oil seal between each cutting module.

Tough enough for a three-year cutterbar warranty
#

The durable John Deere cutterbar comes standard with a three-year warranty on all 600 and 800 Series Mower Conditioners.  This warranty covers all internal drive components, such as idler and pinion gears. Wear components, such as knives, wear caps, and shear hubs are not included in the warranty.


Specs
Power requirements
PTO speed 540 rpm
Powerline type Double-telescoping Grob spline
Tractor equipment
Hydraulic pressure required 13,790 kPa
2,000 psi
Cutterbar
Type John Deere
Cutting width 2.4 m
8.1 ft
Cutting height 2.8-9.8 cm
1.1-3.8 in.
Number of disks 5
Number of knives 10
Disk speed 2,650 rpm
Knife tip speed 307 km/h
191 mph
Disk drive Gear
Lubrication Hy-Gard oil
Oil reservoir capacity 5.7 L
6 U.S. qt
Cutterbar oil check Drain plug
Cutterbar angle Adjustable
Angle adjustment Mechanical or hydraulic
Cutterbar protection Shear hub
Adjustable gauge shoes Yes
Conditioner
Impeller Width
140 cm
55.2 in.Diameter
59.4 cm
23.4 in.Number of V-tines
33Number of speeds
TwoDrive
3-V powerband belt and sheavesConditioner hood
Infinite adjust, single hand crank
Tractor equipment
Standard hitch Clevis
Tractor hookup
Ball joint equal angle hitch Optional
Dimensions
Overall width Transport
2.5 m
8.1 ft
Overall length Conventional transport
6.2 m
20.6 ft
Weight With impeller conditioner
2,027 kg
4,470 lb
Standard tires 11L-15 standard
31x13.5L 15 optional
Tractor equipment
Optional hitch Ball joint equal angle hitch
Key Specs
Cutterbar - cutting width 2.4 m
8.1 ft
Number of disks/knifes 5
10
Dimensions
Transport width
2.5 m
8.1 ft
Impeller conditioner
Width 140 cm
55.2 in.
Diameter 59.4 cm
23.4 in.
Tines type V-tines
Number of tines 33
Number of speeds Two
Drive 3-V powerband belt and sheaves
Conditioner hood Infinite adjust, single hand crank
Dimensions
Transport length
6.2 m
20.6 ft
Weight, impeller conditioner 2,027 kg
4,470 lb
General
< <
