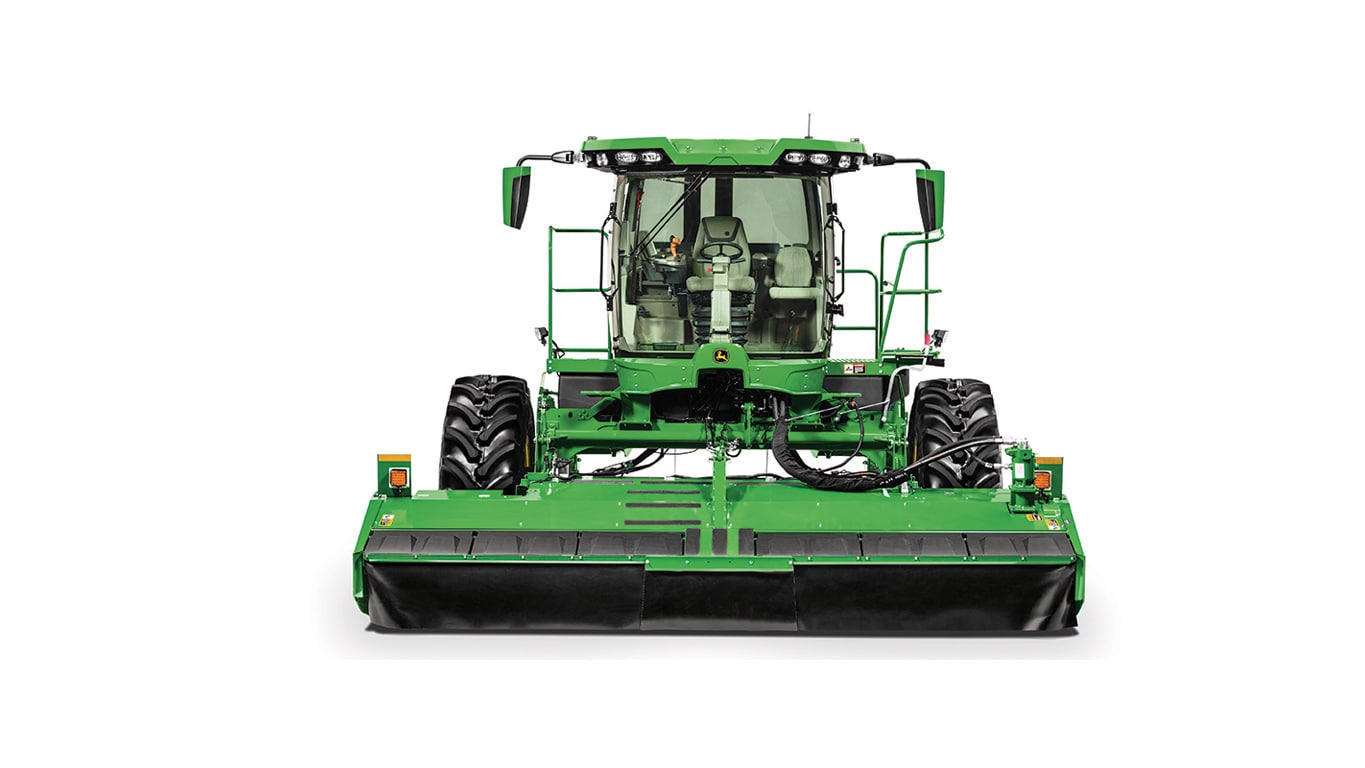

John Deere W260R

DEBUG Ind: Agriculture, Cat: Hay Forage, SubCat: Mowing, SubSubCat: Windrowers Platforms
Feature Overview
John Deere W260R
  • 260 hp
  • Integrated AutoTrac™ steering system helps maintain crop quality even at faster cutting speeds
  • JDLink™ enabled
  • TouchSet™ for in cab adjustments
  • Transport speed up to 24 mph
Engine - Model 6.8L PSS Final Tier 4
Ground drive - Type Two-speed hydrostatic
Fuel - Capacity 568 L / 150 U.S. gal. / DEF: 26.5 L / 7 U.S. gal.
Weight - Total 7348 kg / 16,200 lb
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere W260R
  • 260 hp
  • Integrated AutoTrac™ steering system helps maintain crop quality even at faster cutting speeds
  • JDLink™ enabled
  • TouchSet™ for in cab adjustments
  • Transport speed up to 24 mph
Engine - Model 6.8L PSS Final Tier 4
Ground drive - Type Two-speed hydrostatic
Fuel - Capacity 568 L / 150 U.S. gal. / DEF: 26.5 L / 7 U.S. gal.
Weight - Total 7348 kg / 16,200 lb
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Efficient cooling packages control engine and oil temperatures

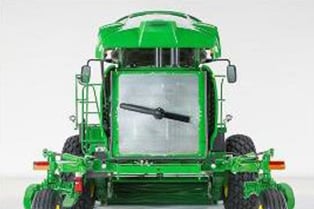

Radiator screen assembly Radiator screen assembly
#

The W200 Series features several improvements over previous designs to keep the engine operating at optimal levels and improving engine life. Design features include:

  • Increased screen area of 19 percent provides more air flow through the cooling package than previous models.
  • Smooth, rounded path inside the wand and ducts keeps debris from slowing and plugging.
  • Air lab engineered and field-tested ducting sized for air velocity and continual removal of debris.
  • Wand backer plate helps stop debris from being sucked against the screen from the cooling fan for better cleaning performance.
  • Cool air intake draws air from above chassis minimizing debris intake to cooling package.
  • Stamped metal rear screen provides easier cleaning.
  • Air-conditioner condenser and oil cooler assembly swing out for easy serviceability and cleaning
Oil cooler and air-conditioner assembly Oil cooler and air-conditioner assembly
#

The W200 Series are tested in tough conditions of over 100°F to ensure the drives stay properly cooled for maximum life and reliability. The 94.6-L (25-gal) oil reservoir supplies oil to the pumps. Oil is cooled as it passes through the combination oil cooler and air-conditioner condenser assembly at the rear of the machine.



Live monitoring of the hydraulic oil temp at the left- and right-drive motors and reservoir limit switch protects against overheating during drive motor stall or high-grade terrain conditions.

Variable speed fan drive Variable speed fan drive

The newly designed, eight-blade cooling fan incorporates a viscous drive system providing precise control over fan speed during operation. Optimization of the viscous fan speed leads to significant reductions in parasitic losses in certain operating conditions.



The fan speed is controlled by various factors such as engine coolant temperature, intake manifold air temperature, or hydraulic oil temperature. This level of control allows the fan to operate only at the required speed to keep the engine and cooling package at optimal operating temperature and thus reducing engine noise levels.

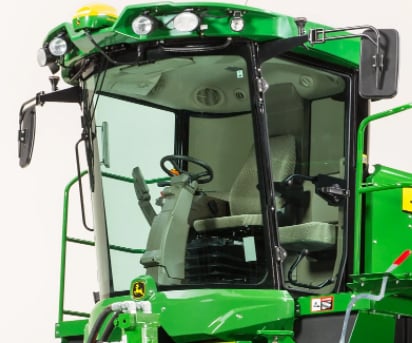

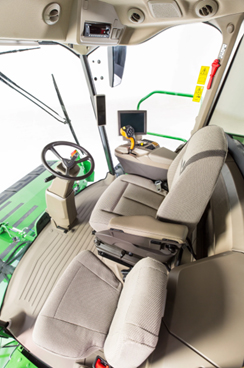

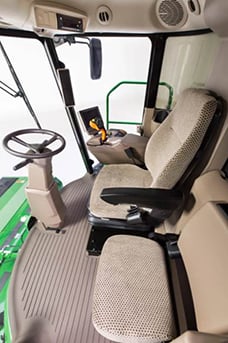

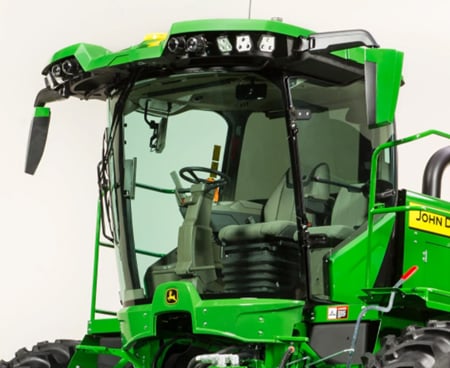

W200 Series cab W200 Series cab

The W200 Series Self-Propelled Windrowers feature the largest cab in their class, designed to maximize operator comfort and machine productivity for long harvest days. The W200 Series’ four distinct cab options provide flexibility in matching the right features for every operation.

All configurations come standard with the following:

  • JDLink© system enabled
  • AutoTrac© assisted steering system ready
  • 12 percent light-tinted rear window
  • Automatic temperature control
  • Business-band ready
  • Interior rearview mirror
  • Two halogen rear work lights

Choose from a variety of options the economy, standard, premium, and ultimate cab packages offer in terms of external lighting and mirrors, windshield wiper, sun shades, operator seat, upholstery, storage, refrigerator, radio, steering column, CommandARM© controls, and display.

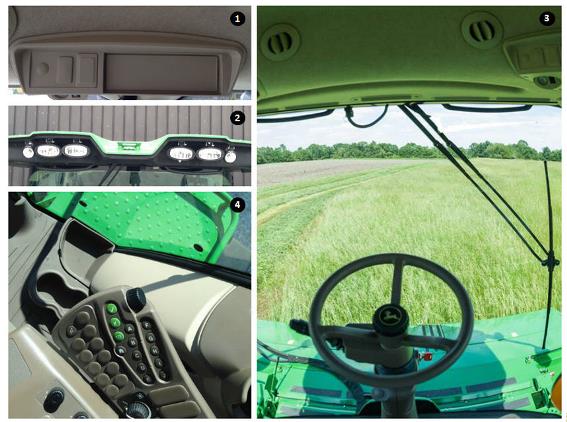

Economy cab
See below for image captions See below for image captions
  1. Radio ready
  2. Six halogen front lights
  3. Single-blade windshield wiper
  4. Premium storage, upholstery, and styling
  5. Two manual, foldable, cab-mounted exterior mirrors (not pictured)
  6. Single-tilt steering column with telescoping controls (not pictured)
  7. 18-cm (7-in.) GreenStar© 3 CommandCenter© Display (non touch) (not pictured)
  8. Standard seat with air suspension, swivel, and fore-aft attenuation (not pictured)

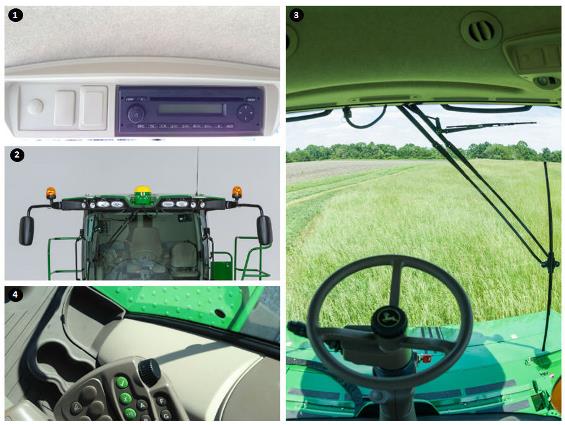

Standard cab
See below for image captions See below for image captions
Footrests Footrests
  1. Standard AM/FM/WB/CD radio
  2. Eight halogen front lights
  3. Dual-blade windshield wiper
  4. Premium storage, upholstery, and styling
  5. Two powered, foldable, cab-mounted exterior mirrors (not pictured)
  6. Dual-tilt steering column with telescoping controls (not pictured)
  7. 18-cm (7-in.) GreenStar 3 CommandCenter Display (touch) (not pictured)
  8. Premium seat with lateral attenuation and a low-frequency suspension (not pictured)
  9. Footrests

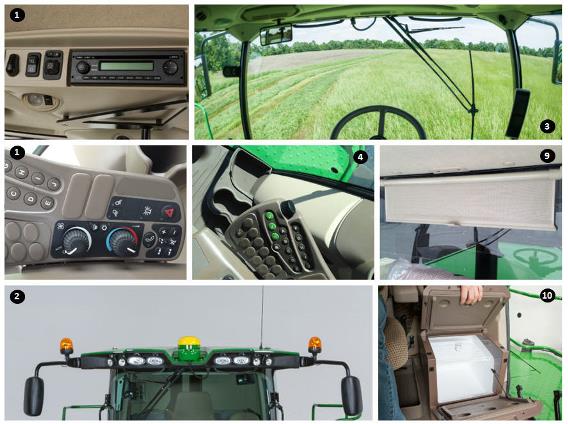

Premium cab
See below for image captions See below for image captions
Footrests Footrests
  1. Premium AM/FM/WB/XM/Bluetooth® radio with subwoofer and armrest controls
  2. Four halogen and four light-emitting diode (LED) front lights
  3. Dual-blade windshield wiper
  4. Premium storage, upholstery, and styling
  5. Two powered, foldable, cab-mounted exterior mirrors (not pictured)
  6. Dual-tilt steering column with telescoping controls (not pictured)
  7. 18-cm (7-in.) GreenStar 3 CommandCenter Display (touch) (not pictured)
  8. Premium seat with lateral attenuation and a low-frequency suspension (not pictured)
  9. Front and rear sunshade
  10. Active refrigerator
  11. Footrests

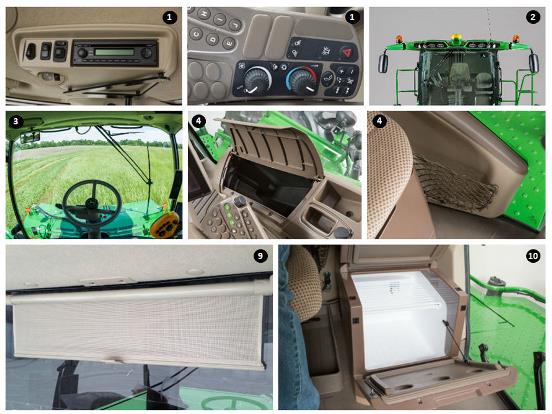

Ultimate cab
See below for image captions See below for image captions
Footrests Footrests
  1. Premium AM/FM/WB/XM/Bluetooth radio with subwoofer and armrest controls
  2. Four halogen and four LED front lights
  3. Dual-blade windshield wiper
  4. Ultimate storage, upholstery, and styling
  5. Two powered, foldable, cab-mounted exterior mirrors (not pictured)
  6. Dual-tilt steering column with telescoping controls (not pictured)
  7. 26-cm (10-in.) GreenStar 3 2630 Display on the CommandARM (not pictured)
  8. Premium seat with lateral attenuation and a low frequency suspension (not pictured)
  9. Front and rear sunshade
  10. Active refrigerator
  11. Footrests

 For a summary of all cab features, reference figure below:



Economy cab

Standard cab

Premium cab

Ultimate cab

Standard features


JDLink enabled

X

X

X

X

AutoTrac-ready

X

X

X

X

12 percent luminous transmittance (LT) tinted rear window

X

X

X

X

Automatic temperature control

X

X

X

X

Business-band ready

X

X

X

X

Interior rearview mirror

X

X

X

X

Two rear halogen work lights

X

X

X

X

Package options

Entertainment
Radio-ready

X


Standard AM/FM/WB/CD radio

X


Premium AM/FM/WB/XM/Bluetooth radio



X

X

Armrest display
18 cm-(7-in.) GreenStar 3 CommandCenter (non-touch)

X


18 cm-(7-in.) GreenStar 3 CommandCenter (touch)

X

X


26-cm (10-in.) GreenStar 3 2630 on CommandARM

X

Seat
Standard

X


Premium

X

X

X

Steering column
Single-tilt with telescoping controls

X


Dual-tilt with telescoping controls

X

X

X

Footrests
Operator footrests

X

X

X

Upholstery, storage, and styling
Premium

X

X

X


Ultimate

X

Exterior lighting
Six halogen front lights

X


Eight halogen front lights

X


Four halogen and four LED front lights

X

X

Exterior mirrors
Two manual, foldable, cab-mounted mirrors

X

X


Two powered, foldable, cab-mounted mirrors

X

X

Windshield wipers
Single blade

X


Dual blade



X

X

X

Sunshades
Front sunshade

X

X

Rear sunshade



X

X

Refrigerator
Active refrigerator

X

X





Bluetooth is a trademark of Bluetooth SIG, Incorporated.

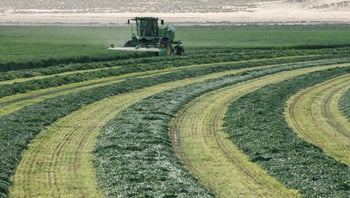

W235 Windrower with 500R Platform W235 Windrower with 500R Platform
W235 Windrower with 500D Platform W235 Windrower with 500D Platform

The W200 Series Self-Propelled Windrowers exhibit the industry’s first fully-integrated AutoTrac steering system without the use of electrohydraulic pumps or universal type add-ons. The completely redesigned steering system features the industry’s only steering design, utilizing multiple steering systems to maximize controllability.

Operators will notice the increased accuracy and controllability of integrated AutoTrac compared to the previous AutoTrac Universal system on the R450 and 4995 Windrowers or older models. Additionally, this increased accuracy and controllability allows for faster operating speeds. Integrated AutoTrac on the W200 Series can run up to 27.4 km/h (17 mph) if conditions allow.

A unique hydraulic over mechanical design controls coarse adjustments of the drive pumps and an electrohydraulic proportional rear steering system executes fine adjustments, delivering the most accurate steering system in its class.

W200 Series Self-Propelled Windrowers are John Deere AutoTrac-ready from the factory requiring only a GreenStar© 3 Display, AutoTrac activation, and StarFire© receiver to enable. Click here to learn more about required components for AutoTrac on W200 Windrowers.

AutoTrac ensures more consistency and that more of the platform is engaging crop at all times, leading to increased productivity. This adds value to the operation by providing more consistent windrows, longer operating hours, and less fatigue.

Integrated AutoTrac on the W200 Series far outperforms previous windrower options, delivering faster cutting speeds and more acres cut in less time.


Uneven cutting surfaces such as irrigation berms and pivot wheel tracks make for challenging cutting. The W200 Series Windrowers feature independent platform float suspension to improve cut quality on non-level surfaces and deliver improved performance.

Improved flotation on non-level surface

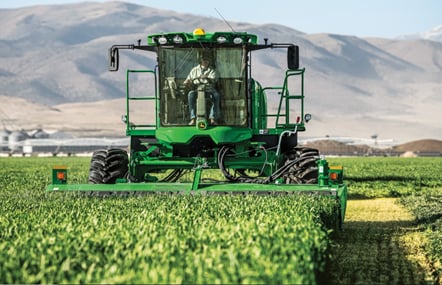

Increase cut quality on uneven cutting surfaces Increase cut quality on uneven cutting surfaces

The independent float suspension delivers improved cut quality along irrigation berms and pivot tracks.



Adjusting the float suspension independently allows the platform to ride on the raised surface with proper floatation, reducing gouging and dirt buildup on the platform. Less dirt buildup means increased uptime and less dirt in the windrow, delivering higher quality hay and forage.

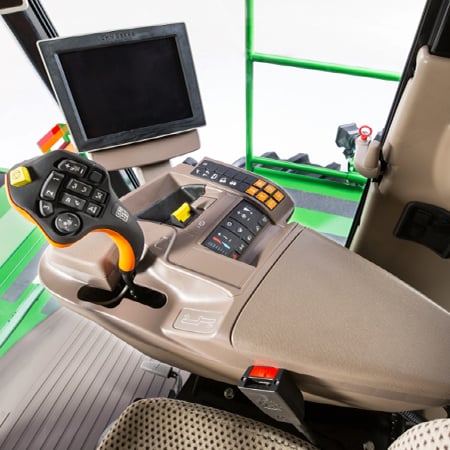

CommandARM
CommandARM CommandARM
#

The CommandARM provides the operator with unmatched control of the windrower and platform. Controls are designed and positioned to enhance operator ergonomics and are easy to locate and use. Operators will appreciate the common look and feel of these control consoles in the windrowers, which are similar to the design used in John Deere tractors and combines.



Adjustment of the CommandARM meets the needs of every operator; it adjusts at an angle, fore and aft, and up and down for precise operator comfort.



The CommandARM provides access to the most frequently-used windrower controls:

  • Field/road speed range
  • Throttle: low idle, variable idle, high idle
  • Platform engage/disengage
  • Float adjust
  • Platform speed adjustments
  • Windrow merger speed, raise, lower (if equipped)
  • Road hazard engage/disengage
  • GreenStar© 3 CommandCenter Display navigation
  • Display menu shortcut buttons
  • Climate control switches
  • Work light switches
  • Beacon light switches
  • Hazard light switch
  • Remote audio and radio tuning switches
Multifunction control lever

The controls vital to the operation of the W200 Series Windrowers are conveniently located on the multifunction control lever.

The ergonomic multifunction control lever gives the operator fingertip control of the following functions:



Rotary traction unit

Draper traction unit

A Platform float suspension adjustment, windrow merger position control Reel raise/lower for/aft adjustment
B Platform presets
  Preset 1: Full platform raise Preset 1: Platform height, reel, tilt raise position
  Preset 2: Platform lower, AutoTrac© automatic guidance engage Preset 2: Platform advanced header control (AHC) resume, AutoTrac engage
  Preset 3: Toggle between two platform speed setpoints Preset 3: Platform AHC resume
C AutoTrac resume (double tap to center track guidance line) AutoTrac resume (double tap to center track guidance line)
D Increase/decrease platform speed setpoint Increase/decrease reel speed setpoint
E Windrow merger enable/disable Reel reverse
F Platform raise/lower and tilt adjustment Platform raise/lower and tilt adjustment



Multifunction control lever Multifunction control lever
#

The multifunction control lever is also associated with the following functions:

  • Forward/reverse ground speed
  • Automatically disengages the parking brake when moved from the park position with the engine running; the parking brake is automatically engaged when placed in park
  • With platform enabled and on rotary traction units only, automatically raises platform when moved from forward to reverse position to prevent wrapping cut crop into conditioning rolls

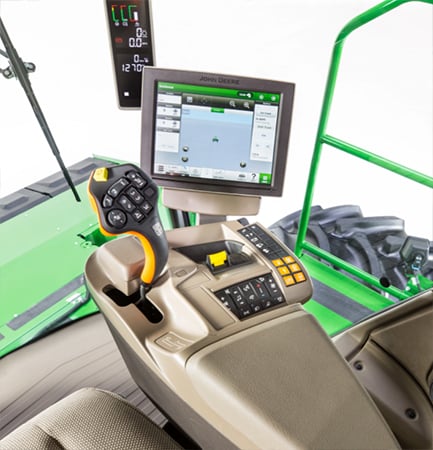

GreenStar 3 CommandCenter Display
CommandCenter Display CommandCenter Display
#

The GreenStar 3 CommandCenter Display is the central information system on all W200 Series Self-Propelled Windrowers. The GreenStar 3 CommandCenter Display provides:

  • Header and diagnostic information vital to operation
  • Adjustment of machine settings
  • Infotainment access (if equipped)
  • Interface to AMS applications and components
  • Access to more machine diagnostic information enhancing serviceability
  • Textual information on diagnostic trouble codes
  • Interface to engine after-treatment system

Based on the choice of cab package, the W200 Series come with either an 18-cm (7-in.) display available in a touchscreen or non-touchscreen configuration or a 26-cm (10-in.) touchscreen display.

W200 Series Windrower PDU W200 Series Windrower PDU
#

 Traction unit information provided by the upper region (as seen in above image):

  • (A) Stop, alarm, and information indicators
  • (B) Engine power meter
  • (C) Engine coolant temp
  • (D) Park indicator
  • (E) Turn signals
  • (F) Diesel exhaust fluid gauge
  • (G) Fuel gauge
  • (H) High beam indicator
  • (I) Exhaust filter cleaning indicator
  • (J) Engine rpm
  • (K) Ground speed



Platform specific information provided in the lower region:





Rotary platform

Draper platform

L Platform speed Platform speed
M Float pressure Reel speed
N Selected preset Selected preset
O

---

Platform height/preset height indicator

P

---

Auto reel speed active

Q

---

Auto reel position active

R

---

Auto height sensing active

S

---

Auto tilt resume active

T

---

Platform level indicator

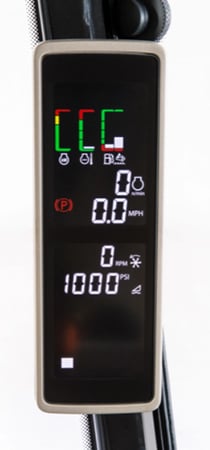

Primary display unit (PDU)

The PDU features state-of-the-art electronic instrumentation and blends well with the narrow, right-hand cab post, providing excellent visibility to the header. The PDU is divided into an upper and lower region. The upper region provides traction unit information and the lower region provides platform specific information.

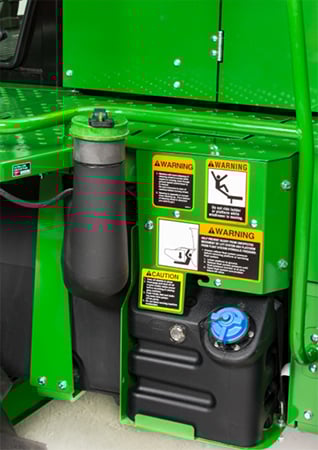

Fuel and diesel exhaust fluid fill stations Fuel and diesel exhaust fluid fill stations
#

The diesel fuel and diesel exhaust fluid (DEF) fill locations on the W200 Series Self-Propelled Windrowers provide convenient filling from ground level.

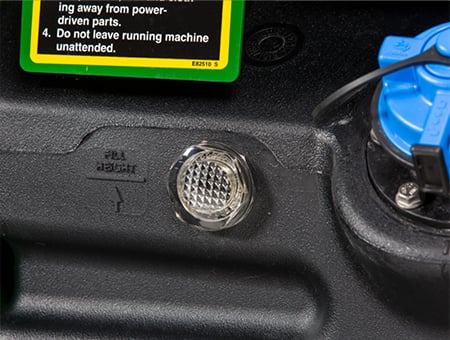

DEF sight gauge DEF sight gauge
#

The DEF fill gauge keeps operators from over filling the tank, preventing spills and damage from freezing and expansion in cold weather.

Remote battery terminal Remote battery terminal
#

A remote battery terminal, conveniently located on the left-hand platform near the fluid fill, provides power for the 12-V fuel pumps on refueling tanks.

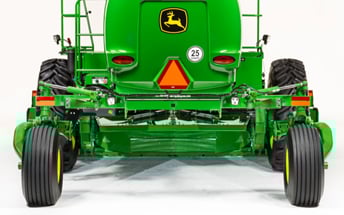

The industry-exclusive rear-wheel steer assist system provides added control to the windrowers, enabling higher cutting and transport speeds.

The IntelliAxle also has independent rear suspension, smoothing out the roughest field and road conditions, decreasing operator fatigue during long days in the field.

Independent rear suspension
Independent rear suspensionIndependent rear suspension

The independent rear suspension contributes to a better quality of ride and less fatigue for the operator. The torsion axle design absorbs the shock experienced in rough terrains, allowing faster cutting speeds.

See rear suspension in action.

Rear-wheel steer assist
Rear-wheel steer assistRear-wheel steer assist
#

The rear-wheel steer assist system allows easier, more positive handling in the field as well as on the road during transport. Improved from the 450 series design, the W200 Series feature an electro™hydraulic proportionally controlled rear steering system providing tighter steering and better control at higher speeds.

In-field working speeds up to 16 mph (25.76 km/h) and road speeds up to 21 mph (33.81 km/h) are achieved with the help of this improved axle design.

Smooth, fluent steering helps the operator to maintain complete control of the windrower during sharp turns and aggressive field conditions.  The steering sensitivity can be manually tuned by the operator using the CommandCenter© display to match operator preference and field conditions.



The steer assist system provides three modes of steering aid as the machines through the speed ranges:

  1. Inactive
    • At speeds less than 4 mph (6.44 km/h), the IntelliAxle steer assist system is not active and the front drive wheels solely control the machine steering.
  2. Field range
    • At speeds above 4 mph (6.44 km/h), the IntelliAxle steering system begins to contribute to steering the machine by hydraulically assisting the turning of the rear caster wheels. The operator can set the desired sensitivity for the field range using the CommandCenter display.
  3. Transport range
    • For transport range, the operator can set a different sensitivity independent from field range. If preferred, this gives the operator increased flexibility in tuning the steering system to desired sensitivity for higher transport speeds.

 Faster field and transport speeds

Faster field and transport speeds are achieved with the increased controllability and stability provided by the rear-wheel steer assist system and independent rear-wheel suspension. The IntelliAxle system, when coupled with the W200 Series integrated AutoTrac©Â system, delivers unmatched performance and productivity.


Constant header speed Constant header speed

Constant header speed is a feature unique to the W200 Series Self-Propelled Windrowers. It is made possible by a state-of-the-art platform hydraulic pump control system that monitors platform speed and controls the pump to maintain a required speed. Constant header speed translates to a consistent cut quality and uniform windrow formation throughout varying crop conditions and terrain changes.



As crop conditions change, causing the header to slow, or if the engine begins to load as terrain changes, the control system diverts more oil flow to the platform drive motor to maintain the header speed set point. This widens the peak power range of the header, delivering optimal power when it is needed most.



Other advantages of constant header speed include:

  • Ability to run the header at slower speeds in lighter crops, translating to less overall fuel consumption
  • Ability to run engine speed under rated rpm and maintain the set header speed
  • Improved ramp up and down speeds upon starting and stopping the platform, increasing life of header and platform drivetrain components

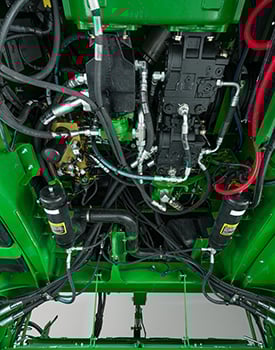

Heavy-duty drive pumps
Heavy-duty drive pumps Heavy-duty drive pumps

The W200 Series Self-Propelled Windrowers feature heavy-duty Sauer-Danfoss® drive pumps, providing flow to larger, heavy-duty, bent axis wheel drive motors for increased power and higher ground speeds in the field and transport operating range. The pumps and wheel motor housings are made of heavy-duty cast iron for quiet and reliable operation.

Increased engine horsepower, heavy-duty drive pumps, and wheel motors create:

  • More available ground torque for better management of hilly terrain
  • Easier loading of the windrower onto the trailer for transport
  • Provides increased reliability of the hydrostatic components

Servo-controls used on the hydrostatic pumps:

  • Provide excellent control with minimal operator effort for steering or speed control
  • Hydrostatic drive control lever maintains desired position when operating on hilly terrain
  • Simplifies linkages for added reliability
  • Reduces noise and vibration in the cab
Distribution gearcase Distribution gearcase

The distribution gearcase drives the rotary platform pump and wheel motor pumps. The distribution gearcase is mounted directly to the engine and has a separate oil cooler for cooling.

Heavy-duty final drives
Dual-speed wheel motor Dual-speed wheel motor
Planetary final drive Planetary final drive

The windrowers use of large, heavy-duty planetary final drives powered by larger displacement motors provide increased torque rating for dependable operation in borders, irrigation wheel tracks, and rough field conditions.



With a final drive gear ratio of 36.8-to-1, the W200 Series Self-Propelled Windrowers have plenty of pulling power for climbing hillsides, loading on trailers, or operating in adverse field conditions.



Planetary final drives can be easily disengaged for towing.



Sauer-Danfoss is a trademark of Danfoss Power Solutions Inc.


Forward visibility
Forward visibility Forward visibility

Forward visibility is unequaled with the W200 Series Windrower cab. A large, wide-angle front windshield and cab-centered operator seat provide an unobstructed panoramic perspective from side-to-side and top-to-bottom. Operators can quickly scan the work area without having to look around cab obstructions.



The cab position relative to previous 450 models has been raised slightly and moved forward, providing better visibility of the platform and cutterbar.

Side-to-side visibility
Clear view of platform Clear view of platform

Custom-shaped left- and right-windows and narrow cab cornerposts provide nearly 180 degrees of visibility scan in order to monitor all sizes of headers in the field and on the road.



The redesigned cornerpost display, swiveling CommandARM© controls with display, and the ability to flip up the third display allow increased visibility during road transport.

Tinted rear window

Standard on all cab options, the 12-percent luminous transmittance (LT) tinted rear window reduces glare and reflection on cab controls, displays, and adjacent windows and helps to regulate cab temperature.


The industry-exclusive, rear-wheel steer assist system provides added control to the windrowers, enabling higher cutting and transport speeds.

IntelliAxle steer assist also has independent rear suspension, smoothing out the roughest field and road conditions and decreasing operator fatigue during long days in the field.

Independent rear suspension
Independent rear suspension Independent rear suspension

The independent rear suspension contributes to a better quality of ride and less fatigue for the operator. The torsion axle design absorbs the shock experienced in rough terrains, allowing faster cutting speeds.

See rear suspension in action.

Rear-wheel steer assist
Rear-wheel steer assist Rear-wheel steer assist
#

The rear-wheel steer assist system allows easier, more positive handling in the field as well as on the road during transport. Improved from the 450 Series design, the W200 Series features an electrohydraulic, proportionally-controlled rear steering system that provides tighter steering and better control at higher speeds.

In-field working speeds up to 25.7 km/h (16 mph) and road speeds up to 33.8 km/h (21 mph) are achieved with the help of this improved axle design.

Smooth, fluent steering helps the operator to maintain complete control of the windrower during sharp turns and aggressive field conditions. The steering sensitivity can be manually tuned by the operator using the CommandCenter© display to match operator preference and field conditions.



The steer assist system provides three modes of steering aid as the machines travel through the speed ranges:

  1. Inactive
    • At speeds less than 6.4 km/h (4 mph), the IntelliAxle steer assist system is not active and the front drive wheels solely control the machine steering.
  2. Field range
    • At speeds above 6.4 km/h (4 mph), the IntelliAxle steering system begins to contribute to steering the machine by hydraulically assisting the turning of the rear caster wheels. The operator can set the desired sensitivity for the field range using the CommandCenter display.
  3. Transport range
    • For transport range, the operator can set a different sensitivity independent from field range. If preferred, this gives the operator increased flexibility in tuning the steering system to desired sensitivity for higher transport speeds.

Faster field and transport speeds

Faster field and transport speeds are achieved with the increased controllability and stability provided by the rear-wheel steer assist system and independent rear-wheel suspension. The IntelliAxle system, when coupled with the W200 Series integrated AutoTrac© guidance system, delivers unmatched performance and productivity.


Mid-spec windrower cab interior Mid-spec windrower cab interior

The W235R and W260R Self-Propelled Windrowers come with a premium cab that offers a comfortable and quiet working environment with plenty of visibility, storage, and features.

  • JDLink© system enabled
  • AutoTrac© assisted steering system ready
  • Rear window tint
  • Automatic temperature control
  • Two halogen rear worklights
  • Great visibility
  • Operator’s seat with mechanical suspension
  • Folding instructor seat
  • AM/FM radio with Bluetooth® wireless functionality
  • Tilt steering column
  • Cornerpost display
  • 12-V and USB power outlets
  • Sunshades
  • Halogen or light-emitting diode (LED) lights
  • Ergonomic multi-function lever
  • 4600 CommandCenter© Display

There are three different trim levels to the larger cab.





Select

Premium with air suspension

Premium with active suspension

Comfort and Convenience

Seat

  • Vision cloth
  • Mechanical controls
  • Mechanical lumbar
  • 16-degrees right and 8-degrees left swivel
  •  Vision cloth
  • Electronic controls
  • Pneumatic lumbar
  • 16-degrees right and 16-degrees left swivel
  •  Vision cloth
  • Electronic controls
  • Pneumatic lumbar
  • 16-degrees right and 16-degrees left swivel

Infotainment

  • AM/FM/WX
  • Auxiliary and Bluetooth inputs
  • Two speakers
  • AM/FM/WX
  • Auxiliary and Bluetooth inputs
  • Two speakers
  •  AM/FM/WX
  • Auxiliary and Bluetooth inputs
  • Two speakers

Interior upholstery

Upholstery without right-hand storage

Upholstery with right-hand storage

Upholstery with right-hand storage

Exterior styling

Without exterior styling panels

With exterior styling panels

With exterior styling panels

Visibility

Lighting

Halogen

LED

LED

Mirrors

Manual

Electric heated

Electric heated

Sunshades

Front

Front/rear

Front/rear

Wipers

Front

Front

Front

Seat suspension

Air (passive)

Yes

Yes

No

Active suspension

 No

No

Yes

Precision Ag Technology

Integrated StarFire© receiver

Integrated StarFire ready

With Integrated StarFire

With Integrated StarFire

Extended display

No

No

No

Bluetooth is a trademark of Bluetooth SIG, Inc.


CommandARM console in the W200M Windrowers CommandARM console in the W200M Windrowers
CommandARM console in the W200R Windrowers CommandARM console in the W200R Windrowers

The CommandARM console provides the operator with unmatched control of the windrower and platform. Controls are designed and positioned to enhance ergonomics and are easy to locate and use. Operators will appreciate the look and feel of the control console in the windrowers, which are similar to the design used in John Deere tractors and combines.



Adjustment of the CommandARM console meets the needs of every operator. It adjusts at an angle, fore/aft, and up and down for precise operator comfort.



The CommandARM console provides access to the most frequently used windrower controls:

  • Field/road speed range
  • Float adjust
  • Platform speed adjustments
  • Throttle ™ low idle, variable idle, and high idle
  • Platform engage/disengage
  • Windrower merger speed, raise, and lower (if equipped)
  • Road hazard engage/disengage
  • Gen 4 CommandCenter© display navigation
  • Display menu shortcut buttons
  • Climate control switches
  • Worklight switches
  • Beacon light switches
Multi-function lever

The controls vital to the operation of the W200 Series Windrowers are conveniently located on the multi-function lever. The ergonomic multi-function lever gives the operator fingertip control of the following functions:

  • Platform float suspension adjustment
  • Windrower merger position (if equipped)
  • Platform presets (to raise, lower, and engage AutoTrac© system)
  • Increase/decrease cutterbar or draper speed
  • Platform raise/lower
  • Platform tilt



The multi-function lever is also associated with the following functions:

  • Forward/reverse ground speed
  • Automatically disengages the park brake when moved from the park position with the engine running
    • The park brake is automatically engaged when placed in park.
  • With platform enabled and on rotary traction units only, automatically raises the platform when moved from forward to reverse position
    • This function prevents wrapping cut crop into condition rolls.

Cornerpost display on the cab post Cornerpost display on the cab post

The cornerpost display features electronic instrumentation and blends well with the narrow, right-hand cab post, providing excellent visibility to the header. The cornerpost display is divided into an upper and lower region. The upper region provides traction unit information, and the lower region provides platform-specific information.


Radiator screen assembly Radiator screen assembly

The W200 Series Self-Propelled Windrowers feature several improvements over previous designs to keep the engine operating at optimal levels and improve engine life. Design features include:

  • Increased screen area of 19 percent provides more air flow through the cooling package than previous models.
  • Smooth, rounded path inside the wand and ducts keeps debris from slowing and plugging.
  • Air lab engineered and field-tested ducting is sized for air velocity and continual removal of debris.
  • Wand backer plate helps stop debris from being sucked against the screen from the cooling fan for better cleaning performance.
  • Cool air intake draws air from above the chassis, minimizing debris intake to cooling package.
  • A stamped metal rear screen provides easier cleaning.
  • The air conditioner condenser and oil cooler assembly swing out for easy serviceability and cleaning.
Oil cooler and air conditioner assembly Oil cooler and air conditioner assembly

The W200 Series Windrowers are tested in tough conditions of over 37.8° C (100° F) to ensure that the drives stay properly cooled for maximum life and reliability. The 94.6-L (25-gal.) oil reservoir supplies oil to the pumps. Oil is cooled as it passes through the combination oil cooler and air conditioner condenser assembly at the rear of the machine.



Live monitoring of the hydraulic oil temperature at the left and right drive motors and reservoir limit switch protects against overheating during drive motor stall or high-grade terrain conditions

Variable-speed fan drive Variable-speed fan drive

The eight-blade cooling fan incorporates a viscous drive system that provides precise control over fan speed during operation. Optimization of the viscous fan speed leads to significant reductions in parasitic losses in certain operating conditions.



The fan speed is controlled by various factors such as engine coolant temperature, intake manifold air temperature, or hydraulic oil temperature. This level of control allows the fan to operate only at the required speed to keep the engine and cooling package at optimal operating temperature and reduces engine noise levels.


Fuel and diesel exhaust fluid tanks Fuel and diesel exhaust fluid tanks

The diesel fuel and diesel exhaust fluid (DEF) fill locations on the W200 Series Self-Propelled Windrowers provide convenient filling from the ground level.

DEF sight gauge DEF sight gauge

The DEF sight gauge keeps operators from overfilling the tank, preventing spills and damage from freezing and expansion in cold weather.

Remote battery terminal Remote battery terminal

A remote batter terminal, conveniently located on the left-hand platform near the fluid fill, provides power for the 12-V fuel pumps on refueling tanks.


The industry-exclusive, rear-wheel steer assist system provides added control to the windrowers, enabling higher cutting and transport speeds.



IntelliAxle steer assist also has independent rear suspension, smoothing out the roughest field and road conditions and decreasing operator fatigue during long days in the field.

Independent rear suspension
Independent rear suspension Independent rear suspension

The independent rear suspension contributes to a better quality of ride and less fatigue for the operator. The torsion axle design absorbs the shock experienced in rough terrains, allowing faster cutting speeds.

Rear-wheel steer assist
Rear-wheel steer assist Rear-wheel steer assist

The rear-wheel steer assist system allows easier, more positive handling in the field as well as on the road during transport. Improved from the 450 Series design, the W200 Series features an electrohydraulic, proportionally controlled rear steering system that provides tighter steering and better control at higher speeds.



In-field working speeds up to 27.3 km/h (17 mph) and road speeds up to 38.6 km/h (24 mph) are achieved with the help of this improved axle design.



Smooth, fluent steering helps the operator to maintain complete control of the windrower during sharp turns and aggressive field conditions. The steering sensitivity is manually tuned by the operator using the CommandCenter© display to match operator preference and field conditions.



The steer assist system provides three modes of steering aid as the machines travel through the speed ranges:



  1. Inactive
    • At speeds less than 6.4 km/h (4 mph), the IntelliAxle steer assist system is not active and the front drive wheels solely control the machine steering.
  2. Field range
    • At speeds above 6.4 km/h (4 mph), the IntelliAxle steering system begins to contribute to steering the machine by hydraulically assisting the turning of the rear caster wheels. The operator can set the desired sensitivity for the field range using the CommandCenter display.
  3. Transport range
    • For transport range, the operator can set a different sensitivity independent from field range. If preferred, this gives the operator increased flexibility in tuning the steering system to desired sensitivity for higher transport speeds.
Faster field and transport speeds

Faster field and transport speeds are achieved with the increased controllability and stability provided by the rear-wheel steer assist system and independent rear-wheel suspension. The IntelliAxle system, when coupled with the integrated AutoTrac© steering system, delivers unmatched performance and productivity.


W235M Windrower with R500 Rotary Platform W235M Windrower with R500 Rotary Platform

The W200 Series Self-Propelled Windrowers exhibit the industry’s first fully integrated AutoTrac steering system without the use of electrohydraulic pumps or universal type add-ons. The steering system features the industry’s only steering design, utilizing multiple steering systems to maximize controllability.

Additionally, this increased accuracy and controllability allows for faster operating speeds. Integrated AutoTrac on the W200 Series can run up to 27.4 km/h (17 mph) if conditions allow.

A unique hydraulic over mechanical design controls coarse adjustments of the drive pumps, and an electrohydraulic proportional rear steering system executes fine adjustments, delivering the most accurate steering system in its class.

W200 Series Self-Propelled Windrowers are AutoTrac ready from the factory and require only a display, AutoTrac activation, and StarFire© receiver to enable. Click here to learn more about required components for AutoTrac on W200 Windrowers.

AutoTrac ensures more consistency and that more of the platform engages the crop at all times, leading to increased productivity. This adds value to the operation by providing more consistent windrows, longer operating hours, and less fatigue.

Integrated AutoTrac on the W200 Series far outperforms previous windrower options, delivering faster cutting speeds and more acres cut in less time.

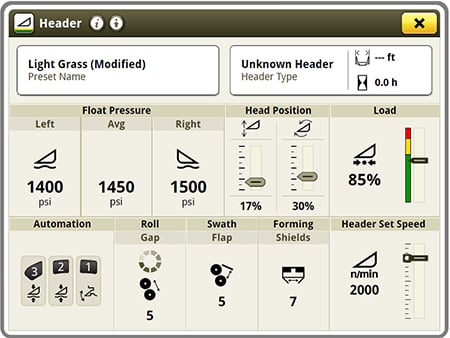

Adjustment to the rotary header can be made from the cab. You can adjust the formation shields, roll gap, and swath flap on the go.

Windrow width adjustments

To perform windrow width adjustments previously, you had to crawl under the machine to loosen and adjust the forming shields.

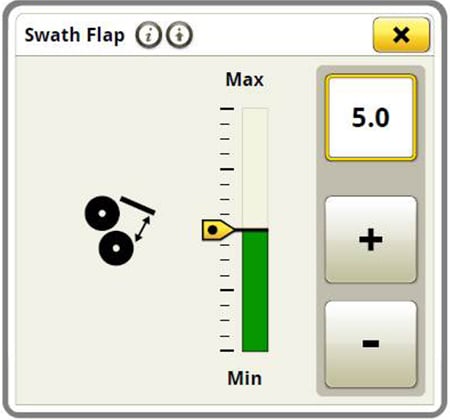

Adjust the swath flap from the display Adjust the swath flap from the display

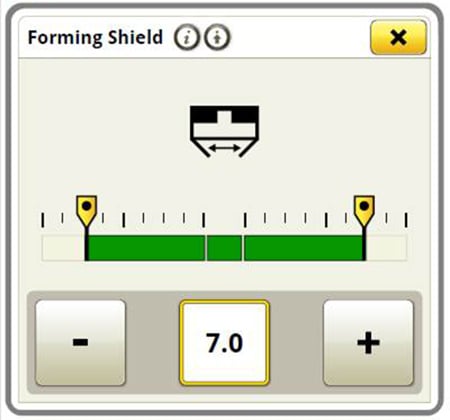

Adjust the forming shield from the display Adjust the forming shield from the display
Roll gap adjustments Roll gap adjustments
Roll gap adjustments Roll gap adjustments

With TouchSet, the operator can select and adjust the swath flap, roll gap, and forming shield settings easily right from the display.

Preset adjustments

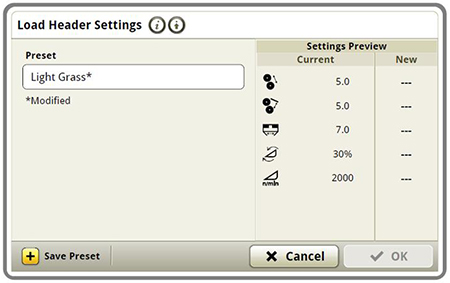

Customize a preset for a field or crop Customize a preset for a field or crop

TouchSet comes with a preset library of different crops to select while cutting. The crop selection automatically adjusts the header for that particular crop.



You can also customize your own preset for a particular field and/or cutting. This allows you to quickly adjust the swath flap, forming shields, head tilt, and cutterbar speed.


M-spec cab
M-spec windrower cab interior M-spec windrower cab interior
M-spec windrower cab exterior M-spec windrower cab exterior

The W200M and W235M Self-Propelled Windrowers come with a cab that offers a comfortable and quiet working environment with plenty of visibility, storage, and features.

  • JDLink© system enabled
  • AutoTrac© assisted steering system ready
  • Rear window tint
  • Automatic temperature control - R-spec only
  • Two halogen rear worklights
  • Great visibility
  • Operator’s seat with mechanical suspension
  • Folding instructor seat
  • AM/FM radio with Bluetooth® wireless functionality
  • Tilt steering column
  • Cornerpost display
  • Two 12-V power outlets
  • Sun visor
  • Halogen lights
  • Ergonomic multi-function lever
  • 4200 CommandCenter© Display
R-spec cab
R-spec windrower cab interior R-spec windrower cab interior
R-spec windrower cab exterior R-spec windrower cab exterior

The R-spec cab comes in three different trim levels:

  • Select
  • Premium with air suspension seat
  • Premium with active seat





Select

Premium with air suspension

Premium with active suspension

Comfort and Convenience

Seat

  • Vision cloth
  • Mechanical controls
  • Mechanical lumbar
  • 16-degrees right and 8-degrees left swivel
  •  Vision cloth
  • Electronic controls
  • Pneumatic lumbar
  • 16-degrees right and 16-degrees left swivel
  •  Vision cloth
  • Electronic controls
  • Pneumatic lumbar
  • 16-degrees right and 16-degrees left swivel

Infotainment

  • AM/FM/WX
  • Auxiliary and Bluetooth inputs
  • Two speakers
  • AM/FM/WX
  • Auxiliary and Bluetooth inputs
  • Two speakers
  •  AM/FM/WX
  • Auxiliary and Bluetooth inputs
  • Two speakers

Interior upholstery

Upholstery without right-hand storage

Upholstery with right-hand storage

Upholstery with right-hand storage

Exterior styling

Without exterior styling panels

With exterior styling panels

With exterior styling panels

Visibility

Lighting

Halogen

LED

LED

Mirrors

Manual

Electric heated

Electric heated

Sunshades

Front

Front/rear

Front/rear

Wipers

Front

Front

Front

Seat suspension

Air (passive)

Yes

Yes

No

Active suspension

 No

No

Yes

Precision Ag Technology

Integrated StarFire© receiver

Integrated StarFire ready

With Integrated StarFire

With Integrated StarFire

Extended display

No

No

No

Bluetooth is a trademark of Bluetooth SIG, Inc.


Specs
Key Specs
Engine - Model 6.8L PSS Final Tier 4
Engine
Horsepower At 2,400 rpm: 193.9 kW
260 hp
Key Specs
Ground drive - Type Two-speed hydrostatic
Fuel - Capacity 568 L
150 U.S. gal.
DEF: 26.5 L
7 U.S. gal.
Speeds
Low range 24.1 km/h
15 mph
High range 2 speed / Mid range 3 speed 33.8 km/h
21 mph
Suspension
Vehicle Large drive tires and suspended rear axle in base
Cab
Seat Air suspension, swivel fore-aft attenuation
Dimensions (with platform installed)
Under frame clearance 1,120 mm
44 in.
Key Specs
Weight - Total 7348 kg
16,200 lb
Engine
Model 6.8L PSS Final Tier 4
Exhaust direction Vertical
Engine displacement 414 cu in.
6.8 L
Engine speeds Low idle
900 rpm
Variable idle
Electronic adjustable from 1,700 to 2,450 rpm
High idle (no load)
2,450 rpm
Rated speed
2,400 rpm
Oil crankcase capacity (with filter) 31.4 L
33.2 U.S. qt
Cooling system 49.2 L
52 U.S. qt
Bearings
Hydraulic platform drive
Number of pumps (Rotary/Auger) One
Number of motors (Rotary/Auger) One
Pump displacement 89 cm3
5.43 cu in.
Motor displacemen Per revolution: 75.4 cm3
Per revolution: 4.6 cu in.
Final drives
Type Planetary double reduction heavy duty
Ratio 36.8:1
Electrical system
Alternator 240 amp
Battery Heavy-duty 12 V
Tires
Drive wheel standard 520/80R38 radial bar
Drive wheel option Bias button, 480/80R38 149A8 R1 radial bar (required on 994-4m platform)
Caster wheels 14Lx16.1 8-ply ribbed
Suspension
Cab Large drive tires for smooth ride
Cab
Construction Uni-body, welded
Glass 7.08 m2
76.2 sq ft
Steering column Telescoping
Instructional seat Standard
Windshield wiper Single-blade or dual-blade
Air conditioner Refrigerant
R134a
Capacity
2.7 kg
6 lb
Filters
Dry type, reusable
Compressor
Rotary
Overload protection
Low-pressure and high-pressure cutoff
Standard with automatic temperature control
Lights
Front Standard: six or eight halogen
Optional: four halogen, four HID
Side Four optional
Back Two halogen standard
HID Optional four front
Dimensions (with platform installed)
Overall length without platform 5,900 mm
225.5 in.
Overall height 3,760 mm
148 in.
Wheelbase 3,400 mm
142 in.
Tread width 3,710 mm
146 in.
Weight
Front axle 4732 kg
10,432 lb
Rear axle 2616 kg
5768 lb
Total 7348 kg
16,200 lb
Engine
No. of cylinders Six
Accessories and Attachments
Engine
#

Developed with DEF compatible materials for long life and trouble-free operation, this dispensing package comes fully assembled to plug in and go. The suction-line coupler will connect directly with tanks and totes using the closed-system format that keeps contaminants out and machinery clean. The totes feature the closed-system dispensing coupler installed, allowing the transfer package to lock down and start dispensing in minutes.

Features/benefits
  • Kit includes a closed system dispense coupler valve, dip tube, and install tool for a 208-L (55-gal.) drum
  • 12-V DC model contains two battery clips and an in-line fuse.
  • 110-V AC model has a three-prong grounded plug
  • 1.2-m (4-ft) suction hose with closed-system coupler
  • 6.1-m (20-ft) discharge hose
  • Auto shutoff stainless-steel nozzle
  • Integrated storage hook on nozzle for secure placement between use
  • Closed-system dispense coupler connects with totes and tanks
  • Built-in motor with internal overheating protection; a 77⁰C (170⁰F) thermal overload switch with automatic reset
  • Self-priming pump delivers 7-10 gpm (26-37 L/min) for quick filling times
  • 5-year pump warranty
Handling and storage

This unit must be dedicated for use only with DEF. Contamination by any other product will damage the emissions devices on the vehicles and require expensive repairs. Do not allow DEF to freeze in the transfer equipment. Make sure to run the pump dry and store in temperatures above freezing to eliminate cracking of the equipment.


#

Developed with DEF compatible materials for long life and trouble-free operation, this dispensing package comes fully assembled to plug in and go. The suction-line coupler will connect directly with tanks and totes using the closed-system format that keeps contaminants out and machinery clean. The totes feature the closed-system dispensing coupler installed, allowing the transfer package to lock down and start dispensing in minutes.

Features/benefits
  • Kit includes a closed system dispense coupler valve, dip tube, and install tool for a 208-L (55-gal.) drum
  • 12-V DC model contains two battery clips and an in-line fuse.
  • 110-V AC model has a three-prong grounded plug
  • 1.2-m (4-ft) suction hose with closed-system coupler
  • 6.1-m (20-ft) discharge hose
  • Auto shutoff stainless-steel nozzle
  • Integrated storage hook on nozzle for secure placement between use
  • Closed-system dispense coupler connects with totes and tanks
  • Built-in motor with internal overheating protection; a 77⁰C (170⁰F) thermal overload switch with automatic reset
  • Self-priming pump delivers 7-10 gpm (26-37 L/min) for quick filling times
  • 5-year pump warranty
Handling and storage

This unit must be dedicated for use only with DEF. Contamination by any other product will damage the emissions devices on the vehicles and require expensive repairs. Do not allow DEF to freeze in the transfer equipment. Make sure to run the pump dry and store in temperatures above freezing to eliminate cracking of the equipment.


2.5 gal jug of John Deere Diesel Exhaust Fluid - SWDEF025


20gal Portable Dispensing Unit with lockable, hinged lid - SWDEFPDU20T


275gal tote of John Deere Diesel Exhaust Fluid - SWDEF275


330gal tote of John Deere Diesel Exhaust Fluid - SWDEF330


55gal drum of John Deere Diesel Exhaust Fluid - SWDEF055


60gal Portable Dispensing Unit with lockable, hinged lid - SWDEFPDU60T


Miscellaneous

Fire Extinguisher Mounting Bracket - AH170596


Tool Box - BE32484


*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.

Submitting Form...
Submitting Form...


Belle Glade

2017 Northwest 16th Street
Belle Glade, FL 33430
561-996-6531

Map & Hours
Boynton Beach

1335 Neptune Dr
Boynton Beach, FL 33426
561-732-8905

Map & Hours
Brooksville

22255 Cortez Blvd
Brooksville, FL 34601
352-573-2720

Map & Hours
Fort Myers

9501 FL-82
Fort Myers, FL 33905
239-332-5045

Map & Hours
Fort Pierce

6150 Orange Ave
Fort Pierce, FL 34947
772-461-5568

Map & Hours
Homestead

127 N Krome Ave
Florida City, FL 33034
305-247-9886

Map & Hours
Immokalee

775 E Main St
Immokalee, FL 34142
239-657-4413

Map & Hours
Largo

6785 114th Ave
Largo, FL 33773
727-828-8200

Map & Hours
Leesburg

1800 US-441
Leesburg, FL 34748
352-315-1016

Map & Hours
Loxahatchee

13295 Southern Blvd
Loxahatchee, FL 33470
561-784-4000

Map & Hours
Naples

1945 Pine Ridge Rd
Naples, FL 34109
239-260-8800

Map & Hours
North Port

2825 Commerce Parkway
North Port, FL 34289
941-924-9709

Map & Hours
Odessa

2240 Success Dr
Odessa, FL 33556
727-842-8618

Map & Hours
Okeechobee

820 US-98
Okeechobee, FL 34972
863-763-1921

Map & Hours
Orlando

12049 S Orange Blossom Trail
Orlando, FL 32837
407-240-1023

Map & Hours
Palmetto

906 US-301
Palmetto, FL 34221
941-722-3281

Map & Hours
Plant City

2805 West, FL-60
Plant City, FL 33567
813-737-1660

Map & Hours
St Cloud

117 13th St
St Cloud, FL 34769
321-209-4888

Map & Hours
©2024 EFE, Inc. All Rights Reserved | Designed In-House by Everglades Equipment Group
